Glass in building - Thermally toughened soda lime silicate channel shaped safety glass - Part 1: Definition and description

This European Standard specifies tolerances, flatness of web and flanges, flange deviation, edgework, fragmentation and physical and mechanical characteristics of monolithic thermally toughened soda lime silicate channel shaped safety glass for use in buildings.
Other requirements, not specified in this document, can apply to thermally toughened soda lime silicate channel shaped safety glass, which undergoes an additional treatment, e.g. coating. The additional requirements are specified in the appropriate product standard EN 15683-2. Thermally toughened soda lime silicate channel shaped safety glass, in this case, does not lose its mechanical or thermal characteristics.

Glas im Bauwesen - Thermisch vorgespanntes Kalknatron-Profilbau-Sicherheitsglas - Teil 1: Definition und Beschreibung

Diese Europäische Norm legt Toleranzen, Ebenheit von Steg und Flanschen, Flanschabweichung, Kanten-bearbeitung, Bruchverhalten sowie physikalische und mechanische Eigenschaften von einscheibigem, thermisch vorgespannten Kalknatron-Profilbau-Sicherheitsglas für den Gebrauch im Bauwesen fest.
An thermisch vorgespanntes Kalknatron-Profilbau-Sicherheitsglas können, wenn es weiterverarbeitet, z. B. beschichtet wird, andere Anforderungen gestellt werden, die in diesem Dokument nicht beschrieben sind. Die zusätzlichen Anforderungen sind in der entsprechenden Produktnorm EN 15683 2 festgelegt. In diesem Fall wird thermisch vorgespanntes Kalknatron-Profilbau-Sicherheitsglas seine mechanischen oder thermischen Eigenschaften nicht verlieren.

Verre dans la construction - Verre de silicate sodo-calcique profilé de sécurité trempé thermiquement - Partie 1 : Définition et description

La présente Norme européenne spécifie les tolérances, la planéité de la base et des ailes, l'écart de l'aile, la finition des chants, la fragmentation et les caractéristiques physiques et mécaniques du verre monolithique de silicate sodo-calcique profilé de sécurité trempé thermiquement pour l'utilisation dans la construction.
D'autres exigences, non spécifiées dans le présent document, peuvent s'appliquer au verre de silicate sodo-calcique profilé de sécurité trempé thermiquement, qui subit un traitement supplémentaire, par exemple une couche. Les exigences additionnelles sont spécifiées dans la norme de produit correspondante, EN 15682-2. Dans ce cas, le verre de silicate sodo-calcique profilé de sécurité trempé thermiquement ne perd pas ses caractéristiques mécaniques ou thermiques.

Steklo v gradbeništvu - Toplotno kaljeno natrij-kalcijevo silikatno utorjeno varnostno steklo - 1. del: Definicije in opis

Ta evropski standard določa toleranco, ploskost rebra in prirobnic, odstopanje prirobnic, obdelavo robov, drobljenje ter fizične in mehanske lastnosti monolitnega toplotno kaljenega natrij-kalcijevega silikatnega utorjenega varnostnega stekla, ki se uporablja v gradbeništvu. Druge zahteve, ki niso navedene v tem dokumentu, se lahko uporabljajo za toplotno kaljeno natrij-kalcijevo silikatno utorjeno varnostno steklo, ki se ga dodatno obdela, npr. z nanosi. Dodatne zahteve so določene v ustreznem standardu za izdelek EN 15683-2. Toplotno kaljeno natrij-kalcijevo silikatno utorjeno varnostno steklo v tem primeru ne izgubi mehanskih ali toplotnih lastnosti.

General Information

Status
Withdrawn
Publication Date
30-Oct-2013
Withdrawal Date
30-Jan-2014
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Start Date
04-Mar-2019
Completion Date
04-Mar-2019

Buy Standard

Standard
EN 15683-1:2013
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
FprEN 15683-1:2013
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steklo v gradbeništvu - Toplotno kaljeno natrij-kalcijevo silikatno utorjeno varnostno steklo - 1. del: Definicije in opisGlas im Bauwesen - Thermisch vorgespanntes Kalknatron-Profilbau-Sicherheitsglas - Teil 1: Definition und BeschreibungVerre dans la construction - Verre de silicate sodo-calcique profilé de sécurité trempé thermiquement - Partie 1 : Définition et descriptionGlass in building - Thermally toughened soda lime silicate channel shaped safety glass - Part 1: Definition and description81.040.20Steklo v gradbeništvuGlass in buildingICS:Ta slovenski standard je istoveten z:EN 15683-1:2013SIST EN 15683-1:2013en,fr,de01-november-2013SIST EN 15683-1:2013SLOVENSKI

STANDARD
SIST EN 15683-1:2013
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15683-1
July 2013 ICS 81.040.20 English Version

Glass in building - Thermally toughened soda lime silicate channel shaped safety glass - Part 1: Definition and description Verre dans la construction - Verre de silicate sodo-calcique profilé de sécurité trempé thermiquement - Partie 1 : Définition et description

Glas im Bauwesen - Thermisch vorgespanntes Kalknatron-Profilbau-Sicherheitsglas - Teil 1: Definition und Beschreibung This European Standard was approved by CEN on 30 May 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15683-1:2013: ESIST EN 15683-1:2013

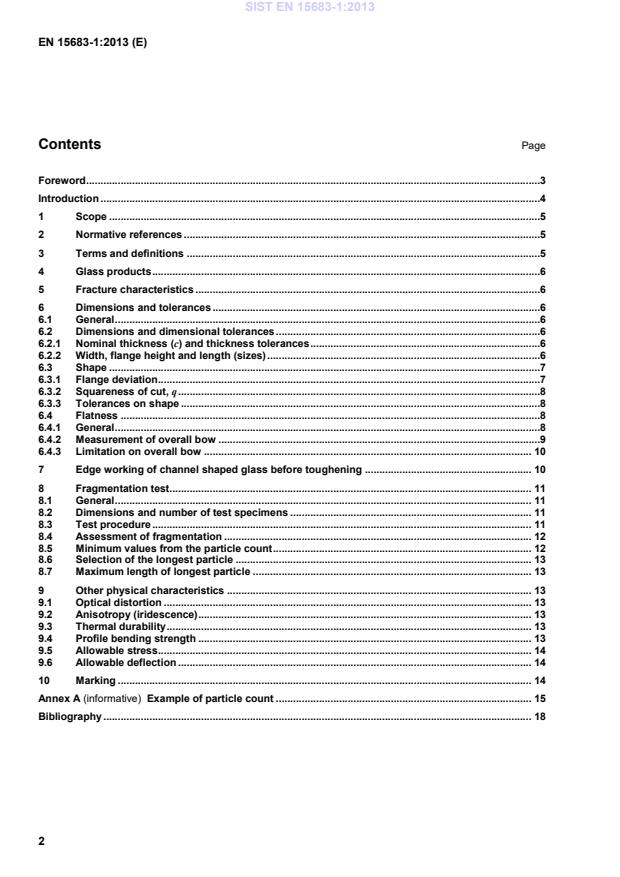

EN 15683-1:2013 (E) 2 Contents Page Foreword ..............................................................................................................................................................3 Introduction .........................................................................................................................................................4 1 Scope ......................................................................................................................................................5 2 Normative references ............................................................................................................................5 3 Terms and definitions ...........................................................................................................................5 4 Glass products .......................................................................................................................................6 5 Fracture characteristics ........................................................................................................................6 6 Dimensions and tolerances ..................................................................................................................6 6.1 General ....................................................................................................................................................6 6.2 Dimensions and dimensional tolerances ............................................................................................6 6.2.1 Nominal thickness (c) and thickness tolerances ................................................................................6 6.2.2 Width, flange height and length (sizes) ...............................................................................................6 6.3 Shape ......................................................................................................................................................7 6.3.1 Flange deviation.....................................................................................................................................7 6.3.2 Squareness of cut, q ..............................................................................................................................8 6.3.3 Tolerances on shape .............................................................................................................................8 6.4 Flatness ..................................................................................................................................................8 6.4.1 General ....................................................................................................................................................8 6.4.2 Measurement of overall bow ................................................................................................................9 6.4.3 Limitation on overall bow .................................................................................................................. 10 7 Edge working of channel shaped glass before toughening .......................................................... 10 8 Fragmentation test.............................................................................................................................. 11 8.1 General ................................................................................................................................................. 11 8.2 Dimensions and number of test specimens .................................................................................... 11 8.3 Test procedure .................................................................................................................................... 11 8.4 Assessment of fragmentation ........................................................................................................... 12 8.5 Minimum values from the particle count .......................................................................................... 12 8.6 Selection of the longest particle ....................................................................................................... 13 8.7 Maximum length of longest particle ................................................................................................. 13 9 Other physical characteristics .......................................................................................................... 13 9.1 Optical distortion ................................................................................................................................ 13 9.2 Anisotropy (iridescence) .................................................................................................................... 13 9.3 Thermal durability ............................................................................................................................... 13 9.4 Profile bending strength .................................................................................................................... 13 9.5 Allowable stress.................................................................................................................................. 14 9.6 Allowable deflection ........................................................................................................................... 14 10 Marking ................................................................................................................................................ 14 Annex A (informative)

Example of particle count ......................................................................................... 15 Bibliography ..................................................................................................................................................... 18

SIST EN 15683-1:2013

EN 15683-1:2013 (E) 3 Foreword This document (EN 15683-1:2013) has been prepared by Technical Committee CEN/TC 129 “Glass in Building”, the secretariat of which is held by IBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2014, and conflicting national standards shall be withdrawn at the latest by January 2014. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. EN 15683 is composed of the following parts:  EN 15683-1, Glass in building — Thermally toughened soda lime silicate channel shaped safety glass — Part 1: Definition and description  EN 15683-2, Glass in building — Thermally toughened soda lime silicate channel shaped safety glass — Part 2: Evaluation of conformity/Product standard According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 15683-1:2013

EN 15683-1:2013 (E) 4 Introduction Thermally toughened soda lime silicate channel shaped safety glass has a safer breakage behaviour when compared with annealed glass. SIST EN 15683-1:2013

EN 15683-1:2013 (E) 5 1 Scope This European Standard specifies tolerances, flatness of web and flanges, flange deviation, edgework, fragmentation and physical and mechanical characteristics of monolithic thermally toughened soda lime silicate channel shaped safety glass for use in buildings. Other requirements, not specified in this document, can apply to thermally toughened soda lime silicate channel shaped safety glass, which undergoes an additional treatment, e.g. coating. The additional requirements are specified in the appropriate product standard EN 15683-2. Thermally toughened soda lime silicate channel shaped safety glass, in this case, does not lose its mechanical or thermal characteristics. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 572-1, Glass in building — Basic soda lime silicate glass products — Part 1: Definitions and general physical and mechanical properties EN 572-7:2012, Glass in building — Basic soda lime silicate glass products — Part 7: Wired or unwired channel shaped glass EN 1288-4, Glass in building — Determination of the bending strength of glass — Part 4: Testing of channel shaped glass 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 thermally toughened soda lime silicate channel shaped safety glass glass within which a permanent surface compressive stress has been induced by a controlled heating and cooling process in order to give it greatly increased resistance to mechanical and thermal stress and prescribed fragmentation characteristics Note 1 to entry: The mechanical properties, i.e. thermal durability and profile bending strength, and safety properties, i.e. fragmentation characteristics, are generated by the level of surface compression. These properties do not depend on the size of the channel shaped glass. 3.2 enamelled thermally toughened soda lime silicate channel shaped safety glass thermally toughened soda lime silicate channel shaped safety glass which has a ceramic frit fired into the surface during the toughening process becoming an integral part of the glass after toughening

3.3 horizontal toughening process in which the glass is supported on horizontal rollers SIST EN 15683-1:2013

EN 15683-1:2013 (E) 6 4 Glass products Thermally toughened soda lime silicate channel shaped safety glass shall be made from a monolithic glass generally corresponding to the following standards:  basic soda lime silicate glass products – unwired channel shaped glass according to EN 572-1 and EN 572-7;  this may also be coated in accordance with EN 1096-1. 5 Fracture characteristics In the event of breakage, thermally toughened soda lime silicate chan

...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steklo v gradbeništvu - Toplotno kaljeno natrij-kalcijevo silikatno utorjeno varnostno steklo - 1. del: Definicije in opisGlas im Bauwesen - Thermisch vorgespanntes Kalknatron-Profilbau-Sicherheitsglas - Teil 1: Definition und BeschreibungVerre dans la construction - Verre de silicate sodo-calcique profilé de sécurité trempé thermiquement - Partie 1 : Définition et descriptionGlass in building - Thermally toughened soda lime silicate channel shaped safety glass - Part 1: Definition and description81.040.20Steklo v gradbeništvuGlass in buildingICS:Ta slovenski standard je istoveten z:FprEN 15683-1kSIST FprEN 15683-1:2013en,fr,de01-februar-2013kSIST FprEN 15683-1:2013SLOVENSKI

STANDARD
kSIST FprEN 15683-1:2013
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
FINAL DRAFT
FprEN 15683-1
November 2012 ICS 81.040.20 English Version

Glass in building - Thermally toughened soda lime silicate channel shaped safety glass - Part 1: Definition and description Verre dans la construction - Verre de silicate sodo-calcique profilé de sécurité trempé thermiquement - Partie 1 : Définition et description

Glas im Bauwesen - Thermisch vorgespanntes Kalknatron-Profilbau-Sicherheitsglas - Teil 1: Definition und Beschreibung This draft European Standard is submitted to CEN members for unique acceptance procedure. It has been drawn up by the Technical Committee CEN/TC 129.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. FprEN 15683-1:2012: EkSIST FprEN 15683-1:2013

FprEN 15683-1:2012 (E) 2 Contents Page Foreword ..............................................................................................................................................................3Introduction .........................................................................................................................................................41 Scope ......................................................................................................................................................52 Normative references ............................................................................................................................53 Terms and definitions ...........................................................................................................................54 Glass products .......................................................................................................................................65 Fracture characteristics ........................................................................................................................66 Dimensions and tolerances ..................................................................................................................66.1 General ....................................................................................................................................................66.2 Dimensions and dimensional tolerances ............................................................................................66.2.1 Nominal thickness (c) and thickness tolerances ................................................................................66.2.2 Width, flange height and length (sizes) ...............................................................................................66.3 Shape ......................................................................................................................................................76.3.1 Flange deviation.....................................................................................................................................76.3.2 Squareness of cut, q ..............................................................................................................................86.3.3 Tolerances on shape .............................................................................................................................86.4 Flatness ..................................................................................................................................................86.4.1 General ....................................................................................................................................................86.4.2 Measurement of overall bow ................................................................................................................96.4.3 Limitation on overall bow .................................................................................................................. 107 Edge working of channel shaped glass before toughening .......................................................... 108 Fragmentation test.............................................................................................................................. 118.1 General ................................................................................................................................................. 118.2 Dimensions and number of test specimens .................................................................................... 118.3 Test procedure .................................................................................................................................... 118.4 Assessment of fragmentation ........................................................................................................... 128.5 Minimum values from the particle count .......................................................................................... 128.6 Selection of the longest particle ....................................................................................................... 138.7 Maximum length of longest particle ................................................................................................. 139 Other physical characteristics .......................................................................................................... 139.1 Optical distortion ................................................................................................................................ 139.2 Anisotropy (iridescence) .................................................................................................................... 139.3 Thermal durability ............................................................................................................................... 139.4 Mechanical strength ........................................................................................................................... 139.5 Allowable stress.................................................................................................................................. 149.6 Allowable deflection ........................................................................................................................... 1410 Marking ................................................................................................................................................ 14Annex A (informative)

Example of particle count ......................................................................................... 15Bibliography ..................................................................................................................................................... 18 kSIST FprEN 15683-1:2013

FprEN 15683-1:2012 (E) 3 Foreword This document (FprEN 15683-1:2012) has been prepared by Technical Committee CEN/TC 129 “Glass in building”, the secretariat of which is held by NBN. This document is currently submitted to the Unique Acceptance Procedure. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. EN 15863 is composed of the following parts:  FprEN 15683-1, Glass in building — Thermally toughened soda lime silicate channel shaped safety glass — Part 1: Definition and description;  FprEN 15683-2, Glass in building — Thermally toughened soda lime silicate channel shaped safety glass — Part 2: Evaluation of conformity/Product standard. kSIST FprEN 15683-1:2013

FprEN 15683-1:2012 (E) 4 Introduction Thermally toughened soda lime silicate channel shaped safety glass has a safer breakage behaviour when compared with annealed glass. kSIST FprEN 15683-1:2013

FprEN 15683-1:2012 (E) 5 1 Scope This European Standard specifies tolerances, flatness of web and flanges, flange deviation, edgework, fragmentation and physical and mechanical characteristics of monolithic thermally toughened soda lime silicate channel shaped safety glass for use in buildings. Other requirements, not specified in this document, can apply to thermally toughened soda lime silicate channel shaped safety glass, which undergoes an additional treatment, e.g. coating. The additional requirements are specified in the appropriate product standard FprEN 15683-2:2012. Thermally toughened soda lime silicate channel shaped safety glass, in this case, does not lose its mechanical or thermal characteristics. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 572-1, Glass in building — Basic soda lime silicate glass products — Part 1: Definitions and general physical and mechanical properties EN 572-7:2004, Glass in Building — Basic soda lime silicate glass products — Part 7: Wired or unwired channel shaped glass EN 1288-4, Glass in building — Determination of the bending strength of glass — Part 4: Testing of channel shaped glass 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 thermally toughened soda lime silicate channel shaped safety glass glass within which a permanent surface compressive stress has been induced by a controlled heating and cooling process in order to give it greatly increased resistance to mechanical and thermal stress and prescribed fragmentation characteristics Note 1 to entry: The mechanical properties, i.e. thermal durability and mechanical strength, and safety properties, i.e. fragmentation characteristics, are generated by the level of surface compression. These properties are not size dependent. 3.2 enamelled thermally toughened soda lime silicate channel shaped safety glass thermally toughened soda lime silicate channel shaped safety glass which has a ceramic frit fired into the surface during the toughening process becoming an integral part of the glass after toughening

3.3 horizontal toughening process in which the glass is supported on horizontal rollers [SOURCE: EN 12150-1:2000, 3.4] kSIST FprEN 15683-1:2013

FprEN 15683-1:2012 (E) 6 4 Glass products Thermally toughened soda lime silicate channel shaped safety glass shall be made from a monolithic glass generally corresponding to the following standard:  basic soda lime silicate glass products – unwired channel shaped glass according to EN 572-1 and EN 572-7;  this may also be coated in accordance with EN 1096-1. 5 Fracture characteristics In the event of breakage, thermally toughened soda lime silicate channel shaped safety glass fractures into numerous small pieces, the edges of which are generally blunt. NOTE Fragmentation in service does not always correspond to that described in Clause 8, due to restraint from fixing or due to the cause of fracture. 6 Dimensions and tolerances

6.1 General The dimensions of thermally
...
