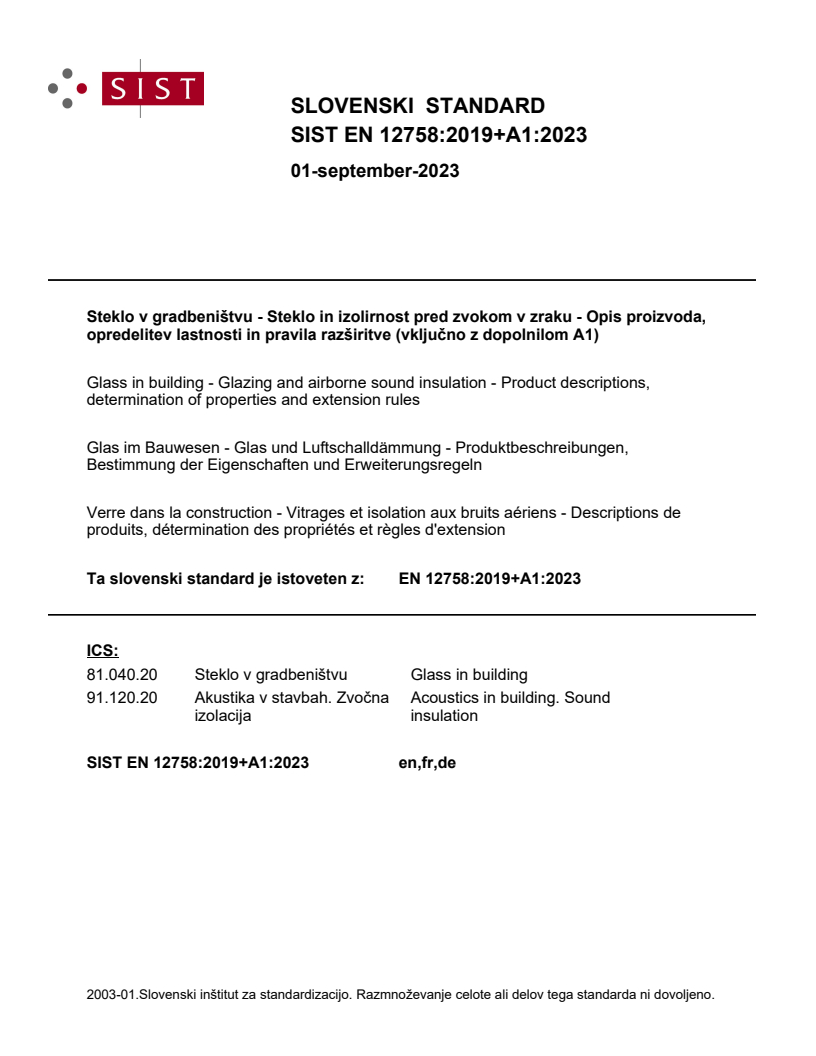

SLOVENSKI STANDARD
01-september-2023
Steklo v gradbeništvu - Steklo in izolirnost pred zvokom v zraku - Opis proizvoda,
opredelitev lastnosti in pravila razširitve (vključno z dopolnilom A1)
Glass in building - Glazing and airborne sound insulation - Product descriptions,
determination of properties and extension rules
Glas im Bauwesen - Glas und Luftschalldämmung - Produktbeschreibungen,
Bestimmung der Eigenschaften und Erweiterungsregeln
Verre dans la construction - Vitrages et isolation aux bruits aériens - Descriptions de
produits, détermination des propriétés et règles d'extension
Ta slovenski standard je istoveten z: EN 12758:2019+A1:2023
ICS:
81.040.20 Steklo v gradbeništvu Glass in building
91.120.20 Akustika v stavbah. Zvočna Acoustics in building. Sound
izolacija insulation
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 12758:2019+A1

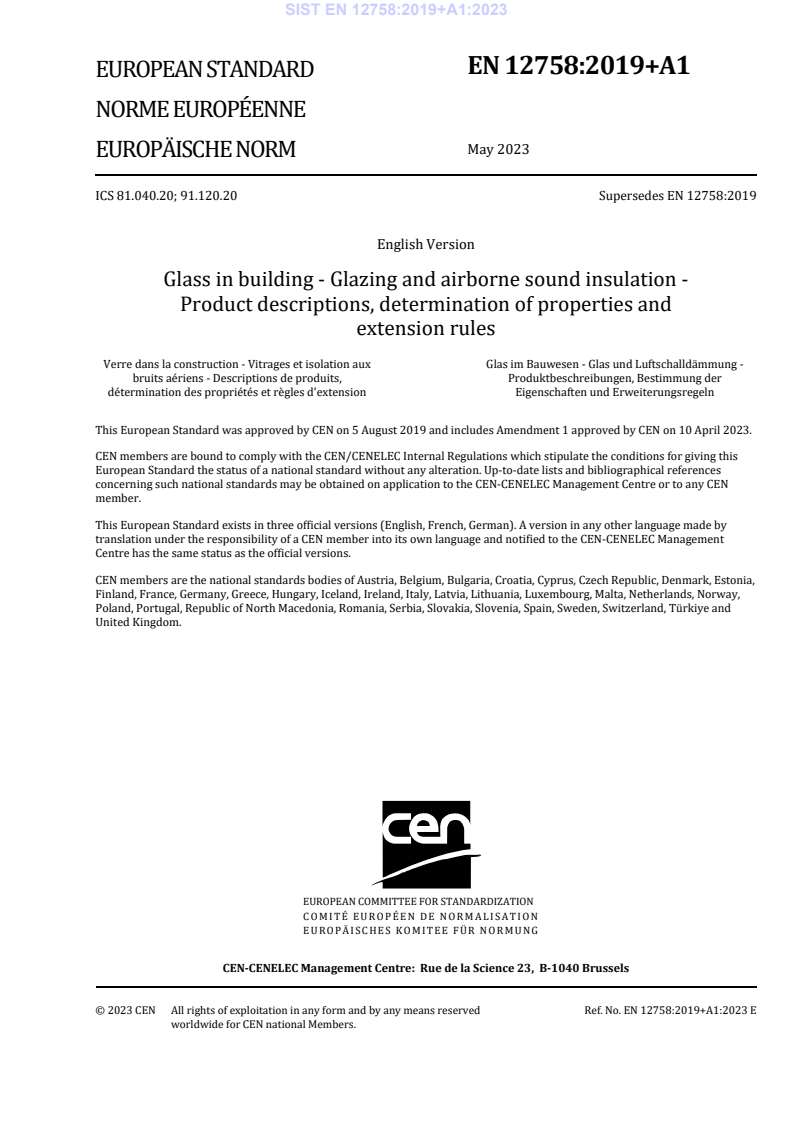

EUROPEAN STANDARD
NORME EUROPÉENNE
May 2023
EUROPÄISCHE NORM
ICS 81.040.20; 91.120.20 Supersedes EN 12758:2019
English Version
Glass in building - Glazing and airborne sound insulation -
Product descriptions, determination of properties and
extension rules
Verre dans la construction - Vitrages et isolation aux Glas im Bauwesen - Glas und Luftschalldämmung -
bruits aériens - Descriptions de produits, Produktbeschreibungen, Bestimmung der
détermination des propriétés et règles d'extension Eigenschaften und Erweiterungsregeln
This European Standard was approved by CEN on 5 August 2019 and includes Amendment 1 approved by CEN on 10 April 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12758:2019+A1:2023 E
worldwide for CEN national Members.

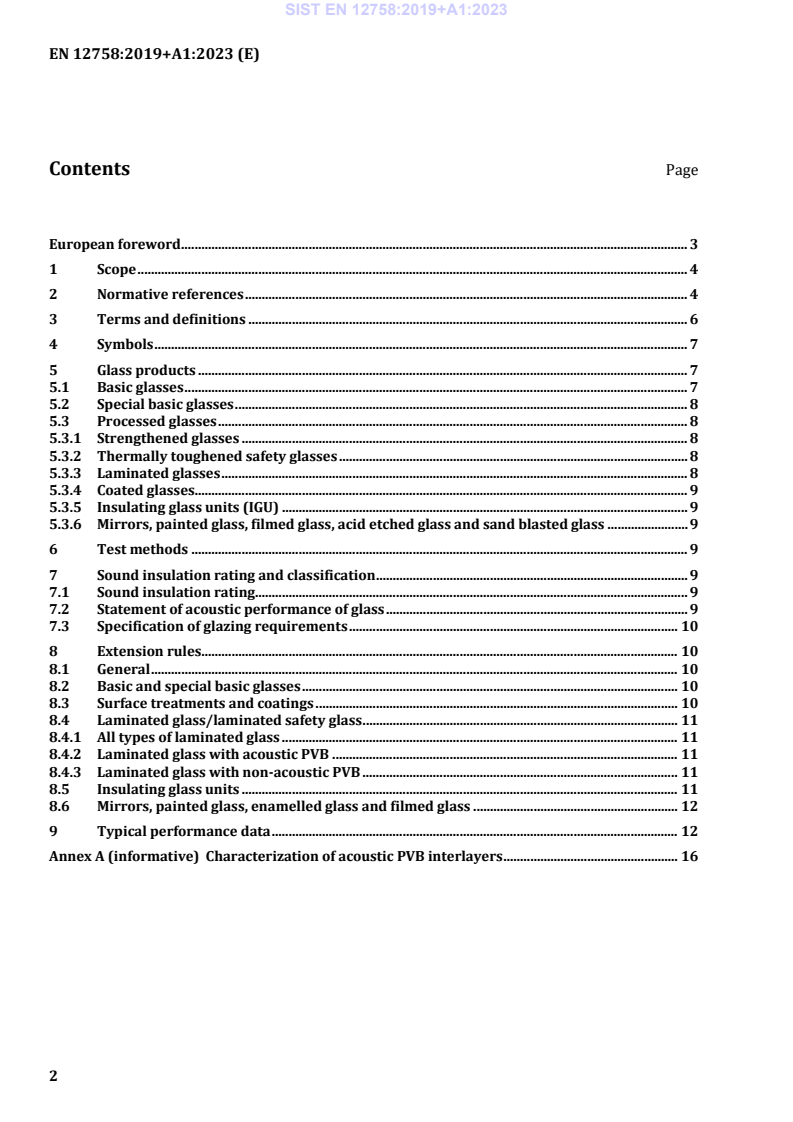

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 6
4 Symbols . 7
5 Glass products . 7
5.1 Basic glasses . 7
5.2 Special basic glasses . 8
5.3 Processed glasses . 8
5.3.1 Strengthened glasses . 8
5.3.2 Thermally toughened safety glasses . 8
5.3.3 Laminated glasses . 8
5.3.4 Coated glasses. 9
5.3.5 Insulating glass units (IGU) . 9
5.3.6 Mirrors, painted glass, filmed glass, acid etched glass and sand blasted glass . 9
6 Test methods . 9
7 Sound insulation rating and classification . 9
7.1 Sound insulation rating. 9
7.2 Statement of acoustic performance of glass . 9
7.3 Specification of glazing requirements . 10
8 Extension rules. 10
8.1 General . 10
8.2 Basic and special basic glasses . 10
8.3 Surface treatments and coatings . 10
8.4 Laminated glass/laminated safety glass . 11
8.4.1 All types of laminated glass . 11
8.4.2 Laminated glass with acoustic PVB . 11
8.4.3 Laminated glass with non-acoustic PVB . 11
8.5 Insulating glass units . 11
8.6 Mirrors, painted glass, enamelled glass and filmed glass . 12
9 Typical performance data . 12
Annex A (informative) Characterization of acoustic PVB interlayers . 16
European foreword
This document (EN 12758:2019+A1:2023) has been prepared by Technical Committee CEN/TC 129
“glass in building”, the secretariat of which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by November 2023, and conflicting national standards
shall be withdrawn at the latest by November 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1 approved by CEN on 10 April 2023.
This document supersedes !EN 12758:2019".
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
1 Scope
This document deals with determination and assessment of sound insulation performances of all
transparent, translucent and opaque glass products, described in the European Standards for basic,
special basic or processed glass products, when intended to be used in glazed assemblies in buildings,
and which exhibit properties of acoustic protection, either as a prime intention or as a supplementary
characteristic.
This document refers to laboratory measurement method described in EN ISO 10140-1:2016, Annex D
and defines extension rules that can be applied without further testing. It also provides typical
performance data for a range of common glass products that can be used in the absence of measured
data.
All the considerations of this document relate to panes of glass/glass products alone. Incorporation of
them into windows may cause changes in acoustic performance as a result of other influences, e.g.
frame design, frame material, glazing material/method, mounting method, air tightness, etc.
Measurements of the sound insulation of complete windows (glass and frame) may be undertaken to
resolve such issues.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 572-1, Glass in building — Basic soda lime silicate glass products — Part 1: Definitions and general
physical and mechanical properties
EN 572-2, Glass in building - Basic soda lime silicate glass products - Part 2: Float glass
EN 572-3, Glass in building - Basic soda lime silicate glass products - Part 3: Polished wired glass
EN 572-4, Glass in building - Basic soda lime silicate glass products - Part 4: Drawn sheet glass
EN 572-5, Glass in building - Basic soda lime silicate glass products - Part 5: Patterned glass
EN 572-6, Glass in building - Basic soda lime silicate glass products - Part 6: Wired patterned glass
EN 572-7, Glass in building - Basic soda lime silicate glass products - Part 7: Wired or unwired channel
shaped glass
EN 1036-1, Glass in building - Mirrors from silver-coated float glass for internal use - Part 1: Definitions,
requirements and test methods
EN 1051-1, Glass in building - Glass blocks and glass pavers - Part 1: Definitions and description
EN 1096-1, Glass in building - Coated glass - Part 1: Definitions and classification
EN 1279-1, Glass in Building - Insulating glass units - Part 1: Generalities, system description, rules for
substitution, tolerances and visual quality
EN 1748-1-1, Glass in building - Special basic products -Borosilicate glasses - Part 1-1: Definition and
general physical and mechanical properties
EN 1748-2-1, Glass in building - Special basic products - Glass ceramics - Part 2-1 Definitions and general
physical and mechanical properties
EN 1863-1, Glass in building - Heat strengthened soda lime silicate glass - Part 1: Definition and
description
EN 12150-1, Glass in building - Thermally toughened soda lime silicate safety glass - Part 1: Definition and
description
EN 12337-1, Glass in building - Chemically strengthened soda lime silicate glass - Part 1: Definition and
description
EN 13024-1, Glass in building - Thermally toughened borosilicate safety glass - Part 1: Definition and
description
EN 14178-1, Glass in building - Basic alkaline earth silicate glass products - Part 1: Float glass
EN 14179-1, Glass in building - Heat soaked thermally toughened soda lime silicate safety glass - Part 1:
Definition and description
EN 14321-1, Glass in building - Thermally toughened alkaline earth silicate safety glass - Part 1: Definition
and description
EN 15681-1, Glass in building - Basic alumino silicate glass products - Part 1: Definitions and general
physical and mechanical properties
EN 15682-1, Glass in building - Heat soaked thermally toughened alkaline earth silicate safety glass - Part
1: Definition and description
EN 15683-1, Glass in building - Thermally toughened soda lime silicate channel shaped safety glass - Part
1: Definition and description
EN 15755-1, Glass in building - Adhesive backed polymeric filmed glass - Part 1: Definitions and
requirements
EN 16477-1, Glass in building - Painted glass for internal use - Part 1: Requirements
EN 17257-1:2018, Glass in building - Acid etched glass - Part 1: Definitions and description
EN 17258-1:2018, Glass in building - Sand blasted glass - Part 1: Definition and description
EN ISO 10140 (all parts), Acoustics — Laboratory measurement of sound insulation
...
