EN ISO 23372:2022
(Main)Anaesthetic and respiratory equipment - Air entrainment devices (ISO 23372:2022)
Anaesthetic and respiratory equipment - Air entrainment devices (ISO 23372:2022)
This document specifies minimum performance and safety requirements for air entrainment devices used for delivery of designated oxygen concentrations to patients. It provides a test method to check the accuracy of the oxygen concentration in the air/oxygen mixture generated by the air entrainment devices. Air entrainment devices can be fixed to deliver a single oxygen concentration or adjustable, to deliver a range of oxygen concentration outputs.
This document also specifies marking requirements and recommends an optional system of colour coding to assist the user in identifying the designated oxygen concentration.
This document does not cover air entrainment devices which are integral with medical devices specified in other standards (e.g. emergency lung ventilators, humidifiers, nebulizers).
Anästhesie- und Beatmungsgeräte - Luftbeimischgeräte (ISO 23372:2022)
Dieses Dokument legt Mindestanforderungen an die Leistungsfähigkeit und Sicherheit von Luftbeimischgeräten fest, die für die Abgabe festgelegter Sauerstoffkonzentrationen an Patienten verwendet werden. Es bietet ein Prüfverfahren zur Überprüfung der Genauigkeit der Sauerstoffkonzentration im Luft-Sauerstoff-Gemisch, das durch das Luftbeimischgerät erzeugt wird. Luftbeimischgeräte können so eingestellt sein, dass sie nur eine Sauerstoffkonzentration bereitstellen oder einstellbar sein, um einen Bereich von Sauerstoffkonzentrationen abzugeben.
Dieses Dokument legt auch Anforderungen an die Kennzeichnung fest und enthält Empfehlungen an ein wahlweises Farbcodierungssystem, das den Anwender bei der Identifizierung der bestimmten Sauerstoffkonzentration unterstützt.
Dieses Dokument behandelt keine Luftbeimischgeräte, die ein integraler Teil von medizinischen Geräten sind, für die in anderen Normen Festlegungen bestehen (z. B. Beatmungsgeräte für den Notfall, Anfeuchter, Vernebler).
Matériel d’anesthésie et de réanimation respiratoire - Dispositifs d’entraînement d’air(ISO 23372:2022)
Le présent document spécifie les exigences de sécurité et de performance minimales des dispositifs d’entraînement d’air utilisés pour administrer des concentrations en oxygène désignées aux patients. Il fournit une méthode d’essai permettant de vérifier la précision de la concentration en oxygène dans le mélange air/oxygène généré par les dispositifs d’entraînement d’air. Les dispositifs d’entraînement d’air peuvent être réglés pour administrer une seule concentration en oxygène ou une gamme de concentrations en oxygène.
Le présent document spécifie également des exigences de marquage et recommande un système optionnel de code couleurs pour aider l’utilisateur à identifier la concentration en oxygène désignée.
Le présent document ne traite pas des dispositifs d’entraînement d’air qui sont intégrés à des dispositifs médicaux spécifiés dans d’autres normes (par exemple les ventilateurs pulmonaires d’urgence, les humidificateurs, les nébuliseurs).
Anestezijska in dihalna oprema - Vhodne naprave za zrak (ISO 23372:2022)
Ta dokument določa minimalne zahteve glede učinkovitosti in varnosti vhodnih naprav za zrak, ki se uporabljajo za dovajanje predvidenih koncentracij kisika bolnikom. Vsebuje preskusno metodo za preverjanje točnosti koncentracije kisika v mešanici zraka in kisika, ki jo pripravijo vhodne naprave za zrak. Vhodne naprave za zrak so lahko fiksno nastavljene za dovajanje ene same koncentracije kisika ali nastavljive, tako
da dovajajo različne izhodne koncentracije kisika.
Ta dokument določa tudi zahteve za označevanje ter priporočljiv izbirni sistem barvnega kodiranja za pomoč uporabniku pri določanju predvidene koncentracije kisika.
Ta dokument ne obravnava vhodnih naprav za zrak, ki so sestavni del medicinskih pripomočkov, določenih v drugih standardih (npr. pljučni ventilatorji za nujne primere, vlažilniki, nebulatorji).
General Information
Relations
Standards Content (Sample)

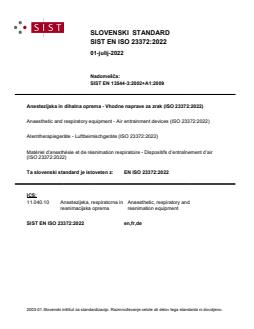

SLOVENSKI STANDARD
