prEN ISO 19014-2

Earth-moving machinery - Functional safety - Part 2: Design and evaluation of hardware and architecture requirements for safety-related parts of the control system (ISO/DIS 19014-2:2025)

This document specifies general principles for the development and evaluation of the machine performance level achieved (MPLa) of safety-control systems (SCS) using components powered by all energy sources (e.g. electronic, electrical, hydraulic, mechanical) used in earth-moving machinery and its equipment, as defined in ISO 6165.
The principles of this document apply to machine control systems (MCS) that control machine motion or mitigate a hazard; such systems are assessed for machine performance level required (MPLr) per ISO 19014-1 or ISO/TS 19014-5.
Excluded from the scope of this document are the following systems:
—    awareness systems that do not impact machine motion (e.g. cameras and radar detectors);
—    fire suppression systems, unless the activation of the system interferes with, or activates, another SCS.
Other systems or components whereby the operator would be aware of failure (e.g. windscreen wipers, head lights, etc.), or are primarily used to protect property, are excluded from this document. Audible warnings are excluded from the requirements of diagnostic coverage.
In addition, this document addresses the significant hazards as defined in ISO 12100 mitigated by the hardware components within the SCS.
This document is not applicable to EMM manufactured before the date of its publication.

Erdbaumaschinen - Funktionale Sicherheit - Teil 2: Entwurf und Bewertung von Hardware- und Architekturanforderungen für sicherheitsrelevante Teile des Steuerungssystems (ISO/DIS 19014-2:2025)

Dieses Dokument legt allgemeine Grundsätze für die Entwicklung und Beurteilung des erreichten Performance Level der Maschine (MPLa) bei Sicherheitssteuerungen (SCS), unter Verwendung von Komponenten, die durch sämtliche, bei Erdbaumaschinen und deren Ausrüstung, wie in ISO 6165 festgelegt, Energiequellen (z. B. elektronisch, elektrisch, hydraulisch, mechanisch) angetrieben werden, fest.
Die Grundsätze dieses Dokuments sind anwendbar für Steuerungssysteme zur Steuerung von Maschinenbewegungen oder Verminderung von Gefährdungen. Solche Systeme werden nach ISO 19014 1:202X oder ISO 19014 5:202X hinsichtlich der Anforderungen an das Performance Level (MPLr) untersucht.
Folgende Systeme sind vom Anwendungsbereich dieses Dokuments ausgeschlossen:
   Wahrnehmungssysteme, die die Maschinenbewegung nicht beeinflussen (z. B. Kameras und Radardetektoren);
   Löschanlagen, sofern die Aktivierung des Systems kein anderes SCS beeinflusst oder aktiviert.
Weitere Systeme oder Komponenten, die den Bediener auf Ausfälle aufmerksam machen (z. B. Scheibenwischer oder Scheinwerfer usw.) oder die primär dem Schutz von Eigentum dienen, sind von diesem Dokument ausgeschlossen. Akustische Signale sind von den Anforderungen des Diagnosedeckungsgrads ausgeschlossen.
Zudem behandelt dieses Dokument die in ISO 12100 festgelegten signifikanten Gefährdungen, die durch die Hardwarekomponenten der SCS gemindert werden.
Dieses Dokument gilt nicht für EMM, die vor dem Veröffentlichungsdatum dieses Dokuments hergestellt wurden.

Engins de terrassement - Sécurité fonctionnelle - Partie 2: Conception et évaluation des exigences de matériel et d’architecture pour les parties relatives à la sécurité du système de commande (ISO/DIS 19014-2:2025)

Le présent document spécifie les principes généraux d’élaboration et d’évaluation du niveau de performance de machine obtenu (MPLa) des systèmes de commande de sécurité (SCS) utilisant des composants alimentés par toutes les sources d’énergie (par exemple, électronique, électrique, hydraulique, mécanique) utilisées dans les engins de terrassement et leur équipement, comme défini dans l’ISO 6165.
Les principes du présent document s’appliquent aux systèmes de commande d’engins (MCS) qui commandent le mouvement d’un engin ou atténuent un phénomène dangereux; ces systèmes sont évalués pour vérifier que les exigences de niveau de performance des engins (MPLr) sont conformes à l’ISO 19014‑1 ou à l’ISO/TS 19014‑5.
Les systèmes suivants sont exclus du domaine d’application du présent document:
—    systèmes de connaissance n’ayant aucun impact sur le mouvement de l'engin (par exemple, caméras et détecteurs radar);
—    systèmes de lutte contre l’incendie, excepté si l’activation du système interfère ou active un autre SCS.
Les autres systèmes ou composants pour lesquels les défaillances pourraient être constatées par l’opérateur (par exemple, les essuie-glaces, les phares, l’éclairage de la cabine, etc.) ou ceux qui servent essentiellement à protéger la propriété sont exclus du présent document. Les avertisseurs sonores sont exclus des exigences de la couverture de diagnostic.
De plus, le présent document traite des phénomènes dangereux significatifs tels que définis dans l’ISO 12100 atténués par les composants matériels dans le SCS.
Le présent document n’est pas applicable aux engins de terrassement fabriqués avant la date de sa publication.

Stroji za zemeljska dela - Funkcijska varnost - 2. del: Oblikovanje in vrednotenje strojnih in arhitekturnih zahtev za varnostne dele krmilnega sistema (ISO/DIS 19014-2:2024)

General Information

• Status: Not Published
• Publication Date: 19-Jan-2027
• ICS: 53.100 - Earth-moving machinery
• Technical Committee: CEN/TC 151 - Construction equipment and building material machines - Safety
• Drafting Committee: CEN/TC 151/WG 1 - Earth-moving machinery - Safety
• Current Stage: 4060 - Closure of enquiry - Enquiry
• Start Date: 19-Sep-2025
• Completion Date: 19-Sep-2025
• Directive: 2023/1230 - Regulation (EU) 2023/1230 of the European Parliament and of the Council of 14 June 2023 on machinery and repealing Directive 2006/42/EC of the European Parliament and of the Council and Council Directive 73/361/EEC (Text with EEA relevance)
• Mandate: M/605 - COMMISSION IMPLEMENTING DECISION of 20.1.2025 on a standardisation request to the European Committee for Standardization and to the European Committee for Electrotechnical Standardization as regards machinery and related products in support of Regulation (EU) 2023/1230 of the European Parliament and of the Council
• Ref Project: oSIST prEN ISO 19014-2:2024 - Earth-moving machinery - Functional safety - Part 2: Design and evaluation of hardware and architecture requirements for safety-related parts of the control system (ISO/DIS 19014-2:2024)

Relations

• Revises: EN ISO 19014-2:2022 - Earth-moving machinery - Functional safety - Part 2: Design and evaluation of hardware and architecture requirements for safety-related parts of the control system (ISO 19014-2:2022)
• Effective Date: 04-Oct-2023

Overview

The prEN ISO 19014-2 standard, titled Earth-moving machinery - Functional safety - Part 2: Design and evaluation of hardware and architecture requirements for safety-related parts of the control system (ISO/DIS 19014-2:2025), is published by the European Committee for Standardization (CEN) in cooperation with ISO Technical Committee ISO/TC 127. This draft international standard provides general principles for the design, development, and evaluation of safety-related hardware and architectural requirements in machine control systems (MCS) for earth-moving machinery.

Specifically, the standard focuses on evaluating the machine performance level achieved (MPLa) for safety-control systems (SCS) utilizing components powered by various energy sources including electronic, electrical, hydraulic, and mechanical. It covers systems that control machine motions or mitigate hazards, thus ensuring reliable functional safety in environments involving complex and potentially hazardous earth-moving equipment.

Key Topics

• Scope of Application:
  Applies to machine control systems that impact machine motion or hazard mitigation, assessed per machine performance level required (MPLr) based on ISO 19014-1 or ISO 19014-5. Exclusions include awareness systems like cameras and radar detectors that do not affect machine motion, fire suppression systems unless integrated with SCS, and components mainly protecting property or providing operator alerts (e.g., windscreen wipers, headlights).

• Safety Performance Evaluation:
  Details methods for evaluating hardware safety performance including fault consideration, fault exclusion, mean time to dangerous failure (MTTFd), and diagnostic coverage (DC) for both electrical safety-control systems (ESCS) and non-electrical safety-control systems (N/ESCS).

• Design and Architecture Requirements:
  Defines essential hardware design principles, architectural measures, and system-level fault reduction strategies such as hydraulic system robustness (HSR), categorization of safety components, and considerations for fail-operational systems.

• System Integration:
  Guidance on combining multiple safety-control systems to achieve an overall machine performance level, ensuring coherent, reliable safety functions.

• Information for Use and Maintenance:
  Recommendations for operator manuals and maintenance information to sustain safety performance throughout the equipment lifecycle.

Applications

This standard is essential for:

• Manufacturers of Earth-moving Machinery:
  Enabling design and validation of safety-critical hardware components to meet stringent functional safety requirements.

• Safety and Compliance Engineers:
  Supporting evaluation of machine safety control systems to ensure compliance with applicable safety regulations and directives, including EU Directive 2006/42/EC.

• Maintenance and Service Providers:
  Offering guidelines for maintaining system safety integrity and performance via information in operator manuals and maintenance protocols.

• Regulatory Authorities and Market Surveillance Bodies:
  Providing a benchmark for assessing the safety of earth-moving machinery design and hardware architecture in inspections and certification.

By implementing prEN ISO 19014-2 principles, stakeholders can minimize risks associated with hazardous machinery motions and improve operational safety in construction, mining, and other industries utilizing earth-moving equipment.

Related Standards

• ISO 6165 - Earth-moving machinery and equipment classification:
  Defines general machinery categories to which ISO 19014-2 applies.

• ISO 19014-1 and ISO 19014-5:
  Part 1 covers machine performance level required (MPLr) assessment methodologies, and Part 5 addresses additional requirements for safety control systems.

• ISO 12100 - Safety of machinery - General principles for design:
  Provides the fundamental hazard identification and risk assessment frameworks referenced by this standard.

• ISO 13849-1 and ISO 13849-2:
  Standards for safety-related parts of control systems; ISO 19014-2 includes specific exceptions and additions related to earth-moving machinery.

• EU Directive 2006/42/EC - Machinery Directive:
  Outlines essential health and safety requirements that this standard aims to address for machinery marketed in the European Union.

---

Keywords: Earth-moving machinery safety, functional safety, safety-control systems, machine performance level, hardware architecture, safety evaluation, ISO 19014-2, hydraulic system robustness, safety-related control system, construction machinery safety standards.

Standards Content (Sample)

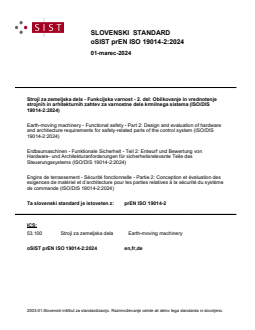

SLOVENSKI STANDARD
01-marec-2024
Stroji za zemeljska dela - Funkcijska varnost - 2. del: Oblikovanje in vrednotenje
strojnih in arhitekturnih zahtev za varnostne dele krmilnega sistema (ISO/DIS
19014-2:2024)
Earth-moving machinery - Functional safety - Part 2: Design and evaluation of hardware
and architecture requirements for safety-related parts of the control system (ISO/DIS
19014-2:2024)
Erdbaumaschinen - Funktionale Sicherheit - Teil 2: Entwurf und Bewertung von
Hardware- und Architekturanforderungen für sicherheitsrelevante Teile des
Steuerungssystems (ISO/DIS 19014-2:2024)
Engins de terrassement - Sécurité fonctionnelle - Partie 2: Conception et évaluation des
exigences de matériel et d’architecture pour les parties relatives à la sécurité du système
de commande (ISO/DIS 19014-2:2024)
Ta slovenski standard je istoveten z: prEN ISO 19014-2
ICS:
53.100 Stroji za zemeljska dela Earth-moving machinery
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

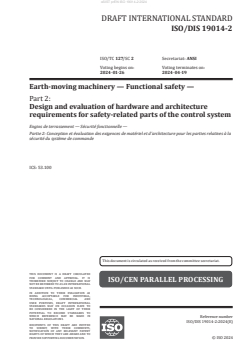

DRAFT INTERNATIONAL STANDARD
ISO/DIS 19014-2
ISO/TC 127/SC 2 Secretariat: ANSI
Voting begins on: Voting terminates on:
2024-01-26 2024-04-19
Earth-moving machinery — Functional safety —
Part 2:
Design and evaluation of hardware and architecture
requirements for safety-related parts of the control system
Engins de terrassement — Sécurité fonctionnelle —
Partie 2: Conception et évaluation des exigences de matériel et d’architecture pour les parties relatives à la
sécurité du système de commande
ICS: 53.100
This document is circulated as received from the committee secretariat.
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
ISO/CEN PARALLEL PROCESSING
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 19014-2:2024(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. © ISO 2024

ISO/DIS 19014-2:2024(E)
DRAFT INTERNATIONAL STANDARD
ISO/DIS 19014-2
ISO/TC 127/SC 2 Secretariat: ANSI
Voting begins on: Voting terminates on:

Earth-moving machinery — Functional safety —
Part 2:
Design and evaluation of hardware and architecture
requirements for safety-related parts of the control system
Engins de terrassement — Sécurité fonctionnelle —
Partie 2: Conception et évaluation des exigences de matériel et d’architecture pour les parties relatives à la
sécurité du système de commande
ICS: 53.100
This document is circulated as received from the committee secretariat.
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
© ISO 2024
ISO/CEN PARALLEL PROCESSING
THEREFORE SUBJECT TO CHANGE AND MAY
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
NOT BE REFERRED TO AS AN INTERNATIONAL
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on STANDARD UNTIL PUBLISHED AS SUCH.
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
IN ADDITION TO THEIR EVALUATION AS
or ISO’s member body in the country of the requester. BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
ISO copyright office
USER PURPOSES, DRAFT INTERNATIONAL
CP 401 • Ch. de Blandonnet 8
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
CH-1214 Vernier, Geneva
POTENTIAL TO BECOME STANDARDS TO
Phone: [phone]
WHICH REFERENCE MAY BE MADE IN
Reference number
Email: [e-mail]
NATIONAL REGULATIONS.
Website: www.iso.org ISO/DIS 19014-2:2023(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
Published in Switzerland
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
ii
PROVIDE SUPPORTING DOCUMENTATION. © ISO 2023

ISO/DIS 19014-2:2023(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Symbols and abbreviated terms.2
5 General requirements . 3
5.1 Application . 3
5.2 Existing SCS . 4
6 System design . 4
6.1 Overview . 4
6.2 General requirements . 4
6.3 Hardware design . 5
7 System safety performance evaluation . 6
7.1 Machine performance level achieved (MPL ) . 6
a
7.2 Hardware safety evaluation . 6
7.2.1 General . 6
7.2.2 Fault consideration . 6
7.2.3 Fault exclusion . 7
7.2.4 Mean time to dangerous failure (MTTF ) . 7
d
7.3 Diagnostic coverage (DC) . 7
7.3.1 DC of ESCS . . 7
7.3.2 DC of N/ESCS . 7
7.4 System-level fault reduction measures of hydraulic systems based on hydraulic
system robustness (HSR) . 8
7.4.1 General . 8
7.4.2 HSR score calculation . 8
7.5 Category classifications . 9
7.5.1 General . 9
7.5.2 Category B/Category 1 . 13
7.5.3 Category 2 . 15
7.5.4 Conflicting safety functions . 16
7.5.5 Considerations for the SRP/CS of fail-operational systems . 17
7.6 Combination of SCS to achieve an overall MPL . 17
8 Information for use and maintenance .19
8.1 General . 19
8.2 Operator’s manual . 19
Annex A (informative) Example systems and evaluations .20
Annex B (informative) Examples of evaluations using HSR scoring.35
Annex C (normative) Compatibility with other functional safety standards .39
Annex D (informative) Safety function evaluation .40
Annex E (normative) Exceptions, exclusions, additions to ISO 13849-1 and ISO 13849-2 .42
Annex ZA (informative) Relationship between this document and the essentialrequirements
of EU Directive 2006/42/EC aimed to be covered .45
Bibliography .46
iii
ISO/DIS 19014-2:2023(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 127, Earth-moving machinery,
Subcommittee SC 2, Safety, ergonomics and general requirements, in collaboration with the European
Committee for Standardization (CEN) Technical Committee CEN/TC 151, Construction equipment and
building material machines - Safety, in accordance with the Agreement on technical cooperation between
ISO and CEN (Vienna Agreement).
This first edition, together with ISO 19014-1, ISO 19014-3, ISO 19014-4 and ISO 19014-5 cancels and
replaces the first editions (ISO 15998:2008 and ISO/TS 15998-2:2012), which have been technically
revised.
The main changes are as follows:
— Detailed Annex ZA included;
— Referenced standards dated;
— Correction to Annex D MPL error and correction to the typographical errors “MPLa” and “MPL.” in
Figure D.1.
— Clause 7.3.1, diagnostic coverage, modified
A list of all parts in the ISO 19014 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
ISO/DIS 19014-2:2023(E)
Introduction
This document addresses systems comprising all technologies used for functional safety in earth-
moving machinery.
The structure of safety standards in the field of machinery is as follows:
— Type-A standards (basis standards) give basic concepts, principles for design and general aspects
that can be applied to machinery.
— Type-B standards (generic safety standards) deal with one or more safety aspects, or one or more
types of safeguards that can be used across a wide range of machinery:
— type-B1 standards on particular safety aspects (e.g. safety distances, surface temperature,
noise);
— type-B2 standards on safeguards (e.g. two-hands controls, interlocking devices, pressure
sensitive devices, guards).
— Type-C standards (machinery safety standards) deal with detailed safety requirements for a
particular machine or group of machines.
This document is a type-C standard as stated in ISO 12100.
This document is of relevance, in particular, for the following stakeholder groups representing the
market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organisations, market surveillance etc.)
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e. g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
The machinery concerned and the extent to which hazards, hazardous situations or hazardous events
are covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or
type-B standards, the requirements of this type-C standard take precedence over the requirements of
the other standards for machines that have been designed and built according to the requirements of
this type-C standard.
v
DRAFT INTERNATIONAL STANDARD ISO/DIS 19014-2:2023(E)
Earth-moving machinery — Functional safety —
Part 2:
Design and evaluation of hardware and architecture
requirements for safety-related parts of the control system
1 Scope
This document specifies general principles for the development and evaluation of the machine
performance level achieved (MPL ) of safety-control systems (SCS) using components powered by all
a
energy sources (e.g. electronic, electrical, hydraulic, mechanical) used in earth-moving machinery and
its equipment, as defined in ISO 6165.
The principles of this document apply to machine control systems (MCS) that control machine motion
or mitigate a hazard; such systems are assessed for machine performance level required (MPL ) per
r
ISO 19014-1:202X or ISO 19014-5:202X.
Excluded from the scope of this document are the following systems:
— awareness systems that do not impact machine motion (e.g. cameras and radar detectors);
— fire suppression systems, unless the activation of the system interferes with, or activates, another
SCS.
Other systems or components whereby the operator would be aware of failure (e.g. windscreen wipers,
head lights, etc.), or are primarily used to protect property, are excluded from this document. Audible
warnings are excluded from the requirements of diagnostic coverage.
In addition, this document addresses the significant hazards as defined in ISO 12100 mitigated by the
hardware components within the SCS.
This document is not applicable to EMM manufactured before the date of its publication.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 6165:2012, Earth-moving machinery — Basic types — Identification and terms and definitions
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
ISO 13849-1:2023, Safety of machinery — Safety-related parts of control systems — Part 1: General
principles for design
ISO 13849-2:2012, Safety of machinery — Safety-related parts of control systems — Part 2: Validation
ISO 19014-1:202X, Earth-moving machinery — Functional safety — Part 1: Methodology to determine
safety-related pars of the control system and performance requirements
ISO 19014-3:202X, Earth-moving machinery — Functional safety — Part 3: Environmental performance
and test requirements of electronic and electrical components used in safety-related parts of the control
system
ISO/DIS 19014-2:2023(E)
ISO 19014-4:202X, Earth-moving machinery — Functional safety — Part 4: Design and evaluation of
software and data transmission for safety-related parts of the control system
ISO 19014-5:202X, Earth-moving machinery — Functional safety — Part 5: Table of Machine Performance
Levels
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12100, ISO 13849-1,
ISO 19014-1 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
ESCS
electronic safety control system
safety control system made of electronic components from input device to output device
3.2
function
defined behaviour of one or more MCS
Note 1 to entry: A control unit (e.g. electronic control unit) can execute more than one function. When multiple
safety functions are contained in a control unit, each safety function and the associated circuit are analysed
separately.
3.3
N/ESCS
non-electronic safety control system
safety control system made of non-electronic components from input device to output device
3.4
safe state
condition in which, after a fault of the safety control system, the controlled equipment, process or system
is automatically or manually stopped or switched into a mode that prevents unintended behaviour or
the potentially hazardous release of stored energy
Note 1 to entry: A safe state can also include maintaining the function (3.2) of the safety control system (e.g.
steering) in the presence of a single fault depending on the hazard being mitigated.
[SOURCE: ISO 3450:2011, 3.15, modified – "malfunction" has been replaced by "fault"; "performance"
has been replaced by "behaviour"; Note 1 to entry has been added.]
3.5
well-tried component
component for a safety-related application that has been widely used in the past with successful results
in the same or similar applications and which has been made and verified using principles which
demonstrate its suitability and reliability for safety-related applications
4 Symbols and abbreviated terms
For the purposes of this document, the following symbols and abbreviated terms apply.
ISO/DIS 19014-2:2023(E)
a, b, c, d, e graduation of machine performance levels
ASIC application specific integrated circuit
B, 1, 2, 3, 4 denotation of categories
CCF common cause failure
DC diagnostic coverage
DC average diagnostic coverage
avg
ECU electronic control unit
EMM earth-moving machinery
ESCS electronic safety control system
FMEA failure modes and effects analysis
FMEDA failure modes, effects and diagnostics analysis
FPGA field programmable gate array
HFT hardware fault tolerance
HSR hydraulic system robustness
MCS machine control system
MPL machine performance level
MPL machine performance level achieved
a
MPL machine performance level required
r
MTTF mean time to failure
MTTF mean time to dangerous failure
d
N/ESCS non-electronic safety control system
OTE output of test equipment
SCS safety control system
SRP/CS safety-related part of the control system
TE test equipment
5 General requirements
5.1 Application
The ISO 19014 series shall be used in conjunction with the ISO 13849 series when applied to earth
moving machinery (EMM) and supersedes ISO 15998. Where specific requirements are given in this
document, they take precedence over the requirements in the ISO 13849 series; however, where no
specific requirements are given in this document, the ISO 13849 series shall apply, using PL instead of
MPL (e.g. MPL = b is analogous to PL = b). For a summary of applicable clauses in the ISO 13849 series or
this document, see Tables E.1 and E.2 in Annex E.
ISO/DIS 19014-2:2023(E)
The principles of this document shall be applied to MCS that are deemed SCS in ISO 19014-1:202X or
ISO 19014-5:202X. Other machine control systems that interfere with or mute a safety function of
the safety control system shall be assigned the same machine performance level as the system it is
interfering with or muting.
Machinery shall comply with the safety requirements and/or protective/risk reduction measures of
this clause. In addition, the machine shall be designed according to the principles of ISO 12100:2010 for
relevant but not significant hazards which are not dealt with by this document. Safety related software
within any components within the SCS shall meet the requirements of ISO 19014-4:202X.
5.2 Existing SCS
Where an existing SCS has been developed to a previous standard and demonstrated through application
usage and validation to reduce the likelihood of a hazard to as low as reasonably practicable, there shall
be no requirement to update the lifecycle documentation. When the previously utilized SCS is modified,
an impact analysis (see ISO 19014-4:202X, 3.28) of the modifications shall be performed and an action
plan developed and implemented to ensure that the safety requirements are met.
6 System design
6.1 Overview
Many safety functions on mobile machines do not have run/stop outputs like non-mobile machine safety
functions normally do and are not always added to a machine purely to mitigate a hazard. For example,
steering, service brakes, swing, and equipment controls can have modulated or variable outputs within
a certain range. While these types of systems can fit into the ISO 13849 architectures, designers need
to consider how the characteristics of the safety functions can differ on a mobile machine (e.g. does the
system need closed loop control rather than open loop to address incorrect application rates, does the
system need to address hazards associated with uncommanded activation as well as failure on demand
etc.).
A safety function which relies on a control system to provide necessary hazard mitigation for the
machine can be implemented by an SCS within the scope of this document. An SCS can contain one or
more SRP/CS, and several SCS can share one or more SRP/CS (e.g. a logic unit, power control elements).
It is also possible that one SRP/CS implements both safety and non-safety functions.
NOTE For immediate action warning indicators, refer to ISO 19014-1:2018, Annex B.
Some systems on mobile machines need to maintain an operable state during a failure. While
ISO 13849-1:2015 allows for this, additional measures are necessary to ensure this happens safely and
that parallel channels do not conflict with each other and that the systems function as the requirements
for the claimed architecture specifies.
Annex C sets the minimum requirements that shall be met for utilizing systems, sub-systems and SRP/
CS developed and evaluated by methods other than the ISO 19014 series.
6.2 General requirements
After the safety functions of the SCS have been identified, the safety function requirements shall be
documented. During the safety lifecycle, safety requirements are detailed and specified in greater
detail at hierarchical levels. All safety requirements shall be described such that they are unambiguous,
consistent with other requirements, and feasible to implement.
The following design considerations shall be taken into account:
— conflicting input or output signals;
— loss of signal and actuation energies to either system (e.g. separate oil supplies for each channel,
redundant power supplies for ECUs);
ISO/DIS 19014-2:2023(E)
— conflicting safe states required by multiple failure types that are being addressed by the system;
— systems that require fail-operational functionality;
— the assessment processes are independent from the design process;
— when SCS are designed to be used in a synchronized manner (e.g. task automation), the control
system shall be designed to mitigate hazards due to lack of synchronization.
NOTE An EMM example of this synchronization is an excavator boom, arm, and bucket being controlled
simultaneously by a grade control system.
6.3 Hardware design
The hardware structure of the SCS can provide measures (e.g. redundancy, diversity, and monitoring)
for avoiding, detecting, or tolerating faults. Practical measures can include redundancy, diversity, and
monitoring.
The hardware development process shall follow ISO 13849-1:2015 as outlined in Annex E. The designer
should begin at the system level where safety functions and associated requirements are identified.
The system may be decomposed into subsystems for easier development.
Where applicable, each phase of the development cycle shall be verified.
See Figure 1 for a depiction of the hardware development process in the form of a V-model. Any
organized, proven design process which meets the requirements of the ISO 19014 series may be used to
complete the design process.
Figure 1 — Hardware development V-model
ISO/DIS 19014-2:2023(E)
7 System safety performance evaluation
7.1 Machine performance level achieved (MPL )
a
The achieved integrity of safety-related parts to perform a safety function is expressed through the
determination of the MPL .
a
The ability to perform a safety function under expected environmental conditions as specified in
ISO 19014-3:202X shall be demonstrated and documented.
The procedure for evaluating MPL is as follows:
a
a) identify the component operating environment and stress level;
b) identify components;
c) identify and document fault exclusions (7.2), or by using the appropriate system analysis (e.g.
FMEA, fault-tree analysis, etc.);
d) calculate the MTTF (see ISO 13849-1:2015, Annex D,), and verify the MTTF meets the required
d d
level (see ISO 13849-1:2015);
e) determine if the hardware can provide the required level of DC (ISO 13849-1:2015, Annex E). For
systems relying on software interaction to determine diagnostic coverage, this analysis can only
determine if the hardware is available to support DC, not verify that the DC requirement for the
system has been met;
f) consider CCF (see ISO 13849-1:2015, Annex F) if required;
g) consider systematic failure (ISO 13849-1:2015, Annex G);
h) consider possible interaction from other safety functions;
i) for FPGA and ASIC design, see IEC 61508-2:2010, Annexes E or F.
For systems assessed in the MCSSA to qualify for QM, a quality management system (e.g. ISO 9001 or
equivalent) shall be used.
See Annex D for supplementary information on safety function evaluation.
7.2 Hardware safety evaluation
7.2.1 General
ISO 13849-2:2012, Annexes A to D list the faults, fault exclusions and failures for various types of
components; these lists are not exhaustive. If necessary, additional faults, fault exclusions, and failures
shall be considered and listed; in such cases, the method of evaluation should also be clearly elaborated.
A failure mode and effects analysis (FMEA), fault-tree analysis, or equivalent system analysis shall be
performed to establish the faults and fault exclusions.
7.2.2 Fault consideration
In general, the following fault criteria can be considered:
— if, because of a fault, further components fail, the first fault together with all following faults shall
be considered as a single fault;
— two or more faults having a common cause shall be considered as a single fault (known as a CCF);
ISO/DIS 19014-2:2023(E)
— the simultaneous occurrence of two or more faults having separate causes is considered highly
unlikely and therefore need not be considered.
7.2.3 Fault exclusion
Fault exclusions are used in the development of hardware as a means of mitigating the failure
mechanisms leading to known hazards in accordance with recognized industry best practices. Fault
exclusion is a compromise between technical safety requirements and the theoretical possibility of
occurrence of a fault.
Fault exclusion can be based on the following criteria:
— the technical improbability of occurrence of some faults;
— generally accepted technical experience, independent of the considered application; and
— technical requirements related to the application and the specific hazard.
If faults are excluded, a detailed justification shall be given in the technical documentation.
Fault exclusions can be applied through the following hierarchy.
1. Fault by fault basis - after all faults are identified, some faults may be excluded based on the above
criteria; those not fault excluded may be handled by diagnostic means within the control system.
2. Component level - if all known SCS faults can be fault-excluded at a component level, then the
component can be fault-excluded entirely.
3. System level – if all faults in all components have been addressed by fault exclusion, analysis of
hydraulic systems may be performed using the HSR process in 7.4. Purely mechanical systems can
be fault excluded at the system level if components are designed to an appropriate safety factor and
maintenance requirements to maintain the correct functionality of the system are included in the
service literature per Clause 8.
7.2.4 Mean time to dangerous failure (MTTF )
d
The process for determining MTTF is outlined in ISO 13849-1:2015, 4.5.2. While ISO 13849-1
d
recommends the principle assumption of 50 % for hazardous failure rate (e.g. B = 2 × B ), lower
10d 10
failure rates may be used if supported by analysis (e.g. empirical data, FMEA).
7.3 Diagnostic coverage (DC)
7.3.1 DC of ESCS
Refer to ISO 13849-1:2015, 4.5.3.
7.3.2 DC of N/ESCS
The DC of non-electronic systems is determined by one or more of the following.
1.) Selecting the most applicable analogous type of diagnostic coverage score in ISO 13849-1:2015,
Annex E. For example, a shuttle valve comparing oil pressures and performing an action based on
those pressures is comparable to continuous monitoring; therefore, a score of 99 % may be given.
2.) Calculation of DC percentage through an FMEDA.
3.) Fault exclusion may be applicable for all or some failures. If this is done for some failures, but not
all, then the appropriate DC would need to be calculated.
4.) Direct mechanical linkage of components can be considered 99 % DC.
ISO/DIS 19014-2:2023(E)
7.4 System-level fault reduction measures of hydraulic systems based on hydraulic
system robustness (HSR)
7.4.1 General
Evaluating the MPL of hydraulic steering and braking systems requires assessment of faults within
a
the components in the primary channel. Due to the characteristics of hydraulic components and their
application to earth-moving machinery, these faults cannot be addressed through fault detection
techniques used in electronic systems. The hydraulic system robustness (HSR) assessment score is
determined using the criteria in Table 1. The basis of this assessment is the robustness of the hydraulic
system design in safety applications on earth-moving machines. The criteria in Table 1 extend and build
on basic safety principles, criteria for fault exclusions and well-tried safety principles (e.g. as found in
ISO 13849-2:2012, as well as established best practices for the design, development and manufacturing
of hydraulic SCS).
NOTE These criteria can also be applied to hydraulic systems not used in steering and braking applications
but given that these systems are typically category 1, the use of Table 2 to calculate a DC value would not be
necessary for the analysis of a category 1 system.
7.4.2 HSR score calculation
The HSR score is defined as a percentage using the formula below:
t
r= ×100
100−q
where
r is the hydraulic system robustness (HSR);
q is the sum of the criteria that does not reduce the likelihood of the hazardous failure for the
intended safety function that the safety function mitigates;
t is the sum of the remaining applicable criteria that are met by the system.
A criterion that the system does not meet shall not be included in q. (For example, a secondary energy
source would not be an applicable criterion for a spring applied, hydraulically released system where
the safe state of the system is in the engaged state.)
Each SRP/CS in the hydraulic system being evaluated shall meet the requirements for the given criteria
to achieve a score. Partial scores are not allowed; (for example, if there are three spools and only two
meet the requirements for a given criteria then the score for the criteria would be zero).
The hydraulic systems shall follow the requirements of ISO 13849-2:2012, C.1 and C.2. Fault exclusion
may be applied at a component level if all applicable faults can be excluded per ISO 13849-2:2012,
Annex C.
ISO/DIS 19014-2:2023(E)
Table 1 — Hydraulic system robustness scoring criteria
Ref Criteria Score
A Over-dimensioning
(for example, enough spool clearance, straightness and cylindricity)
B Countermeasures for spool adherence or spinning 10
C Countermeasures for objectionable hydraulic input
(for example, the instantaneous high pressure to both ports of a hydraulic motor)
D Secondary energy source (for example, pilot accumulator) or failsafe design during loss of
primary energy source
E Slow or stepwise progressive fault
(for example, decrease in steering assist force before significant fault)
F Hose burst mitigation (for example, piercing debris/abrasion-avoidance routing) 10
G System designed to maintain required hydraulic fluid cleanliness 10
H Countermeasures for cavitation caused by aeration in or viscosity of hydraulic fluid 10
I Countermeasures for pressure transfer problems caused by aeration in or viscosity of hy-
draulic fluid (for example, air vent circuit)
Total score
Table 2 defines the DC to which a given HSR score is correlated, and a MPL can be determined using
a
that DC value, system architecture category, MTTF and CCF adapted from ISO 13849-1:2015 Table 6.
d
See Table 3 for an explanation of Category 2M.
Table 2 — HSR to DC correlation to determine MPL
a
HSR score DC equivalent MPL
MTTF =Medium MTTF =High
d d
Category B Category 2M Category 1 Category 2M
50 % to ≤ 80 % 60 % MPL = b MPL = b MPL = c MPL = c
a a a a
>80 % 90 % MPL = b MPL = c MPL = c MPL = d
a a a a
See Annex B for examples of evaluations using HSR scoring.
7.5 Category classifications
7.5.1 General
The appropriate architecture shall be selected to meet the requirements of the system. Although the
variety of possible structures is high, the basic concepts are often similar. Thus, most structures which
are present can be mapped into one of the categories described in ISO 13849-1:2015, 6.2; however,
for some structures used in steering and braking systems, adaptation is required due to hydraulic
system characteristics specific to the earth-moving machine application. For each category, a typical
representation as a safety-related block diagram is given. These typical realizations are called
designated architectures and are listed in the context of each of the following categories.
Some SCS are highly complex and do not necessarily match one of the designated architectures exactly.
Designs fulfilling the properties of the respective category in general are equivalent to the respective
designated architecture of the category. Figures 2 and 3 show general architectures not specific
examples. A deviation from these architectures is always possible, but any deviation shall be justified
by means of appropriate analytical tools, demonstrating the system meets the required performance
level. For alternate architectures, the hardware fault tolerance (HFT), and any other requirement,
shall remain equivalent to the relevant category. The designated architectures shall be considered as
logical diagrams, not simply circuit diagrams. For categories 3 and 4, this means that not all parts are
necessarily physically redundant but that there are redundant means of assuring that a fault cannot
ISO/DIS 19014-2:2023(E)
lead to the loss of a safety function (e.g. an ECU with parallel processing, cross monitoring and external
watch dogs is considered category 3 or 4).
Table 3 gives an overview of the categories for SCS, the requirements and the system behaviour in case
of faults. The use of well-tried components is recommended. A well-tried component for a safety-related
application shall be a component which has been:
a) widely used in the past with successful results in similar applications; or
b) made and verified using principles and technologies which demonstrate suitability and reliability
for safety-related applications. Design and verification activities used should include (where
applicable):
— fitting the definition of a well-tried component in this document;
— bench testing of load ability and functionality;
— proof testing to loads to a suitable safety factor;
— accelerated durability testing;
— computer-aided analysis and physical correlation studies;
— environmental testing per ISO 19014-3:202X;
— supporting the required MTTF .
d
MCS that interfere with, or mute, a safety function of the SCS shall be assigned the same machine
performance level as the SCS, unless it can be shown to require a different MPL per ISO 19014-1:202X
r
or ISO 19014-5:202X.
ISO/DIS 19014-2:2023(E)
Table 3 — Summary of requirements for categories
CCF evalua-
Category Summary of requirements System behaviour MTTF DC HFT
d
tion
B SRP/CS and/or their pro- The occurrence of low to none NA 0
tective equipment, as well a fault can lead to medium
as their components, shall the loss of a safety
be designed, constructed, function.
selected, assembled, and
combined in accordance
with relevant standards so
that they can withstand the
expected influence. Basic
safety principles shall be
used.
1 Requirements of category The occurrence of high none NA 0
B shall apply. Well-tried a fault can lead to
components and well-tried the loss of a safety
safety principles shall be function. The safe
used. performance of the
machine is greater
than what is required
for a category B
system.
a
2 Requirements of category The occurrence of a low low to me- required 0
B and the use of well-tried fault can lead to the dium
safety principles shall apply. loss of a safety func-
Safety function shall be tion, but an action to
checked at suitable inter- reduce the risk as
...
