CEN/TS 17784-2
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
April 2022
TECHNISCHE SPEZIFIKATION
ICS 65.080
English Version
Organo-mineral fertilizers - Identification of complexing
agents - Part 2: Method using high-performance liquid
chromatography (HPLC)
Engrais organo-minéraux - Identification des agents Organisch-mineralische Düngemittel - Identifizierung
complexants - Partie 2 : Méthode par chromatographie von Komplexbildnern - Teil 2: Verfahren mittels
liquide à haute performance (HPLC) Hochleistungs-Flüssigkeitschromatographie (HPLC)
This Technical Specification (CEN/TS) was approved by CEN on 21 February 2022 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 17784-2:2022 E
worldwide for CEN national Members.

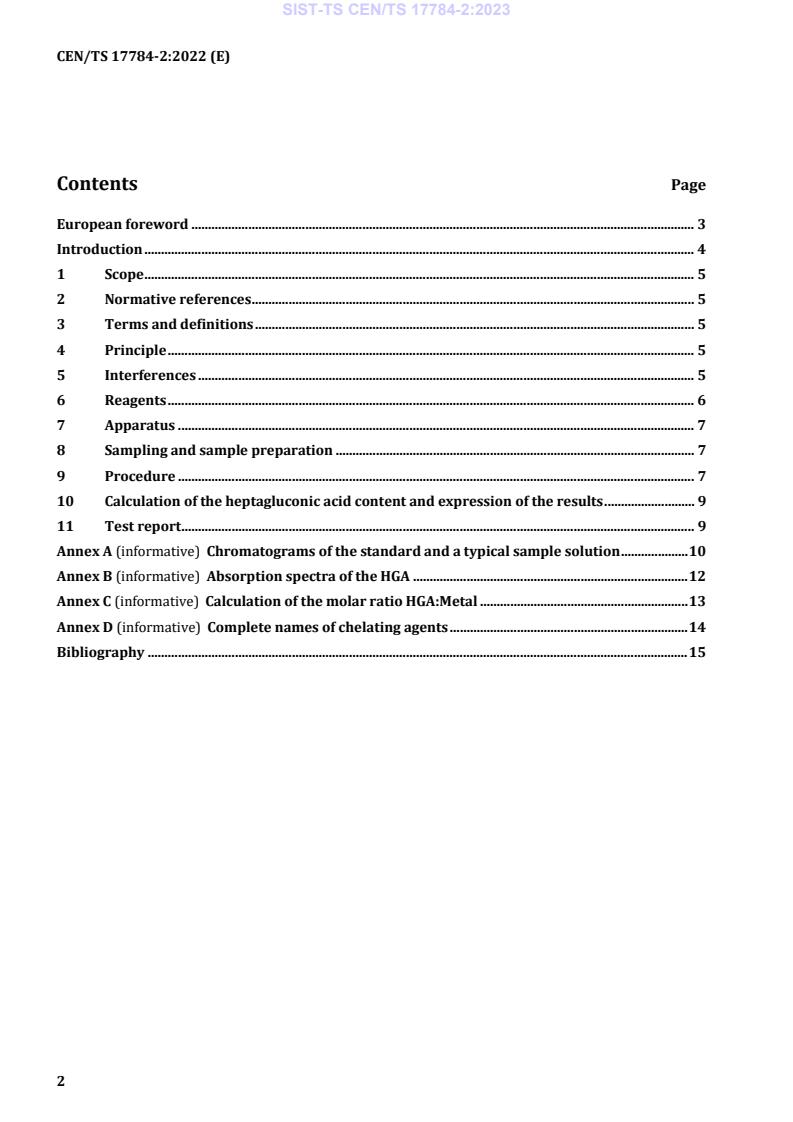

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Interferences . 5
6 Reagents . 6
7 Apparatus . 7
8 Sampling and sample preparation . 7
9 Procedure . 7
10 Calculation of the heptagluconic acid content and expression of the results . 9
11 Test report . 9
Annex A (informative) Chromatograms of the standard and a typical sample solution . 10
Annex B (informative) Absorption spectra of the HGA . 12
Annex C (informative) Calculation of the molar ratio HGA:Metal . 13
Annex D (informative) Complete names of chelating agents . 14
Bibliography . 15
European foreword
This document (CEN/TS 17784-2:2022) has been prepared by Technical Committee CEN/TC 260
“Fertilizers and liming materials”, the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Introduction
Micronutrients are considered to be, in plant nutrition, a number of elements known to be needed in
small amounts for proper plant growth and development. The most common are Iron (Fe), Manganese
(Mn), Molybdenum (Mo), Copper (Cu), Zinc (Zn) and Boron (B).
If an organo-mineral fertilizer contains a substance, or one of the substances in the mixture, which is
intended to enhance the long term availability to plants of micronutrients in the EU fertilizing product,
that substance can be either a chelating agent or a complexing agent.
The incorporation of heptagluconic acid as complexing agent in organo-mineral fertilizers is intended to
enhance the long term availability to plants of micronutrients in such EU fertilizing products.
1 Scope
This document specifies a chromatographic method which allows the identification of heptagluconic
acid (HGA) in organo-mineral fertilizers containing heptagluconic acid metal complexes.
NOTE For the complete names of the chelating agents mentioned in this document, see Annex D.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 12944-1, Fertilizers and liming materials — Vocabulary — Part 1: General terms
EN 12944-2, Fertilizers and liming materials — Vocabulary — Part 2: Terms relating to fertilizers
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12944-1 and EN 12944-2 and
the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
complexing agent
organic substance forming a flat or steric structure with one di- or tri-valent transition metal cation
(zinc (Zn), copper (Cu), iron (Fe), manganese (Mn) or cobalt (Co))
4 Principle
The method is based on demetallation with phosphoric acid of the micronutrient HGA complex present
in an aqueous solution of the sample.
The complexing agent is then identified and determined by high-performance liquid chromatography.
The separation is carried out on an NH phase bonded to silica column and an aqueous solution of
phosphoric acid and acetonitrile as eluent.
The detection is based on UV photometry at 210 nm.
WARNING — Users of this document should be familiar with normal laboratory practice. This
document does not purport to address all of the safety issues, if any, associated with its use. It is the
responsibility of the user to establish appropriate health and safety practices and to ensure compliance
with any national regulatory conditions.
IMPORTANT — It is absolutely essential that tests conducted according to this document are carried
out by suitably trained staff.
5 Interferences
Current knowledge on eventual interferences from other substances is summarized in the list below:
a) High concentrations of phosphate in the sample solution can create a large peak preventing the
identification/determination of HGA.
b) High concentrations of chloride, sulfate and nitrate do not interfere in the
identification/determination of the complexing agent.
c) The presence of the chelates of EDDHSA, [o,o] EDDHA, [o,o] EDDHMA, EDTA, DTPA, CDTA, HEEDTA,
IDHA as well as the corresponding chelating agent do not interfere since they are separated from
HGA.
These substances can be detected in the chromatogram by the appearance of a peak at larger
retention times. Therefore, the presence of these kinds of substances shall be taken into account
when successive injections are scheduled.
d) The presence of gluconic acid does interfere in the determination of the complexing agent.
e) The presence of aspartic acid, humic substances and lignosulfonic acid can interfere with the
identification/determination of HGA.
6 Reagents
All reagents shall be of recognized analytical grade.
6.1 Water
All water used should conform to EN ISO 3696, be degassed and be free of organic contaminants.
6.2 Sample preparation solvent.
Add to 800 ml of water, 2 ml of ortho-phosphoric acid 85 % and 25 ml of methanol in a 1 l volumetric
flask. Dilute to the mark with water and homogenize.
6.3 HGA stock solution.
The mass concentration (ρ) of this solution is ρ(HGA) = 19 893 mg/l.
This solution shall be freshly prepared daily, because of the formation of the corresponding lactone if it
is let standing for a long period of time.
Weigh to the nearest 0,1 mg about 2 500 mg of the heptagluconic acid, sodium salt dihydrate (CAS #
10094-62-9) 99 % (mass concentration), add 50 ml of water in a 100 ml volumetric flask. After
dissolution, dilute to the mark with water and homogenize.
6.4 Eluent A: ortho-phosphoric acid.
The molar concentration (c) of this solution is c(H PO ) = 30 mmol/l and methanol.
3 4
Add to 800 ml of water, 2 ml of ortho-phosphoric acid 85 % (mass concentration) and 25 ml of
methanol high-performance liquid chromatography (HPLC) grade in a 1 l volumetric flask. Dilute to the
mark with water and homogenize. Before use, filter the solution through a 0,45 µm membrane filter
(7.5).
6.5 Eluent B: acetonitrile (HPLC-grade).
7 Apparatus
Usual laboratory equipment, glassware, and the following:
7.1 Magnetic stirrer.
7.2 Chromatograph.
Equipped with:
a) an isocratic pump delivering the eluent at a flow rate of 1 ml/min;
b) an injection valve with a 20 µl injection loop or equivalent;
c) a NH column ; internal diameter: 4,6 mm; column length: 250 mm; dp = 5 µm;
d) a NH guard-column (recommended);
e) a UV-VIS detector with a 210 nm-filter;
f) an integrator.
7.3 Chromatographic conditions.
According to Table 1.
Table 1 — Chromatographic conditions
Flow rate Eluent A (6.4) Eluent B (6.5)
% %
1 ml/min 75 25
7.4 Balance.
Balance, with a maximum permissible error of ±0,1 mg.
7.5 Membrane filters.
Micro membrane filters resistant to aqueous solutions, with porosity of respectively 0,45 µm and
0,2 µm.
8 Sampling and sample preparation
Sampling and sample preparation are not part of the method specified in this document.
Recommended sampling methods are given in EN 1482-1 and, for sample preparation, in EN 1482-2.
9 Procedure
9.1 Preparation of the HGA-metal complex sample solution.
The mass of the test portion to be used to prepare the sample solution is dependent on the declared
metal content of the product.
1 TM
PhenoSphere NH2 80A 5 µm 250 mm x 4,6 mm or equivalent is an example of a suitable product available
commercially. This information is given for the convenience of users of this document and does not constitute an
endorsement by CEN of this product.
Weigh into a 150 ml beaker, approximate
...
