Safety and control devices for burners and appliances burning gaseous and/or liquid fuels - General requirements

This European Standard specifies the general safety, design, construction, and performance requirements and testing of safety, control or regulating devices (hereafter referred to as controls) for burners and appliances burning one or more gaseous fuels or liquid fuels. This European Standard is applicable to controls with declared maximum inlet pressure up to and including 500 kPa and of nominal connection sizes up to and including DN 250.
This European standard specifies general product requirements for the following controls:
— automatic shut-off valves;
— automatic burner control systems;
— flame supervision devices;
— gas/air ratio controls;
— pressure regulators;
— manual taps;
— mechanical thermostats;
— multifunctional controls;
— pressure sensing devices;
— valve proving systems;
— automatic vent valves.
This European standard applies for control functions that are not covered by a specific control standard for burners and appliances burning one or more gaseous fuels or liquid fuels.
This European Standard applies also for safety accessories and pressure accessories with a product of the maximum allowable pressure PS and the volume V of less than 600 000 kPa · dm3 (6 000 bar · L) or with a product of PS and DN of less than 300 000 kPa (3 000 bar).
This European Standard applies for AC and DC supplied controls (for controls supplied by stand-alone battery system, battery systems for mobile applications or systems which are intended to be connected to DC supply networks controls see Annex I).
This European Standard is applicable to reset functions used for reset from lockout, e.g. due to ignition failure or temperature cut-out in burners and appliances (see Annex M).
This European Standard establishes methodologies for the determination of a Safety Integrity Level (SIL) and the determination of a Performance Level (PL) (see Annex J, Annex K and Annex L).
This European Standard gives guidelines for environmental aspects (see Annex N).
This European Standard does not apply to mechanical controls for use with liquid fuels.
The protection against environmental impact in open air (i.e. capable of withstanding UV radiation, wind, rain, snow, dirt deposits, condensation, ice and hoar frost (see IEV 441-11-05:2005), earthquake and external fire) is not covered by this standard.
This European Standard should be used in conjunction with the specific control standard (see Bibliography).

Sicherheits- und Regeleinrichtungen für Brenner und Brennstoffgeräte für gasförmige und/oder flüssige Brennstoffe - Allgemeine Anforderungen

Den vierten Absatz durch Folgendes ersetzen: "
Dieses Dokument gilt auch für druckhaltende Ausrüstungsteile mit einem höchsten Eingangsdruck von > 50 kPa und für Ausrüstungsteile mit Sicherheitsfunktionen. Anhang F enthält einige zusätzliche Anforderungen.
Dieses Dokument umfasst keine Aspekte von Fertigungsprozessen wie z. B. Wiederholungsprüfungen von druckhaltenden Ausrüstungsteilen.".

Équipements auxiliaires pour brûleurs et appareils utilisant des combustibles gazeux ou liquides - Exigences générales

Remplacer le 4e alinéa par ce qui suit : «
Le présent document s'applique aux accessoires sous pression soumis à une pression amont maximale > 50 kPa et aux accessoires de sécurité. Les exigences supplémentaires particulières sont spécifiées à l'Annexe F.
Le présent document ne couvre pas les aspects des procédés de fabrication, par exemple les essais d’épreuve des accessoires sous pression. »

Varnostne in nadzorne naprave za gorilnike in aparate na plin in/ali tekoča goriva - Splošne zahteve - Dopolnilo A1

General Information

Status
Not Published
Publication Date
05-Jun-2023
Current Stage
4060 - Closure of enquiry - Enquiry
Start Date
16-Dec-2021
Due Date
08-Jul-2021
Completion Date
16-Dec-2021

Relations

Buy Standard

Draft
EN 13611:2019/oprA1:2021
English language
39 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 13611:2019/oprA1:2021
01-oktober-2021
Varnostne in nadzorne naprave za gorilnike in aparate na plin in/ali tekoča goriva -
Splošne zahteve - Dopolnilo A1
Safety and control devices for burners and appliances burning gaseous and/or liquid
fuels - General requirements
Sicherheits- und Regeleinrichtungen für Brenner und Brennstoffgeräte für gasförmige
und/oder flüssige Brennstoffe - Allgemeine Anforderungen
Équipements auxiliaires pour brûleurs et appareils utilisant des combustibles gazeux ou
liquides - Exigences générales
Ta slovenski standard je istoveten z: EN 13611:2019/prA1
ICS:
23.060.40 Tlačni regulatorji Pressure regulators
27.060.20 Plinski gorilniki Gas fuel burners
SIST EN 13611:2019/oprA1:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 13611:2019/oprA1:2021

---------------------- Page: 2 ----------------------
SIST EN 13611:2019/oprA1:2021


DRAFT
EUROPEAN STANDARD
EN 13611:2019
NORME EUROPÉENNE

EUROPÄISCHE NORM
prA1
September 2021
ICS 23.060.40
English Version

Safety and control devices for burners and appliances
burning gaseous and/or liquid fuels - General
requirements
Équipements auxiliaires pour brûleurs et appareils Sicherheits- und Regeleinrichtungen für Brenner und
utilisant des combustibles gazeux ou liquides - Brennstoffgeräte für gasförmige und/oder flüssige
Exigences générales Brennstoffe - Allgemeine Anforderungen
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 58.

This draft amendment A1, if approved, will modify the European Standard EN 13611:2019. If this draft becomes an amendment,
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13611:2019/prA1:2021 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST EN 13611:2019/oprA1:2021
EN 13611:2019/prA1:2021 (E)

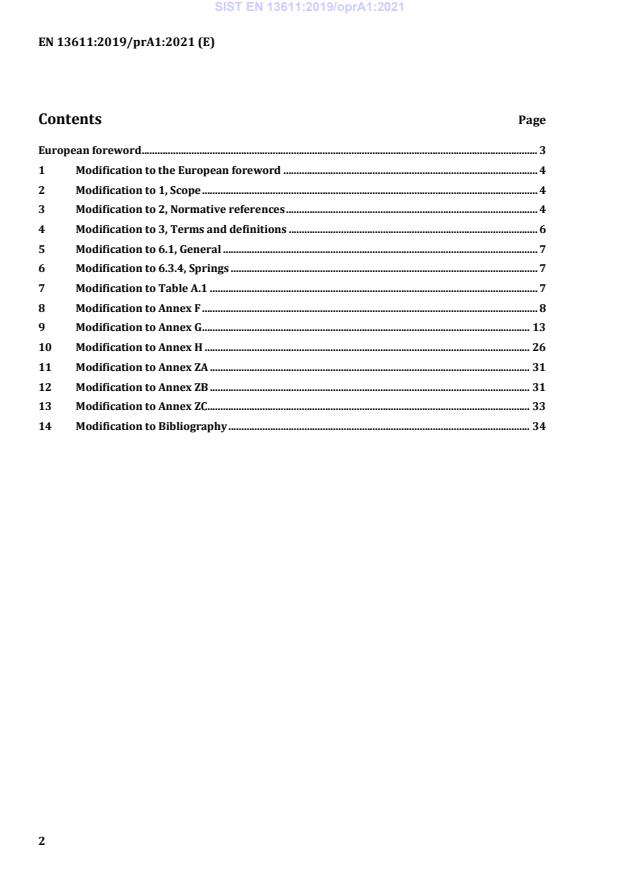

Contents Page
European foreword . 3
1 Modification to the European foreword . 4
2 Modification to 1, Scope . 4
3 Modification to 2, Normative references . 4
4 Modification to 3, Terms and definitions . 6
5 Modification to 6.1, General . 7
6 Modification to 6.3.4, Springs . 7
7 Modification to Table A.1 . 7
8 Modification to Annex F . 8
9 Modification to Annex G .
...
