Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2014
1DGRPHãþD
SIST EN 62321:2009
'RORþHYDQMHSRVDPH]QLKVQRYLYHOHNWURWHKQLþQLKL]GHONLKGHO'RORþHYDQMH
åLYHJDVUHEUDYSROLPHULKNRYLQDKLQHOHNWURQLNLV&9$$6&9$)6,&32(6LQ
,&306,(&
Determination of certain substances in electrotechnical products - Part 4: Determination
of mercury in polymers, metals and electronics by CV-AAS, CV-AFS, ICP-OES and ICP-
MS
Verfahren zur Bestimmung von bestimmten Substanzen in Produkten der Elektrotechnik
- Teil 4: Bestimmung von Quecksilber in Polymeren, Metallen und Elektronik mit CV-
AAS, CV-AFS, ICP-OES und ICP-MS
Détermination de certaines substances dans les produits électrotechniques - Partie 4:
Détermination du mercure dans les polymères, métaux et produits électroniques part CV
-AAS, CV-AFS, ICP-OES et ICP-MS
Ta slovenski standard je istoveten z: EN 62321-4:2014
ICS:
29.020 Elektrotehnika na splošno Electrical engineering in
general
31.020 Elektronske komponente na Electronic components in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62321-4
NORME EUROPÉENNE
April 2014
EUROPÄISCHE NORM
ICS 13.020; 43.040.10 Supersedes EN 62321:2009 (partially)

English version
Determination of certain substances in electrotechnical products -
Part 4: Mercury in polymers, metals and electronics by CV-AAS, CV-AFS,
ICP-OES and ICP-MS
(IEC 62321-4:2013)
Détermination de certaines substances Verfahren zur Bestimmung von
dans les produits électrotechniques - bestimmten Substanzen in Produkten der
Partie 4: Mercure dans les polymères, Elektrotechnik -
métaux et produits électroniques par CV- Teil 4: Quecksilber in Polymeren, Metallen
AAS, CV-AFS, ICP-OES et ICP-MS und Elektronik mit CV-AAS, CV-AFS, ICP-
(CEI 62321-4:2013) OES und ICP-MS
(IEC 62321-4:2013)
This European Standard was approved by CENELEC on 2013-11-15. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62321-4:2014 E

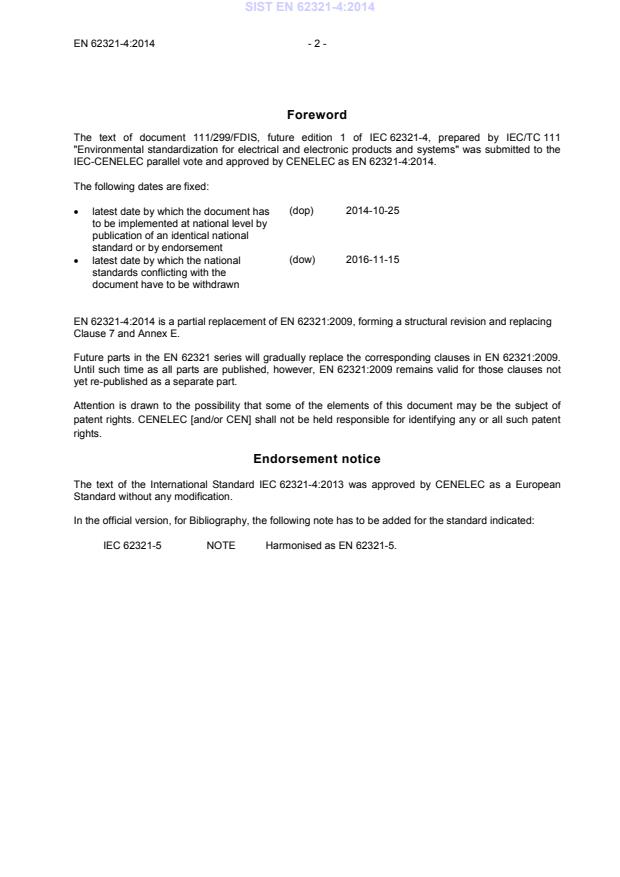

Foreword
The text of document 111/299/FDIS, future edition 1 of IEC 62321-4, prepared by IEC/TC 111
"Environmental standardization for electrical and electronic products and systems" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN 62321-4:2014.
The following dates are fixed:
(dop) 2014-10-25
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2016-11-15
• latest date by which the national
standards conflicting with the

document have to be withdrawn
Clause 7 and Annex E.
Future parts in the EN 62321 series will gradually replace the corresponding clauses in EN 62321:2009.
Until such time as all parts are published, however, EN 62321:2009 remains valid for those clauses not
yet re-published as a separate part.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 62321-4:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 62321-5 NOTE Harmonised as EN 62321-5.

- 3 - EN 62321-4:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 62321-1 - Determination of certain substances in EN 62321-1 -
electrotechnical products -
Part 1: Introduction and overview

IEC 62321-2 - Determination of certain substances in EN 62321-2 -
electrotechnical products -
Part 2: Disassembly, disjunction and
mechanical sample preparation
IEC 62321-3-1 - Determination of certain substances in EN 62321-3-1 -
electrotechnical products -
Part 3-1: Screening electrotechnical products
for lead, mercury, cadmium, total chromium
and total bromine using X-ray Fluorescence
Spectrometry
IEC 62554 - Sample preparation for measurement of EN 62554 -
mercury level in fluorescent lamps

ISO 3696 - Water for analytical laboratory use - EN ISO 3696 -
Specification and test methods

IEC 62321-4 ®
Edition 1.0 2013-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Determination of certain substances in electrotechnical products –

Part 4: Mercury in polymers, metals and electronics

by CV-AAS, CV-AFS, ICP-OES and ICP-MS

Détermination de certaines substances dans les produits électrotechniques –

Partie 4: Mercure dans les polymères, métaux et produits électroniques par

CV-AAS, CV-AFS, ICP-OES et ICP-MS

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 13.020; 43.040.10 ISBN 978-2-83220-841-0

– 2 – 62321-4 © IEC:2013
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviations . 8
3.1 Terms and definitions . 8
3.2 Abbreviations . 9
4 Reagent and materials. 9
4.1 General . 9
4.2 Reagents . 9
4.3 Materials . 11
5 Apparatus . 11
5.1 General . 11
5.2 Apparatus . 11
6 Sampling and test portion . 12
7 Procedure. 12
7.1 Wet digestion (digestion of electronics) . 12
7.2 Microwave digestion . 13
7.3 Thermal decomposition-gold amalgamation system . 13
7.4 Preparation of reagent blank solution . 14
8 Calibration . 14
8.1 General . 14
8.2 Development of the calibration curve . 14
8.3 Measurement of the sample . 15
9 Calculation . 15
10 Precision . 16
11 Quality assurance and control . 16
11.1 General . 16
11.2 Limits of detection (LOD) and limits of quantification (LOQ) . 17
Annex A (informative) Practical application of determination of mercury in polymers,
metals and electronics by CV-AAS, AFS, ICP-OES and ICP-MS . 19
Annex B (informative) Results of international interlaboratory study Nos. 2 (IIS2) and

4A (IIS 4A) . 24
Bibliography . 25

Figure A.1 – Heating digester equipped with reaction vessel, reflux cooler and
absorption vessel . 19
Figure A.2 – Configuration of equipment with AAS (example) . 20
Figure A.3 – Mercury collecting tube (example) . 21
Figure A.4 – Configuration (example) of the thermal decomposition/atomic absorption
spectrometer for CCFL. 22

Table 1 – Repeatability and reproducibility . 16
Table 2 – Acceptance criteria of items for the quality control . 17

62321-4 © IEC:2013 – 3 –
Table 3 – Method detection limit = t × s . 18
n–1
Table A.1 – Program for microwave digestion (example) of samples (power output for
five vessels). 20
Table B.1 – Statistical data for TD(G)-AAS . 24
Table B.2 – Statistical data for CV-AAS . 24
Table B.3 – Statistical data for CV-AFS . 24
Table B.4 – Statistical data for ICP-OES . 24

– 4 – 62321-4 © IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DETERMINATION OF CERTAIN SUBSTANCES
IN ELECTROTECHNICAL PRODUCTS –

Part 4: Mercury in polymers, metals and electronics
by CV-AAS, CV-AFS, ICP-OES and ICP-MS

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Techn
...
