Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors

IEC 60335-2-4:2021 is available as IEC 60335-2-4:2021 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 60335-2-4:2021 deals with the safety of stand-alone electric spin extractors and spin extractors incorporated in washing machines that have separate containers for washing and spin extraction for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and a drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than 250 V for single-phase appliances and 480 V for other appliances. Appliances not intended for normal household use but which nevertheless may be a source of danger to the public, such as spin extractors intended to be used by laymen in shops, in light industry and on farms, and spin extractors for communal use in blocks of flats or in launderettes, are within the scope of this standard. As far as is practicable, this standard deals with the common hazards presented by appliances which are encountered by all persons in and around the home. Attention is drawn to the fact that: - for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be necessary; - in many countries, additional requirements are specified by the national health authorities, the national authorities responsible for the protection of labour, the national water supply authorities and similar authorities. This standard does not apply to: - appliances intended exclusively for industrial purposes; - appliances intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive atmosphere (dust, vapour or gas). This seventh edition cancels and replaces the sixth edition published in 2008, Amendment 1:2012 and Amendment 2:2017. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - aligns the text with IEC 60335-1, Ed 5, and its Amendments 1 and 2; - replacement of the term definition of accessible part to include test probe 18; - addition of test probe 18 for accessibility of live parts. This part 2 is to be used in conjunction with the fifth edition of IEC 60335-1:2010 and its amendments.

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-4: Besondere Anforderungen für Wäscheschleudern

Appareils électrodomestiques et analogues - Sécurité - Partie 2-4: Exigences particulières pour les essoreuses centrifuges

This European Standard with the safety of stand-alone electric spin extractors, and pin extractors incorporated in washing machines that have separate containers for washing and spin extraction for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and a drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than 250 V for single-phase appliances and 480 V for other appliances

Gospodinjski in podobni električni aparati - Varnost - 2-4. del: Posebne zahteve za centrifuge (IEC 60335-2-4:2021)

Ta del standarda IEC 60335 obravnava varnost
– samostoječih električnih centrifug, in
– centrifug, ki so vgrajene v pralne stroje z ločenimi predeli za pranje
in centrifug za gospodinjsko in podobno uporabo z zmogljivostjo največ 10 kg suhih oblačil in obodno hitrostjo bobna največ 50 m/s, njihova nazivna napetost pa ne presega 250 V za enofazne aparate oziroma 480 V za druge aparate.
V področje uporabe tega standarda spadajo aparati, ki niso namenjeni za običajno gospodinjsko uporabo, vendar so lahko vir nevarnosti za javnost, kot so centrifuge, namenjene za laično uporabo v trgovinah, lahki industriji in na kmetijah in centrifuge za javno uporabo v stanovanjskih blokih in samopostrežnih pralnicah.
Ta standard v največji možni meri obravnava splošne nevarnosti, ki jih predstavljajo aparati ter s katerimi se srečujejo osebe doma in v okolici doma. Vendar na splošno ne vključuje primerov:
– oseb (vključno z otroki), ki zaradi
• fizičnih, senzoričnih ali umskih sposobnosti oziroma
• pomanjkanja izkušenj in znanja
ne morejo varno uporabljati aparata brez nadzora ali navodil;
– otrok, ki se igrajo z aparatom.
Upoštevati je treba tudi, da
– so za aparate, ki so namenjeni za uporabo v vozilih ali na krovu ladij ali letal, morda potrebne dodatne zahteve;
– v številnih državah nacionalni zdravstveni organi, nacionalni organi, odgovorni za varstvo pri delu, nacionalni organi za oskrbo z vodo ter drugi podobni organi določajo dodatne zahteve.
Ta standard se ne uporablja za:
– aparate za izključno industrijske namene;
– aparate, ki so namenjeni za uporabo na lokacijah, kjer veljajo posebne razmere, kot je prisotnost korozivne ali eksplozivne atmosfere (prah, hlapi ali plin).

General Information

Status
Published
Publication Date
07-Dec-2023
Current Stage
6060 - Document made available - Publishing
Start Date
08-Dec-2023
Due Date
27-Feb-2024
Completion Date
08-Dec-2023

Relations

Buy Standard

Standard
EN IEC 60335-2-4:2024
English language
21 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-februar-2024
Nadomešča:
SIST EN 60335-2-4:2010
SIST EN 60335-2-4:2010/A1:2015
SIST EN 60335-2-4:2010/A11:2018
SIST EN 60335-2-4:2010/A2:2020
Gospodinjski in podobni električni aparati - Varnost - 2-4. del: Posebne zahteve za
centrifuge (IEC 60335-2-4:2021)
Household and similar electrical appliances - Safety - Part 2-4: Particular requirements
for spin extractors (IEC 60335-2-4:2021)
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-4:
Besondere Anforderungen für Wäscheschleudern (IEC 60335-2-4:2021)
Appareils électrodomestiques et analogues - Sécurité - Partie 2-4: Règles particulières
pour les essoreuses centrifuges (IEC 60335-2-4:2021)
Ta slovenski standard je istoveten z: EN IEC 60335-2-4:2023
ICS:
13.120 Varnost na domu Domestic safety
97.060 Aparati za nego perila Laundry appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

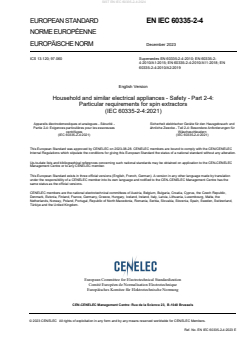

EUROPEAN STANDARD EN IEC 60335-2-4

NORME EUROPÉENNE
EUROPÄISCHE NORM December 2023
ICS 13.120; 97.060 Supersedes EN 60335-2-4:2010; EN 60335-2-
4:2010/A1:2015; EN 60335-2-4:2010/A11:2018; EN
60335-2-4:2010/A2:2019
English Version
Household and similar electrical appliances - Safety - Part 2-4:
Particular requirements for spin extractors
(IEC 60335-2-4:2021)
Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und
Partie 2-4: Exigences particulières pour les essoreuses ähnliche Zwecke - Teil 2-4: Besondere Anforderungen für
centrifuges Wäscheschleudern
(IEC 60335-2-4:2021) (IEC 60335-2-4:2021)
This European Standard was approved by CENELEC on 2023-08-28. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60335-2-4:2023 E

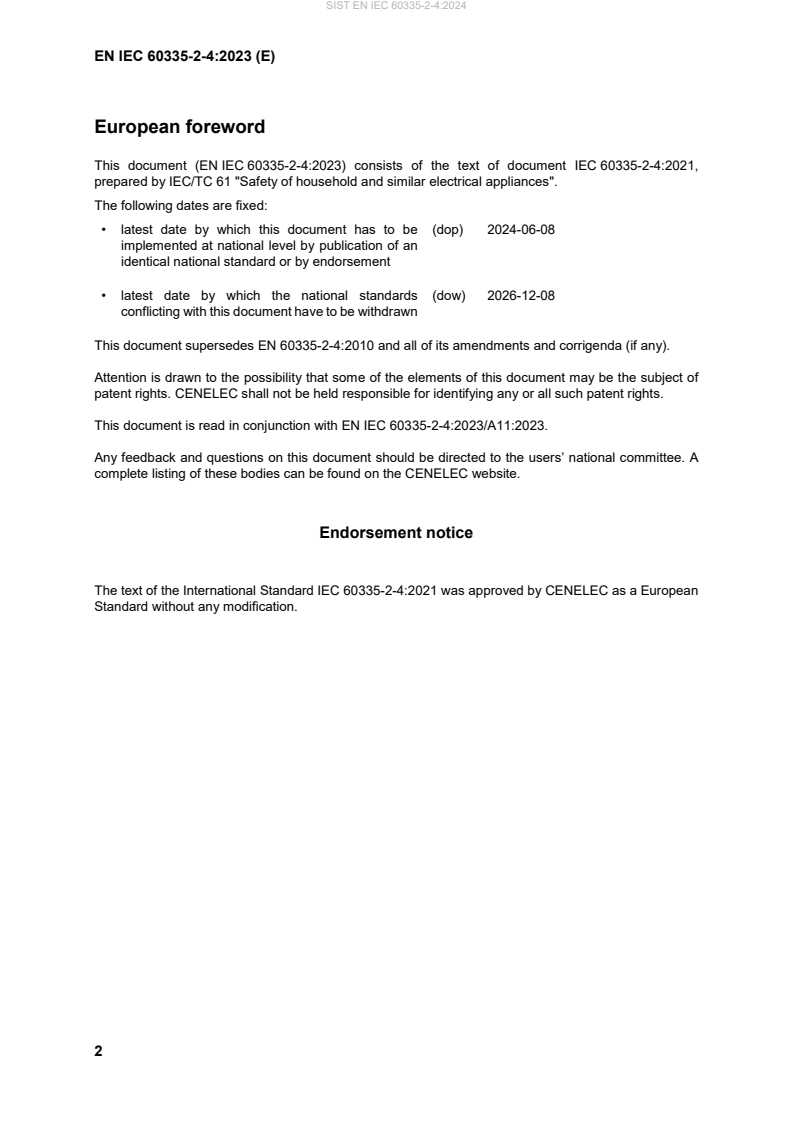

European foreword
This document (EN IEC 60335-2-4:2023) consists of the text of document IEC 60335-2-4:2021,
prepared by IEC/TC 61 "Safety of household and similar electrical appliances".
The following dates are fixed:
• latest date by which this document has to be (dop) 2024-06-08
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2026-12-08
conflicting with this document have to be withdrawn
This document supersedes EN 60335-2-4:2010 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN IEC 60335-2-4:2023/A11:2023.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60335-2-4:2021 was approved by CENELEC as a European
Standard without any modification.

IEC 60335-2-4 ®
Edition 7.0 2021-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –

Part 2-4: Particular requirements for spin extractors

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-4: Exigences particulières pour les essoreuses centrifuges

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120: 97.060 ISBN 978-2-8322-9253-2

– 2 – IEC 60335-2-4:2021 © IEC 2021
CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions . 8
4 General requirement . 8
5 General conditions for the tests . 8
6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 9
9 Starting of motor-operated appliances . 10
10 Power input and current . 10
11 Heating . 10
12 Void . 11
13 Leakage current and electric strength at operating temperature . 11
14 Transient overvoltages . 11
15 Moisture resistance . 11
16 Leakage current and electric strength . 11
17 Overload protection of transformers and associated circuits . 11
18 Endurance . 11
19 Abnormal operation . 12
20 Stability and mechanical hazards . 12
21 Mechanical strength . 15
22 Construction . 15
23 Internal wiring . 16
24 Components . 16
25 Supply connection and external flexible cords . 16
26 Terminals for external conductors . 16
27 Provision for earthing . 16
28 Screws and connections . 16
29 Clearances, creepage distances and solid insulation . 16
30 Resistance to heat and fire . 16
31 Resistance to rusting . 16
32 Radiation, toxicity and similar hazards . 17
Annexes . 18
Annex C (normative) Ageing test on motors . 18
Annex R (normative) Software evaluation . 18
Bibliography . 19

IEC 60335-2-4:2021 © IEC 2021 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –

Part 2-4: Particular requirements for spin extractors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60335-2-4 has been prepared by IEC technical committee 61: Safety
of household and similar electrical appliances.
This seventh edition cancels and replaces the sixth edition published in 2008,
Amendment 1:2012 and Amendment 2:2017. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– aligns the text with IEC 60335-1, Ed 5, and its Amendments 1 and 2;
– replacement of the term definition of accessible part to include test probe 18;
– addition of test probe 18 for accessibility of live parts.
...
