EN 60317-67:2017
(Main)Specifications for particular types of winding wires - Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105
Specifications for particular types of winding wires - Part 67: Polyvinyl acetal enamelled rectangular aluminium wire, class 105
IEC 60317-67: 2017 specifies the requirements of enamelled rectangular aluminium winding wire of class 105 with a sole coating based on polyvinyl acetal resin, which may be modified providing it retains the chemical identity of the original resin and meets all specified wire requirements. The range of nominal conductor dimensions covered by this standard is: Minimum Maximum Width 2,0 mm 16,0 mm Thickness 0,80 mm 5,60 mm Wires of grade 1 and grade 2 are included in this part of IEC 60317 and apply to the complete range of conductors. The specified combinations of width and thickness as well as the specific ratio width/thickness are given in IEC 60317-0-9. This publication is to be read in conjunction with IEC 60317-0-9:2015. Keywords: insulated wires used for windings in electrical equipment, class 105
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 67: Flachdrähte aus Aluminium, lackisoliert mit Polyvinylacetal, Klasse 105
Spécifications pour types particuliers de fils de bobinage - Partie 67: Fil d’aluminium de section rectangulaire émaillé d’acétal de polyvinyle, classe 105
IEC 60317-67:2017 spécifie les exigences relatives au fil de bobinage d’aluminium de section rectangulaire émaillé de classe 105 avec un revêtement unique à base de résine d’acétal de polyvinyle, qui peut être modifiée à condition de conserver la dénomination chimique de la résine d'origine et satisfaire à toutes les exigences spécifiées du fil.La plage de dimensions nominales du conducteur couverte par la présente norme est la suivante:
Minimale
Maximale
Largeur
Specifikacije za posebne vrste navijalnih žic - 67. del: Aluminijasta žica s pravokotnim prerezom, emajlirana s polivinil acetalom, razred 105 (IEC 60317-67:2017)
Ta del standarda IEC 60317 določa zahteve za emajlirano aluminijasto navijalno žico s pravokotnim prerezom razreda 105 z enim samim premazom na osnovi smole iz polivinil acetala, ki se lahko spremeni, če ohrani kemijsko identiteto izvirne smole in izpolnjuje vse določene zahteve za žice.
OPOMBA: spremenjena smola je smola, ki je bila kemijsko spremenjena ali vsebuje enega ali več aditivov za izboljšanje določene učinkovitosti lastnosti uporabe.
V ta del standarda IEC 60317 so vključene žice razreda 1 in 2 ter se uporabljajo za celoten nabor prevodnikov.
Navedene kombinacije širine in debeline ter določena razmerja med širino in debelino so podani v standardu IEC 60317-0-9.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 60317-67:2017
01-junij-2017
Specifikacije za posebne vrste navijalnih žic - 67. del: Aluminijasta žica s
pravokotnim prerezom, emajlirana s polivinil acetalom, razred 105 (IEC 60317-
67:2017)
Specifications for particular types of winding wires - Part 67: Polyvinyl acetal enamelled
rectangular aluminium wire, class 105 (IEC 60317-67:2017)
Ta slovenski standard je istoveten z: EN 60317-67:2017
ICS:
29.060.10 Žice Wires
77.150.10 Aluminijski izdelki Aluminium products
SIST EN 60317-67:2017 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 60317-67:2017
---------------------- Page: 2 ----------------------
SIST EN 60317-67:2017
EUROPEAN STANDARD EN 60317-67
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2017
ICS 29.060.10
English Version
Specifications for particular types of winding wires -
Part 67: Polyvinyl acetal enamelled rectangular aluminium wire,
class 105
(IEC 60317-67:2017)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 67: Fil d'aluminium de section rectangulaire émaillé Wickeldrähten - Teil 67: Flachdrähte aus Aluminium,
d'acétal de polyvinyle, classe 105 lackisoliert mit Polyvinylacetal, Klasse 105
(IEC 60317-67:2017) (IEC 60317-67:2017)
This European Standard was approved by CENELEC on 2017-02-28. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60317-67:2017 E
---------------------- Page: 3 ----------------------
SIST EN 60317-67:2017
EN 60317-67:2017

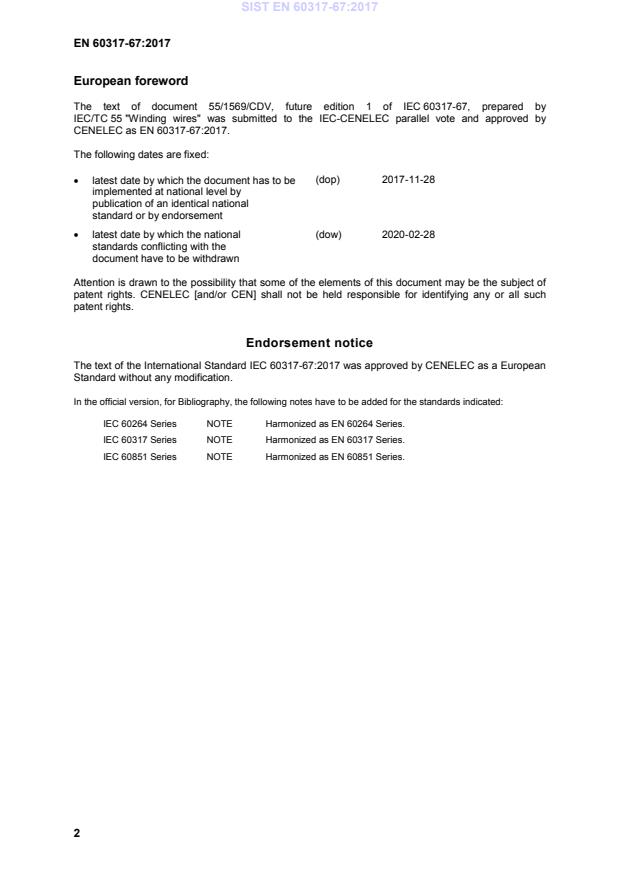

European foreword
The text of document 55/1569/CDV, future edition 1 of IEC 60317-67, prepared by
IEC/TC 55 "Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 60317-67:2017.
The following dates are fixed:
(dop) 2017-11-28
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2020-02-28
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60317-67:2017 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60264 Series NOTE Harmonized as EN 60264 Series.
IEC 60317 Series NOTE Harmonized as EN 60317 Series.
IEC 60851 Series NOTE Harmonized as EN 60851 Series.
2
---------------------- Page: 4 ----------------------
SIST EN 60317-67:2017
EN 60317-67:2017
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the Euro
...
