Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 281: Heat-shrinkable, polyolefin sleeving, semiconductive

IEC 60684-3-281:2010 gives the requirements for two types of heat-shrinkable, polyolefin sleeving, semiconductive, with a nominal shrink ratio of 3:1. This sleeving has been found suitable up to temperatures of 100 °C. - Type A: Thin wall - Internal diameter up to 195,0 mm typically; - Type B: Medium wall - Internal diameter up to 120,0 mm typically

Isolierschläuche - Teil 3: Anforderungen für einzelne Schlauchtypen - Blatt 281: Halbleitende Polyolefin-Wärmeschrumpfschläuche

Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines - Feuille 281: Gaines thermorétractables en polyoléfine, semiconductrices

La CEI 60684-3-281:2010 donne les exigences relatives à deux types de gaines thermorétractables, en polyoléfine, semiconductrices, de rapport de rétreint nominal 3:1. Ces gaines se sont révélées être adaptées à des températures jusqu'à 100 °C. - Type A: Paroi mince - Diamètre intérieur type jusqu'à 195,0 mm - Type B: Paroi moyenne - Diamètre intérieur type jusqu'à 120,0 mm

Gibke izolacijske cevi - 3. del: Specifikacije za posamezne tipe cevi - 281. list: Toplotno skrčljive poliolefinske cevi, polprevodne (IEC 60684-3-281:2010)

Ta del IEC 60684 podaja zahteve za dva tipa toplotno skrčljivih poliolefinskih cevi, polprevodnih, z nazivnim razmerjem krčenja 3:1. Za te cevi je ugotovljeno, da so primerne za temperature do 100 °C.
- Tip A: Tanka stena. Notranji premer običajno do 195,0 mm.
- Tip B: Srednje debela stena. Notranji premer običajno do 120,0 mm.
Te cevi se običajno dobavljajo v črni barvi. Ker te vrste cevi zajemajo precej velik razpon velikosti in debelin stene, podajata preglednici A.1. in A.2 v tem standardu vodilo o razponu razpoložljivih velikosti. Dejanska velikost se dogovori med uporabnikom in dobaviteljem. Materiali, skladni s to specifikacijo, ustrezajo vzpostavljenim ravnem delovanja. Vendar mora uporabnik material za določeno uporabo izbrati na podlagi dejanskih zahtev za ustrezno delovanje pri takšni uporabi in ne le na podlagi same specifikacije. Ta cevi so zasnovane za uporabo v kabelskih dodatkih srednje napetosti, zato mora biti dokazana njihova električna zmogljivost, kadar so del sklopa. Primeri tega so opisani v HD 629 in seriji IEC 60502.

General Information

Status
Published
Publication Date
09-Sep-2010
Drafting Committee
Parallel Committee
Current Stage
6060 - Document made available - Publishing
Start Date
10-Sep-2010
Completion Date
10-Sep-2010

Buy Standard

Standard
EN 60684-3-281:2010
English language
13 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 60684-3-281:2010
01-december-2010

*LENHL]RODFLMVNHFHYLGHO6SHFLILNDFLMH]DSRVDPH]QHWLSHFHYLOLVW

7RSORWQRVNUþOMLYHSROLROHILQVNHFHYLSROSUHYRGQH ,(&

Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet

281: Heat-shrinkable, polyolefin sleeving, semiconductive (IEC 60684-3-281:2010)
Isolierschläuche - Teil 3: Anforderungen für einzelne Schlauchtypen - Blatt 281:
Halbleitende Polyolefin-Wärmeschrumpfschläuche (IEC 60684-3-281:2010)

Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines -

Feuille 281: Gaines thermorétractables en polyoléfine, semiconductrices (CEI 60684-3-

281:2010)
Ta slovenski standard je istoveten z: EN 60684-3-281:2010
ICS:
29.035.20 3ODVWLþQLLQJXPHQLL]RODFLMVNL Plastics and rubber insulating
PDWHULDOL materials
SIST EN 60684-3-281:2010 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 60684-3-281:2010
---------------------- Page: 2 ----------------------
SIST EN 60684-3-281:2010
EUROPEAN STANDARD
EN 60684-3-281
NORME EUROPÉENNE
September 2010
EUROPÄISCHE NORM
ICS 29.035.20
English version
Flexible insulating sleeving -
Part 3: Specifications for individual types of sleeving -
Sheet 281: Heat-shrinkable, polyolefin sleeving, semiconductive
(IEC 60684-3-281:2010)
Gaines isolantes souples - Isolierschläuche -
Partie 3: Spécifications pour types Teil 3: Anforderungen für einzelne
particuliers de gaines - Schlauchtypen -
Feuille 281: Gaines thermorétractables Blatt 281: Halbleitende Polyolefin-
en polyoléfine, semiconductrices Wärmeschrumpfschläuche
(CEI 60684-3-281:2010) (IEC 60684-3-281:2010)

This European Standard was approved by CENELEC on 2010-09-01. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,

Spain, Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60684-3-281:2010 E
---------------------- Page: 3 ----------------------

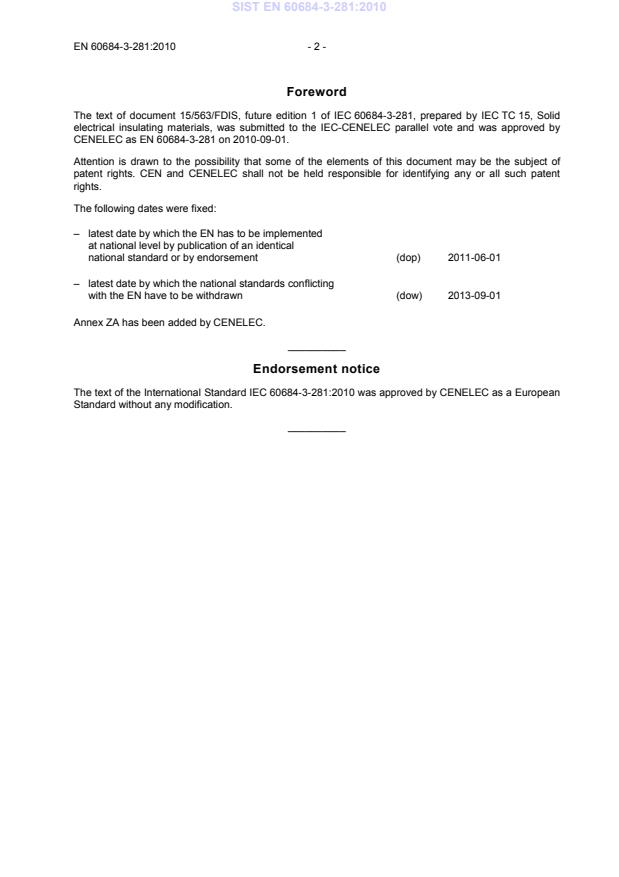

SIST EN 60684-3-281:2010
EN 60684-3-281:2010 - 2 -
Foreword

The text of document 15/563/FDIS, future edition 1 of IEC 60684-3-281, prepared by IEC TC 15, Solid

electrical insulating materials, was submitted to the IEC-CENELEC parallel vote and was approved by

CENELEC as EN 60684-3-281 on 2010-09-01.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent

rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-06-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2013-09-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice

The text of the International Standard IEC 60684-3-281:2010 was approved by CENELEC as a European

Standard without any modification.
__________
---------------------- Page: 4 ----------------------
SIST EN 60684-3-281:2010
- 3 - EN 60684-3-281:2010
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
- - Test requirements on accessories HD 629.1 S2 2006
for use on power cables of rated voltage
from 3,6/6(7,2) kV up to 20,8/36(42) kV -
Part 1: Cables with extruded insulation
IEC 60296 2003 Fluids for electrotechnical applications - EN 60296 2004
Unused mineral insulating oils for + corr. September 2004
transformers and switchgear
IEC 60502 Series Power cables with extruded insulation and - -
their accessories for rated voltages from 1 kV
(Um = 1,2 kV) up to 30 kV (Um = 36 kV)
IEC 60684-1 2003 Flexible insulating sleeving - EN 60684-1 2003
Part 1: Definitions and general requirements
IEC 60684-2 1997 Flexible insulating sleeving - EN 60684-2 1997
+ A1 2003 Part 2: Methods of test + A1 2003
+ A2 2005 + A2 2005
IEC 60757 1983 Code for designation of colours HD 457 S1 1985
---------------------- Page: 5 ----------------------
SIST EN 60684-3-281:2010
---------------------- Page: 6 ----------------------
SIST EN 60684-3-281:2010
IEC 60684-3-281
Edition 1.0 2010-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 281: Heat-shrinkable, polyolefin sleeving, semiconductive
Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –
Feuille 281: Gaines thermorétractables en polyoléfine, semiconductrices
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX
ICS 29.035.20 ISBN 978-2-88910-963-0
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 60684-3-281:2010
– 2 – 60684-3-281 © IEC:2010
CONTENTS

FOREWORD...........................................................................................................................3

INTRODUCTION.....................................................................................................................5

1 Scope...............................................................................................................................6

2 Normative references .......................................................................................................6

3 Designation ......................................................................................................................7

4 Conditions of test .............................................................................................................7

5 Requirements ...................................................................................................................7

6 Sleeving conformance ......................................................................................................7

Annex A (informative) Guidance to the available sizes and wall thicknesses ........................10

Table 1 – Property requirements .............................................................................................8

Table 2 – Resistance to selected fluids ...................................................................................9

Table A.1 – Type A, thin wall ................................................................................................10

Table A.2 – Type B, medium wall..........................................................................................10

---------------------- Page: 8 ----------------------
SIST EN 60684-3-281:2010
60684-3-281 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
______________
FLEXIBLE INSULATING SLEEVING –
Part 3: Specifications for individual types of sleeving –
Sheet 281: Heat-shrinkable, polyolefin sleeving,
semiconductive
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to
...
