SIST EN IEC 60684-3-281:2025
(Main)Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 281: Heat-shrinkable, polyolefin sleeving, semiconductive (IEC 60684-3-281:2025)
Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 281: Heat-shrinkable, polyolefin sleeving, semiconductive (IEC 60684-3-281:2025)
This part of IEC 60684 gives the requirements for two types of heat-shrinkable, polyolefin sleeving, semiconductive, with a nominal shrink ratio of 3:1.
This sleeving has been found suitable up to temperatures of 100 °C.
- Type A: Thin wall Internal diameter up to 195,0 mm typically
- Type B: Medium wall Internal diameter up to 120,0 mm typically
This sleeving is normally supplied in the colour black.
Since these types of sleevings cover a significantly large range of sizes and wall thicknesses, Annex A in this standard provides guidance to the range of sizes available. The actual size will be agreed between the user and the supplier.
Materials which conform to this specification meet established levels of performance. However, the selection of a material by a user for a specific application need to be based on the actual requirements necessary for adequate performance in that application and not based on this specification alone.
This sleeving is designed to be used in MV cable accessories and as such electrical performance will be proven as part of the assembly. Examples of this are described in HD 629 and IEC 60502 (all parts)
Isolierschläuche - Teil 3: Anforderungen für einzelne Schlauchtypen - Blatt 281: Halbleitende Polyolefin-Wärmeschrumpfschläuche (IEC 60684-3-281:2025)
Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines - Feuille 281: Gaines thermorétractables en polyoléfine, semiconductrices (IEC 60684-3-281:2025)
L'IEC 60684-3-281:2025 donne les exigences relatives à deux types de gaines thermorétractables, en polyoléfine, semiconductrices, dont le rapport de rétreint nominal est égal à 3:1.
Ces gaines se sont révélées être adaptées à une utilisation à des températures allant jusqu’à 100 °C.
- Type A: Paroi mince - Diamètre intérieur type jusqu’à 195,0 mm
- Type B: Paroi moyenne - Diamètre intérieur type jusqu’à 120,0 mm
Comme ces types de gaines couvrent une gamme très étendue de dimensions et d’épaisseurs de paroi, l'Annexe A fournit des recommandations sur la gamme des dimensions disponibles. Les dimensions réelles font l’objet d’un accord entre l’utilisateur et le fournisseur.
Cette deuxième édition annule et remplace la première édition parue en 2010. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) modification de l'exigence de résistivité transversale par une valeur maximale;
b) modification de la méthode de mesurage de la résistivité.
Gibke izolacijske cevi - 3. del: Specifikacije za posamezne tipe cevi - 281. list: Toplotno skrčljive poliolefinske cevi, polprevodne (IEC 60684-3-281:2025)
General Information
Relations
Standards Content (Sample)

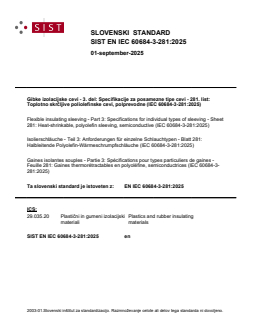

SLOVENSKI STANDARD
01-september-2025
Gibke izolacijske cevi - 3. del: Specifikacije za posamezne tipe cevi - 281. list:
Toplotno skrčljive poliolefinske cevi, polprevodne (IEC 60684-3-281:2025)
Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet
281: Heat-shrinkable, polyolefin sleeving, semiconductive (IEC 60684-3-281:2025)
Isolierschläuche - Teil 3: Anforderungen für einzelne Schlauchtypen - Blatt 281:
Halbleitende Polyolefin-Wärmeschrumpfschläuche (IEC 60684-3-281:2025)
Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines -
Feuille 281: Gaines thermorétractables en polyoléfine, semiconductrices (IEC 60684-3-
281:2025)
Ta slovenski standard je istoveten z: EN IEC 60684-3-281:2025
ICS:
29.035.20 Plastični in gumeni izolacijski Plastics and rubber insulating
materiali materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

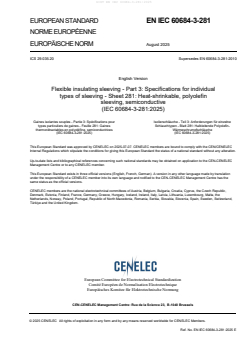

EUROPEAN STANDARD EN IEC 60684-3-281
NORME EUROPÉENNE
EUROPÄISCHE NORM August 2025
ICS 29.035.20 Supersedes EN 60684-3-281:2010
English Version
Flexible insulating sleeving - Part 3: Specifications for individual
types of sleeving - Sheet 281: Heat-shrinkable, polyolefin
sleeving, semiconductive
(IEC 60684-3-281:2025)
Gaines isolantes souples - Partie 3: Spécifications pour Isolierschläuche - Teil 3: Anforderungen für einzelne
types particuliers de gaines - Feuille 281: Gaines Schlauchtypen - Blatt 281: Halbleitende Polyolefin-
thermorétractables en polyoléfine, semiconductrices Wärmeschrumpfschläuche
(IEC 60684-3-281:2025) (IEC 60684-3-281:2025)
This European Standard was approved by CENELEC on 2025-07-07. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60684-3-281:2025 E

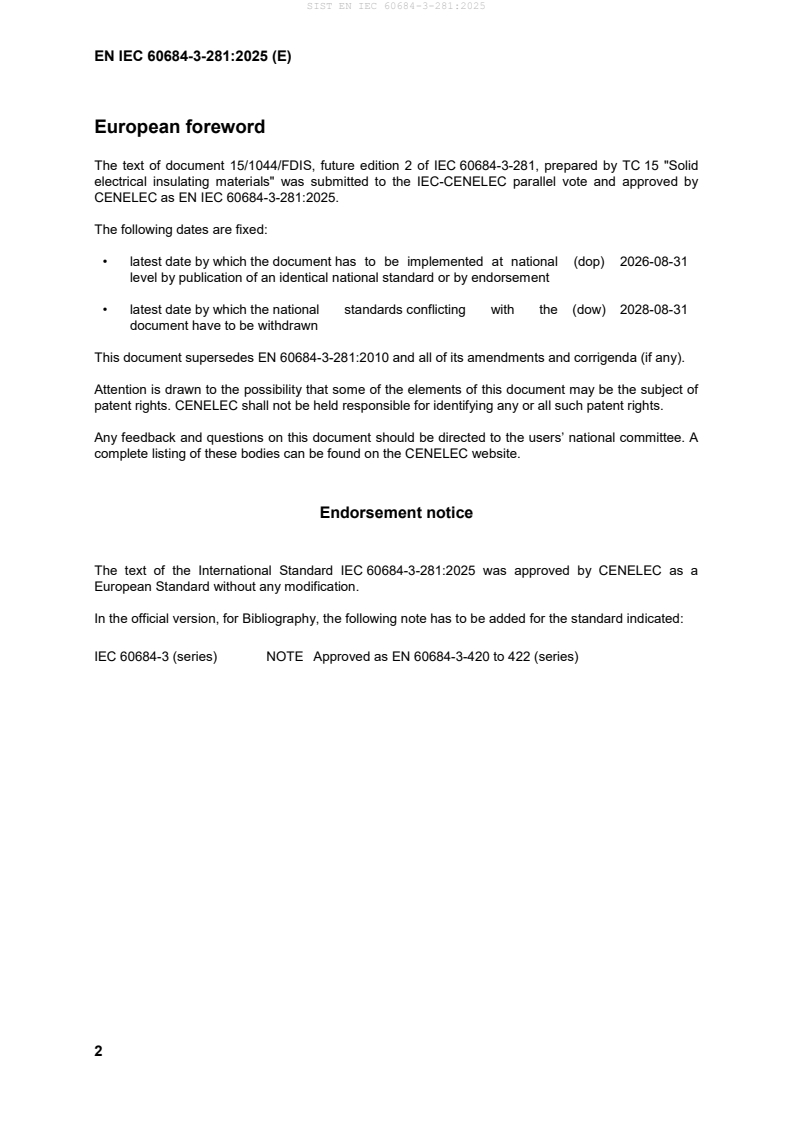

European foreword
The text of document 15/1044/FDIS, future edition 2 of IEC 60684-3-281, prepared by TC 15 "Solid
electrical insulating materials" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 60684-3-281:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-08-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-08-31
document have to be withdrawn
This document supersedes EN 60684-3-281:2010 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60684-3-281:2025 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60684-3 (series) NOTE Approved as EN 60684-3-420 to 422 (series)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60296 - Fluids for electrotechnical applications - EN IEC 60296 -
Mineral insulating oils for electrical equipment
IEC 60684-1 - Flexible insulating sleeving - Part 1: Definitions EN 60684-1 -
and general requirements
IEC 60684-2 2025 Flexible insulating sleeving - Part 2: Methods EN IEC 60684-2 2025
of test
IEC 60757 - Code for designation of colours EN IEC 60757 -
IEC 60684-3-281 ®
Edition 2.0 2025-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving – Sheet 281: Heat-
shrinkable, polyolefin sleeving, semiconductive
Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines – Feuille 281: Gaines
thermorétractables en polyoléfine, semiconductrices
ICS 29.035.20 ISBN 978-2-8327-0411-0
IEC 60684-3-281:2025-06(en-fr)
– 2 – IEC 60684-3-281:2025 © IEC 2025
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Designation . 7
5 Conditions of test . 7
6 Requirements . 7
7 Sleeving conformance . 7
Annex A (informative) Guidance on the available sizes and wall thicknesses . 11
Bibliography . 12
Table 1 – Property requirements . 8
Table 2 – Resistance to selected fluids . 9
Table A.1 – Type A, thin wall . 11
Table A.2 – Type B, medium wall . 11
IEC 60684-3-281:2025 © IEC 2025 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE INSULATING SLEEVING –
Part 3: Specifications for individual types of sleeving –
Sheet 281: Heat-shrinkable, polyolefin sleeving, semiconductive
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60684-3-281 has been prepared by IEC technical committee 15: Solid electrical insulating
materials. It is an International Standard.
This second edition cancels and replaces the first edition published in 2010. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) change in volume resistivity requirement to a maximum;
b) change in method to measure resistivity.
– 4 – IEC 60684-3-281:2025 © IEC 2025
The text of this International Standard is based on the following documents:
Draft Report on voting
15/1044/FDIS 15/1059/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all the parts in the IEC 60684 series, under the general title Flexible insulating sleeving,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IEC 60684-3-281:2025 © IEC 2025 – 5 –
INTRODUCTION
This document is one of a series of standards which deals with flexible insulating sleeving for
electrical purposes.
The series consists of three parts:
IEC 60684-1: Definitions and general requirements
IEC 60684-2: Methods of test
IEC
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
