FprEN IEC 61076-2-117:2026

Steckverbinder für elektrische und elektronische Geräte – Teil 2-117: Einzelspezifikation für geschirmte, freie und feste Rundsteckverbinder M12 bis M40 für Leistungs-, Signal- und Datenübertragung mit Frequenzen bis 600 MHz

Connecteurs pour équipements électriques et électroniques - spécification particulière pour les fiches et embases circulaires écrantées m12 à m40 pour la transmission de puissance, de signaux et de données à des fréquences jusqu’à 600 MHz

Konektorji za električno in elektronsko opremo - Podrobna specifikacija za oklopljene, gibljive in pritrjene konektorje M12 do M40 za prenos električnega napajanja, signalov in podatkov s frekvencami do 600 MHz

General Information

• Status: Not Published
• Publication Date: 30-Aug-2026
• Technical Committee: CLC/SR 48B - Connectors
• Drafting Committee: IEC/SC 48B - IEC_SC_48B
• Current Stage: 5060 - Voting results sent to TC, SR - Formal Approval
• Start Date: 29-May-2026
• Completion Date: 29-May-2026
• Ref Project: kSIST FprEN IEC 61076-2-117:2026 - Connectors for electrical and electronic equipment - Detail specification for shielded, free and fixed circular connectors m12 to m40 for power, signal and data transmission with frequencies up to 600 MHz

Overview

FprEN IEC 61076-2-117:2026 is an international standard developed by CLC and IEC for connectors used in electrical and electronic equipment. This detailed specification covers shielded, free and fixed circular connectors ranging from M12 to M40 sizes, supporting power, signal, and data transmission at frequencies up to 600 MHz. These connectors are essential components in modern industrial automation, power supply systems, and high-speed networking environments.

By specifying critical dimensions, mechanical and electrical characteristics, and environmental and testing requirements, this standard facilitates interoperability, performance, and reliability for circular connectors, both in current and future applications.

Key Topics

• Connector Types and Sizes:

  • M12, M17, M23, and M40 circular connectors
  • Screw-locking and quick-locking mechanisms
  • Shielded and unshielded configurations

• Transmission Capabilities:

  • Power transmission up to 600 V AC/DC and up to 70 A
  • Signal transmission up to 50 V AC/DC and up to 30 A
  • Data transmission at frequencies up to 600 MHz, supporting Ethernet standards such as Fast Ethernet and Gigabit Ethernet

• Design Features:

  • Multiple coding types prevent mismating, ensuring compatibility and safety
  • Fixed and rewirable connectors with male or female contacts
  • Support for straight and right-angled versions
  • Various mounting styles, including flange and single-hole panel mounting

• Performance and Testing:

  • Mechanical performance: IP protection ratings, vibration, shock resistance
  • Electrical performance: contact resistance, insulation resistance, and current-carrying capacity
  • Transmission performance: insertion loss, return loss, cross talk, and electromagnetic compatibility
  • Extensive test schedules for dynamic, mechanical, electrical, and environmental durability

Applications

FprEN IEC 61076-2-117:2026 connectors are widely utilized in numerous demanding environments, offering robust solutions for:

• Industrial Automation: One-cable automation for sensors, actuators, and control systems needing both power and high-speed data
• Robotics: Reliable connections for motors, feedback devices, and communication modules
• Transport and Rail: Secure signal and power connections in vehicles and infrastructure
• Machinery and Equipment: Interfacing programmable logic controllers (PLCs), drives, and industrial PCs
• Networking and Communication: Transmission of Ethernet and other industrial network protocols up to 600 MHz, including Fast Ethernet, Gigabit Ethernet, and Single-Pair Ethernet
• Power Distribution: Safe and standardized interconnection of power supplies across automation equipment

Related Standards

Organizations involved in connector and electrotechnical standardization may reference or use these related standards:

• IEC 61076-1 - General requirements for connectors for electronic equipment
• IEC 60512 series - Connectors for electronic equipment - Tests and measurements
• IEC 60068 series - Environmental testing of electrotechnical products
• IEC 60352 series - Solderless connections
• IEEE 802.3 - Ethernet standards, referenced for supported data protocols
• IEC 60050-581 - Electromechanical components for electronic equipment vocabulary

Conclusion

Implementing FprEN IEC 61076-2-117:2026 ensures compatibility, safety, and high performance for shielded circular connectors in industrial and digital applications. Its specifications help manufacturers, system integrators, and end-users reduce risk, streamline installation, and meet demanding requirements for modern electrical, automation, and communication infrastructures. Adopting this standard supports future-ready and internationally standardized connector solutions.

Standards Content (Sample)

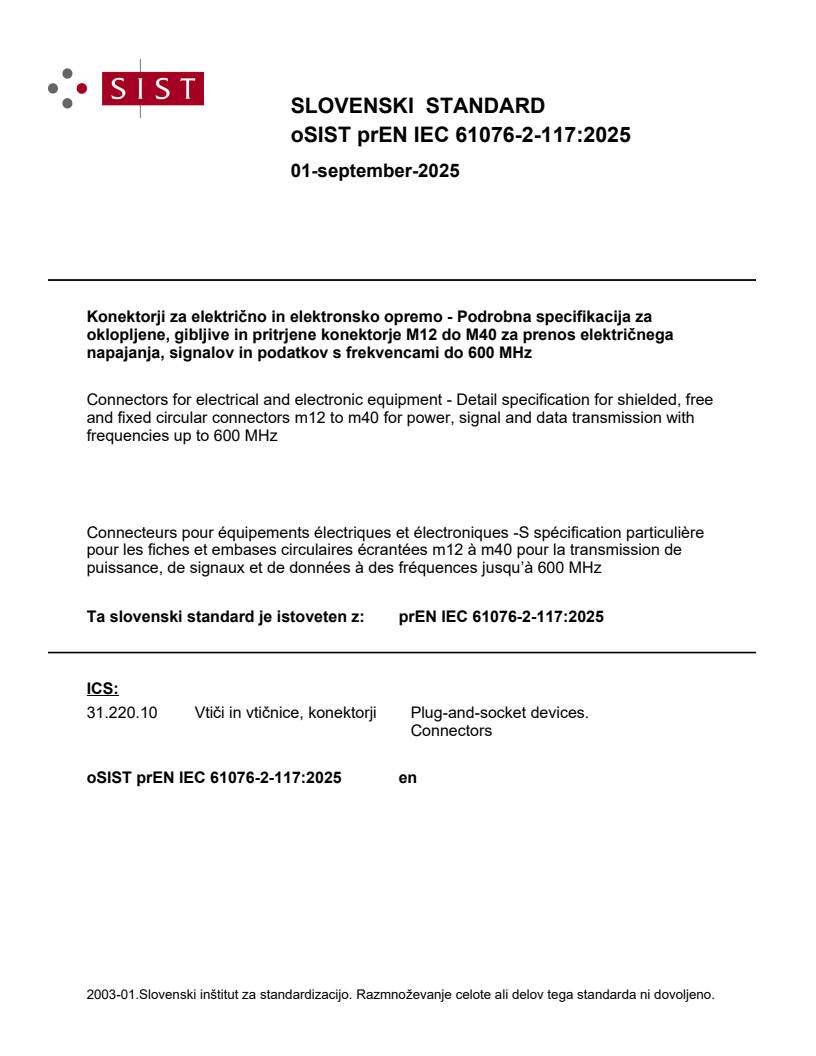

SLOVENSKI STANDARD
oSIST prEN IEC 61076-2-117:2025
01-september-2025
Konektorji za električno in elektronsko opremo - Podrobna specifikacija za
oklopljene, gibljive in pritrjene konektorje M12 do M40 za prenos električnega
napajanja, signalov in podatkov s frekvencami do 600 MHz
Connectors for electrical and electronic equipment - Detail specification for shielded, free
and fixed circular connectors m12 to m40 for power, signal and data transmission with
frequencies up to 600 MHz
Connecteurs pour équipements électriques et électroniques -S spécification particulière
pour les fiches et embases circulaires écrantées m12 à m40 pour la transmission de
puissance, de signaux et de données à des fréquences jusqu’à 600 MHz
Ta slovenski standard je istoveten z: prEN IEC 61076-2-117:2025
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
oSIST prEN IEC 61076-2-117:2025 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

oSIST prEN IEC 61076-2-117:2025

oSIST prEN IEC 61076-2-117:2025

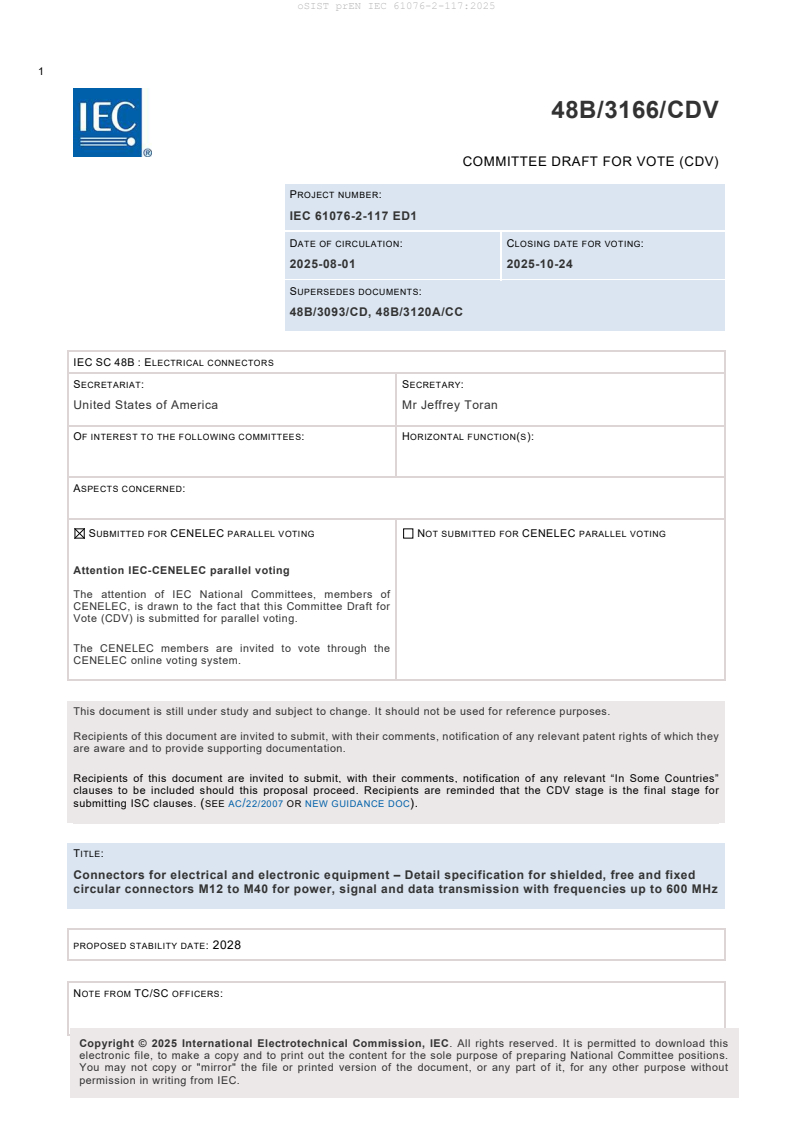

48B/3166/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 61076-2-117 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-08-01 2025-10-24
SUPERSEDES DOCUMENTS:
48B/3093/CD, 48B/3120A/CC
IEC SC 48B : ELECTRICAL CONNECTORS
SECRETARIAT: SECRETARY:
United States of America Mr Jeffrey Toran
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):

ASPECTS CONCERNED:
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft for
Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which they
are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some Countries”
clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is the final stage for
submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Connectors for electrical and electronic equipment – Detail specification for shielded, free and fixed
circular connectors M12 to M40 for power, signal and data transmission with frequencies up to 600 MHz

PROPOSED STABILITY DATE: 2028
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

oSIST prEN IEC 61076-2-117:2025
IEC 61076-2-117 Ed1©IEC 2025

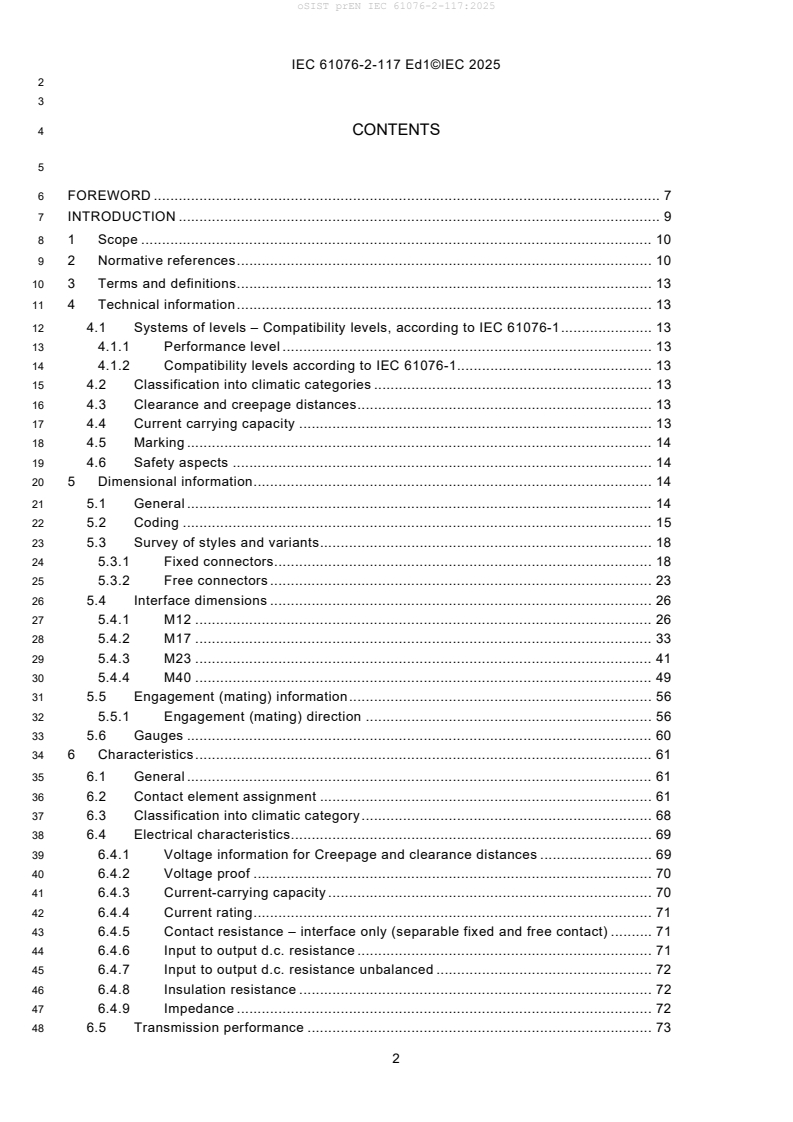

4 CONTENTS
6 FOREWORD . 7
7 INTRODUCTION . 9
8 1 Scope . 10
9 2 Normative references . 10
10 3 Terms and definitions . 13
11 4 Technical information . 13
12 4.1 Systems of levels – Compatibility levels, according to IEC 61076-1 . 13
13 4.1.1 Performance level . 13
14 4.1.2 Compatibility levels according to IEC 61076-1. 13
15 4.2 Classification into climatic categories . 13
16 4.3 Clearance and creepage distances . 13
17 4.4 Current carrying capacity . 13
18 4.5 Marking . 14
19 4.6 Safety aspects . 14
20 5 Dimensional information . 14
21 5.1 General . 14
22 5.2 Coding . 15
23 5.3 Survey of styles and variants . 18
24 5.3.1 Fixed connectors. 18
