EN IEC 63303:2024
(Main)Human machine interfaces for process automation systems
Human machine interfaces for process automation systems
IEC 63303:2024 defines general structures and functions of HMI systems. An HMI life cycle example for HMI systems is included. This document specifies requirements and recommendations for activities in each stage of the life cycle including designing, using, and maintaining the HMI system. It also provides requirements and recommendations for functions and performance of HMI systems. The requirements and recommendations in this document are applicable to any controlled process using an HMI to interface to a control system. There can be differences in implementation to meet the specific needs based on the application and controlled process type.
Mensch-Maschine-Schnittstellen für Prozessautomatisierungssysteme
Interfaces homme-machine pour les systèmes d’automatisation des processus
IEC 63303:2024 définit les structures générales et les fonctions des systèmes IHM. Un exemple de cycle de vie de l’IHM pour les systèmes également IHM est inclus. Le présent document spécifie les exigences et les recommandations pour les activités à chaque phase du cycle de vie, y compris la conception, l'utilisation et la maintenance du système IHM. Il fournit également des exigences et des recommandations pour les fonctions et les performances des systèmes IHM. Les exigences et les recommandations du présent document s'appliquent à tout processus commandé qui utilise une IHM pour fonctionner avec un système de commande. Il peut y avoir des différences dans la mise en œuvre afin de satisfaire aux besoins spécifiques en fonction de l'application et du type de processus commandé.
Vmesniki človek-stroj za sisteme avtomatizacije procesov (IEC 63303:2024)
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2024
Vmesniki človek-stroj za sisteme avtomatizacije procesov (IEC 63303:2024)
Human machine interfaces for process automation systems (IEC 63303:2024)
Mensch-Maschine-Schnittstellen für Prozessautomatisierungssysteme (IEC 63303:2024)
Interfaces homme-machine pour les systèmes d’automatisation des processus (IEC
63303:2024)
Ta slovenski standard je istoveten z: EN IEC 63303:2024
ICS:
13.180 Ergonomija Ergonomics
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.240.50 Uporabniške rešitve IT v IT applications in industry
industriji
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 63303
NORME EUROPÉENNE
EUROPÄISCHE NORM September 2024
ICS 25.040.40
English Version
Human machine interfaces for process automation systems
(IEC 63303:2024)
Interfaces homme-machine pour les systèmes Mensch-Maschine-Schnittstellen für
d'automatisation des processus Prozessautomatisierungssysteme
(IEC 63303:2024) (IEC 63303:2024)
This European Standard was approved by CENELEC on 2024-09-10. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63303:2024 E

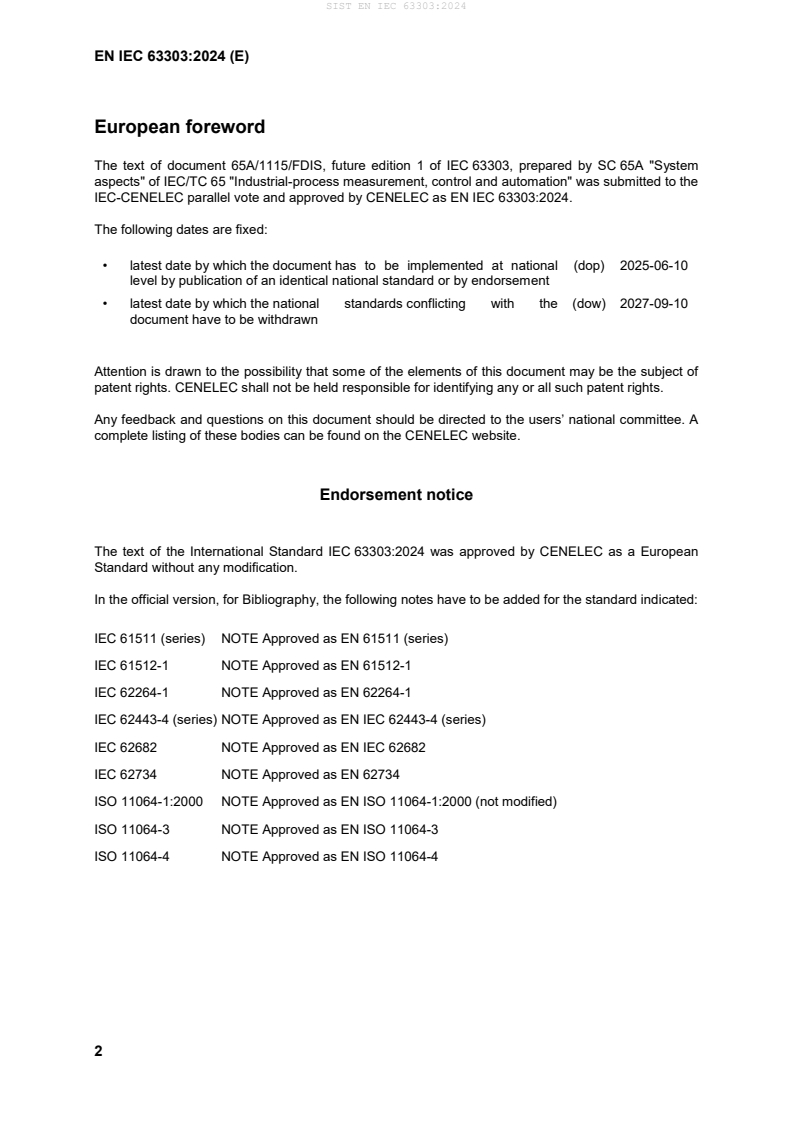

European foreword
The text of document 65A/1115/FDIS, future edition 1 of IEC 63303, prepared by SC 65A "System
aspects" of IEC/TC 65 "Industrial-process measurement, control and automation" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 63303:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-06-10
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-09-10
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63303:2024 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 61511 (series) NOTE Approved as EN 61511 (series)
IEC 61512-1 NOTE Approved as EN 61512-1
IEC 62264-1 NOTE Approved as EN 62264-1
IEC 62443-4 (series) NOTE Approved as EN IEC 62443-4 (series)
IEC 62682 NOTE Approved as EN IEC 62682
IEC 62734 NOTE Approved as EN 62734
ISO 11064-1:2000 NOTE Approved as EN ISO 11064-1:2000 (not modified)
ISO 11064-3 NOTE Approved as EN ISO 11064-3
ISO 11064-4 NOTE Approved as EN ISO 11064-4
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 62381 - Automation systems in the process EN IEC 62381 -
industry - Factory acceptance test (FAT),
site acceptance test (SAT), and site
integration test (SIT)
IEC 62443 series Security for industrial automation and EN IEC 62443 series
control systems
IEC 63303 ®
Edition 1.0 2024-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Human machine interfaces for process automation systems
Interfaces homme-machine pour les systèmes d’automatisation des processus
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40 ISBN 978-2-8322-9493-2
– 2 – IEC 63303:2024 © IEC 2024
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
1.1 General applicability . 8
1.2 Exclusions . 8
1.2.1 Management of change (MOC) . 8
1.2.2 Jurisdictions . 8
1.2.3 Purchase specification . 8
2 Normative references . 8
3 Terms, definitions and abbreviated terms . 9
3.1 Terms and definitions. 9
3.2 Abbreviated terms . 14
4 User types . 15
5 HMI system management . 16
5.1 HMI life cycle model . 16
5.2 Specify stage . 17
5.2.1 General . 17
5.2.2 HMI philosophy . 18
5.2.3 HMI style guide . 19
5.2.4 HMI toolkit . 20
5.3 Design stage . 20
5.3.1 General . 20
5.3.2 Console design . 21
5.3.3 HMI system design . 22
5.3.4 User, task, and functional requirements analysis . 22
5.3.5 Display design . 23
5.4 Implement stage . 23
5.4.1 General . 23
5.4.2 Build displays . 24
5.4.3 Build console . 24
5.4.4 Test . 25
5.4.5 Train . 25
5.4.6 Commission . 25
5.4.7 Verify . 26
5.5 Operate stage . 26
5.5.1 General . 26
5.5.2 In service . 26
5.5.3 Maintain . 27
5.5.4 Decommission . 27
5.6 Continuous work processes . 27
5.6.1 General . 27
5.6.2 Management of change . 28
5.6.3 Audit . 28
5.6.4 Validate . 28
6 Human factors engineering and ergonomics . 28
6.1 General principles of HMI design . 28
IEC 63303:2024 © IEC 2024 – 3 –
6.1.1 General . 28
6.1.2 Consistency of design . 29
6.1.3 HMI life cycle design stage involvement . 29
6.1.4 General HFE concepts . 29
6.1.5 Situation awareness . 30
6.2 User sensory limits . 30
6.2.1 General . 30
6.2.2 Visual considerations . 30
6.2.3 Auditory considerations . 33
6.2.4 Auditory coding . 33
6.3 User cognitive limits . 34
7 Display types and overall HMI structure . 34
7.1 General . 34
7.2 Display types . 34
7.3 Display hierarchy . 37
7.3.1 General . 37
7.3.2 Level 1 displays . 37
7.3.3 Level 2 displays . 37
7.3.4 Level 3 displays . 38
7.3.5 Level 4 displays .
...
