Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2013
1DGRPHãþD
SIST EN 50110-1:2007
2EUDWRYDQMHHOHNWULþQLKLQãWDODFLMGHO6SORãQH]DKWHYH
Operation of electrical installations - Part 1: General requirements
Betrieb von elektrischen Anlagen - Teil 1: Allgemeine Anforderungen
Exploitation des installations électriques - Partie 1: Exigences générales
Ta slovenski standard je istoveten z: EN 50110-1:2013
ICS:
29.240.01 2PUHåMD]DSUHQRVLQ Power transmission and
GLVWULEXFLMRHOHNWULþQHHQHUJLMH distribution networks in
QDVSORãQR general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50110-1
NORME EUROPÉENNE
March 2013
EUROPÄISCHE NORM
ICS 29.240.01 Supersedes EN 50110-1:2004

English version
Operation of electrical installations -
Part 1: General requirements
Exploitation des installations électriques -  Betrieb von elektrischen Anlagen -
Partie 1: Exigences générales Teil 1: Allgemeine Anforderungen

This European Standard was approved by CENELEC on 2013-02-11. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia,
Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands,
Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50110-1:2013 E

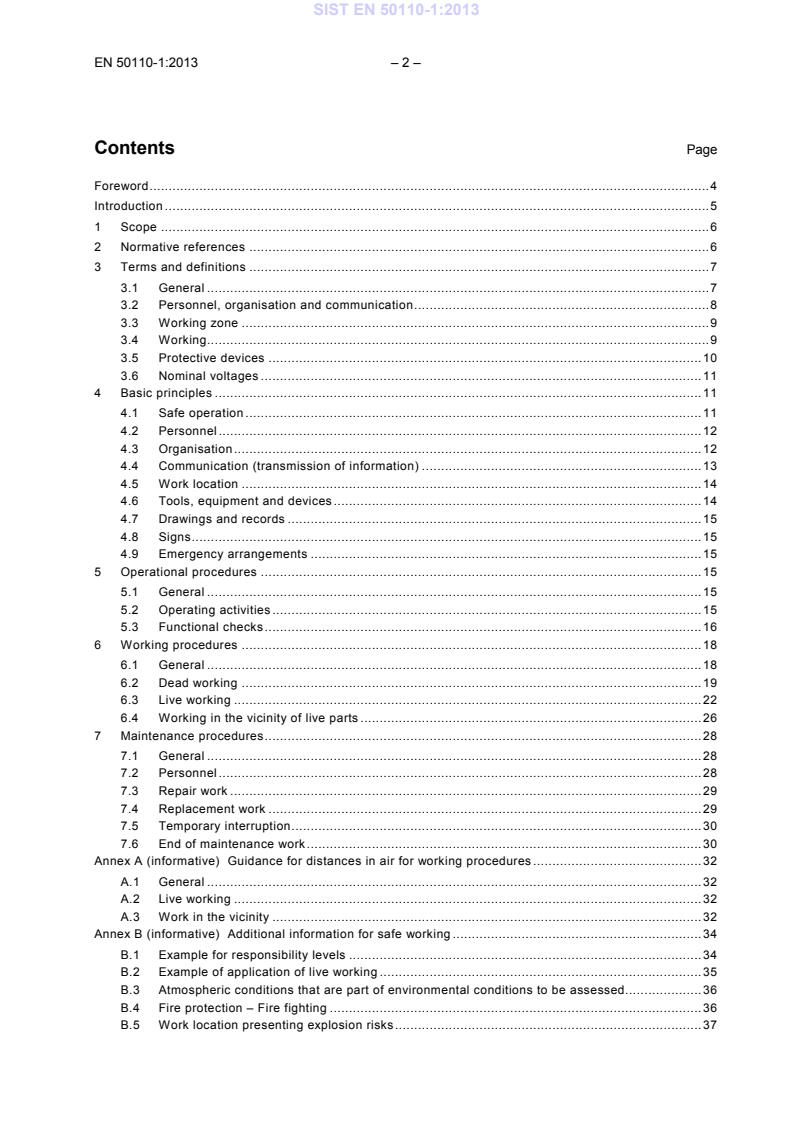

Contents Page
Foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
3.1 General . 7
3.2 Personnel, organisation and communication . 8
3.3 Working zone . 9
3.4 Working . 9
3.5 Protective devices . 10
3.6 Nominal voltages . 11
4 Basic principles . 11
4.1 Safe operation . 11
4.2 Personnel . 12
4.3 Organisation . 12
4.4 Communication (transmission of information) . 13
4.5 Work location . 14
4.6 Tools, equipment and devices . 14
4.7 Drawings and records . 15
4.8 Signs . 15
4.9 Emergency arrangements . 15
5 Operational procedures . 15
5.1 General . 15
5.2 Operating activities . 15
5.3 Functional checks . 16
6 Working procedures . 18
6.1 General . 18
6.2 Dead working . 19
6.3 Live working . 22
6.4 Working in the vicinity of live parts . 26
7 Maintenance procedures . 28
7.1 General . 28
7.2 Personnel . 28
7.3 Repair work . 29
7.4 Replacement work . 29
7.5 Temporary interruption . 30
7.6 End of maintenance work . 30
Annex A (informative) Guidance for distances in air for working procedures . 32
A.1 General . 32
A.2 Live working . 32
A.3 Work in the vicinity . 32
Annex B (informative) Additional information for safe working . 34
B.1 Example for responsibility levels . 34
B.2 Example of application of live working . 35
B.3 Atmospheric conditions that are part of environmental conditions to be assessed . 36
B.4 Fire protection – Fire fighting . 36
B.5 Work location presenting explosion risks . 37

– 3 – EN 50110-1:2013
B.6 Arc hazard . 37
B.7 Emergency arrangements . 38
Bibliography . 40

Figure 1 – Distances in air and zones for working procedures . 31
Figure 2 – Limitation of the live working zone by the use of an insulating protective device . 31
Figure B.1 – Responsibility levels . 34

Table A.1 – Guidance for distances D and D . 33
L V
Foreword
This document (EN 50110-1:2013) has been prepared by CLC/BTTF 62-3 "Operation of electrical
installations".
The following dates are fixed:
– latest date by which this document has to be implemented at (dop) 2014-02-11
national level by publication of an identical national standard
or by endorsement
– latest date by which the national standards conflicting with (dow) 2016-02-11
this document have to be withdrawn
This document supersedes EN 50110-1:2004.
– improvement of the definitions of persons responsible and level of responsibility;
– addition of a clause on emergency arrangements;
– addition of example of level of responsibility in Annex B;
– addition of a clause on arc hazard in Annex B;
– addition of a clause on emergency arrangements in Annex B;
– update of the normative references and of the Bibliography.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
– 5 – EN 50110-1:2013
Introduction
There are many national laws, standards and internal rules dealing with the matters coming within the
scope of EN 50110 and these practices have been taken as a basis for this work.
EN 50110 consists of two parts:
– Part 1 of EN 50110 contains minimum requirements valid for all CENELEC countries and some
additional informative annexes dealing with safe working on, with, or near electrical installations;
– Part 2 of EN 50110 consists of a set of normative annexes (one per country) which either specify the
present safety requirements or give the national supplements to these minimum requirements.
This concept is still believed to be a decisive step to the gradual alignment in Europe of the safety levels
associated with the operation of, work activity on, with, or near electrical installations. This document
acknowledges the present different national requirements for safety. The intention is, over the course of
time, to create a common level of safety.
Even the best rules and procedures are of no value unless all persons working on, with, or near electrical
installations are thoroughly conversant with them and with all legal requirements and comply strictly with
them.
1 Scope
This European Standard is applicable to all operation of and work activity on, with, or near electrical
installations. These are electrical installations operating at voltage levels from and including extra-low
voltage up to and including high voltage.
This latter term includes those levels referred to as medium and extra-high voltage.
These electrical installations are designed for the generation, transmission, conversion, distribution and
use of electrical power. Some of these electrical installations are permanent and fixed, such as a
distribution installation in a factory or office complex, others are temporary, such as on construction sites
and others are mobile or capable of being moved either whilst energised or whilst not energised nor
charged. Examples are electrically driven excavating machines in quarries or open-cast coal sites.
This European Standard sets out the requirements for the safe operation of and work activity on, with, or
near these electrical installations. The requirements apply to all operational, working and maintenance
procedures. They apply to all non-electrical work activities such as building work near to overhead lines or
underground cables as well as electrical work activities, when there is a risk of electrical danger.
This European Standard does not apply to ordinary persons when using installations and equipment,
provided that the installations and equipment comply with relevant standards and are designed and
installed for use by ordinary persons.
This European Standard has not been developed specifically to apply to the electrical installations listed
below. However, if th
...

SLOVENSKI SIST EN 50110-1
STANDARD
maj 2013
Obratovanje električnih postrojev – 1. del: Splošne zahteve

Operation of electrical installations – Part 1: General requirements

Exploitation des installations électriques – Partie 1: Exigences générales

Betrieb von elektrischen Anlagen – Teil 1: Allgemeine Anforderungen

Referenčna oznaka
ICS 29.240.01 SIST EN 50110-1:2013 (sl)

Nadaljevanje na straneh II in III ter od 1 do 39

© 2015-07. Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

SIST EN 50110-1 : 2013
NACIONALNI UVOD
Standard SIST EN 50110-1 (sl), Obratovanje električnih postrojev – 1. del: Splošne zahteve, 2013,
ima status slovenskega standarda in je enakovreden evropskemu standardu EN 50110-1 (en),
Operation of electrical installations – Part 1: General requirements, 2013.
NACIONALNI PREDGOVOR
Evropski standard EN 50110-1:2013 je pripravila evropska delovna skupina CLC/BTTF 62-3
Obratovanje električnih postrojev. V tem delu so podani minimalne zahteve, ki veljajo v vseh državah
CENELEC, in nekateri informativni dodatki o varnem delu na električnih postrojih ali v njihovi bližini.
Drugi del je zbirka posebnih nacionalnih določil posameznih držav članic ter zajema vse njihove
posebne tehnične in zakonodajne zahteve.
Slovenski standard SIST EN 50110-1:2013 je prevod evropskega standarda EN 50110-1:2013. V
primeru spora glede besedila slovenskega prevoda v tem standardu je odločilen izvirni evropski
standard v angleškem jeziku. Slovensko izdajo standarda je pripravil tehnični odbor SIST/TC DPN
Delo pod napetostjo.
Tehnični odbor SIST/TC DPN je bil ustanovljen leta 2007, ko je v podjetjih postala prisotnejša potreba
po delu pod napetostjo. Pred tem so slovenski strokovnjaki spremljali to področje v okviru tehničnega
odbora za nizkonapetostne inštalacije, SIST/TC ELI. Pri elektrotehniški terminologiji so prednostno
uporabljeni izrazi iz najnovejših prevodov ustreznih poglavij mednarodnega elektrotehniškega
slovarja, posebej SIST IEC 60050-826:2006, Mednarodni elektrotehniški slovar – 826. del: Električne
inštalacije. Prevodi vseh definicij v standardu SIST EN 50110-1:2013 in raba izrazov, ki se nanašajo
na področje električnih postrojev, so poenoteni s tem prevodom slovarja.

Na področju varstva pri delu je mnogo izrazov vzetih iz obstoječe zakonodaje področja, predvsem iz
Pravilnika o varstvu pri delu pred nevarnostjo električnega toka, Uradni list RS, št. 29/1992.

Odločitev za izdajo tega standarda je v aprilu 2013 sprejel SIST/TC DPN.

ZVEZA Z NACIONALNIMI STANDARDI
S privzemom tega evropskega standarda veljajo za omenjeni namen referenčnih standardov vsi
standardi, navedeni v izvirniku, razen tistih, ki so že sprejeti v nacionalno standardizacijo:
SIST EN 50191 Namestitev in delovanje električne preskusne opreme
SIST EN 61219 Delo pod napetostjo – Oprema za ozemljitev ali ozemljitev in kratkostičenje,
ki kot kratkostično napravo uporablja ozemljitveno palico – Ozemljitev z
ozemljitveno palico (IEC 61219)
SIST EN 61230 Delo pod napetostjo – Prenosna oprema za ozemljitev ali ozemljitev in
kratkostičenje (IEC 61230)
SIST EN 61243 (vsi deli) Delo pod napetostjo – Detektorji napetosti (IEC 61243, vsi deli)
SIST EN 61472 Delo pod napetostjo – Najmanjše delovne razdalje za omrežja z izmenično
napetostjo v območju napetosti 72,5 kV do 800 kV – Metoda izračuna (IEC
61472)
SIST EN 62271-1 Visokonapetostne stikalne in krmilne naprave – 1. del: Skupne specifikacije
EN 62271-102 Visokonapetostne stikalne in krmilne naprave – 102. del: Visokonapetostni
ločilniki na izmenični tok in ozemljitvena stikala (IEC 62271-102)
IEC 60050 (vsi deli) Mednarodni elektrotehniški slovar (na voljo na www.electropedia.org)

II
SIST EN 50110-1 : 2013
OSNOVA ZA IZDAJO STANDARDA
– privzem standarda EN 50110-1:2013
PREDHODNE IZDAJE
– SIST EN 50110-1:2007
OPOMBE
– Povsod, kjer se v besedilu standarda uporablja izraz “evropski standard”, v SIST EN 50110-1:
2013 to pomeni “slovenski standard”.

– Nacionalni uvod in nacionalni predgovor nista sestavni del standarda.

– Ta nacionalni dokument je enakovreden EN 50110-1:2013 in je objavljen z dovoljenjem

CENELEC
Avenue Marnix 17
B - 1000 Bruselj
Belgija
This national document is identical with EN 50110-1:2013 and is published with the permission of

CENELEC
Avenue Marnix 17
B - 1000 Brussels
Belgium
III
SIST EN 50110-1 : 2013

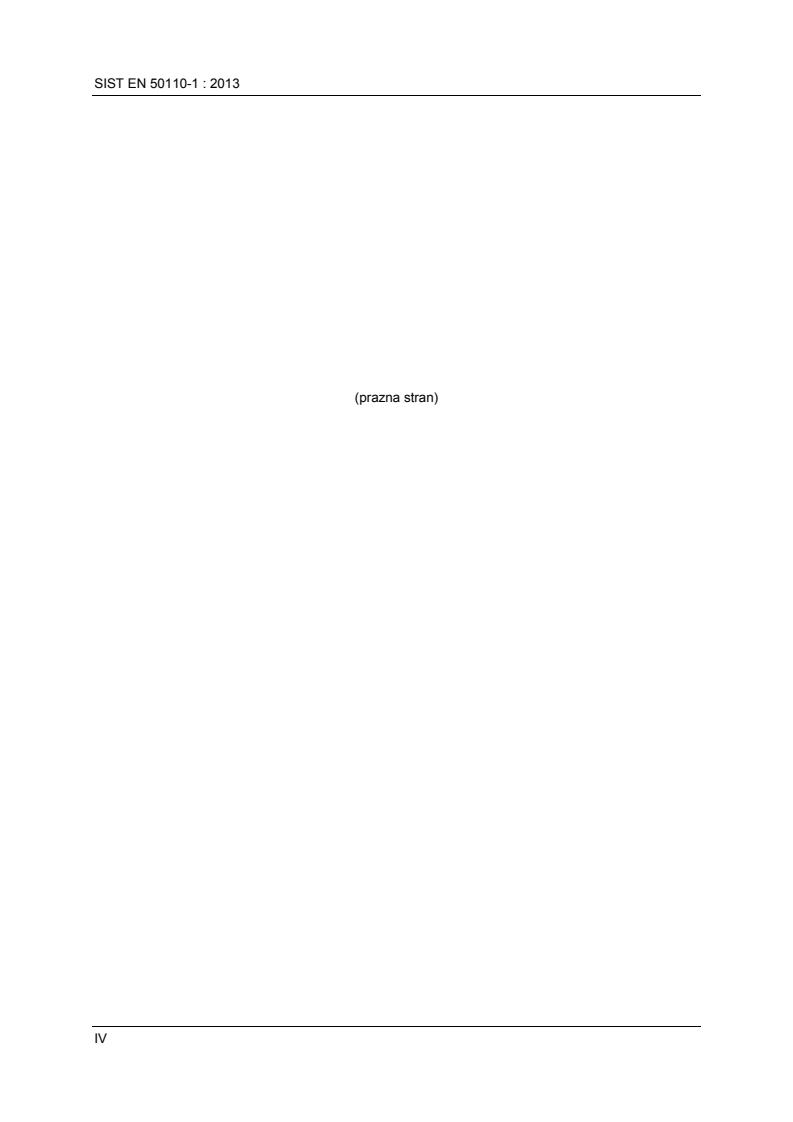

(prazna stran)
IV
EVROPSKI STANDARD EN 50110-1
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM marec 2013
ICS 29.240.01 Nadomešča EN 50110-1:2004

Slovenska izdaja
Obratovanje električnih postrojev – 1. del: Splošne zahteve

Operation of electrical installations Exploitation des installations Betrieb von elektrischen Anlagen –
– Part 1: General requirements électriques – Partie 1: Exigences Teil 1: Allgemeine Anforderungen
générales
Ta evropski standard je CENELEC sprejel 11. februarja 2013. Člani CENELEC morajo izpolnjevati
notranje predpise CEN/CENELEC, ki določajo pogoje, pod katerimi dobi ta standard status
nacionalnega standarda brez kakršnih koli sprememb.

Najnovejši seznami teh nacionalnih standardov in njihovi bibliografski podatki se na zahtevo lahko
dobijo pri Upravnem centru CEN-CENELEC ali katerem koli članu CENELEC.

Ta evropski standard obstaja v treh uradnih izdajah (angleški, francoski in nemški). Izdaje v drugih
jezikih, ki jih člani CENELEC na lastno odgovornost prevedejo in izdajo ter prijavijo pri Upravnem
centru CEN-CENELEC, veljajo kot uradne izdaje.

Člani CENELEC so nacionalni elektrotehniški komiteji Avstrije, Belgije, Bolgarije, Cipra, Češke
republike, Danske, Estonije, Finske, Francije, Grčije, Hrvaške, Islandije, Irske, Italije, Latvije, Litve,
Luksemburga, Madžarske, Malte, Nekdanje jugoslovanske republike Makedonije, Nemčije,
Nizozemske, Norveške, Poljske, Portugalske, Romunije, Slovaške, Slovenije, Španije, Švedske,
Švice, Turčije in Združenega kraljestva.

CENELEC
Evropski komite za standardizacijo v elektrotehniki
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Upravni center: Avenue Marnix 17, B - 10000 Bruselj

© 2013 CENELEC. Lastnice avtorskih pravic so vse države članice CENELEC. Ref. oznaka EN 50110-1:2013 E

SIST EN 50110-1 : 2013
VSEBINA Stran
Predgovor . 4
Uvod . 5
1 Področje uporabe . 6
2 Zveza s standardi . 6
3 Definicije . 7
3.1 Splošno . 7
3.2 Osebje, organizacija in komunikacije . 8
3.3 Območje izvajanja dela . 9
3.4 Delo . 9
3.5 Zaščitne naprave .10
3.6 Nazivne napetosti .11
4 Temeljna načela .11
4.1 Varno obratovanje .11
4.2 Osebje .12
4.3 Organizacija .12
4.4 Komunikacija (posredovanje informacij) .13
4.5 Mesto izvajanja dela .14
4.6 Orodje, oprema in naprave .14
4.7 Vezalne sheme in dokumentacija .15
4.8 Oznake .15
4.9 Ukrepi v izrednih razmerah .15
5 Obratovalni postopki .15
5.1 Splošno .15
5.2 Stikalni postopki (manipulacije) .15
5.3 Funkcionalna preverjanja .16
6 Delovni postopki .17
6.1 Splošno .17
6.2 Delo v breznapetostnem stanju .18
6.3 Delo pod napetostjo .21
6.4 Delo v bližini delov pod napetostjo .25
7 Postopki vzdrževanja .27
7.1 Splošno .27
7.2 Osebje . 27
7.3 Popravila .28
7.4 Zamenjevanje .28
7.5 Začasna prekinitev dela .29
7.6 Končanje vzdrževalnih del .29
Dodatek A (informativni): Orientacijske vrednosti za zračne razdalje za delovne postopke .31
A.1 Splošno .31
A.2 Delo pod napetostjo .31
A.3 Delo v bližini delov pod napetostjo.31
Dodatek B (informativni): Dodatne informacije za varno delo .33
SIST EN 50110-1 : 2013
B.1 Primer ravni odgovornosti .33
B.2 Primer uporabe dela pod napetostjo .34
B.3 Vremenski pogoji kot del okoljskih pogojev, ki jih je treba oceniti .34
B.4 Požarna zaščita – gašenje požarov .35
B.5 Mesto izvajanja dela, kjer obstaja tveganje za eksplozijo .35
B.6 Nevarnosti obloka .36
B.7 Ukrepanje v izrednih razmerah .37
Literatura .38

Slika 1: Zračne razdalje in območja delovnih postopkov .30
Slika 2: Omejitev območja dela pod napetostjo z uporabo izolacijske zaščitne naprave .30
Slika B.1: Ravni odgovornosti .33

Preglednica A.1: Orientacijske vrednosti za razdalji D in D .
...
