EN 50483-2:2009

Test requirements for low voltage aerial bundled cable accessories - Part 2: Tension and suspension clamps for self supporting system

EN 50483 series applies to overhead line fittings for tensioning, supporting and connecting aerial bundled cables (ABC) of rated voltage U0/U (Um): 0,6/1 (1,2) kV. This Part 2 applies to tensioning devices consisting of tension and suspension clamps designed to be used for installation of self supporting ABC defined in HD 626. Tests described in this document are type tests. NOTE This European standard does not invalidate existing approvals of products achieved on the basis of national standards and specifications and/or the demonstration of satisfactory service performance. However, products approved according to such national standards or specifications cannot directly claim approval to this European Standard. It may be possible, subject to agreement between supplier and purchaser, and/or the relevant conformity assessment body, to demonstrate that conformity to the earlier standard can be used to claim conformity to this standard, provided an assessment is made of any additional type testing that may need to be carried out. Any such additional testing that is part of a sequence of testing cannot be done separately.

Prüfanforderungen für Bauteile für isolierte Niederspannungsfreileitungen - Teil 2: Abspann- und Tragklemmen für selbsttragende isolierte Freileitungsseile

Prescriptions relatives aux essais des accessoires pour réseaux aériens basse tension torsadés - Partie 2: Matériels d’ancrage et de suspension pour réseaux aériens en conducteurs isolés torsadés auto-portés

Zahteve za preskušanje pribora za nizkonapetostne izolirane nadzemne kable - 2. del: Zatezne in nosilne sponke za samonosilne sisteme

General Information

• Status: Published
• Publication Date: 29-Jan-2009
• ICS: 29.240.20 - Power transmission and distribution lines
• Technical Committee: CLC/TC 20 - Electric cables
• Drafting Committee: CLC/TC 20 - Electric cables
• Parallel Committee: IEC/TC 20 - IEC_TC_20
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Completion Date: 28-Sep-2022
• Ref Project: SIST EN 50483-2:2009 - Test requirements for low voltage aerial bundled cable accessories -- Part 2: Tension and suspension clamps for self supporting system

Relations

• Revised: EN 62232:2017 - Determination of RF field strength, power density and SAR in the vicinity of radiocommunication base stations for the purpose of evaluating human exposure
• Effective Date: 20-Dec-2016

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Zahteve za preskušanje pribora za nizkonapetostne izolirane nadzemne kable - 2. del: Zatezne in nosilne sponke za samonosilne sistemePrüfanforderungen für Bauteile für isolierte Niederspannungsfreileitungen – Teil 2: Abspann- und Tragklemmen für selbsttragende isolierte FreileitungsseilePrescriptions relatives aux essais des accessoires pour réseaux aériens basse tension torsadés -- Partie 2: Matériels d’ancrage et de suspension pour réseaux aériens en conducteurs isolés torsadés auto-portésTest requirements for low voltage aerial bundled cable accessories -- Part 2: Tension and suspension clamps for self supporting system29.240.20DaljnovodiPower transmission and distribution linesICS:Ta slovenski standard je istoveten z:EN 50483-2:2009SIST EN 50483-2:2009en01-julij-2009SIST EN 50483-2:2009SLOVENSKI
STANDARD



SIST EN 50483-2:2009



EUROPEAN STANDARD EN 50483-2 NORME EUROPÉENNE
EUROPÄISCHE NORM January 2009
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: avenue Marnix 17, B - 1000 Brussels
© 2009 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50483-2:2009 E
ICS 29.240.20
English version
Test requirements for low voltage aerial bundled cable accessories -
Part 2: Tension and suspension clamps for self supporting system
Prescriptions relatives aux essais
des accessoires pour réseaux aériens basse tension torsadés -
Partie 2: Matériels d’ancrage
et de suspension pour réseaux aériens
en conducteurs isolés torsadés auto-portés
Prüfanforderungen für Bauteile für isolierte Niederspannungsfreileitungen -
Teil 2: Abspann- und Tragklemmen
für selbsttragende isolierte Freileitungsseile
This European Standard was approved by CENELEC on 2008-12-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
SIST EN 50483-2:2009

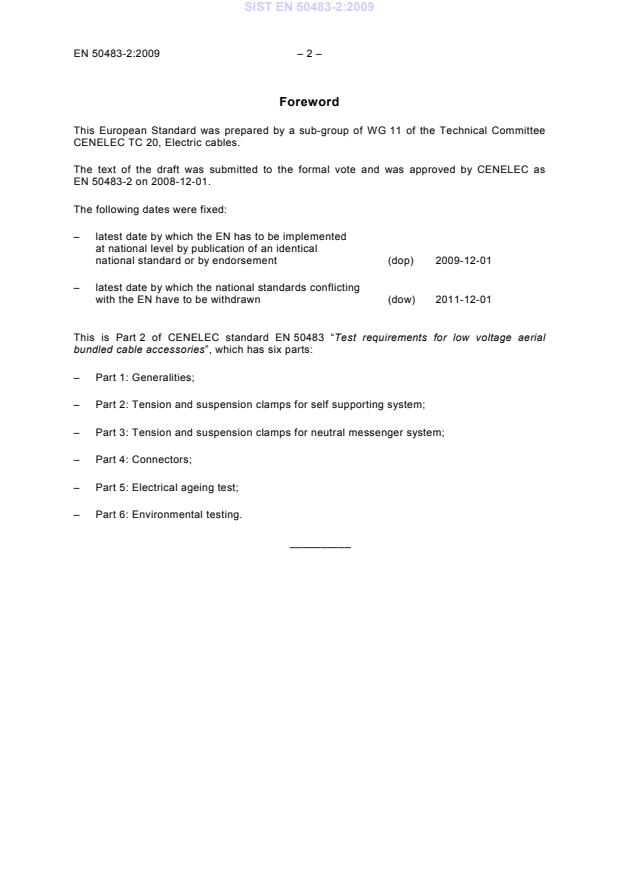

EN 50483-2:2009 – 2 – Foreword This European Standard was prepared by a sub-group of WG 11 of the Technical Committee CENELEC TC 20, Electric cables. The text of the draft was submitted to the formal vote and was approved by CENELEC as EN 50483-2 on 2008-12-01. The following dates were fixed: – latest date by which the EN has to be implemented at national level by publication of an identical national standard or by endorsement
(dop)
2009-12-01 – latest date by which the national standards conflicting with the EN have to be withdrawn
(dow)
2011-12-01 This is Part 2 of CENELEC standard EN 50483 “Test requirements for low voltage aerial bundled cable accessories”, which has six parts: – Part 1: Generalities; – Part 2: Tension and suspension clamps for self supporting system; – Part 3: Tension and suspension clamps for neutral messenger system; – Part 4: Connectors; – Part 5: Electrical ageing test; – Part 6: Environmental testing. __________ SIST EN 50483-2:2009



– 3 – EN 50483-2:2009 Contents 1 Scope . 4 2 Normative references . 4 3 Terms and definitions . 4 4 Symbols . 6 5 Characteristics . 6 6 Marking . 6 7 General test conditions . 6 7.1 Mechanical tests .
...
