EN 50174-3:2013/A1:2017
(Amendment)Information technology - Cabling installation - Part 3: Installation planning and practices outside buildings
Information technology - Cabling installation - Part 3: Installation planning and practices outside buildings
This European Standard specifies requirements and provides recommendations for the following aspects of information technology cabling: a) planning; b) installation practice. This European Standard is applicable to all types of information technology cabling outside buildings including generic cabling systems designed in accordance with EN 50173 series. The requirements and recommendations of this European Standard may be applied to cabling that is defined as part of the building. The requirements and recommendations of Clauses 4, 5 and 6 of this European Standard are subject to any site-specific requirements and recommendations of Clause 7. The planning of the pathway systems, spaces and structures within the core and access network cabling as described in Figure 2 that are owned by access providers is excluded except for requirements and recommendations that provide basic safety, function and environmental objectives for mechanical, ingress and climatic characteristics (i.e. excluding pathway dimensions, distribution of spaces and similar constraints based on specific transmission methods). The installation practices applicable to all cabling installation methods are included by the provision of the necessary planning requirements and recommendations associated with each one with the exception of information technology cabling installed: – around or within aerial power supply or associated earth conductors; – on infrastructures carrying power supplies in excess of AC/DC 25 kV. This European Standard: 1) details the considerations for satisfactory installation and operation of information technology cabling; 2) excludes specific requirements applicable to other cabling systems (e.g. power supply cabling); however, it takes account of the effects other cabling systems may have on the installation of information technology cabling (and vice versa) and gives general advice; 3) excludes those aspects of installation associated with the transmission of signals in free space between transmitters, receivers or their associated antenna systems (e.g. wireless, radio, microwave or satellite). This European Standard is applicable to certain hazardous environments. It does not exclude additional requirements which are applicable in particular circumstances, defined by e.g. electricity supply and electrified railways. The requirements within this European Standard do not cover any additional requirements for the information technology cables installed in hazardous or stressful environments e.g. electricity supply and electric railway locations (see Clause 7).
Informationstechnik - Installation von Kommunikationsverkabelung - Teil 3: Installationsplanung und Installationspraktiken im Freien
Technologies de l'information - Installation de câblage - Partie 3: Planification et pratiques d'installation à l'extérieur des bâtiments
La présente Norme européenne spécifie les exigences et les recommandations portant sur les aspects suivants du câblage pour les technologies de l’information : a) planification ; b) pratique d’installation. La présente Norme européenne s’applique à tous les types de câblage pour les technologies de l’information à l’extérieur des bâtiments, y compris les systèmes de câblage générique conçus conformément à la série de normes EN 50173. Les exigences et recommandations de la présente Norme européenne peuvent s’appliquer au câblage faisant partie intégrante du bâtiment. Les exigences et recommandations des Articles 4, 5 et 6 de la présente norme européenne font l’objet des exigences et recommandations spécifiques au site de l’Article 7. La planification des systèmes de cheminements, des espaces et des structures centrales et les câbles du réseau d’accès (voir Figure 2) qui sont propriétés des fournisseurs d’accès est exclue, à l’exception des exigences et recommandations portant sur les objectifs de base en matière de sécurité, de fonctionnement et d’environnement liés aux caractéristiques mécaniques, d’entrée et climatiques (c’est-à-dire à l’exclusion des dimensions du cheminement, de la répartition des espaces et des contraintes analogues reposant sur des méthodes de transmission spécifiques). Les pratiques d’installation applicables à toutes les méthodes d’installation des câbles sont incluses par la disposition d’exigences et de recommandations de planification nécessaires associées à chacune d’elles, à l’exception du câblage pour les technologies de l’information installé : - autour et à l’intérieur de l’alimentation électrique aérienne ou des conducteurs de terre associés ; – sur les infrastructures portant les alimentations électriques de plus de 25 kV CA/CC. La présente Norme européenne : 1) détaille les considérations relatives à une installation et un fonctionnement satisfaisants du câblage pour les technologies de l’information ; 2) exclut les exigences particulières applicables aux autres systèmes de câblage (les câbles d’alimentation, par exemple). Toutefois, elle tient compte des effets que d’autres systèmes de câblage peuvent avoir sur l’installation du câblage pour les technologies de l’information (et inversement) et donne des conseils généraux ; 3) exclut les aspects de l’installation liés à la transmission des signaux dans l’espace libre entre les émetteurs, les récepteurs ou leurs systèmes d’antenne associés (sans fil, radio, micro-onde ou satellite, par exemple). La présente norme européenne s’applique à certains environnements dangereux. Elle n’exclut pas les exigences supplémentaires applicables dans des circonstances particulières, définies par l’alimentation électrique et les chemins de fer électrifiés, par exemple. Les exigences de la présente norme européenne ne couvrent pas les exigences supplémentaires relatives aux câbles pour les technologies de l’information installés dans des environnements dangereux ou soumis à des contraintes, par exemple emplacements d’alimentation et de chemins de fer électrique (voir Article 7).
Informacijska tehnologija – Kabelska inštalacija – 3. del: Načrtovanje inštalacij in prakse zunaj zgradb - Dopolnilo A1
General Information
- Status
- Published
- Publication Date
- 11-May-2017
- Withdrawal Date
- 16-Apr-2020
- Technical Committee
- CLC/TC 215 - Electrotechnical aspects of telecommunication equipment
- Drafting Committee
- CLC/TC 215 - Electrotechnical aspects of telecommunication equipment
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 12-May-2017
- Completion Date
- 12-May-2017
Relations
- Effective Date
- 16-Jun-2015
Overview
EN 50174-3:2013/A1:2017 is the CLC European standard for information technology cabling installation planning and practices outside buildings. It specifies requirements and recommendations for planning and installation of all types of IT cabling deployed outdoors (including generic cabling per the EN 50173 series). The amendment A1 (2017) adds definitions, planning-for-repair guidance, updates to earthing/closure requirements and normative references.
Key topics and technical requirements
- Scope and exclusions
- Applies to outdoor IT cabling and may be applied to cabling considered part of a building.
- Excludes pathway planning owned by access providers (except basic safety, ingress and climatic objectives) and installations around/within aerial power or infrastructures > AC/DC 25 kV.
- Wireless/free-space transmission (radio, microwave, satellite) is excluded.
- Planning and administration
- Emphasises installation planning, documentation and Level 3 administration (EN 50174-1).
- New clause on planning for repair: resilience, service loops, cable sectioning, temporary repairs and contingency documentation.
- Pathway systems and routes
- Pathway surfaces of existing piping must not be used for direct cable attachment.
- Pathways must respect cable minimum bend radius (during installation, static and dynamic operation) and use radius limiters or prefabricated corners.
- Closures and shared enclosures
- Where IT and power cabling share closures, barriers meeting IP20 and tool-secured separate access are required; IT cable entries should be separately removable.
- Earthing, bonding and PEC
- Guidance on parallel earthing conductors (PECs): PEC shall be connected to an earthing system at least at one point; IT cable screen must not be relied on where PECs must carry large currents (lightning/power-fault).
- Default practice where local rules are absent: earth conductive cable parts at one end and insulate at the other; document chosen procedure.
- Fire and building entrance
- Cables of EuroClass F (EN 13501-6) or non‑compliant types should terminate outside the external fire barrier or within 2 m of penetration, or be contained in fire-rated trunking/conduit.
- Normative cross-references
- References updated to standards such as EN 50173, EN 50174-1/2, EN 50310, EN 62368-1/3, EN 13501-6, and relevant fibre/cable test standards.
Practical applications and users
Who uses EN 50174-3:
- Network designers and infrastructure planners for outdoor and access-network cabling
- Cabling installers, system integrators and contractors
- Telecom operators, access providers and municipalities planning ducts, chambers, aerial routes and street cabinets
- Facility managers and safety engineers responsible for bonding, earthing and fire compliance
Typical applications:
- Campus and industrial outdoor cabling routes, ducts and vaults
- Street cabinet / building entrance facilities and telecommunication cabinets
- Planning of repairs, resilience and lifecycle maintenance for outdoor cabling
Related standards
- EN 50173 series (generic cabling)
- EN 50174-1, EN 50174-2 (installation specification / indoor practices)
- EN 50310 (bonding networks for buildings)
- EN 62368-1 / EN 62368-3, EN 13501-6 (safety and fire classification)
Frequently Asked Questions
EN 50174-3:2013/A1:2017 is a amendment published by CLC. Its full title is "Information technology - Cabling installation - Part 3: Installation planning and practices outside buildings". This standard covers: This European Standard specifies requirements and provides recommendations for the following aspects of information technology cabling: a) planning; b) installation practice. This European Standard is applicable to all types of information technology cabling outside buildings including generic cabling systems designed in accordance with EN 50173 series. The requirements and recommendations of this European Standard may be applied to cabling that is defined as part of the building. The requirements and recommendations of Clauses 4, 5 and 6 of this European Standard are subject to any site-specific requirements and recommendations of Clause 7. The planning of the pathway systems, spaces and structures within the core and access network cabling as described in Figure 2 that are owned by access providers is excluded except for requirements and recommendations that provide basic safety, function and environmental objectives for mechanical, ingress and climatic characteristics (i.e. excluding pathway dimensions, distribution of spaces and similar constraints based on specific transmission methods). The installation practices applicable to all cabling installation methods are included by the provision of the necessary planning requirements and recommendations associated with each one with the exception of information technology cabling installed: – around or within aerial power supply or associated earth conductors; – on infrastructures carrying power supplies in excess of AC/DC 25 kV. This European Standard: 1) details the considerations for satisfactory installation and operation of information technology cabling; 2) excludes specific requirements applicable to other cabling systems (e.g. power supply cabling); however, it takes account of the effects other cabling systems may have on the installation of information technology cabling (and vice versa) and gives general advice; 3) excludes those aspects of installation associated with the transmission of signals in free space between transmitters, receivers or their associated antenna systems (e.g. wireless, radio, microwave or satellite). This European Standard is applicable to certain hazardous environments. It does not exclude additional requirements which are applicable in particular circumstances, defined by e.g. electricity supply and electrified railways. The requirements within this European Standard do not cover any additional requirements for the information technology cables installed in hazardous or stressful environments e.g. electricity supply and electric railway locations (see Clause 7).
This European Standard specifies requirements and provides recommendations for the following aspects of information technology cabling: a) planning; b) installation practice. This European Standard is applicable to all types of information technology cabling outside buildings including generic cabling systems designed in accordance with EN 50173 series. The requirements and recommendations of this European Standard may be applied to cabling that is defined as part of the building. The requirements and recommendations of Clauses 4, 5 and 6 of this European Standard are subject to any site-specific requirements and recommendations of Clause 7. The planning of the pathway systems, spaces and structures within the core and access network cabling as described in Figure 2 that are owned by access providers is excluded except for requirements and recommendations that provide basic safety, function and environmental objectives for mechanical, ingress and climatic characteristics (i.e. excluding pathway dimensions, distribution of spaces and similar constraints based on specific transmission methods). The installation practices applicable to all cabling installation methods are included by the provision of the necessary planning requirements and recommendations associated with each one with the exception of information technology cabling installed: – around or within aerial power supply or associated earth conductors; – on infrastructures carrying power supplies in excess of AC/DC 25 kV. This European Standard: 1) details the considerations for satisfactory installation and operation of information technology cabling; 2) excludes specific requirements applicable to other cabling systems (e.g. power supply cabling); however, it takes account of the effects other cabling systems may have on the installation of information technology cabling (and vice versa) and gives general advice; 3) excludes those aspects of installation associated with the transmission of signals in free space between transmitters, receivers or their associated antenna systems (e.g. wireless, radio, microwave or satellite). This European Standard is applicable to certain hazardous environments. It does not exclude additional requirements which are applicable in particular circumstances, defined by e.g. electricity supply and electrified railways. The requirements within this European Standard do not cover any additional requirements for the information technology cables installed in hazardous or stressful environments e.g. electricity supply and electric railway locations (see Clause 7).
EN 50174-3:2013/A1:2017 is classified under the following ICS (International Classification for Standards) categories: 35.110 - Networking. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 50174-3:2013/A1:2017 has the following relationships with other standards: It is inter standard links to EN 50174-3:2013. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 50174-3:2013/A1:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CLC standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2017
,QIRUPDFLMVNDWHKQRORJLMD3RNDEOMHQMHGHO 1DþUWRYDQMHLQãWDODFLMLQWHKQLNH
GHOD]XQDM]JUDGE'RSROQLOR$
Information technology - Cabling installation - Part 3: Installation planning and practices
outside buildings
Informationstechnik - Installation von Kommunikationsverkabelung - Teil 3:
Installationsplanung und Installationspraktiken im Freien
Technologies de l'information - Installation de câblage - Partie 3: Planification et
pratiques d'installation à l'extérieur des bâtiments
Ta slovenski standard je istoveten z: EN 50174-3:2013/A1:2017
ICS:
33.040.50 Vodi, zveze in tokokrogi Lines, connections and
circuits
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 50174-3:2013/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2017
ICS 35.110
English Version
Information technology - Cabling installation - Part 3: Installation
planning and practices outside buildings
Technologies de l'information - Installation de câblage - Informationstechnik - Installation von
Partie 3: Planification et pratiques d'installation à l'extérieur Kommunikationsverkabelung - Teil 3: Installationsplanung
des bâtiments und Installationspraktiken im Freien
This amendment A1 modifies the European Standard EN 50174-3:2013; it was approved by CENELEC on 2017-04-17. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50174-3:2013/A1:2017 E

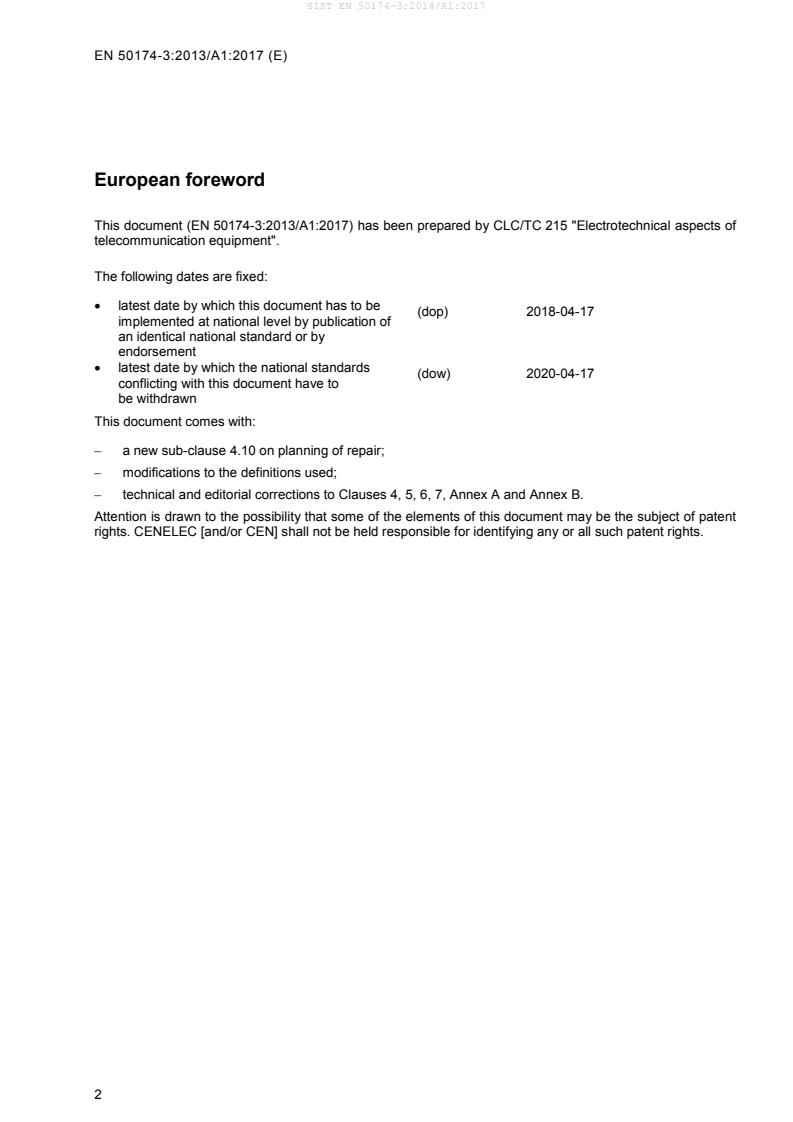

European foreword
This document (EN 50174-3:2013/A1:2017) has been prepared by CLC/TC 215 "Electrotechnical aspects of
telecommunication equipment".
The following dates are fixed:
• latest date by which this document has to be
(dop) 2018-04-17
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards
(dow) 2020-04-17
conflicting with this document have to
be withdrawn
This document comes with:
– a new sub-clause 4.10 on planning of repair;
– modifications to the definitions used;
– technical and editorial corrections to Clauses 4, 5, 6, 7, Annex A and Annex B.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
Introduction
Replace bullet 3 with “3) application dependent cabling design (e.g. EN 50700);
Delete bullet 4)
Replace bullet 5) with “4) bonding requirements (EN 50310) - the principles of which can be employed in
installations outside buildings.
Replace Figure 1 by the following figure:
EN 50173-2: Information technology: EN 50700: Information technology -
Generic cabling - Office spaces Premises distribution access network
(PDAN) cabling to support deployment
EN 50173-3: Information technology:
of optical broadband networks
Generic cabling - Industrial spaces
EN 50173-1: Information technology:
EN 50173-4: Information technology: Generic cabling - General requirements
Generic cabling - Homes
EN 50173-5: Information technology:
Generic cabling - Data centre spaces
EN 50173-6: Information technology:
Generic cabling - Distributed building
services
EN 50174-1: Information technology. CLC/TR 50174-99-1: Information
Cabling installation - Installation technology. Cabling installation -
specification and quality assurance Remote powering
EN 50174-2: Information technology. EN 50310: Telecommunications
Cabling installation - Installation bonding networks for buildings and
planning and practices inside buildings other structures
EN 50174-3: Information technology.
Cabling installation - Installation
planning and practices outside buildings
Replace Table 1 by the following Table
Building design Generic cabling Specification phase Installation phase Operation phase
phase design phase
EN 50173-2 EN 50174-1
EN 50173-3
Planning phase
EN 50173-4
EN 50174-2
EN 50173-5
EN 50310 EN 50174-3 EN 50174-1
EN 50310
EN 50174-2
EN 50173-6
EN 50174-3
(these ENs reference EN 50310
general requirements
of EN 50173-1)
2 Normative references
Update title of EN 50310: “Telecommunications bonding networks for buildings and other structures“
Delete EN 50346
Delete EN 60950 (all parts)
Delete EN 60950-1
Add EN 13501-6, Fire classification of construction products and building elements. Classification using data
from reaction to fire tests on electric cables
Add EN 61300-3-35, Fibre optic connecting devices and passive components. Basic test and measurements
procedures. Examinations and measurements. Fibre optic connector endface visual and automated
inspection
Add EN 62368-1, Audio/video, information and communication technology equipment – Part 1: Safety
requirements (IEC 62368-1:2014, modified)
Add EN 62368-3, Audio/video, information and communication technology equipment – Safety – Part 3: DC
power transfer through information technology communication cabling (IEC 62368-3)
3 Terms, definitions and abbreviations
3.1 Terms and definitions
Insert new definition 3.1.8 and renumber the following ones accordingly:
3.1.8
extraneous-conductive-part
conductive part not forming part of the electrical installation and liable to introduce an electric potential,
generally the electric potential of a local earth
[SOURCE: IEC 60050-826:2004, 826-12-11, IEC 60050-195:1998, 195-06-11]
Amend existing definition 3.1.11 to read
“vault/chamber as part of an underground conduit system and used to facilitate placing, connectorisation,
and maintenance of cables as well as the placing of associated equipment, in which it is expected that a
person will enter to perform work”
Delete existing definition 3.1.12 “rural area”
Amend definition 3.1.14 to read
“use of electrically conductive barriers or physical separation to prevent electromagnetic interference
between external noise sources, including power supply cabling, and information technology cabling
[SOURCE: EN 50174-2:2009/A2:2014, 3.1.28 modified – deleted the word "earthed"]”
Insert new definition 3.1.17 and renumber the following one accordingly:
3.1.17
subscriber
identifiable entity, and the space allocated to that entity, within the premises that may require a future direct
connection to the access network
[SOURCE: EN 50700:2014, 3.1.22 – modified: added “and the space allocated to that entity”]
Delete existing definition 3.1.18 “urban area”
4 Requirements for planning installations of information technology cabling
4.1.2 Power supply cabling
Amend title to read “Low voltage power supply cabling”.
4.1.4 Transmission and terminal equipment
st
Replace 1 paragraph with:
“Information technology cabling shall be connected to equipment that incorporates safe signal circuitry
complying with the SELV circuit and the TNV requirements as defined in the EN 60950 series and
EN 62368-1. Where equipment provides direct current (DC) power transfer over the information technology
cabling it shall comply with EN 62368-3.”
4.1.5 Cells and batteries
Delete this subclause and renumber the following ones accordingly.
4.1.7 Closures
Replace sub-clause with:
“Where both information technology cabling and power supply cabling are contained within a closure any
conductive material of the closure or internal barriers shall be treated in accordance with HD 384/HD 60364
series and/or local regulations as appropriate.
In addition:
a) a barrier (either conducting or non-conducting) shall be present between the two cable types which shall
meet a minimum of IP20 as specified in EN 60529;
b) covers on the closure shall allow separate access to the information technology cabling and the power
supply cabling and shall be retained such that the use of a tool is necessary to gain access thereby
preventing inadvertent connection between the power supply and the information technology cabling;
c) the entry for the information technology cables shall be separately removable.”
4.3 Pathways
4.3.1.1 Requirements
Insert after paragraph 1:
The external surfaces of existing piping systems shall not be used for the installation of pathways systems or
the direct attachment of cables.
4.3.7.2 Pathways shared with overhead power supply infrastructures
4.3.7.2.2 Requirements
Amend bullet c) to read:
c) the requirements for earthing systems, aerial to underground junctions and aerial connections.
Amend last paragraph to read:
“Where an earthing system exists on a supporting structure then, unless technical and contractual
agreement for joint use has been obtained, it shall be dedicated to only one of the following applications:”
4.3.7.3 The provision of a parallel earthing conductor (PEC)
4.3.7.3.2 Requirements
Replace sub-clause to read:
“A PEC shall be connected to an earthing system at least at one point. The planning of any additional
connections shall be in accordance with the HD 384/HD 60364 series and/or local regulations as
appropriate.
An information technology cable screen shall not be used where a PEC is required to withstand large
currents (e.g. for lightning protection or as power fault current return).”
4.3.7.3.3 Recommendations
Replace “parallel earthing conductor” with “PEC”
4.4 Pathway systems
4.4.1.2 Requirements
th
paragraph (including the 3 bullets) with the following:
Replace 5
“Pathways, entry points to the pathways and the pathway systems selected shall ensure cables are able to
be installed and, where appropriate, fixed in accordance with the applicable minimum bend radius (during
installation, during operation – static and during operation – dynamic) without introducing deformation of the
cable sheath or applying compressive loads exceeding that specified for the cable. These requirements
apply in three dimensions. This can be achieved by the use of pre-fabricated curved corners, drop-outs,
radius limiters or other means as shown in Figure 4.
Non-conformant solutions Conformant solutions
Figure 4 – Examples of non-conformant and conformant bend limiting techniques”
Renumber the following Figures accordingly (both in text and figure captions).
th th
Replace 7 and 8 paragraph with the following:
NOTE 1 Pathway systems that do not allow such an approach can restrict the type and use of cables installed in the pathways and
cable management systems selected.
NOTE 2 For cables with additional protection, minimum bend radius can be greater than specified above.”
4.5 Pathway systems other than for core and access networks
4.5.1.2 Requirements
st
Insert text after 1 paragraph:
“Conductive pathway systems in close proximity to HV power supply cabling shall be protected from
electrical hazards by means of protective earthing and/or sectioning.”
4.5.4.2 Pathway systems on overhead power supply infrastructures
4.5.4.2.1 General
nd
Amend 2 paragraph to read:
“Components of the pathway systems can include:”
Amend bullet g) to read:
g) fittings to allow electrostatic discharge of the information technology cable sheath at each end of the
pathway.
4.5.4.2.2 Requirements for metallic information technology cables
Replace bullet b) and last paragraph to read:
“b) connected to the earthing system of power supply system; this connection also includes that of
extraneous-conductive-parts of the cables.
The earthing at the ends of the shared routes of extraneous-conductive-parts (e.g. armouring, strain relief
members of optical fibre cables) that are part of the information technology cable construction shall be in
accordance with local regulations. Where no local regulation exists the default procedure is to earth the
conductive parts at one end and insulate them at the other. In all cases the procedures used shall be
documented.”
4.9 Spaces and structures other than for core and access networks
4.9.3 Telecommunication cabinets
4.9.3.1 Requirements
Amend to read:
“The design of the telecommunications cabinets shall consider any requirements for the accommodation of
climate control equipment, electrical connections (including uninterruptible power supplies) and alarms
systems to advise of unauthorised access.”
4.9.4 Building entrance facilities
4.9.4.1 General
4.9.4.1.1 Requirements
nd
paragraph with:
Replace 2
Information technology cables of EuroClass F in accordance with EN 13501-6 or others that do not comply
ca
with the minimum recommended performance requirements of EN 60332-1-2 shall either be:
a) terminated in an entrance facility which is outside the external fire barrier of the building
or
b) terminated inside the building, within 2 m (unless an alternative distance is specified by local
regulations) of the point of internal penetration of the external fire barrier (e.g. floor/ceiling/wall) or any
length exceeding 2 m (unless an alternative distance is specified by local regulations) is installed within
trunking or conduit that is considered as a fire barrier in accordance with local fire regulations.
NOTE This also applies where the cable has to pass through a space between two external fire barriers within a building.
4.9.4.1.2 Recommendations
nd
Replace 2 paragraph to read:
“Cables should enter buildings as close as possible to any conducting pipes (e.g. gas, water, heating) in
order to minimise:
a) induction loops,
b) the length and impedance of bonding conductors.
th
Replace 4 paragraph to read:
The earthing of extraneous-conductive-parts (e.g. armouring, strain relief members of optical fibre cables)
that are part of the information technology cable construction shall be in accordance with local regulations.
Where no local regulation exists the default procedure i
...
SLOVENSKI STANDARD
01-julij-2017
Informacijska tehnologija – Kabelska inštalacija – 3. del: Načrtovanje inštalacij in
prakse zunaj zgradb - Dopolnilo A1
Information technology - Cabling installation - Part 3: Installation planning and practices
outside buildings
Informationstechnik - Installation von Kommunikationsverkabelung - Teil 3:
Installationsplanung und Installationspraktiken im Freien
Technologies de l'information - Installation de câblage - Partie 3: Planification et
pratiques d'installation à l'extérieur des bâtiments
Ta slovenski standard je istoveten z: EN 50174-3:2013/A1:2017
ICS:
33.040.50 Vodi, zveze in tokokrogi Lines, connections and
circuits
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 50174-3:2013/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2017
ICS 35.110
English Version
Information technology - Cabling installation - Part 3: Installation
planning and practices outside buildings
Technologies de l'information - Installation de câblage - Informationstechnik - Installation von
Partie 3: Planification et pratiques d'installation à l'extérieur Kommunikationsverkabelung - Teil 3: Installationsplanung
des bâtiments und Installationspraktiken im Freien
This amendment A1 modifies the European Standard EN 50174-3:2013; it was approved by CENELEC on 2017-04-17. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50174-3:2013/A1:2017 E
European foreword
This document (EN 50174-3:2013/A1:2017) has been prepared by CLC/TC 215 "Electrotechnical aspects of
telecommunication equipment".
The following dates are fixed:
• latest date by which this document has to be
(dop) 2018-04-17
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards
(dow) 2020-04-17
conflicting with this document have to
be withdrawn
This document comes with:
– a new sub-clause 4.10 on planning of repair;
– modifications to the definitions used;
– technical and editorial corrections to Clauses 4, 5, 6, 7, Annex A and Annex B.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
Introduction
Replace bullet 3 with “3) application dependent cabling design (e.g. EN 50700);
Delete bullet 4)
Replace bullet 5) with “4) bonding requirements (EN 50310) - the principles of which can be employed in
installations outside buildings.
Replace Figure 1 by the following figure:
EN 50173-2: Information technology: EN 50700: Information technology -
Generic cabling - Office spaces Premises distribution access network
(PDAN) cabling to support deployment
EN 50173-3: Information technology:
of optical broadband networks
Generic cabling - Industrial spaces
EN 50173-1: Information technology:
EN 50173-4: Information technology: Generic cabling - General requirements
Generic cabling - Homes
EN 50173-5: Information technology:
Generic cabling - Data centre spaces
EN 50173-6: Information technology:
Generic cabling - Distributed building
services
EN 50174-1: Information technology. CLC/TR 50174-99-1: Information
Cabling installation - Installation technology. Cabling installation -
specification and quality assurance Remote powering
EN 50174-2: Information technology. EN 50310: Telecommunications
Cabling installation - Installation bonding networks for buildings and
planning and practices inside buildings other structures
EN 50174-3: Information technology.
Cabling installation - Installation
planning and practices outside buildings
Replace Table 1 by the following Table
Building design Generic cabling Specification phase Installation phase Operation phase
phase design phase
EN 50173-2 EN 50174-1
EN 50173-3
Planning phase
EN 50173-4
EN 50174-2
EN 50173-5
EN 50310 EN 50174-3 EN 50174-1
EN 50310
EN 50174-2
EN 50173-6
EN 50174-3
(these ENs reference EN 50310
general requirements
of EN 50173-1)
2 Normative references
Update title of EN 50310: “Telecommunications bonding networks for buildings and other structures“
Delete EN 50346
Delete EN 60950 (all parts)
Delete EN 60950-1
Add EN 13501-6, Fire classification of construction products and building elements. Classification using data
from reaction to fire tests on electric cables
Add EN 61300-3-35, Fibre optic connecting devices and passive components. Basic test and measurements
procedures. Examinations and measurements. Fibre optic connector endface visual and automated
inspection
Add EN 62368-1, Audio/video, information and communication technology equipment – Part 1: Safety
requirements (IEC 62368-1:2014, modified)
Add EN 62368-3, Audio/video, information and communication technology equipment – Safety – Part 3: DC
power transfer through information technology communication cabling (IEC 62368-3)
3 Terms, definitions and abbreviations
3.1 Terms and definitions
Insert new definition 3.1.8 and renumber the following ones accordingly:
3.1.8
extraneous-conductive-part
conductive part not forming part of the electrical installation and liable to introduce an electric potential,
generally the electric potential of a local earth
[SOURCE: IEC 60050-826:2004, 826-12-11, IEC 60050-195:1998, 195-06-11]
Amend existing definition 3.1.11 to read
“vault/chamber as part of an underground conduit system and used to facilitate placing, connectorisation,
and maintenance of cables as well as the placing of associated equipment, in which it is expected that a
person will enter to perform work”
Delete existing definition 3.1.12 “rural area”
Amend definition 3.1.14 to read
“use of electrically conductive barriers or physical separation to prevent electromagnetic interference
between external noise sources, including power supply cabling, and information technology cabling
[SOURCE: EN 50174-2:2009/A2:2014, 3.1.28 modified – deleted the word "earthed"]”
Insert new definition 3.1.17 and renumber the following one accordingly:
3.1.17
subscriber
identifiable entity, and the space allocated to that entity, within the premises that may require a future direct
connection to the access network
[SOURCE: EN 50700:2014, 3.1.22 – modified: added “and the space allocated to that entity”]
Delete existing definition 3.1.18 “urban area”
4 Requirements for planning installations of information technology cabling
4.1.2 Power supply cabling
Amend title to read “Low voltage power supply cabling”.
4.1.4 Transmission and terminal equipment
st
Replace 1 paragraph with:
“Information technology cabling shall be connected to equipment that incorporates safe signal circuitry
complying with the SELV circuit and the TNV requirements as defined in the EN 60950 series and
EN 62368-1. Where equipment provides direct current (DC) power transfer over the information technology
cabling it shall comply with EN 62368-3.”
4.1.5 Cells and batteries
Delete this subclause and renumber the following ones accordingly.
4.1.7 Closures
Replace sub-clause with:
“Where both information technology cabling and power supply cabling are contained within a closure any
conductive material of the closure or internal barriers shall be treated in accordance with HD 384/HD 60364
series and/or local regulations as appropriate.
In addition:
a) a barrier (either conducting or non-conducting) shall be present between the two cable types which shall
meet a minimum of IP20 as specified in EN 60529;
b) covers on the closure shall allow separate access to the information technology cabling and the power
supply cabling and shall be retained such that the use of a tool is necessary to gain access thereby
preventing inadvertent connection between the power supply and the information technology cabling;
c) the entry for the information technology cables shall be separately removable.”
4.3 Pathways
4.3.1.1 Requirements
Insert after paragraph 1:
The external surfaces of existing piping systems shall not be used for the installation of pathways systems or
the direct attachment of cables.
4.3.7.2 Pathways shared with overhead power supply infrastructures
4.3.7.2.2 Requirements
Amend bullet c) to read:
c) the requirements for earthing systems, aerial to underground junctions and aerial connections.
Amend last paragraph to read:
“Where an earthing system exists on a supporting structure then, unless technical and contractual
agreement for joint use has been obtained, it shall be dedicated to only one of the following applications:”
4.3.7.3 The provision of a parallel earthing conductor (PEC)
4.3.7.3.2 Requirements
Replace sub-clause to read:
“A PEC shall be connected to an earthing system at least at one point. The planning of any additional
connections shall be in accordance with the HD 384/HD 60364 series and/or local regulations as
appropriate.
An information technology cable screen shall not be used where a PEC is required to withstand large
currents (e.g. for lightning protection or as power fault current return).”
4.3.7.3.3 Recommendations
Replace “parallel earthing conductor” with “PEC”
4.4 Pathway systems
4.4.1.2 Requirements
th
paragraph (including the 3 bullets) with the following:
Replace 5
“Pathways, entry points to the pathways and the pathway systems selected shall ensure cables are able to
be installed and, where appropriate, fixed in accordance with the applicable minimum bend radius (during
installation, during operation – static and during operation – dynamic) without introducing deformation of the
cable sheath or applying compressive loads exceeding that specified for the cable. These requirements
apply in three dimensions. This can be achieved by the use of pre-fabricated curved corners, drop-outs,
radius limiters or other means as shown in Figure 4.
Non-conformant solutions Conformant solutions
Figure 4 – Examples of non-conformant and conformant bend limiting techniques”
Renumber the following Figures accordingly (both in text and figure captions).
th th
Replace 7 and 8 paragraph with the following:
NOTE 1 Pathway systems that do not allow such an approach can restrict the type and use of cables installed in the pathways and
cable management systems selected.
NOTE 2 For cables with additional protection, minimum bend radius can be greater than specified above.”
4.5 Pathway systems other than for core and access networks
4.5.1.2 Requirements
st
Insert text after 1 paragraph:
“Conductive pathway systems in close proximity to HV power supply cabling shall be protected from
electrical hazards by means of protective earthing and/or sectioning.”
4.5.4.2 Pathway systems on overhead power supply infrastructures
4.5.4.2.1 General
nd
Amend 2 paragraph to read:
“Components of the pathway systems can include:”
Amend bullet g) to read:
g) fittings to allow electrostatic discharge of the information technology cable sheath at each end of the
pathway.
4.5.4.2.2 Requirements for metallic information technology cables
Replace bullet b) and last paragraph to read:
“b) connected to the earthing system of power supply system; this connection also includes that of
extraneous-conductive-parts of the cables.
The earthing at the ends of the shared routes of extraneous-conductive-parts (e.g. armouring, strain relief
members of optical fibre cables) that are part of the information technology cable construction shall be in
accordance with local regulations. Where no local regulation exists the default procedure is to earth the
conductive parts at one end and insulate them at the other. In all cases the procedures used shall be
documented.”
4.9 Spaces and structures other than for core and access networks
4.9.3 Telecommunication cabinets
4.9.3.1 Requirements
Amend to read:
“The design of the telecommunications cabinets shall consider any requirements for the accommodation of
climate control equipment, electrical connections (including uninterruptible power supplies) and alarms
systems to advise of unauthorised access.”
4.9.4 Building entrance facilities
4.9.4.1 General
4.9.4.1.1 Requirements
nd
paragraph with:
Replace 2
Information technology cables of EuroClass F in accordance with EN 13501-6 or others that do not comply
ca
with the minimum recommended performance requirements of EN 60332-1-2 shall either be:
a) terminated in an entrance facility which is outside the external fire barrier of the building
or
b) terminated inside the building, within 2 m (unless an alternative distance is specified by local
regulations) of the point of internal penetration of the external fire barrier (e.g. floor/ceiling/wall) or any
length exceeding 2 m (unless an alternative distance is specified by local regulations) is installed within
trunking or conduit that is considered as a fire barrier in accordance with local fire regulations.
NOTE This also applies where the cable has to pass through a space between two external fire barriers within a building.
4.9.4.1.2 Recommendations
nd
Replace 2 paragraph to read:
“Cables should enter buildings as close as possible to any conducting pipes (e.g. gas, water, heating) in
order to minimise:
a) induction loops,
b) the length and impedance of bonding conductors.
th
Replace 4 paragraph to read:
The earthing of extraneous-conductive-parts (e.g. armouring, strain relief members of optical fibre cables)
that are part of the information technology cable construction shall be in accordance with local regulations.
Where no local regulation exists the default procedur
...
Le document de normalisation SIST EN 50174-3:2014/A1:2017 constitue une référence essentielle pour les professionnels du secteur des technologies de l'information, en particulier en ce qui concerne l'installation des câblages à l'extérieur des bâtiments. Ce standard fournit des exigences claires et des recommandations cruciales sur la planification et les pratiques d'installation des systèmes de câblage, englobant toutes les formes de câblage technologique utilisé dans les environnements extérieurs. L'un des principaux atouts de cette norme réside dans sa portée exhaustive. Elle s'applique à tous les types de systèmes de câblage selon la série EN 50173, garantissant ainsi une application uniforme des meilleures pratiques dans divers contextes. En précisant les exigences liées à la planification des systèmes de cheminement, des espaces et des structures, elle permet aux professionnels de concevoir une installation qui répond à des objectifs de sécurité, de fonctionnalité et d'environnement de base, tout en tenant compte des caractéristiques mécaniques, d'intrusion et climatiques. Une autre force de cette norme est son approche pragmatique concernant les pratiques d'installation. En fournissant des exigences et recommandations spécifiques pour chaque méthode d'installation, elle aide les techniciens à éviter les erreurs courantes et à respecter les standards de sécurité. Par ailleurs, bien qu'elle exclue certains aspects liés aux câblages de puissance et aux systèmes de transmission de signaux en libre espace, elle reste pertinente en reconnaissant et en conseillant sur les impacts que les systèmes de câblage peuvent avoir les uns sur les autres. La norme prend également en considération des environnements potentiellement dangereux, en précisant qu'elle n'exclut pas les exigences supplémentaires applicables dans des circonstances spécifiques, telles que celles concernant les installations électriques et les chemins de fer électrifiés. Cela démontre sa flexibilité et sa capacité à s'adapter à des scénarios variés, ce qui est crucial pour garantir la sécurité et le bon fonctionnement des installations. En résumé, le SIST EN 50174-3:2014/A1:2017 est un document normatif qui fournit une base robuste pour la planification et la mise en œuvre des installations de câblage technologique en extérieur, tout en soulignant l'importance de respecter des considérations de sécurité et de performance dans divers environnements. Sa pertinence dans le domaine des technologies de l'information en fait un outil incontournable pour les professionnels souhaitant assurer des installations efficaces et conformes.
The standard EN 50174-3:2013/A1:2017 provides a comprehensive framework for the planning and installation practices of information technology cabling outside buildings. Its clear and defined scope addresses several critical aspects, making it a valuable resource for professionals involved in IT cabling projects. One of the significant strengths of this standard is its applicability to a wide range of cabling systems, encompassing generic cabling designs as outlined in the EN 50173 series. The robust requirements and recommendations ensure that planning and installation practices meet essential safety and functionality criteria, which is crucial for the efficient performance of cabling installations. The document also effectively delineates the responsibilities and limitations concerning installation practices. For instance, exclusions related to installations near aerial power supply lines or infrastructures carrying high voltage (over AC/DC 25 kV) demonstrate a keen awareness of safety and operational integrity in various environments. Moreover, it accounts for the interdependencies between different cabling systems, thereby providing general advice on how various installations might impact each other. Furthermore, the standard addresses environmental considerations and mechanical characteristics to deliver comprehensive insight into best practices for installation. This aspect is particularly relevant given the increasing complexity of building systems and the requisite for cabling installations to comply with specific site requirements, as indicated in Clause 7. Although the standard may exclude certain specialized cabling scenarios, such as those involving wireless transmission, it comprehensively addresses the needs of IT cabling systems in diverse, potentially hazardous environments, ensuring that it remains relevant to modern technological demands. In summary, EN 50174-3:2013/A1:2017 excels in providing a detailed and structured approach to the planning and installation of information technology cabling outside buildings. Its strengths lie in its thorough scope, safety considerations, and adaptability to various installation environments, making it a vital reference for industry professionals.
EN 50174-3:2013/A1:2017は、情報技術における敢えて設けられた標準であり、主に建物外での配線の計画および実践に焦点を当てています。この標準の範囲は、情報技術キャビリングのための要求事項や推奨事項を規定しており、特に計画や設置の実践に関する詳細が示されています。 この標準の強みは、あらゆるタイプの情報技術キャビリングに適用可能である点です。特に、EN 50173シリーズに従って設計された一般的なキャビリングシステムを含んでおり、広範囲にわたる応用が期待できます。また、附則の4、5、6に示された要求事項と推奨事項は、特定の現場要件や7項に基づく推奨に従うことが求められるため、状況に応じた柔軟性も有しています。 さらに、この標準は、設置を行う際に考慮すべき事項を詳細に述べており、設置の満足度や運用の円滑さを確保するための指針を提供しています。他の配線システムが情報技術キャビリングに与える影響も考慮されており、例えば、電力供給キャビリング etc.との関係についても一般的なアドバイスが含まれています。 また、この標準は、危険な環境においても適用可能であり、特定の条件に応じた追加の要求事項に対応している点も評価できます。例えば、電力供給や電化鉄道のような環境において、情報技術キャビリングに求められる安全性や機能性の基準を提供しますが、特定の環境下での追加的な要件は含まれていない点には注意が必要です。 全体として、EN 50174-3:2013/A1:2017は、情報技術キャビリングの設置計画および実践において非常に重要な指針であり、キャビリングの措置が求められる多様なシナリオにおいて、実用的で適切な方向性を示していることが、高く評価されます。
Die Norm EN 50174-3:2013/A1:2017 bietet eine umfassende Grundlage für die Planung und Installation von Informationstechnologien-Kabeln außerhalb von Gebäuden. Sie spezifiziert wesentliche Anforderungen und gibt Empfehlungen für verschiedene Aspekte der Kabelinstallation, die entscheidend sind, um die Integrität und Funktionalität von IT-Netzwerken sicherzustellen. Ein hervorstechendes Merkmal der Norm ist der klare Anwendungsbereich, der eine breite Palette von IT-Kabeln umfasst. Diese Norm bezieht sich nicht nur auf generische Verkabelungssysteme gemäß der EN 50173-Serie, sondern ist auch für Kabel geeignet, die innerhalb eines Gebäudes installiert werden. Die in den Abschnitten 4, 5 und 6 der Norm festgelegten Anforderungen und Empfehlungen ermöglichen es, eine qualitativ hochwertige Installation zu gewährleisten, während spezifische Standortanforderungen in Abschnitt 7 berücksichtigt werden. Die Stärken der Norm liegen in ihrem detaillierten Ansatz zur Planung von Kabelwegen, Räumen und Strukturen, auch wenn bestimmte Aspekte, wie die den Zugang gewerblich betriebenen Netzwerken vorbehalten sind, ausgeschlossen sind. Dennoch stellt die Norm sicher, dass grundlegende Sicherheits-, Funktions- und Umweltziele für mechanische, klimatische und eindringende Eigenschaften berücksichtigt werden. Besonders hervorzuheben ist, dass alle etablierten Installationspraktiken für die verschiedenen Verlegemethoden abgedeckt sind, was die Flexibilität in der Anwendung erhöht. Darüber hinaus berücksichtigt die Norm die Wechselwirkungen zwischen IT-Kabelsystemen und anderen Verkabelungen, indem sie allgemeine Ratschläge zu deren Auswirkungen auf die Installation und umgekehrt gibt. Diese holistische Perspektive stärkt die Relevanz der Norm in der heutigen komplexen IT-Infrastruktur. Die Norm erstreckt sich auch auf bestimmte gefährliche Umgebungen, ohne dass sie zusätzlich spezifische Anforderungen ausschließt, die unter bestimmten Bedingungen relevant sind. Diese Flexibilität ist von großer Bedeutung in einem schnelllebigen technologischen Umfeld. Insgesamt bietet die EN 50174-3:2013/A1:2017 ein wertvolles Rahmenwerk für Fachleute, die sich mit der Installation von InformationsTechnologie-Kabeln im Freien befassen. Die ausgewogene Kombination aus klaren Anforderungen, praktischen Empfehlungen und einer breiten Anwendbarkeit macht diese Norm zu einem bedeutenden Instrument für die Gewährleistung der Qualität und Sicherheit in der Kabelinstallation außerhalb von Gebäuden.
표준 EN 50174-3:2013/A1:2017은 정보 기술 케이블링 설치에 대한 포괄적인 요구사항과 권장사항을 명시하고 있습니다. 이 표준의 주된 범위는 정보 기술 케이블링의 계획 및 설치 관행으로, 건물 외부에서 사용되는 다양한 유형의 케이블링 시스템에 적용됩니다. 특히, EN 50173 시리즈에 따라 설계된 일반 케이블링 시스템을 포함하여 모든 정보 기술 케이블링에 대해 적절한 기준을 제공합니다. 이 표준의 강점은 다음과 같습니다. 첫째, 정보 기술 케이블링의 설치와 운영을 위한 필수 고려 사항을 상세히 제시하고 있어, 설치자나 계획자가 신뢰할 수 있는 지침을 제공받을 수 있습니다. 둘째, 이 표준은 다른 케이블링 시스템에 적용되는 특정 요구사항을 제외하면서도, 다른 시스템이 정보 기술 케이블링 설치에 미치는 영향을 고려하여 일반적인 조언을 제시합니다. 이는 정보 기술 케이블이 물리적 환경과 상호작용하는 방식에 대한 중요한 통찰을 줍니다. 셋째, 위험한 환경에도 적용 가능하다는 점에서 이 표준은 유용합니다. 전력 공급이나 전철과 같은 특정 상황에 따라 추가 요구사항이 있을 수 있으나, 이 표준은 이러한 환경에서의 정보 기술 케이블의 설치에 대한 기본적인 지침을 제공합니다. 또한, 설치 시 케이블의 안전성과 기능, 환경 목표와 관련된 기본 요구사항이 포함되어 있습니다. 마지막으로, 이 표준은 정보 기술 케이블링 설치에서 발생할 수 있는 일반적인 문제들을 해결하기 위한 지침을 제공하며, 설치 방법에 따라 필요한 계획 요구사항과 권장사항을 포함하여 모든 케이블링 설치 방법에 적용 가능합니다. 이는 정보 기술 네트워크의 신뢰성과 효율성을 높이는 데 기여합니다.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
