EN IEC 61753-043-02:2022
(Main)Fibre optic interconnecting devices and passive components - Performance standard - Part 043-02: Simplex patch-cord style single-mode fibre wavelength selective devices with cylindrical ferrule connectors for category C - Controlled environment
Fibre optic interconnecting devices and passive components - Performance standard - Part 043-02: Simplex patch-cord style single-mode fibre wavelength selective devices with cylindrical ferrule connectors for category C - Controlled environment
This part of IEC 61753 specifies the test requirements for wavelength selective cords used in a controlled environment (Category C) according to IEC 61753-1: 2018, where the connectors already comply with the Category C requirements of IEC 61753-1: 2018. The tests selected are a subset of the connector tests from IEC 61753-1: 2018 appropriate for requalification with additional requirements relevant to cords and the connector/cable interface.
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil 043-02: Wellenlängenselektive Bauelemente in Simplex-Patchkabelbauform mit zylindrischen Ferrule-Steckverbindern für die Kategorie C - Kontrollierte Umgebung
Dispositifs d'interconnexion et composants passifs fibroniques - Norme de performance - Partie 043-02: Dispositifs sélectifs en longueur d'onde à fibres unimodales de type cordon simplex de brassage avec des connecteurs à férules cylindriques pour la catégorie C - Environnement contrôlé
IEC 61753-043-02: 2022 spécifie les exigences d’essai pour les cordons sélectifs en longueur d’onde utilisés dans un environnement contrôlé (catégorie C) selon l’IEC 617531: 2018, lorsque les connecteurs sont déjà conformes aux exigences de la catégorie C de l’IEC 617531: 2018. Les essais choisis constituent un sous-ensemble des essais de connecteurs de l’IEC 61753-1: 2018 appropriés pour la requalification avec des exigences supplémentaires pour les cordons et l’interface connecteur/câble.
Optični spojni elementi in pasivne komponente - Izvedbeni standard - 043-02. del: Simpleksne valovnodolžinsko selektivne naprave z enorodovnim optičnim vlaknom s cilindričnimi tulčastimi konektorji za kategorijo C - Nadzorovano okolje (IEC 61753-043-02:2022)
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2022
Optični spojni elementi in pasivne komponente - Izvedbeni standard - 043-02. del:
Simpleksne valovnodolžinsko selektivne naprave z enorodovnim optičnim
vlaknom s cilindričnimi tulčastimi konektorji za kategorijo C - Nadzorovano okolje
(IEC 61753-043-02:2022)
Fibre optic interconnecting devices and passive components - Performance standard -
Part 043-02: Simplex patch-cord style single-mode fibre wavelength selective devices
with cylindrical ferrule connectors for category C - Controlled environment (IEC 61753-
043-02:2022)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil
043-02: Wellenlängenselektive Bauelemente in Simplex-Patchkabelbauform mit
zylindrischen Ferrule-Steckverbindern für die Kategorie C - Kontrollierte Umgebung (IEC
61753-043-02:2022)
Dispositifs d'interconnexion et composants passifs fibroniques - Norme de performance -
Partie 043-02: Dispositifs sélectifs en longueur d'onde à fibres unimodales de type
cordon simplex de brassage avec des connecteurs à férules cylindriques pour la
catégorie C - Environnement contrôlé (IEC 61753-043-02:2022)
Ta slovenski standard je istoveten z: EN IEC 61753-043-02:2022
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 61753-043-02
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2022
ICS 33.180.20
English Version
Fibre optic interconnecting devices and passive components -
Performance standard - Part 043-02: Simplex patch-cord style
single-mode fibre wavelength selective devices with cylindrical
ferrule connectors for category C - Controlled environment
(IEC 61753-043-02:2022)
Dispositifs d'interconnexion et composants passifs Lichtwellenleiter - Verbindungselemente und passive
fibroniques - Norme de performance - Partie 043-02: Bauteile - Betriebsverhalten - Teil 043-02:
Dispositifs sélectifs en longueur d'onde à fibres unimodales Wellenlängenselektive Bauelemente in Simplex-
de type cordon simplex de brassage avec des connecteurs Patchkabelbauform mit zylindrischen Ferrule-
à férules cylindriques pour la catégorie C - Environnement Steckverbindern für die Kategorie C - Kontrollierte
contrôlé Umgebung
(IEC 61753-043-02:2022) (IEC 61753-043-02:2022)
This European Standard was approved by CENELEC on 2022-10-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61753-043-02:2022 E

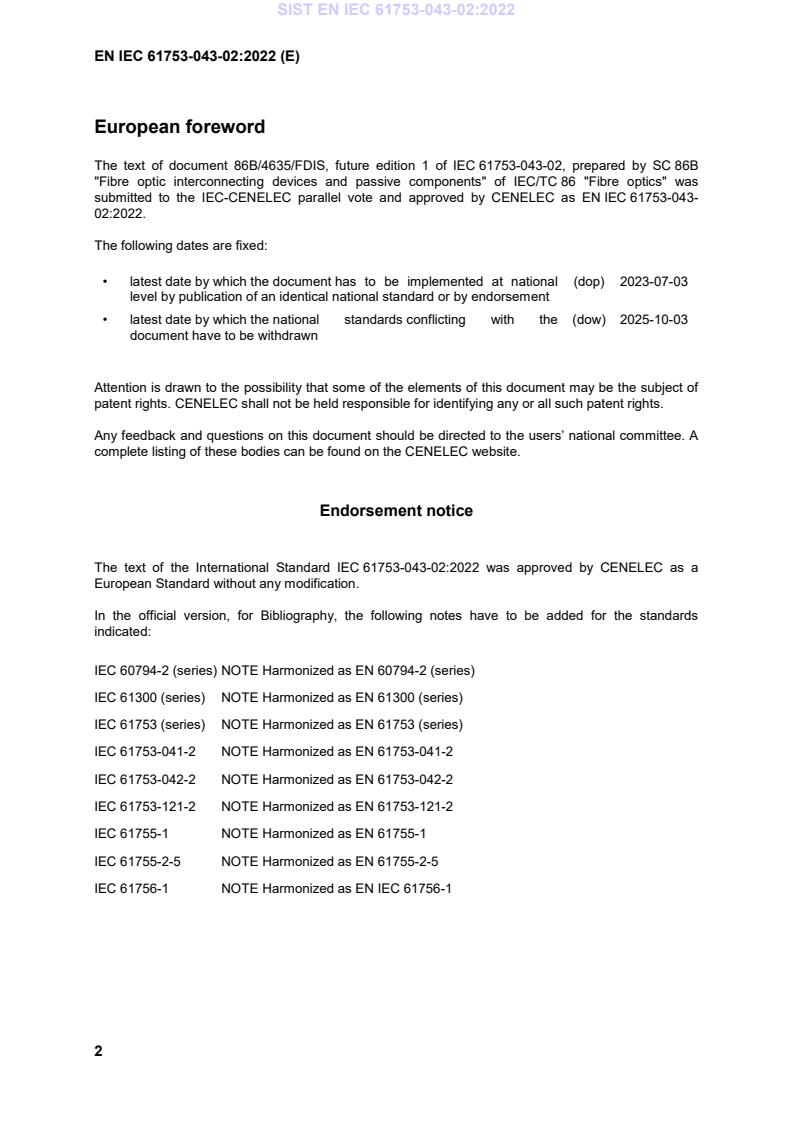

European foreword
The text of document 86B/4635/FDIS, future edition 1 of IEC 61753-043-02, prepared by SC 86B
"Fibre optic interconnecting devices and passive components" of IEC/TC 86 "Fibre optics" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61753-043-
02:2022.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-07-03
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2025-10-03
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61753-043-02:2022 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60794-2 (series) NOTE Harmonized as EN 60794-2 (series)
IEC 61300 (series) NOTE Harmonized as EN 61300 (series)
IEC 61753 (series) NOTE Harmonized as EN 61753 (series)
IEC 61753-041-2 NOTE Harmonized as EN 61753-041-2
IEC 61753-042-2 NOTE Harmonized as EN 61753-042-2
IEC 61753-121-2 NOTE Harmonized as EN 61753-121-2
IEC 61755-1 NOTE Harmonized as EN 61755-1
IEC 61755-2-5 NOTE Harmonized as EN 61755-2-5
IEC 61756-1 NOTE Harmonized as EN IEC 61756-1
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60793-2-50 - Optical fibres - Part 2-50: Product EN IEC 60793-2-50 -
specifications - Sectional specification
for class B single-mode fibres
IEC 60794-2-50 - Optical fibre cables - Part 2-50: Indoor EN IEC 60794-2-50 -
optical fibre cables - Family
specification for simplex and duplex
cables for use in terminated cable
assemblies
IEC 61300-1 - Fibre optic interconnecting devices EN IEC 61300-1 -
and passive components - Basic test
and measurement procedures - Part
1: General and guidance
IEC 61300-2-1 - Fibre optic interconnecting devices EN 61300-2-1 -
and passive components - Basic test
and measurement procedures - Part
2-1: Tests - Vibration (sinusoidal)
IEC 61300-2-2 - Fibre optic interconnecting devices EN 61300-2-2 -
and passive components - Basic test
and measurement procedures - Part
2-2: Tests - Mating durability
IEC 61300-2-4 - Fibre optic interconnecting devices EN IEC 61300-2-4 -
and passive components - Basic test
and measurement procedures - Part
2-4: Tests - Fibre or cable retention
IEC 61300-2-5 - Fibre optic interconnecting devices EN 61300-2-5 -
and passive components - Basic test
and measurement procedures - Part
2-5: Tests - Torsion
IEC 61300-2-6 - Fibre optic interconnecting devices EN 61300-2-6 -
and passive components - Basic test
and measurement procedures - Part
2-6: Tests - Tensile strength of
coupling mechanism
IEC 61300-2-12 - Fibre optic interconnecting devices EN 61300-2-12 -
and passive components - Basic test
and measurement procedures - Part
2-12: Tests - Impact
IEC 61300-2-17 - Fibre optic interconnecting devices EN 61300-2-17 -
and passive components - Basic test
and measurement procedures - Part
2-17: Tests - Cold
IEC 61300-2-18 - Fibre optic interconnecting devices EN 61300-2-18 -
and passive components - Basic test
and measurement procedures - Part
2-18: Tests - Dry heat - High
temperature endurance
IEC 61300-2-19 - Fibre optic interconnecting devices EN 61300-2-19 -
and passive components - Basic test
and measurement procedures - Part
2-19: Tests - Damp heat (steady state)
IEC 61300-2-22 - Fibre optic interconnecting devices EN 61300-2-22 -
and passive components - Basic test
and measurement procedures - Part
2-22: Tests - Change of temperature
IEC 61300-2-42 - Fibre optic interconnecting devices EN 61300-2-42 -
and passive components - Basic test
and measurement procedures - Part
2-42: Tests - Static side load for strain
relief
IEC 61300-2-44 - Fibre optic interconnecting devices EN 61300-2-44 -
and passive components - Basic test
and measurement procedures - Part
2-44: Tests - Flexing of the strain relief
of fibre optic devices
IEC 61300-3-1 - Fibre optic interconnecting devices EN 61300-3-1 -
and passive components - Basic test
and measurement procedures - Part
3-1: Examinations and measurements
- Visual examination
IEC 61300-3-6 - Fibre optic interconnecting devices EN 61300-3-6 -
and passive components - Basic test
and measurement procedures - Part
3-6: Examinations and measurements
- Return loss
IEC 61300-3-22 - Fibre optic interconnecting devices EN 61300-3-22 -
and passive components - Basic test
and measurement procedures - Part
3-22: Examinations and
measurements - Ferrule compression
force
IEC 61300-3-25 - Fibre optic interconnecting devices EN 61300-3-25 -
and passive components - Basic test
and measurement procedures - Part
3-25: Examinations and
measurements - Concentricity of non-
angled ferrules and non-angled
ferrules with fibre installed
IEC 61300-3-26 - Fibre optic interconnecting devices EN 61300-3-26 -
and passive components - Basic test
and measurement procedures - Part
3-26: Examinations and
measurements - Measurement of the
angular misalignment between fibre
and ferrule axes
IEC 61300-3-34 - Fibre optic interconnecting devices EN 61300-3-34 -
and passive components - Basic test
and measurement procedures - Part
3-34: Examinations and
measurements - Attenuation of
random mated connectors
IEC 61300-3-35 - Fibre optic interconnecting devices EN 61300-3-35 -
and passive components - Basic test
and measurement procedures - Part
3-35: Examinations and
measurements - Visual inspection of
fibre optic connectors and fibre-stub
transceivers
IEC 61300-3-47 - Fibre optic interconnecting devices EN 61300-3-47 -
and passive components - Basic test
and measurement procedures - Part
3-47: Examinations and
measurements - End face geometry of
PC/APC spherically polished ferrules
using interferometry
IEC 61753-1 2018 Fibre optic interconnecting devices EN IEC 61753-1 2018
and passive components -
Performance standard - Part 1:
General and guidance
IEC 61753-021-2 - Fibre optic interconnecting devices EN 61753-021-2 -
and passive components performance
standard - Part 021-2: Grade C/3
single-mode fibre optic connectors for
category C - Controlled environment
IEC 61754 series Fibre optic interconnecting devices EN 61754 series
and passive components - Fibre optic
connector interfaces
IEC 61755 series Fibre optic interconnecting devices EN IEC 61755 series
and passive components - Connector
optical interfaces
IEC 61977 - Fibre optic interconnecting devices EN IEC 61977 -
and passive components - Fibre optic
fixed filters - Generic specification
IEC/TR 61931 - Fibre optic - Terminology - -
IEC 61753-043-02 ®
Edition 1.0 2022-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 043-02: Simplex patch-cord style single-mode fibre wavelength selective
devices with cylindrical ferrule connectors for category C – Controlled
environment
Dispositifs d’interconnexion et composants passifs fibroniques – Norme de
performance –
Partie 043-02: Dispositifs sélectifs en longueur d’onde à fibres unimodales de
type cordon simplex de brassage avec des connecteurs à férules cylindriques
pour la catégorie C – Environnement contrôlé
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-5631-2
– 2 – IEC 61753-043-02:2022 © IEC 2022
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 9
4 Description . 9
4.1 General .
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
