EUROPEAN STANDARD EN 55016-1-6:2015/A2

NORME EUROPÉENNE
EUROPÄISCHE NORM April 2022
ICS 33.100.10; 33.100.20
English Version
Specification for radio disturbance and immunity measuring
apparatus and methods - Part 1-6: Radio disturbance and
immunity measuring apparatus - EMC antenna calibration
(CISPR 16-1-6:2014/AMD2:2022)
Spécification des méthodes et des appareils de mesure des Anforderungen an Geräte und Einrichtungen sowie
perturbations radioélectriques et de l'immunité aux Festlegung der Verfahren zur Messung der hochfrequenten
perturbations radioélectriques - Partie 1-6: Appareils de Störaussendung (Funkstörungen) und Störfestigkeit - Teil 1-
mesure des perturbations radioélectriques et de l'immunité 6: Geräte und Einrichtungen zur Messung der
aux perturbations radioélectriques - Étalonnage des hochfrequenten Störaussendung (Funkstörungen) und
antennes CEM Störfestigkeit - Kalibrierung von Antennen für EMV-
(CISPR 16-1-6:2014/AMD2:2022) Messungen
(CISPR 16-1-6:2014/AMD2:2022)
This amendment A2 modifies the European Standard EN 55016-1-6:2015; it was approved by CENELEC on 2022-04-07. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 55016-1-6:2015/A2:2022 E

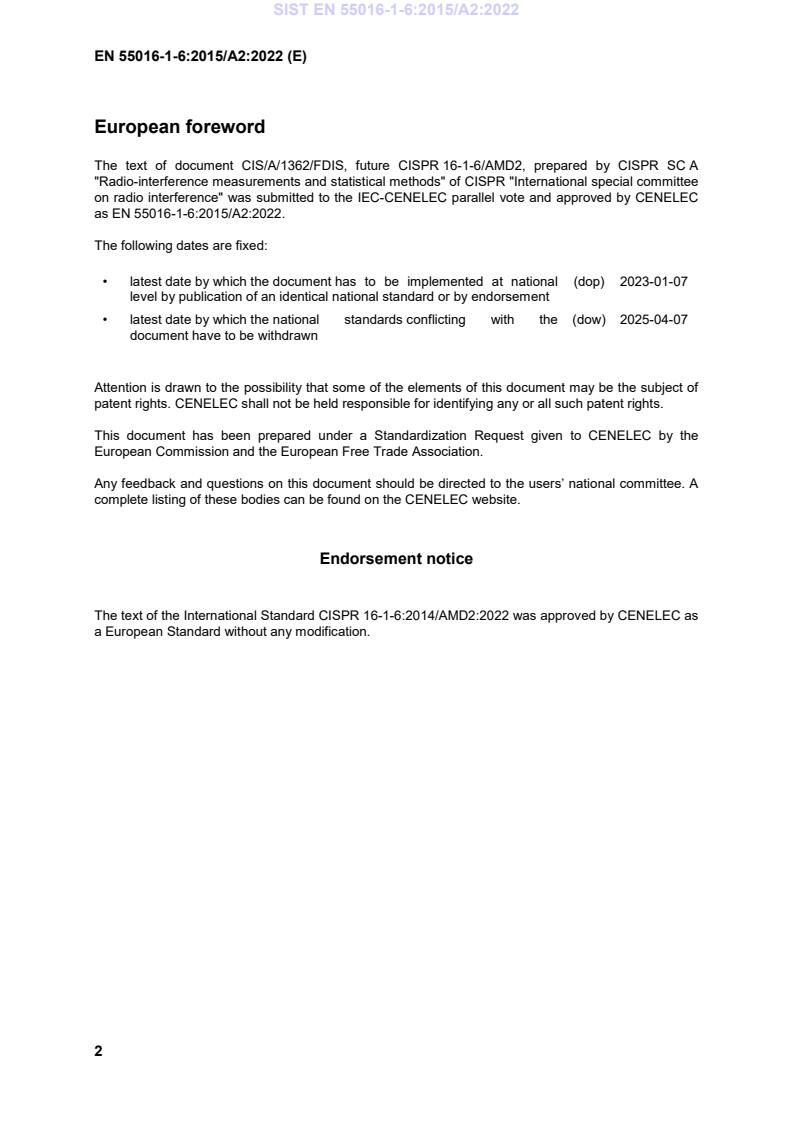

European foreword
The text of document CIS/A/1362/FDIS, future CISPR 16-1-6/AMD2, prepared by CISPR SC A
"Radio-interference measurements and statistical methods" of CISPR "International special committee
on radio interference" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC
as EN 55016-1-6:2015/A2:2022.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-01-07
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2025-04-07
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a Standardization Request given to CENELEC by the
European Commission and the European Free Trade Association.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard CISPR 16-1-6:2014/AMD2:2022 was approved by CENELEC as
a European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Add the following references:
Publication Year Title EN/HD Year
CISPR 16-1-2 - Specification for radio disturbance and EN 55016-1-2 -
immunity measuring apparatus and
methods - Part 1-2: Radio disturbance and
immunity measuring apparatus - Coupling
devices for conducted disturbance
measurements
CISPR 16-1-4 2019 Specification for radio disturbance and EN IEC 55016-1-4 2019
immunity measuring apparatus and
methods - Part 1-4: Radio disturbance and
immunity measuring apparatus - Antennas
and test sites for radiated disturbance
measurements
CISPR 16-1-6 ®
Edition 1.0 2022-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE

COMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES

BASIC EMC PUBLICATION
PUBLICATION FONDAMENTALE EN CEM

AMENDMENT 2
AMENDEMENT 2
Specification for radio disturbance and immunity measuring apparatus and

methods –
Part 1-6: Radio disturbance and immunity measuring apparatus – EMC antenna

calibration
Spécification des méthodes et des appareils de mesure des perturbations

radioélectriques et de l’immunité aux perturbations radioélectriques –

Partie 1-6: Appareils de mesure des perturbations radioélectriques et de

l'immunité aux perturbations radioélectriques – Étalonnage des antennes CEM

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.10; 33.100.20 ISBN 978-2-8322-1075-2

– 2 – CISPR 16-1-6:2014/AMD2:2022
© IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SPECIFICATION FOR RADIO DISTURBANCE AND
IMMUNITY MEASURING APPARATUS AND METHODS –

Part 1-6: Radio disturbance and immunity measuring apparatus –
EMC antenna calibration
AMENDMENT 2
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to CISPR 16-1-6:2014 has been prepared by subcommittee CISPR A: Radio-
interference measurements and statistical methods, of IEC technical committee CISPR:
International special committee on radio interference.
The text of this Amendment is based on the following documents:
Draft Report on voting
CIS/A/1362/FDIS CIS/A/1365/RVD

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

CISPR 16-1-6:2014/AMD2:2022 – 3 –
© IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

_____________
– 4 – CISPR 16-1-6:2014/AMD2:2022
© IEC 2022
2 Normative references
Add to the existing list the following new references:
CISPR 16-1-2, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-2: Radio disturbance and immunity measuring apparatus – Coupling devices
for conducted disturbance measurements
CISPR 16-1-4:2019, Specification for radio disturbance and immunity measuring apparatus and
methods – Part 1-4: Radio disturbance and immunity measuring apparatus – Antennas and test
sites for radiated disturbance measurements

3.1.2.5
magnetic field antenna factor
Replace the existing Note 1 to entry and Note 2 to entry as follows:
Note 1 to entry: The symbol F is used only when antenna factor is expressed in dB. The quantity F is expressed
aH aH
−1 −1
in dB(S/m) or dB(Ω m ).
Note 2 to entry: The unit dB(pT/µV) is used in some standards (but not in CISPR 16-1-6), which can be converted
to dB(S/m) by subtracting 2 dB.
Add Note 3 to entry:
Note 3 to entry: CISPR 16-1-4 specifies loop antennas for magnetic field strength measurements in the frequency
range of 9 kHz to 30 MHz.
3.2 Abbreviations
Add to the existing list the following new abbreviations:
CPM current probe method
SFM standard field method
5.2.1 General
Replace the second and third paragraphs by the following five new paragraphs:
Several techniques have been developed for calibrating loop antennas or measuring magnetic
field antenna factors [74]. Reference [18] provides a useful overview. Reference [15] provides
a simplified version of the standard field method (SFM) ([32] and [16]), and the TAM is described
in [35]. This subclause and Annex H specify acceptable calib
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
