prEN IEC 60335-2-68:2026/prAA:2026
(Amendment)Household and similar electrical appliances - Safety - Part 2-68: Particular requirements for spray extraction machines, for commercial use
General Information
- Abstract
This standard deals with the safety of electrical portable, non-self-propelled motor-operated spray extraction machines with or without attachments and with or without electrical heating elements, intended for commercial indoor use. This standard applies to machines for commercial use. The following list, although not comprehensive, gives an indication of locations that are included in the scope: - public use areas such as hotels, schools, hospitals; - industrial locations, for example factories and manufacturing shops; - retail outlets, for example shops and supermarkets; - business premises, for example offices and banks; - rental services for those machines; - all uses other than normal housekeeping purposes. The following power systems are covered: - mains powered motors up to a rated voltage of 250 V for single-phase appliances and 480 V for other appliances, - battery-operated machines. This standard applies to machines in which the pressure of the employed cleaning agent does not exceed 2,5 MPa, and in which the product of the pressure (in MPa) and the flow of cleaning agent (in litres per minute) does not exceed 100, and in which the temperature of the cleaning agent at the spray nozzle outlet does not exceed 85 °C. This standard does not apply to - vacuum cleaners and water-suction cleaning appliances for household use (IEC 60335-2-2); - floor treatment machines for commercial use (IEC 60335-2-67, IEC 60335-2-72); - wet and dry vacuum cleaners, including power brush, for commercial use (IEC 60335-2-69); - hand-held and transportable motor-operated electric tools (IEC 60745 series, IEC 61029 series, IEC 62841 series). - machines designed for use in corrosive or explosive environments (dust, vapour or gas); - machines designed for picking up hazardous dusts (as defined in IEC 60335-2-69), inflammable substances, or glowing particles; - machines designed to handle hazardous solvents, such as flammable or explosive liquids;
- Status
- Not Published
- Publication Date
- 10-Jul-2028
- Technical Committee
- CLC/TC 61 - Safety of household and similar electrical appliances
- Drafting Committee
- CLC/TC 61/WG 10 - Commercial cleaning machines
- Current Stage
- 4020 - Enquiry circulated - Enquiry
- Start Date
- 04-Sep-2026
- Completion Date
- 04-Sep-2026
Overview
prEN IEC 60335-2-68:2026/prAA:2026 is a key European draft standard from CLC that specifies the safety requirements for spray extraction machines intended for commercial indoor use. These electrical appliances, which are not self-propelled and may include attachments or electrical heating elements, are widely used in public spaces and commercial environments such as hotels, schools, hospitals, offices, and factories. The standard aims to address all reasonably foreseeable hazards associated with the use of spray extraction machines by various users, ensuring compliance with essential safety requirements and harmonizing use across the European market.
This draft amendment (prAA:2026) introduces updated requirements and modifications to the base standard, enhancing safety protocols, guidance for manufacturers, and accommodating digital instructions and emission data.
Key Topics
Scope of Coverage
- Focuses on electrically powered, portable, and motor-operated spray extraction machines intended for commercial indoor use.
- Includes both mains- and battery-powered appliances.
- Appliances with cleaning agent pressure up to 2.5 MPa, output temperatures at the nozzle up to 85°C, and limited combined pressure-flow product.
New Safety Requirements
- Additional requirements for manufacturer instructions, especially concerning digital and accessible formats.
- Specific information requirements regarding emission of noise and vibration.
- Instructions must address foreseeable misuse and emphasize that repairs are to be performed by competent persons.
Markings and Instructions
- Appliances must be marked with the manufacturer's website, email, or other digital contact information.
- Clear instructions must guide users on accessing digital manuals, particularly if electronic-only documentation is provided.
- Machines must warn that they are not intended for children or persons with reduced mental or physical capabilities without supervision.
Emission Data Reporting
- Noise and vibration emission values must be included in documentation as per referenced ISO standards.
- Measurement and reporting methods detailed for sound and vibration emissions.
Limitations and Exclusions
- Does not apply to household vacuum cleaners, other floor-treatment machines, or equipment designed for explosive, corrosive, or hazardous environments.
- Toys and devices for the handling of hazardous dusts, solvents, or flammable substances are excluded.
Applications
The standard is essential for manufacturers, suppliers, and users of commercial spray extraction machines operating in:
- Public Institutions: Ensuring compliance in hospitals, schools, government buildings, and similar facilities that demand rigorous cleanliness and public safety standards.
- Retail and Service Sectors: Including supermarkets, shops, and rental services, supporting safe and efficient cleaning operations.
- Industrial and Business Environments: Applicable in factories, offices, and banks where robust commercial cleaning is necessary.
- Rental Equipment Providers: Ensuring that rented spray extraction machines conform to safety and information requirements, reducing liability and enhancing user safety.
Implementation of this standard helps reduce electrical, mechanical, chemical, and ergonomic hazards, ensuring that equipment in commercial facilities meets stringent European safety directives and regulations.
Related Standards
To ensure comprehensive compliance and optimal operation, prEN IEC 60335-2-68:2026/prAA:2026 should be used in conjunction with related standards, including:
- EN IEC 60335-1:2023 – General safety requirements for household and similar electrical appliances.
- IEC TS 62885-1 – Surface cleaning appliances, general test requirements.
- ISO 3743-1 & ISO 3744 – Acoustics and noise emission measurement.
- ISO 4871, ISO 9614-2, ISO 11203 – Declaration and measurement of sound and noise from machinery.
- ISO 5349-1 & ISO 5349-3 – Measurement and evaluation of hand-transmitted vibration.
- IEC 60335-2-2, -2-67, -2-69 – Safety standards for related cleaning appliances and floor treatment machines.
Adhering to these references ensures that manufacturers, suppliers, and facility managers can confidently source, use, and maintain spray extraction machines that meet modern European safety benchmarks.
Relations
- Effective Date
- 20-Jan-2026
Frequently Asked Questions
prEN IEC 60335-2-68:2026/prAA:2026 is a draft published by CLC. Its full title is "Household and similar electrical appliances - Safety - Part 2-68: Particular requirements for spray extraction machines, for commercial use". This standard covers: This standard deals with the safety of electrical portable, non-self-propelled motor-operated spray extraction machines with or without attachments and with or without electrical heating elements, intended for commercial indoor use. This standard applies to machines for commercial use. The following list, although not comprehensive, gives an indication of locations that are included in the scope: - public use areas such as hotels, schools, hospitals; - industrial locations, for example factories and manufacturing shops; - retail outlets, for example shops and supermarkets; - business premises, for example offices and banks; - rental services for those machines; - all uses other than normal housekeeping purposes. The following power systems are covered: - mains powered motors up to a rated voltage of 250 V for single-phase appliances and 480 V for other appliances, - battery-operated machines. This standard applies to machines in which the pressure of the employed cleaning agent does not exceed 2,5 MPa, and in which the product of the pressure (in MPa) and the flow of cleaning agent (in litres per minute) does not exceed 100, and in which the temperature of the cleaning agent at the spray nozzle outlet does not exceed 85 °C. This standard does not apply to - vacuum cleaners and water-suction cleaning appliances for household use (IEC 60335-2-2); - floor treatment machines for commercial use (IEC 60335-2-67, IEC 60335-2-72); - wet and dry vacuum cleaners, including power brush, for commercial use (IEC 60335-2-69); - hand-held and transportable motor-operated electric tools (IEC 60745 series, IEC 61029 series, IEC 62841 series). - machines designed for use in corrosive or explosive environments (dust, vapour or gas); - machines designed for picking up hazardous dusts (as defined in IEC 60335-2-69), inflammable substances, or glowing particles; - machines designed to handle hazardous solvents, such as flammable or explosive liquids;
This standard deals with the safety of electrical portable, non-self-propelled motor-operated spray extraction machines with or without attachments and with or without electrical heating elements, intended for commercial indoor use. This standard applies to machines for commercial use. The following list, although not comprehensive, gives an indication of locations that are included in the scope: - public use areas such as hotels, schools, hospitals; - industrial locations, for example factories and manufacturing shops; - retail outlets, for example shops and supermarkets; - business premises, for example offices and banks; - rental services for those machines; - all uses other than normal housekeeping purposes. The following power systems are covered: - mains powered motors up to a rated voltage of 250 V for single-phase appliances and 480 V for other appliances, - battery-operated machines. This standard applies to machines in which the pressure of the employed cleaning agent does not exceed 2,5 MPa, and in which the product of the pressure (in MPa) and the flow of cleaning agent (in litres per minute) does not exceed 100, and in which the temperature of the cleaning agent at the spray nozzle outlet does not exceed 85 °C. This standard does not apply to - vacuum cleaners and water-suction cleaning appliances for household use (IEC 60335-2-2); - floor treatment machines for commercial use (IEC 60335-2-67, IEC 60335-2-72); - wet and dry vacuum cleaners, including power brush, for commercial use (IEC 60335-2-69); - hand-held and transportable motor-operated electric tools (IEC 60745 series, IEC 61029 series, IEC 62841 series). - machines designed for use in corrosive or explosive environments (dust, vapour or gas); - machines designed for picking up hazardous dusts (as defined in IEC 60335-2-69), inflammable substances, or glowing particles; - machines designed to handle hazardous solvents, such as flammable or explosive liquids;
prEN IEC 60335-2-68:2026/prAA:2026 is classified under the following ICS (International Classification for Standards) categories: 97.020 - Home economics in general. The ICS classification helps identify the subject area and facilitates finding related standards.
prEN IEC 60335-2-68:2026/prAA:2026 has the following relationships with other standards: It is inter standard links to prEN IEC 60335-2-68:2026. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
prEN IEC 60335-2-68:2026/prAA:2026 is associated with the following European legislation: EU Directives/Regulations: 2014/53/EU, 2023/1230; Standardization Mandates: M/536, M/605. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
prEN IEC 60335-2-68:2026/prAA:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

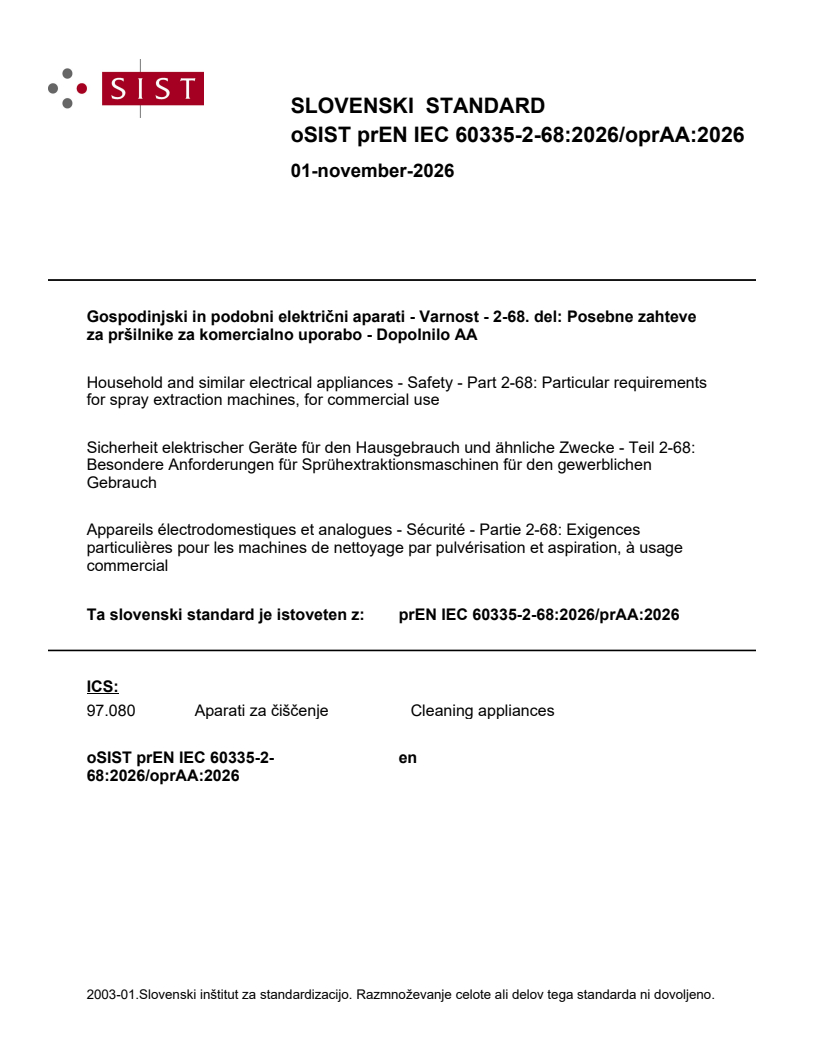

SLOVENSKI STANDARD
01-november-2026
Gospodinjski in podobni električni aparati - Varnost - 2-68. del: Posebne zahteve
za pršilnike za komercialno uporabo - Dopolnilo AA
Household and similar electrical appliances - Safety - Part 2-68: Particular requirements
for spray extraction machines, for commercial use
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-68:
Besondere Anforderungen für Sprühextraktionsmaschinen für den gewerblichen
Gebrauch
Appareils électrodomestiques et analogues - Sécurité - Partie 2-68: Exigences
particulières pour les machines de nettoyage par pulvérisation et aspiration, à usage
commercial
Ta slovenski standard je istoveten z: prEN IEC 60335-2-68:2026/prAA:2026
ICS:
97.080 Aparati za čiščenje Cleaning appliances
oSIST prEN IEC 60335-2- en
68:2026/oprAA:2026
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

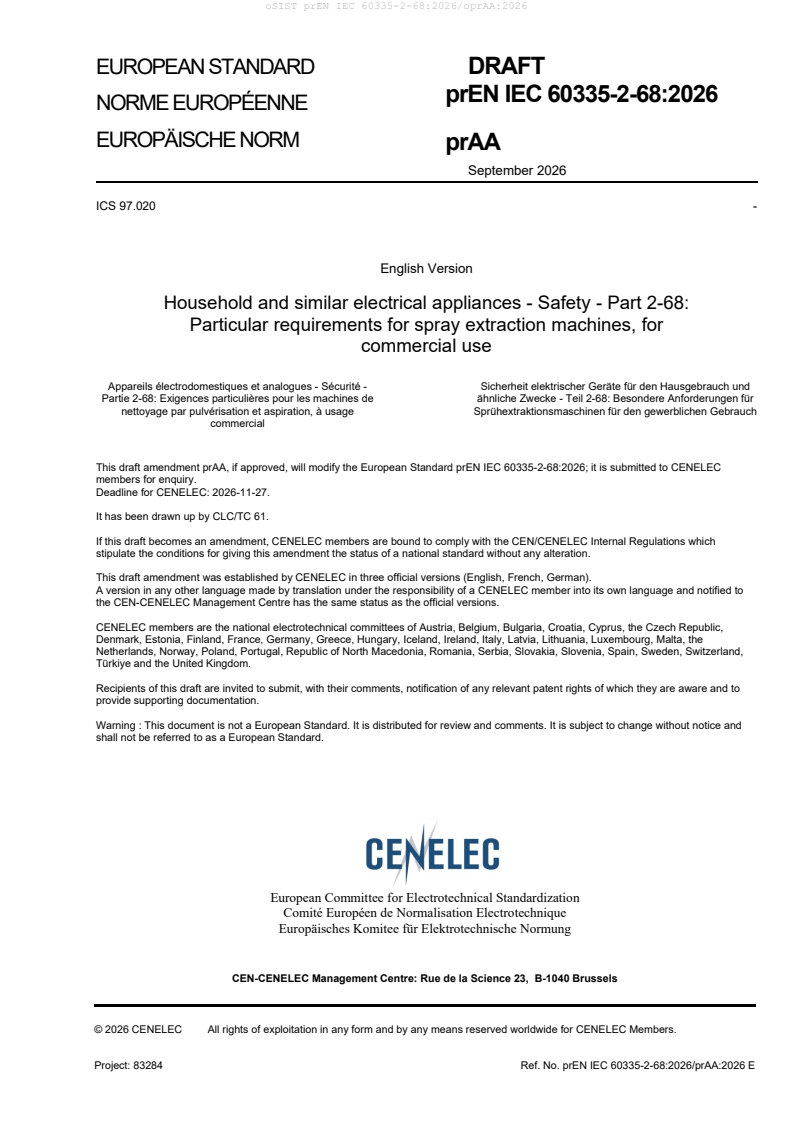

EUROPEAN STANDARD DRAFT
prEN IEC 60335-2-68:2026
NORME EUROPÉENNE
EUROPÄISCHE NORM
prAA
September 2026
ICS 97.020 -
English Version
Household and similar electrical appliances - Safety - Part 2-68:
Particular requirements for spray extraction machines, for
commercial use
Appareils électrodomestiques et analogues - Sécurité - Sicherheit elektrischer Geräte für den Hausgebrauch und
Partie 2-68: Exigences particulières pour les machines de ähnliche Zwecke - Teil 2-68: Besondere Anforderungen für
nettoyage par pulvérisation et aspiration, à usage Sprühextraktionsmaschinen für den gewerblichen Gebrauch
commercial
This draft amendment prAA, if approved, will modify the European Standard prEN IEC 60335-2-68:2026; it is submitted to CENELEC
members for enquiry.
Deadline for CENELEC: 2026-11-27.
It has been drawn up by CLC/TC 61.
If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.
This draft amendment was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 83284 Ref. No. prEN IEC 60335-2-68:2026/prAA:2026 E

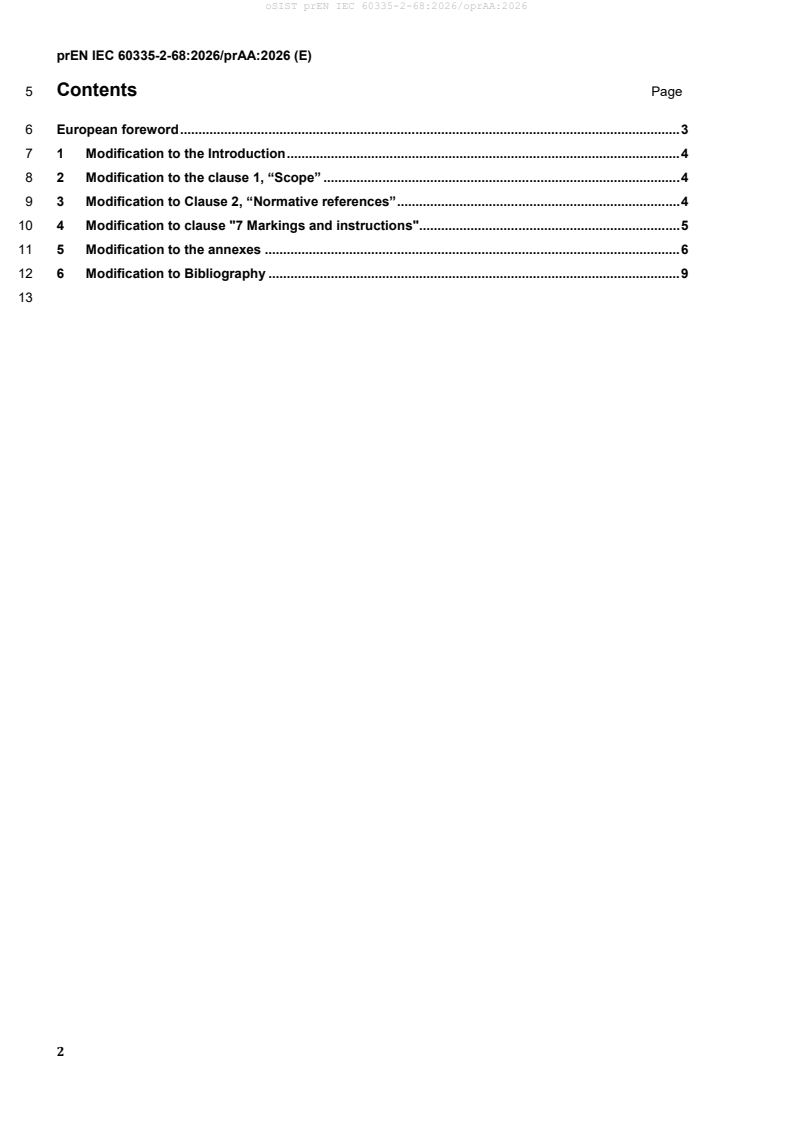

5 Contents Page
6 European foreword . 3
7 1 Modification to the Introduction . 4
8 2 Modification to the clause 1, “Scope” . 4
9 3 Modification to Clause 2, “Normative references” . 4
10 4 Modification to clause "7 Markings and instructions". 5
11 5 Modification to the annexes . 6
12 6 Modification to Bibliography . 9
14 European foreword
15 This document (prEN IEC 60335-2-68:2026/prAA:2026) consists of the text prepared by CLC/TC 61 "Safety
16 of household and similar electrical appliances".
17 This document is currently submitted to the Enquiry.
18 The following dates are proposed:
• latest date by which the existence of this document has to (doa) dav + 6 months
be announced at national level
• latest date by which this document has to be implemented (dop) dav + 12 months
at national level by publication of an identical
national standard or by endorsement
• latest date by which the national standards conflicting with (dow) dav + 36 months
this document have to be withdrawn (to be confirmed or
modified when voting)
19 This document is read in conjunction with prEN IEC 60335-2-68:2026.
20 prEN IEC 60335-2-68:2026/prAA:2026 includes the following significant technical modifications:
21 — introduce additional requirements for instructions;
22 — introduce requirements for noise, shock and vibration measurement.
23 The numbering system for European clauses, subclauses, notes, tables, figures and annexes that are
24 additional to those in the IEC standard are prefixed with the letter “Z”.
Secretary’s note: The text contained in the Secretary’s notes will be removed from the standard before
publication, as it is provided solely to inform stakeholders about the reasons for introducing the European
common modifications.
25 1 Modification to the Introduction
26 Delete the words “manufacturer's”.
27 2 Modification to the clause 1, “Scope”
28 Add the following paragraph before the last one.
29 Addition:
30 “With European Amendment A11 the EN 60335-2-68:2012 is superseded.
31 This European Amendment A11, supplements or modifies the corresponding clauses of the standards below:
32 – EN IEC 60335-1:2023 (Part 1)
33 – EN IEC 60335-2-68:2026 (Part 2)
34 This standard deals with the reasonably foreseeable hazards of intended use presented by appliances that
35 are encountered by all persons and domestic animals when this is not in contradiction with the intended or
36 reasonably foreseeable use of the appliance.
37 For the purpose of this document, the measurement of the leakage current is compared with the touch current
38 as defined in IEC 60990, which specifies the methods for evaluating the current that may flow through the
39 human body when an accessible part is touched.
40 For the purpose of this document, the term “appliance” includes the term “machine” where applicable.
41 This document deal with specific requirements on noise emitted from these appliances because the
42 generated noise is LpA > 70 dB(A) and it is considered to be a relevant hazard.
43 This document contains requirements for appliances with radio function, remote communication, and
44 remote operation.
45 For the scope of this document, the term “radio appliance” is used with the same meaning of “radio
46 equipment”.
47 For the scope of this document, the term “appliance” is used with the same meaning of “equipment”.
48 Add the following dashed item in the paragraph starting with “This standard does not apply to:“
49 “- Toys, including those shaped like an appliance.”
50 3 Modification to Clause 2, “Normative references”
51 Addition:
52 EN IEC 60335-1:2023, Household and similar electrical appliances — Safety — Part 1: General
53 requirements
54 ISO 3743-1, Acoustics — Determination of sound power levels and sound energy levels of noise sources
55 using sound pressure — Engineering methods for small movable sources in reverberant fields — Part 1:
56 Comparison method for a hard-walled test room
57 ISO 3744:2025, Acoustics — Determination of sound power levels and sound energy levels of noise sources
58 using sound pressure — Engineering methods for an essentially free field over a reflecting
59 ISO 4871:1996, Acoustics — Declaration and verification of noise emission values of machinery and
60 equipment
