EUROPEAN STANDARD
EN 60684-3-271
NORME EUROPÉENNE
August 2011
EUROPÄISCHE NORM
ICS 29.035.20 Supersedes EN 60684-3-271:2004

English version
Flexible insulating sleeving -
Part 3: Specifications for individual types of sleeving -
Sheet 271: Heat-shrinkable elastomer sleevings, flame retarded, fluid
resistant, shrink ratio 2:1
(IEC 60684-3-271:2011)
Gaines isolantes souples -  Isolierschläuche -
Partie 3: Spécifications pour types Teil 3: Anforderungen für einzelne
particuliers de gaines - Schlauchtypen -
Feuille 271: Gaines thermorétractables en Blatt 271: Wärmeschrumpfende
élastomère, retardées à la flamme, Elastomerschläuche, flammwidrig,
résistant aux fluides, rapport de rétreint flüssigkeitsbeständig, Schrumpfverhältnis
2:1 2:1
(CEI 60684-3-271:2011) (IEC 60684-3-271:2011)

This European Standard was approved by CENELEC on 2011-07-26. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60684-3-271:2011 E

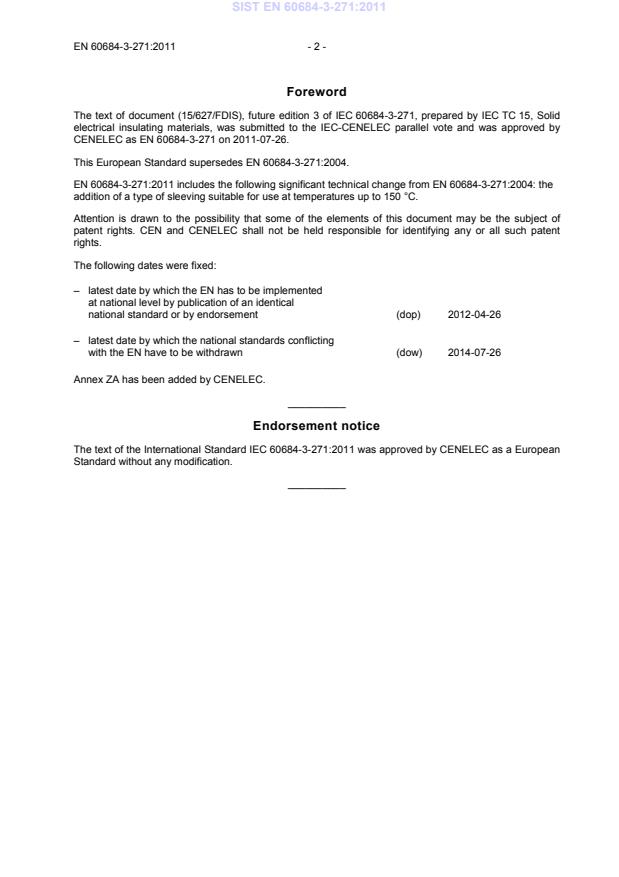

Foreword
The text of document (15/627/FDIS), future edition 3 of IEC 60684-3-271, prepared by IEC TC 15, Solid
electrical insulating materials, was submitted to the IEC-CENELEC parallel vote and was approved by
CENELEC as EN 60684-3-271 on 2011-07-26.
This European Standard supersedes EN 60684-3-271:2004.
addition of a type of sleeving suitable for use at temperatures up to 150 °C.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2012-04-26
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2014-07-26
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60684-3-271:2011 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60684-3-271:2011
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60684-1 2003 Flexible insulating sleeving - EN 60684-1 2003
Part 1: Definitions and general requirements

IEC 60684-2 1997 Flexible insulating sleeving - EN 60684-2 1997
+ corr. December 1997 Part 2: Methods of test

IEC 60757 1983 Code for designation of colours HD 457 S1 1985

ISO 846 1997 Plastics - Evaluation of the action of EN ISO 846 1997
microorganisms
ISO 1817 2005 Rubber, vulcanized - Determination of the - -
effect of liquids
IEC 60684-3-271 ®
Edition 3.0 2011-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving – Sheet 271: Heat-
shrinkable elastomer sleevings, flame retarded, fluid resistant, shrink ratio 2:1

Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines – Feuille 271: Gaines
thermorétractables en élastomère, retardées à la flamme, résistant aux fluides,
rapport de rétreint 2:1
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.035.20 ISBN 978-2-88912-547-0

– 2 – 60684-3-271  IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 271: Heat-shrinkable elastomer sleevings, flame retarded,
fluid resistant, shrink ratio 2:1

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60684-3-271 has been prepared by IEC technical committee 15:
Solid electrical insulating materials.
This third edition cancels and replaces the second edition published in 2004, and constitutes a
technical revision. It includes the following significant technical change from the previous
edition: the addition of a type of sleeving suitable for use at temperatures up to 150 °C.
The text of this standard is based on the following documents:
FDIS Report on voting
15C/627/FDIS 15C/639/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

60684-3-271  IEC:2011 – 3 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 60684 series, under the general title Flexible insulating
sleeving, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 4 – 60684-3-271  IEC:2011
INTRODUCTION
This International Standard is part of a series which deals with flexible insulating sleeving for
electrical purposes.
The series consists of three parts:
Part 1: Definitions and general requirements (IEC 60684-1)
Part 2: Methods of test (IEC 60684-2)
Part 3: Specifications for individual types of sleeving (IEC 60684-3)
This standard is one of the sheets comprising Part 3, as follows:
Sheet 271: Heat-shrinkable elastomer sleevings, flame retarded, fluid resistant, shrink ratio
2:1.
60684-3-271  IEC:2011 – 5 –
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 271: Heat-shrinkable elastomer sleevings, flame retarded,
fluid resistant, shrink ratio 2:1

1 Scope
This part of IEC 60684 gives the requirements for four types of heat-shrinkable, flame retarded,
fluid resistant, elastomer sleevings, nominal shrink ratio of 2:1.
Type A: standard wall thickness for use at temperatures up to 120 °C
Type B: thin wall thickness for use at temperatures up to 120 °C
Type C: standard wall thickness for use at temperatures up to 150 °C
Type D: thin wall thickness for use at temperatures up to 150 °C
These sleevings are normally supplied with internal diameters up to 102 mm for the standard
wall thickness and up to 51 mm for the thin wall thickness. The standard colour is black.
Sizes or colours other than those specifically listed in this standard may be available as custom
items. These items are considered to comply with this standard if they comply with the property
requirements listed in Tables 1, 2, 3, 4, 5 and 6 except for dimensions and mass.
Materials which conform to this specification meet established levels of performance. However,
the selection of a material by a user for a specific application should be based on the actual
requirements necessary for adequate performance in that application and not based on this
specification alone.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60684-1:2003, Flexible insulating sleeving – Part 1: Definitions and general requirements
IEC 60684-2:1997, Flexible insulating sleeving – Part 2: Methods of test
IEC 60757:1983, Code for designation of colours
ISO 846:1997, Plastics – Evaluation of the action of micro-organisms
ISO 1817:2005, Rubber, vulcanized – Determination of the effect of liquids

– 6 – 60684-3-271  IEC:2011
3 Designation
The sleeving shall be identified by the following d
...
