EN IEC 60684-3-216:2019

Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 216: Heat-shrinkable, flame- retarded, limited-fire-hazard sleeving

IEC 60684-3-216:2019 is available as IEC 60684-3-216:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition. IEC 60684-3-216: 2019 gives the requirements for four types of heat-shrinkable, flame-retarded, limited-fire-hazard sleeving with a thermal endurance rating of 105 °C as shown below. Class A: thin wall shrink ratio 2:1 internal diameter up to 102,0 mm Class B: medium wall shrink ratio 2:1 internal diameter up to 60,0 mm Class C: thick wall shrink ratio 2:1 internal diameter up to 51,0 mm Class D: medium wall shrink ratio 3:1 internal diameter up to 40,0 mm These sleevings are normally supplied in the following colours: black, red, green, blue, white, yellow and green/yellow. Sizes or colours other than those listed in this document are available as custom items. These items are considered to comply with this document if they comply with the property requirements listed in Tables 5, 6, 7 and 8, excluding dimensions and mass. Materials which conform to this specification meet established levels of performance. However, the selection of a material by a user for a specific application will be based on the actual requirements necessary for adequate performance in that application and not based on this specification alone. This second edition cancels and replaces the first edition published in 2001, Amendment 1:2005 and Amendment 2:2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: 1. the temperature at which the sleeving is shrunk in a forced-air circulation oven for (5 ± 1) min has been increased from (150 ± 5) °C to (200 ± 5) °C. Keywords: flexible insulating sleeving for electrical purposes

Isolierschläuche - Teil 3: Anforderungen für einzelne Schlauchtypen - Blatt 216: Wärmeschrumpfende, flammwidrige Schläuche mit begrenztem Brandrisiko

Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines - Feuille 216: Gaines thermorétractables, ignifugées, au risque de feu limité

IEC 60684-3-216:2019 est disponible sous forme de IEC 60684-3-216:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente. IEC 60684-3-216: 2019 donne les exigences relatives à quatre types de gaines thermorétractables, ignifugées, au risque de feu limité, ayant un indice d'endurance thermique de 105 °C, comme cela est indiqué ci-dessous. Classe A: paroi mince rapport de rétreint 2:1 diamètre intérieur allant jusqu'à 102,0 mm Classe B: paroi moyenne rapport de rétreint 2:1 diamètre intérieur allant jusqu'à 60,0 mm Classe C: paroi épaisse rapport de rétreint 2:1 diamètre intérieur allant jusqu'à 51,0 mm Classe D: paroi moyenne rapport de rétreint 3:1 diamètre intérieur allant jusqu'à 40,0 mm Ces gaines sont normalement disponibles dans les couleurs suivantes: noir, rouge, vert, bleu, blanc, jaune et vert/jaune. Des dimensions et des couleurs autres que celles indiquées dans le présent document sont disponibles comme articles spéciaux. Ces articles sont considérés comme conformes au présent document s’ils satisfont aux exigences relatives aux propriétés indiquées dans les Tableaux 5, 6, 7 et 8, à l’exception des dimensions et de la masse. Les matériaux qui sont conformes à la présente spécification satisfont à des niveaux de performances établis. Cependant, le choix d’un matériau par un utilisateur, pour une application spécifique, est fondé sur les exigences réelles nécessaires pour obtenir des performances adéquates pour l'application concernée, et n'est pas fondé sur cette seule spécification. Cette deuxième édition annule et remplace la première édition parue en 2001, l'Amendement 1:2005 et l'Amendement 2:2013. Cette édition constitue une révision technique. Cette édition inclut la modification technique majeure suivante par rapport à l'édition précédente: 1. la température à laquelle les gaines sont rétreintes dans une étuve à circulation d’air forcée pendant (5 ± 1) min a été augmentée de (150 ± 5) °C à (200 ± 5) °C. Mots-clés : gaines isolantes souples à usages électriques

Gibke izolacijske cevi - 3. del: Specifikacije za posamezne tipe cevi - 216. list: Toplotno skrčljive, ognjevarne cevi z majhno požarno nevarnostjo (IEC 60684-3-216:2019)

Ta dokument določa zahteve za štiri tipe toplotno skrčljivih, ognjevarnih cevi z majhno požarno nevarnostjo in oceno toplotne vzdržljivosti 105 °C, kot je prikazano v nadaljevanju. Razred A: razmerje krčenja tanke stene 2:1, notranji premer do 102,0 mm. Razred B: razmerje krčenja srednje stene 2:1, notranji premer do 60,0 mm. Razred C: razmerje krčenja debele stene 2:1, notranji premer do 51,0 mm. Razred D: razmerje krčenja srednje debele stene 3:1, notranji premer do 40,0 mm. Te cevi so običajno dobavljive v teh barvah: črna, rdeča, zelena, morda, bela, rumena in zelena/rumena. Velikosti ali barve, drugačne od navedenih v tem dokumentu, so na voljo kot postavke po meri. Upoštevati je treba, da se te postavke skladajo s tem dokumentom, če so skladne z zahtevami za lastnosti, navedenimi v preglednicah 5, 6, 7 in 8, razen z zahtevami za mere in težo. Materiali, ki so skladni s to specifikacijo, ustrezajo določenim ravnem delovanja. Vendar uporabnik bo material za določeno uporabo izbral glede na dejanske zahteve, ki omogočajo ustrezno delovanje pri tej uporabi, in ne samo na podlagi te specifikacije.

General Information

• Status: Published
• Publication Date: 03-Oct-2019
• Withdrawal Date: 11-Sep-2022
• ICS: 29.035.20 - Plastics and rubber insulating materials
• Technical Committee: CLC/SR 15 - Insulating materials
• Drafting Committee: IEC/TC 15 - IEC_TC_15
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 04-Oct-2019
• Completion Date: 04-Oct-2019
• Ref Project: SIST EN IEC 60684-3-216:2019 - Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 216: Heat-shrinkable, flame- retarded, limited-fire-hazard sleeving (IEC 60684-3-216:2019)

Relations

• Replaces: EN 60684-3-216:2005/A2:2014 - Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 216: Heat-shrinkable, flame-retarded, limited-fire hazard sleeving
• Effective Date: 23-Jan-2023
• Replaces: EN 60684-3-216:2005 - Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 216: Heat-shrinkable, flame-retarded, limited-fire hazard sleeving
• Effective Date: 08-Oct-2019

Overview

EN IEC 60684-3-216:2019 (CLC adoption of IEC 60684-3-216:2019) specifies requirements for heat-shrinkable, flame‑retarded, limited‑fire‑hazard sleeving used as flexible insulating sleeving for electrical purposes. This second edition is a technical revision (replacing the 2001 edition and subsequent amendments) and is available as an RLV (Redline Version) showing changes from the previous edition. Materials covered have a thermal endurance rating of 105 °C and are intended to meet established performance levels for electrical insulation and fire-limited applications.

Key topics and technical requirements

• Sleeving classes and shrink ratios
  • Class A: thin wall, 2:1 shrink ratio, recovered ID up to 102.0 mm
  • Class B: medium wall, 2:1 shrink ratio, recovered ID up to 60.0 mm
  • Class C: thick wall, 2:1 shrink ratio, recovered ID up to 51.0 mm
  • Class D: medium wall, 3:1 shrink ratio, recovered ID up to 40.0 mm
• Thermal and processing requirement
  • Pre-test shrink: forced‑air circulation oven for (5 ± 1) min at (200 ± 5) °C (updated from 150 °C in prior edition).
• Colours and sizing
  • Typical colours: black, red, green, blue, white, yellow, green/yellow. Custom sizes/colours permitted; compliance is based on property requirements (see below) excluding dimensions and mass.
• Standards structure and tests
  • Conformance relies on properties enumerated in Tables 5–8 (mechanical, thermal, electrical, fluid resistance and breakdown voltage requirements) and dimensional/mass tables for Classes A–D.
  • Designation format example: Sleeving - IEC 60684 – 3 – 216 – A – 12,7/6,4 – GN
• Notes on selection
  • Compliance indicates established performance, but material selection must be driven by the specific application’s requirements (environment, mechanical stress, electrical rating, fire-safety needs).

Applications and users

• Typical applications include protection and insulation of electrical conductors, cable harnesses, terminations and component coverings where limited fire hazard is required.
• Primary users:
  • Electrical/electronic designers and OEMs
  • Cable and harness manufacturers
  • Procurement and quality managers specifying materials to standards
  • Test laboratories and conformity assessment bodies
  • Installers and maintenance engineers in sectors requiring fire-limited sleeving (industrial, transport, energy, consumer electronics)

Related standards

• IEC 60684-1: Definitions and general requirements
• IEC 60684-2: Methods of test
• IEC 60757: Code for designation of colours
• ISO 846: Evaluation of the action of microorganisms
• ISO 1817: Determination of effect of liquids

EN IEC 60684-3-216:2019 is harmonized for use in Europe (CLC/CENELEC) and should be used together with Part 1 and Part 2 of IEC 60684 when specifying or testing heat‑shrinkable, flame‑retarded sleeving for electrical purposes.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2019
Nadomešča:
SIST EN 60684-3-216:2006
SIST EN 60684-3-216:2006/A2:2014
Gibke izolacijske cevi - 3. del: Specifikacije za posamezne tipe cevi - 216. list:
Toplotno skrčljive, ognjevarne cevi z majhno požarno nevarnostjo (IEC 60684-3-
216:2019)
Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet
216: Heat-shrinkable, flame- retarded, limited-fire-hazard sleeving (IEC 60684-3-
216:2019)
Isolierschläuche - Teil 3: Anforderungen für einzelne Schlauchtypen - Blatt 216:
Wärmeschrumpfende, flammwidrige Schläuche mit begrenztem Brandrisiko (IEC 60684-
3-216:2019)
Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines -
Feuille 216: Gaines thermorétractables, retardées à la flamme, au risque de feu limité
(IEC 60684-3-216:2019)
Ta slovenski standard je istoveten z: EN IEC 60684-3-216:2019
ICS:
29.035.20 Plastični in gumeni izolacijski Plastics and rubber insulating
materiali materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60684-3-216

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2019
ICS 29.035.20 Supersedes EN 60684-3-216:2005 and all of its
amendments and corrigenda (if any)
English Version
Flexible insulating sleeving - Part 3: Specifications for individual
types of sleeving - Sheet 216: Heat-shrinkable, flame- retarded,
limited-fire-hazard sleeving
(IEC 60684-3-216:2019)
Gaines isolantes souples - Partie 3: Spécifications pour Isolierschläuche - Teil 3: Anforderungen für einzelne
types particuliers de gaines - Feuille 216: Gaines Schlauchtypen - Blatt 216: Wärmeschrumpfende,
thermorétractables, ignifugées, au risque de feu limité flammwidrige Schläuche mit begrenztem Brandrisiko
(IEC 60684-3-216:2019) (IEC 60684-3-216:2019)
This European Standard was approved by CENELEC on 2019-09-12. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60684-3-216:2019 E

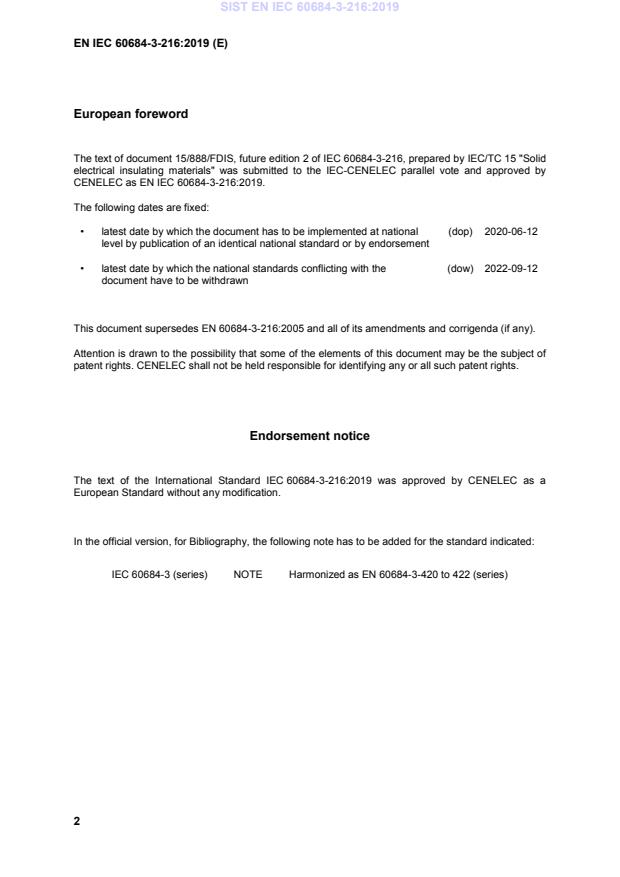

European foreword
The text of document 15/888/FDIS, future edition 2 of IEC 60684-3-216, prepared by IEC/TC 15 "Solid
electrical insulating materials" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 60684-3-216:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-06-12
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2022-09-12
document have to be withdrawn
This document supersedes EN 60684-3-216:2005 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 60684-3-216:2019 was approved by CENELEC as a
European Standard without any modification.

In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60684-3 (series) NOTE Harmonized as EN 60684-3-420 to 422 (series)

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60684-1 2003 Flexible insulating sleeving - Part 1: Definitions and EN 60684-1 2003
general requirements
IEC 60684-2 2011 Flexible insulating sleeving - Part 2: Methods of test EN 60684-2 2011
IEC 60757 1983 Code for designation of colours HD 457 S1 1985
ISO 846 2019 Plastics - Evaluation of the action of microorganisms EN ISO 846 2019
ISO 1817 2015 Rubber, vulcanized or thermoplastic - Determination of - -
the effect of liquids
IEC 60684-3-216 ®
Edition 2.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –

Part 3: Specifications for individual types of sleeving –

Sheet 216: Heat-shrinkable, flame-retarded, limited-fire-hazard sleeving

Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –

Feuille 216: Gaines thermorétractables, ignifugées, au risque de feu limité

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.035.20 ISBN 978-2-8322-7212-1

– 2 – IEC 60684-3-216:2019 © IEC 2019
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Designation . 7
5 Conditions of test . 7
6 Requirements . 7
7 Sleeving conformance . 7
Bibliography . 16

Table 1 – Dimensional and mass requirements – Class A . 8
Table 2 – Dimensional and mass requirements – Class B . 8
Table 3 – Dimensional and mass requirements – Class C . 9
Table 4 – Dimensional and mass requirements – Class D . 9
Table 5 – Property requirements . 10
Table 6 – Requirements for breakdown voltage . 13
Table 7 – Resistance to selected fluids . 14
Table 8 – Additional property requirements . 15

IEC 60684-3-216:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE INSULATING SLEEVING –

Part 3: Specifications for individual types of sleeving –
Sheet 216: Heat-shrinkable, flame-retarded,
limited-fire-hazard sleeving
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60684-3-216 has been prepared by IEC technical committee 15:
Solid electrical insulating materials.
This second edition cancels and replaces the first edition published in 2001,
Amendment 1:2005 and Amendment 2:2013. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the temperature at which the sleeving is shrunk in a forced-air circulation oven for
(5 ± 1) min has been increased from (150 ± 5) °C to (200 ± 5) °C.

– 4 – IEC 60684-3-216:2019 © IEC 2019
The text of this International Standard is based on the following documents:
FDIS Report on voting
15/888/FDIS 15/902/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IE
...
