SLOVENSKI STANDARD
01-maj-2011
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVWGHO3RVHEQH]DKWHYH
]DQDSUDYH]DREGHODYRYRGH]89VHYDQMHP,(&
Household and similar electrical appliances - Safety -- Part 2-109: Particular
requirements for UV radiation water treatment appliances
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-109:
Besondere Anforderungen für Geräte zur Wasserbehandlung durch UV-Strahlung
Appareils électrodomestiques et analogues - Sécurité - Partie 2-109: Règles particulières
pour les appareils de traitement de l'eau par rayonnements ultraviolets
Ta slovenski standard je istoveten z: EN 60335-2-109:2010
ICS:
13.120 Varnost na domu Domestic safety
97.030 (OHNWULþQLDSDUDWL]DGRPQD Domestic electrical
VSORãQR appliances in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60335-2-109
NORME EUROPÉENNE
June 2010
EUROPÄISCHE NORM
ICS 13.120; 97.030
English version
Household and similar electrical appliances -
Safety -
Part 2-109: Particular requirements
for UV radiation water treatment appliances
(IEC 60335-2-109:2010)
Appareils électrodomestiques  Sicherheit elektrischer Geräte
et analogues - Sécurité - für den Hausgebrauch
Partie 2-109: Règles particulières und ähnliche Zwecke -
pour les appareils de traitement de l'eau Teil 2-109: Besondere Anforderungen
par rayonnements ultraviolets für Geräte zur Wasserbehandlung
(CEI 60335-2-109:2010) durch UV-Strahlung
(IEC 60335-2-109:2010)
This European Standard was approved by CENELEC on 2010-06-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60335-2-109:2010 E

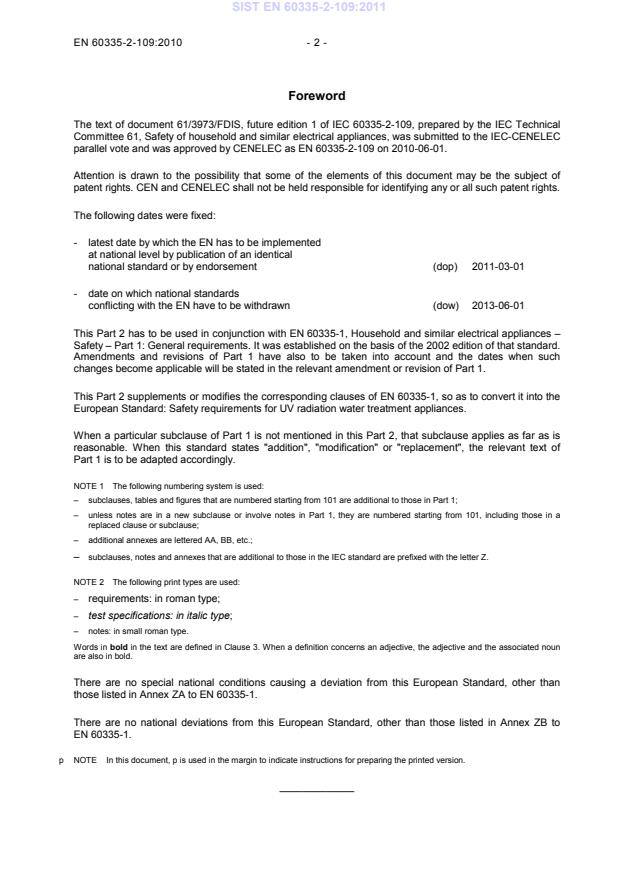

Foreword
The text of document 61/3973/FDIS, future edition 1 of IEC 60335-2-109, prepared by the IEC Technical
Committee 61, Safety of household and similar electrical appliances, was submitted to the IEC-CENELEC
parallel vote and was approved by CENELEC as EN 60335-2-109 on 2010-06-01.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent rights.
The following dates were fixed:
- latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2011-03-01
- date on which national standards
conflicting with the EN have to be withdrawn (dow) 2013-06-01
This Part 2 has to be used in conjunction with EN 60335-1, Household and similar electrical appliances –
Safety – Part 1: General requirements. It was established on the basis of the 2002 edition of that standard.
Amendments and revisions of Part 1 have also to be taken into account and the dates when such
changes become applicable will be stated in the relevant amendment or revision of Part 1.
This Part 2 supplements or modifies the corresponding clauses of EN 60335-1, so as to convert it into the
European Standard: Safety requirements for UV radiation water treatment appliances.
When a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies as far as is
reasonable. When this standard states "addition", "modification" or "replacement", the relevant text of
Part 1 is to be adapted accordingly.
NOTE 1 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those in a
replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.;
– subclauses, notes and annexes that are additional to those in the IEC standard are prefixed with the letter Z.
NOTE 2 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the associated noun
are also in bold.
There are no special national conditions causing a deviation from this European Standard, other than
those listed in Annex ZA to EN 60335-1.
There are no national deviations from this European Standard, other than those listed in Annex ZB to
EN 60335-1.
p NOTE  In this document, p is used in the margin to indicate instructions for preparing the printed version.
_____________
- 3 - EN 60335-2-109:2010
Introduction
p Add:
An investigation by CENELEC TC 61 has shown that all risks from products within the scope of this
standard are fully covered by the Low Voltage Directive, 2006/95/EC. For products having mechanical
moving parts, a risk assessment in accordance with the Machinery Directive, 2006/42/EC, has shown that
the risks are mainly of electrical origin and consequently this directive is not applicable. However, the
relevant essential safety requirements of the Machinery Directive are covered by this standard together
with the principal objectives of the Low Voltage Directive.
____________
Endorsement notice
The text of the International Standard IEC 60335-2-109:2010 was approved by CENELEC as a European
Standard without any modification.
____________
Bibliography
p Add the following notes to the standards mentioned:
IEC 60335-2-41
NOTE Harmonized as EN 60335-2-41.
IEC 60598-2-11
NOTE Harmonized as EN 60598-2-11.
IEC 60598-2-18
NOTE Harmonized as EN 60598-2-18.
ISO 13732-1
NOTE Harmonized as EN ISO 13732-1.
____________
p Add:
Annex ZC
(normative)
Normative references to international publications
with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Addition:
Publication Year Title EN/HD Year

ISO 4892-2 2006 Plastics - Methods of exposure to laboratory - -
+ A1 2009 light sources -
Part 2: Xenon-arc lamps
ISO 4892-4 2004 Plastics - Methods of exposure to laboratory - -
light sources -
Part 4: Open-flame carbon-arc lamps

____________
IEC 60335-2-109 ®
Edition 1.0 2010-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-109: Particular requirements for UV radiation water treatment appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-109: Règles particulières pour les appareils de traitement de l’eau par
rayonnements ultraviolets
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
Q
CODE PRIX
ICS 13.120; 97.030 ISBN 978-2-88910-172-6
– 2 – 60335-2-109 © IEC:2010
CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope.6
2 Normative references .6
3 Terms and definitions .7
4 General requirement.7
5 General conditions for the tests .7
6 Classification.7
7 Marking and instructions.8
8 Protection against access to live parts.9
9 Starting of motor-operated appliances .9
10 Power input and current .9
11 Heating .9
12 Void.10
13 Leakage current and electric strength at operating temperature.10
14 Transient overvoltages .10
15 Moisture resistance .10
16 Leakage current and electric strength.10
17 Overload protection of transformers and associated circuits .10
18 Endurance.10
19 Abnormal operation .10
20 Stability and mechanical hazards .11
21 Mechanical strength .11
22 Construction .11
23 Internal wiring.12
24 Components .12
25 Supply connection and external flexible cords .12
26 Terminals for external conductors.12
27 Provision for earthing .13
28 Screws and connections .13
29 Clearances, creepage distances and solid insulation .13
30 Resistance to heat and fire.13
31 Resistance to rusting.13
32 Radiation, toxicity and similar hazards.13
Annexes .16
Annex AA (normative) UV radiation conditioning .16
Bibliography.17

Table 101 – Weighting factors for different wavelengths .

60335-2-109 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-109: Particular requirements
for UV radiation water treatment appliances

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.
The text of this standard is based on the following documents:
FDIS Report on voting
61/3973/FDIS 61/4011/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 60335-2-109 © IEC:2010
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fifth edition (2010) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for UV radiation water
treatment appliances.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

60335-2-109 © IEC:2010 – 5 –
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not
...
