EN 61439-5:2015

Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks

IEC 61439-5:2014 defines the specific requirements for public electricity network distribution assemblies (PENDAs). PENDAs have the following criteria: - used for the distribution of electrical energy in three phase systems for which the rated voltage does not exceed 1 000 V a.c. (see Figure 101 for a typical distribution network); - open ASSEMBLIES are not covered by this standard; - suitable for installation in places where only skilled persons have access for their use, however, outdoor types may be installed in situations that are accessible to ordinary persons; - for indoor or outdoor use. This second edition cancels and replaces the first edition published in 2010. It constitutes a technical revision. This edition includes the following significant technical changes with respect to the latest edition: - confirmation that tests carried out on the most onerous PENDA are deemed to verify the performance of similar and less onerous assemblies of the same general construction and rating; - more precise timing/conditions for impact force withstand tests for PENDAs designed for operation in an arctic climate; - correction of the direction of the applied force in the static load test.

Niederspannungs-Schaltgerätekombinationen - Teil 5: Schaltgerätekombinationen in öffentlichen Energieverteilungsnetzen

Ensembles d'appareillage à basse tension - Partie 5: Ensembles pour réseaux de distribution publique

L'IEC 61439-5:2014 définit les exigences spécifiques aux ensembles pour réseaux de distribution publique (ERD). Les ERD satisfont aux critères suivants: - ils sont utilisés pour la distribution de l'énergie électrique dans des systèmes triphasés pour lesquels la tension assignée ne dépasse pas 1 000 V en courant alternatif (se reporter à la Figure 101 représentant un réseau de distribution classique); - ils sont fixes; - les ENSEMBLES ouverts ne sont pas couverts par la présente norme; - ils sont adaptés à une installation dans des emplacements où seules des personnes qualifiées ont accès pour leur utilisation; cependant, des ERD pour l'extérieur peuvent être installés dans des endroits susceptibles d'être accessibles à des personnes ordinaires; - utilisation à l'intérieur ou à l'extérieur. Cette deuxième édition annule et remplace la première édition parue en 2010. Elle constitue une révision technique. La présente édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - confirmation que les essais effectués sur les ERD les plus exigeants sont présumés vérifier la performance des ensembles analogues et moins exigeants de mêmes constructions générales et valeurs assignées; - conditions/ durées plus précises pour les essais de résistance à l'impact des ERD conçus pour fonctionner sous un climat arctique; - correction de la direction de la force appliquée lors de l'essai de charge statique.

Sestavi nizkonapetostnih stikalnih in krmilnih naprav - 5. del: Sestavi za distribucijo električne energije v javnih omrežjih (IEC 61439-5:2014)

Ta del standarda IEC 61439 določa posebne zahteve za sestave za distribucijo električne energije v javnih omrežjih (PENDA).
Sestavi za distribucijo električne energije v javnih omrežjih imajo naslednje kriterije:
– uporabljajo se za distribucijo električne energije v trifaznih sistemih, katerih nazivna napetost ne presega 1000 V izmeničnega toka (glej sliko 101 – tipično distribucijsko omrežje);
– stacionarni;
– ta standard ne zajema odprtih SESTAVOV;
– primerni za namestitev v prostorih, do katerih ima dostop le usposobljeno osebje, vendar se lahko namestijo tudi zunanje enote, kadar so te dostopne laikom;
– za notranjo in zunanjo uporabo.
Namen tega standarda je navesti definicije in določiti pogoje uporabe, konstrukcijske zahteve, tehnične značilnosti in preskuse za sestave za distribucijo električne energije v javnih omrežjih. Glede na parametre omrežja so lahko potrebni preskusi na višji ravni delovanja.
Sestavi za distribucijo električne energije v javnih omrežjih lahko vsebujejo tudi krmilne in/ali signalne naprave, povezane z distribucijo električne energije.
Ta standard se uporablja za vse SESTAVE, ne glede na to, ali so oblikovani, proizvedeni enkratno ali v celoti standardizirani in proizvedeni v velikih količinah.
Proizvodnjo in/ali sestavljanje lahko izvaja oseba, ki ni prvotni proizvajalec (glej 3.10.1 standarda IEC 61439-1:2011).
Ta standard se ne uporablja za posamezne naprave in samostojne dele, kot so zaganjalniki, varovalna stikala, elektronska oprema itd., ki so skladni z ustreznimi standardi za izdelek.
Ta standard se ne uporablja za posebne vrste SESTAVOV, ki so zajeti v drugih delih skupine standardov IEC 61439.

General Information

• Status: Published
• Publication Date: 22-Jan-2015
• Withdrawal Date: 28-Sep-2017
• ICS: 29.130.20 - Low voltage switchgear and controlgear
• Technical Committee: CLC/SR 121B - Low-voltage switchgear and controlgear assemblies
• Drafting Committee: IEC/SC 121B - Low-voltage switchgear and controlgear assemblies
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 23-Jan-2015
• Completion Date: 23-Jan-2015
• Directive: 2004/108/EC - Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive: 2004/108/EU - DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Ref Project: SIST EN 61439-5:2015 - Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks (IEC 61439-5:2014)

Relations

• Replaces: EN 61439-5:2011 - Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks
• Effective Date: 29-Jan-2023
• Replaced By: EN IEC 61439-5:2023 - Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks
• Effective Date: 26-Jul-2021
• Corrected By: EN 61439-5:2015/AC:2015 - Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks
• Effective Date: 17-Mar-2015

Overview

EN 61439-5:2015 (CLC adoption of IEC 61439-5:2014) is the European standard that defines specific requirements for public electricity network distribution assemblies - commonly called PENDAs (Public Electricity Network Distribution Assemblies). It is part of the IEC 61439 series covering low-voltage switchgear and controlgear assemblies and must be read in conjunction with EN/IEC 61439-1 (general rules). The standard applies to stationary, three-phase distribution assemblies for voltages up to 1 000 V AC, suitable for indoor or outdoor use. Open assemblies are excluded; outdoor types may be accessible to ordinary persons while indoor installation is normally limited to skilled persons.

Key topics and technical requirements

EN 61439-5 specifies definitions, service conditions, constructional and performance requirements, and verification methods for PENDAs. Important technical topics include:

• Service conditions and interface characteristics (environmental and installation conditions).
• Constructional requirements such as enclosures, mounting, internal clearances and conductor cross-sections.
• Performance requirements: electrical, thermal and mechanical performance under normal and fault conditions.
• Design verification and routine verification procedures to demonstrate compliance (type tests, measurement and inspection routines).
• Mechanical strength and impact tests (shock load, impact force, static load, torsional stress, door strength) as illustrated by figures in the standard.
• Temperature-rise verification guidance and conductor cross-section tables (Annex AA).
• Annexes for items subject to user/manufacturer agreement, country-specific notes and detailed design verification lists (Annexes BB, CC, DD).

Significant technical changes in the 2015 edition:

• Tests on the most onerous PENDA are deemed to verify similar or less onerous assemblies of the same construction and rating.
• More precise timing/conditions for impact force tests for assemblies intended for arctic climates.
• Correction of the direction of applied force in the static load test.

Applications and who uses this standard

EN 61439-5 is used by:

• Network operators and utilities specifying distribution assemblies for public networks.
• Switchgear and panel manufacturers designing and certifying PENDAs.
• Electrical designers and consulting engineers preparing specifications and procurement documents.
• Test laboratories and conformity assessors performing type and routine tests.
• Installers and maintenance teams ensuring installed assemblies meet safety and performance requirements.

Practical applications include substation distribution kiosks, feeder distribution cabinets, and other fixed public-network distribution assemblies handling three-phase low-voltage power.

Related standards

• EN/IEC 61439-1 - General rules for low-voltage switchgear and controlgear assemblies (mandatory companion document).
• Referenced test and safety standards cited in Annex ZA / ZZ for compliance with EU directives (LVD and EMC considerations).

Keywords: EN 61439-5:2015, IEC 61439-5, low-voltage switchgear, controlgear assemblies, PENDAs, public network distribution, design verification, routine tests, power distribution assemblies.

Standards Content (Sample)

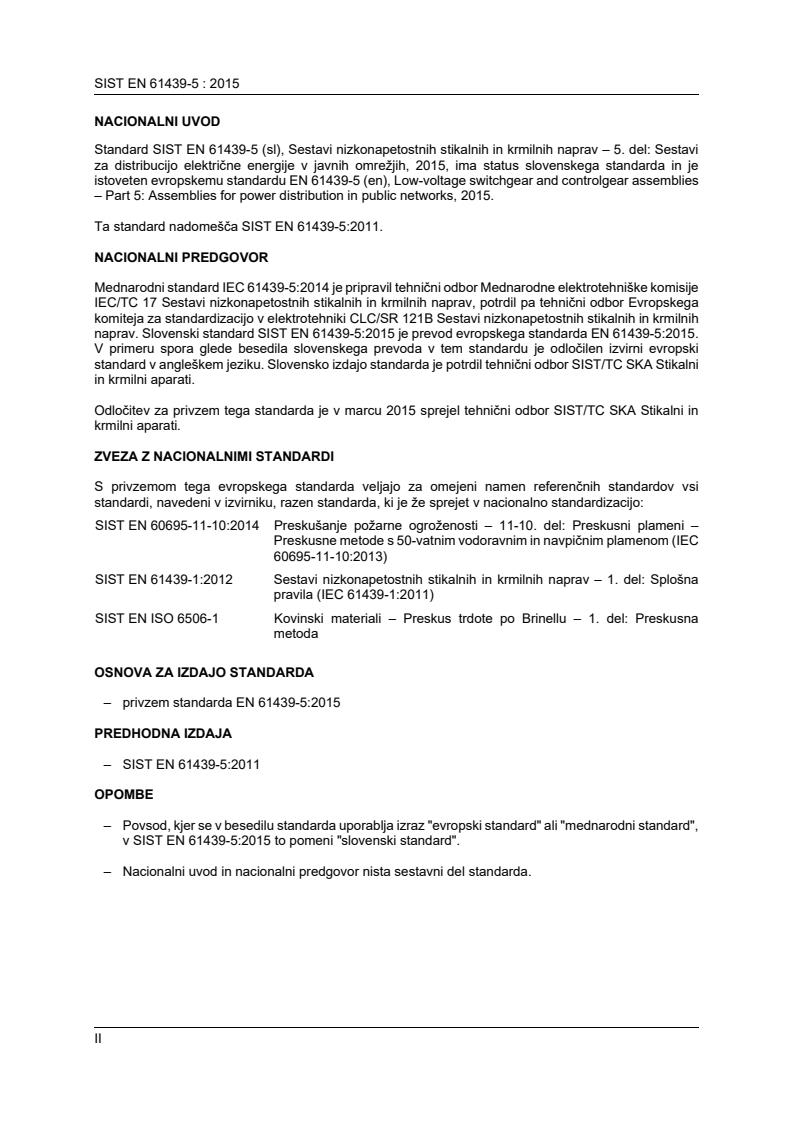

SLOVENSKI STANDARD
01-april-2015
1DGRPHãþD
SIST EN 61439-5:2011
6HVWDYLQL]NRQDSHWRVWQLKVWLNDOQLKLQNUPLOQLKQDSUDYGHO6HVWDYL]D
GLVWULEXFLMRHOHNWULþQHHQHUJLMHYMDYQLKRPUHåMLK,(&
Low-voltage switchgear and controlgear assemblies -- Part 5: Assemblies for power
distribution in public networks
Ta slovenski standard je istoveten z: EN 61439-5:2015
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
29.240.99 'UXJDRSUHPDY]YH]L] Other equipment related to
RPUHåML]DSUHQRVLQ power transmission and
GLVWULEXFLMRHOHNWULþQHHQHUJLMH distribution networks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 61439-5
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2015
ICS 29.130.20 Supersedes EN 61439-5:2011
English Version
Low-voltage switchgear and controlgear assemblies -
Part 5: Assemblies for power distribution in public networks
(IEC 61439-5:2014)
Ensembles d'appareillage à basse tension -  Niederspannungs-Schaltgerätekombinationen -
Partie 5: Ensembles pour réseaux de distribution publique Teil 5: Schaltgerätekombinationen in öffentlichen
(IEC 61439-5:2014) Energieverteilungsnetzen
(IEC 61439-5:2014)
This European Standard was approved by CENELEC on 2014-09-29. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61439-5:2015 E

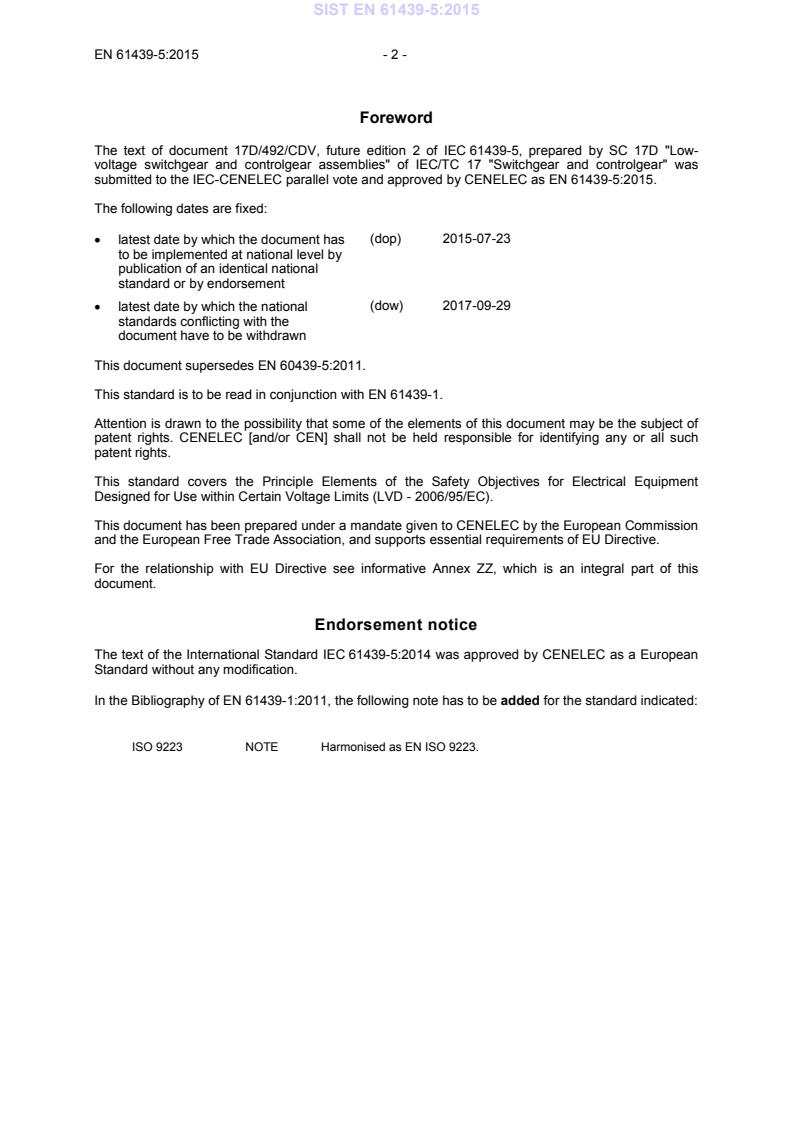

Foreword
The text of document 17D/492/CDV, future edition 2 of IEC 61439-5, prepared by SC 17D "Low-
voltage switchgear and controlgear assemblies" of IEC/TC 17 "Switchgear and controlgear" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 61439-5:2015.

The following dates are fixed:
(dop) 2015-07-23
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2017-09-29
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60439-5:2011.

This standard is to be read in conjunction with EN 61439-1.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).

This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive.

For the relationship with EU Directive see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 61439-5:2014 was approved by CENELEC as a European
Standard without any modification.
In the Bibliography of EN 61439-1:2011, the following note has to be added for the standard indicated:

ISO 9223 NOTE Harmonised as EN ISO 9223.

- 3 - EN 61439-5:2015
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Annex ZA of EN 61439-1:2011 applies, except as follows:

Publication Year Title EN/HD Year
Addition:
IEC 60695-11-10 2013 Fire hazard testing -- EN 60695-11-10 2013
Part 11-10: Test flames - 50 W horizontal
and vertical flame test methods
IEC 61439-1 2011 Low-voltage switchgear and controlgear EN 61439-1 2011
assemblies --
Part 1: General rules
ISO 6506-1 -  Corrosion of metals and alloys - EN ISO 6506-1 -
Corrosivity of atmospheres - Classification,
determination and estimation
Annex ZZ
(informative)
Coverage of Essential Requirements of EU Directive 2004/108/EC

This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and within its scope the standard covers all
relevant essential requirements as given in Article 1 of Annex I of the EU Directive 2004/108/EC.
Compliance with this standard provides one means of conformity with the specified essential
requirements of the Directive concerned.
WARNING: Other requirements and other EU Directives may be applicable to the products falling
within the scope of this standard.

IEC 61439-5 ®
Edition 2.0 2014-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage switchgear and controlgear assemblies –

Part 5: Assemblies for power distribution in public networks

Ensembles d'appareillage à basse tension –

Partie 5: Ensembles pour réseaux de distribution publique

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
W
CODE PRIX
ICS 29.130.20 ISBN 978-2-8322-1831-0

– 2 – IEC 61439-5:2014 © IEC 2014
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references. 6
3 Terms and definitions . 6
4 Symbols and abbreviations . 7
5 Interface characteristics . 7
6 Information . 8
7 Service conditions . 8
8 Constructional requirements . 9
9 Performance requirements . 11
10 Design verification . 11
11 Routine verification . 24
Annexes . 25
Annex O (informative) Guidance on temperature rise verification . 26
Annex AA (normative) Cross-section of conductors . 27
Annex BB (informative) Items subject to agreement between the ASSEMBLY
manufacturer and the user . 29
Annex CC (informative) Design verification . 33
Annex DD (informative) List of notes concerning certain countries . 34
Bibliography . 35

Figure 101 – Typical distribution network . 6
Figure 102 – Diagram of test to verify resistance to shock load of a PENDA-O . 14
Figure 103 – Diagram of test to verify impact force withstand of a PENDA-O . 15
Figure 104 – Diagram of test to verify the resistance to static load . 16
Figure 105 – Sandbag for test to verify the resistance to shock load . 17
Figure 106 – Diagram of test to verify resistance to torsional stress of a PENDA-O . 18
Figure 107 – Diagram of test to verify the mechanical strength of doors . 21
Figure 108 – Striker element for test of resistance to mechanical shock impacts
induced by sharp-edged objects . 22
Figure 109 – Typical test arrangement for mechanical strength of base . 23

Table 101 – Values of assumed loading . 8
Table 102 – Axial load to be applied to the inserts . 22
Table AA.1 – Minimum and maximum cross-section of copper and aluminium
conductors, suitable for connection (see 8.8) . 27
Table AA.2 – Standard cross-sections of round copper conductors and approximate
relationship between mm and AWG/kcmil sizes (see 8.8 of Part 1) . 28
Table BB.1 – Items subject to agreement between the ASSEMBLY manufacturer and the
user 29
Table CC.1 – List of design verifications to be performed . 33

IEC 61439-5:2014 © IEC 2014 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES –

Part 5: Assemblies for power distribution in public networks

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61439-5 has been prepared by subcommittee 17D: Low-voltage
switchgear and controlgear assemblies, of IEC technical committee 17: Switchgear and
controlgear.
This second edition cancels and replaces the first edition published in 2010. It constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the latest
edition:
– confirmation that tests carried out on the most onerous PENDA are deemed to verify the
performance of similar and less onerous assemblies of the same general construction and
rating;
– more precise timing/conditions for impact force withstand tests for PENDAs designed for
operation in an arctic climate;
– correction of the direction of the applied force in the static load test.

– 4 – IEC 61439-5:2014 © IEC 2014
The text of this standard is based on the following documents:
CDV Report on voting
17D/492/CDV 121B/13/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard is to be read in conjunction with IEC 61439-1. The provisions of the general
rules dealt with in IEC 61439-1 (hereinafter referred to as Part 1) are only applicable to this
standard insofar as they are specifically cited. When this standard states “addition”,
“modification” or “replacement”, the relevant text in Part 1 is to be adapted accordingly.
Subclauses that are numbered with a 101 (102, 103 etc.) suffix are additional to the same
subclause in Part 1.
Tables and figures in this Part 5 that are new are numbered starting with 101.
New annexes in this Part 5 are lettered AA, BB, etc.
In this standard, terms written in small capitals are defined in Clause 3.
The reader’s attention is drawn to the fact that Annex DD lists all of the “in-some-country”
clauses on differing practices of a less permanent nature relating to the subject of this
standard.
A list of all parts of the IEC 61439 series, under the general title Low-voltage switchgear and
controlgear assemblies can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 61439-5:2014 © IEC 2014 – 5 –
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR ASSEMBLIES –

Part 5: Assemblies for power distribution in public networks

1 Scope
This part of IEC 61439 defines the specific requirements for public electricity network
distribution assemblies (PENDAs).
PENDAs have the following criteria:
– used for the distribution of electrical energy in three phase systems for which the rated
voltage does not exceed 1 000 V a.c. (see Figure 101 for a typical distribution network);
– stationary;
– open ASSEMBLIES are not covered by this standard;
– suitable for installation in places where only skilled persons have access for their use,
however, outdoor types may be installed in situations that are accessible to ordinary
persons;
– for indoor or outdoor use.
The object of this standard is to state the definitions and to specify the service conditions,
construction requirements, technical characteristics and tests for PENDAs. Network
parameters may require tests at higher performance levels.
PENDAs may also include control and or signalling devices associated with the distribution of
electrical energy.
This standard applies to all PENDAs whether they are designed, manufactured on a one-off
basis or fully standardised and manufactured in quantity.
The manufacture and/or assembly may be carried out other than by the original manufacturer
(see 3.10.1 of IEC 61439-1:2011).
This standard does not apply to individual devices and self-contained components, such as
motor starters, fuse switches, electronic equipment, etc. which comply with the relevant
product standards.
This standard does not apply to specific types of ASSEMBLIES covered by other parts of
IEC 61439 series.
– 6 – IEC 61439-5:2014 © IEC 2014

PENDA-I or PENDA-O
PENDA-O
Customers
MV/LV substation
Connecting points
IEC
Figure 101 – Typical distribution network
NOTE 1 If a PENDA is equipped with additional equipment (for example meters), in such a way that the main
function is changed considerably, then other standards can also apply as agreed between user and manufacturer
(see 8.5 of IEC 61439-1:2011).
NOTE 2 Where local regulations and practices permit, a PENDA according to this standard can be used in other
than public networks.
2 Normative references
This clause of Part 1 applies except as follows.
Addition:
IEC 60695-11-10:2013, Fire hazard testing – Part 11-10: Test flames – 50 W horizontal and
vertical flame test methods
IEC 61439-1:2011, Low-voltage switchgear and controlgear assemblies – Part 1: General
rules
ISO 6506-1, Metallic materials – Brinell hardness test – Part 1: Test method
3 Terms and definitions
This clause of Part 1 applies except as follows.
3.1 General terms
Additional terms:
IEC 61439-5:2014 © IEC 2014 – 7 –
3.1.101
public electricity network distribution ASSEMBLY
PENDA
ASSEMBLY, generally for installation in a public electricity network which in use, receives
electrical energy from one or more supplies and distributes that energy through one or more
cables to other equipment
Note 1 to entry: A PENDA is installed, operated and maintained solely by skilled persons.
Note 2 to entry: Some types of a PENDA were previously known as a cable distribution cabinet (CDC).
3.1.101.1
outdoor public electricity network distribution ASSEMBLY
PENDA-O
cubicle type public electricity network distribution ASSEMBLY that is suitable for outdoor
installation in places that may, or may not, be accessible to the public
3.1.101.2
indoor public electricity network distribution ASSEMBLY
PENDA-I
public electricity network distribution ASSEMBLY suitable for installation indoors, generally
without an enclosure, but including all structural parts necessary to support busbars,
functional units and other ancillary devices, necessary to complete the ASSEMBLY
3.3 External design of ASSEMBLIES
3.3.1
open-type ASSEMBLY
This term of Part 1 does not apply.
3.9 Verification
Modifications:
3.9.1
design verification
Delete the note.
3.9.1.2
verification comparison
This term of Part 1 does not apply.
3.9.1.3
verification assessment
This term of Part 1 does not apply.
4 Symbols and abbreviations
This clause of Part 1 applies.
5 Interface characteristics
This clause of Part 1 applies except as follows.

– 8 – IEC 61439-5:2014 © IEC 2014
5.4 Rated diversity factor (RDF)
Addition:
In the absence of an agreement between the ASSEMBLY manufacturer and user concerning the
actual load currents, the assumed loading of the outgoing circuits of the ASSEMBLY or group of
outgoing circuits may be based on the values given in Table 101.
Table 101 – Values of assumed loading
Number of main circuits Assumed loading factor
2 and 3 0,9
4 and 5 0,8
6 to 9 inclusive 0,7
10 (and above) 0,6
6 Information
This clause of Part 1 applies except as follows.
6.1 Assembly designation marking
Addition to first paragraph:
Designation plates may be placed inside an enclosure of an ASSEMBLY provided their intended
place ensures good legibility and visibility when the door(s) is open or the cover is removed.
Replacement of item d):
d) IEC 61439-5.
6.3 Device and/or component identification
Additional paragraph:
In the case of removable fuse-carriers which are specific to a fuseway, a label shall be placed
on the fuse carrier as well as on the fuse base, to avoid incorrect interchangeability of the
fuse-carrier.
Additional subclause:
6.101 Circuit identification
It shall be possible to identify each functional unit in a clearly visible manner.
7 Service conditions
This clause of Part 1 applies except as follows.
7.1.1.2 Ambient air temperature for outdoor installations
Replacement of last paragraph with:

IEC 61439-5:2014 © IEC 2014 – 9 –
Unless the user specifies a PENDA shall be suitable for use in an arctic climate, the lower
limit of ambient air temperature is –25 °C. For an arctic climate the lower limit of ambient
temperature is –50 °C.
7.2 Special service conditions
Addition of the following note to item h):
NOTE Exposure to vibration arising from traffic and/or occasional ground excavation is a normal service condition
for PENDAs.
Additional paragraph:
Additional requirements for a PENDA-O, to be installed where heavy snowfalls occur and
where they are adjacent to areas where there is snow clearance by ploughing, are subject to
agreement between manufacturer and user.
8 Constructional requirements
This clause of Part 1 applies except as follows.
8.1 Strength of materials and parts
8.1.1 General
Addition:
A PENDA-O shall be arranged for ground mounting, transformer mounting, pole mounting,
surface wall mounting or mounting within a recess within a wall, as agreed between user and
manufacturer.
A PENDA may be direct coupled to a transformer by means of a flange coupling or it may
connect to its supply by means of cable or via busbars as agreed between user and
manufacturer. Outgoing circuits shall be suitable for connection by means of cables.
A reliable locking device shall be provided on outdoor enclosures which prevents access by
unauthorized persons. Doors, lids and covers shall be so designed that, after they are locked,
they do not open due to subsequent moderate ground settlement, nor due to exposure to
vibration arising from traffic and/or ground excavation and reinstatement works.
8.1.3.2 Resistance of insulating materials to heat and fire
Additional subclause:
8.1.3.2.101 Verification of category of flammability
The insulating materials used for enclosures, barriers and other insulating parts shall have
flame retardant properties in accordance with 10.2.3.102 of this standard.
8.1.5 Mechanical strength
Additional subclause:
8.1.5.101 Verification of mechanical strength
The mechanical properties of a PENDA-O shall comply with 10.2.101 of this standard.

– 10 – IEC 61439-5:2014 © IEC 2014
Parts of the PENDA-O intended to be embedded in the ground shall withstand the stresses
imposed on them during installation and normal service and comply with 10.2.101.9.
Additional subclause:
8.1.101 Thermal stability
The thermal stability of a PENDA shall be verified according to 10.2.3.101.
8.2 Degree of protection provided by an ASSEMBLY enclosure
8.2.1 Protection against mechanical impact
Subclause 8.2.1 of Part 1 does not apply.
8.2.2 Protection against contact with live parts, ingress of solid foreign bodies and
water
Addition:
Open type ASSEMBLIES (IP00) are not covered by this standard.
When a PENDA-O is intended to be installed in places accessible to the public, its enclosure
shall, when fully-installed in accordance with the manufacturer’s instructions, provide a
degree of protection of at least IP34D according to IEC 60529. In other locations, the
minimum level of protection shall be at least IP33.
PENDA-O’s that are intended to be installed in places accessible to the public shall, unless
otherwise stated by the user, be designed such that when any temporary cables are
connected, the enclosure shall provide a degree of protection of at least IP23C according to
IEC 60529. See 8.8 of this standard.
8.4 Protection against electric shock
8.4.2.1 General
The third paragraph does not apply.
Additional subclause:
8.4.2.101 Earthing and short-circuiting means
The outgoing units in an ASSEMBLY shall be so constructed that they can be earthed and short-
circuited in a secure manner by means of a device(s) recommended by the manufacturer,
which ensures the manufacturer’s indicated degree of protection (IP code) is maintained for
all parts of the ASSEMBLY. This requirement is not applicable if it could cause a safety hazard
arising from the system conditions and/or operational practice.
8.4.3.1 Installation conditions
Additional paragraph:
For an ASSEMBLY that is expected to feed overhead cable lines, outgoing units shall be
designed in such a way that an attached cable(s) can be earthed at the termination(s).
8.8 Terminals for external conductors
Replacement of the first three paragraphs with the following:

IEC 61439-5:2014 © IEC 2014 – 11 –
In the absence of a special agreement between user and manufacturer, terminals shall be
capable of accommodating cables having copper or aluminium conductors from the smallest
to the largest cross-sectional area corresponding to the appropriate rated current (see
Table AA.1).
The terminations for outgoing circuits shall be located so that adequate spacing is provided
and to facilitate terminating the phase conductors of a cable irrespective of their lay.
Where specified by the user, the incoming circuit shall be suitable for connection by means of
either bare or insulated bars.
Additional subclauses:
8.101 Marking as an obstacle to snow clearance
Where a PENDA-O is intended for use in regions where heavy snowfalls occur in accordance
with 7.2, or alternatively, if required by the user, it shall be possible to mark it as an obstacle
to snow clearance. Holders shall be provided, attached to the PENDA-O, to accommodate
marking rods and it shall be possible to install and make adjustments to the position of the
marking rod from outside the PENDA-O. The holders shall be constructed in a manner which
ensures that the holder or marking rod will give way to a mechanical force before the
transmitted force to the PENDA-O’s enclosure reaches the value which would adversely affect
the degree of protection (IP code).
8.102 Ease of operation and maintenance
All parts of the ASSEMBLY shall, as far as practicable, be readily accessible and replaceable
without excessive dismantling. The conditions for interchangeability of parts of the ASSEMBLY
may be subject to an agreement between the user and the manufacturer.
The design shall be such that the cables can be readily connected from the front.
When a PENDA does not have a means of measurement incorporated, it shall be possible, by
the use of a portable instrument, to readily and safely measure voltages in all phases of
incoming units and on both sides of all current breaking and/or switch devices of outgoing
units, also the current in one phase of all outgoing units. During this operation all live parts of
the PENDA shall be protected sufficiently to retain the required degree of protection in
accordance with 8.2. Instructions concerning the procedure to be adopted shall be provided
by the manufacturer.
If the ASSEMBLY is intended to be connected to a live reserve power, for example a standby
generator, the switchgear connecting device shall be designed so that connection can be
made with the live parts having a degree of protection of IP10 according to IEC 60529.
Locking arrangements shall be provided on a PENDA to secure the door(s) and prevent
unauthorised access. The fixings of any covers etc. which are removable for installation or
maintenance operations shall only be accessible while the door(s) are open.
9 Performance requirements
This clause of Part 1 applies.
10 Design verification
This clause of Part 1 applies except as follows.

– 12 – IEC 61439-5:2014 © IEC 2014
10.1 General
th th th
Replace 4 , 5 , and 6 paragraph with:
Design verification shall only be achieved by the application of tests in accordance with
Clause 10 of this standard. The alternatives methods of verification by assessment or
comparison with a reference design shall not be used (see Table CC.1).
Tests carried out on the most onerous PENDA are deemed to verify the performance of
similar and less onerous assemblies of the same general construction and rating. For
example a temperature rise test carried out on an 800 A PENDA-O with 5 outgoing circuits is
deemed to apply to a PENDA-O of the same construction (same general design of enclosure,
same design of busbars and same incoming units) with 8 outgoing circuits of the same rating
as those included in the PENDAO that was temperature rise tested. The same approach
applies to short-circuit verification.
Additional last paragraph:
Where necessary to suit their particular network parameters, users may specify more onerous
or additional test requirements.
10.2 Strength of materials and parts
10.2.2 Resistance to corrosion
10.2.2.1 Test procedure
Replacement of last paragraph with the following:
When the corrosion resistance properties and projected life, as agreed between manufacturer
and user, can be confirmed by reference to ISO 9223, the tests detailed herein need not be
performed.
In all other cases the corrosion resistance of each design of ASSEMBLY shall be verified by
severity test A or B, as applicable and as detailed in 10.2.2.2 and 10.2.2.3 of Part 1.
10.2.2.2 Severity test A
Replacement of the test specification (paragraph 2) with the following:
Damp heat cycling test of IEC 60068-2-30: Severity – temperature 55 °C, 6 cycles and
variant 1.
At the end of the test, the specimens are removed from the test chamber.
Compliance is checked by visual inspection. The parts tested shall not show rust, cracking or
other deterioration. However, surface corrosion of the protective coating is allowed.
10.2.2.4 Results to be obtained
This subclause of Part 1 is not applicable in respect of tests carried out in accordance with
10.2.2.2.
10.2.3 Properties of insulating materials
Additional subclauses:
IEC 61439-5:2014 © IEC 2014 – 13 –
10.2.3.101 Dry heat test
The complete ASSEMBLY shall be placed in an oven, the internal temperature of which is raised
to (100 ± 2) °C over a period of 2 h to 3 h and maintained at this temperature for 5 h.
Compliance is checked by inspection that there are no visible signs of deterioration.
Deformation of protective covers manufactured from insulating materials is acceptable if they
are more than 6 mm distant from parts which may have a temperature rise in excess of 40 K
and do not support live components.
10.2.3.102 Verification of category of flammability
Representative specimens of each of the materials of enclosures, barriers and other
insulating parts shall be subjected to a flammability test in accordance with test method A –
horizontal burning test of IEC 60695-11-10:2013.
Compliance is checked by inspection that each set of specimens can be classified to category
HB40 criteria a) or b) in accordance with 8.4.3 of IEC 60695-11-10:2013.
10.2.6 Mechanical impact
This subclause of Part 1 is not applicable to ASSEMBLIES complying with this standard.
Additional subclauses:
10.2.101 Verification of mechanical strength
10.2.101.1 General
The tests shall be carried out at an ambient temperature of between 10 °C and 40 °C.
With the exception of the test of 10.2.101.7, a new sample ASSEMBLY may be used for each of
the independent tests. If the same sample ASSEMBLY is used for more than one test of
10.2.101, the compliance check for the second numeral of the degree of protection (IP code)
need only be applied when the tests on that sample have been completed.
All tests shall be carried out with the ASSEMBLY fixed at its normal service mounting and where
appropriate, added support at normal ground level as indicated in Figures 102a, 102b, 103a,
and 103b.
– 14 – IEC 61439-5:2014 © IEC 2014
Dimensions in millimetres
Start position
Impact
position
Cabinet
Base Top edge of base
Support as stated
by the manufacturer
IEC
Figure 102a – Diagram of test to verify the resistance to shock load
of a ground mounted PENDA-O with embedded base
Dimensions in millimetres
Start position
Impact
position
IEC
Figure 102b – Diagram of test to verify resistance to shock load
of a ground mounted PENDA-O without embedded base
Figure 102 – Diagram of test to verify resistance to shock load of a PENDA-O
1 000
1 000
IEC 61439-5:2014 © IEC 2014 – 15 –
Dimensions in millimetres
Start position
Impact
position
Cabinet
Base Top edge of base
Support as stated
by the manufacturer
IEC
Figure 103a – Diagram of test to verify impact force withstand
for a ground mounted PENDA-O with embedded base
Dimensions in millimetres
Start position
Impact
position
IEC
Figure 103b – Diagram of test to verify impact force withstand
for a ground mounted PENDA-O without embedded base
Figure 103 – Diagram of test to verify impact force withstand of a PENDA-O
With the exception of the test of 10.2.101.8 of this standard, the door(s) of the ASSEMBLY, if
applicable, shall be locked at the commencement of the test and remain locked for the
duration of the test.
1 000
1 000
– 16 – IEC 61439-5:2014 © IEC 2014
10.2.101.2 Verification of resistance to static load
The following tests shall be carried out on all types of PENDA-0:
Test 1 – An evenly distributed load of 8 500 N/m shall be applied for 5 min to the roof of
the enclosure (see Figure 104).
Test 2 – A force of 1 200 N shall be applied for 5 min in turn to the front and back upper
edges of the roof of the enclosure (see Figure 104).

8 500 N/m
1 200 N
Evenly distributed load
Force
1 200 N
Force
IEC
Figure 104 – Diagram of test to verify the resistance to static load
Compliance is checked by verification after the test that the minimum degree of protection is
in accordance with 8.2.2, and the operation of the door(s) and locking points are not impaired;
also by verification that the electrical clearances have remained satisfactory for the duration
of the tests and in the case of an ASSEMBLY having metallic enclosure, that no contact
between live parts and the enclosure has occurred caused by permanent or temporary
distortion.
10.2.101.3 Verification of resistance to shock load
The test shall apply to all types of PENDA-O.
A bag in accordance with Figure 105 containing dry sand and having a total mass of 15 kg
shall be hung from an overhead support vertically above the surface under test and at least
1 m above the highest point of the ASSEMBLY.

IEC 61439-5:2014 © IEC 2014 – 17 –
Dimensions in millimetres
Loop for pendulum
Material: any suitable flexible material
which does not burst on impact
Sand grain size
0,5 … 0,8
Eye for lifting
and release
Seam - only on eye
side, striking side is
seamless
∅200
IEC
Figure 105 – Sandbag for test to verify the resistance to shock load
Each test shall consist of one blow aimed at the upper part of each of the vertical surfaces of
the ASSEMBLY which are visible when the ASSEMBLY is installed in its normal service position.
Separate enclosures may be used for each of the test blows.
In the case of an enclosure of cylindrical form, the test shall consist of three blows which are
positioned with an angular displacement of 120°.
A test shall consist of raising the lifting eye through a height of 1 m and allowing the sandbag
to fall through a vertical arc to impact the approximate centre of the upper part of the surface
of the ASSEMBLY under test (see Figures 102a and 102b).
Compliance is checked by verification after the test that the degree of protection remains in
accordance with 8.2.2, and the operation of the door(s) and locking points are not impaired;
also by verification that the electrical clearances have remained satisfactory for the duration
ASSEMBLY having a metallic enclosure, that no contact
of the tests and, in the case of an
between live parts and the enclosure has occurred caused by permanent or temporary
distortion. In the case of an ASSEMBLY having an insulating enclosure, if the appropriate
conditions are satisfied, then damage such as small dents or small degrees of surface
cracking or flaking are disregarded, provided that there are no associated cracks detrimental
to the serviceability of the ASSEMBLY.
10.2.101.4 Verification of resistance to torsional stress
The test only applies to all types of PENDA-O.
The test is carried out using a horizontally rotatable frame constructed from 60 mm × 60 mm ×
5 mm angle iron, having vertical locations 100 mm long at the frame arm’s extremities. The
– 18 – IEC 61439-5:2014 © IEC 2014

ASSEMBLY under test is rigidly fixed at its base and the frame closely fitted over it, so that the

end locations of the frame arm are in contact with the roof and walls of the ASSEMBLY.
The ASSEMBLY, with the door(s) closed shall have a torsional force of 2 × 1 000 N applied for
30 s as shown in Figures 106a and 106b.
Dimensions in millimetres
Rotatable mounting device
Angle iron
60 × 60 × 5 length 100
Force F = 1 000 N
F F
Cabinet
Centre of rotation
F F
Base Top edge of base
Support as stated
by the manufacturer
PENDA-O turned in a PENDA-O turned in a
clockwise direction counter clockwise direction
IEC
Figure 106a – Diagram of test to verify the resistance to torsional stress
of a ground mounted PENDA-O with embedded base
Dimensions in millimetres
Angle iron
60 × 60 × 5 length 100
Rotatable mounting device
F
F
Cabinet
Centre of rotation
F F
Force F = 1 000 N
PENDA-O turned in a PENDA-O turned in a
clockwise direction counter clockwise direction
IEC
Figure 106b – Diagram of test to verify resistance to torsional stress
of a ground mounted PENDA-O without embedded base
Figure 106 – Diagram of test to verify resistance to torsional stress of a PENDA-O
Compliance is checked by verifying that the doors(s) remain closed for the duration of the test
and by verification after the test that the degree of protection remains in accordance with
8.2.2.
IEC 61439-5:2014 © IEC 2014 – 19 –
10.2.101.5 Verification of impact force withstand
10.2.101.5.1 Test applicable to PENDAs designed for operation at ambient
temperatures of between 40 °C and –25 °C
The test shall be carried out using impact apparatus in the form of a pendulum incorporating a
9 mm external diameter tube at least 1 m long. The pendulum shall be arranged to swing
through a vertical arc.
Attached to one end is a solid steel ball of 2 kg mass, which shall be raised through a height
of 1 m and allowed to drop and impact the surface of the ASSEMBLY under test, thus providing
an impact energy of 20 J (see Figures 103a and 103b).
For each of the two tests detailed below, the test shall consist of one blow aimed at the centre
of each of the vertical surfaces of the ASSEMBLY which are visible when it is installed in its
normal service position. Separate enclosures may be used for each of the test blows.
In the case of an enclosure of cylindrical form, the test shall consist of three blows which are
positioned with an angular displacement of 120°.
Test 1 shall be carried out at an ambient air temperature of between 10 °C and 40 °C after the
ASSEMBLY has been kept within these temperatures for not less that 12 h.
Test 2 shall be carried out at an ambient air temperature of between 10 °C and 40 °C
immediately after the ASSEMBLY has been kept at a temperature of −25 °C for a period of
−0,5
not less than 12 h.
Compliance is checked by verification after the test that the degree of protection remains in
accordance with 8.2.2, and the operation of the door(s) and locking poin
...

SLOVENSKI SIST EN 61439-5
STANDARD
april 2015
Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 5. del: Sestavi za
distribucijo električne energije v javnih omrežjih (IEC 61439-5:2014)

Low-voltage switchgear and controlgear assemblies – Part 5: Assemblies for
power distribution in public networks (IEC 61439-5:2014)

Ensembles d'appareillage à basse tension – Partie 5: Ensembles pour réseaux
de distribution publique (IEC 61439-5:2014)

Niederspannungs-Schaltgerätekombinationen – Teil 5: Schaltgerätekombinationen
in öffentlichen Energieverteilungsnetzen (IEC 61439-5:2014)

Referenčna oznaka
ICS 29.130.20; 29 240.99 SIST EN 61439-5:2015 (sl)

Nadaljevanje na straneh II in III ter od 1 do 36

© 2016-12. Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega standarda ni dovoljeno.

SIST EN 61439-5 : 2015
NACIONALNI UVOD
Standard SIST EN 61439-5 (sl), Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 5. del: Sestavi
za distribucijo električne energije v javnih omrežjih, 2015, ima status slovenskega standarda in je
istoveten evropskemu standardu EN 61439-5 (en), Low-voltage switchgear and controlgear assemblies
– Part 5: Assemblies for power distribution in public networks, 2015.

Ta standard nadomešča SIST EN 61439-5:2011.

NACIONALNI PREDGOVOR
Mednarodni standard IEC 61439-5:2014 je pripravil tehnični odbor Mednarodne elektrotehniške komisije
IEC/TC 17 Sestavi nizkonapetostnih stikalnih in krmilnih naprav, potrdil pa tehnični odbor Evropskega
komiteja za standardizacijo v elektrotehniki CLC/SR 121B Sestavi nizkonapetostnih stikalnih in krmilnih
naprav. Slovenski standard SIST EN 61439-5:2015 je prevod evropskega standarda EN 61439-5:2015.
V primeru spora glede besedila slovenskega prevoda v tem standardu je odločilen izvirni evropski
standard v angleškem jeziku. Slovensko izdajo standarda je potrdil tehnični odbor SIST/TC SKA Stikalni
in krmilni aparati.
Odločitev za privzem tega standarda je v marcu 2015 sprejel tehnični odbor SIST/TC SKA Stikalni in
krmilni aparati.
ZVEZA Z NACIONALNIMI STANDARDI

S privzemom tega evropskega standarda veljajo za omejeni namen referenčnih standardov vsi
standardi, navedeni v izvirniku, razen standarda, ki je že sprejet v nacionalno standardizacijo:
SIST EN 60695-11-10:2014 Preskušanje požarne ogroženosti – 11-10. del: Preskusni plameni –
Preskusne metode s 50-vatnim vodoravnim in navpičnim plamenom (IEC
60695-11-10:2013)
SIST EN 61439-1:2012 Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 1. del: Splošna
pravila (IEC 61439-1:2011)
SIST EN ISO 6506-1 Kovinski materiali – Preskus trdote po Brinellu – 1. del: Preskusna
metoda
OSNOVA ZA IZDAJO STANDARDA
– privzem standarda EN 61439-5:2015

PREDHODNA IZDAJA
– SIST EN 61439-5:2011
OPOMBE
– Povsod, kjer se v besedilu standarda uporablja izraz "evropski standard" ali "mednarodni standard",
v SIST EN 61439-5:2015 to pomeni "slovenski standard".

– Nacionalni uvod in nacionalni predgovor nista sestavni del standarda.

II
SIST EN 61439-5 : 2015
– Ta nacionalni dokument je istoveten EN 61439-5:2015 in je objavljen z dovoljenjem

CEN /CENELEC
Upravni center
Avenue Marnix 17
B-1000 Bruselj
This national document is identical with EN 61439-5:2015 and is published with the permission of

CEN /CENELEC
Management Centre
Avenue Marnix 17
B -1000 Brussels
III
EVROPSKI STANDARD EN 61439-5
EUROPEAN STANDARD
EUROPÄISCHE NORM
NORME EUROPÉENNE januar 2015
ICS: 29.130.20 Nadomešča EN 61439-5:2011

Slovenska izdaja
Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 5. del: Sestavi za
distribucijo električne energije v javnih omrežjih
(IEC 61439-5:2014)
Low-voltage switchgear and Ensembles d'appareillage à basse Niederspannungs-
controlgear assemblies – Part 5: tension – Partie 5: Ensembles pour Schaltgerätekombinationen – Teil 5:
Assemblies for power distribution réseaux de distribution publique Schaltgerätekombinationen in
in public networks (IEC 61439-5:2014) öffentlichen Energieverteilungsnetzen
(IEC 61439-5:2014) (IEC 61439-5:2014)

Ta evropski standard je CENELEC sprejel 29. septembra 2014. Člani CENELEC morajo izpolnjevati
notranje predpise CEN/CENELEC, ki določajo pogoje, pod katerimi dobi ta standard status
nacionalnega standarda brez kakršnih koli sprememb.

Najnovejši seznami teh nacionalnih standardov in njihovi bibliografski podatki se na zahtevo lahko dobijo
pri Upravnem centru CEN-CENELEC ali katerem koli članu CENELEC.

Ta evropski standard obstaja v treh uradnih izdajah (angleški, francoski in nemški). Izdaje v drugih
jezikih, ki jih člani CENELEC na lastno odgovornost prevedejo in izdajo ter prijavijo pri Upravnem centru
CEN-CENELEC, veljajo kot uradne izdaje.

Člani CENELEC so nacionalni elektrotehniški komiteji Avstrije, Belgije, Bolgarije, Cipra, Češke
republike, Danske, Estonije, Finske, Francije, Grčije, Hrvaške, Irske, Islandije, Italije, Latvije, Litve,
Luksemburga, Madžarske, Malte, Nekdanje jugoslovanske republike Makedonije, Nemčije,
Nizozemske, Norveške, Poljske, Portugalske, Romunije, Slovaške, Slovenije, Španije, Švedske, Švice,
Turčije in Združenega kraljestva.

CENELEC
Evropski komite za standardizacijo v elektrotehniki
European Committee for Electrotechnical Standardisation
Europäisches Komitee für Elektrotechnische Normung
Comité Européen de Normalisation Electrotechnique

Upravni center CEN-CENELEC: Avenue Marnix 17, B - 1000 Bruselj

© 2015 CENELEC  Lastnice avtorskih pravic so vse države članice CENELEC. Ref. oznaka EN 61439-5:2015 E

SIST EN 61439-5 : 2015
Predgovor
Besedilo dokumenta 17D/492/CDV, prihodnje 2. izdaje IEC 61439-5, ki ga je pripravil pododbor SC 17D
Sestavi nizkonapetostnih stikalnih in krmilnih naprav pri tehničnem odboru IEC/TC 17 Stikalne in krmilne
naprave, je CENELEC po vzporednem glasovanju v IEC in CENELEC sprejel kot EN 61439-5:2015.

Določena sta bila naslednja datuma:
– zadnji datum, do katerega mora dokument dobiti status
nacionalnega standarda bodisi z objavo istovetnega besedila
ali z razglasitvijo (dop) 2015-07-23
– zadnji datum, ko je treba razveljaviti nacionalne standarde,
ki so z dokumentom v nasprotju (dow) 2017-09-29
Ta dokument nadomešča EN 60439-5:2011.
Ta standard je treba brati v povezavi z EN 61439-1.

Upoštevati je treba, da so nekateri elementi tega dokumenta lahko predmet patentnih pravic. CENELEC
[in/ali CEN] ni odgovoren za identifikacijo katerekoli ali vseh teh pravic.

Ta standard zajema Načela elementov varnostnih ciljev za električno opremo, konstruirano za uporabo
znotraj določenih napetostnih mej (LVD - 2006/95/ES).

Ta dokument je bil pripravljen v okviru mandata, ki sta ga Evropska komisija in Evropsko združenje za prosto
trgovino dala CENELEC, in podpira bistvene zahteve direktiv EU.

Za zveze z direktivo EU glej informativni dodatek ZZ, ki je sestavni del tega evropskega standarda.

Razglasitvena objava
Besedilo mednarodnega standarda IEC 61439-5:2014 je CENELEC odobril kot evropski standard brez
kakršnihkoli sprememb.
V Literaturi standarda EN 61439-5:2011 je treba dodati naslednjo opombo k navedenemu standardu:

ISO 9223 OPOMBA: Harmoniziran kot EN ISO 9223

SIST EN 61439-5 : 2015
Dodatek ZA
(normativni)
Sklicevanje na mednarodne publikacije z njihovimi ustreznimi evropskimi
publikacijami
Pri uporabi tega dokumenta so nujno potrebni naslednji referenčni dokumenti. Pri datiranih sklicevanjih
velja le navedena izdaja dokumenta. Pri nedatiranih sklicevanjih se uporablja zadnja izdaja publikacije
(vključno z dopolnili).
OPOMBA: Kadar je mednarodna publikacija spremenjena in so spremembe označene z (mod), se uporablja ustrezni
dokument EN/HD.
OPOMBA 2: Aktualne informacije o zadnji različici evropskih standardov, navedenih v tem dodatku, so dosegljive tukaj:
www.cenelec.eu.
Uporablja se dodatek ZA standarda EN 61439-1:2011, razen naslednjega:

Publikacija Leto Naslov EN/HD Leto
Dodatek:
IEC 60695-11-40 2013 Preskušanje požarne ogroženosti – Del 11-10: EN 60695-11-10 2013
Preskusni plameni – Preskusne metode s 50-
vatnim vodoravnim in navpičnim plamenom

IEC 61439-1 2011 Sestavi nizkonapetostnih stikalnih in krmilnih EN 61439-1 2011
naprav – 1. del: Splošna pravila

ISO 6506-1 – Kovinski materiali – Preskus trdote po Brinellu EN ISO 6506-1 –
– 1. del: Preskusna metoda
SIST EN 61439-5 : 2015
Dodatek ZZ
(informativni)
Pokritost bistvenih zahtev Direktive EU 2004/108/ES

Ta evropski standard je bil pripravljen v okviru mandata, ki sta ga Evropska komisija in Evropsko
združenje za prosto trgovino dala CENELEC, in s svojim področjem zajema vse ustrezne bistvene
zahteve, kakor so navedene v 1. členu Priloge I k Direktivi EU 2004/108/ES.
Skladnost s tem standardom je eden od načinov zagotavljanja skladnosti s predpisanimi bistvenimi
zahtevami zadevne direktive.
Opozorilo: Za izdelke, ki sodijo na področje uporabe tega standarda, se lahko uporabljajo tudi druge
zahteve in druge direktive EU.

SIST EN 61439-5 : 2015
VSEBINA Stran
Predgovor .6
1 Področje uporabe .8
2 Zveza s standardi .9
3 Izrazi in definicije .3
4 Simboli in okrajšave .10
5 Električne lastnosti .10
6 Podatki .10
7 Obratovalni pogoji .11
8 Konstrukcijske zahteve .11
9 Zahtevane lastnosti .14
10 Preverjanje zasnove .14
11 Kosovno preverjanje .25
Dodatki .26
Dodatek O (informativni): Navodilo o preverjanju segretka .27
Dodatek AA (normativni): Prerez vodnikov .28
Dodatek BB (informativni): Predmeti, ki so predmet sporazuma med proizvajalcem
SESTAVA in uporabnikom .30
Dodatek CC (informativni): Preverjanje zasnove .34
Dodatek DD (informativni): Seznam opomb, ki zadevajo posamezne države .35
Literatura.36
Slika 101: Tipično distribucijsko omrežje .8
Slika 102: Shema preskusa za preverjanje odpornosti PENDA-O proti udarni obremenitvi .16
Slika 103: Shema preskusa za preverjanje vzdržnosti PENDA-O na udarno silo .17
Slika 104: Shema preskusa za preverjanje odpornosti proti statični obremenitvi .18
Slika 105: Vreča peska za preskus za preverjanje odpornosti proti udarnim obremenitvam .19
Slika 106: Shema preskusa za preverjanje odpornosti PENDA-O proti torzijski obremenitvi .20
Slika 107: Shema preskusa mehanske trdnosti vrat .22
Slika 108: Udarni element za preskus odpornosti proti učinkom mehanskega udarca,
ki jih povzročijo predmeti z ostrimi robovi .23
Slika 109: Tipična postavitev za preskušanje mehanske trdnosti temelja .24
Preglednica 101:Vrednosti predvidenih obremenitev .10
Preglednica 102: Osna obremenitev, ki se uporabi na vložkih .23
Preglednica AA.1: Najmanjši in največji prerez bakrenih in aluminijastih vodnikov,
primernih za priključitev .28
Preglednica AA.2: Standardni prerezi okroglih bakrenih vodnikov in približno razmerje
med velikostmi mm in AWF/kcmil .29
Preglednica BB.1: Predmeti, ki so predmet sporazuma med proizvajalcem SESTAVA
in uporabnikom .30
Preglednica CC.1: Seznam preverjanj zasnove, ki jih je treba izvesti .34

SIST EN 61439-5 : 2015
MEDNARODNA ELEKTROTEHNIŠKA KOMISIJA
SESTAVI NIZKONAPETOSTNIH STIKALNIH IN KRMILNIH NAPRAV –
5. del: Sestavi za distribucijo električne energije v javnih omrežjih

PREDGOVOR
1) IEC (Mednarodna elektrotehniška komisija) je svetovna organizacija za standardizacijo, ki združuje vse nacionalne
elektrotehnične komiteje (nacionalni komiteji IEC). Cilj IEC je pospeševati mednarodno sodelovanje v vseh vprašanjih
standardizacije s področja elektrotehnike in elektronike. V ta namen poleg drugih aktivnosti izdaja mednarodne standarde,
tehnične specifikacije, tehnična poročila, javnosti dostopne specifikacije (PAS) in vodila (v nadaljevanju: publikacije IEC). Za
njihovo pripravo so odgovorni tehnični odbori. Vsak nacionalni komite IEC, ki ga zanima obravnavana tema, lahko sodeluje v
tem pripravljalnem delu. Prav tako lahko v pripravi sodelujejo mednarodne organizacije ter vladne in nevladne ustanove, ki
so povezane z IEC. IEC deluje v tesni povezavi z mednarodno organizacijo za standardizacijo ISO skladno s pogoji,
določenimi v soglasju med obema organizacijama.
2) Uradne odločitve ali sporazumi IEC o tehničnih vprašanjih, pripravljeni v tehničnih odborih, v katerih so prisotni vsi nacionalni
komiteji, ki jih tema zanima, izražajo, kolikor je mogoče, mednarodno soglasje o obravnavani temi.
3) Publikacije IEC imajo obliko priporočil za njihovo uporabo na mednarodni ravni in jih kot takšne sprejmejo nacionalni komiteji
IEC. Čeprav IEC skuša na vse primerne načine zagotavljati točnost tehničnih vsebin v publikacijah IEC, IEC ne more biti
odgovoren za način, kako se določila uporabljajo, ter za morebitne napačne razlage končnih uporabnikov.
4) Da bi pospeševali mednarodno poenotenje, so se nacionalni komiteji IEC zavezali, da bodo v svojih nacionalnih in regionalnih
standardih čim pregledneje uporabljali mednarodne standarde. Vsako odstopanje med standardom IEC in ustreznim
nacionalnim ali regionalnim standardom je treba v slednjem jasno označiti.
5) IEC sam ne izvaja potrjevanja skladnosti. Storitve ugotavljanja skladnosti in na nekaterih območjih tudi dostop do znakov
skladnosti IEC izvajajo neodvisni certifikacijski organi. IEC ne prevzema nikakršne odgovornosti za storitve, ki jih izvajajo
neodvisni certifikacijski organi.
6) Vsi uporabniki naj bi si zagotovili zadnjo izdajo teh publikacij.
7) IEC ali njegovi direktorji, zaposleni, uslužbenci ali agenti, vključno s samostojnimi strokovnjaki ter člani tehničnih odborov in
nacionalnih komitejev IEC, ne prevzemajo nobene odgovornosti za kakršno koli osebno poškodbo, škodo na premoženju ali
katero koli drugo škodo kakršne koli vrste, bodisi posredne ali neposredne, ali za stroške (vključno z zakonitim lastništvom)
in izdatke, povezane s publikacijo, njeno uporabo ali zanašanjem na to publikacijo IEC ali katero koli drugo publikacijo IEC.
8) Pozornost je treba posvetiti normativnim virom, na katere se sklicuje ta publikacija. Uporaba navedenih publikacij je nujna za
pravilno uporabo te publikacije.
9) Opozoriti je treba na možnost, da bi lahko bil kateri od elementov tega mednarodnega standarda predmet patentnih pravic.
IEC ni odgovoren za identificiranje nobene od teh patentnih pravic.
Mednarodni standard IEC 61439-5 je pripravil pododbor 17D Sestavi nizkonapetostnih stikalnih in
krmilnih naprav pri tehničnem odboru IEC 17 Stikalne in krmilne naprave.

Ta druga izdaja razveljavlja in nadomešča prvo izdajo, objavljeno v letu 2010. Pomeni tehnično revizijo.

Ta izdaja vsebuje naslednje pomembne tehnične spremembe glede na zadnjo izdajo:
– potrjeno je, da se preskusi, opravljeni na najzahtevnejši PENDA, štejejo za dokaz učinkovitosti
podobnih in manj zahtevnih sklopov iste splošne konstrukcije in stopnje;
– natančneje so določeni čas/pogoji za preskuse zdržnosti glede na silo udarca za PENDA, zasnovane
za delovanje v arktičnem podnebju;
– popravljena je smer delujoče sile v statičnem preskusu obremenitve.

SIST EN 61439-5 : 2015
Besedilo tega standarda je osnovano na naslednjih dokumentih:

CDV Poročilo o glasovanju
17D/492/CDV 121B/13/RVC
Vse informacije o glasovanju za potrditev tega standarda so na voljo v poročilu o glasovanju,
navedenem v gornji preglednici.

Ta publikacija je bila pripravljena v skladu z dokumentom ISO/IEC Directives, Part 2.

Ta standard je treba brati v povezavi z IEC 61439-1. Izrazi splošnih pravil, ki jih obravnava IEC 61439-
1 (v nadaljnjem besedilu: 1. del), veljajo za ta standard samo, kadar so izrecno navedeni. Kadar ta
standard navaja "dopolnitev", "spremembo" ali "zamenjavo", je treba relevantno besedilo v 1. delu
ustrezno prilagoditi.
Podtočke, ki so oštevilčene s 101 (102, 103 itd.), so dodane isti podtočki v 1. delu.

Preglednice in slike v tem 5. delu, ki so nove, so oštevilčene s številkami od 101 naprej.

Novi dodatki v tem 5. delu so označeni s črkami AA, BB itd.

V tem standardu so izrazi, natisnjeni z malimi tiskanimi črkami, definirani v točki 3.

Bralec naj bo pozoren na dejstvo, da dodatek DD navaja vsa določila o različnih praksah "v-nekaterih-
državah", ki so predmet tega standarda in so bolj začasnega značaja.

Seznam vseh delov skupine IEC 61439 s splošnim naslovom Sestavi nizkonapetostnih stikalnih in
krmilnih naprav je mogoče najti na spletni strani IEC.

Tehnični odbor je sklenil, da bo vsebina te publikacije ostala nespremenjena do datuma stabilnosti,
navedenega na spletni strani IEC pod http://webstore.iec.ch, v podatkih, povezanih s posebno izdajo.
Po tem datumu bo publikacija:
– ponovno potrjena,
– razveljavljena,
– nadomeščena z revidirano izdajo ali
– dopolnjena.
SIST EN 61439-5 : 2015
1 Področje uporabe
Ta del standarda IEC 61439 opredeljuje specifične zahteve za sestave za distribucijo električne energije
v javnih omrežjih (PENDA).
PENDA imajo naslednje kriterije:
– se uporabljajo za distribucijo električne energije v trifaznih sistemih, pri katerih naznačena napetost
ne presega 1 000 V izmenično (glej sliko 101 za tipično distribucijsko omrežje);
– so stacionarni;
– odprti SESTAVI niso zajeti v tem standardu;
– so primerni za namestitev na mestih, kjer imajo dostop do njihove uporabe le strokovne osebe;
kljub temu pa se vrste za namestitev na prostem lahko namestijo na mestih, dostopnih laikom;
– so za zunanjo in notranjo uporabo.

Namen tega standarda je navesti definicije in določiti obratovalne pogoje, konstrukcijske zahteve,
tehnične lastnosti in preskuse za PENDA. Parametri omrežja lahko zahtevajo preskuse na višji ravni
delovanja.
PENDA lahko vključujejo tudi krmilne in signalizacijske naprave, povezane z distribucijo električne
energije.
Ta standard se nanaša na vse PENDA ne glede na to, ali so zasnovani, izdelani na enkratni osnovi ali
pa so povsem standardizirani in proizvedeni v večji količini.

Proizvodnjo in/ali montažo lahko izvajajo tudi drugi in ne samo prvotni proizvajalec (glej 3.10.1 v
standardu IEC 61439-1:2011).
Ta standard ne velja za posamezne naprave in samostojne sestavne dele, kot so motorski zaganjalnik,
varovalčna stikala, elektronska oprema itd., ki so skladni z ustreznimi standardi za proizvode.

Ta standard ne velja za specifične tipe SESTAVOV, ki so zajeti v drugih delih skupine IEC 61439.

Slika 101: Tipično distribucijsko omrežje

SIST EN 61439-5 : 2015
OPOMBA 1: Če je PENDA opremljen z dodatno opremo (na primer z merilniki električne energije) tako, da je glavna funkcija
precej spremenjena, potem lahko po dogovoru med uporabnikom in proizvajalcem veljajo tudi drugi standardi
(glej 8.5 v IEC 61439-1:2011).

OPOMBA 2: Kjer lokalne regulacije in prakse to dovoljujejo, se lahko PENDA po tem standardu uporablja tudi v drugih in ne
samo v javnih omrežjih.
2 Zveza s standardi
Uporablja se ta točka iz 1. dela, razen kakor sledi.

Dopolniti:
IEC 60695-11-10:2013 Preskušanje požarne ogroženosti – Del 11-10: Preskusni plameni –
Preskusne metode s 50-vatnim vodoravnim in navpičnim plamenom

IEC 61439-1:2011 Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 1. del: Splošna
pravila
ISO 6506-1 Kovinski materiali – Preskus trdote po Brinellu – 1. del: Preskusna metoda

3 Izrazi in definicije
Uporablja se ta točka iz 1. dela, razen kakor sledi.

3.1 Splošni izrazi
Dodati naslednje izraze:
3.1.101
SESTAV za distribucijo v javnem električnem omrežju, PENDA
SESTAV, praviloma za namestitev v javnem električnem omrežju, ki med delovanjem sprejema električno
energijo od enega ali več virov napajanja in jo po enem ali več kablih razdeljuje drugi opremi

OPOMBA 1: PENDA namestijo, upravljajo in vzdržujejo izključno strokovne osebe.

OPOMBA 2: Nekateri tipi PENDA so bili predhodno znani kot kabelske razdelilne omarice (RO).

3.1.101.1
zunanji SESTAV za distribucijo v javnem električnem omrežju
PENDA-O
ograjeni SESTAV za distribucijo v javnem električnem omrežju, ki je primeren za zunanjo namestitev na
mestih, ki so lahko ali pa ne dostopna javnosti

3.1.101.2
notranji SESTAV za distribucijo v javnem električnem omrežju
PENDA-I
SESTAV za distribucijo v javnem električnem omrežju, primeren za notranjo namestitev, praviloma brez
okrova, vendar z vsemi konstrukcijskimi deli, potrebnimi za podporo zbiralkam, ter funkcijskimi enotami
in drugimi pomožnimi napravami, potrebnimi za dokončanje SESTAVA

3.3 Zunanja zasnova SESTAVOV
3.3.1
odprti SESTAV
Ta izraz iz 1. dela se ne uporablja.

SIST EN 61439-5 : 2015
3.9 Preverjanje
Spremeniti naslednje:
3.9.1
preverjanje zasnove
Zbrisati opombo.
3.9.1.2
primerjava preverjanja
Ta izraz iz 1. dela se ne uporablja.

3.9.1.3
ocena preverjanja
Ta izraz iz 1. dela se ne uporablja.

4 Simboli in okrajšave
Uporablja se ta točka iz 1. dela

5 Električne lastnosti
Uporablja se ta točka iz 1. dela, razen kakor sledi.

5.4 Naznačeni faktor obremenitve (RDF)

Dopolniti z naslednjim:
Če ni dogovora med proizvajalcem SESTAVA in uporabnikom v zvezi z dejanskimi obremenitvenimi toki,
lahko predvidena obremenitev izhodnih tokokrogov SESTAVA ali skupine izhodnih tokokrogov temelji na
vrednostih, ki so podane v preglednici 101.

Preglednica 101: Vrednosti predvidenih obremenitev

Število glavnih tokokrogov Predvideni faktor obremenitve
2 in 3 0,9
4 in 5 0,8
6 do vključno 9 0,7
10 (in več) 0,6
6 Podatki
Uporablja se ta točka iz 1. dela, razen kakor sledi.

6.1 Napisi na SESTAVU
Dodati k prvemu odstavku:
Ploščice z napisi so lahko nameščene znotraj pripravljenega okrova SESTAVA, če zanje predvideno
mesto zagotavlja dobro berljivost in vidnost, ko so vrata odprta ali je pokrov odstranjen.

SIST EN 61439-5 : 2015
Zamenjati točko d):
d) IEC 61439-5.
6.3 Identifikacija naprave in/ali sestavnih delov

Dodati naslednji odstavek:
Pri specifičnih odstranljivih nosilcih varovalk je treba nalepko pritrditi na nosilec varovalke in tudi na
podstavek varovalke, da se prepreči nepravilna zamenjava nosilca varovalke.

Dodati naslednjo podtočko:
6.101 Identifikacija tokokroga

Omogočena mora biti jasna prepoznava vsake funkcijske enote.

7 Obratovalni pogoji
Uporablja se ta točka iz 1. dela, razen kakor sledi.

7.1.1.2 Temperatura okolice za zunanjo namestitev

Zamenjati zadnji odstavek z naslednjim:

Če uporabnik ne zahteva, da mora biti PENDA primeren za uporabo v arktičnem podnebju, se za
spodnjo mejo temperature okolice šteje –25 °C. Za arktično podnebje je spodnja meja temperature
okolice –50 °C.
7.2 Posebni obratovalni pogoji

Dodati naslednjo opombo k točki h):

OPOMBA: Izpostavljenost tresljajem zaradi prometa in/ali občasnih talnih izkopavanj je normalni obratovalni pogoj za
PENDA.
Dodati naslednji odstavek:
Dodatne zahteve za PENDA-O za namestitev na lokaciji, kjer se pojavlja močno sneženje in se na
sosednjih območjih sneg odstranjuje s pluženjem, so predmet dogovora med proizvajalcem in
uporabnikom.
8 Konstrukcijske zahteve
Uporablja se ta točka iz 1. dela, razen kakor sledi.

8.1 Trdnost materialov in delov

8.1.1 Splošno
Dodati naslednje:
PENDA-O mora biti pripravljen za montažo na tla, na transformator, na drog, na površino stene ali za
montažo v vdolbino v steni, kot se dogovorita uporabnik in proizvajalec.

PENDA je mogoče neposredno povezati s transformatorjem s prirobno sklopko ali pa se lahko poveže
s svojim napajanjem s kablom ali zbiralkami, kot se dogovorita uporabnik in proizvajalec. Odvodni
tokokrogi morajo biti primerni za priključevanje s kabli.

SIST EN 61439-5 : 2015
Na zunanjih okrovih mora biti zagotovljena zanesljiva naprava za zaklepanje, ki preprečuje dostop
nepooblaščenim osebam. Vrata, pokrovi in prevleke morajo biti zasnovani tako, da se potem, ko so
zaklenjeni, ne odprejo zaradi poznejših zmernih talnih premikanj ali zaradi izpostavljenosti tresljajem
zaradi prometa in/ali talnih izkopavanj in obnovitvenih del.

8.1.3.2 Odpornost izolacijskih materialov proti vročini in ognju

Dodati naslednjo podtočko:
8.1.3.2.101 Preverjanje kategorije vnetljivosti

Izolacijski materiali, ki se uporabljajo za okrove, pregrade in druge izolacijske dele, morajo imeti
lastnosti, ki zavirajo gorenje, skladne z zahtevami iz 10.2.3.102 tega standarda.

8.1.5 Mehanska trdnost
Dodati naslednjo podtočko:
8.1.5.101 Preverjanje mehanske trdnosti

Mehanske lastnosti PENDA-O morajo ustrezati zahtevam iz 10.2.101 tega standarda.

Deli PENDA-O, ki so namenjeni za vgradnjo v tla, morajo zdržati obremenitve, ki delujejo nanje med
namestitvijo in normalnim obratovanjem ter morajo ustrezati zahtevam iz 10.2.101.9.

Dodati naslednjo podtočko:
8.1.101 Toplotna stabilnost
Toplotno stabilnost PENDA je treba preveriti v skladu z 10.2.3.101.

8.2 Stopnja zaščite, ki jo zagotavlja okrov SESTAVA

8.2.1 Zaščita pred mehanskimi udarci

Podtočka 8.2.1 iz 1. dela se ne uporablja.

8.2.2 Zaščita pred dotikom delov pod napetostjo ter pred vdorom zunanjih trdnih predmetov in
vode
Dodati naslednje:
Odprti SESTAVI (IP00) niso zajeti v tem standardu.

Če je PENDA-O namenjen namestitvi na mesta, dostopna javnosti, mora okrov, ko je popolnoma
nameščen v skladu z navodili proizvajalca, zagotavljati stopnjo zaščite najmanj IP34D po IEC 60529.
Na drugih lokacijah mora biti stopnja zaščite najmanj IP33.

PENDA-O, ki so namenjeni namestitvi na mestih, dostopnih javnosti, morajo biti, razen če uporabnik ne
določi drugače, zasnovani tako, da pri priključitvi vsakega začasnega kabla okrov zagotavlja stopnjo
zaščite najmanj IP23C v skladu z IEC 60529. Glej 8.8 tega standarda.

8.4 Zaščita pred električnim udarom

8.4.2.1 Splošno
Tretji odstavek se ne uporablja.

SIST EN 61439-5 : 2015
Dodati naslednjo podtočko:
8.4.2.101 Načini ozemljitve in kratkostičenja

Odvodne enote v SESTAVU morajo biti konstruirane tako, da jih je mogoče varno ozemljiti in kratko skleniti
z napravo(-ami), ki jo (jih) priporoča proizvajalec, kar zagotavlja, da je proizvajalčeva označena stopnja
zaščite (koda IP) ohranjena na vseh delih SESTAVA. Ta zahteva se ne uporablja, če bi to lahko ogrozilo
varnost zaradi sistemskih pogojev in/ali obratovalne prakse.

8.4.3.1 Pogoji namestitve
Dodati naslednji odstavek:
Pri SESTAVU, ki naj bi napajal nadzemne kabelske vode, morajo biti odvodne enote zasnovane tako, da
se priključeni kabel(-i) lahko ozemlji(-jo) na priključni(-h) sponki(-ah).

8.8 Sponke za zunanje vodnike

Zamenjati prve tri odstavke z naslednjimi:

Če ni posebnega dogovora med uporabnikom in proizvajalcem, morajo biti sponke primerne za
priključitev kablov z bakrenimi ali aluminijastimi vodniki od najmanjšega do največjega prereza, ustrezno
naznačenemu toku (glej preglednico AA.1).

Sponke za odvodne tokokroge morajo biti nameščene tako, da je med njimi zagotovljen ustrezen razmik
in da je olajšano priključevanje faznih vodnikov kabla ne glede na njihovo lego.

Če tako določi uporabnik, mora biti dovodni tokokrog primeren za povezavo z golimi ali izoliranimi
zbiralkami.
Dodati naslednjo podtočko:
8.101 Označevanje kot ovira pri odstranjevanju snega

Če je PENDA-O namenjen uporabi na območjih, kjer se pojavljajo močne snežne padavine v skladu s
7.2, oziroma če to zahteva uporabnik, mora obstajati možnost, da se označi kot ovira za čiščenje snega.
Zagotovljeni morajo biti držala, pritrjena na PENDA-O, za namestitev označevalnih palic, ter možnost
nameščanja in prilagajanja položaja označevalne palice z zunanje strani PENDA-O. Držala morajo biti
izdelana na način, ki zagotavlja, da se bo držalo ali označevalna palica vdala mehanskim silam, preden
prenesena sila na okrov PENDA-O doseže vrednost, ki bi škodljivo vplivala na stopnjo zaščite (koda
IP).
8.102 Enostavnost upravljanja in vzdrževanja

Vsi deli SESTAVA morajo biti kolikor mogoče preprosto dostopni in zamenljivi brez pretiranega
razstavljanja. Pogoji za zamenljivost delov SESTAVA so lahko predmet dogovora med uporabnikom in
proizvajalcem.
Zasnova mora biti takšna, da se lahko kabli preprosto priključujejo s sprednje strani.

Kadar PENDA nima vgrajenih sredstev za merjenje, mora biti mogoče z uporabo prenosnega
instrumenta enostavno in varno izmeriti napetosti v vseh fazah dovodnih enot in na obeh straneh vseh
običajnih izklopnih in/ali stikalnih naprav na odvodnih enotah, tudi tok v eni fazi vseh odvodnih enot.
Med tem postopkom morajo biti vsi deli PENDA, ki so pod napetostjo, dovolj zaščiteni, da se ohrani
zahtevana stopnja zaščite v skladu z 8.2. Navodila o tem postopanju mora zagotoviti proizvajalec.

SIST EN 61439-5 : 2015
Če je SESTAV namenjen za priključitev na rezervno moč pod napetostjo, na primer pomožni generator,
mora biti stikalna povezovalna naprava zasnovana tako, da je povezava z deli pod napetostjo mogoča
s stopnjo zaščite IP10 po IEC 60529.

Za PENDA mora biti zagotovljen dogovor o zaklepanju, da se zavarujejo vrata in prepreči nepooblaščen
vstop. Pritrditve vseh odstranljivih pok
...
