EN 50632-2-5:2016/A1:2021

Electric motor-operated tools - Dust measurement procedure - Part 2-5: Particular requirements for circular saws

This European Standard specifies general requirements for the dust measurement of electric motor-operated tools supplied from mains or from batteries. This European Standard applies to those tools with and without dust extraction unit where dust such as mineral dust containing silica or wood dust is expected. This part of EN 50632 sets particular requirements for circular saws.

Motorbetriebene Elektrowerkzeuge - Staubmessverfahren - Teil 2-5: Besondere Anforderungen für Kreissägen

Outils électriques à moteur - Procédure de mesure de la poussière - Partie 2-5: Exigences particulières pour les scies circulaires

No scope available

Elektromotorna orodja - Postopek meritve prahu - 2-5. del: Posebne zahteve za krožne žage - Dopolnilo A1

General Information

• Status: Published
• Publication Date: 23-Sep-2021
• ICS: 13.040.40 - Stationary source emissions
• ICS: 25.140.20 - Electric tools
• Technical Committee: CLC/TC 116 - Safety of hand-held motor-operated electric tools
• Drafting Committee: CLC/TC 116/WG 04 - Dust
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 24-Sep-2021
• Due Date: 09-Aug-2022
• Completion Date: 24-Sep-2021
• Ref Project: SIST EN 50632-2-5:2016/A1:2021 - Electric motor-operated tools - Dust measurement procedure - Part 2-5: Particular requirements for circular saws

Relations

• Amends: EN 50632-2-5:2016 - Electric motor-operated tools - Dust measurement procedure - Part 2-5: Particular requirements for circular saws
• Effective Date: 08-Sep-2020

Overview

EN 50632-2-5:2016/A1:2021 is a European Standard developed by CLC that addresses the dust measurement procedure specifically for electric motor-operated circular saws. This standard is part of the broader EN 50632 series, which covers dust measurement for various electric tools powered by mains or batteries. Applicable to tools with or without dust extraction units, it targets scenarios where hazardous dust-such as mineral dust containing silica or wood dust-is generated during operation. The amendment A1 released in 2021 introduces important updates based on practical testing, enhancing the clarity and effectiveness of dust measurement for circular saws.

Key Topics

• Scope and Application
  EN 50632-2-5 defines particular requirements for testing dust emissions from circular saws used in woodworking and similar tasks. It complements the general dust measurement procedures outlined in EN 50632-1 and its amendments.

• Test Setup and Conditions
  The standard specifies precise operating conditions for dust measurement tests, including:

  • Use of chipboard material (P2 classification, density: 610 ± 60 kg/m³, thickness: 19 ± 1 mm)
  • Horizontal mounting of the workpiece on a bench aligned with dust sampler intakes
  • Cutting of approximately 10 mm wide strips across a length of 400 mm
  • Proper orientation of the operator relative to the saw, detailed in Figure 101
  • Use of manufacturer-specified new saw blades designed for chipboard cutting
  • Speed and feed settings ensuring stable and reproducible operation
  • Performance of at least 30 cuts per test cycle over about 10 minutes or longer as needed

• Operator and Tool Orientation
  The standard provides a clear layout (Figure 101) illustrating the orientation of the workpiece, circular saw, and operator during testing. This ensures consistency, safety, and reliable dust measurement outcomes for right-handed and left-handed tools.

• Safety and Environmental Considerations
  By defining robust dust measurement procedures, EN 50632-2-5 supports the reduction of harmful dust exposure in workplaces, aligning with occupational health and safety regulations for controlling respirable dust hazards.

Applications

EN 50632-2-5:2016/A1:2021 is invaluable for:

• Manufacturers of Circular Saws
  To verify and validate the dust emission performance of their tools under standardized test conditions prior to market release.

• Safety and Compliance Testing Laboratories
  Performing dust exposure assessments and conformity testing in alignment with European dust safety standards.

• Occupational Health and Safety Authorities
  For establishing baseline requirements in regulations related to dust exposure limits and preventive measures during circular saw operations.

• Tool Users in Woodworking and Construction
  Enhancing awareness of dust exposure risks and encouraging use of dust extraction units or improved work practices based on standardized test data.

Related Standards

• EN 50632-1:2015 – General dust measurement procedures for electric motor-operated tools; EN 50632-2-5 is used in conjunction with this standard.
• EN 312:2010 – Specification for chipboard materials used as the test medium in saw dust measurement.
• Occupational Safety Standards on Dust Exposure – Applicable regulations addressing silica and wood dust hazards in industrial environments.
• Other EN 50632 Parts – Covering dust measurement for different types of electric tools beyond circular saws.

---

Keywords: EN 50632-2-5:2016/A1:2021, dust measurement procedure, circular saws, electric motor-operated tools, dust emissions, silica dust, wood dust, chipboard, saw blade, dust extraction unit, occupational safety, CENELEC, European Standard, dust exposure testing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2021
Elektromotorna orodja - Postopek meritve prahu - 2-5. del: Posebne zahteve za
krožne žage - Dopolnilo A1
Electric motor-operated tools - Dust measurement procedure - Part 2-5: Particular
requirements for circular saws
Motorbetriebene Elektrowerkzeuge - Staubmessverfahren - Teil 2-5: Besondere
Anforderungen für Kreissägen
Outils électriques à moteur - Procédure de mesure de la poussière - Partie 2-5:
Exigences particulières pour les scies circulaires
Ta slovenski standard je istoveten z: EN 50632-2-5:2016/A1:2021
ICS:
25.100.40 Žagni listi Saws
25.140.20 Električna orodja Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 50632-2-5:2016/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2021
ICS 13.040.40; 25.140.20
English Version
Electric motor-operated tools - Dust measurement procedure -
Part 2-5: Particular requirements for circular saws
Outils électriques à moteur - Procédure de mesure de la Motorbetriebene Elektrowerkzeuge - Staubmessverfahren -
poussière - Partie 2-5: Exigences particulières pour les Teil 2-5: Besondere Anforderungen für Kreissägen
scies circulaires
This amendment A1 modifies the European Standard EN 50632-2-5:2016; it was approved by CENELEC on 2021-08-09. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50632-2-5:2016/A1:2021 E

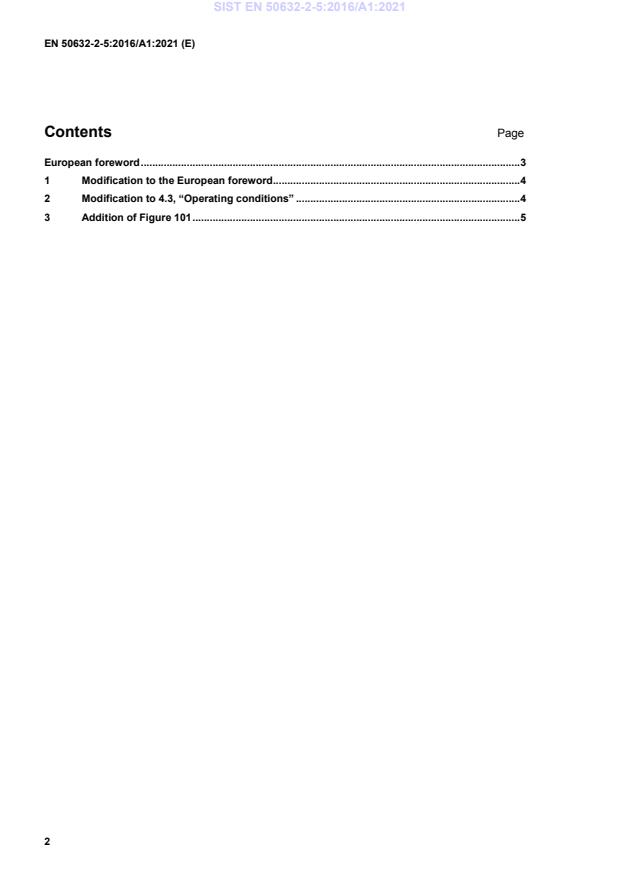

Contents Page
European foreword . 3
1 Modification to the European foreword . 4
2 Modification to 4.3, “Operating conditions” . 4
3 Addition of Figure 101 .
...
