Fire hazard testing - Part 1-14: Guidance on the different levels of power and energy related to the probability of ignition and fire in low voltage electrotechnical products

IEC TS 60695-1-14:2017(E) provides guidance about the levels of power and energy that could cause ignition and fire in a low voltage electrotechnical product. It can be used by Product Committees to determine what fire hazard safeguards might be used, based on the electrical energy that could be dissipated as heat.
This document deals with products used in normal atmospheres commonly available in the home and does not deal with special locations such as those in explosive atmospheres. It is intended as guidance to IEC committees, and is intended be used with respect to their individual applications.
It has the status of a basic safety publication in accordance with IEC Guide 104 and ISO/IEC Guide 51.
This basic safety publication is intended for use by technical committees in the preparation of standards in accordance with the principles laid down in IEC Guide 104 and ISO/IEC Guide 51.
Key words: Fire Hazard, Probability of Ignition, Power and Energy Levels

General Information

Status
Published
Publication Date
06-Dec-2017
Technical Committee
Current Stage
PPUB - Publication issued
Start Date
14-Nov-2017
Completion Date
07-Dec-2017
Ref Project

Buy Standard

Technical specification
IEC TS 60695-1-14:2017 - Fire hazard testing - Part 1-14: Guidance on the different levels of power and energy related to the probability of ignition and fire in low voltage electrotechnical products
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC TS 60695-1-14 ®
Edition 1.0 2017-12
TECHNICAL
SPECIFICATION
colour
inside
Fire hazard testing –
Part 1-14: Guidance on the different levels of power and energy related to
the probability of ignition and fire in low voltage electrotechnical products
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC TS 60695-1-14 ®
Edition 1.0 2017-12
TECHNICAL
SPECIFICATION
colour
inside
Fire hazard testing –
Part 1-14: Guidance on the different levels of power and energy related to

the probability of ignition and fire in low voltage electrotechnical products

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.220.40, 29.020 ISBN 978-2-8322-4921-5

– 2 – IEC TS 60695-1-14:2017 IEC 2017

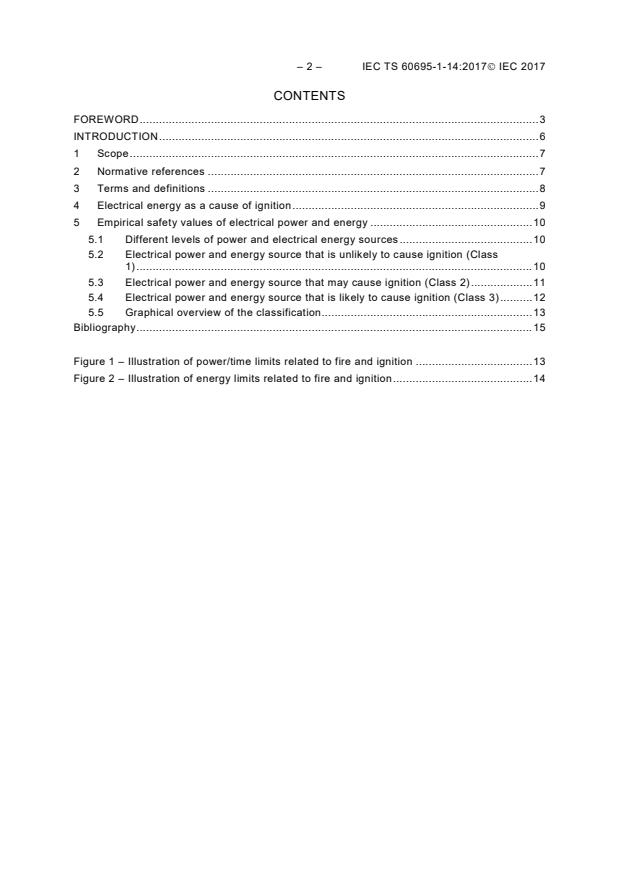

CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Electrical energy as a cause of ignition . 9
5 Empirical safety values of electrical power and energy . 10
5.1 Different levels of power and electrical energy sources . 10
5.2 Electrical power and energy source that is unlikely to cause ignition (Class
1) . 10
5.3 Electrical power and energy source that may cause ignition (Class 2) . 11
5.4 Electrical power and energy source that is likely to cause ignition (Class 3) . 12
5.5 Graphical overview of the classification . 13
Bibliography . 15

Figure 1 – Illustration of power/time limits related to fire and ignition . 13
Figure 2 – Illustration of energy limits related to fire and ignition . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIRE HAZARD TESTING –
Part 1-14: Guidance on the different levels of power and energy related to
the probability of ignition and fire in low voltage electrotechnical products

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. In
exceptional circumstances, a technical committee may propose the publication of a technical
specification when
• the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts, or
• the subject is still under technical development or where, for any other reason, there is the
future but no immediate possibility of an agreement on an International Standard.
Technical specifications are subject to review within three years of publication to decide
whether they can be transformed into International Standards.
IEC TS 60695-1-14, which is a technical specification, has been prepared by IEC technical
committee 89: Fire hazard testing.

– 4 – IEC TS 60695-1-14:2017 IEC 2017
It has the status of a basic safety publication in accordance with IEC Guide 104 and
ISO/IEC Guide 51.
The text of this technical specification is based on the following documents:
Enquiry draft Report on voting
89/1334/DTS 89/1363/RVDTS
Full information on the voting for the approval of this technical specification can be found in
the report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This publication is to be used in conjunction with IEC 60695-1-10 and IEC 60695-1-11.
A list of all the parts in the IEC 60695 series, under the general title Fire hazard testing, can
be found on the IEC website.
Part 1 consists of the following parts:
Part 1-10: Guidance for assessing the fire hazard of electrotechnical products –
General guidelines
Part 1-11: Guidance for assessing the fire hazard of electrotechnical products –
Fire hazard assessment
Part 1-12: Guidance for assessing the fire hazard of electrotechnical products –
Fire safety engineering
Part 1-14: Guidance on the different levels of power and energy related to the probability of
ignition and fire in low voltage electrotechnical products (this document)
Part 1-20: Guidance for assessing the fire hazard of electrotechnical products – Ignitability –
General guidance
Part 1-21: Guidance for assessing the fire hazard of electrotechnical products – Ignitability –
Summary and relevance of test methods
Part 1-30: Guidance for assessing the fire hazard of electrotechnical products – Preselection
testing process – General guidelines
Part 1-40: Guidance for assessing the fire hazard of electrotechnical products – Insulating
liquids
In this standard, the following print types or formats are used:
– requirements proper and normative annexes: in roman type;
– compliance statements and test specifications: italic type;
in smaller roman type;
– notes/explanatory matter:
– normative conditions within tables: in smaller roman type;
– terms defined in Clause 3: bold type.

The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• transformed into an International standard,
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC TS 60695-1-14:2017 IEC 2017
INTRODUCTION
In the design of any electrotechnical product the risk of fire and the potential hazards
associated with fire need to be considered. In this respect the objective of component, circuit
and equipment design, as well as the choice of materials, is to reduce the risk of fire to a
tolerable level even in the event of reasonably foreseeable (mis)use, malfunction or failure.
IEC 60695-1-10, IEC 60695-1-11 and IEC 60695-1-12 provide guidance on how this is to be
accomplished.
Fires involving electrotechnical products can be initiated from external non-electrical sources.
Considerations of this nature are dealt with in an overall fire hazard assessment.
The aim of the IEC 60695 series of standards is to save lives and property by reducing the
number of fires or reducing the consequences of the fire. This can be accomplished by trying
to:
– prevent ignition caused by an electrically energised component part and, in the event of
ignition, to confine any resulting fire within the bounds of the enclosure of the
electrotechnical product;
– minimise flame spread beyond the product’s enclosure and to minimise the harmful effects
of fire effluents including heat, smoke, and toxic or corrosive combustion products.
This technical specification provides guidance to Product Committees on the power levels and
amounts of energy that are likely to cause ignition and fire. It also provides guidance to
Product Committees on the fire hazard safeguards that might be necessary to protect
against the probability of ignition.
The probability of fire is highly dependent on the specific fire scenario within the
electrotechnical product itself. Therefore, product committees are ultimately responsible for
deciding what fire hazard safeguards are appro
...
