Amendment 1 - Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements

The contents of the corrigendum of March 2019 have been included in this copy.

Amendement 1 - Règles de sécurité pour appareils électriques de mesurage, de régulation et de laboratoire - Partie 1: Exigences générales

Le contenu du corrigendum de mars 2019 a été pris en considération dans cet exemplaire.

General Information

Status
Published
Publication Date
15-Dec-2016
Current Stage
PPUB - Publication issued
Start Date
13-Jan-2017
Completion Date
16-Dec-2016
Ref Project

Relations

Buy Standard

Standard
IEC 61010-1:2010/AMD1:2016 - Amendment 1 - Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
English and French language
54 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

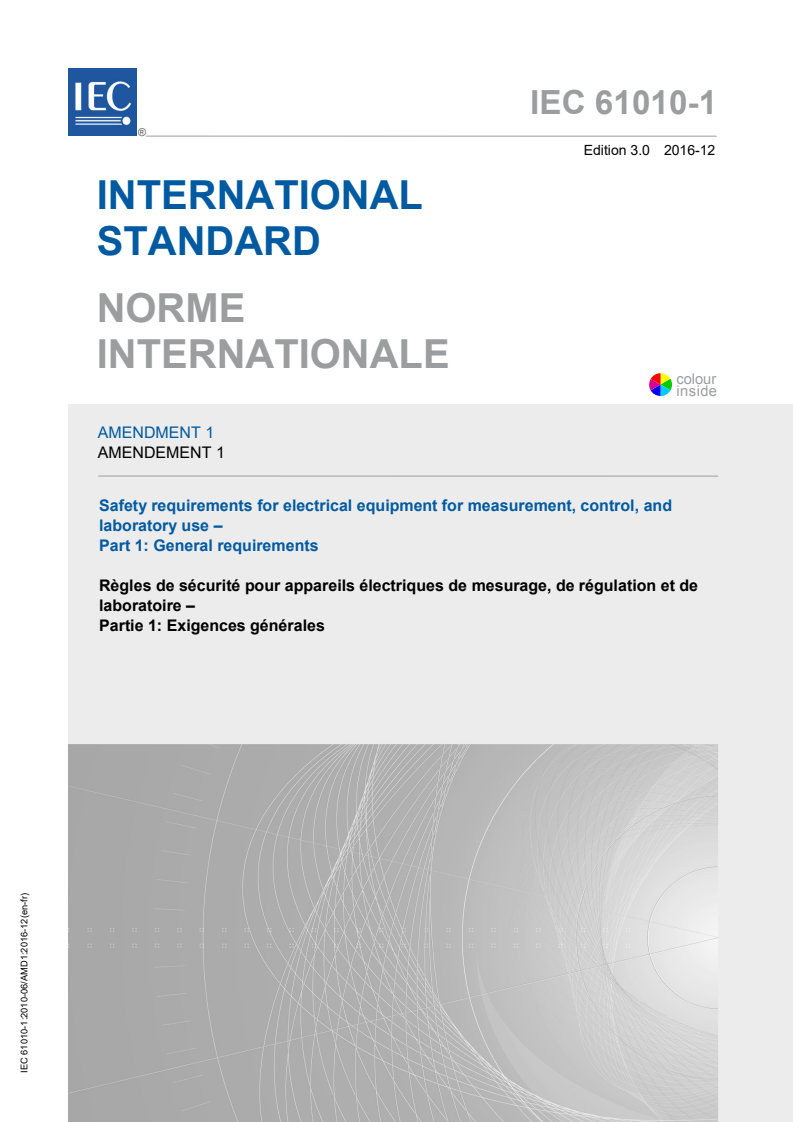

IEC 61010-1 ®
Edition 3.0 2016-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Safety requirements for electrical equipment for measurement, control, and
laboratory use –
Part 1: General requirements
Règles de sécurité pour appareils électriques de mesurage, de régulation et de
laboratoire –
Partie 1: Exigences générales
IEC 61010-1:2010-06/AMD1:2016-12(en-fr)

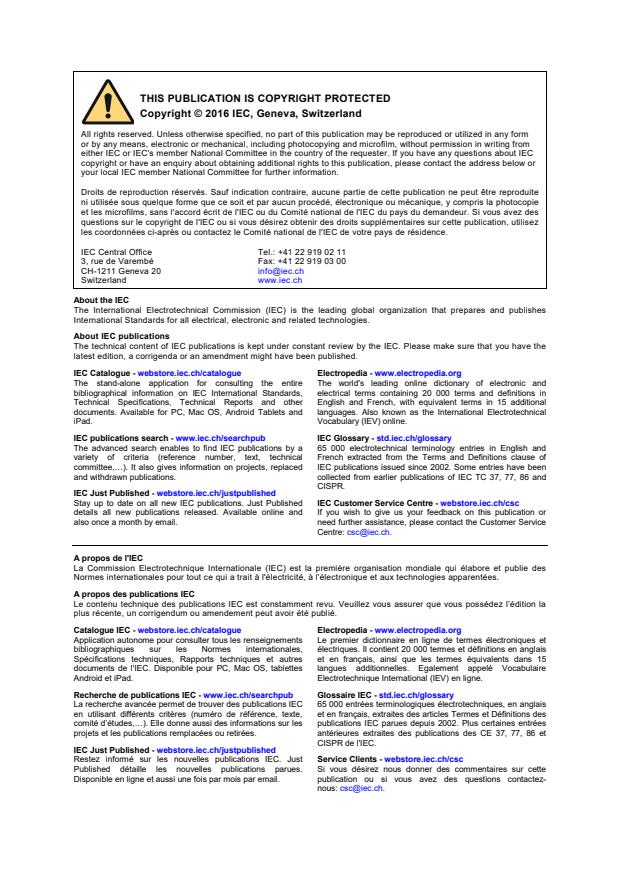

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes langues additionnelles. Egalement appelé Vocabulaire
Android et iPad. Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-
nous: csc@iec.ch.

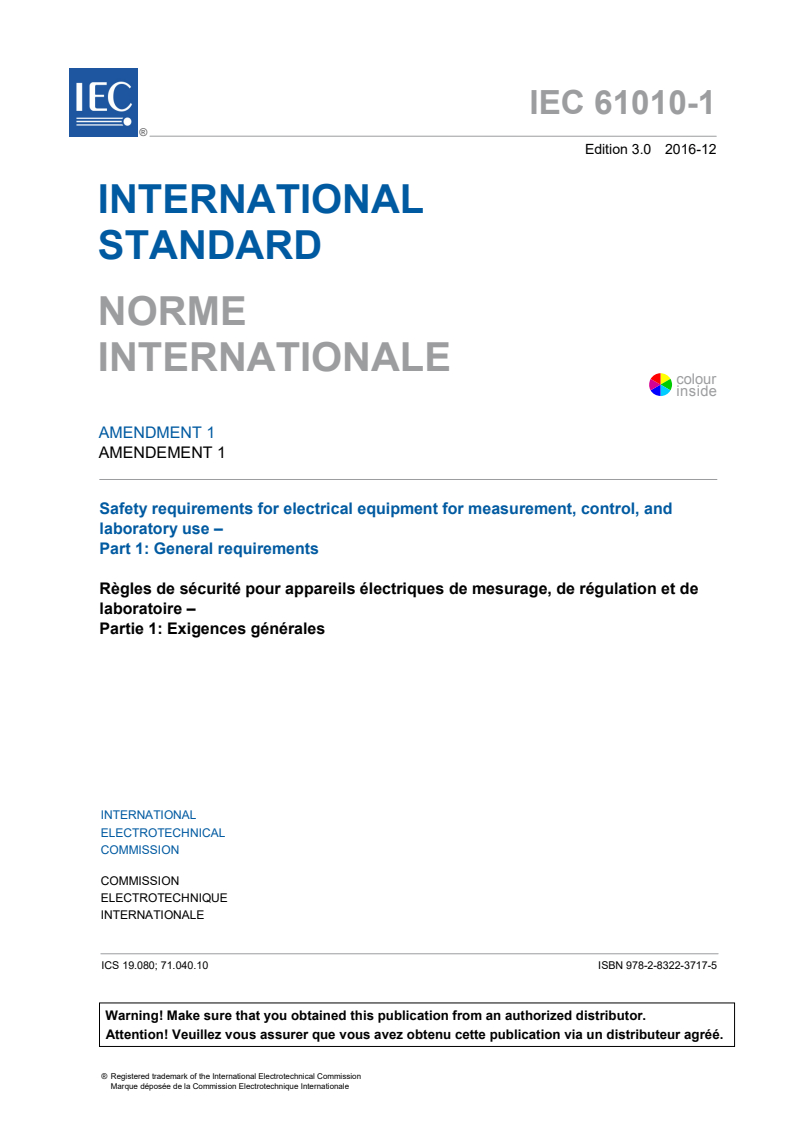

IEC 61010-1 ®
Edition 3.0 2016-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Safety requirements for electrical equipment for measurement, control, and

laboratory use –
Part 1: General requirements
Règles de sécurité pour appareils électriques de mesurage, de régulation et de

laboratoire –
Partie 1: Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 19.080; 71.040.10 ISBN 978-2-8322-3717-5

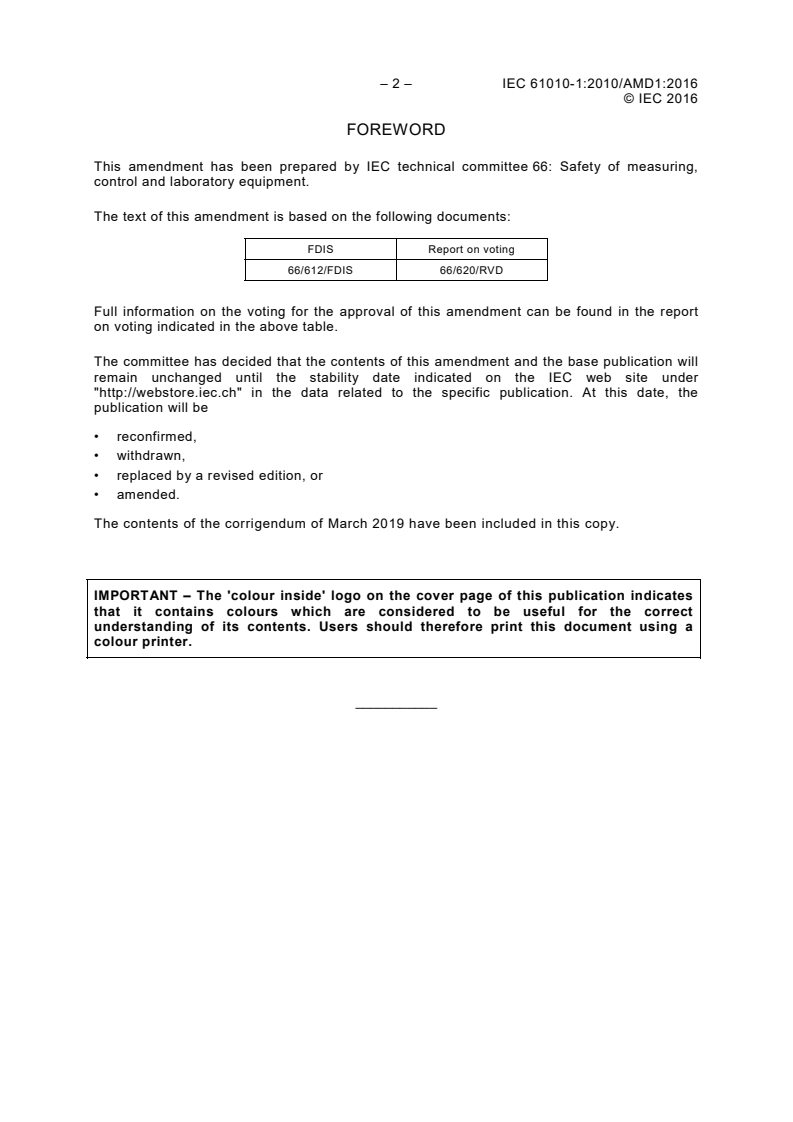

– 2 – IEC 61010-1:2010/AMD1:2016
© IEC 2016
FOREWORD
This amendment has been prepared by IEC technical committee 66: Safety of measuring,
control and laboratory equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
66/612/FDIS 66/620/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of March 2019 have been included in this copy.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
___________
© IEC 2016
1 Scope and object
1.1 Scope
1.1.1 Equipment included in scope
Addition:
Add the following first paragraph:
This group safety publication is primarily intended to be used as a product safety standard for
the products mentioned in the scope, but shall also be used by technical committees in the
preparation of their publications for products similar to those mentioned in the scope of this
standard, in accordance with the principles laid down in IEC Guide 104 and
lSO/lEC Guide 51.
2 Normative references
Deletion:
Delete the following references:
IEC 60405, Nuclear instrumentation – Constructional requirements and classification of
radiometric gauges
ISO 306:1994, Plastics – Thermoplastic materials – Determination of Vicat softening
temperature (VST)
Replacement:
Replace
IEC 60364-4-44, Low-voltage electrical installations – Part 4-44: Protection for safety –
Protection against voltage disturbances and electromagnetic disturbances
with the following:
IEC 60364-4-44:2007, Low-voltage electrical installations – Part 4-44: Protection for safety –
Protection against voltage disturbances and electromagnetic disturbances
IEC 60364-4-44:2007/AMD1:2015
Addition:
Add the following references:
IEC 60947-2, Low-voltage switchgear and controlgear – Part 2: Circuit-breakers
IEC 62471, Photobiological safety of lamps and lamp systems
IEC TR 62471-2, Photobiological safety of lamps and lamp systems – Part 2: Guidance on
manufacturing requirements relating to non-laser optical radiation safety
IEC 62598, Nuclear instrumentation – Constructional requirements and classification of
radiometric gauges
– 4 – IEC 61010-1:2010/AMD1:2016
© IEC 2016
ISO 306:2013, Plastics – Thermoplastic materials – Determination of Vicat softening
temperature (VST)
ISO 13857, Safety of machinery – Safety distances to prevent hazard zones being reached by
upper and lower limbs
EN 378-2, Refrigerating systems and heat pumps – Safety and environmental requirements.
Design, construction, testing, marking and documentation
4 Tests
4.1 General
Addition:
Add the following paragraph after the second paragraph of the conformity statement:
Tests needed to support a RISK assessment (see Clause 17) are carried out in the
combinations of conditions and operations determined during the RISK assessment.
4.4.1 General
Addition:
Add the following text at the end of item c):
If the environmental limits of the reference test conditions (see 4.3) do not allow realistic
assessment of SINGLE FAULT CONDITIONS, the test shall be conducted at the least favourable
RATED environmental conditions of the equipment.
4.4.2.2 PROTECTIVE IMPEDANCE
Deletion:
Delete item b) and renumber item c) as item b).
5 Marking and documentation
5.1.3 MAINS supply
Replacement:
Replace the conformity statement with the following:
Conformity is checked by inspection and by measurement of power or input current to check
that the requirements of 5.1.3 c) have been met. The measurement is made at each RATED
voltage range with the equipment in the condition of maximum power or current consumption
as applicable with all accessories and plug-in modules connected. If the input current varies
during the normal operating cycle, the steady-state current is taken as the mean indication of
the highest measured r.m.s. value during a 1 min period of the normal operation cycle. To
exclude any initial inrush current, the measurement is not made until the current has
stabilized (usually after 1 min). Transients are ignored.
5.1.5.2 TERMINALS
Deletion:
© IEC 2016
Delete, in item c), the word “control”.
5.2 Warning markings
Replacement:
Replace the first paragraph with the following:
Warning markings specified in this standard shall meet the following requirements.
Replacement:
Replace the paragraph prior to the conformity statement with the following:
If the instructions for use state that an OPERATOR is permitted to gain access, using a TOOL, to
a part or location which in NORMAL USE may present a HAZARD, there shall be a warning
marking indicating that the equipment must be placed in a safe state before access. Symbol
14 shall be used for this purpose with the warning text included in the documentation.
Additional symbols may be used to indicate the nature of the HAZARD such as symbol 12, 13,
or 17 as appropriate.
Symbols are the preferred marking method over text warnings. Supplemental text may be
provided adjacent to the symbol.
5.4.1 General
Replacement:
In item h), replace “(see 7.5)” with “(see 7.5.1)”.
5.4.2 Equipment RATINGS
Replacement:
Replace items d) and e) with the following:
d) a statement of the range of environmental conditions for which the equipment is designed
including:
1) indoor or outdoor use,
2) altitude,
3) temperature,
4) relative humidity,
5) MAINS supply voltage fluctuations,
6) OVERVOLTAGE CATEGORY, except for cord/plug-connected equipment,
7) WET LOCATION, if applicable,
8) POLLUTION DEGREE of the intended environment,
e) for equipment RATED for ingress protection according to IEC 60529 the information
required in 11.6.1;
5.4.3 Equipment installation
Replacement:
Replace the first paragraph with the following:

– 6 – IEC 61010-1:2010/AMD1:2016
© IEC 2016
The documentation shall include installation and specific commissioning instructions and, if
necessary for safety, warnings against HAZARDS which could arise during installation or
commissioning or as a result of improper installation or commissioning of the equipment. Such
information includes, if applicable:
Replacement:
Replace item f) with the following:
f) requirements and safety characteristics for special external services, for example:
maximum and minimum temperature, pressure, or flow of air or cooling liquid;
5.4.5 Equipment maintenance and service
Replacement:
Replace the first paragraph with the following:
Instructions shall be provided to the RESPONSIBLE BODY in sufficient detail to permit safe
maintenance, inspection and testing of the equipment, and to ensure continued safety of the
equipment after the maintenance, inspection and test procedure.
6 Protection against electric shock
6.2.1 General
Replacement:
Replace, at the end of the first paragraph, “(see 6.9.1)” with “(see 6.9.2)”.
6.3.1 Levels in NORMAL CONDITION
Replacement:
Replace the text of item a) with the following:
a) The a.c. voltage levels are 30 V r.m.s., 42,4 V peak, and the d.c. voltage level is 60 V. For
equipment intended for use in WET LOCATIONS, the a.c. voltage leve
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
