Standards Content (Sample)


INTERNATIONAL IEC
STANDARD
61010-2-061
Second edition
2003-06
GROUP SAFETY PUBLICATION
Safety requirements for electrical equipment
for measurement, control, and laboratory use –
Part 2-061:
Particular requirements for laboratory atomic
spectrometers with thermal atomization
and ionization
Règles de sécurité pour appareils électriques
de mesurage, de régulation et de laboratoire –
Partie 2-061:
Prescriptions particulières pour spectromètres de
laboratoire avec vaporisation et ionisation thermiques
Reference number
Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (http://www.iec.ch/searchpub/cur_fut.htm)
enables you to search by a variety of criteria including text searches, technical
committees and date of publication. On-line information is also available on
recently issued publications, withdrawn and replaced publications, as well as
corrigenda.
• IEC Just Published
This summary of recently issued publications (http://www.iec.ch/online_news/
justpub/jp_entry.htm) is also available by email. Please contact the Customer
Service Centre (see below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: custserv@iec.ch
Tel: +41 22 919 02 11
Fax: +41 22 919 03 00
INTERNATIONAL IEC
STANDARD
61010-2-061
Second edition
2003-06
GROUP SAFETY PUBLICATION
Safety requirements for electrical equipment
for measurement, control, and laboratory use –
Part 2-061:
Particular requirements for laboratory atomic
spectrometers with thermal atomization
and ionization
Règles de sécurité pour appareils électriques
de mesurage, de régulation et de laboratoire –
Partie 2-061:
Prescriptions particulières pour spectromètres de
laboratoire avec vaporisation et ionisation thermiques
 IEC 2003  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
N
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – 61010-2-061  IEC:2003(E)

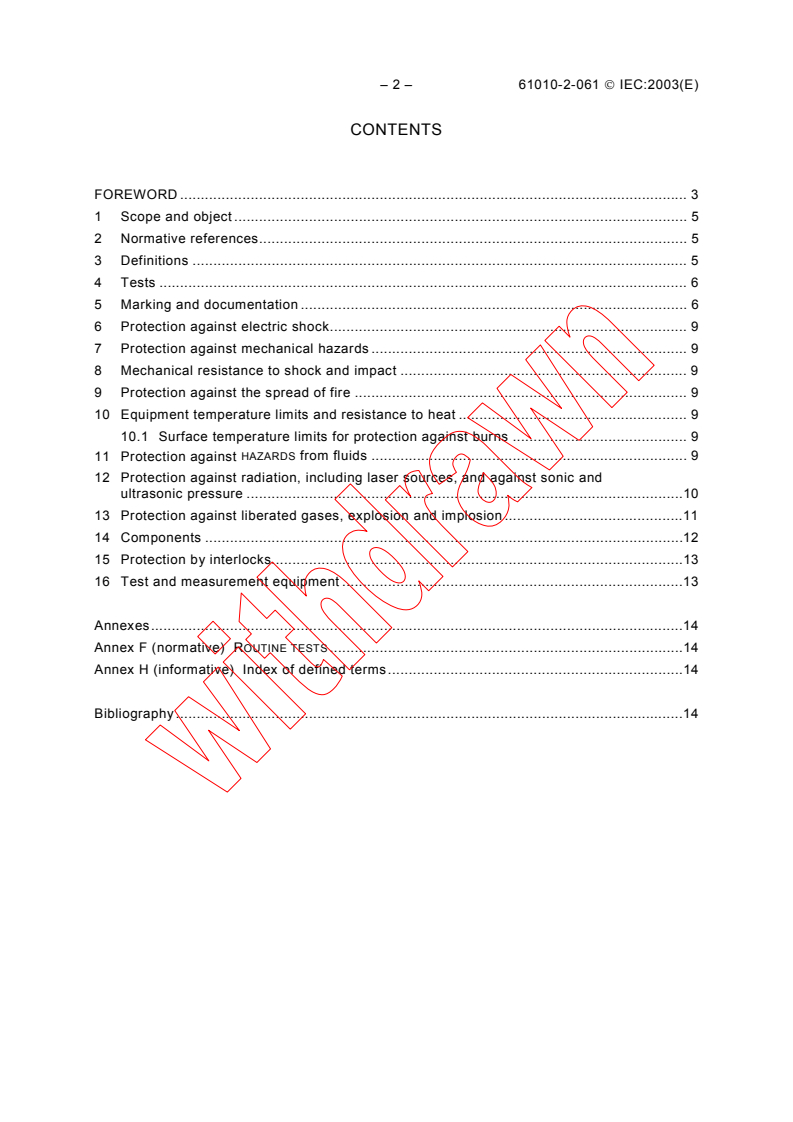

CONTENTS
FOREWORD . 3
1 Scope and object . 5
2 Normative references. 5
3 Definitions . 5
4 Tests . 6
5 Marking and documentation . 6
6 Protection against electric shock. 9
7 Protection against mechanical hazards . 9
8 Mechanical resistance to shock and impact . 9
9 Protection against the spread of fire . 9
10 Equipment temperature limits and resistance to heat . 9
10.1 Surface temperature limits for protection against burns . 9
11 Protection against HAZARDS from fluids . 9
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure .10
13 Protection against liberated gases, explosion and implosion .11
14 Components .12
15 Protection by interlocks.13
16 Test and measurement equipment .13
Annexes.14
Annex F (normative) ROUTINE TESTS .14
Annex H (informative) Index of defined terms.14
Bibliography.14

61010-2-061  IEC:2003(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT
FOR MEASUREMENT, CONTROL, AND LABORATORY USE –
Part 2-061: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61010-2-061 has been prepared by IEC technical committee 66:
Safety of measuring, control and laboratory equipment.
This second edition cancels and replaces the first edition published in 1995, of which it
constitutes a technical revision.
It has the status of a group safety publication in accordance with IEC Guide 104.
The text of this standard is based on the following documents:
FDIS Report on voting
66/326/FDIS 66/331/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-061 is intended to be used in conjunction with IEC 61010-1. It was established
on the basis of the second edition (2001). Consideration may be given to future editions of, or
amendments to, IEC 61010-1.
– 4 – 61010-2-061  IEC:2003(E)
This Part 2-061 supplements or modifies the corresponding clauses in IEC 61010-1 so as to
convert that publication into the IEC standard: Safety requirements for laboratory atomic
spectrometers with thermal atomization and ionization.
Where a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. Where this part states “addition”, “modification” or “replacement”, or
“deletion”, the relevant requirement, test specification or note in Part 1 should be adapted
accordingly.
In this standard:
1) the following print types are used:
– requirements: in roman type;
– NOTES: in small roman type;
– conformity and test: in italic type;
– terms used throughout this standard which have been defined in clause 3: SMALL ROMAN
CAPITALS;
2) subclauses, figures, tables and notes which are additional to those in Part 1 are numbered
starting from 101.
The committee has decided that the contents of this publication will remain unchanged until 2007.
At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
61010-2-061  IEC:2003(E) – 5 –
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT
FOR MEASUREMENT, CONTROL, AND LABORATORY USE –
Part 2-061: Particular requirements for laboratory atomic
spectrometers with thermal atomization and ionization
1 Scope and object
This clause of Part 1 is applicable except as follows:
1.1 Scope
1.1.1 Equipment included in scope
Replacement:
This part of IEC 61010 applies to electrically powered laboratory atomic spectrometers with
thermal atomization.
NOTE 1 Examples include atomic absorption spectrometers, emission flame photometers, atomic fluorescence
spectrophotometers, inductively coupled plasma spectrometers, microwave coupled plasma spectrometers and
mass spectrometers, all with thermal atomization and ionization (including tubing and connectors which are
provided by the manufacturer for connection to external supplies).
NOTE 2 If all or part of the equipment falls within the scope of one or more other part 2 standards of IEC 61010
as well as within the scope of this standard, it will also need to meet the requirements of those other part 2
standards.
1.1.2 Equipment excluded from scope
Addition:
Add as the first paragraph:
This standard does not apply to thermal atomization detectors (flame ionization detectors)
used in gas chromatography.
2 Normative references
This clause of Part 1 is applicable.
3 Definitions
This clause of Part 1 is applicable except as follows:
Additional definitions:
3.2.101
SPRAY CHAMBER
chamber in which droplets of sample in aerosol are allowed to separate so that the droplets of
necessary size can be passed onward to the burner, with the remainder draining to waste
3.2.102
GAS LOCK
device to allow drainage of waste sample liquid, and to prevent unintentional escape of gas
from the SPRAY CHAMBER through its drain outlet (see for example Figure 101)

– 6 – 61010-2-061  IEC:2003(E)
3.5.101
FLASH-BACK
event during which the flame travels back through the burner with the result that the gas in
the mixing chamber is caused to ignite.
4 Tests
This clause of Part 1 is applicable except as follows:
Additional subclauses:
4.4.2.101 Sampling probe tip
Any system designed to withdraw a sampling probe tip after sampling has been completed
shall be overridden, so as to leave the tip in its most exposed position when a sample vessel
is removed.
Exceptions:
The withdrawal system need not be overridden if the sampling probe:
a) cannot cause a HAZARD to the OPERATOR when it is exposed;
b) is designed in such a manner that no SINGLE FAULT can cause the tip to remain exposed
after sampling has been completed.
4.4.2.102 Failure, or partial failure, of the MAINS supply
The voltage of the power supply to the equipment from the MAINS supply shall first be reduced
to just less than 90 % of the RATED voltage, and shall then be switched off.
5 Marking and documentation
This clause of Part 1 is applicable except as follows:
Additional subclause:
5.1.101 Gas and liquid connections
The following shall be unambiguously marked adjacent to the connector on the equipment
(see 5.2):
a) the identity of the gas or liquid;
b) the maximum permitted pressure.
NOTE Such markings may be specific (for example acetylene, propane, water) or generic (for example fuel gas,
oxidant gas, coolant, waste liquid).
Where no internationally recognized symbol (such as a chemical formula) exists, the equip-
ment shall be marked with symbol 14 of Table 1 together with an unambiguous text in English.
The documentation accompanying the equipment shall provide an adequate translation of this
text (where it is required) in the language of the country in which it is to be installed, to assure
that the installer or OPERATOR is able to c
...


IEC 61010-2-061
Edition 2.0 2003-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
GROUP SAFETY PUBLICATION
PUBLICATION GROUPÉE DE SÉCURITÉ
Safety requirements for electrical equipment for measurement, control and
laboratory use –
Part 2-061: Particular requirements for laboratory atomic spectrometers with
thermal atomization and ionization

Règles de sécurité pour appareils électriques de mesurage, de régulation et de
laboratoire –
Partie 2-061: Exigences particulières pour spectromètres de laboratoire avec
vaporisation et ionisation thermique

IEC 6101-2-061:2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61010-2-061
Edition 2.0 2003-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BASIC SAFETY PUBLICATION
PUBLICATION FONDAMENTALE DE SÉCURITÉ
Safety requirements for electrical equipment for measurement, control and
laboratory use –
Part 2-061: Particular requirements for laboratory atomic spectrometers with
thermal atomization and ionization

Règles de sécurité pour appareils électriques de mesurage, de régulation et de
laboratoire –
Partie 2-061: Exigences particulières pour spectromètres de laboratoire avec
vaporisation et ionisation thermique

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
N
CODE PRIX
ICS 19.080; 71.040.20 ISBN 2-8318-7912-4
– 2 – 61010-2-061 © CEI:2003

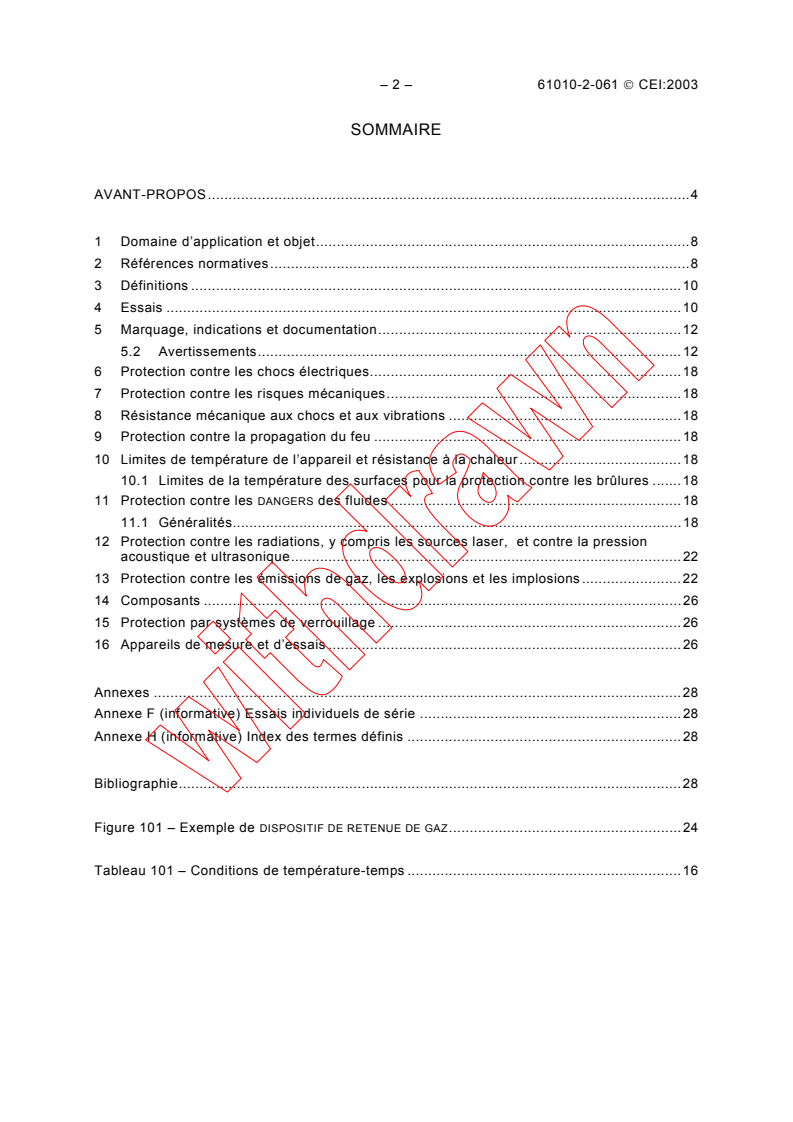

SOMMAIRE
AVANT-PROPOS.4

1 Domaine d’application et objet.8
2 Références normatives.8
3 Définitions .10
4 Essais .10
5 Marquage, indications et documentation.12
5.2 Avertissements.12
6 Protection contre les chocs électriques.18
7 Protection contre les risques mécaniques.18
8 Résistance mécanique aux chocs et aux vibrations .18
9 Protection contre la propagation du feu .18
10 Limites de température de l’appareil et résistance à la chaleur .18
10.1 Limites de la température des surfaces pour la protection contre les brûlures .18
11 Protection contre les DANGERS des fluides .18
11.1 Généralités.18
12 Protection contre les radiations, y compris les sources laser, et contre la pression
acoustique et ultrasonique.22
13 Protection contre les émissions de gaz, les explosions et les implosions.22
14 Composants .26
15 Protection par systèmes de verrouillage .26
16 Appareils de mesure et d’essais .26

Annexes .28
Annexe F (informative) Essais individuels de série .28
Annexe H (informative) Index des termes définis .28

Bibliographie.28

DISPOSITIF DE RETENUE DE GAZ.24
Figure 101 – Exemple de
Tableau 101 – Conditions de température-temps .16

61010-2-061 © IEC:2003 – 3 –
CONTENTS
FOREWORD.5

1 Scope and object.9
2 Normative references .9
3 Definitions .11
4 Tests .11
5 Marking and documentation.13
5.2 Warning markings .13
6 Protection against electric shock .19
7 Protection against mechanical hazards.19
8 Mechanical resistance to shock and impact .19
9 Protection against the spread of fire .19
10 Equipment temperature limits and resistance to heat.19
10.1 Surface temperature limits for protection against burns .19
11 Protection against HAZARDS from fluids .19
11.1 General .19
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure .23
13 Protection against liberated gases, explosion and implosion.23
14 Components .27
15 Protection by interlocks .27
16 Test and measurement equipment.27

Annexes .29
Annex F (normative) Routine tests .29
Annex H (informative) Index of defined terms.29

Bibliography.29

Figure 101 – Example of a GAS LOCK.25

Table 101 – Time-temperature conditions .17

– 4 – 61010-2-061 © CEI:2003
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
___________
RÈGLES DE SÉCURITÉ POUR APPAREILS ÉLECTRIQUES
DE MESURAGE, DE RÉGULATION ET DE LABORATOIRE –

Partie 2-061: Exigences particulières pour
spectromètres de laboratoire
avec vaporisation et ionisation thermique

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a
pour objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les
domaines de l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent
également aux travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses publications; la CEI ne peut pas être tenue responsable
de l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de la CEI
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
