IEC 60068-2-20:2021

Environmental testing - Part 2-20: Tests - Test Ta and Tb: Test methods for solderability and resistance to soldering heat of devices with leads

IEC 60068-2-20:2021 is available as IEC 60068-2-20:2021 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60068-2-20:2021 outlines Tests Ta and Tb, applicable to devices with leads and leads themselves. Soldering tests for surface mounting devices (SMD) are described in IEC 60068-2-58. This document provides procedures for determining the solderability and resistance to soldering heat of devices in applications using solder alloys, which are eutectic or near eutectic tin lead (Pb), or lead-free alloys. The procedures in this document include the solder bath method and soldering iron method. The objective of this document is to ensure that component lead or termination solderability meets the applicable solder joint requirements of IEC 61191-3 and IEC 61191-4. In addition, test methods are provided to ensure that the component body can be resistant to the heat load to which it is exposed during soldering. This edition includes the following significant technical changes with respect to the previous edition:
- update of and clarification of pre-conditioning (former "aging") and its relation to natural aging.

Essais d’environnement - Partie 2-20: Essais - Essais Ta et Tb: Méthodes d'essai de la brasabilité et de la résistance à la chaleur de brasage des dispositifs à broches

IEC 60068-2-20:2021 est disponible sous forme de IEC 60068-2-20:2021 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 60068-2-20:2021 décrit les essais Ta et Tb qui s’appliquent aux dispositifs à broches et aux broches elles-mêmes. Les essais de brasage des composants pour montage en surface (CMS) sont décrits dans l’IEC 60068-2-58. Le présent document fournit des procédures pour déterminer la brasabilité et la résistance à la chaleur de brasage des dispositifs dans les applications qui utilisent des alliages de brasure, qui sont soit des brasures étain plomb (Pb) eutectique ou quasi eutectique, soit des alliages de brasure sans plomb. Les procédures du présent document incluent les méthodes dites de bain de brasage et de fer à braser. Le but du présent document est d’assurer que les broches des composants ou la brasabilité de leurs bornes sont en mesure de satisfaire aux exigences applicables aux joints de brasures de l’IEC 61191-3 et de l’IEC 61191-4. De plus, des méthodes d’essai sont fournies pour assurer que le corps du composant peut résister à la charge calorifique à laquelle il est exposé pendant le brasage. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- mise à jour et clarification du préconditionnement (auparavant "vieillissement") et sa relation au vieillissement naturel.

General Information

• Status: Published
• Publication Date: 29-Mar-2021
• ICS: 19.040 - Environmental testing
• Technical Committee: TC 91 - Electronics assembly technology
• Drafting Committee: WG 3 - TC 91/WG 3
• Current Stage: PPUB - Publication issued
• Start Date: 16-Apr-2021
• Completion Date: 30-Mar-2021

Relations

• Revises: IEC 60068-2-20:2008 - Environmental testing - Part 2-20: Tests - Test T: Test methods for solderability and resistance to soldering heat of devices with leads
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 60068-2-20 ®
Edition 6.0 2021-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Environmental testing –
Part 2-20: Tests – Test T Tests Ta and Tb: Test methods for solderability and
resistance to soldering heat of devices with leads

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 60068-2-20 ®
Edition 6.0 2021-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Environmental testing –
Part 2-20: Tests – Test T Tests Ta and Tb: Test methods for solderability and

resistance to soldering heat of devices with leads

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 19.040 ISBN 978-2-8322-9661-5

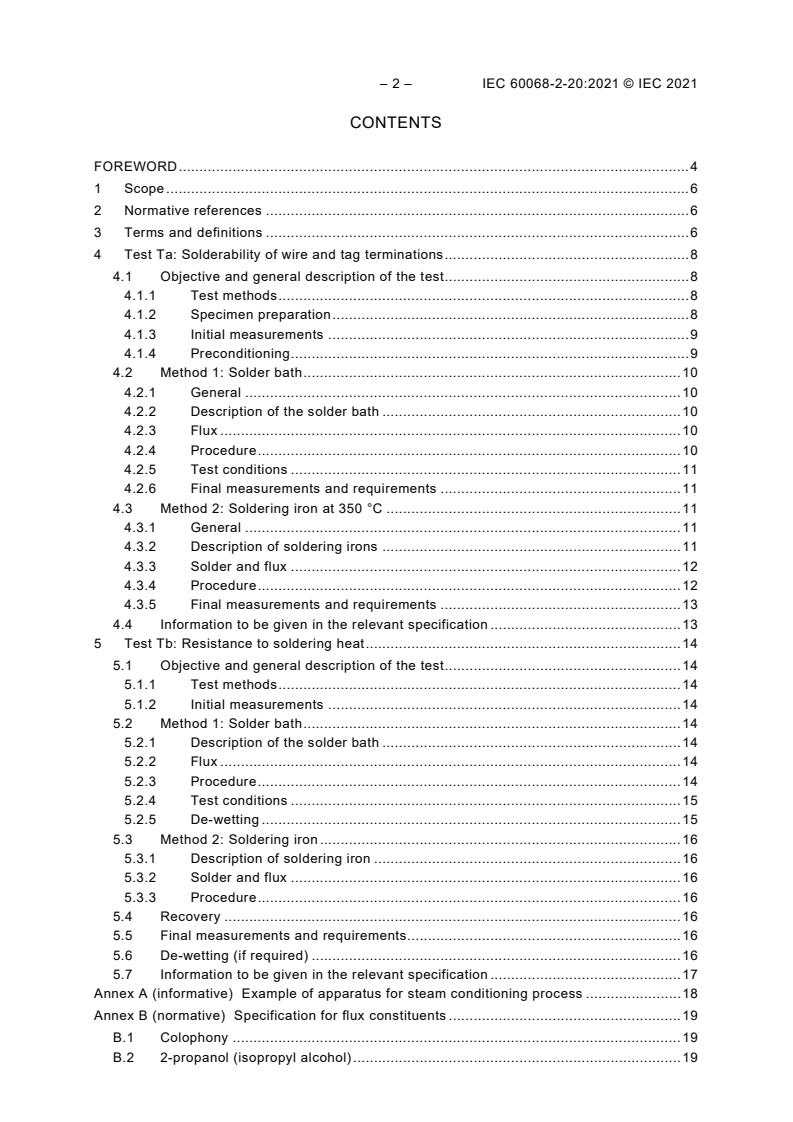

– 2 – IEC 60068-2-20:2021 RLV © IEC 2021
CONTENTS
FOREWORD . 4
1 Scope and object . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Test Ta: Solderability of wire and tag terminations . 8
4.1 Objective and general description of the test . 8
4.1.1 Test methods . 8
4.1.2 Specimen preparation . 9
4.1.3 Initial measurements . 9
4.1.4 Accelerated ageing Preconditioning . 9
4.2 Method 1: Solder bath . 10
4.2.1 General . 10
4.2.2 Description of the solder bath . 10
4.2.3 Flux . 10
4.2.4 Procedure . 10
4.2.5 Test conditions . 11
4.2.6 Final measurements and requirements . 12
4.3 Method 2: Soldering iron at 350 °C . 12
4.3.1 General . 12
4.3.2 Description of soldering irons . 13
4.3.3 Solder and flux . 13
4.3.4 Procedure . 13
4.3.5 Final measurements and requirements . 14
4.4 Information to be given in the relevant specification . 14
5 Test Tb: Resistance to soldering heat . 15
5.1 Objective and general description of the test . 15
5.1.1 Test methods . 15
5.1.2 Initial measurements . 15
5.2 Method 1: Solder bath . 15
5.2.1 Description of the solder bath . 15
5.2.2 Flux . 15
5.2.3 Procedure . 15
5.2.4 Test conditions . 16
5.2.5 De-wetting . 17
5.3 Method 2: Soldering iron . 17
5.3.1 Description of soldering iron . 17
5.3.2 Solder and flux . 17
5.3.3 Procedure . 17
5.4 Recovery . 18
5.5 Final measurements and requirements . 18
5.6 De-wetting (if required) . 18
5.7 Information to be given in the relevant specification . 19
Annex A (informative) Example of apparatus for accelerated steam
ageing conditioning process . 20
Annex B (normative) Specification for flux constituents . 21
B.1 Colophony . 21

B.2 2-propanol (isopropanol isopropyl alcohol) . 21
B.3 Ethyl alcohol . 21
B.4 Flux composition . 21
Bibliography . 23

Figure 1 – Diagram of contact angle . 7
Figure 2 – Position of soldering iron . 14
Figure A.1 – Example of apparatus . 20

Table 1 – Solderability, solder bath method: Test severities (duration and temperature) . 12
Table 2 – Resistance to soldering heat, solder bath method: Test severities (duration
and temperature) . 17
Table B.1 – Colophony based flux compositions . 22
