IEC 60227-4:1992/AMD1:1997
(Amendment)Amendment 1 - Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Part 4: Sheathed cables for fixed wiring
Amendment 1 - Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Part 4: Sheathed cables for fixed wiring
Amendement 1 - Conducteurs et câbles isolés au polychlorure de vinyle, de tension nominale au plus égale à 450/750 V - Partie 4: Câbles sous gaine pour installations fixes
General Information
Standards Content (Sample)

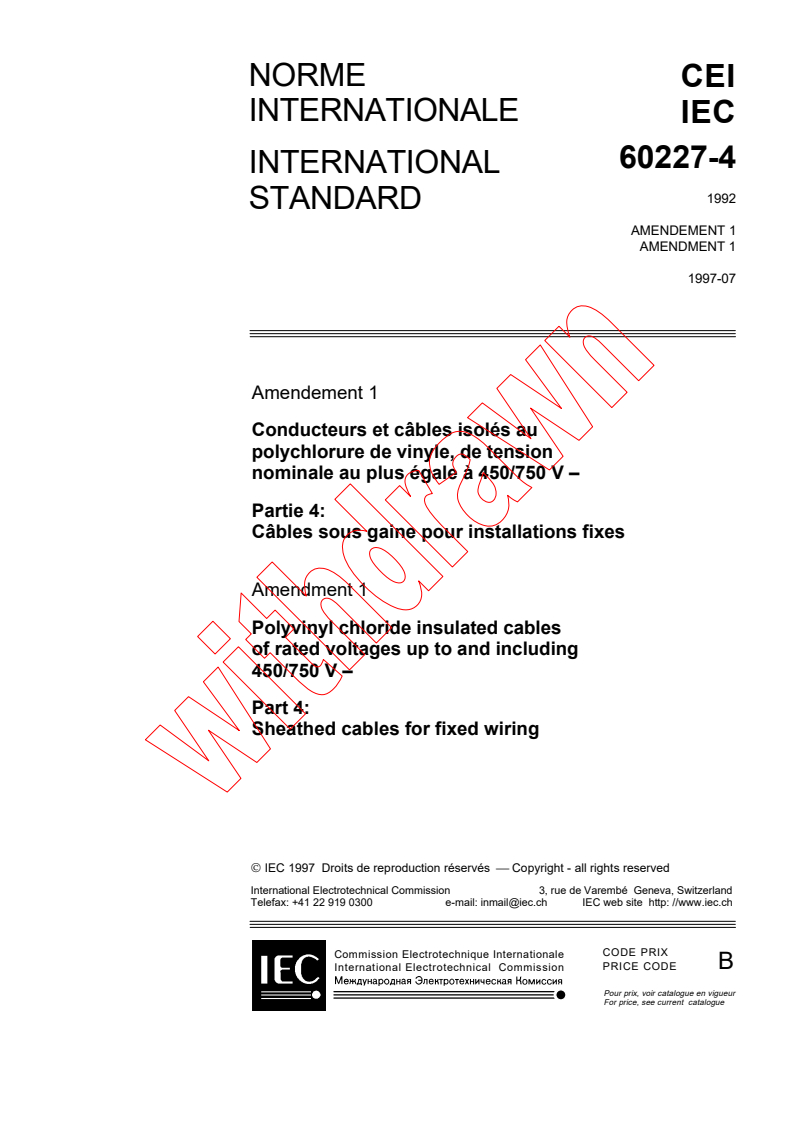

NORME
CEI
INTERNATIONALE
IEC
60227-4
INTERNATIONAL
1992
STANDARD
AMENDEMENT 1
AMENDMENT 1
1997-07
Amendement 1
Conducteurs et câbles isolés au
polychlorure de vinyle, de tension
nominale au plus égale à 450/750 V –
Partie 4:
Câbles sous gaine pour installations fixes
Amendment 1
Polyvinyl chloride insulated cables
of rated voltages up to and including
450/750 V –
Part 4:
Sheathed cables for fixed wiring
IEC 1997 Droits de reproduction réservés Copyright - all rights reserved
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http: //www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
PRICE CODE B
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue
---------------------- Page: 1 ----------------------

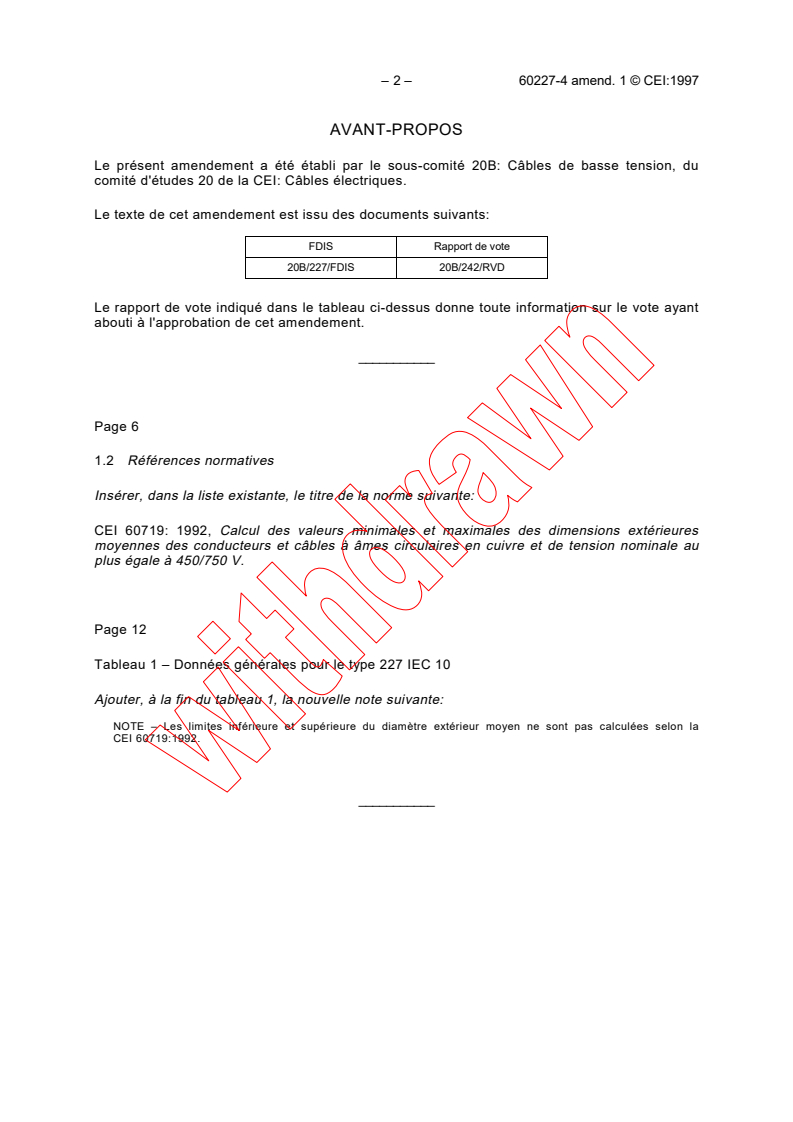

– 2 – 60227-4 amend. 1 © CEI:1997
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 20B: Câbles de basse tension, du
comité d'études 20 de la CEI: Câbles électriques.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
20B/227/FDIS 20B/242/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
___________
Page 6
1.2 Références normatives
Insérer, dans la liste existante, le titre de la norme suivante:
CEI 60719: 1992, Calcul des valeurs minimales et maximales des dimensions extérieures
moyennes des conducteurs et câbles à âmes
...
