IEC 60227-4 ®
Edition 3.0 2024-02
INTERNATIONAL
STANDARD
Polyvinyl chloride insulated cables of rated voltages up to and including
450/750 V –
Part 4: Sheathed cables for fixed wiring
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60227-4 ®
Edition 3.0 2024-02
INTERNATIONAL
STANDARD
Polyvinyl chloride insulated cables of rated voltages up to and including
450/750 V –
Part 4: Sheathed cables for fixed wiring
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.060.20 ISBN 978-2-8322-8260-1
– 2 – IEC 60227-4:2024 © IEC 2024

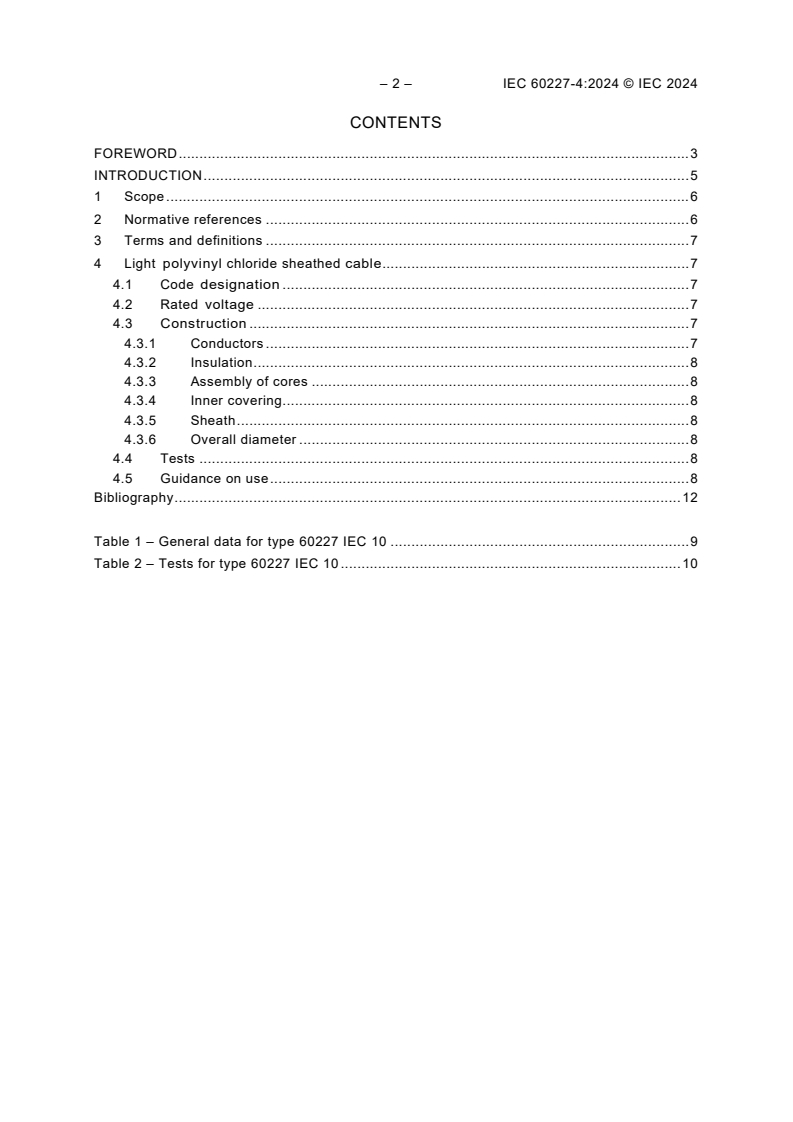

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Light polyvinyl chloride sheathed cable . 7
4.1 Code designation . 7
4.2 Rated voltage . 7
4.3 Construction . 7
4.3.1 Conductors . 7
4.3.2 Insulation . 8
4.3.3 Assembly of cores . 8
4.3.4 Inner covering. 8
4.3.5 Sheath . 8
4.3.6 Overall diameter . 8
4.4 Tests . 8
4.5 Guidance on use . 8
Bibliography . 12
Table 1 – General data for type 60227 IEC 10 . 9
Table 2 – Tests for type 60227 IEC 10 . 10
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POLYVINYL CHLORIDE INSULATED CABLES OF
RATED VOLTAGES UP TO AND INCLUDING 450/750 V –
Part 4: Sheathed cables for fixed wiring
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60227-4 has been prepared by IEC technical committee 20: Electric cables. It is an
International Standard.
This third edition cancels and replaces the second edition published in 1992 and
Amendment 1:1997. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the reference to tests according to IEC 60227-2 has been withdrawn and replaced with a
reference to IEC 63294;
b) normative references have been updated.
– 4 – IEC 60227-4:2024 © IEC 2024
The text of this International Standard is based on the following documents:
Draft Report on voting
20/2142/FDIS 20/2155/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60227 series, published under the general title Polyvinyl chloride
insulated cables of rated voltages up to and including 450/750 V, can be found on the IEC
website.
This document is to be used in conjunction with IEC 60227-1.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
INTRODUCTION
The IEC 60227 series, published under the general title Polyvinyl chloride insulated cables of
rated voltages up to and including 450/750 V, consists of the following parts:
IEC 60227-1: General requirements;
IEC 60227-2: Test methods (withdrawn and replaced by IEC 63294);
IEC 60227-3: Non-sheathed cables for fixed wiring;
IEC 60227-4: Sheathed cables for fixed wiring;
IEC 60227-5: Flexible cables (cords);
IEC 60227-6: Lift cables and cables for flexible connections;
IEC 60227-7: Flexible cables screened and unscreened with two or more conductors and of
rated voltages up to and including 300/500 V.
This part of IEC 60227, when used in conjunction with IEC 60227-1, forms the complete
standard for sheathed cables for fixed wiring.
– 6 – IEC 60227-4:2024 © IEC 2024
POLYVINYL CHLORIDE INSULATED CABLES OF
RATED VOLTAGES UP TO AND INCLUDING 450/750 V –
Part 4: Sheathed cables for fixed wiring
1 Scope
This part of IEC 60227 details the particular specifications for light polyvinyl chloride sheathed
cables of rated voltages of 300/500 V.
This document provides the particular requirements for sheathed cables for fixed wiring which
apply in addition to the appropriate requirements specified in IEC 60227-1, which apply to all
cables.
The tests for cables specified in the IEC 60227 series are described in IEC 63294.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60227-1, Polyvinyl chloride insulated cables of rated voltages up to and including
450/750 V – Part 1: General requirements
IEC 60228, Conductors of insulated cables
IEC 60332-1-2, Tests on electric and optical fibre cables under fire conditions – Part 1-2: Test
for vertical flame propagation for a single insulated wire or cable – Procedure for 1 kW
pre-mixed flame
IEC 60811-401, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 401: Miscellaneous tests – Thermal ageing methods – Ageing in an air oven
IEC 60811-409, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 409: Miscellaneous tests – Loss of mass test for thermoplastic insulations and sheaths.
IEC 60811-501, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 501: Mechanical tests – Tests for determining the mechanical properties of insulating and
sheathing compounds
IEC 60811-504, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 504: Mechanical tests – Bending tests at low temperature for insulation and sheaths
IEC 60811-505, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 505: Mechanical tests – Elongation at low temperature for insulations and sheaths
IEC 60811-506, Electric and optical fibre cables – Test methods for non-metal
...
