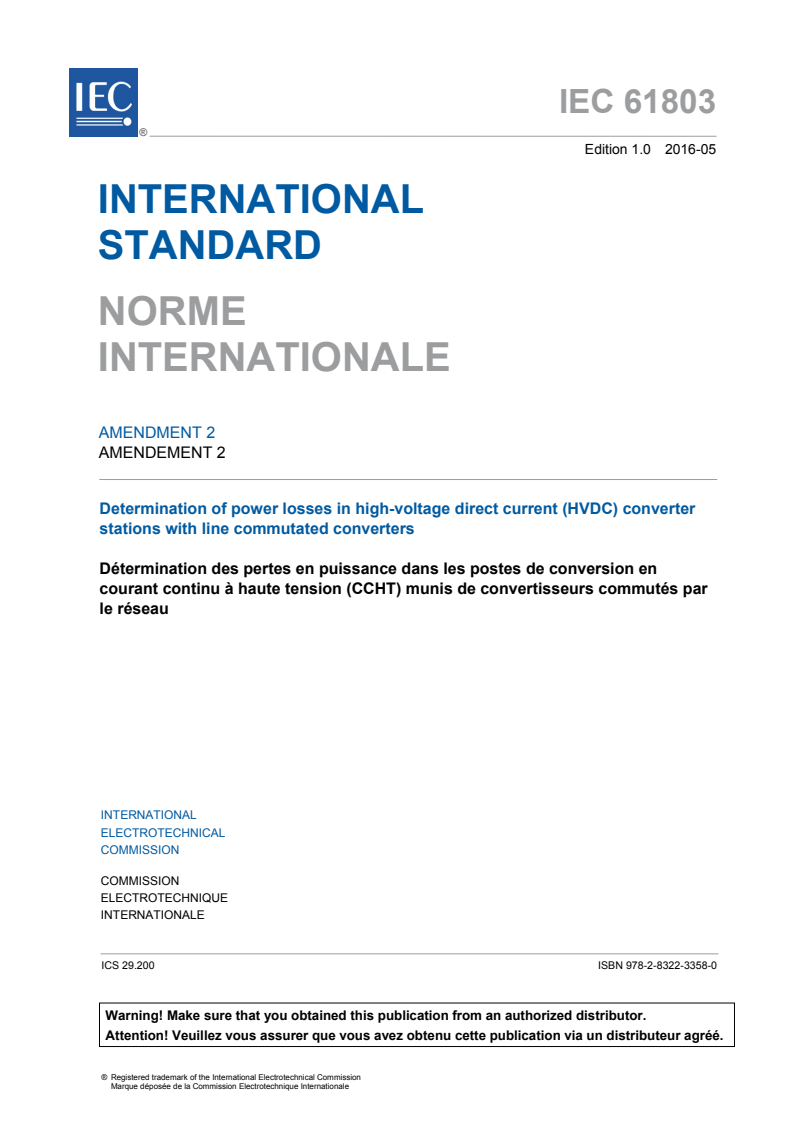

IEC 61803 ®
Edition 1.0 2016-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AM ENDMENT 2
AM ENDEMENT 2
Determination of power losses in high-voltage direct current (HVDC) converter
stations with line commutated converters
Détermination des pertes en puissance dans les postes de conversion en
courant continu à haute tension (CCHT) munis de convertisseurs commutés par
le réseau
IEC 61803:1999-02/AMD2:2016-05(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes langues additionnelles. Egalement appelé Vocabulaire
Android et iPad. Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

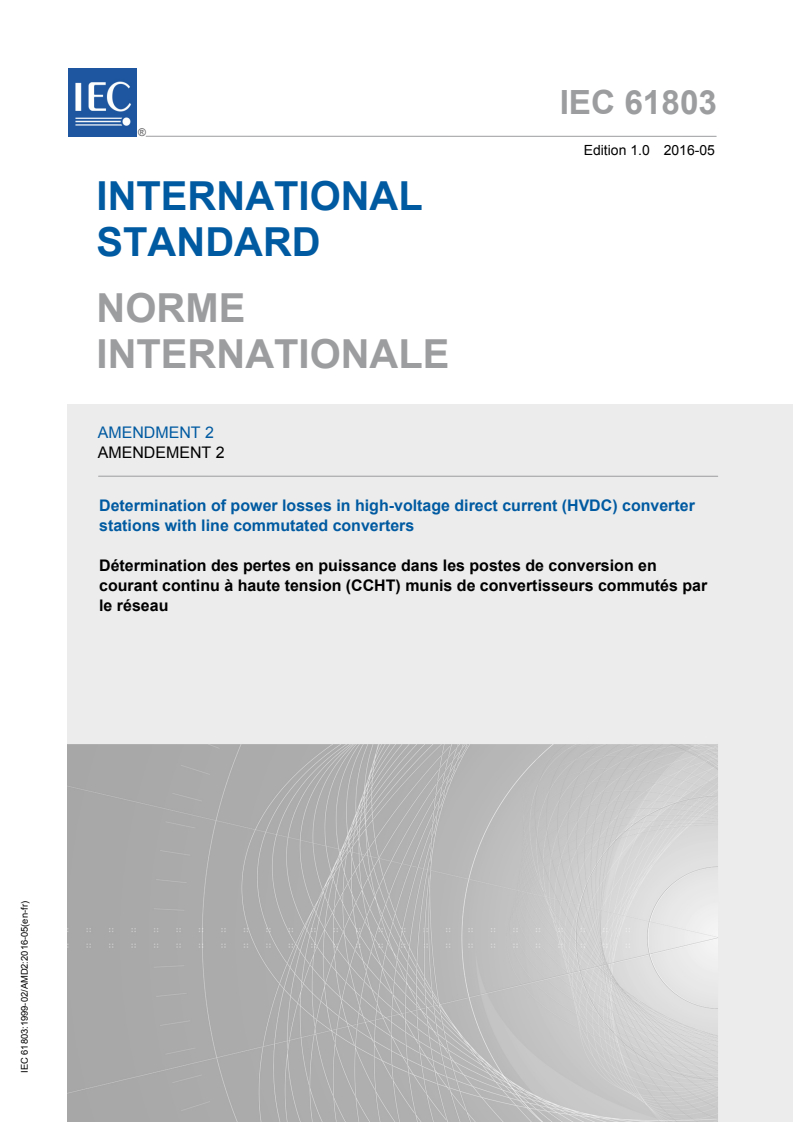

IEC 61803 ®
Edition 1.0 2016-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AM ENDMENT 2
AM ENDEMENT 2
Determination of power losses in high-voltage direct current (HVDC) converter
stations with line commutated converters
Détermination des pertes en puissance dans les postes de conversion en
courant continu à haute tension (CCHT) munis de convertisseurs commutés par
le réseau
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.200 ISBN 978-2-8322-3358-0
– 2 – IEC 61803:1999/AMD2:2016
© IEC 2016

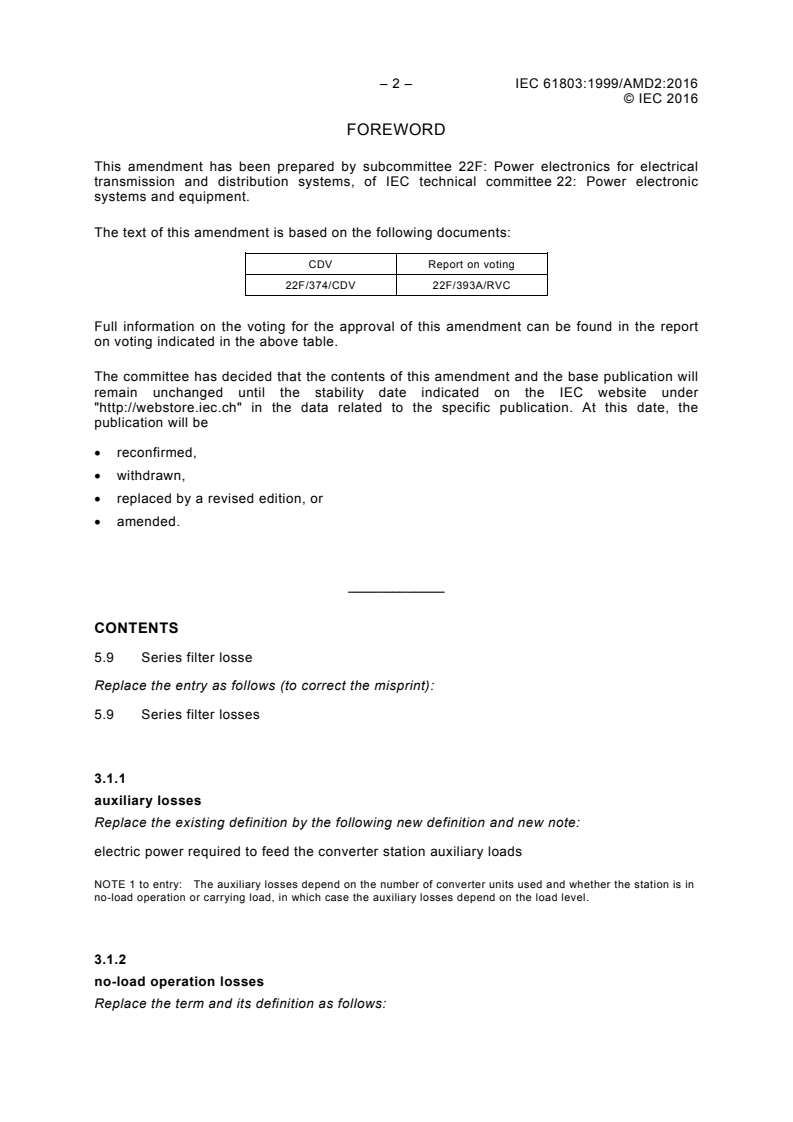

FOREWORD
This amendment has been prepared by subcommittee 22F: Power electronics for electrical
transmission and distribution systems, of IEC technical committee 22: Power electronic
systems and equipment.
The text of this amendment is based on the following documents:
CDV Report on voting
22F/374/CDV 22F/393A/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
CONTENTS
5.9 Series filter losse
Replace the entry as follows (to correct the misprint):
5.9 Series filter losses
3.1.1
auxiliary losses
Replace the existing definition by the following new definition and new note:
electric power required to feed the converter station auxiliary loads
NOTE 1 to entry: The auxiliary losses depend on the number of converter units used and whether the station is in
no-load operation or carrying load, in which case the auxiliary losses depend on the load level.
3.1.2
no-load operation losses
Replace the term and its definition as follows:
© IEC 2016
3.1.2
equipment no-load operation losses
losses produced in an item of equipment with the converter station energised but with the
converters blocked and all station service loads and auxiliary equipment connected as
required for immediate pick-up of load to specified minimum power
3.1.4
operating losses
Replace the existing term by the following new term:
3.1.4
equipment operating losses
3.1.5
rated load
Replace the existing definition by the following new definition and note:
load related to operation at nominal values of d.c. current, d.c. voltage, a.c. voltage and
converter firing angle
Note 1 to entry: The a.c. system shall be assumed to be at nominal frequency and its 3-phase voltages are
nominal and balanced. The position of the tap-changer of the converter transformer and the number of a.c. filters
and shunt reactive elements connected shall be consistent with operation at rated load, coincident with nominal
conditions.
3.1.6
total station losses
Replace the existing term and its definition by the following new term, definition and notes:
3.1.6
total station operating losses
sum of all equipment operating losses (3.1.4) and corresponding auxiliary losses (3.1.1) at a
particular load level
Note 1 to entry: It is recognised that some purchasers evaluate “total station no-load operation losses” (definition
3.1.8) and total station load losses individually instead of the evaluating “total station operating losses” (definition
3.1.6).
Note 2 to entry: "Operating losses” minus “no-load operation losses” may be considered as being quantitatively
equivalent to “load losses” as in conventional a.c. substation practice.
Note 3 to entry: An illustrative example to derive “load losses”, “equivalent load losses” and corresponding “loss
evaluation” is given in Annex D.
3.1.7
station essential auxiliary load
Delete, in the definition added by Amendment 1, the Note.
– 4 – IEC 61803:1999/AMD2:2016
© IEC 2016
Insert, between 3.1.5 and 3.1.6 the following new entry 3.1.8:
3.1.8
total station no-load operation losses
sum of all equipment no-load operation losses (3.1.2) and corresponding auxiliary losses
(3.1.1)
3.2 Letter symbols
Replace the definition of letter symbol α modified by Amendment 1, as follows:
α (trigger/firing) delay angle, in radians (rad)
4.1 Introduction
Delete, in the third sentence of the second paragraph, the additional blank spaces (misprint).
4.3 Operating parameters
Replace the second paragraph as follows:
The losses of HVDC converter stations are classified into two categories, referred to as
operating losses (3.1.4 and 3.1.6) and no-load operation losses (3.1.2 and 3.1.8).
Add, to the last sentence of the subclause, the phrase "(without waiting for tap changer
movement) to specified minimum power" as follows:
Station service loads and auxiliary equipment (e.g. cooling water pumps) shall be assumed to
be connected as required for immediate pick-up of load for the converter station (without
waiting for tap changer movement) to specified minimum power.
5.1.7 Turn-off losses per valve
Replace the first sentence of the subclause as follows:
These are additional losses due to reverse current flow in the thyristors at turn-off (see Figure
8).
Renumber the Note as Note 1 and add the following Note 2 at the end of the subclause:
NOTE 2 The most part of the thyristor turn-off losses resulting from this mechanism are dissipated within the
thyristor itself, although part of the losses may be dissipated in other components such as the damping resistor and
valve reactor.
© IEC 2016
5.2.2 No-load operation losses
Add, after the paragraph, the following new paragraph:
The transformer tap-changer position shall be as defined in 4.3.
Annex B – Typical station losses
Replace, in the table, the first line starting with "Thyristor valves" as follows:
Item Typical losses at nominal operating conditions
%
Thyristor valves 20 – 40
Replace the sentence under the table as follows:
The total station no-load operation losses range from 10 % to 20 % of the total station
operating losses at rated power under nominal operating conditions.
Add, between Annex B and Annex C, the following new Annex D:
– 6 – IEC 61803:1999/AMD2:2016
© IEC 2016
Annex D
(informative)
HVDC converter station loss evaluation – An illustration
This annex is included to provide an illustration only to describe the basic concept behind the
loss evaluation of HVDC converter stations and is to be considered by readers as a guide
only.
One of the purposes of HVDC converter station loss determination is to evaluate expected life
time cost of associated electrical losses reasonably well; not the maximum losses at any time.
This is also a mechanism to arrive at an optimum compromise between initial capital
investment cost and life time operating cost associated with electrical losses. Actions which
take very little time (like few seconds when moving a tap changer) are basically irrelevant in
this aspect of evaluating losses as this is to cover a very long period (like 25 years). Similarly,
events which last for a short duration should be disregarded for purpose of loss evaluation
(e.g. maximum ambient temperature, instead of use of yearly average ambient temperature to
be considered). Further, considering operating loss at full load only may not represent the
losses corresponding to actual load curve of most of HVDC systems. Hence a realistic method
is recommended to be considered by adopting suitable weighting factors to a few sets of load
as per expected loading patterns of the particular HVDC transmission link over a long period.
Cost of losses is associated between average price per hour of electricity, the interest rate
applicable and design life of the HVDC project. The following formula is an example:
−L
11− +R
( )
L CE×T
R
where
CE is the cost of 1 kWh of electric energy at the present value ($);
T is the number of hours in a year that the HVDC equipment is expected to be in
operation (hours);
R is the interest rate applicable to the investment in HVDC project (% / 100);
L is the life expectancy of the HVDC project (years).
Cost of lo
...
