IEC 60312-1:2010

Vacuum cleaners for household use - Part 1: Dry vacuum cleaners - Methods for measuring the performance

IEC 60312-1:2010(E) applicable for measurements of the performance of dry vacuum cleaners for household use in or under conditions similar to those in households. The purpose of this document is to specify essential performance characteristics of dry vacuum cleaners being of interest to the users and to describe methods for measuring these characteristics. Due to influence of environmental conditions, variations in time, origin of test materials and proficiency of the operator, most of the described test methods will give more reliable results when applied for comparative testing of a number of appliances at the same time, in the same laboratory and by the same operator. This document is not intended for battery-operated vacuum cleaners. For safety requirements, reference is made to IEC 60335-1 and IEC 60335-2-2.
Click here to access to information on suppliers of test materials and details of test equipment. This information is given for the convenience of users of this International Standard and does not constitute an endorsement by IEC of the suppliers named. This information will be continuously updated.

Aspirateurs de poussière à usage domestique - Partie 1: Aspirateurs de poussière - Méthodes de mesure de l’aptitude à la fonction

General Information

• Status: Replaced
• Publication Date: 06-Nov-2011
• ICS: 97.080 - Cleaning appliances
• Technical Committee: SC 59F - Surface cleaning appliances
• Drafting Committee: WG 3 - TC 59/SC 59F/WG 3
• Current Stage: DELPUB - Deleted Publication
• Completion Date: 25-Aug-2016

Relations

• Replaces: IEC 60312:2007 - Vacuum cleaners for household use - Methods of measuring the performance
• Effective Date: 05-Sep-2023

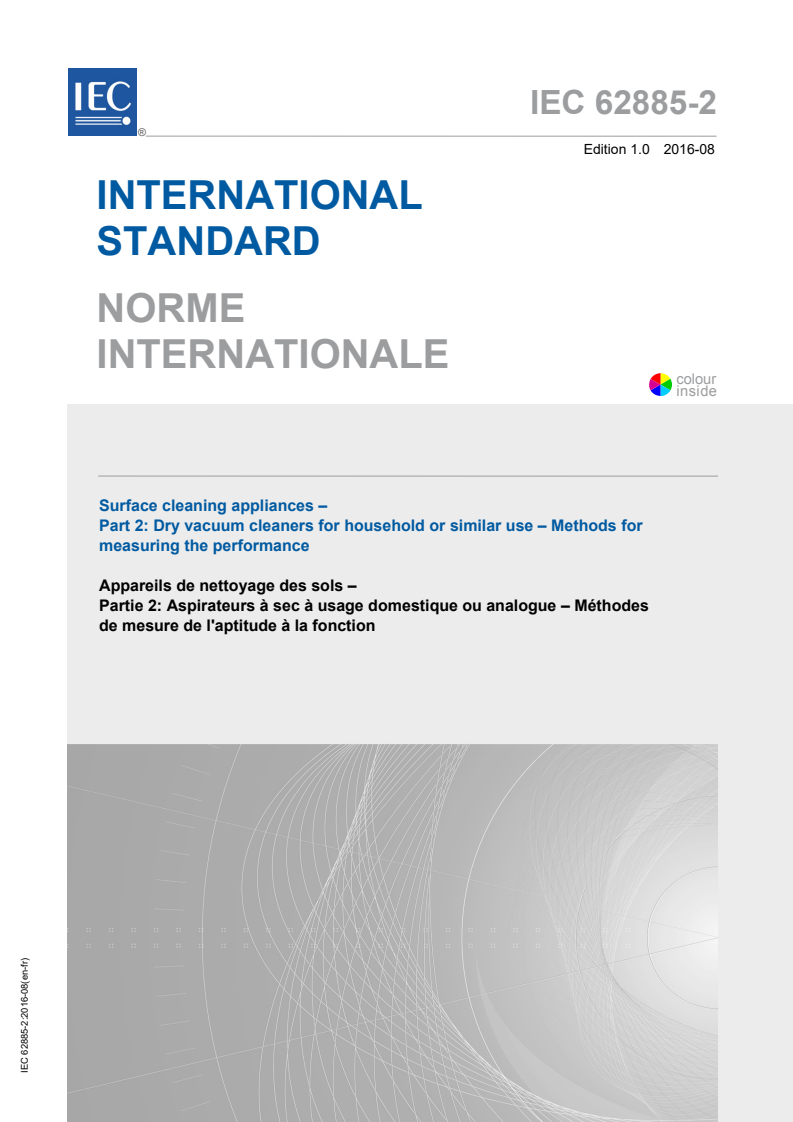

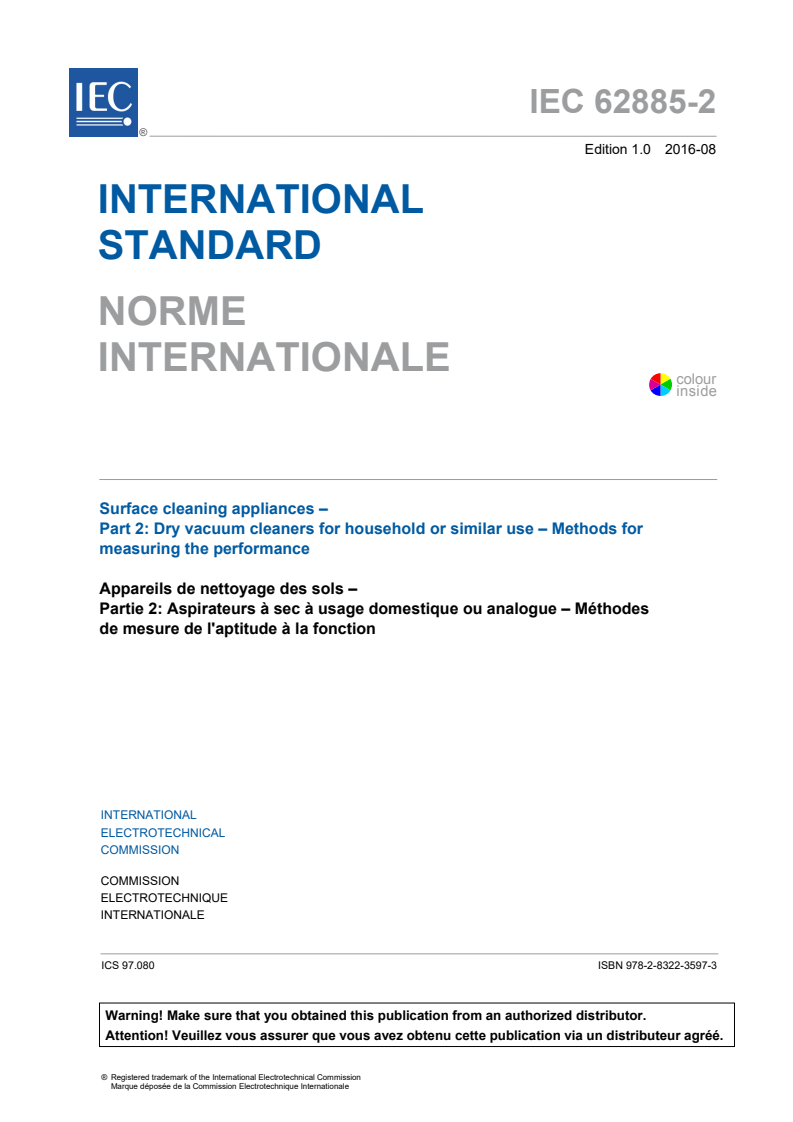

• Replaced By: IEC 62885-2:2016 - Surface cleaning appliances - Part 2: Dry vacuum cleaners for household or similar use - Methods for measuring the performance
• Effective Date: 05-Sep-2023
• Amended By: IEC 60312-1:2010/AMD1:2011 - Amendment 1 - Vacuum cleaners for houshold use - Part 1: Dry vacuum cleaners - Methods for measuring the performance
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 60312-1 ®
Edition 1.0 2010-09
INTERNATIONAL
STANDARD
Vacuum cleaners for household use –
Part 1: Dry vacuum cleaners – Methods for measuring the performance

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
IEC 60312-1 ®
Edition 1.0 2010-09
INTERNATIONAL
STANDARD
Vacuum cleaners for household use –
Part 1: Dry vacuum cleaners – Methods for measuring the performance

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XB
ICS 97.080 ISBN 978-2-88912-179-3
– 2 – 60312-1 © IEC:2010(E)
CONTENTS
FOREWORD.4

1 Scope.6

2 Normative references.6

3 Terms and definitions .7

4 General conditions for testing .8

4.1 Atmospheric conditions.8

4.2 Test equipment and materials .9

4.3 Voltage and frequency .9
4.4 Running-in of vacuum cleaner.9
4.5 Equipment of the vacuum cleaner .9
4.6 Operation of the vacuum cleaner .10
4.7 Conditioning prior to each tests.10
4.8 Mechanical operator .10
4.9 Number of samples.10
4.10 In-house reference cleaner system(s) .11
5 Dry vacuum cleaning tests .11
5.1 Dust removal from hard flat floors .11
5.2 Dust removal from hard floors with crevices .13
5.3 Dust removal from carpets.14
5.4 Dust removal along walls .17
5.5 Fibre removal from carpets and upholstery.18
5.6 Thread removal from carpets .22
5.7 Maximum usable volume of the dust receptacle .23
5.8 Air data .24
5.9 Performance with loaded dust receptacle .26
5.10 Total emission while vacuum cleaning.28
5.11 Filtration efficiency of the vacuum cleaner.28
6 Miscellaneous tests .33
6.1 General .33
6.2 Motion resistance .34
6.3 Cleaning under furniture .34
6.4 Radius of operation .35

6.5 Impact resistance for detachable cleaning heads .36
6.6 Deformation of hose and connecting tubes.36
6.7 Bump test.37
6.8 Flexibility of the hose .39
6.9 Repeated bending of the hose .40
6.10 Life test .41
6.11 Mass .42
6.12 Weight in hand .42
6.13 Specific cleaning time.43
6.14 Dimensions .43
6.15 Noise level.43
6.16 Energy consumption .43
7 Test material and equipment.45
7.1 General .45

60312-1 © IEC:2010(E) – 3 –
7.2 Material for measurements .46

7.3 Equipment for measurements .50

8 Instructions for use .65

Annex A (informative) Information on materials.66

Annex B (informative) Information at the point of sale .67

Annex C (normative) Guidance specification on verified carpets .68

Bibliography .70

Figure 1 – Right-angled T.17

Figure 2 – Determination of cleaning area .18
Figure 3 – Stencil for distribution of fibres on test carpets .19
Figure 4 – Zig Zag stroke pattern .20
Figure 5 – Frame for test cushion.21
Figure 6 – Stencil for distribution of fibres on upholstery .21
Figure 7 – Arrangement of threads in the thread removal test .22
Figure 8 – Stroke length in measurements.23
Figure 9 – Air data curves .25
Figure 10 – Connecting tube opening .26
Figure 11 – Test dust for loading dust receptacle.27
Figure 12 – Insertion depth.35
Figure 13 – Position of test object and cross-section for measurement of deformation .37
Figure 14 – Profile of threshold .38
Figure 15 – Arrangements for bump test.38
Figure 16 – Preparation of hoses for testing flexibility .40
Figure 17 – Equipment for repeated bending of hoses .41
Figure 18 – Test plate with crevice .50
Figure 19 – Carpet-beating machine.51
Figure 20 – Carpet hold-downs and guides .52
Figure 21 – Dust spreader and roller for embedding dust into carpets .52
Figure 22 – Alternative A equipment for air data measurements.53
Figure 23 – Measuring box for alternative A.54

Figure 24 – Alternative B equipment for air data measurements.56
Figure 25 – Test hood .60
Figure 26 – Aerosol channel with sampling probe .61
Figure 27 – Exhaust channel with sampling probe.61
Figure 28 – Drum for impact test .63
Figure 29 – Device for testing deformation of hoses and connecting tubes.64
Figure 30 – Mechanical operator for the measurement of dust removal from carpets and
of motion resistance.65

Table 1 – Confidence limits of a Poisson distribution for 95 % - confidence range .32
Table 2 – Graduation of 8 size classes for particle sizes 0,3 μm – 10 μm .62

– 4 – 60312-1 © IEC:2010(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
VACUUM CLEANERS FOR HOUSEHOLD USE –

Part 1: Dry vacuum cleaners –
Methods for measuring the performance

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
cons
...

IEC 60312-1 ®
Edition 1.1 2011-11
INTERNATIONAL
STANDARD
colour
inside
Vacuum cleaners for household use –
Part 1: Dry vacuum cleaners – Methods for measuring the performance

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
IEC 60312-1 ®
Edition 1.1 2011-11
INTERNATIONAL
STANDARD
colour
inside
Vacuum cleaners for household use –
Part 1: Dry vacuum cleaners – Methods for measuring the performance

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
CQ
ICS 97.080 ISBN 978-2-88912-738-2

– 2 – 60312-1  IEC:2010+A1:2011(E)
CONTENTS
FOREWORD . 4
INTRODUCTION (to amendment 1) . 6
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 8
4 General conditions for testing . 9
4.1 Atmospheric conditions . 9
4.2 Test equipment and materials . 10
4.3 Voltage and frequency . 10
4.4 Running-in of vacuum cleaner . 10
4.5 Equipment of the vacuum cleaner . 10
4.6 Operation of the vacuum cleaner . 11
4.7 Conditioning prior to each tests . 11
4.8 Mechanical operator . 11
4.9 Number of samples. 11
4.10 In-house reference cleaner system(s) . 12
5 Dry vacuum cleaning tests . 12
5.1 Dust removal from hard flat floors . 12
5.2 Dust removal from hard floors with crevices . 14
5.3 Dust removal from carpets . 15
5.4 Dust removal along walls . 18
5.5 Fibre removal from carpets and upholstery . 19
5.6 Thread removal from carpets . 23
5.7 Maximum usable volume of the dust receptacle . 24
5.8 Air data . 25
5.9 Performance with loaded dust receptacle . 27
5.10 Total emission while vacuum cleaning . 29
5.11 Filtration efficiency of the vacuum cleaner . 30
6 Miscellaneous tests . 34
6.1 General . 34
6.2 Motion resistance . 35
6.3 Cleaning under furniture . 35
6.4 Radius of operation . 36
6.5 Impact resistance for detachable cleaning heads . 37
6.6 Deformation of hose and connecting tubes . 37
6.7 Bump test . 38
6.8 Flexibility of the hose . 40
6.9 Repeated bending of the hose . 41
6.10 Life test . 42
6.11 Mass . 43
6.12 Weight in hand . 43
6.13 Specific cleaning time . 44
6.14 Dimensions . 44
6.15 Noise level. 44
6.16 Energy consumption . 44

60312-1  IEC:2010+A1:2011(E) – 3 –
7 Test material and equipment . 46
7.1 General . 46
7.2 Material for measurements . 47
7.3 Equipment for measurements . 52
8 Instructions for use . 67
Annex A (informative) Information on materials. 68
Annex B (informative) Information at the point of sale . 69
Annex C (normative) Guidance specification on verified carpets . 70

Bibliography . 72

Figure 1 – Right-angled T . 18
Figure 2 – Determination of cleaning area . 19
Figure 3 – Stencil for distribution of fibres on test carpets . 20
Figure 4 – Zig Zag stroke pattern . 21
Figure 5 – Frame for test cushion . 22
Figure 6 – Stencil for distribution of fibres on upholstery . 22
Figure 7 – Arrangement of threads in the thread removal test . 23
Figure 8 – Stroke length in measurements . 24
Figure 9 – Air data curves . 26
Figure 10 – Connecting tube opening . 27
Figure 11 – Test dust for loading dust receptacle . 28
Figure 12 – Insertion depth . 36
Figure 13 – Position of test object and cross-section for measurement of deformation . 38
Figure 14 – Profile of threshold . 39
Figure 15 – Arrangements for bump test . 39
Figure 16 – Preparation of hoses for testing flexibility . 41
Figure 17 – Equipment for repeated bending of hoses . 42
Figure 18 – Test plate with crevice . 52
Figure 19 – Carpet-beating machine . 53
Figure 20 – Carpet hold-downs and guides . 54
Figure 21 – Dust spreader and roller for embedding dust into carpets . 54
Figure 22 – Alternative A equipment for air data measurements . 55
Figure 23 – Measuring box for alternative A . 56
Figure 24 – Alternative B equipment for air data measurements . 58
Figure 25 – Test hood . 62
Figure 26 – Aerosol channel with sampling probe . 63
Figure 27 – Exhaust channel with sampling probe . 63
Figure 28 – Drum for impact test . 65
Figure 29 – Device for testing deformation of hoses and connecting tubes . 66
Figure 30 – Mechanical operator for the measurement of dust removal from carpets and
of motion resistance . 67

Table 1 – Confidence limits of a Poisson distribution for 95 % - confidence range . 33
Table 2 – Graduation of 8 size classes for particle sizes 0,3 µm – 10 µm . 64

– 4 – 60312-1  IEC:2010+A1:2011(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
VACUUM CLEANERS FOR HOUSEHOLD USE –

Part 1: Dry vacuum cleaners –
Methods for measuring the performance

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreemen
...

IEC 60312-1 ®
Edition 1.0 2010-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Vacuum cleaners for household use –
Part 1: Dry vacuum cleaners – Methods for measuring the performance

Aspirateurs de poussière à usage domestique –
Partie 1: Aspirateurs de poussière – Méthodes de mesure de l’aptitude
à la fonction
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez

webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC Products & Services Portal - products.iec.ch

IEC 60312-1 ®
Edition 1.0 2010-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Vacuum cleaners for household use –

Part 1: Dry vacuum cleaners – Methods for measuring the performance

Aspirateurs de poussière à usage domestique –

Partie 1: Aspirateurs de poussière – Méthodes de mesure de l’aptitude

à la fonction
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.080 ISBN 978-2-8891-2179-3

– 2 – IEC 60312-1:2010  IEC 2010

CONTENTS
FOREWORD . 4

1 Scope . 6

2 Normative references . 6

3 Terms and definitions . 7

4 General conditions for testing . 8

4.1 Atmospheric conditions . 8

4.2 Test equipment and materials. 9

4.3 Voltage and frequency . 9
4.4 Running-in of vacuum cleaner . 9
4.5 Equipment of the vacuum cleaner . 9
4.6 Operation of the vacuum cleaner . 10
4.7 Conditioning prior to each tests . 10
4.8 Mechanical operator . 10
4.9 Number of samples . 10
4.10 In-house reference cleaner system(s) . 11
5 Dry vacuum cleaning tests . 11
5.1 Dust removal from hard flat floors . 11
5.2 Dust removal from hard floors with crevices . 13
5.3 Dust removal from carpets. 14
5.4 Dust removal along walls . 17
5.5 Fibre removal from carpets and upholstery . 18
5.6 Thread removal from carpets . 22
5.7 Maximum usable volume of the dust receptacle . 23
5.8 Air data . 24
5.9 Performance with loaded dust receptacle . 26
5.10 Total emission while vacuum cleaning . 28
5.11 Filtration efficiency of the vacuum cleaner . 29
6 Miscellaneous tests . 33
6.1 General . 33
6.2 Motion resistance . 34
6.3 Cleaning under furniture . 34
6.4 Radius of operation . 35

6.5 Impact resistance for detachable cleaning heads. 36
6.6 Deformation of hose and connecting tubes . 36
6.7 Bump test . 37
6.8 Flexibility of the hose . 39
6.9 Repeated bending of the hose . 40
6.10 Life test . 42
6.11 Mass . 42
6.12 Weight in hand . 42
6.13 Specific cleaning time. 43
6.14 Dimensions . 43
6.15 Noise level . 43
6.16 Energy consumption . 43
7 Test material and equipment . 46
7.1 General . 46

7.2 Material for measurements . 46

7.3 Equipment for measurements . 50

8 Instructions for use . 65

Annex A (informative) Information on materials . 66

Annex B (informative) Information at the point of sale . 67

Annex C (normative) Guidance specification on verified carpets . 68

Figure 1 – Right-angled T . 17

Figure 2 – Determination of cleaning area . 18

Figure 3 – Stencil for distribution of fibres on test carpets . 19
Figure 4 – Zig Zag stroke pattern . 20
Figure 5 – Frame for test cushion . 21
Figure 6 – Stencil for distribution of fibres on upholstery . 21
Figure 7 – Arrangement of threads in the thread removal test . 22
Figure 8 – Stroke length in measurements . 23
Figure 9 – Air data curves . 25
Figure 10 – Connecting tube adaptor . 26
Figure 10 – Connecting tube opening . 26
Figure 11 – Test dust for loading dust receptacle . 27
Figure 12 – Insertion depth . 35
Figure 13 – Position of test object and cross-section for measurement of deformation . 37
Figure 14 – Profile of threshold . 38
Figure 15 – Arrangements for bump test . 38
Figure 16 – Preparation of hoses for testing flexibility . 40
Figure 17 – Equipment for repeated bending of hoses . 41
Figure 18 – Test plat
...
