IEC 60966-4-4:2025
(Main)Radio frequency and coaxial cable assemblies - Part 4-4: Semi-rigid coaxial cable - Detail specification - Frequency range up to 6 000 MHz, type 50-5 multi-channel cables
Radio frequency and coaxial cable assemblies - Part 4-4: Semi-rigid coaxial cable - Detail specification - Frequency range up to 6 000 MHz, type 50-5 multi-channel cables
IEC 60966-4-4:2025, which is a Detail Specification, relates to multi-channel semi-rigid cable assemblies composed of type 50-5 semi-rigid coaxial cables with foamed polyethylene dielectric (see Annex A) and connectors such as type 7-16 (IEC 61169-4), type 4.1-9.5 (IEC 61169-11), type N (IEC 61169-16), type S7-16 (IEC 61169-53), type 4.3-10 (IEC 61169-54), type L32 (IEC 63138-4), type 2.2-5 (IEC 61169-66), type NEX10 (IEC 61169-71), type MQ4 (IEC 63138-2) or type MQ5 (IEC 63138-3). It gives subfamily detail requirements and severities.
This document applies to the semi-rigid cable assemblies for mobile communication, in particular for the cable assemblies used between main feeder and antennas or between main feeder and equipment system or between remote radio heads and antennas. The operating frequency is up to 6 000 MHz.
Cordons coaxiaux et cordons pour fréquences radioélectriques - Partie 4-4: Spécification particulière pour cordons semi-rigides multicanaux - Plage de fréquences allant jusqu’à 6 000 MHz, câble coaxial semi-rigide de type 50-5
L'IEC 60966-4-4:2025, qui est une spécification particulière, concerne les cordons semi-rigides multicanaux composés de câbles coaxiaux semi-rigides de type 50-5, équipés d'un diélectrique en polyéthylène expansé (voir Annexe A) et de connecteurs de type 7-16 (IEC 61169-4), de type 4.1-9.5 (IEC 61169-11), de type N (IEC 61169-16), de type S7-16 (IEC 61169-53), de type 4.3-10 (IEC 61169-54), de type L32 (IEC 63138-4), de type 2.2-5 (IEC 61169-66), de type NEX10® (IEC 61169-71), de type MQ4 (IEC 63138-2) ou de type MQ5 (IEC 63138-3). Elle donne les exigences particulières et les sévérités de sous-famille.
Le présent document s'applique aux cordons semi-rigides pour les communications mobiles, principalement pour les cordons utilisés entre la ligne d'alimentation principale et les antennes, ou entre la ligne d'alimentation principale et le système d'équipement, ou encore entre les têtes radioélectriques distantes et les antennes. La fréquence de fonctionnement s'étend jusqu'à 6 000 MHz.
General Information
Standards Content (Sample)

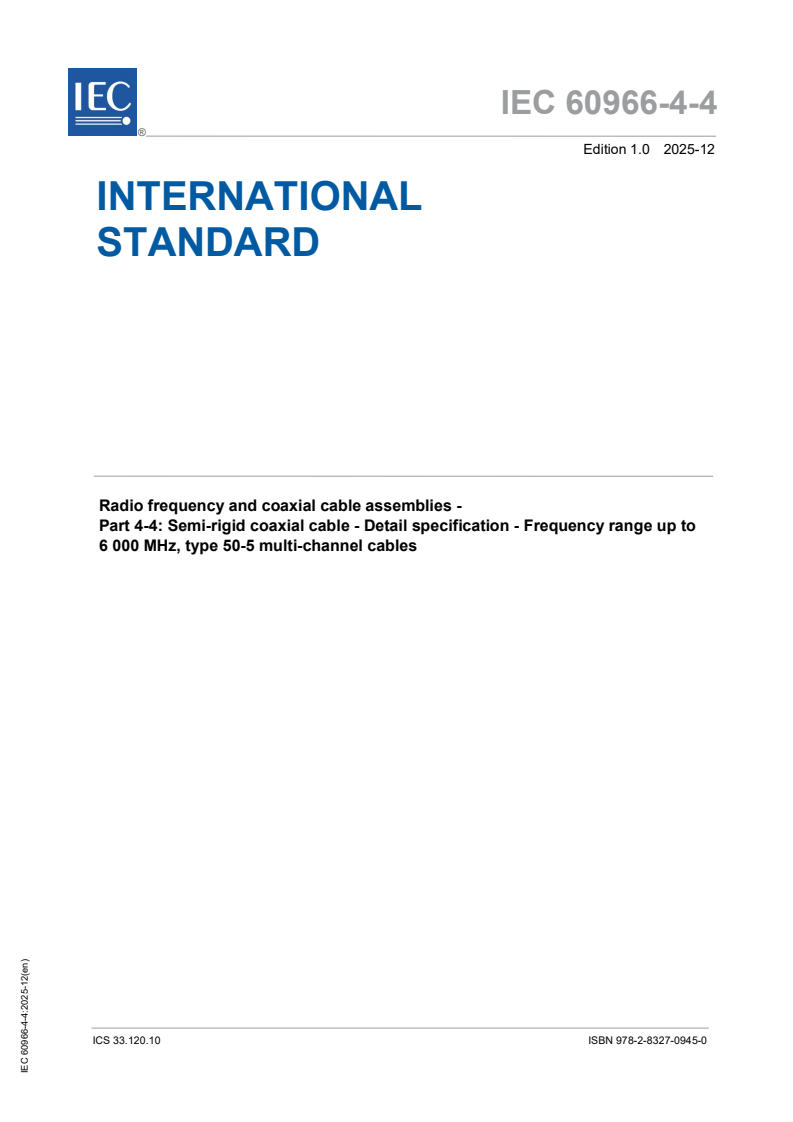

IEC 60966-4-4 ®
Edition 1.0 2025-12
INTERNATIONAL
STANDARD
Radio frequency and coaxial cable assemblies -
Part 4-4: Semi-rigid coaxial cable - Detail specification - Frequency range up to
6 000 MHz, type 50-5 multi-channel cables
ICS 33.120.10 ISBN 978-2-8327-0945-0

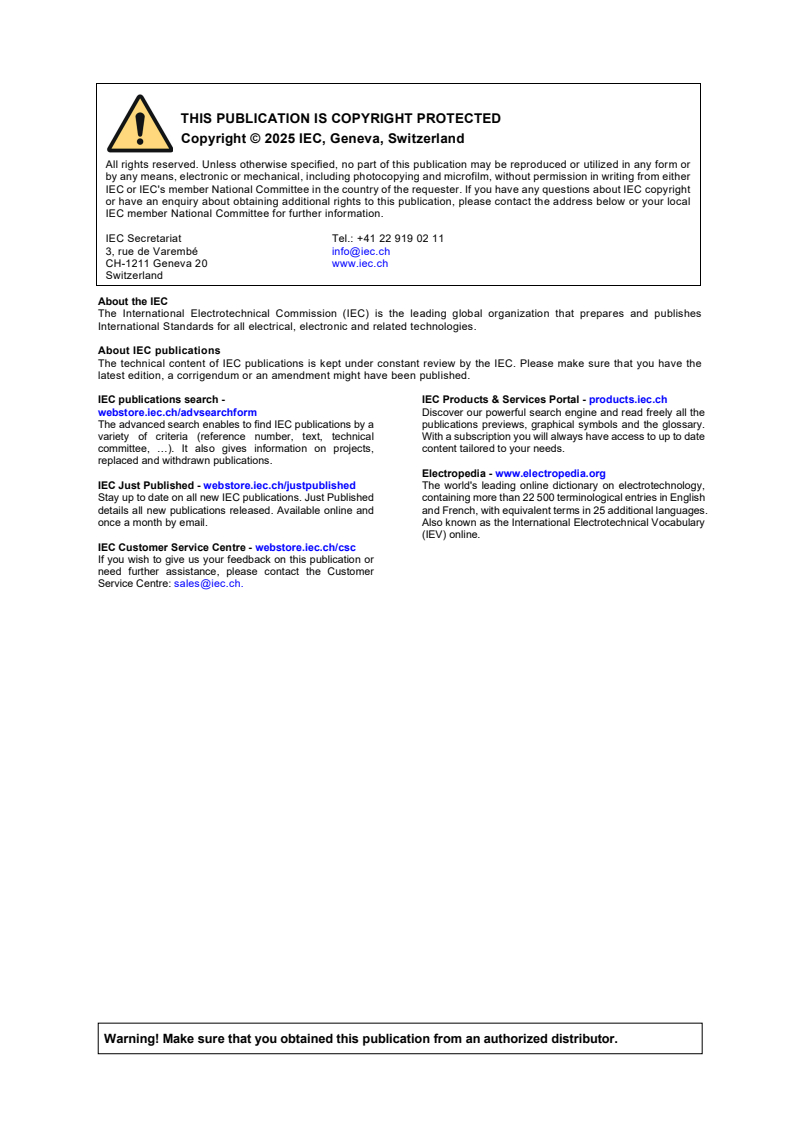

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a
publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
CONTENTS
FOREWORD . 2
1 Scope . 4
2 Normative documents . 4
3 Terms and definitions . 5
4 Detail specification . 6
Annex A (informative) Identification and marking . 13
A.1 Identification . 13
A.2 Marking . 14
Figure 1 – Length definition of cable assemblies . 6
Figure 2 – Multi-channel semi-rigid cable assemblies with type 50-5 semi-rigid coaxial
cable . 6
Figure A.1 – Identification – Type name . 13
Figure A.2 – Marking . 14
Table A.1 – Meaning of connector variants . 13
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Radio frequency and coaxial cable assemblies -
Part 4-4: Semi-rigid coaxial cable - Detail specification -
Frequency range up to 6 000 MHz, type 50-5 multi-channel cables
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60966-4-4 has been prepared by IEC technical committee 46: Cables, wires, waveguides,
RF connectors, RF and microwave passive components and accessories. It is an International
Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
46/1048/CDV 46/1064/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60966 series, published under the general title Radio frequency and
coaxial cable assemblies, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
1 Scope
This part of IEC 60966, which is a Detail Specification, relates to multi-channel semi-rigid cable
assemblies composed of type 50-5 semi-rigid coaxial cables with foamed polyethylene dielectric
(see Annex A) and connectors such as type 7-16 (IEC 61169-4), type 4.1-9.5 (IEC 61169-11),
type N (IEC 61169-16), type S7-16 (IEC 61169-53), type 4.3-10 (IEC 61169-54), type L32
(IEC 63138-4), type 2.2-5 (IEC 61169-66), type NEX10® (IEC 61169-71), type MQ4
(IEC 63138-2) or type MQ5 (IEC 63138-3). It gives subfamily detail requirements and severities.
This document applies to the semi-rigid cable assemblies for mobile communication, in
particular for the cable assemblies used between main feeder and antennas or between main
feeder and equipment system or between remote radio heads and antennas. The operating
frequency is up to 6 000 MHz.
2 Normative documents
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60068-2-11, Environmental testing - Part 2:Tests-Test Ka: Salt mist
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 60966-1:2019, Radio frequency and coaxial cable assemblies - Part 1: Generic
specification - General requirements and test methods
IEC 60966-4, Radio frequency and coaxial cable assemblies - Part 4: Sectional specification
for semi-rigid coaxial cable assemblies
IEC 60966-4-1, Radio frequency and coaxial cable assemblies - Part 4-1: Blank detail
specification for semi-rigid coaxial cable assemblies
IEC 61169-4, Radio-frequency connectors - Part 4: RF coaxial connectors with inner diameter
of outer conductor 16 mm (0,63 in) with screw lock - Characteristic impedance 50 Ω (type 7-16)
IEC 61169-11, Radio-frequency connectors - Part 11: Sectional specification for RF coaxial
connectors with inner diameter of outer conductor 9,5 mm with threaded coupling -
characteristic impedance 50 Ω (Type 4,1-9,5)
IEC 61169-16, Radio-frequency connectors - Part 16: Sectional specification - RF coaxial
connectors with inner diameter of outer conductor 7 mm (0,276 in) with screw coupling -
Characteristics impedance 50 Ω (75 Ω) (type N)
IEC 61169-53, Radio-frequency connectors - Part 53: Sectional specification for RF coaxial
connectors with inner diameter of outer conductor 16
...

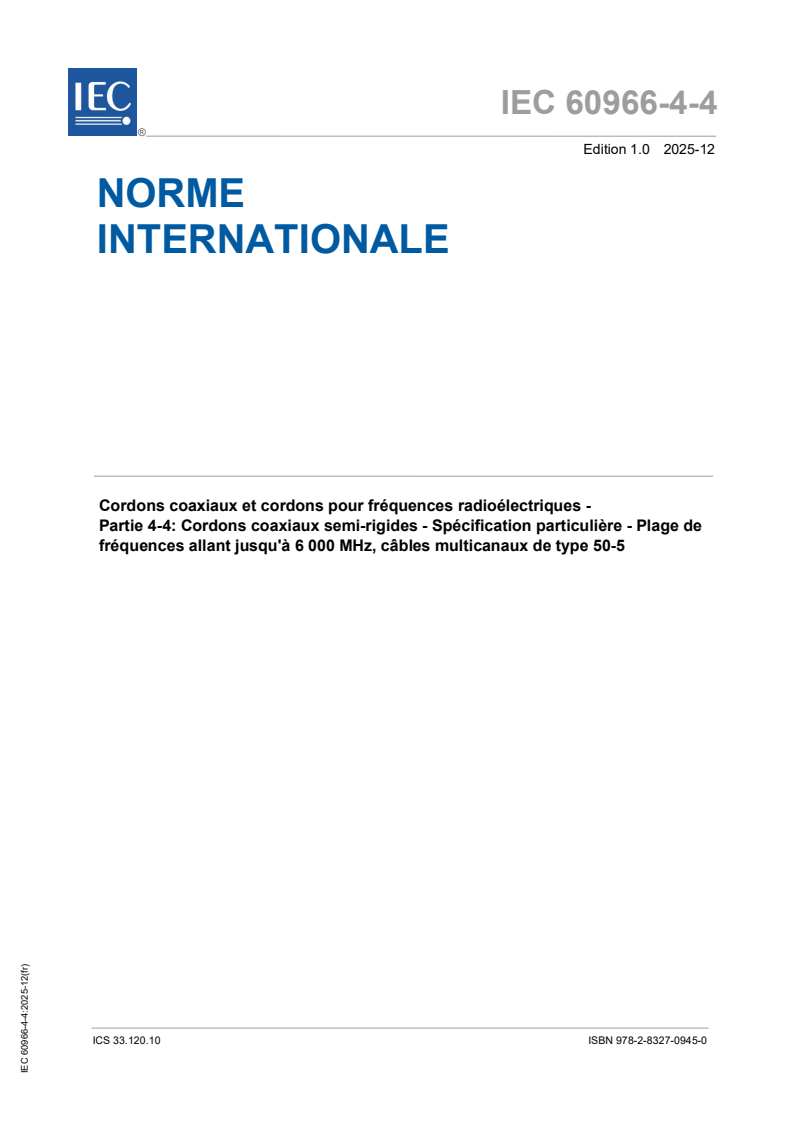

IEC 60966-4-4 ®
Edition 1.0 2025-12
NORME
INTERNATIONALE
Cordons coaxiaux et cordons pour fréquences radioélectriques -
Partie 4-4: Cordons coaxiaux semi-rigides - Spécification particulière - Plage de
fréquences allant jusqu'à 6 000 MHz, câbles multicanaux de type 50-5
ICS 33.120.10 ISBN 978-2-8327-0945-0
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications gratuitement tous les aperçus des publications, symboles
IEC en utilisant différents critères (numéro de référence, graphiques et le glossaire. Avec un abonnement, vous aurez
texte, comité d’études, …). Elle donne aussi des toujours accès à un contenu à jour adapté à vos besoins.
informations sur les projets et les publications remplacées
ou retirées. Electropedia - www.electropedia.org
Le premier dictionnaire d'électrotechnologie en ligne au
IEC Just Published - webstore.iec.ch/justpublished monde, avec plus de 22 500 articles terminologiques en
Restez informé sur les nouvelles publications IEC. Just anglais et en français, ainsi que les termes équivalents
Published détaille les nouvelles publications parues. dans 25 langues additionnelles. Egalement appelé
Disponible en ligne et une fois par mois par email. Vocabulaire Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-
nous: sales@iec.ch.
SOMMAIRE
AVANT-PROPOS . 2
1 Domaine d'application . 4
2 Références normatives . 4
3 Termes et définitions. 5
4 Spécification particulière . 6
Annexe A (informative) Identification et marquage . 13
A.1 Identification . 13
A.2 Marquage . 14
Figure 1 – Définition de la longueur des cordons . 6
Figure 2 – Cordons semi-rigides multicanaux à câble coaxial semi-rigide de type 50-5 . 6
Figure A.1 – Identification – Désignation du type . 13
Figure A.2 – Marquage. 14
Tableau A.1 – Signification des variantes de connecteurs . 13
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
Cordons coaxiaux et cordons pour fréquences radioélectriques -
Partie 4-4: Cordons coaxiaux semi-rigides - Spécification particulière -
Plage de fréquences allant jusqu'à 6 000 MHz,
câbles multicanaux de type 50-5
AVANT-PROPOS
1) La Commission Électrotechnique Internationale (IEC) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l'IEC). L'IEC a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines de
l'électricité et de l'électronique. À cet effet, l'IEC - entre autres activités - publie des Normes internationales, des
Spécifications techniques, des Rapports techniques, des Spécifications accessibles au public (PAS) et des
Guides (ci-après dénommés "Publication(s) de l'IEC"). Leur élaboration est confiée à des comités d'études, aux
travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les organisations
internationales, gouvernementales et non gouvernementales, en liaison avec l'IEC, participent également aux
travaux. L'IEC collabore étroitement avec l'Organisation Internationale de Normalisation (ISO), selon des
conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de l'IEC concernant les questions techniques représentent, dans la mesure du
possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de l'IEC intéressés
sont représentés dans chaque comité d'études.
3) Les Publications de l'IEC se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de l'IEC. Tous les efforts raisonnables sont entrepris afin que l'IEC
s'assure de l'exactitude du contenu technique de ses publications; l'IEC ne peut pas être tenue responsable de
l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de l'IEC s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de l'IEC dans leurs publications nationales
et régionales. Toutes divergences entre toutes Publications de l'IEC et toutes publications nationales ou
régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) L'IEC elle-même ne fournit aucune attestation de conformité. Des organismes de certification indépendants
fournissent des services d'évaluation de conformité et, dans certains secteurs, accèdent aux marques de
conformité de l'IEC. L'IEC n'est responsable d'aucun des services effectués par les organismes de certification
indépendants.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsabilité ne doit être imputée à l'IEC, à ses administrateurs, employés, auxiliaires ou mandataires,
y compris ses experts particuliers et les membres de ses comités d'études et des Comités nationaux de l'IEC,
pour tout préjudice causé en cas de dommages corporels et matériels, ou de tout autre dommage de quelque
nature que ce soit, directe ou indirecte, ou pour supporter les coûts (y compris les frais de justice) et les dépenses
découlant de la publication ou de l'utilisation de cette Publication de l'IEC ou de toute autre Publication de l'IEC,
ou au crédit qui lui est accordé.
8) L'attention est attirée sur les références normatives citées dans cette publication. L'utilisation de publications
référencées est obligatoire pour une application correcte de la présente publication.
9) L'IEC attire l'attention sur le fait que la mise en application du présent document peut entraîner l'utilisation d'un
ou de plusieurs brevets. L'IEC ne prend pas position quant à la preuve, à la validité et à l'applicabilité de tout
droit de brevet revendiqué à cet égard. À la date de publication du présent document, l'IEC n'a pas reçu
notification qu'un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois, il y a lieu
d'avertir les responsables de la mise en application du présent document que des informations plus récentes
sont susceptibles de figurer dans la base de données de brevets, disponible à l'adresse https://patents.iec.ch.
L'IEC ne saurait être tenue pour responsable de ne pas avoir identifié de tels droits de brevets.
L'IEC 60966-4-4 a été établie par le comité d'études 46 de l'IEC: Câbles, fils, guides d'ondes,
connecteurs, composants passifs pour micro-onde et accessoires. Il s'agit d'une Norme
internationale.
Le texte de cette Norme internationale est issu des documents suivants:
Projet Rapport de vote
46/1048/CDV 46/1064/RVC
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à son approbation.
La langue employée pour l'élaboration de cette Norme internationale est l'anglais.
Ce document a été rédigé selon les Directives ISO/IEC, Partie 2, il a été développé selon les
Directives ISO/IEC, Partie 1 et les Directives ISO/IEC, Supplément IEC, disponibles sous
www.iec.ch/members_experts/refdocs. Les principaux types de documents développés par
l'IEC sont décrits plus en détail sous www.iec.ch/publications.
Une liste de toutes les parties de la série IEC 60966, publiées sous le titre général Cordons
coaxiaux et cordons pour fréquences radioélectriques, se trouve sur le site web de l'IEC.
Le comité a décidé que le contenu de ce document ne sera pas modifié avant la date de stabilité
indiquée sur le site web de l'IEC sous webstore.iec.ch dans les données relatives au document
recherché. À cette date, le document sera
– reconduit,
– supprimé, ou
– révisé.
1 Domaine d'application
La présente partie de l'IEC 60966, qui est une spécification particulière, concerne les cordons
semi-rigides multicanaux composés de câbles coaxiaux semi-rigides de type 50-5, équipés d'un
diélectrique en polyéthylène expansé (voir Annexe A) et de connecteurs de type 7-16
(IEC 61169-4), de type 4.1-9.5 (IEC 61169-11), de type N (IEC 61169-16), de type S7-16
(IEC 61169-53), de type 4.3-10 (IEC 61169-54), de type L32 (IEC 63138-4), de type 2.2-5
(IEC 61169-66), de type NEX10® (IEC 61169-71), de type MQ4 (IEC 63138-2) ou de type MQ5
(IEC 63138-3). Elle donne les exigences particulières et les sévérités de sous-famille.
Le présent document s'applique aux cordons semi-rigides pour les communications mobiles,
principalement pour les cordons utilisés entre la ligne d'alimentation principale et les antennes,
ou entre la ligne d'alimentation principale et le système d'équipement, ou encore entre les têtes
radioélectriques distantes et les antennes. La fréquence de fonctionnement s'étend jusqu'à
6 000 MHz.
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu'ils constituent, pour tout ou partie
de leur contenu, des exigences du présent document. Pour les références datées, seule
l'édition citée s'applique. Pour les références non datées, la dernière édition du document de
référence s'applique (y compris les éventuels amendements).
IEC 60068-2-11, Essais d'environnement - Partie 2-11: Essais - Essai Ka: Brouillard salin
IEC 60529, Degrés de protection procurés par les enveloppes (Code IP)
IEC 60966-1:2019, Cordons coaxiaux et cordons pour fréquences radioélectriques - Partie 1:
Spécification générique - Exigences générales et méthodes d'essai
IEC 60966-4, Cordons coaxiaux et cordons pour fréquences radioélectriques - Partie 4:
Spécification intermédiaire pour cordons coaxiaux semi-rigides
IEC 60966-4-1, Cordons coaxiaux et cordons pour fréquences radioélectriques - Partie 4-1:
Spécification particulière-cadre pour cordons coaxiaux semi-rigides
IEC 61169-4, Connecteurs pour fréquences radioélectriques - Partie 4: Connecteurs coaxiaux
pour fréquences radioélectriques de diamètre intérieur du conducteur extérieur de 16 mm
(0,63 in) à verrouillage à vis - Impédance caractéristique 50 Ω (type 7-16)
IEC 61169-11, Connecteurs pour fréquences radioélectriques - Partie 11: Spécification
intermédiaire relative aux connecteurs coaxiaux pour fréquences radioélectriques avec
diamètre intérieur du conducteur extérieur de 9,5 mm à accouplement par vis - Impédance
caractéristique 50 Ω (Type 4,1-9,5)
IEC 61169-16, Connecteurs pour fréquences radioélectriques - Partie 16: Spécification
intermédiaire - Connecteurs coaxiaux pour fréquences radioélectriques avec diamètre intérieur
du conducteur extérieur de 7 mm (0,276 in) à verrouillage à vis - Impédance caractéristique
50 Ω (75 Ω) (type N)
___________
NEX10® est un exemple de produit approprié disponible sur le marché. Cette information est donnée à l’intention
des utilisateurs du présent document et ne signifie nullement que l'IEC approuve l’emploi du produit ainsi désigné.
IEC 61169-53, Connecteurs pour fréquences radioélectriques - Partie 53:
...
IEC 60966-4-4 ®
Edition 1.0 2025-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio frequency and coaxial cable assemblies -
Part 4-4: Semi-rigid coaxial cable - Detail specification - Frequency range up to
6 000 MHz, type 50-5 multi-channel cables
Cordons coaxiaux et cordons pour fréquences radioélectriques -
Partie 4-4: Cordons coaxiaux semi-rigides - Spécification particulière - Plage de
fréquences allant jusqu'à 6 000 MHz, câbles multicanaux de type 50-5
ICS 33.120.10 ISBN 978-2-8327-0945-0
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications gratuitement tous les aperçus des publications, symboles
IEC en utilisant différents critères (numéro de référence, graphiques et le glossaire. Avec un abonnement, vous aurez
texte, comité d’études, …). Elle donne aussi des toujours accès à un contenu à jour adapté à vos besoins.
informations sur les projets et les publications remplacées
ou retirées. Electropedia - www.electropedia.org
Le premier dictionnaire d'électrotechnologie en ligne au
IEC Just Published - webstore.iec.ch/justpublished monde, avec plus de 22 500 articles terminologiques en
Restez informé sur les nouvelles publications IEC. Just anglais et en français, ainsi que les termes équivalents
Published détaille les nouvelles publications parues. dans 25 langues additionnelles. Egalement appelé
Disponible en ligne et une fois par mois par email. Vocabulaire Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-
nous: sales@iec.ch.
CONTENTS
FOREWORD . 2
1 Scope . 4
2 Normative documents . 4
3 Terms and definitions . 5
4 Detail specification . 6
Annex A (informative) Identification and marking . 13
A.1 Identification . 13
A.2 Marking . 14
Figure 1 – Length definition of cable assemblies . 6
Figure 2 – Multi-channel semi-rigid cable assemblies with type 50-5 semi-rigid coaxial
cable . 6
Figure A.1 – Identification – Type name . 13
Figure A.2 – Marking . 14
Table A.1 – Meaning of connector variants . 13
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Radio frequency and coaxial cable assemblies -
Part 4-4: Semi-rigid coaxial cable - Detail specification -
Frequency range up to 6 000 MHz, type 50-5 multi-channel cables
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60966-4-4 has been prepared by IEC technical committee 46: Cables, wires, waveguides,
RF connectors, RF and microwave passive components and accessories. It is an International
Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
46/1048/CDV 46/1064/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60966 series, published under the general title Radio frequency and
coaxial cable assemblies, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
1 Scope
This part of IEC 60966, which is a Detail Specification, relates to multi-channel semi-rigid cable
assemblies composed of type 50-5 semi-rigid coaxial cables with foamed polyethylene dielectric
(see Annex A) and connectors such as type 7-16 (IEC 61169-4), type 4.1-9.5 (IEC 61169-11),
type N (IEC 61169-16), type S7-16 (IEC 61169-53), type 4.3-10 (IEC 61169-54), type L32
(IEC 63138-4), type 2.2-5 (IEC 61169-66), type NEX10® (IEC 61169-71), type MQ4
(IEC 63138-2) or type MQ5 (IEC 63138-3). It gives subfamily detail requirements and severities.
This document applies to the semi-rigid cable assemblies for mobile communication, in
particular for the cable assemblies used between main feeder and antennas or between main
feeder and equipment system or between remote radio heads and antennas. The operating
frequency is up to 6 000 MHz.
2 Normative documents
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60068-2-11, Environmental testing - Part 2:Tests-Test Ka: Salt mist
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 60966-1:2019, Radio frequency and coaxial cable assemblies - Part 1: Generic
specification - General requirements and test methods
IEC 60966-4, Radio frequency and coaxial cable assemblies - Part 4: Sectional specification
for semi-rigid coaxial cable assemblies
IEC 60966-4-1, Radio frequency and coaxial cable assemblies - Part 4-1: Blank detail
specification for semi-rigid coaxial cable assemblies
IEC 61169-4, Radio-frequency connectors - Part 4: RF coaxial connectors with inner diameter
of outer conductor 16 mm (0,63 in) with screw lock - Characteristic impedance 50 Ω (type 7-16)
IEC 61169-11, Radio-frequency connectors - Part 11: Sectional specification for RF coaxial
connectors with inner diameter of outer conductor 9,5 mm with threaded coupling -
characteristic impedance 50 Ω (Type 4,1-9,5)
IEC 61169-16, Radio-frequency connectors - Part 16: Sectional specification - RF coaxial
connectors with inner diameter of outer conductor 7 mm (0,276 in) with screw coupling -
Characteristics impedance 50 Ω (75 Ω) (type N)
IEC 61169-53, Radio-frequency connectors - Part 53: Sectional specification for RF coaxial
connectors with inner diameter of outer conductor 16 mm with screw lock - Characteristic
impedance 50 Ω (Type S7-16)
___________
NEX10® is an example of a suitable product available commercially. This information is given for the convenience
of users of this document and does not constitute an endorsement by IEC of this product.
IEC 61169-54, Radio-frequency connectors - Part 54: Sectional specification for coaxial
connectors with 10 mm inner diameter of outer conductor, nominal characteristic impedance
50 Ω, Series 4,3-10)
IEC 61169-66, Radio-frequency connectors - Part 66: Sectional specification for RF coaxial
connectors with 5 mm inner diameter of outer conductor, with quick-lock- or screw-coupling，
characteristic impedance 50 Ω (series 2,2-5)
IEC 61169-71, Radio-frequency connectors - Part 71: Sectional specification for RF coaxial
connectors with inner diameter of outer conductor 5 mm - Characteristic impedance 50 Ohms - ®
type NEX10
IEC 61196-11, Coaxial communication cables - Part 11: Sectional specification for semi-rigid
cables with polyethylene (PE) dielectric
IEC 63138-1:2019, Multi-channel radio frequency connectors - Part 1: Generic specification -
General requirements and test methods
IEC 63138-2, Multi-channel radio-frequency connectors - Part 2: Sectional specification for
MQ4 series circular connectors
IEC 63138-3, Multi-channel radio frequency connectors - Part 3: Sectional specification for MQ5
series circular connectors
IEC 63138-4 , Multi-channel radio-frequency connectors - Part 4: Sectional specification for
type L32-4 and L32-5 circular connectors
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
___________
Under preparation. Stage at the time of publication: IEC/CFDIS 63138-4:2025.
4 Detail specification
[1] Prepared by: [2] Document no.: IEC 60966-4-4
IEC TC 46 Issue: First issue
Date:
[3] Available from: [4] Generic specification: IEC 60966-1
IEC Sectional specification: IEC 60966-4
Blank detail specification: IEC 60966-4-1
[5] Additional references:
Outline for semi-rigid coaxial cable assemblies
NOTE Example diagram, see Figure 1 and Figure 2; manufacturer will insert actual diagram.
Figure 1 – Length definition of cable assemblies
Figure 2 – Multi-channel semi-rigid cable assemblies
with type 50-5 semi-rigid coaxial cable
[6]
Maximum diameter of type 50-5 semi-rigid coaxial cable < 8,2 mm
Characteristic impedance:
[7] [8] Frequency: up to 6 000 MHz
50 Ω
[9] Typical weight: [10] Minimum inside radius:
Cable: 70 g/m For static bending: 25 mm
Connector: For dynamic bending: 30 mm
Type L32-4: 120 g
Type L32-5: 135 g
Type MQ4: 155 g
Type MQ5: 155 g
Type 7-16: 120 g
Type 4.1-9.5: 85 g
Type N: 75 g
Type S 7-16: 95 g
Type 4.3-10: 90 g
Type 2.2-5: 35 g
Type NEX10: 35 g
Applicable test group:
[11] Climatic category: 40/70/21 [12]
Ba, Eh, Eb, Ez, Ep,Ee, Et, Mn, Vv, Vc, Vt, Vf
[13] Connector reference number IEC 61169-4 (type 7-16)
IEC 61169-11 (type 4.1-9.5)
IEC 61169-16 (type N)
IEC 61169-53 (type S7-16)
IEC 61169-54 (type 4.3-10)
IEC 61169-66 (type 2.2-5)
IEC 61169-71 (type NEX10)
IEC 63138-4 (type L32)
IEC 63138-2 (type MQ4)
IEC 63138-3 (type MQ5)
Type(series), style, sex of the Connector A:
connector
Type MQ4, straight, male or female
Type MQ5, straight, male or female
Type L32-4, straight, male or female
Type L32-5, straight, male or female
Connector B:
Type MQ4, straight, male or female
Type MQ5, straight, male or female
Type L32-4, straight, male or female
Type L32-5, straight, male or female
Type 7-16, straight or right angled, male or female
Type 4.1-9.5, straight or right angled, male or female
Type N, straight or right angled, male or female
Type S7-16, straight or right angled, male or female
Type 4.3-10, straight or right angled, male or female
Type 2.2-5, straight or right angled, male or female
Type NEX10, straight or right angled, male or female
Reference no, type of the cable IEC 61196-11, 50-5 (1/4")
Marking method Marking of the assembly shall be applied to the sheath of the cable.
Marking text The marking shall consist at least of the IEC cable assembly type
and IEC standard number (see Clause A.2).
[14] Variants: See Clause A.1 [15] Page 1 of pages
[16] [17] [18] [19]
Inspection values, IEC 60966-1:2019, Value Remarks
ratings or Subclause
characteristics
Electrical
1) With straight connector:
≥ 26 dB (DC to 2 200 MHz)
≥ 21 dB (2 200 MHz to 4 000 MHz)
Reflection properties ≥ 17 dB (4 000 M Hz to 6 000 MHz)
8.1
(return loss) 2) With right angled connector:
≥ 24 dB (DC to 2 200 MHz)
≥ 19 dB (2 200 MHz to 4 000 MHz)
≥ 16 dB (4 000 MHz to 6 000 MHz)
Uniformity of Rise time of pulse
8.2 50 Ω ± 2 Ω
impedance < 150 ps
≤ 0,01× aL× +×2 0,05 f
f
a is the attenuation constant of the cable
f
and shall be as specified in the relevant
Insertion loss 8.3
detail specification, in dB/100 m
L: see Figure 1, in m
f: in GHz
Propagation time 8.5 4,01 ns ± 0,09 ns
1) ≤ −110 dB (screw thread)
Screening
8.9
effectiveness
2) ≤ −70 dB (quick lock)
Voltage proof 8.10 1,0 kV AC 1 min
Test voltage：
500 V DC
Insulation resistance 8.11
≥ 5 000 MΩ
60 s ± 5 s
Inner and outer Inner conductor and outer conductor
8.12 Test voltage ≤ 36 V DC
conductor continuity shall be continuous
Temperature：40 °C
Power rating 8.13 ≥ 150 W
DC to 2 000 MHz
(single channel)
Test power: 2 × 20 W
Test frequency:
Intermodulation level
700 MHz,
8.14 ≤ −155 dBc
(PIM3)
900 MHz, 1 800 MHz,
2 100 MHz, 2 600 MHz
IEC 63138-1:2019, Test between two
Isolation ≥ 90 dB, 0,1 MHz to 6 000 MHz
8.4.9 adjacent channels
[16] [17] [18] [19]
Inspection values, IEC 60966-1:2019, Value Remarks
ratings or Subclause
characteristics
Mechanical
1) Inner contact and insulator positions
shall be in accordance with interface Force: 250 N (single
dimensions. channel)
Tensile 9.1 2) No visual evidence of the movement Duration: 60 s
of the cable relative to the connector.
Test:
3) Return loss shall meet IEC 60966-1:2019, 8.1
IEC 60966-1:2019, 8.1.
1) Inner contact and insulator positions
shall be in accordance with interface
≤ 2 Nm (single channel)
dimensions.
Torque 9.5
Test:
2) No visual damage in cable assembly.
IEC 60966-1:2019, 8.1
3) Return loss shall meet
IEC 60966-1:2019, 8.1
Environmental
1) No visual damage in cable assembly.
(20 g)
196 m/s
Vibration 10.2
2) No electrical interruptions exceeding
10 Hz to 2 000 Hz
1 μs.
490 m/s (50 g)
Bumps 10.2 No visual damage in cable assembly.
Number of
bumps:1 000
1) No visual damage in cable assembly.
490 m/s (50 g)
Shock 10.2
2) No electrical interruptions exceeding
Half-sine 11 ms
1 μs.
1) No visual damage in cable assembly.
Cycles:1
2) Insertion loss shall meet
IEC 60966-1:2019, 8.3.
(connectors un-mated)
Climatic sequence 10.3
3) Voltage proof shall meet
Tests:
IEC 60966-1:2019, 8.10.
IEC 60966-1:2019, 7.2,
8.3, 8.10, 8.11
4) Insulation resistance shall meet
IEC 60966-1:2019, 8.11.
Cycles:1
Days: 21 (connectors
1) No visual damage in cable assembly.
Damp heat, steady un-mated)
10.4
2) Insertion loss shall meet
state
Tests:
IEC 60966-1:2019, 8.3.
IEC 60966-1:2019, 7.2,
8.3
1) Inner contact and insulator positions
shall be in accordance with interface
Test temperature:
dimensions.
T = −40 °C, T = 70 °C
A B
2) No visual damage in cable assembly.
t: 4 h
Rapid change of 3) Insertion loss shall meet
10.5
temperature IEC 60966-1:2019, 8.3.
Cycles: 5
4) Voltage proof shall meet
Tests:
IEC 60966-1:2019, 8.10.
IEC 60966-1:2019, 7.2,
8.3, 8.10, 8.11
5) Insulation resistance shall meet
IEC 60966-1:2019, 8.11.
[16] [17] [18] [19]
Inspection values, IEC 60966-1:2019, Value Remarks
ratings or Subclause
characteristics
1) No visual damage in cable assembly.
According to
2) Insertion loss shall meet
IEC 60068-2-11
Salt mist and sulphur
10.8 IEC 60966-1:2019, 8.3.
dioxide tests
Duration of spraying:
3) Insulation resistance shall meet
48 h
IEC 60966-1:2019, 8.11.
Water immersion and
IEC 60529 Meet IP67
dust tests (IP code)
If applicable:
1) The cable shall not continue to burn
for more than 15 s after removal from
Flammability 10.10
the flame.
2) During the test, burning particles
shall be not detached from the cable.
Recommended grouping of test Recommended severities [28]
Length of
[20] [21] Test [22] [23] [24] [25] [26]
specimen
c d a b
Group IEC 60966-1:2019, Periodicity
IL AQL n c
Subclause
Ba 7.2 Visual inspection Lot by lot 100 % 4.0
7.3 Dimensions Lot by lot 100 % 4.0
inspection
Eh 8.1 Reflection Lot by lot 20 % 1.0
properties (return
loss)
8.3 Insertion loss Lot by lot 20 % 1.0
IEC 63138-1:2019, Isolation Lot by lot 20 % 1.0
8.4.9
e
8.14 Intermodulation Lot by lot II
level
measurement
(PIM3)
Eb 8.10 Voltage proof Lot by lot 20 % 1.0
8.11 Insulation Lot by lot 20 % 1.0
resistance
8.12 Lot by lot 20 % 1.0
Inner and outer
conductor
continuity
Uniformity of
Ez
8.2 Lot by lot 20 % 1.0
impedance
Ep 8.5 Propagation time Lot by lot 100 % 2
Ee Screening
8.9 1 year － 1 0
effectiveness
Et
8.13 Power rating 1 year － 1 0
Recommended grouping of test Recommended severities [28]
Length of
[20] [21] Test [22] [23] [24] [25] [26]
specimen
c d a b
Group IEC 60966-1:2019, Periodicity
IL AQL n c
Subclause
Mn 9.1 Tensile 3 years 3 0 On a
－ －
CQC
9.5 Torque 3 years
－
variant 1
l = 300 m
m
Vv Vibration, bumps
e
10.2 3 years －
and shock
Vc Climatic
e
10.3 3 years －
sequence
e
Vt 10.4 Damp heat, 3 years -
steady state
e
10.5 Rapid change of 3 years -
temperature
e
10.8 Salt mist and 1 years -
sulphur dioxide
e
Vf IEC 60529 Water immersion 3 years -
and dust tests (IP
code)
e
10.10 Flammability 3 years -
a
n is the number of samples to be tested.
b
"c" is the acceptance criterion.
c
IL is the inspection level.
d
AQL is the acceptable quality level.
e
This periodic test shall be completed on a CQC (capability qualifying component) defined between the
customer and their supplier.
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
