IEC 60335-2-51:2023
(Main)Household and similar electrical appliances - Safety - Part 2-51: Particular requirements for stationary circulation pumps for heating and service water installations
Household and similar electrical appliances - Safety - Part 2-51: Particular requirements for stationary circulation pumps for heating and service water installations
IEC 60335-2-51:2023 deals with the safety of electric stationary circulation pumps for house-hold and similar purposes intended for use in heating systems or in service water sys-tems, their rated voltage being not more than 250 V for single-phase appliances and 480 V for other appliances including direct current (DC) supplied appliances. The hydraulic and electrical parts of the pump can be in the same enclosure, so that the water flows through the motor and serves as a coolant, or they can be separated. Appliances not intended for normal household use, but that nevertheless can be a source of danger to the public, such as appliances intended to be used by laymen in shops, in light industry and on farms, are within the scope of this standard. As far as is practicable, this standard deals with the common hazards presented by ap-pliances that are encountered by all persons in and around the home. However, in gen-eral, it does not take into account:
- persons (including children) whose physical, sensory or mental capabilities; or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction;
- children playing with the appliance.
Attention is drawn to the fact that
- for appliances intended to be used in vehicles or on-board ships or aircraft, additional requirements can be necessary;
- in many countries additional requirements are specified by the national health authori-ties, the national authorities responsible for the protection of labour and similar au-thorities.
This standard does not apply to
- pumps for circulating liquids other than water;
- pumps, other than circulation pumps (IEC 60335-2-41);
- circulation pumps intended exclusively for industrial purposes;
- circulation pumps intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive atmosphere (dust, vapour, or gas).
This fifth edition cancels and replaces the fourth edition published in 2019. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the pre-vious edition:
a) the text has been aligned with IEC 60335-1:2020;
b) some notes have been converted to normative text (Clause 1);
c) the use of separate connectors to ease the installation and establish the supply con-nection has been introduced (7.12.1, 22.102, 24.1.5, 24.1.101, 25.3);
d) clarifications related to remote operation (22.40, 22.49, 22.51).
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its amendments unless that edition precludes it; in that case, the latest edition that does not preclude it is used. It was established on the basis of the sixth edition (2020) of that standard.
Appareils électrodomestiques et analogues - Sécurité - Partie 2-51: Exigences particulières pour les pompes de circulation fixes pour installations de chauffage et de distribution d'eau
L'IEC 60335-2-51:2023 traite de la sécurité des pompes de circulation fixes électriques à usage domestique et analogue, destinées à être utilisées dans des installations de chauffage ou de distribution d'eau, dont la tension assignée est inférieure ou égale à 250 V pour les appareils monophasés et à 480 V pour les autres appareils, y compris les appareils alimentés en courant continu. Les parties hydrauliques et électriques de la pompe peuvent être situées dans la même enveloppe, de sorte que l'eau s'écoule à travers le moteur et serve de liquide de refroidissement, ou elles peuvent être séparées.
Les appareils non destinés à un usage domestique normal, mais qui peuvent néanmoins constituer une source de danger pour le public, tels que les appareils destinés à être utilisés par des usagers non avertis dans des magasins, chez des artisans et dans des fermes, sont compris dans le domaine d'application de la présente norme. Dans la mesure du possible, la présente norme traite des dangers courants que présentent les appareils et auxquels sont exposés tous les individus situés à l'intérieur et autour de l'habitation. Cependant, elle ne tient en général pas compte:
- des personnes (y compris des enfants) dont les capacités physiques, sensorielles ou mentales; ou le manque d'expérience et de connaissance les empêchent d'utiliser l'appareil en toute sécurité sans surveillance ou instruction;
- des enfants qui jouent avec l'appareil.
L'attention est attirée sur le fait que:
- pour les appareils destinés à être utilisés dans des véhicules ou à bord de navires ou d'avions, des exigences supplémentaires peuvent être nécessaires;
- dans de nombreux pays, des exigences supplémentaires sont spécifiées par les organismes nationaux de la santé, par les organismes nationaux responsables de la protection des travailleurs et par des organismes similaires.
La présente norme ne s'applique pas:
- aux pompes destinées à la circulation de liquides autres que l'eau;
- aux pompes autres que les pompes de circulation (IEC 60335-2-41);
- aux pompes de circulation destinées exclusivement à des usages industriels;
- aux pompes de circulation destinées à être utilisées dans des locaux qui présentent des conditions particulières, telles que la présence d'une atmosphère corrosive ou explosive (poussière, vapeur ou gaz).
Cette cinquième édition annule et remplace la quatrième édition parue en 2019. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) le texte a été aligné sur l'IEC 60335-1:2020;
b) certaines notes ont été converties en texte normatif (Article 1);
c) l'emploi de connecteurs distincts a été ajouté afin de faciliter l'installation et d'effectuer le raccordement au réseau (7.12.1, 22.102, 24.1.5, 24.1.101, 25.3);
d) l'emploi de la commande à distance a été clarifié (22.40, 22.49, 22.51).
La présente partie 2 doit être utilisée conjointement avec la dernière édition de l'IEC 60335-1 et ses amendements sauf si cette édition l'exclut. Dans ce cas, la dernière édition qui n'exclut pas la présente partie 2 est utilisée. Elle a été établie sur la base de la sixième édition (2020) de cette norme.
General Information
Relations
Standards Content (Sample)

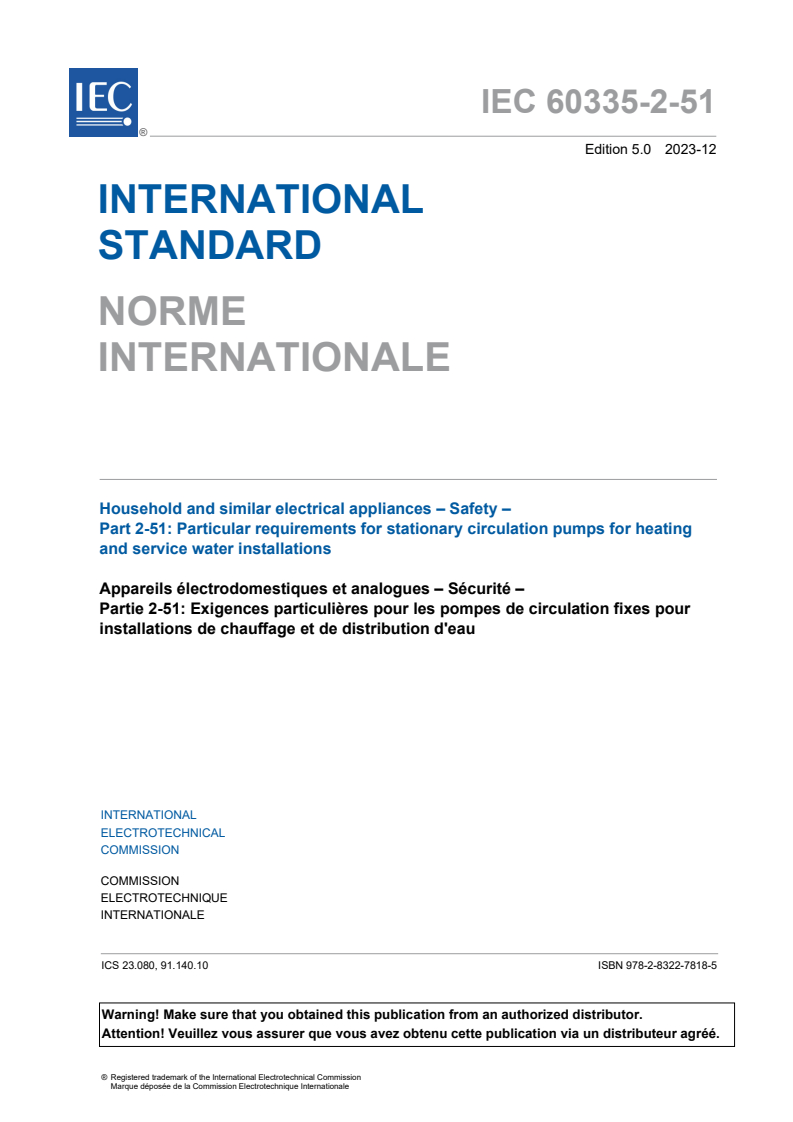

IEC 60335-2-51 ®
Edition 5.0 2023-12
COMMENTED VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-51: Particular requirements for stationary circulation pumps for heating
and service water installations
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60335-2-51 ®
Edition 5.0 2023-12
COMMENTED VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-51: Particular requirements for stationary circulation pumps for heating
and service water installations
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 23.080, 91.140.10 ISBN 978-2-8322-8047-8
– 2 – IEC 60335-2-51:2023 CMV © IEC 2023

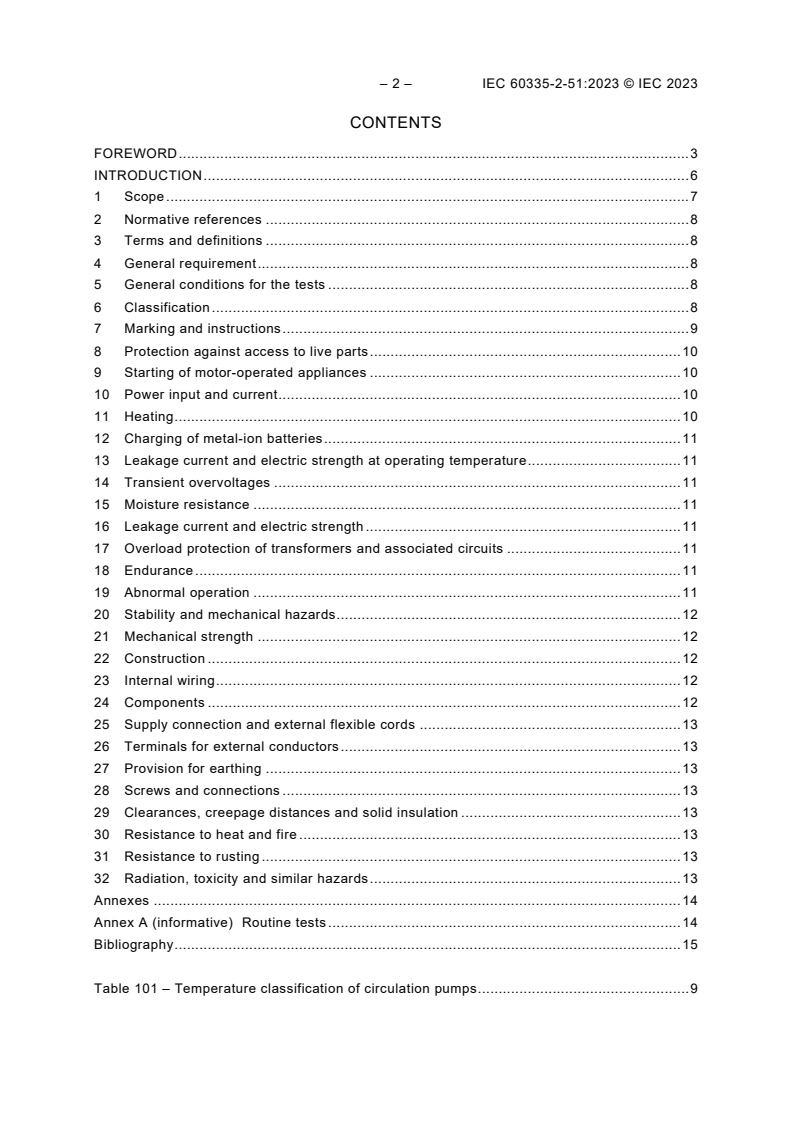

CONTENTS
