IEC TS 62818-1:2024

Conductors for overhead lines - Fiber reinforced composite core used as supporting member material - Part 1: Polymeric matrix composite cores

IEC TS 62818-1:2024 establishes a system of fiber reinforced composite core used as supporting member material in conductors for overhead lines which may be used as the basis for specifications. This document is applicable to fiber reinforced composite core, with polymeric matrix, used as supporting member material in conductors for overhead lines.
This document gives guidance on:
- defining the common terms used for fiber reinforced composite core with polymeric matrix,
- prescribing common methods and recommendations to characterize the properties of fiber reinforced composite core based on single or multi-wires with PMC (Polymeric Matrix Composite) used as supporting member material in conductors,
- prescribing or recommending acceptance or failure criteria when applicable.
These tests, criteria and recommendations are intended to ensure a satisfactory use and quality under normal operating and environmental conditions.
This document does not apply to compliance criteria which may be required but indicative values could be given in Annexes for guidance.

General Information

• Status: Published
• Publication Date: 11-Dec-2024
• ICS: 29.240.20 - Power transmission and distribution lines
• Technical Committee: TC 7 - Overhead electrical conductors
• Drafting Committee: PT 62818 - TC 7/PT 62818
• Current Stage: PPUB - Publication issued
• Start Date: 06-Dec-2024
• Completion Date: 12-Dec-2024

Standards Content (Sample)

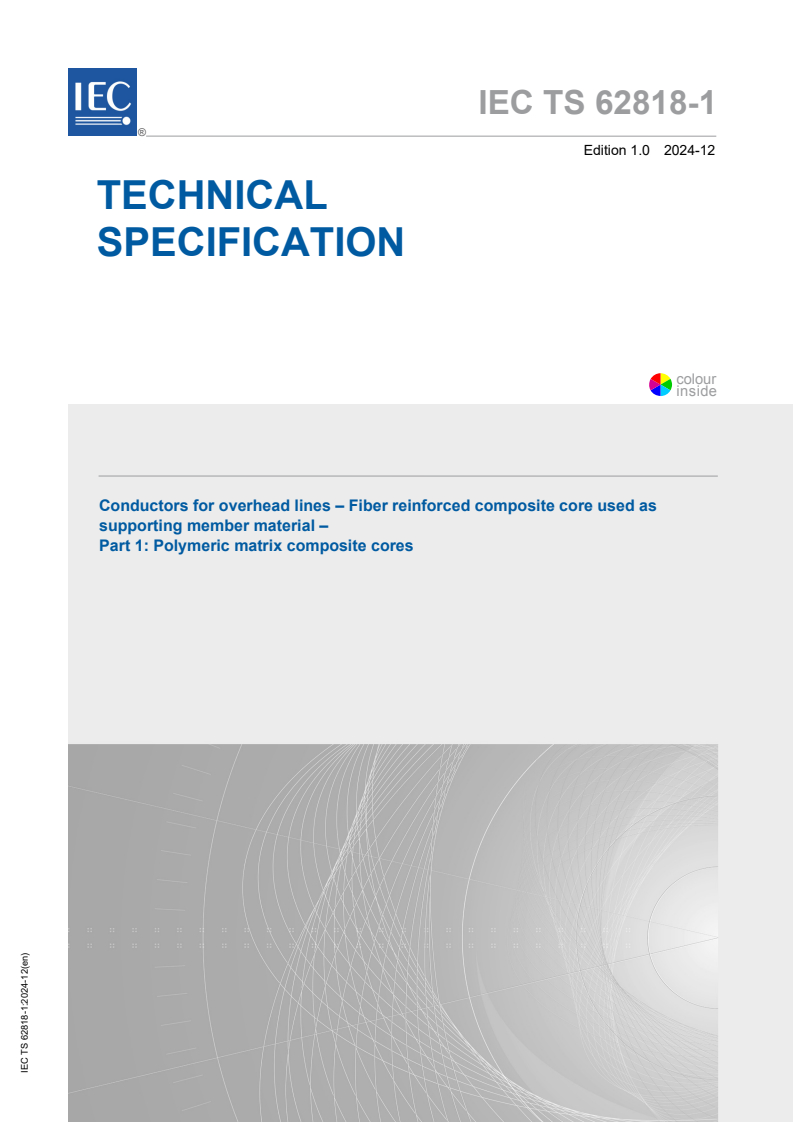

IEC TS 62818-1 ®
Edition 1.0 2024-12
TECHNICAL
SPECIFICATION
colour
inside
Conductors for overhead lines – Fiber reinforced composite core used as
supporting member material –
Part 1: Polymeric matrix composite cores

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC TS 62818-1 ®
Edition 1.0 2024-12
TECHNICAL
SPECIFICATION
colour
inside
Conductors for overhead lines – Fiber reinforced composite core used as

supporting member material –
Part 1: Polymeric matrix composite cores

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.240.20  ISBN 978-2-8322-6983-1

– 2 – IEC TS 62818-1:2024 © IEC 2024

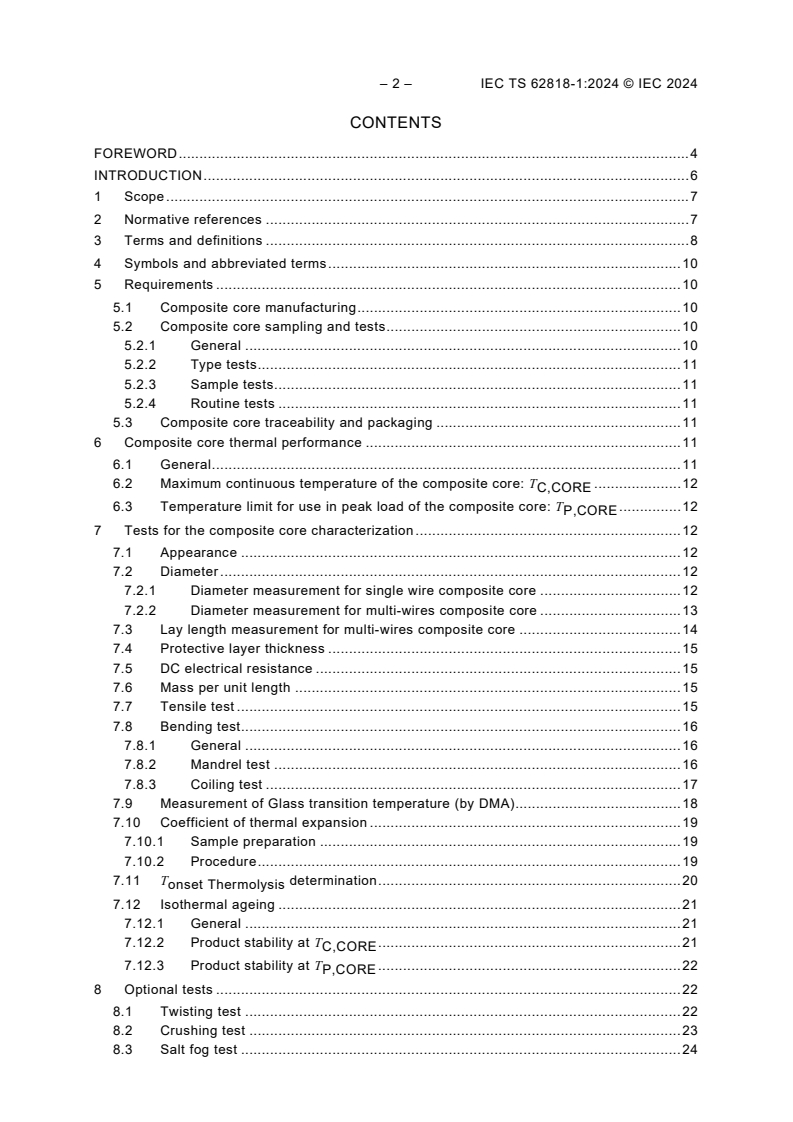

CONTENTS
