IEC 62561-2:2012
(Main)Lightning protection system components (LPSC) - Part 2: Requirements for conductors and earth electrodes
Lightning protection system components (LPSC) - Part 2: Requirements for conductors and earth electrodes
IEC 62561-2:2012 specifies the requirements and tests for:
- metallic conductors (other than "natural" conductors) that form part of the air termination system and down conductors;
- metallic earth electrodes that form part of the earth termination system.
Composants des systèmes de protection contre la foudre (CSPF) - Partie 2: Exigences pour les conducteurs et les électrodes de terre
L'IEC 62561-2:2012 spécifie les exigences et les essais pour:
- les conducteurs métalliques (autres que les conducteurs "naturels") qui font partie du dispositif de capture et des conducteurs de descente,
- les électrodes de terre métalliques qui font partie de la prise de terre.
General Information
Relations
Buy Standard
Standards Content (Sample)

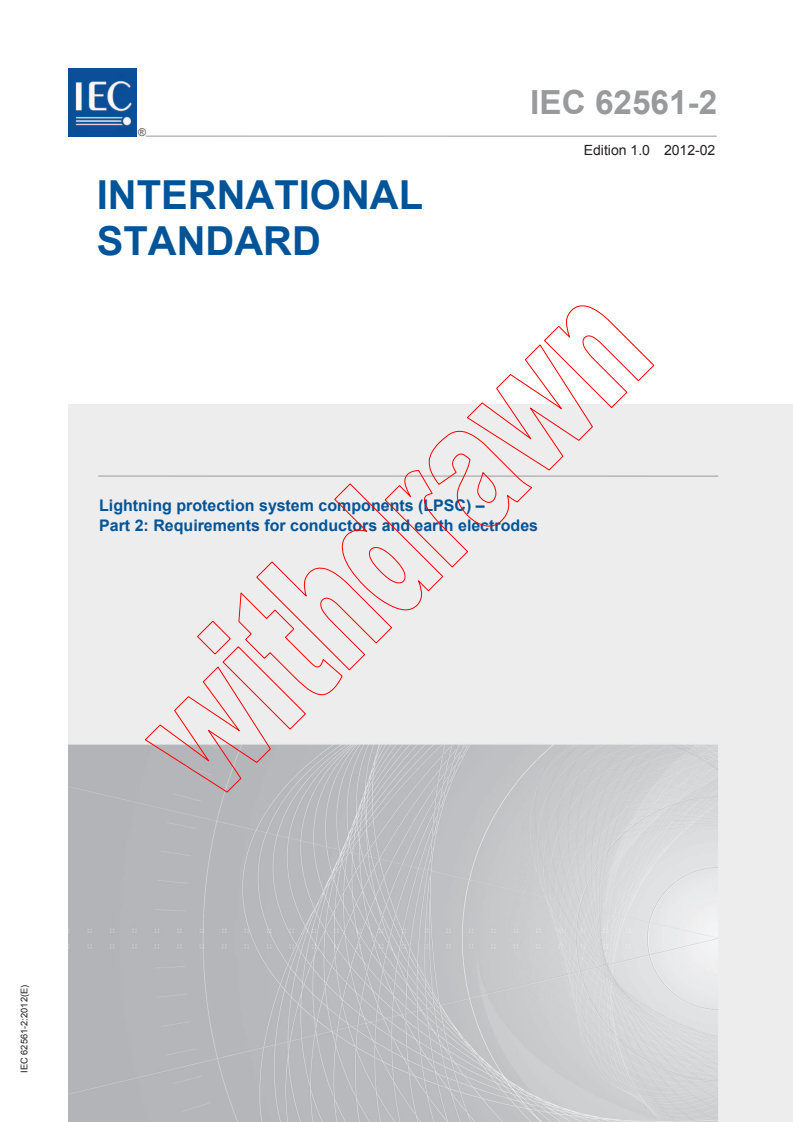

IEC 62561-2
®
Edition 1.0 2012-02
INTERNATIONAL
STANDARD
Lightning protection system components (LPSC) –
Part 2: Requirements for conductors and earth electrodes
IEC 62561-2:2012(E)
---------------------- Page: 1 ----------------------

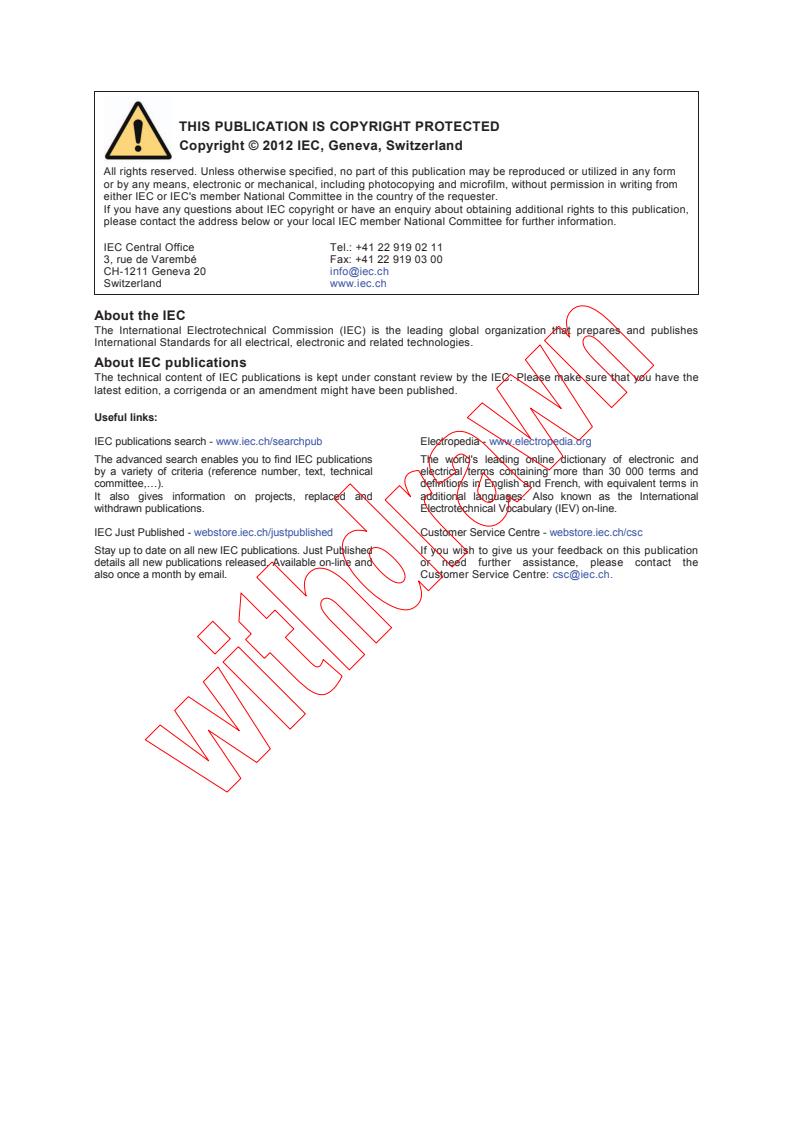

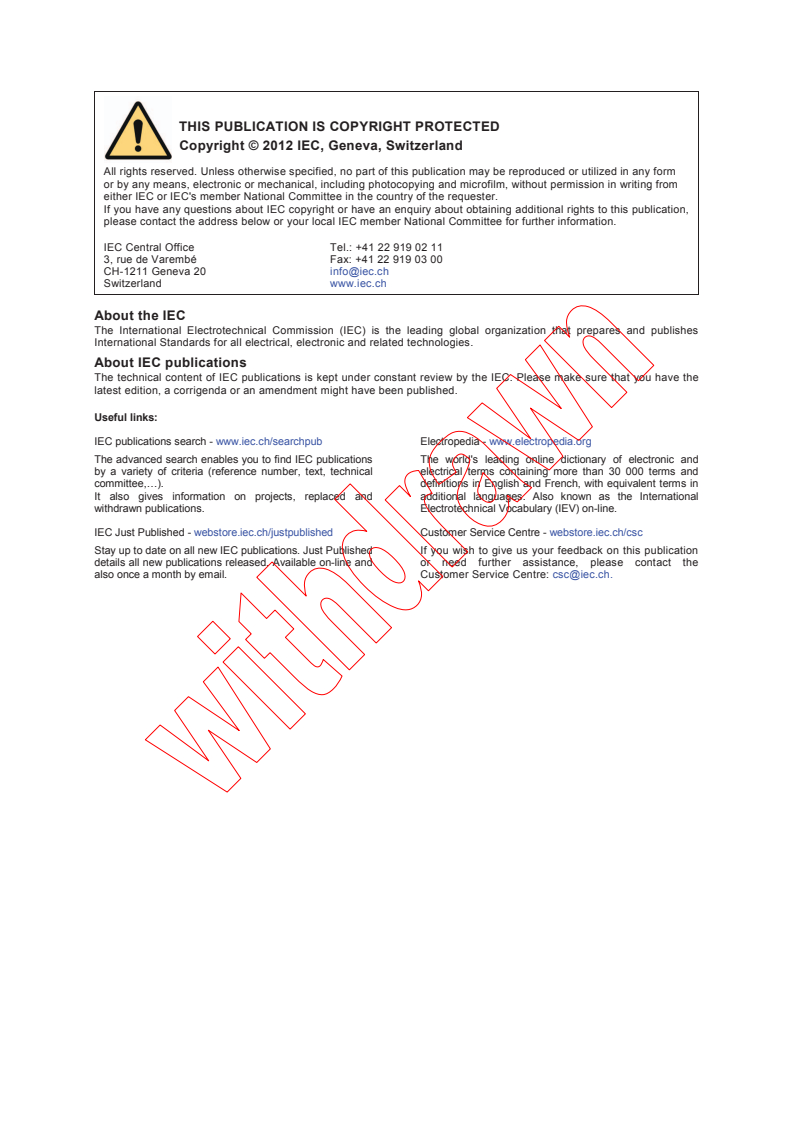

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2012 IEC, Geneva, Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.
IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------

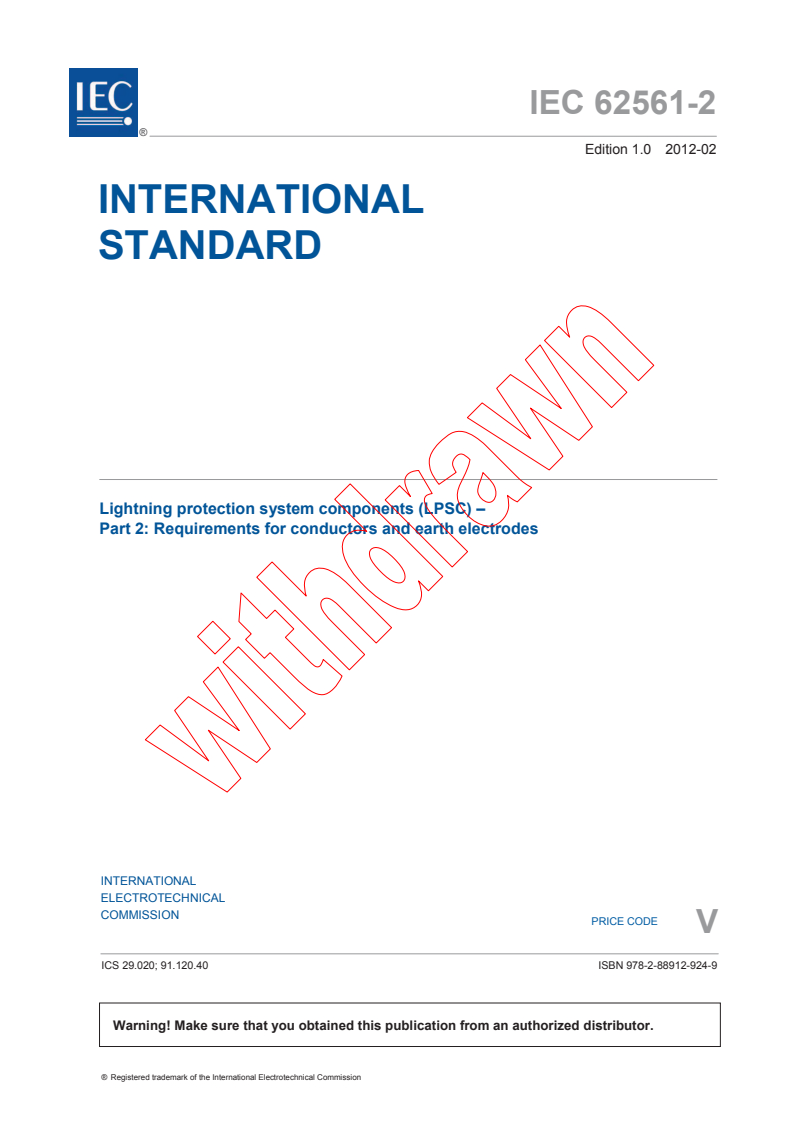

IEC 62561-2
®
Edition 1.0 2012-02
INTERNATIONAL
STANDARD
Lightning protection system components (LPSC) –
Part 2: Requirements for conductors and earth electrodes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
V
ICS 29.020; 91.120.40 ISBN 978-2-88912-924-9
Warning! Make sure that you obtained this publication from an authorized distributor.
® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

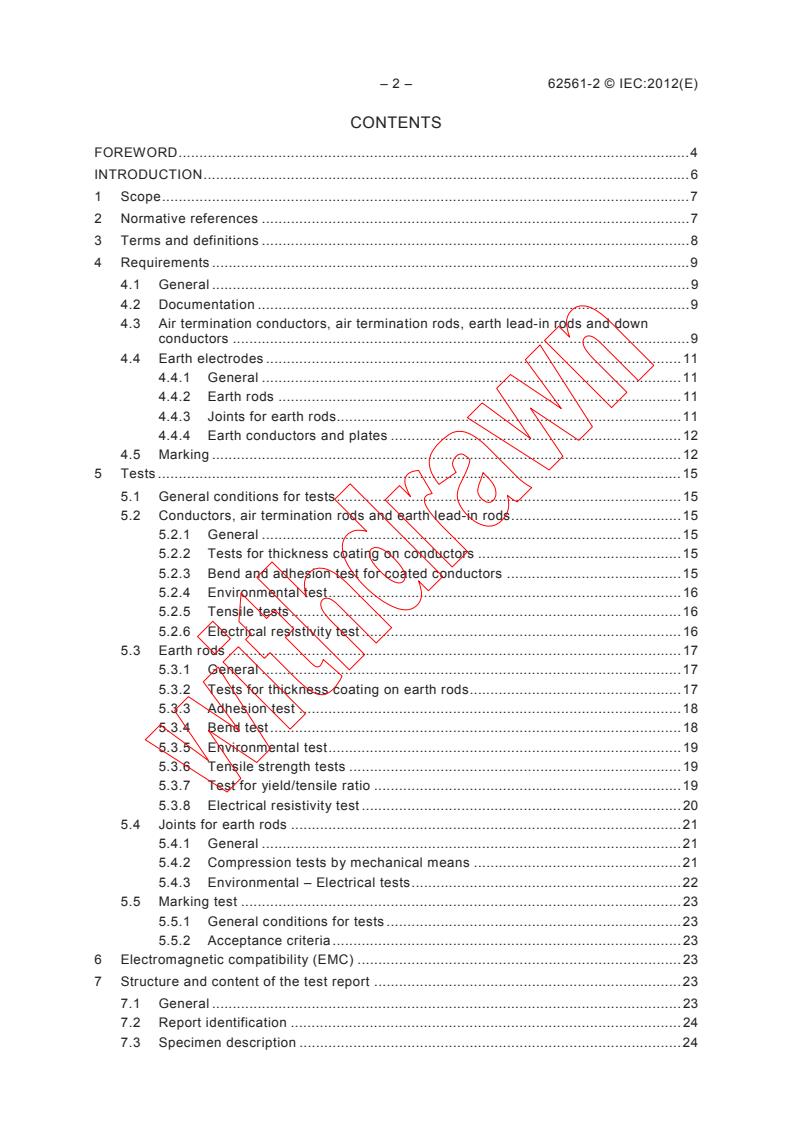

– 2 – 62561-2 © IEC:2012(E)
CONTENTS
FO R EW O RD . 4
INT R O D UCT IO N . 6
1 Sc op e . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Requirements . 9
4.1 General . 9
4.2 Documentation . 9
4.3 Air termination conductors, air termination rods, earth lead-in rods and down
conductors . 9
4.4 Earth electrodes . 11
4.4.1 General . 11
4.4.2 Earth rods . 11
4.4.3 Joints for earth rods. 11
4.4.4 Earth conductors and plates . 12
4.5 Marking . 12
5 Tests . 15
5.1 General conditions for tests . 15
5.2 Conductors, air termination rods and earth lead-in rods . 15
5.2.1 General . 15
5.2.2 Tests for thickness coating on conductors . 15
5.2.3 Bend and adhesion test for coated conductors . 15
5.2.4 Environmental test . 16
5.2.5 Tensile tests . 16
5.2.6 Electrical resistivity test . 16
5.3 Earth rods . 17
5.3.1 General . 17
5.3.2 Tests for thickness coating on earth rods . 17
5.3.3 Adhesion test . 18
5.3.4 Bend test . 18
5.3.5 Environmental test . 19
5.3.6 Tensile strength tests . 19
5.3.7 Test for yield/tensile ratio . 19
5.3.8 Electrical resistivity test . 20
5.4 Joints for earth rods . 21
5.4.1 General . 21
5.4.2 Compression tests by mechanical means . 21
5.4.3 Environmental – Electrical tests . 22
5.5 Marking test . 23
5.5.1 General conditions for tests . 23
5.5.2 Acceptance criteria . 23
6 Electromagnetic compatibility (EMC) . 23
7 Structure and content of the test report . 23
7.1 General . 23
7.2 Report identification . 24
7.3 Specimen description . 24
---------------------- Page: 4 ----------------------
62561-2 © IEC:2012(E) – 3 –
7.4 Conductor . 24
7.5 Standards and references . 24
7.6 Test procedure . 24
7.7 Testing equipment, description . 24
7.8 Measuring instruments description . 24
7.9 Results and parameters recorded . 25
7.10 Statement of pass/fail . 25
Annex A (normative) Environmental test for conductors, air termination rods and earth
lead-in rods. 26
Annex B (normative) Requirements for the cross sectional area, mechanical and
electrical characteristics, tests to be applied . 27
Annex C (normative) Requirements for dimensions, mechanical and electrical
characteristics, tests to be applied . 28
Annex D (informative) Typical example calculation of conductor resistivity . 29
Annex E (informative) Typical example of calculation of the tensile strength of a
coated material . 30
Annex F (normative) Flow chart of tests for air termination conductors, air termination
rods, earth lead-in rods and down conductors . 31
Annex G (normative) Flow chart of tests for earth rods . 32
Annex H (normative) Flow chart of tests of joints for earth rods . 33
Bibliography . 34
Figure 1 – Coating measurements around the circumference of the rod . 17
Figure 2 – Typical test arrangement for adhesion test . 18
Figure 3 – Definitions of upper yield strength R (Mpa) and tensile strength R (Mpa) . 20
eH m
Figure 4 – Typical test arrangement for the compression test by mechanical means . 22
Table 1 – Material, configuration and cross sectional area of air termination
conductors, air termination rods, earth lead-in rods and down conductors . 10
Table 2 – Mechanical and electrical characteristics of air termination conductors, air
termination rods, earth lead-in rods and down conductors . 11
Table 3 – Material, configuration and cross sectional area of earth electrodes . 13
Table 4 – Mechanical and electrical characteristics of earth electrodes . 14
Table B.1 – Summary of requirements for various elements tested according to Table 1
and Table 2 . 27
Table C.1 – Summary of requirements for various elements tested according to Table 3
and Table 4 . 28
---------------------- Page: 5 ----------------------
– 4 – 62561-2 © IEC:2012(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LIGHTNING PROTECTION SYSTEM COMPONENTS (LPSC) –
Part 2: Requirements for conductors and earth electrodes
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62561-2 has been prepared by IEC technical committee 81:
Lightning protection.
The text of this standard is based on the following documents:
FDIS Report on voting
81/417/FDIS 81/423/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The content of this document is taken from the European Standard EN 50164-2.
---------------------- Page: 6 ----------------------
62561-2 © IEC:2012(E) – 5 –
A list of all the parts in the IEC 62561 series, published under the general title Lightning
protection system components (LPSC), can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
‡ reconfirmed,
‡ withdrawn,
‡ replaced by a revised edition, or
‡ amended.
A bilingual version of this publication may be issued at a later date.
---------------------- Page: 7 ----------------------
– 6 – 62561-2 © IEC:2012(E)
INTRODUCTION
This part of IEC 62561 deals with the requirements and tests for lightning protection system
components (LPSC) used for the installation of a lightning protection system (LPS) designed
and implemented according to the IEC 62305 series of standards.
---------------------- Page: 8 ----------------------
62561-2 © IEC:2012(E) – 7 –
LIGHTNING PROTECTION SYSTEM COMPONENTS (LPSC) –
Part 2: Requirements for conductors and earth electrodes
1 Scope
This part of IEC 62561 specifies the requirements and tests for:
– metallic conductors (other than “natural” conductors) that form part of the air termination
system and down conductors;
– metallic earth electrodes that form part of the earth termination system.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60068-2-52:1996, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic
(sodium chloride solution)
IEC 60228, Conductors of insulated cables
IEC 62305-3, Protection against lightning – Part 3: Physical damage to structures and life
hazard
IEC 62305-4, Protection against lightning – Part 4: Electrical and electronic systems within
structures
IEC 62561-1, Lightning protection system components (LPSC) – Part 1: Requirements for
connection components
ISO 1460, Metallic coatings – Hot dip galvanized coatings on ferrous materials – Gravimetric
determination of the mass per unit area
ISO 1461, Hot dip galvanized coatings on fabricated iron and steel articles – Specifications
and test methods
ISO 2178, Non-magnetic coatings on magnetic substrates – Measurement of coating
thickness – Magnetic method
ISO 6892-1:2009, Metallic materials – Tensile testing – Part 1: Method of test at room
temperature
ISO 6957:1988, Copper alloys – Ammonia test for stress corrosion resistance
ISO 6988:1985, Metallic and other non-organic coatings – Sulphur dioxide test with general
condensation of moisture
---------------------- Page: 9 ----------------------
– 8 – 62561-2 © IEC:2012(E)
3 Terms and definitions
For the purpose of this document, the following terms and definitions apply.
3.1
air termination system
part of an external LPS using metallic elements such as rods, mesh conductors or catenary
wires intended to intercept lightning flashes
3.2
air termination rod
air termination conductor
part of the air termination system for intercepting and conducting direct lightning flashes to
the structure
3.3
down conductor
part of an external lightning protection system which is intended to conduct lightning current
from the air termination system to the earth termination system
3.4
earth termination system
part of an external lightning protection system which is intended to conduct and disperse
lightning current to the earth
3.5
earth electrode
part or group of parts of the earth termination system which provides direct electrical contact
with and disperses the lightning current to the earth
Note 1 to entry Typical examples are earth rod, earth conductor and earth plate.
3.6
earth rod
an earth electrode consisting of a metal rod driven into the ground
[IEC 60050-604:1987, 604-04-09]
3.7
earth conductor
earth electrode consisting of a conductor buried in the ground
3.8
earth plate
an earth electrode consisting of a metal plate buried in the ground
[IEC 60050-604:1987, 604-04-10]
3.9
joint for earth rod
part of the earth termination system that facilitates the coupling of one section of an earth rod
to another for the purpose of deep driving
3.10
driving head
tool used in those applications where it is necessary to drive the earth rod
---------------------- Page: 10 ----------------------
62561-2 © IEC:2012(E) – 9 –
3.11
earth lead-in rod
rod installed between the down conductor/test joint and the earth electrode
Note 1 to entry Earth lead-in rods are used to improve mechanical stability.
4 Requirements
4.1 General
Conductors and earth electrodes shall be so designed and constructed that in normal use
their performance is reliable and without danger to persons and surrounding equipment.
The choice of a material depends on its ability to match the particular application
requirements.
A summary of the requirements and their corresponding tests are given in Annex F, Annex G
and Annex H.
4.2 Documentation
The manufacturer or supplier of the conductors and earth electrodes shall provide adequate
information in their literature to ensure that the installer of the conductors and earth
electrodes can select and install the materials in a suitable and safe manner, in accordance
with IEC 62305-3 and IEC 62305-4.
Compliance is checked by inspection.
4.3 Air termination conductors, air termination rods, earth lead-in rods and down
conductors
The material, configuration and cross sectional area of the conductors and rods shall be in
accordance with Table 1. Their mechanical and electrical characteristics shall be in
accordance with Table 2.
Other materials may be used if they possess equivalent mechanical and electrical
characteristics and corrosion resistance properties for the intended application.
Other configurations may be used if the relevant dimensions are met.
Coated conductors and rods shall be corrosion resistant and the coating shall exhibit good
adherence to the base material.
Compliance is checked by the tests described in 5.2.2, 5.2.3 and 5.2.4.
NOTE A summary of the requirements for the cross sectional area, mechanical and electrical characteristics as
well as tests is given in Annex B.
---------------------- Page: 11 ----------------------
– 10 – 62561-2 © IEC:2012(E)
Table 1 – Material, configuration and cross sectional area of air termination conductors,
air termination rods, earth lead-in rods and down conductors
a
Cross sectional area
Material Configuration Recommended dimensions
2
mm
Copper, Solid tape 2 mm thickness
≥ 50
b
d
Tin plated copper
Solid round 8 mm diameter
≥ 50
d, g
f
Stranded 1,7 mm diameter of each strand
≥ 50
Solid round 15 mm diameter
≥ 176
Aluminium Solid tape 3 mm thickness
≥ 70
Solid round ≥ 50 8 mm diameter
g
Stranded ≥ 50 1,63 mm diameter of each strand
Copper coated
Solid round ≥ 50 8 mm diameter
e
aluminium alloy
Aluminium alloy Solid tape ≥ 50 2,5 mm thickness
Solid round ≥ 50 8 mm diameter
g
Stranded ≥ 50 1,7 mm diameter of each strand
Solid round 15 mm diameter
≥ 176
Hot dipped galvanized Solid tape 2,5 mm thickness
≥ 50
steel
Solid round 8 mm diameter
≥ 50
g
Stranded 1,7 mm diameter of each strand
≥ 50
Solid round 15 mm diameter
≥ 176
e
Copper coated steel Solid round 8 mm diameter
≥ 50
Solid tape 2,5 mm thickness
≥ 50
c
Stainless steel Solid tape ≥ 50 2 mm thickness
Solid round ≥ 50 8 mm diameter
g
Stranded ≥ 70 1,7 mm diameter of each strand
Solid round ≥ 176 15 mm diameter
NOTE For the application of the conductors, see IEC 62305-3.
a
Manufacturing tolerance: –3 %.
b
Hot dipped or electroplated; minimum thickness coating of 1 μm. Tin plating is for aesthetic reasons only.
c
Chromium ≥ 16 %; nickel ≥ 8 %; carbon ≤ 0,08 %.
d
2 2
50 mm (8 mm diameter) may be reduced to 25 mm (6 mm diameter) in certain applications where mechanical
strength is not an essential requirement.
e
Minimum 70 μm radial copper coating of 99,9 % copper content.
f
In some countries 1,14 mm diameter of each strand may be used.
g
The cross sectional area of stranded conductors is determined by the resistance of the conductor according to
IEC 60228.
---------------------- Page: 12 ----------------------
62561-2 © IEC:2012(E) – 11 –
Table 2 – Mechanical and electrical characteristics of air termination conductors, air
termination rods, earth lead-in rods and down conductors
Maximum electrical
Tensile strength
resistivity
Material
2
N/mm
μΩm
Copper 0,019 200 to 450
Aluminium 0,03 ≤ 150
Aluminium alloy 0,036 120 to 280
Steel 0,15 290 to 510
Stainless steel 0,80 400 to 770
4.4 Earth electrodes
4.4.1 General
The cross sectional area of earth electrodes, its material and its configuration shall be in
accordance with Table 3. Its mechanical and electrical characteristics shall be in accordance
with Table 4.
Other materials may be used if they possess equivalent mechanical and electrical
characteristics and corrosion resistance properties for the intended application.
Other configurations may be used if the relevant dimensions are met.
NOTE A summary of the requirements for dimensions, mechanical and electrical characteristics as well as tests is
given in Annex C.
4.4.2 Earth rods
Earth rods shall be mechanically robust to ensure correct installation. The choice of material
shall be sufficiently malleable to ensure no cracking of the rod takes place during installation.
The threads on the rods, if any, shall be smooth and fully formed. For coated rods, the coating
shall extend over the threads. A lead-in chamfer or point is recommended to facilitate driving.
For electroplated rods such as copper coated rods, it is desirable to thread roll the thread
profile to ensure no copper is removed from the steel.
Compliance is checked by inspection and by the test according to 5.3.
4.4.3 Joints for earth rods
Earth rods can be extended to drive deeper into the ground. This can be achieved by means
of a joint/coupling device.
The choice of material shall be compatible with that of the earth rod being joined.
It shall be mechanically robust, sufficient to withstand the driving forces generated during
installation.
It shall also exhibit good corrosion resistance.
---------------------- Page: 13 ----------------------
– 12 – 62561-2 © IEC:2012(E)
Threaded external joints/couplers shall be of a sufficient length to ensure no threads on the
earth rod are exposed when installed.
Threaded internal joints/couplers shall ensure that the mating faces of the earth rods come in
contact after assembly.
Compliance is checked by the test of 5.4.2 and 5.4.3.
4.4.4 Earth conductors and plates
Earth electrode conductors and plates shall be corrosion resistant and any coating shall
exhibit good adherence to the base material.
Compliance is checked by the test of 5.2.2, 5.2.3 and 5.2.4.
4.5 Marking
All products complying with this standard shall be marked at least with the following:
a) manufacturer's or responsible vendor's name or trade mark;
b) identifying symbol.
Where this proves to be impractical, the marking in accordance with the identifying symbol
may be given on the smallest packing unit.
NOTE Marking can be applied for example by moulding, pressing, engraving, printing adhesive labels or water
slide transfers.
Compliance is checked in accordance with 5.5.
---------------------- Page: 14 ----------------------
62561-2 © IEC:2012(E) – 13 –
Table 3 – Material, configuration and cross sectional area of earth electrodes
a
Cross sectional area
Material Configuration Recommended dimensions
Earth Earth Earth
rod conductor plate
2 2 2
mm mm cm
i
Stranded ≥ 50 1,7 mm diameter of each strand
Solid round ≥ 50 8 mm diameter
Solid tape ≥ 50 2 mm thick
Copper,
Solid round ≥ 176 15 mm diameter
tin plated
Pipe ≥ 110 20 mm diameter with 2 mm wall thickness
f
copper
g
Solid plate ≥ 2 500 500 mm × 500 mm with 1,5 mm thickness
600 mm × 600 mm consisted of
g
Lattice plate ≥ 3 600 25 mm × 2 mm section for tape or 8 mm
diameter for round conductor
Solid round ≥ 78 10 mm diameter
b
Solid round ≥ 150 14 mm diameter
b
Pipe ≥ 140 25 mm diameter with 2 mm wall thickness
Hot dipped Solid tape ≥ 90 3 mm thick
galvanized
Solid plate ≥ 2 500 500 mm × 500 mm with 3 mm thickness
steel
600 mm × 600 mm consisted of
d
Lattice plate ≥ 3 600 30 mm × 3 mm section for tape or 10 mm
diameter for round conductor
e
Profile 3 mm thick
Stranded ≥ 70 1,7
...

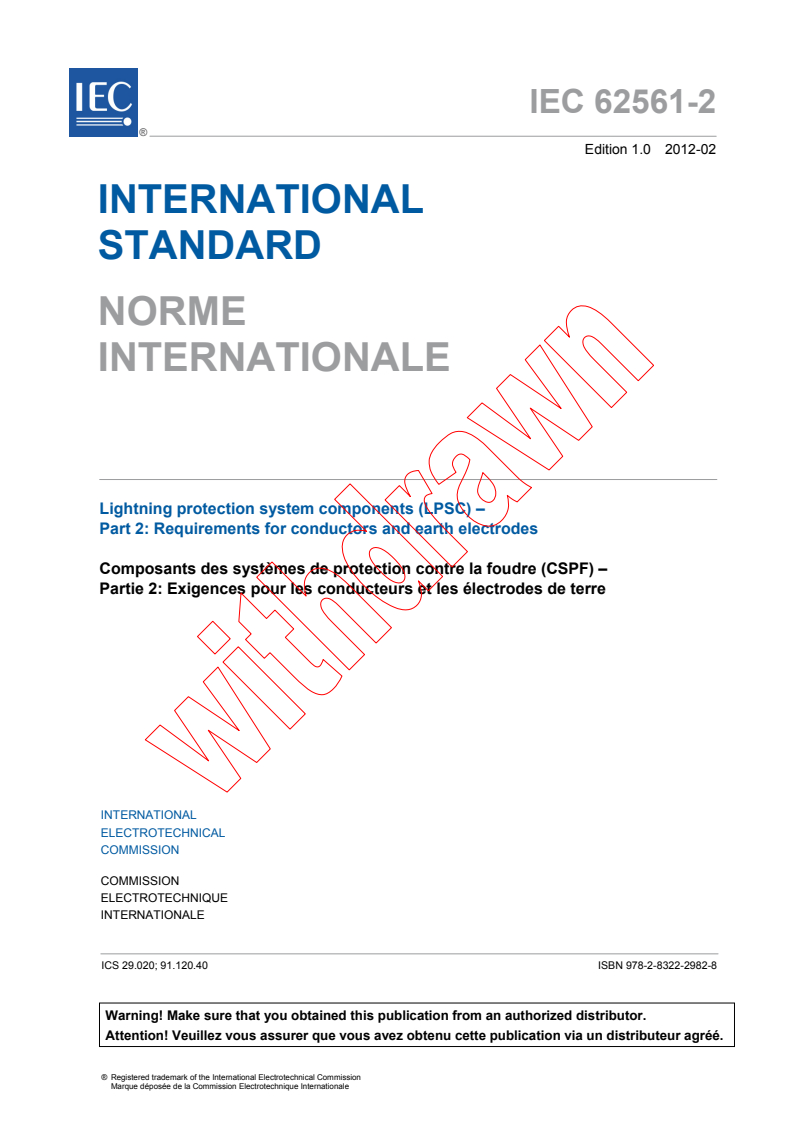

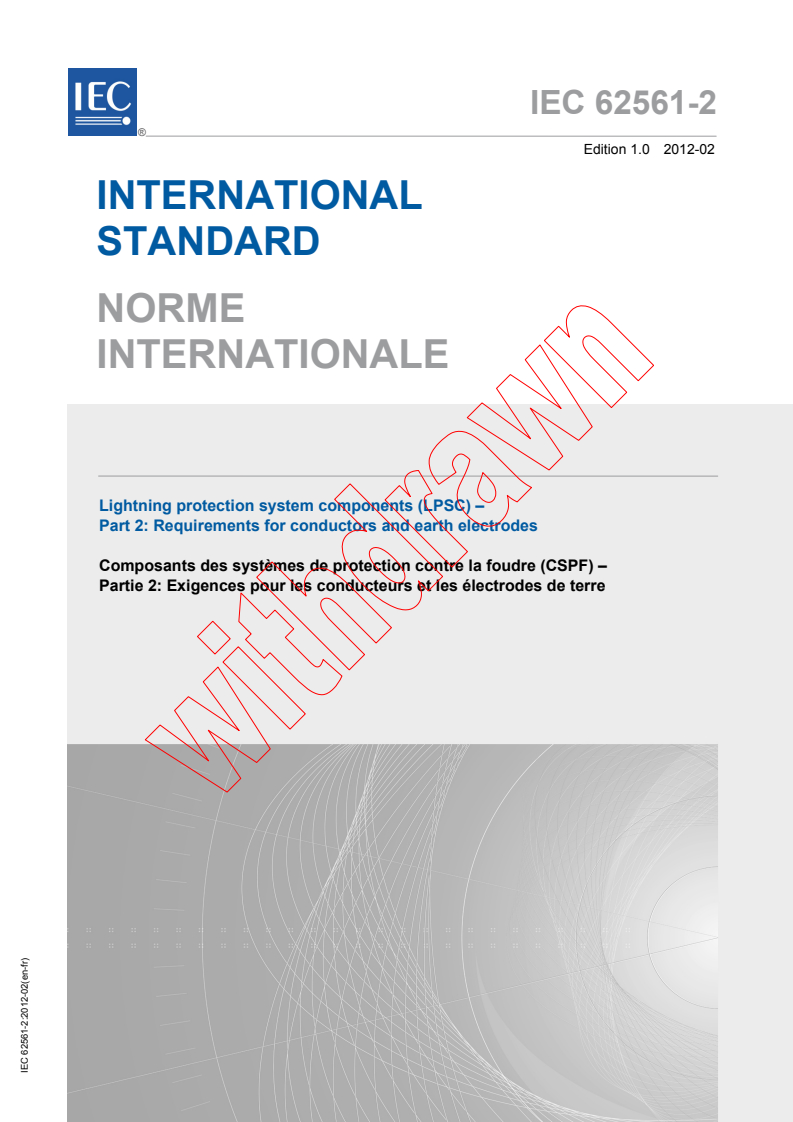

IEC 62561-2
®
Edition 1.0 2012-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lightning protection system components (LPSC) –
Part 2: Requirements for conductors and earth electrodes
Composants des systèmes de protection contre la foudre (CSPF) –
Partie 2: Exigences pour les conducteurs et les électrodes de terre
IEC 62561-2:2012-02(en-fr)
---------------------- Page: 1 ----------------------
