IEC 61000-4-30:2015

Electromagnetic compatibility (EMC) - Part 4-30: Testing and measurement techniques - Power quality measurement methods

IEC 61000-4-30:201 5 defines the methods for measurement and interpretation of results for power quality parameters in a.c. power supply systems with a declared fundamental frequency of 50 Hz or 60 Hz. Measurement methods are described for each relevant parameter in terms that give reliable and repeatable results, regardless of the method;s implementation. This standard addresses measurement methods for in-situ measurements. Measurement of parameters covered by this standard is limited to conducted phenomena in power systems. The power quality parameters considered in this standard are power frequency, magnitude of the supply voltage, flicker, supply voltage dips and swells, voltage interruptions, transient voltages, supply voltage unbalance, voltage harmonics and interharmonics, mains signalling on the supply voltage, rapid voltage changes, and current measurements. Emissions in the 2 kHz to 150 kHz range are considered in Annex C (informative), and over- and underdeviations are considered in Annex D (informative). Depending on the purpose of the measurement, all or a subset of the phenomena on this list may be measured. This third edition cancels and replaces the second edition published in 2008. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- the measurement method for current, previously informative, is now normative with some changes;
- the measurement method for RVC (rapid voltage change) has been added;
- the measurement method for conducted emissions in the 2 kHz to 150 kHz range has been added in informative Annex C;
- underdeviation and overdeviation parameters are moved to informative Annex D;
- Class A and Class S measurement methods are defined and clarified, while Class B is moved to informative Annex E and considered for future removal;
- measurement methods continue in this standard, but responsibility for influence quantities, performance, and test procedures are transferred to IEC 62586-2.
The contents of the corrigendum of December 2016 have been included in this copy.

Compatibilité électromagnétique (CEM) - Partie 4-30: Techniques d'essai et de mesure - Méthodes de mesure de la qualité de l'alimentation

IEC 61000-4-30:2015 définit les méthodes de mesure des paramètres de qualité de l'alimentation des réseaux d'énergie électrique en courant alternatif à une fréquence fondamentale déclarée de 50 Hz ou 60 Hz et la façon d'interpréter les résultats. Les méthodes de mesure sont décrites pour chaque paramètre applicable en des termes qui fournissent des résultats fiables et répétitifs indépendamment de la mise en oeuvre de la méthode. La présente norme porte sur les méthodes de mesure destinées aux mesurages in situ. Le mesurage des paramètres couverts par la présente norme se limite aux phénomènes conduits sur les réseaux d'énergie électrique. Les paramètres de qualité de l'alimentation pris en compte dans la présente norme sont la fréquence industrielle, l'amplitude de la tension d'alimentation, le papillotement ("flicker"), les creux et les surtensions temporaires d'alimentation, les coupures de tension, les tensions transitoires , le déséquilibre de tension d'alimentation, les harmoniques et interharmoniques de tension, les signaux transmis sur la tension d'alimentation, les variations rapides de tension et les mesurages de courant. Les émissions dans la plage comprise entre 2 kHz et 150 kHz sont prises en compte dans l'Annexe C (informative), et les valeurs hautes et valeurs basses sont prises en compte dans l'Annexe D (informative). En fonction de l'objet du mesurage, les mesurages peuvent porter soit sur une partie des phénomènes de cette liste, soit sur l'ensemble. Cette troisièm e édition annule et remplace la deuxième édition, parue en 2008. Cetteédition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- la méthode de mesure du courant, précédemment informative, est désormais normative et comporte quelques modifications;
- la méthode de mesure de RVC (rapid voltage change - variations rapides de tension) a été ajoutée;
- la méthode de mesure des émissions conduites dans la plage de 2 kHz à 150 kHz a été ajoutée dans l'Annexe informative C;
- les paramètres de valeur basse et de valeur haute ont été déplacés dans l'Annexe informative D;
- les méthodes de mesure de Classe A et de Classe S sont définies et clarifiées, tandis que la Classe B a été déplacée dans l'Annexe informative E en vue d'un retrait ultérieur;
- les méthodes de mesure se poursuivent dans la présente Norme, mais les responsabilités pour les grandeurs d'influence, les performances et les procédures d'essai ont été transférées dans l'IEC 62586-2.
Le contenu du corrigendum de décembre 2016 a été pris en considération dans cet exemplaire.

General Information

• Status: Published
• Publication Date: 03-Mar-2021
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 33.100.99 - Other aspects related to EMC
• Technical Committee: SC 77A - EMC - Low frequency phenomena
• Drafting Committee: WG 9 - TC 77/SC 77A/WG 9
• Current Stage: PPUB - Publication issued
• Start Date: 28-Feb-2015
• Completion Date: 20-Feb-2015

Relations

• Amended By: IEC 61000-4-30:2015/AMD1:2021 - Amendment 1 - Electromagnetic compatibility (EMC) - Part 4-30: Testing and measurement techniques - Power quality measurement methods
• Effective Date: 05-Sep-2023
• Corrected By: IEC 61000-4-30:2015/COR1:2016 - Corrigendum 1 - Electromagnetic compatibility (EMC) - Part 3-40: Testing and measurement techniques - Power quality measurement methods
• Effective Date: 05-Sep-2023
• Revises: IEC 61000-4-30:2008 - Electromagnetic compatibility (EMC) - Part 4-30: Testing and measurement techniques - Power quality measurement methods
• Effective Date: 05-Sep-2023

Standards Content (Sample)

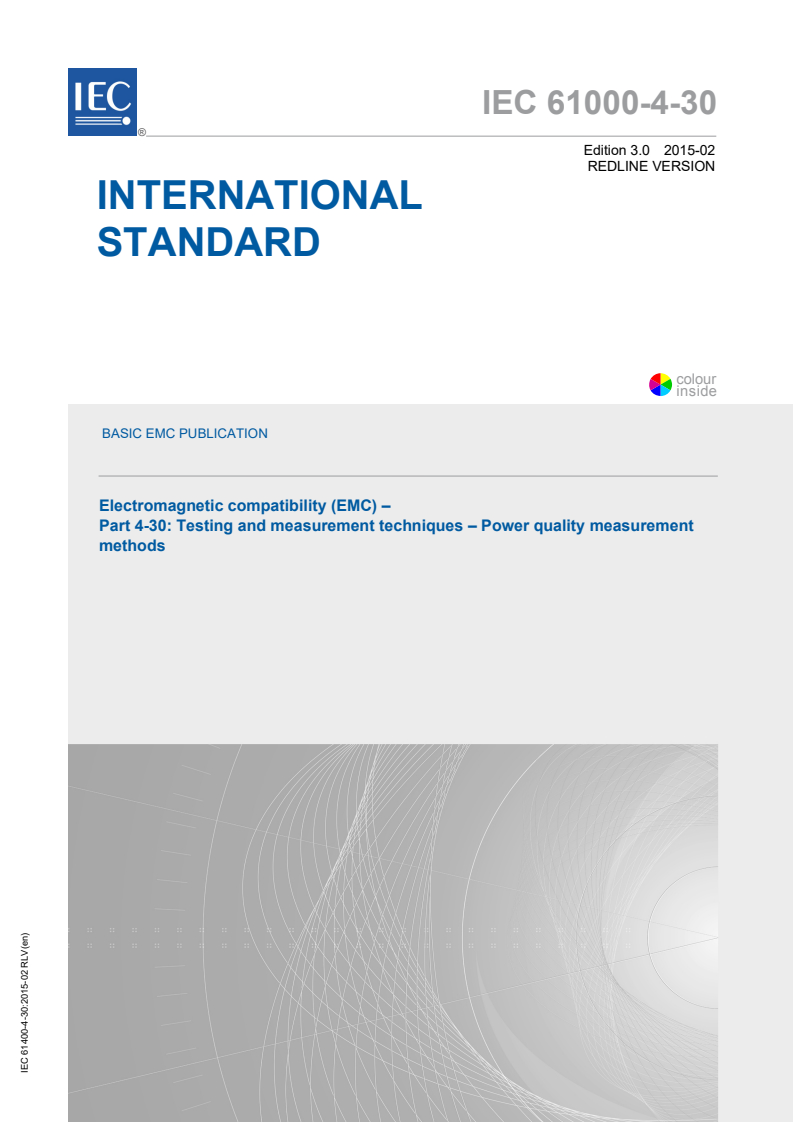

IEC 61000-4-30 ®
Edition 3.0 2015-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
BASIC EMC PUBLICATION
Electromagnetic compatibility (EMC) –
Part 4-30: Testing and measurement techniques – Power quality measurement
methods
IEC 61400-4-30:2015-02 RLV(en)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61000-4-30 ®
Edition 3.0 2015-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
BASIC EMC PUBLICATION
Electromagnetic compatibility (EMC) –

Part 4-30: Testing and measurement techniques – Power quality measurement

methods
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.100.99 ISBN 978-2-8322-2324-6

– 2 – IEC 61000-4-30:2015 RLV © IEC 2015

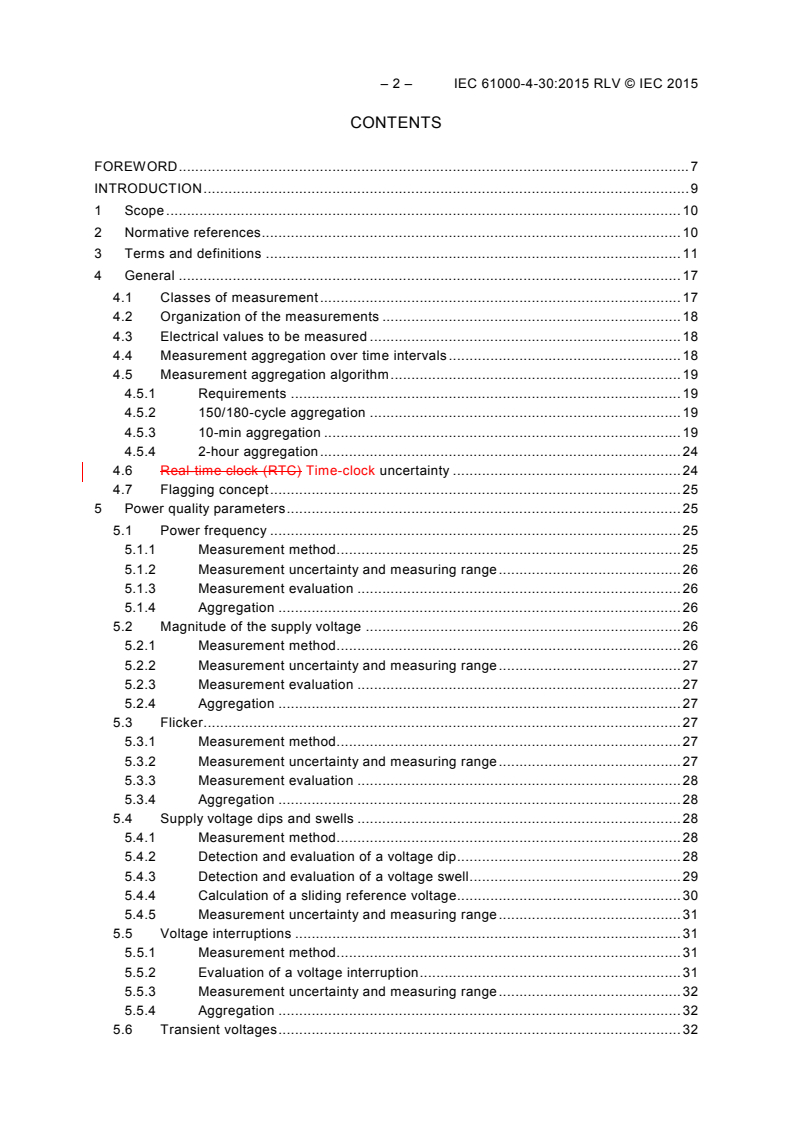

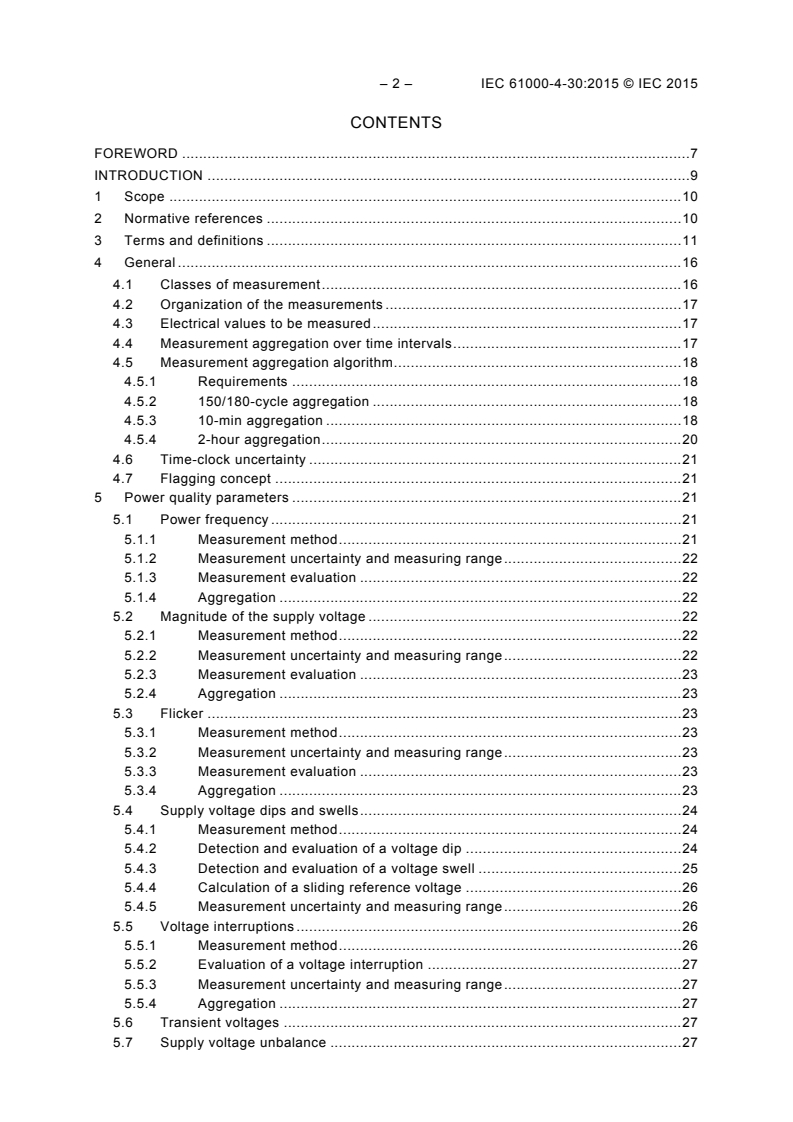

CONTENTS
FOREWORD . 7
INTRODUCTION . 9
1 Scope . 10
2 Normative references . 10
3 Terms and definitions . 11
4 General . 17
4.1 Classes of measurement . 17
4.2 Organization of the measurements . 18
4.3 Electrical values to be measured . 18
4.4 Measurement aggregation over time intervals . 18
4.5 Measurement aggregation algorithm . 19
4.5.1 Requirements . 19
4.5.2 150/180-cycle aggregation . 19
4.5.3 10-min aggregation . 19
4.5.4 2-hour aggregation . 24
4.6 Real-time clock (RTC) Time-clock uncertainty . 24
4.7 Flagging concept . 25
5 Power quality parameters . 25
5.1 Power frequency . 25
5.1.1 Measurement method . 25
5.1.2 Measurement uncertainty and measuring range . 26
5.1.3 Measurement evaluation . 26
5.1.4 Aggregation . 26
5.2 Magnitude of the supply voltage . 26
5.2.1 Measurement method . 26
5.2.2 Measurement uncertainty and measuring range . 27
5.2.3 Measurement evaluation . 27
5.2.4 Aggregation . 27
5.3 Flicker . 27
5.3.1 Measurement method . 27
5.3.2 Measurement uncertainty and measuring range . 27
5.3.3 Measurement evaluation . 28
5.3.4 Aggregation . 28
5.4 Supply voltage dips and swells . 28
5.4.1 Measurement method . 28
5.4.2 Detection and evaluation of a voltage dip . 28
5.4.3 Detection and evaluation of a voltage swell . 29
5.4.4 Calculation of a sliding reference voltage . 30
5.4.5 Measurement uncertainty and measuring range . 31
5.5 Voltage interruptions . 31
5.5.1 Measurement method . 31
5.5.2 Evaluation of a voltage interruption . 31
5.5.3 Measurement uncertainty and measuring range . 32
5.5.4 Aggregation . 32
5.6 Transient voltages . 32

5.7 Supply voltage unbalance . 32
5.7.1 Measurement method . 32
5.7.2 Measurement uncertainty and measuring range . 33
5.7.3 Measurement evaluation . 34
5.7.4 Aggregation . 34
5.8 Voltage harmonics . 34
5.8.1 Measurement method . 34
5.8.2 Measurement uncertainty and measuring range . 35
5.8.3 Measurement evaluation . 35
5.8.4 Aggregation . 35
5.9 Voltage interharmonics . 35
5.9.1 Measurement method . 35
5.9.2 Measurement uncertainty and measuring range . 35
5.9.3 Evaluation . 36
5.9.4 Aggregation . 36
5.10 Mains signalling voltage on the supply voltage . 36
5.10.1 General . 36
5.10.2 Measurement method . 36
5.10.3 Measurement evaluation .
5.10.3 Measurement uncertainty and measuring range . 37
5.10.4 Aggregation . 37
5.11 Rapid voltage changes (RVC) . 37
5.11.1 General . 37
5.11.2 RVC event detection . 37
5.11.3 RVC event evaluation . 38
5.11.4 Measurement uncertainty . 40
5.12 Measurement of underdeviation and overdeviation parameters .
5.12.1 Measurement method .
5.12.2 Measurement uncertainty and measuring range .
5.12.3 Aggregation .
5.12 Underdeviation and overdeviation . 41
5.13 Current . 41
5.13.1 General . 41
5.13.2 Magnitude of current . 41
5.13.3 Current recording . 42
5.13.4 Harmonic currents . 42
5.13.5 Interharmonic currents . 43
5.13.6 Current unbalance . 43
6 Range of influence quantities and steady-state verification Performance verification . 43
6.1 Range of influence quantities .
6.2 Steady-state performance verification .
Annex A (informative) Power quality measurements – Issues and guidelines . 49
A.1 General . 49
A.2 Installation precautions. 49
A.2.1 General . 49
A.2.2 Test leads . 49
A.2.3 Guarding of live parts . 50
A.2.4 Monitor placement . 50

– 4 – IEC 61000-4-30:2015 RLV © IEC 2015
A.2.5 Earthing .
...

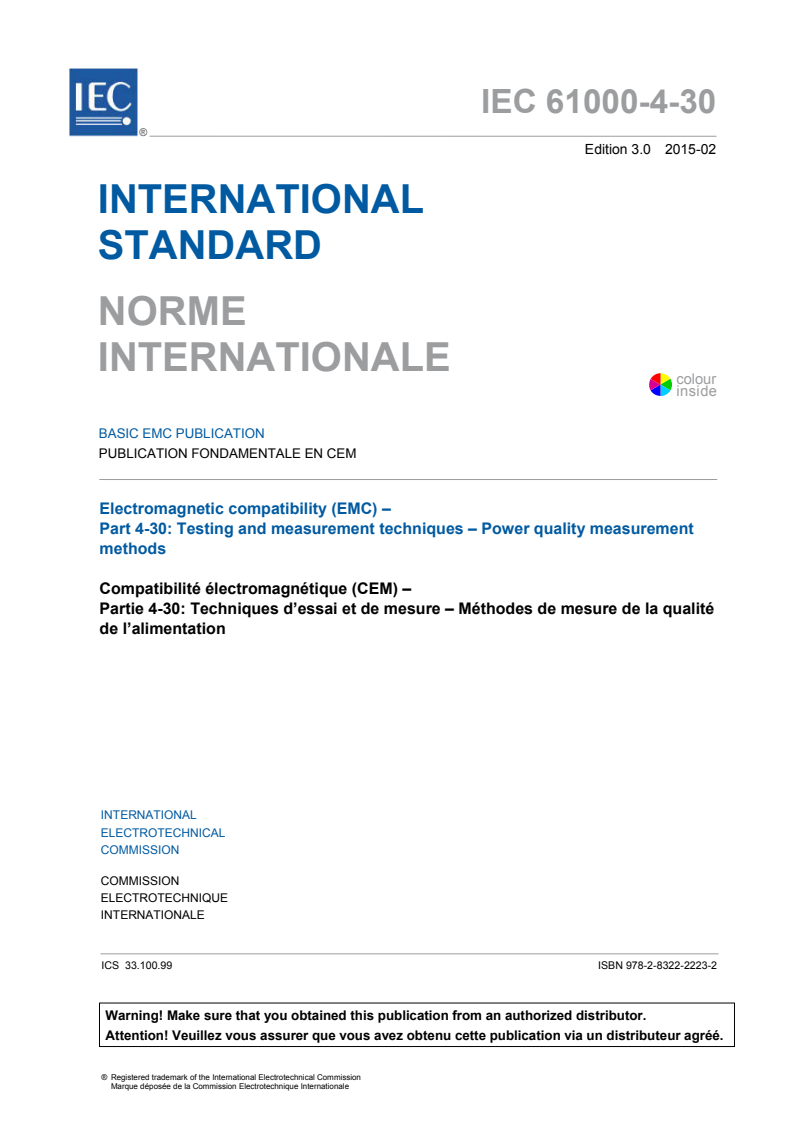

IEC 61000-4-30 ®
