IEC 62496-4-1:2019
(Main)Optical circuit boards - Part 4-1: Interface standards - Terminated waveguide OCB assembly using single-row twelve-channel PMT connectors
Optical circuit boards - Part 4-1: Interface standards - Terminated waveguide OCB assembly using single-row twelve-channel PMT connectors
IEC 62496-4-1:2019 defines the standard interface dimensions for a terminated waveguide optical circuit board (OCB) assembly (referred to simply as assembly) using single-row twelve-channel polymer waveguides for a PMT connector and a waveguide OCB that can be interconnected with a terminated MT ferrule.
Keywords: interface dimensions for a terminated waveguide optical circuit board (OCB)
Cartes a circuits optiques - Partie 4-1: Normes d'interface - Terminaison d'un ensemble de cartes à circuits optiques à guide d'onde utilisant des connecteurs PMT de douze canaux sur une seule rangée
IEC 62496-4-1: 2019 définit les dimensions d’interface normalisées pour la terminaison d'un ensemble de cartes à circuits optiques (OCB) à guide d'onde (désigné sous la forme abrégée «ensemble») qui utilise des guides d’onde en polymère de douze canaux sur une seule rangée pour un connecteur PMT et une OCB à guide d'onde qui peuvent être interconnectés au moyen d’une férule de type MT équipée.
Mots clés : dimensions d’interface pour la terminaison d'un ensemble de cartes à circuits optiques (OCB)
General Information
Standards Content (Sample)
IEC 62496-4-1 ®
Edition 1.0 2019-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical circuit boards –
Part 4-1: Interface standards – Terminated waveguide OCB assembly using
single-row twelve-channel PMT connectors
Cartes a circuits optiques –
Partie 4-1: Normes d'interface – Terminaison d'un ensemble de cartes à circuits
optiques à guide d'onde utilisant des connecteurs PMT de douze canaux sur une
seule rangée
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.
IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

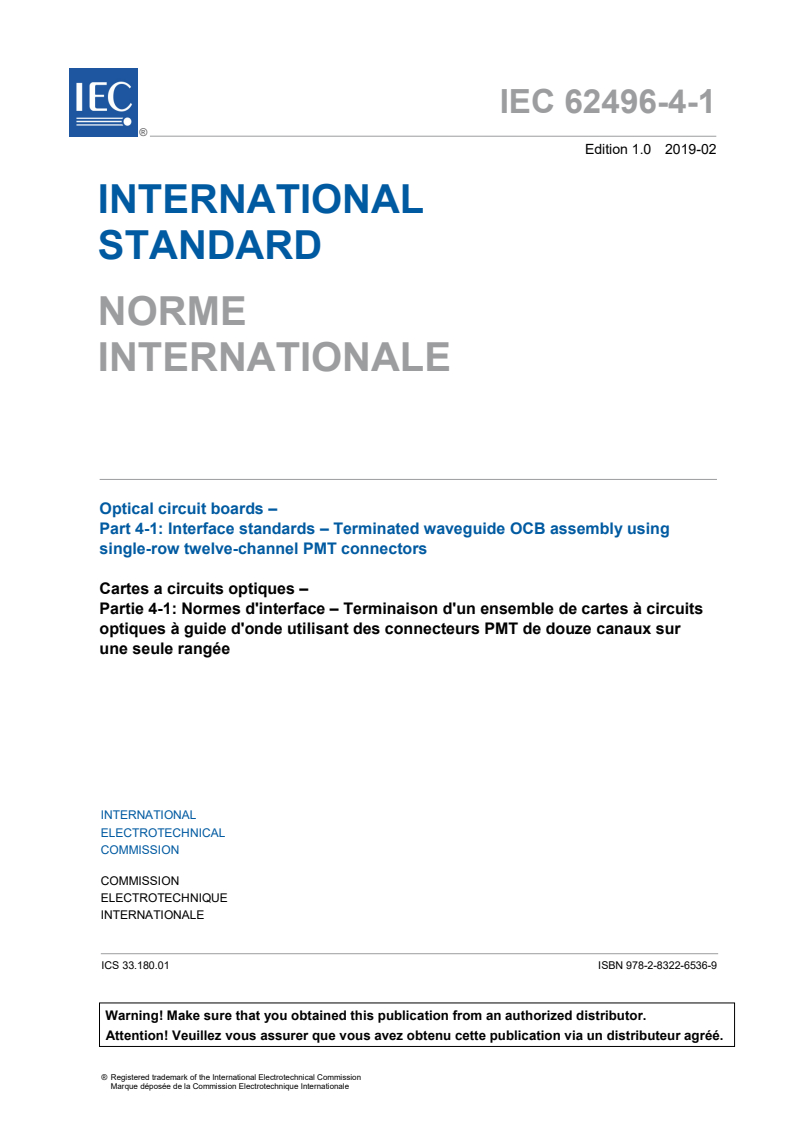

IEC 62496-4-1 ®
Edition 1.0 2019-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical circuit boards –
Part 4-1: Interface standards – Terminated waveguide OCB assembly using
single-row twelve-channel PMT connectors
Cartes a circuits optiques –
Partie 4-1: Normes d'interface – Terminaison d'un ensemble de cartes à circuits
optiques à guide d'onde utilisant des connecteurs PMT de douze canaux sur
une seule rangée
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.01 ISBN 978-2-8322-6536-9

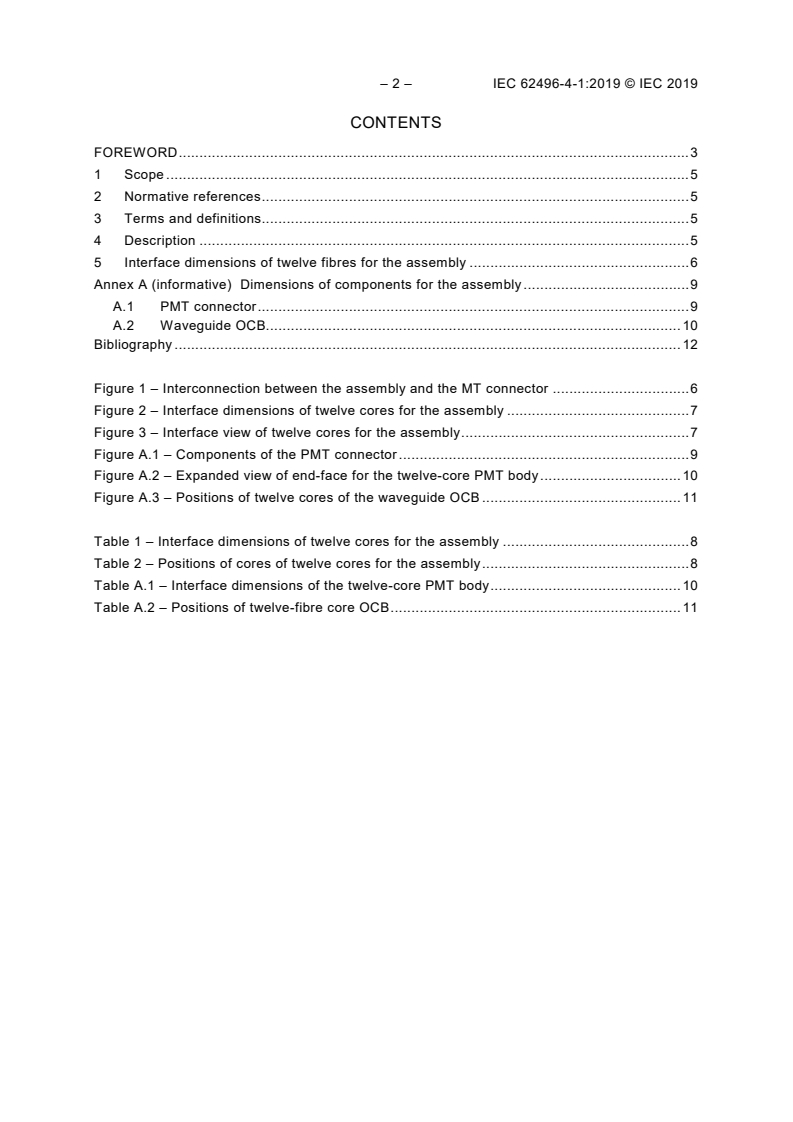

– 2 – IEC 62496-4-1:2019 © IEC 2019
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions. 5
4 Description . 5
5 Interface dimensions of twelve fibres for the assembly . 6
Annex A (informative) Dimensions of components for the assembly . 9
A.1 PMT connector . 9
A.2 Waveguide OCB. 10
Bibliography . 12
Figure 1 – Interconnection between the assembly and the MT connector . 6
Figure 2 – Interface dimensions of twelve cores for the assembly . 7
Figure 3 – Interface view of twelve cores for the assembly . 7
Figure A.1 – Components of the PMT connector . 9
Figure A.2 – Expanded view of end-face for the twelve-core PMT body . 10
Figure A.3 – Positions of twelve cores of the waveguide OCB . 11
Table 1 – Interface dimensions of twelve cores for the assembly . 8
Table 2 – Positions of cores of twelve cores for the assembly . 8
Table A.1 – Interface dimensions of the twelve-core PMT body . 10
Table A.2 – Positions of twelve-fibre core OCB . 11
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL CIRCUIT BOARDS –
Part 4-1: Interface standards – Terminated waveguide OCB assembly
using single-row twelve-channel PMT connectors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62496-4-1 has been prepared by IEC technical committee 86: Fibre
optics.
The text of this International Standard is based on the following documents:
FDIS Report on voting
86/547/FDIS 86/550/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
– 4 – IEC 62496-4-1:2019 © IEC 2019
A list of all parts of the IEC 62496 series, under the general title, Optical circuit boards, can be
found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
OPTICAL CIRCUIT BOARDS –
Part 4-1: Interface standards – Terminated waveguide OCB assembly
using single-row twelve-channel PMT connectors
1 Scope
This part of IEC 62496-4 defines the standard interface dimensions for a terminated waveguide
optical circuit board (OCB) assembly (referred to simply as assembly) using single-row twelve-
channel polymer waveguides for a PMT connector and a waveguide OCB that can be
interconnected with a terminated MT ferrule.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Description
The assembly comprises a PMT connector and a twelve-core waveguide OCB. The PMT
connector is a rectangular connector having the same outer dimensions as the type MT
connector specified in IEC 61754-5. The PMT connector is aligned using alignment pins and is
normally secured by the use of a latching spring and mates with the type MT connector as
shown in Figure 1. Details of the PMT connector are shown in Annex A. The waveguide OCB
comprises a planar light-guide consisting of a core and cladding material appropriate to
transmit light as the operational
...
