ISO/IEC 11801-6:2017/AMD1:2026

• Status: Published
• Publication Date: 23-Sep-2026
• ICS: 35.200 - Interface and interconnection equipment
• Technical Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Drafting Committee: WG 3 - ISO/IEC JTC 1/SC 25/WG 3
• Current Stage: PPUB - Publication issued
• Start Date: 24-Sep-2026
• Completion Date: 16-Oct-2026

• Amends: ISO/IEC 11801-6:2017 - Information technology - Generic cabling for customer premises - Part 6: Distributed building services
• Effective Date: 07-Nov-2025

ISO/IEC 11801-6:2017/AMD1:2026 is an IEC and ISO/IEC amendment to the generic cabling standard for customer premises, focused on distributed building services. It updates how Type A and Type B cabling are structured, how single pair extensions are used, and how related components and tests are applied. The document is aimed at designers, installers, testers, and buyers who need to specify or verify cabling for building services.

What does ISO/IEC 11801-6:2017/AMD1:2026 specify?

ISO/IEC 11801-6:2017/AMD1:2026 specifies amendments to Part 6 of the customer-premises generic cabling series for distributed building services. It refines the use of Type A and Type B generic cabling, updates references to ISO/IEC 11801-1, and adds rules for single pair extensions, component choice, testing, and supporting annex guidance.

The amendment is organized by clause updates to the core technical model and by targeted changes to Annex A and Annex C. The main topics are stand-alone structure, transmission performance, balanced cabling, component selection, connecting hardware, and cords.

Annex	What it covers
Annex A	Overview for calculating the number of SOs per room or service area
Annex C	Connecting hardware guidance

What are the key requirements of ISO/IEC 11801-6:2017/AMD1:2026?

ISO/IEC 11801-6:2017/AMD1:2026 keeps the split between Type A and Type B generic cabling and makes the boundary with application-specific cabling clearer. In practice, that helps designers decide where the generic cabling ends and where application-specific equipment or cabling begins.

• Type A structure - Type A generic cabling goes to the SO, and the amendment states that Type A cabling shall be 4-pair copper or optical fibre in accordance with ISO/IEC 11801-1. This matters because it fixes the permitted cabling media for that implementation.
• Type B structure - Type B generic cabling goes to the SCP. The amendment allows application-specific cabling and equipment beyond the SCP, but treats that part as outside the document’s scope, so the generic system boundary must be clear in design and procurement.
• Performance of Type A channels and links - Clause 5.6.2.1 points to Clause 6 for channel performance and Clause 7 for link performance. It also notes that links may be tested during commissioning or when faults are suspected, with further testing guidance in IEC 61935-1.
• Single pair extension for Type B - Clause 6.3.2.2 and Clause 7.2 allow single pair extensions between the SCP and TE using ISO/IEC 11801-1 components, with performance tied to Class T1-A-100 or Class T1-B depending on the base cabling class and component type. This is the key technical change for service distribution using single pair cabling.
• Balanced cabling performance - Service distribution cabling shall provide at least Class E link performance, and cable sharing brings extra crosstalk requirements from ISO/IEC 11801-1. In practice, the lowest-performing component governs the result, so mixed categories must be chosen carefully.
• Component choice and temperature - Clause 8.2.1.2 ties component category to minimum Class E performance and notes reduced channel lengths at higher operating temperatures. That means length and thermal conditions have to be checked together, not separately.
• Connecting hardware and cords - Clause 10 points back to the relevant ISO/IEC 11801-1 hardware clauses, and Clause 11 says pre-fabricated terminated balanced cords should be used for Type A and Type B cabling. For single pair extensions, cords shall conform to ISO/IEC 11801-1:2017/AMD1:2025, 11.6.

What terms does ISO/IEC 11801-6:2017/AMD1:2026 define?

• SO (service outlet) - The point where the service is made available at the room or service area.
• SCP (service connection point) - The point used in Type B cabling where generic cabling can transition to application-specific cabling or equipment.
• SD (service distribution) - The cabling segment that distributes the service within the building system.
• TE (terminal equipment) - The equipment at the end of the cabling path that receives the service.
• EQP (transmission equipment) - The equipment used as the transmission side reference in channel descriptions.
• Channel - The complete transmission path between equipment ends, including the relevant cords and cabling subsystems.
• Link - The installed cabling path that can be tested during commissioning or fault finding.

Who uses ISO/IEC 11801-6:2017/AMD1:2026?

ISO/IEC 11801-6:2017/AMD1:2026 is used by cabling designers, building systems integrators, installers, commissioning teams, and test technicians working on customer-premises networks for distributed building services. It is also relevant to quality managers and buyers who need to specify the cabling class, the allowed media, the testing method, or the hardware interfaces in a project.

What changed in ISO/IEC 11801-6:2017/AMD1:2026 from the previous edition?

ISO/IEC 11801-6:2017/AMD1:2026 updates the 2017 part with these changes:

• replaces the ISO/IEC 11801-1:2017 reference with ISO/IEC 11801-1:2017 and ISO/IEC 11801-1:2017/AMD1:2025
• clarifies the stand-alone structure for Type A and Type B generic cabling
• adds the Type A media requirement for 4-pair copper or optical fibre
• adds single pair extension rules, performance classes, length guidance, temperature adjustment, and a 0.75 A limit for the resulting channel
• revises balanced cabling component choice, cabling performance, connecting hardware, and cord requirements
• updates Annex A and Annex C references and adds testing and guidance references in the bibliography

Which standards are used with ISO/IEC 11801-6:2017/AMD1:2026?

• ISO/IEC 11801-1:2017 and ISO/IEC 11801-1:2017/AMD1:2025 - provide the general requirements, cabling classes, component rules, and related performance framework used throughout Part 6.
• IEC 61935-1 - gives testing requirements for installed balanced cabling.
• IEC 61935-4 - gives testing requirements for installed balanced single-pair cabling.
• ISO/IEC TR 11801-9911 - gives guidance on balanced single pair applications within a balanced 4-pair cabling system.

What does the ISO/IEC 11801-6:2017/AMD1:2026 document contain?

ISO/IEC 11801-6:2017/AMD1:2026 contains replacement text for core clauses on structure, performance, components, hardware, and cords. It also includes a new figure for Type B single pair extension and Table 4, which gives length equations and temperature corrections for service distribution channel planning.

The amendment also points readers to the relevant testing standards for commissioned cabling and fault detection. Annex A and Annex C are updated to align the overview for SO planning and the connecting hardware references with the amended cabling model.

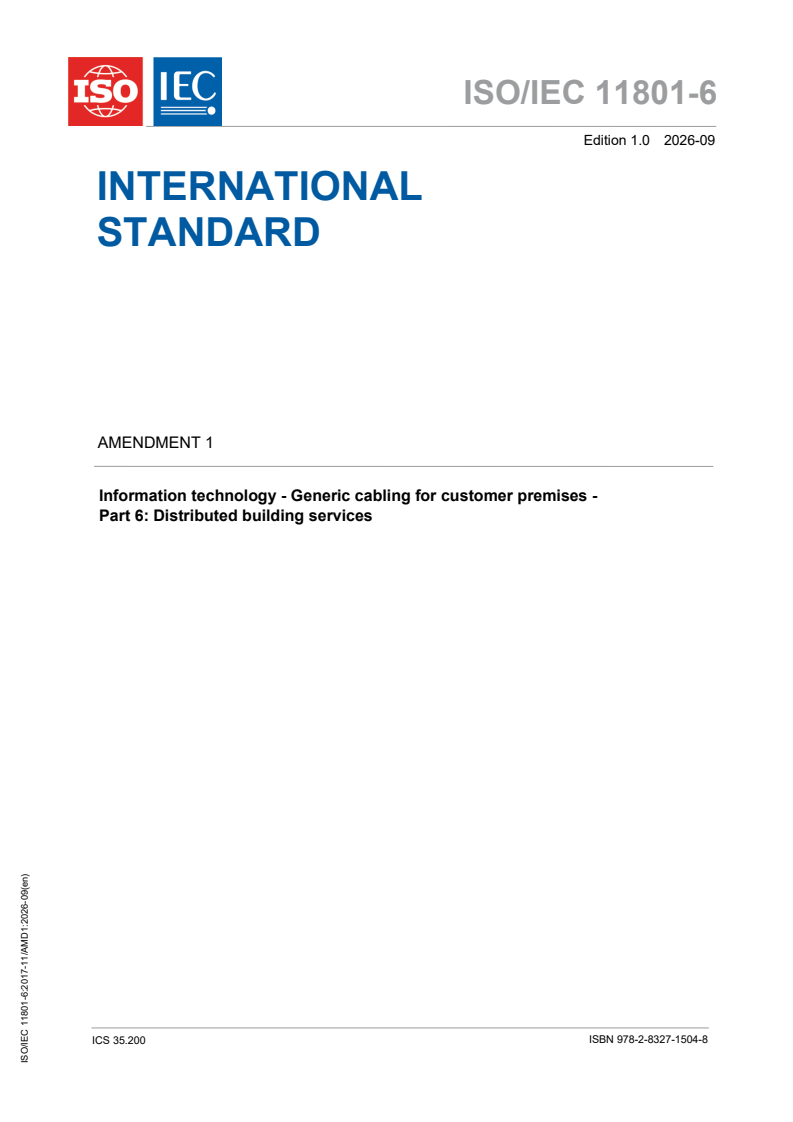

ISO/IEC 11801-6
Edition 1.0 2026-09
INTERNATIONAL
STANDARD
AMENDMENT 1
Information technology - Generic cabling for customer premises -
Part 6: Distributed building services
ICS 35.200  ISBN 978-2-8327-1504-8

ISO/IEC 11801-6:2017-11/AMD1:2026-09(en)

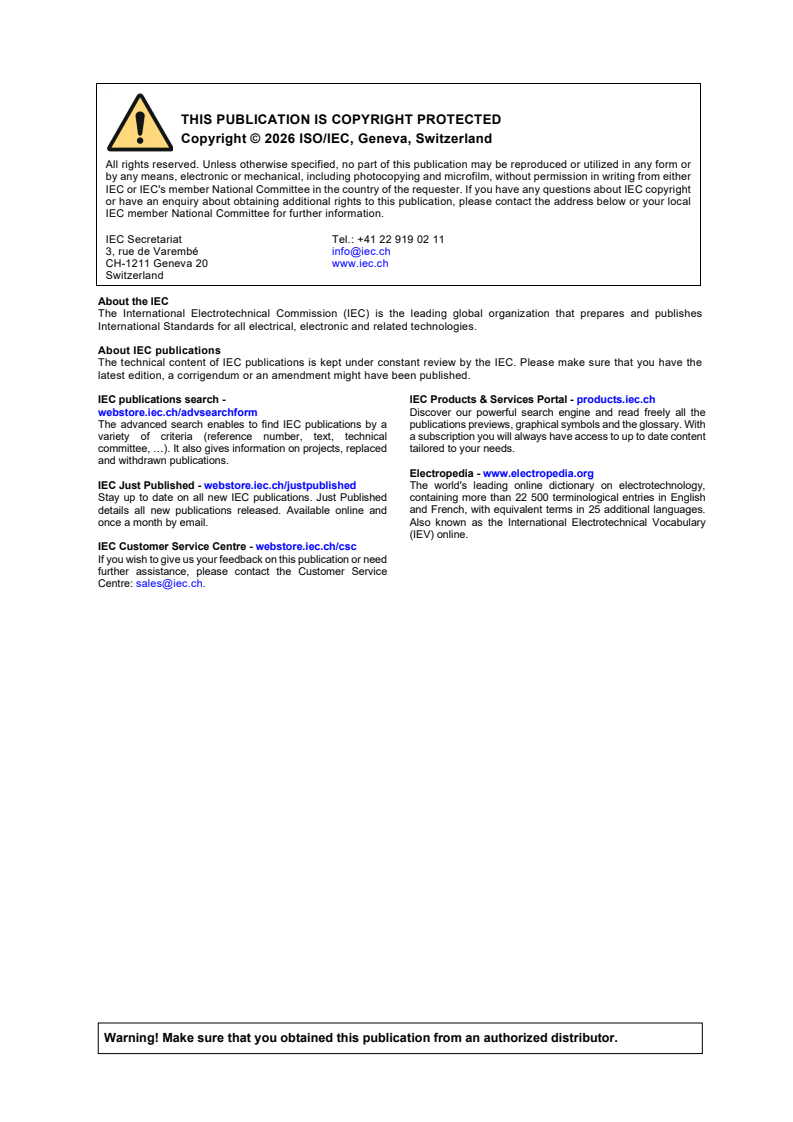

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary. With
variety of criteria (reference number, text, technical a subscription you will always have access to up to date content
committee, …). It also gives information on projects, replaced tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].

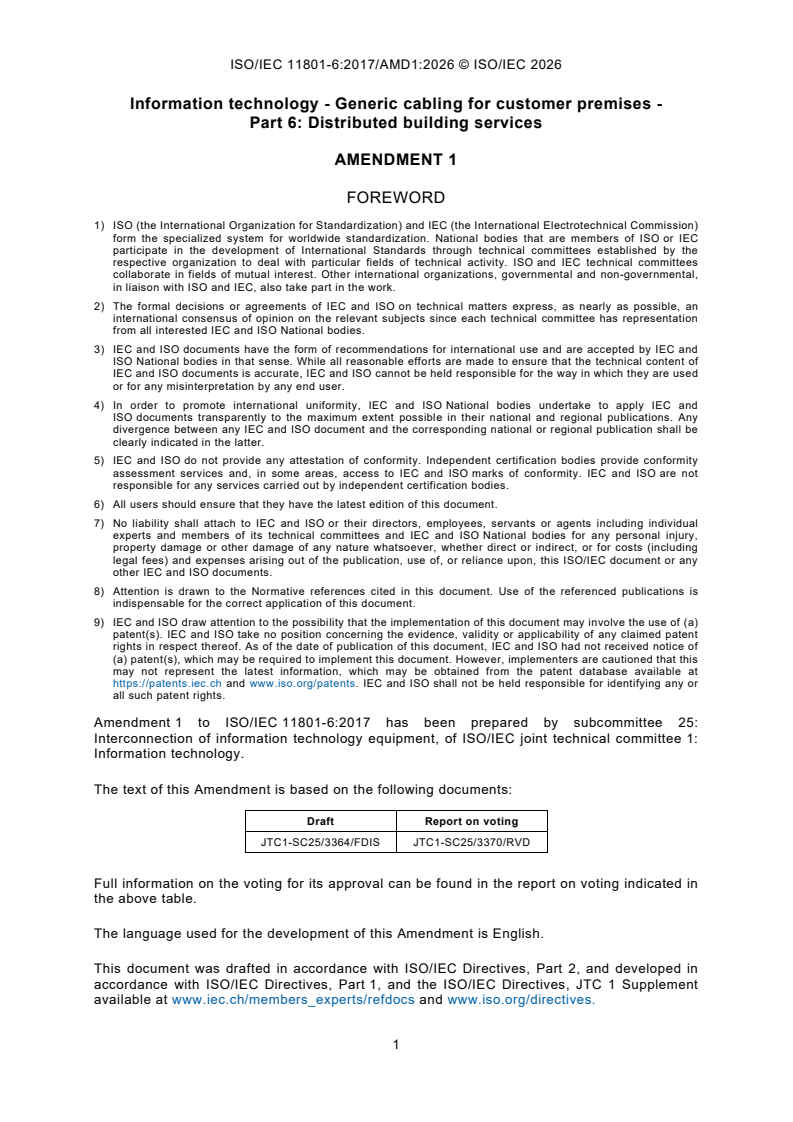

Information technology - Generic cabling for customer premises -
Part 6: Distributed building services

AMENDMENT 1
FOREWORD
1) ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission)
form the specialized system for worldwide standardization. National bodies that are members of ISO or IEC
participate in the development of International Standards through technical committees established by the
respective organization to deal with particular fields of technical activity. ISO and IEC technical committees
collaborate in fields of mutual interest. Other international organizations, governmental and non-governmental,
in liaison with ISO and IEC, also take part in the work.
2) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC and ISO National bodies.
3) IEC and ISO documents have the form of recommendations for international use and are accepted by IEC and
ISO National bodies in that sense. While all reasonable efforts are made to ensure that the technical content of
IEC and ISO documents is accurate, IEC and ISO cannot be held responsible for the way in which they are used
or for any misinterpretation by any end user.
4) In order to promote international uniformity, IEC and ISO National bodies undertake to apply IEC and
ISO documents transparently to the maximum extent possible in their national and regional publications. Any
divergence between any IEC and ISO document and the corresponding national or regional publication shall be
clearly indicated in the latter.
5) IEC and ISO do not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC and ISO marks of conformity. IEC and ISO are not
responsible for any services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this document.
7) No liability shall attach to IEC and ISO or their directors, employees, servants or agents including individual
experts and members of its technical committees and IEC and ISO National bodies for any personal injury,
property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including
legal fees) and expenses arising out of the publication, use of, or reliance upon, this ISO/IEC document or any
other IEC and ISO documents.
8) Attention is drawn to the Normative references cited in this document. Use of the referenced publications is
indispensable for the correct application of this document.
9) IEC and ISO draw attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC and ISO take no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, IEC and ISO had not received notice of
(a) patent(s), which may be required to implement this document. However, implementers are cautioned that this
may not represent the latest information, which may be obtained from the patent database available at
https://patents.iec.ch and www.iso.org/patents. IEC and ISO shall not be held responsible for identifying any or
all such patent rights.
Amendment 1 to ISO/IEC 11801-6:2017 has been prepared by subcommittee 25:
Interconnection of information technology equipment, of ISO/IEC joint technical committee 1:
Information technology.
The text of this Amendment is based on the following documents:
Draft Report on voting
JTC1-SC25/3364/FDIS JTC1-SC25/3370/RVD

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1, and the ISO/IEC Directives, JTC 1 Supplement
available at www.iec.ch/members_experts/refdocs and www.iso.org/directives.

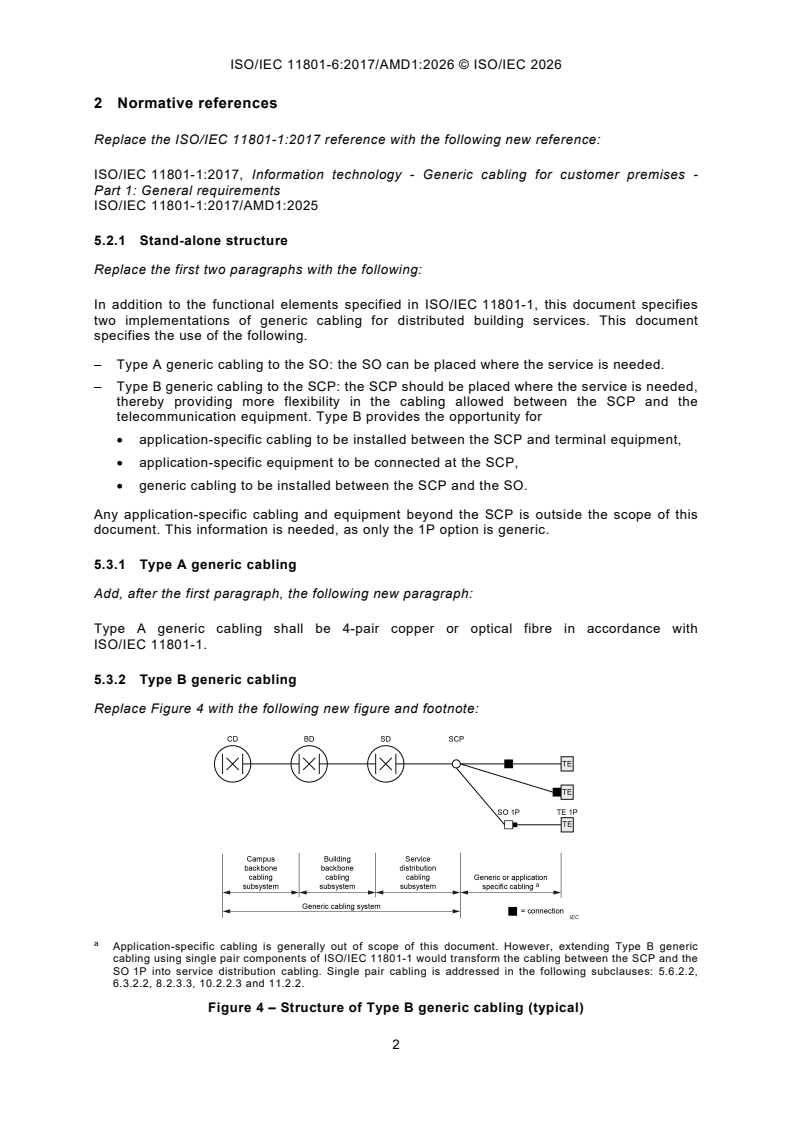

2 Normative references
Replace the ISO/IEC 11801-1:2017 reference with the following new reference:
ISO/IEC 11801-1:2017, Information technology - Generic cabling for customer premises -
Part 1: General requirements
ISO/IEC 11801-1:2017/AMD1:2025
5.2.1 Stand-alone structure
Replace the first two paragraphs with the following:
In addition to the functional elements specified in ISO/IEC 11801-1, this document specifies
two implementations of generic cabling for distributed building services. This document
specifies the use of the following.
– Type A generic cabling to the SO: the SO can be placed where the service is needed.
– Type B generic cabling to the SCP: the SCP should be placed where the service is needed,
thereby providing more flexibility in the cabling allowed between the SCP and the
telecommunication equipment. Type B provides the opportunity for
• application-specific cabling to be installed between the SCP and terminal equipment,
• application-specific equipment to be connected at the SCP,
• generic cabling to be installed between the SCP and the SO.
Any application-specific cabling and equipment beyond the SCP is outside the scope of this
document. This information is needed, as only the 1P option is generic.
5.3.1 Type A generic cabling
Add, after the first paragraph, the following new paragraph:
Type A generic cabling shall be 4-pair copper or optical fibre in accordance with
ISO/IEC 11801-1.
5.3.2 Type B generic cabling
Replace Figure 4 with the following new figure and footnote:

a
Application-specific cabling is generally out of scope of this document. However, extending Type B generic
cabling using single pair components of ISO/IEC 11801-1 would transform the cabling between the SCP and the
SO 1P into service distribution cabling. Single pair cabling is addressed in the following subclauses: 5.6.2.2,
6.3.2.2, 8.2.3.3, 10.2.2.3 and 11.2.2.
Figure 4 – Structure of Type B generic cabling (typical)
5.6.2.1 Type A generic cabling
Replace the existing three paragraphs with the following new paragraphs:
The transmission performance of Type A generic cabling is detailed in Clause 6 for channels
and in Clause 7 for links.
The channel is the transmission path between the transmission equipment (EQP in Figure 9)
and the terminal equipment. A typical channel consists of the service distribution cabling
subsystem together with service area and equipment cords. For longer reach services, the
channel is formed by the connection of two or more subsystems (including service area cords
and/or equipment cords).
Links may be tested either during commissioning or for the detection of faults that are suspected
in the cabling. Further informati
...
