IEC 60384-3:2016

(Main)

Fixed capacitors for use in electronic equipment - Part 3: Sectional specification - Surface mount fixed tantalum electrolytic capacitors with solid (MnO2) electrolyte

Fixed capacitors for use in electronic equipment - Part 3: Sectional specification - Surface mount fixed tantalum electrolytic capacitors with solid (MnO<sub>2</sub>) electrolyte

IEC 60384-3:2016 applies to fixed tantalum electrolytic surface mount capacitors with solid (MnO2) electrolyte primarily intended for d.c. applications for use in electronic equipment. The following two styles are considered:
- Style 1 - Capacitors protected with external materials;
- Style 2 - Capacitors unprotected with external materials. This edition includes the following significant technical changes with respect to the previous edition:
a) Revision of the structure in accordance with ISO/IEC Directives, Part 2:2011 (sixth edition) to the extent practicable, and harmonization between other similar kinds of documents.
b) In addition, Clause 4 and all the tables have been reviewed in order to prevent duplications and contradictions.

Condensateurs fixes utilisés dans les équipements électroniques - Partie 3: Spécification intermédiaire - Condensateurs fixes électrolytiques au tantale pour montage en surface, à électrolyte solide (MnO<sub>2</sub>)

L'IEC 60384-3:2016 s'applique aux condensateurs fixes électrolytiques au tantale pour montage en surface à électrolyte solide (MnO2) destinés principalement aux applications en courant continu dans des équipements électroniques. Les 2 modèles suivants sont considérés:
- Modèle 1 - Condensateurs protégés avec des matériaux externes;
- Modèle 2 - Condensateurs non protégés avec des matériaux externes. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) Révision de la structure fondé sur les Directives ISO/IEC, Partie 2:2011 (sixième édition) dans la mesure du possible, et harmonisation avec d'autres types de documents similaires.
b) En outre, révision et de l'Article 4 et des tableaux pour éviter les redondances et les contradictions.

General Information

Status
Published
Publication Date
11-Jul-2016
ICS
01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
31.060.30 - Paper and plastics capacitors
Technical Committee
TC 40 - Capacitors and resistors for electronic equipment
Drafting Committee
MT 60384-3 - TC 40/MT 60384-3
Current Stage
PPUB - Publication issued
Start Date
15-Aug-2016
Completion Date
12-Jul-2016
Ref Project

Buy Standard

IEC 60384-3:2016 - Fixed capacitors for use in electronic equipment - Part 3: Sectional specification - Surface mount fixed tantalum electrolytic capacitors with solid (MnO<sub>2</sub>) electrolyteIEC 60384-3:2016 - Fixed capacitors for use in electronic equipment - Part 3: Sectional specification - Surface mount fixed tantalum electrolytic capacitors with solid (MnO<sub>2</sub>) electrolyte
PreviousNext
Standard
IEC 60384-3:2016 - Fixed capacitors for use in electronic equipment - Part 3: Sectional specification - Surface mount fixed tantalum electrolytic capacitors with solid (MnO<sub>2</sub>) electrolyte
English and French language
60 pages
sale 15% off
Preview
sale 15% off
Preview

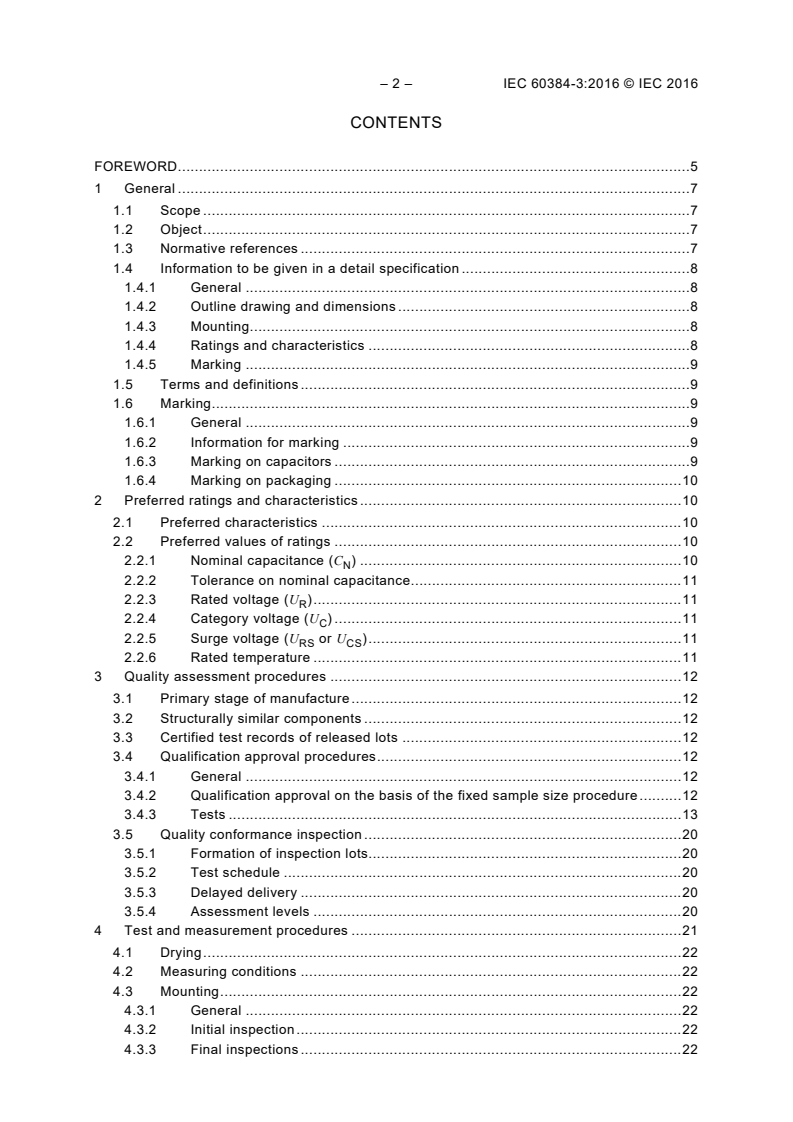

Standards Content (Sample)
