ISO 3584:2020

Road vehicles - Clevis couplings - Interchangeability

This document specifies the characteristics necessary for the mounting and interchangeability of clevis couplings on the frame (cross member, drawbeam or mounting bracket) of towing vehicles for trailers. This document is applicable to clevis couplings intended for connection to trailers equipped with a drawbar eye on the drawbar of the trailer. Characteristics not specified are left to the discretion of the component manufacturer.

Véhicules routiers — Chapes d'attelages - Interchangeabilité

General Information

• Status: Published
• Publication Date: 12-Feb-2020
• ICS: 43.040.70 - Couplings
• Technical Committee: ISO/TC 22/SC 40 - Specific aspects for light and heavy commercial vehicles, busses and trailers
• Drafting Committee: ISO/TC 22/SC 40/WG 1 - Mechanical couplings
• Current Stage: 9060 - Close of review
• Completion Date: 02-Sep-2030

Relations

• Revises: ISO 3584:2001 - Road vehicles - Drawbar couplings - Interchangeability
• Effective Date: 26-Aug-2017

Overview

ISO 3584:2020 - Road vehicles - Clevis couplings - Interchangeability defines the mounting and interchangeability characteristics for clevis couplings on towing-vehicle frames (cross member, drawbeam or mounting bracket) used to connect trailers fitted with a drawbar eye. The standard ensures dimensional compatibility, required clearances, articulation ranges and load-test references so that couplings and frames from different manufacturers can mate reliably.

Key topics and technical requirements

• Scope and identification
  • Applies to clevis couplings for trailers with a drawbar eye; unspecified characteristics remain at the manufacturer’s discretion.
  • Frames and couplings are identified by reference to ISO 3584 plus a category or class (e.g., “Clevis coupling ISO 3584 C 40 - Category 3”).
• Mounting categories and drilling patterns
  • Defines categories of drilling patterns and corresponding mounting dimensions for frame attachment (Tables and figures provide E, D, drilling tolerances).
  • Specifies minimum flat surface areas (dimensions F, G, L, T) required on the frame for secure mounting.
• Dimensional envelope and operating clearance
  • All coupling components must fit within an envelope box (Table 3 / Figure 3) and provide safe clearances for actuating devices.
• Articulation angles
  • Couplings must permit non-simultaneous articulation of: ±90° horizontal, ±20° vertical and ±25° axial rotation to accommodate vehicle/trailer movement.
• Load and performance
  • Couplings must satisfy strength tests in ISO 8718 and/or ISO 12357.
  • Classified C 40 and C 50 couplings have defined characteristic values (D, S, static loads) - for example C40 classes include D-values such as 18, 25, 70, 100, 130 kN; C50 classes extend to higher values (up to 190 kN).
• C 40 / C 50 compatibility
  • C 40 is intended for 40 mm drawbar eyes (ISO 8755); C 50 for 50 mm drawbar eyes (ISO 1102). Classified dimensions and tests are provided.

Applications and users

• Vehicle OEMs and chassis/frame designers specifying mounting interfaces for towing vehicles.
• Trailer and coupling manufacturers designing interchangeable clevis couplings (C 40 / C 50).
• Test laboratories performing strength and conformity tests per referenced standards.
• Fleet operators, regulators and maintenance engineers seeking compatibility, safety and retrofit guidance for towing systems.
• Procurement teams ensuring parts interchangeability across suppliers.

Related standards

• ISO 8755 - 40 mm drawbar eye - Interchangeability
• ISO 1102 - 50 mm drawbar eye - Interchangeability
• ISO 8718 - Drawbar couplings and eyes - Strength tests
• ISO 12357 - Drawbar couplings and eyes for rigid drawbars
• ISO 11406 / ISO 11407 - Coupling clearance guidance and interchangeability for towing vehicles

Keywords: ISO 3584, clevis couplings, interchangeability, drawbar eye, towing vehicles, trailer coupling, mounting categories, articulation angles, C40, C50.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 3584
Third edition
2020-02
Road vehicles — Clevis couplings —
Interchangeability
Véhicules routiers — Chapes d'attelages - Interchangeabilité
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

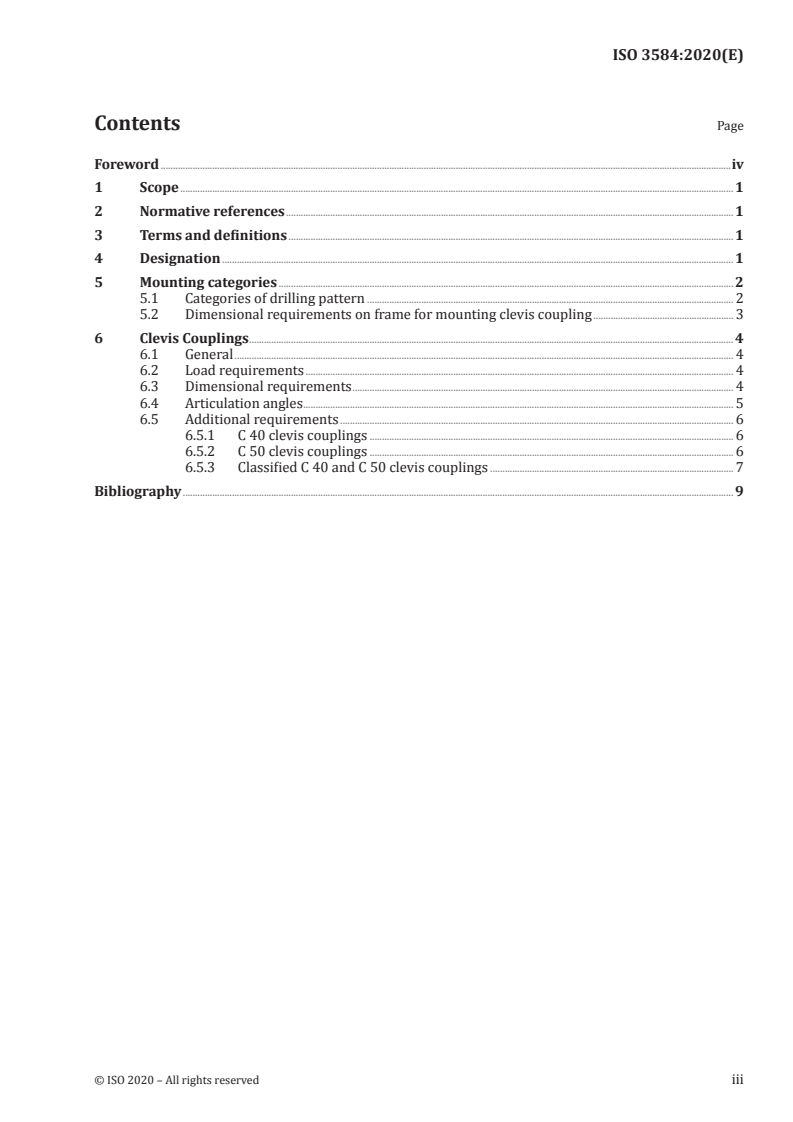

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Designation . 1
5 Mounting categories . 2
5.1 Categories of drilling pattern . 2
5.2 Dimensional requirements on frame for mounting clevis coupling . 3
6 Clevis Couplings . 4
6.1 General . 4
6.2 Load requirements . 4
6.3 Dimensional requirements . 4
6.4 Articulation angles . 5
6.5 Additional requirements . 6
6.5.1 C 40 clevis couplings . 6
6.5.2 C 50 clevis couplings . 6
6.5.3 Classified C 40 and C 50 clevis couplings . 7
Bibliography . 9

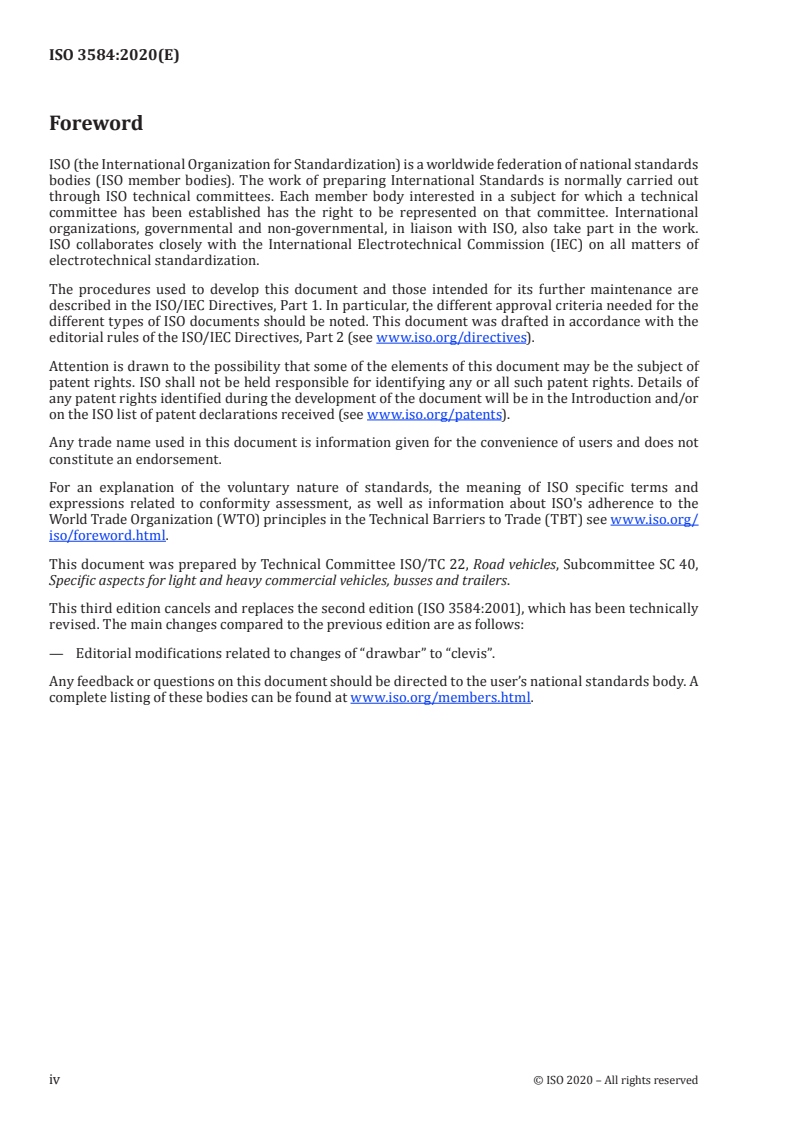

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 40,
Specific aspects for light and heavy commercial vehicles, busses and trailers.
This third edition cancels and replaces the second edition (ISO 3584:2001), which has been technically
revised. The main changes compared to the previous edition are as follows:
— Editorial modifications related to changes of “drawbar” to “clevis”.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

INTERNATIONAL STANDARD ISO 3584:2020(E)
Road vehicles — Clevis couplings — Interchangeability
1 Scope
This document specifies the characteristics necessary for the mounting and interchangeability of clevis
couplings on the frame (cross member, drawbeam or mounting bracket) of towing vehicles for trailers.
This document is applicable to clevis couplings intended for connection to trailers equipped with a
drawbar eye on the drawbar of the trailer.
Characteristics not specified are left to the discretion of the component manufacturer.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated refer
...
