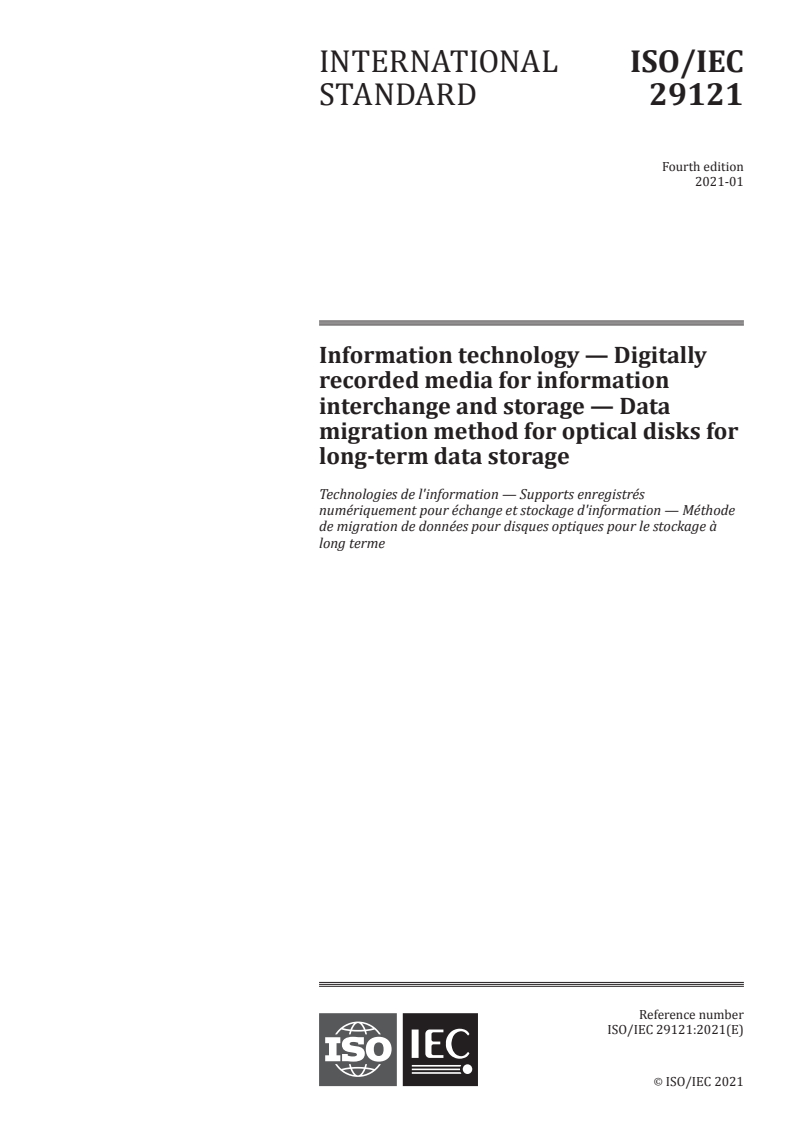

INTERNATIONAL ISO/IEC
STANDARD 29121
Fourth edition
2021-01
Information technology — Digitally
recorded media for information
interchange and storage — Data
migration method for optical disks for
long-term data storage
Technologies de l'information — Supports enregistrés
numériquement pour échange et stockage d'information — Méthode
de migration de données pour disques optiques pour le stockage à
long terme
Reference number
ISO/IEC 29121:2021(E)
ISO/IEC 2021
---------------------- Page: 1 ----------------------
ISO/IEC 29121:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 29121:2021(E)

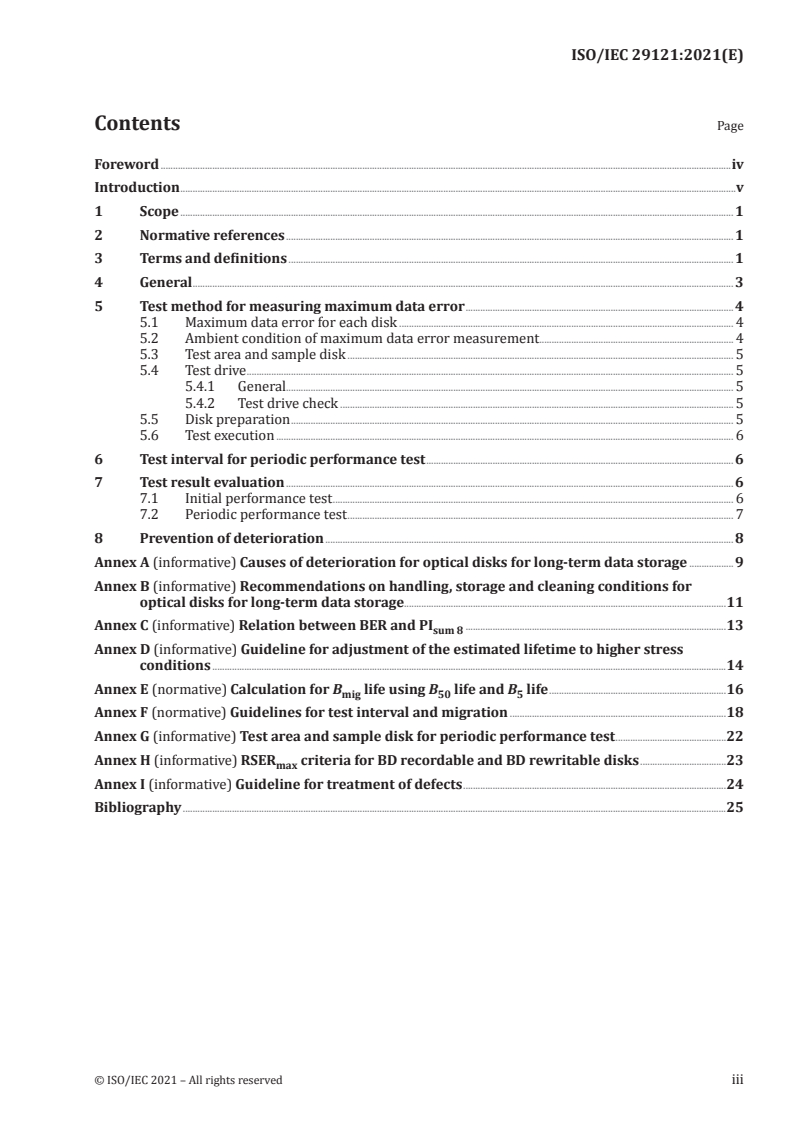

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 General ............................................................................................................................................................................................................................ 3

5 Test method for measuring maximum data error ............................................................................................................. 4

5.1 Maximum data error for each disk ........................................................................................................................................ 4

5.2 Ambient condition of maximum data error measurement............................................................................... 4

5.3 Test area and sample disk ............................................................................................................................................................. 5

5.4 Test drive ...................................................................................................................................................................................................... 5

5.4.1 General...................................................................................................................................................................................... 5

5.4.2 Test drive check ................................................................................................................................................................ 5

5.5 Disk preparation .................................................................................................................................................................................... 5

5.6 Test execution .......................................................................................................................................................................................... 6

6 Test interval for periodic performance test ............................................................................................................................. 6

7 Test result evaluation ...................................................................................................................................................................................... 6

7.1 Initial performance test ................................................................................................................................................................... 6

7.2 Periodic performance test ............................................................................................................................................................. 7

8 Prevention of deterioration ...................................................................................................................................................................... 8

Annex A (informative) Causes of deterioration for optical disks for long-term data storage ..................9

Annex B (informative) Recommendations on handling, storage and cleaning conditions for

optical disks for long-term data storage...................................................................................................................................11

Annex C (informative) Relation between BER and PI ..........................................................................................................13

sum 8

Annex D (informative) Guideline for adjustment of the estimated lifetime to higher stress

conditions .................................................................................................................................................................................................................14

Annex E (normative) Calculation for B life using B life and B life ........................................................................16

mig 50 5

Annex F (normative) Guidelines for test interval and migration ........................................................................................18

Annex G (informative) Test area and sample disk for periodic performance test .............................................22

Annex H (informative) RSER criteria for BD recordable and BD rewritable disks ...................................23

max

Annex I (informative) Guideline for treatment of defects ...........................................................................................................24

Bibliography .............................................................................................................................................................................................................................25

© ISO/IEC 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 29121:2021(E)

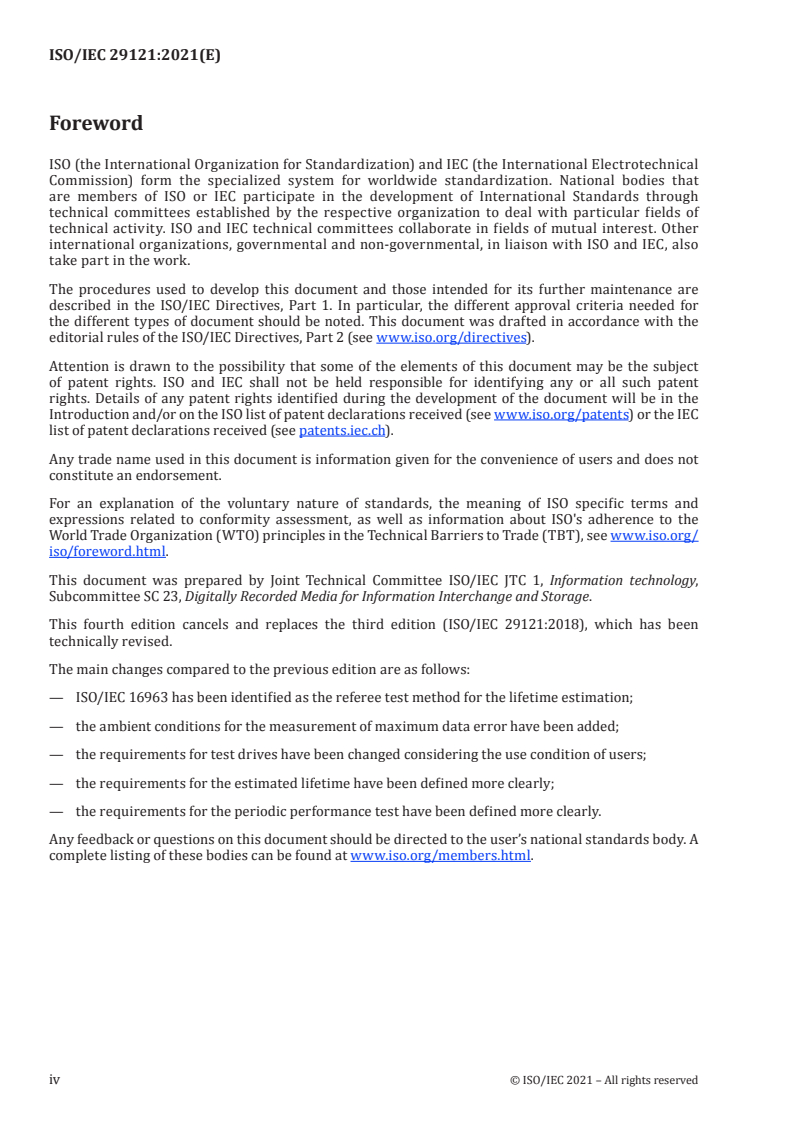

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that

are members of ISO or IEC participate in the development of International Standards through

technical committees established by the respective organization to deal with particular fields of

technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also

take part in the work.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for

the different types of document should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent

rights. Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents) or the IEC

list of patent declarations received (see patents.iec.ch).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 23, Digitally Recorded Media for Information Interchange and Storage.

This fourth edition cancels and replaces the third edition (ISO/IEC 29121:2018), which has been

technically revised.
The main changes compared to the previous edition are as follows:

— ISO/IEC 16963 has been identified as the referee test method for the lifetime estimation;

— the ambient conditions for the measurement of maximum data error have been added;

— the requirements for test drives have been changed considering the use condition of users;

— the requirements for the estimated lifetime have been defined more clearly;

— the requirements for the periodic performance test have been defined more clearly.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO/IEC 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 29121:2021(E)
Introduction

Many organizations now use optical disks for long-term storage of information. It is assumed that a

disk selected for recording has already been qualified for that purpose. It is therefore important to be

able to verify that data have been recorded correctly and remains readable for the required amount of

time. Previous International Standards clearly defined requirements for interchange, but they did not

contain requirements for longevity.

Longevity is limited both by disk deterioration and by technology obsolescence. Interchange is

regularly verified to assure that information on existing recorded disks will continue to be recoverable.

Users can have a maintenance policy that protects disks against unanticipated failure or use, such as by

making one copy, another to function as a backup or master and another for routine access. Hardware

support life cycles typically vary between 5 and 10 years, and technology life cycles usually end after 20

years. Consequently, recordings that require a longer life cycle can have to be transferred to upgraded

platforms every 10 to 30 years.

Optical disks for long-term storage should be evaluated. Significant longevity differences can exist

for disks from different manufacturers and even between disks from the same manufacturer. It is

preferable that disks selected for long-term preservation have a long-estimated lifetime, which can be

estimated according to ISO/IEC 16963.

Disks with initially poor quality do not offer sufficient headroom and can reach the unrecoverable error

threshold before the next scheduled inspection, which is to be avoided for long-term data storage. This

means that a disk of high initial recorded quality that maintains this condition for life is expected to

have superior longevity.

Because read data are corrected by an error correction decoder, it is impossible to detect deterioration

without detecting the raw error rate or raw error number. The error rate measured before error

correction is applied, which represents the raw error rate, can be detected with a standard test drive.

The quality of the disk can be specified as the number of erroneous inner parity detections with

DVD-R, DVD-RW, +R and +RW disks. The quality of a DVD-RAM disk is defined instead by its byte

error rate. Deterioration can be monitored by checking the error rate and continues to be monitored.

Methods described in this document define a quality-control policy that can non-destructively identify

deterioration, and thereby support timely and effective corrective action.

DVD-R, DVD-RW, DVD-RAM, +R and +RW disks are based on the technology now widely known as DVD

in the market. This entails the use of red laser diodes, two 0,6 mm thick substrates bonded together

by an adhesive layer to protect the recording layer from dust, write-once (DVD-R, +R) or phase change

recording layers (DVD-RW, DVD-RAM, +RW) and a 0,60 or 0,65 NA objective lens to ensure good spatial

margins required for a professional data preservation. Disks having dual recording layers with a spacer

between them are used in addition to those with a conventional single recording layer.

After the issuance of the previous edition of this document, ISO/IEC standards for the physical format

of BD recordable and rewritable disks were published in 2013. ISO/IEC 16963 was also updated to

include testing of BD recordable and rewritable disks in 2015. Accordingly, work started to include

BD recordable and rewritable disks in this document. The BD data migration part of this work was

standardized separately as ECMA-413. CD-R and CD-RW disks included in ISO/IEC 16963 are also

incorporated. The error rate measured before error-correction is applied is also defined in each

International Standard of CD-R, CD-RW, BD recordable and BD rewritable disk.
© ISO/IEC 2021 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 29121:2021(E)
Information technology — Digitally recorded media for
information interchange and storage — Data migration
method for optical disks for long-term data storage
1 Scope

This document specifies the data migration method for DVD-R, DVD-RW, DVD-RAM, +R, +RW, CD-R, CD-

RW, BD Recordable and BD Rewritable disks for long-term data storage. By applying this document for

information storage, digital data can be migrated to a next new disk without loss from the present disk

if data errors are completely corrected before and during the migration and provided copying of the

data is allowed.
This document specifies:
— a data migration method for long-term data storage;

— test methods for measuring maximum data error, including ambient condition, test area, test drive,

disk preparation and test execution;

— an initial performance test and a periodic performance test that check an error rate of data recorded

on the disks with categorized maximum data error tables;

— precautions to reduce the possibility of deterioration in order to assure the integrity of the disks

during their use, storage, handling or transportation; and

— the estimated lifetime of B (B ) life to determine the test interval for the periodic

mig 0,000 1
performance test.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 16963, Information technology — Digitally recorded media for information interchange and

storage — Test method for the estimation of lifetime of optical disks for long-term data storage

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at https:// www .iso .org/ obp
3.1
B life
mig

lifetime (3.9) for use of data migration (3.5) and identical to B life which is 0,000 001 quantile of

0.000 1

the lifetime distribution (i.e. 0,000 1 % failure time) or 99,999 9 % survival lifetime

Note 1 to entry: See Annex E.
© ISO/IEC 2021 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 29121:2021(E)
3.2
B life

5 percentile of the lifetime (3.9) distribution (i.e. 5 % failure time) or 95 % survival lifetime

[SOURCE: ISO/IEC 16963:2017, 3.4]
3.3
(B life)
5 L
95 % lower confidence bound of B life (3.2)
[SOURCE: ISO/IEC 16963:2017, 3.5]
3.4
B life

50 percentile of the lifetime (3.9) distribution (i.e. 50 % failure time) or 50 % survival lifetime

[SOURCE: ISO/IEC 16963:2017, 3.6]
3.5
data migration
process to copy data from one storage device or medium to another
3.6
error correction code
ECC

mathematical computation yielding check bytes used for the detection and correction of errors in data

Note 1 to entry: For DVD-R, DVD-RW, DVD-RAM, +R and +RW disks, the Reed-Solomon product code defined in

ISO/IEC 16448 for DVD-ROM systems is applied. For BD recordable and BD rewritable disks, the long-distance

code (LDC) + burst-indicating subcode (BIS) defined in ISO/IEC 30190, ISO/IEC 30191, ISO/IEC 30192 and

ISO/IEC 30193 is applied. For CD-R and CD-RW disks, the cross interleaved Reed-Solomon code (CIRC) and the

Reed-Solomon Product-like Code (RSPC) defined in ISO/IEC 10149 are applied.
3.7
error rate

rate of errors or error count measured on the signal at the input of error-correction decoder, which

represents raw-error rate of data recorded on a disk
3.8
initial performance test
first test of the error rate (3.7) of data recorded on a disk before storing
3.9
lifetime
time that information is retrievable in a system (3.18)
3.10
maximum byte-error rate
BER
max

greatest level of byte-error rate at any consecutive 32 error correction code (3.6) blocks in one of the

relevant area on a disk as measured in the first pass of the decoder before correction

Note 1 to entry: BER is applied to DVD-RAM disks.
max
3.11
maximum C1 average 10
ave 10,max

greatest level of C1 errors per second at the standard (1x) data transfer rate in one of the relevant area

on a disk measured on the signal at the input of error correction decoder averaged over any 10 s

Note 1 to entry: See ISO/IEC 16963.
2 © ISO/IEC 2021 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 29121:2021(E)
3.12
maximum data error

greatest level of error rate (3.7) anywhere in one of the relevant areas on the disk

[SOURCE: ISO/IEC 16963:2017, 3.13, modified — Note 1 to entry has been deleted.]
3.13
maximum parity inner sum 8
sum 8,max

greatest revel of parity (of the) inner code error count at any consecutive 8 error correction code (3.6)

blocks in one of the relevant area on a disk as measured in the first pass of the decoder before correction

Note 1 to entry: See ISO/IEC 16448, ISO/IEC 23912, ISO/IEC 17341, ISO/IEC 17342 and ISO/IEC 17344.

3.14
maximum random symbol error rate
RSER
max

greatest level of random symbol error rate measured on the signal in one of the relevant area on a disk

at the input of error-correction decoder, which excludes burst errors of length greater than or equal to

40 bytes

Note 1 to entry: See ISO/IEC 30190, ISO/IEC 30191, ISO/IEC 30192, ISO/IEC 30193 and ISO/IEC 16963.

3.15
periodic performance test

periodic test of the error rate (3.7) of data recorded on a disk during the storage

3.16
retrievability
ability to recover information as recorded
[SOURCE: ISO/IEC 16963:2017, 3.14]
3.17
system

combination of hardware, software, storage medium and documentation used to record, retrieve and

reproduce information
[SOURCE: ISO/IEC 16963:2017, 3.20]
3.18
uncorrectable error

error in the read-out data that cannot be corrected by the error-correction decoders

3.19
X interval
mig
migration interval (year) which is determined by the user
Note 1 to entry: See Annex F.
4 General

Information is physically recorded on a disk as digital data. Although it is inevitable to cause errors

in the physical recording process, error correction technologies can retrieve the physically recorded

information completely from the read-out raw data with acceptable errors. If the errors in the read-

out raw data exceed the error correcting capability, some of information is lost and the original

information cannot be retrieved. The main cause of the errors is the physical deterioration of a disk.

The deterioration can be measured by monitoring the error rate, and the original information can be

migrated to a new disk in advance of an appearance of uncorrectable errors. Using the data migration

method described in this document, the physically recorded information can be stored without loss of

the original information, then the retrievability is maintained for a long time.
© ISO/IEC 2021 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 29121:2021(E)

In order to check the error rate of data recorded on a disk, the maximum data error is measured using

a test drive.

When data are recorded on a disk, the error rate shall be checked with the initial performance test.

Depending on the test result of the initial performance test, the disk is judged to be used for long-term

data storage.

The error rate of data recorded on those disks shall be periodically checked in the storage duration with

the periodic performance test unless the data are migrated to the new disk before the first periodic

performance test. Depending on the test result of the periodic performance test, the necessity of the

data migration is judged.

In order to determine the test interval for the periodic performance test, B life: (see Clause 6 for

mig

detailed definition) is used. ISO/IEC 16963 specifies an accelerated aging test method for estimating

the lifetime of the retrievability of information stored on recordable or rewritable optical disks.

ISO/IEC 16963 offers B life and B life, and B life is introduced using B life and B life (see Annex E

50 5 mig 50 5

for detailed definitions). ISO/IEC 16963 shall be the referee test method for the lifetime estimation of

disks and alternative test methods with equivalent statistical accuracy may also be applied, such as

ISO/IEC 10995 for DVD disks or ISO 18927 for CD disks.

ISO/IEC 16963, ISO/IEC 10995 and ISO 18927 specifies the details of the accelerated test method.

In case that the test conditions such as the acceleration conditions and/or the sample numbers are

different from those specified in the standard, the estimated lifetime may be used on the condition that

the statistical accuracy is maintained. Users of this document can determine the migration interval

(X ) (Annex F for detailed specifications) with no relation to the estimated lifetime of the disk. In case

mig
the X is introduced, follow the procedure defined in Annex F.
mig
5 Test method for measuring maximum data error
5.1 Maximum data error for each disk

The maximum data error to be measured for a disk defined in each international standard is as follows:

For DVD-R disk defined in ISO/IEC 12862 and ISO/IEC 23912, DVD-RW disk defined in ISO/IEC 13170

and ISO/IEC 17342, +R disk defined in ISO/IEC 17344 and ISO/IEC 25434, and +RW disk defined in

ISO/IEC 17341, ISO/IEC 26925 and ISO/IEC 29642, the each maximum parity inner sum 8 (PI )

sum 8,max
shall be measured.

For DVD-RAM disk defined in ISO/IEC 17592, the maximum byte-error rate (BER ) shall be measured

max
(see Annex C for additional information).

For CD-R disk defined in ECMA-394 and CD-RW disk defined in ECMA-395, each maximum C1 average

10 (C1 ) shall be measured.
ave 10 ,max

For BD recordable disk defined in ISO/IEC 30190 and ISO/IEC 30191 and BD rewritable disk defined

in ISO/IEC 30192 and ISO/IEC 30193, each maximum random symbol error rate (RSER ) shall be

max
measured (see Annex H for additional information).
5.2 Ambient condition of maximum data error measurement

The ambient condition is the surrounding condition in a room where a test drive is located. The ambient

conditions for the maximum data error measurement are as follows:
— temperature: 15 °C to 30 °C;
— relative humidity: 20 % to 75 %.
4 © ISO/IEC 2021 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 29121:2021(E)
5.3 Test area and sample disk
The test area is the recorded area to be tested in a disk.

The whole recorded area of all disks shall be tested for the initial performance test.

The whole recorded area of all disks should be tested for the periodic performance test. Although the

integrity of the data becomes lower, the user may reduce the test area and/or the number of sample disks

based on a certain sampling method, considering the value of information (see Annex G for additional

information). For the reduction of test area, see ISO/IEC 16963:2017, 7.5, for additional information.

The number of sample disks should be enough to guarantee statistical effectiveness. If the sample disks

have different attributes such as disk standards, recording conditions or storage conditions, the disks

should be divided into groups of disks considering the attributes so that the sampling can be applied on

each group with the statistical effectiveness.
5.4 Test drive
5.4.1 General

For DVD-R and DVD-RW disks, +R and +RW disks, the test drive shall have capability to measure

PI .
sum 8,max
For DVD-RAM disk, the test drive shall have capability to measure BER .
max
For CD-R and CD-RW disks, the test drive shall have capability to measure C1 .
ave 10,max

For BD recordable disks and BD rewritable disks, the test drive shall have capability to measure

RSER .
max

The test drive shall have the capability to evaluate the error rate level specified in the initial performance

test and the periodic performance test.

There are two cases of the test drive. One is that the drive serves both as a test drive and a recorder

which records the data on the disk. The other is that the test drive is different from the recorder. For

both cases, the data recorded on the disk by the recorder shall fulfil the error rate level specified in the

initial performance test and the periodic performance test.

NOTE The measuring circuit for RSER described in ISO/IEC 30191 and ISO/IEC 30193 is different from

that described in ISO/IEC 30190 and ISO/IEC 30192, especially in HF signal pre-processing circuit. See

ISO/IEC 30190:2021, Annex H, and ISO/IEC 30191:2021, Annex H, for additional information.

5.4.2 Test drive check

The test drive shall be checked by using a reference disk prepared by the test drive manufacturer or

the disk prepared by the user, so that it fulfils the requirements in 5.4.1. When using the reference

disk prepared by the test drive manufacturer, the check of the test drive shall be done at the intervals

recommended by the manufacturer. When using the disk prepared by the user, it is recommended for

the user to set an appropriate interval and to check the test drive at the interval.

5.5 Disk preparation

Prior to conducting tests, the disks shall be checked that there is no dust, fingerprints or other

contaminants on them. If there is dust, fingerprints or other contaminants, such contaminants shall be

removed in accordance with the procedure recommended by the disk-manufacturer. Certain options are

contained in Annex B. Microscopic examination can reveal physical deterioration, such as delamination

and porosity of the protective coating.
© ISO/IEC 2021 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC 29121:2021(E)
5.6 Test execution

Before testing disks, the test drive shall be verified by the procedure defined in 5.4.2. If the drive does

not pass the verification, the test drive shall not be used for the test.

On testing disks, care handling of the disks shall be taken in order to avoid introducing unexpected

defects (see Annex I for additional information).
6 Test interval for periodic performance test

In order to determine the test interval for the periodic performance test, B life is used.

mig

B life shall be calculated according to Annex E, and B life and B life or B life and standard

mig 50 5 50

deviation, σ, shall be provided (see Clause 4). The test interval shall be determined according to Annex F.

In case B life is not available as shown below, the test interval should be three years or less. Relaxation

mig

of the test interval causes the risk of data loss and failure in the data migration. In case such a risk is

unacceptable, the test interval of three years or less is strongly recommended.
— The estimated lifetime data is not provided.
— The estimated lifetime data is provided but lacks the statistical accuracy.

The ambient storage-condition for the lifetime estimation should be controlled storage condition

(temperature, T = 25 °C and relative humidity R = 50 %) or harsh storage condition (T = 30 °C and

R = 80 %). The estimated lifetime is affected by the storage condition. If the actual storage condition

is far from the controlled storage condition or harsh storage condition, the estimated lifetime may be

adjusted (see Annex D for additional information).

The occurrence of retrievability problems can indicate a need for immediate testing.

When tests indicate deterioration of one disk, additional tests may be performed on the other disks

of the same type, the same age or the same l
...

INTERNATIONAL ISO/IEC
STANDARD 29121
Fourth edition
Information technology — Digitally
recorded media for information
interchange and storage — Data
migration method for optical disks for
long-term data storage
Technologies de l'information — Supports enregistrés
numériquement pour échange et stockage d'information — Méthode
de migration de données pour disques optiques pour le stockage à
long terme
PROOF/ÉPREUVE
Reference number
ISO/IEC 29121:2020(E)
ISO/IEC 2020
---------------------- Page: 1 ----------------------
ISO/IEC 29121:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii PROOF/ÉPREUVE © ISO/IEC 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 29121:2020(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 General ............................................................................................................................................................................................................................ 3

5 Test method for measuring maximum data error ............................................................................................................. 4

5.1 Maximum data error for each disk ........................................................................................................................................ 4

5.2 Ambient condition of maximum data error measurement............................................................................... 4

5.3 Test area and sample disk ............................................................................................................................................................. 5

5.4 Test drive ...................................................................................................................................................................................................... 5

5.4.1 General...................................................................................................................................................................................... 5

5.4.2 Test drive check ................................................................................................................................................................ 5

5.5 Disk preparation .................................................................................................................................................................................... 5

5.6 Test execution .......................................................................................................................................................................................... 6

6 Test interval for periodic performance test ............................................................................................................................. 6

7 Test result evaluation ...................................................................................................................................................................................... 6

7.1 Initial performance test ................................................................................................................................................................... 6

7.2 Periodic performance test ............................................................................................................................................................. 7

8 Prevention of deterioration ...................................................................................................................................................................... 8

Annex A (informative) Causes of deterioration for optical disks for long-term data storage ..................9

Annex B (informative) Recommendations on handling, storage and cleaning conditions for

optical disks for long-term data storage...................................................................................................................................11

Annex C (informative) Relation between BER and PI ..........................................................................................................13

sum 8

Annex D (informative) Guideline for adjustment of the estimated lifetime to higher stress

conditions .................................................................................................................................................................................................................14

Annex E (normative) Calculation for B life using B life and B life ........................................................................16

mig 50 5

Annex F (normative) Guidelines for test interval and migration ........................................................................................18

Annex G (informative) Test area and sample disk for periodic performance test .............................................22

Annex H (informative) RSER criteria for BD recordable and BD rewritable disks ...................................23

max

Annex I (informative) Guideline for treatment of defects ...........................................................................................................24

Bibliography .............................................................................................................................................................................................................................25

© ISO/IEC 2020 – All rights reserved PROOF/ÉPREUVE iii
---------------------- Page: 3 ----------------------
ISO/IEC 29121:2020(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that

are members of ISO or IEC participate in the development of International Standards through

technical committees established by the respective organization to deal with particular fields of

technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also

take part in the work.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for

the different types of document should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent

rights. Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www .iso .org/ patents) or the IEC

list of patent declarations received (see patents.iec.ch).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 23, Digitally Recorded Media for Information Interchange and Storage.

This fourth edition cancels and replaces the third edition (ISO/IEC 29121:2018), which has been

technically revised.
The main changes compared to the previous edition are as follows:

— ISO/IEC 16963 has been identified as the referee test method for the lifetime estimation;

— the ambient conditions for the measurement of maximum data error have been added;

— the requirements for test drives have been changed considering the use condition of users;

— the requirements for the estimated lifetime have been defined more clearly;

— the requirements for the periodic performance test have been defined more clearly.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv PROOF/ÉPREUVE © ISO/IEC 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 29121:2020(E)
Introduction

Many organizations now use optical disks for long-term storage of information. It is assumed that a

disk selected for recording has already been qualified for that purpose. It is therefore important to be

able to verify that data have been recorded correctly and remains readable for the required amount of

time. Previous International Standards clearly defined requirements for interchange, but they did not

contain requirements for longevity.

Longevity is limited both by disk deterioration and by technology obsolescence. Interchange is

regularly verified to assure that information on existing recorded disks will continue to be recoverable.

Users can have a maintenance policy that protects disks against unanticipated failure or use, such as by

making one copy, another to function as a backup or master and another for routine access. Hardware

support life cycles typically vary between 5 and 10 years, and technology life cycles usually end after 20

years. Consequently, recordings that require a longer life cycle can have to be transferred to upgraded

platforms every 10 to 30 years.

Optical disks for long-term storage should be evaluated. Significant longevity differences can exist

for disks from different manufacturers and even between disks from the same manufacturer. It is

preferable that disks selected for long-term preservation have a long-estimated lifetime, which can be

estimated according to ISO/IEC 16963.

Disks with initially poor quality do not offer sufficient headroom and can reach the unrecoverable error

threshold before the next scheduled inspection, which is to be avoided for long-term data storage. This

means that a disk of high initial recorded quality that maintains this condition for life is expected to

have superior longevity.

Because read data are corrected by an error correction decoder, it is impossible to detect deterioration

without detecting the raw error rate or raw error number. The error rate measured before error

correction is applied, which represents the raw error rate, can be detected with a standard test drive.

The quality of the disk can be specified as the number of erroneous inner parity detections with

DVD-R, DVD-RW, +R and +RW disks. The quality of a DVD-RAM disk is defined instead by its byte

error rate. Deterioration can be monitored by checking the error rate and continues to be monitored.

Methods described in this document define a quality-control policy that can non-destructively identify

deterioration, and thereby support timely and effective corrective action.

DVD-R, DVD-RW, DVD-RAM, +R and +RW disks are based on the technology now widely known as DVD

in the market. This entails the use of red laser diodes, two 0,6 mm thick substrates bonded together

by an adhesive layer to protect the recording layer from dust, write-once (DVD-R, +R) or phase change

recording layers (DVD-RW, DVD-RAM, +RW) and a 0,60 or 0,65 NA objective lens to ensure good spatial

margins required for a professional data preservation. Disks having dual recording layers with a spacer

between them are used in addition to those with a conventional single recording layer.

After the issuance of the previous edition of this document, ISO/IEC standards for the physical format

of BD recordable and rewritable disks were published in 2013. ISO/IEC 16963 was also updated to

include testing of BD recordable and rewritable disks in 2015. Accordingly, work started to include

BD recordable and rewritable disks in this document. The BD data migration part of this work was

standardized separately as ECMA-413. CD-R and CD-RW disks included in ISO/IEC 16963 are also

incorporated. The error rate measured before error-correction is applied is also defined in each

International Standard of CD-R, CD-RW, BD-recordable and BD rewritable disk.
© ISO/IEC 2020 – All rights reserved PROOF/ÉPREUVE v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 29121:2020(E)
Information technology — Digitally recorded media for
information interchange and storage — Data migration
method for optical disks for long-term data storage
1 Scope

This document specifies the data migration method for DVD-R, DVD-RW, DVD-RAM, +R, +RW, CD-R, CD-

RW, BD Recordable and BD Rewritable disks for long-term data storage. By applying this document for

information storage, digital data can be migrated to a next new disk without loss from the present disk

if data errors are completely corrected before and during the migration and provided copying of the

data is allowed.
This document specifies:
— a data migration method for long-term data storage;

— test methods for measuring maximum data error, including ambient condition, test area, test drive,

disk preparation and test execution;

— an initial performance test and a periodic performance test that check an error rate of data recorded

on the disks with categorized maximum data error tables;

— precautions to reduce the possibility of deterioration in order to assure the integrity of the disks

during their use, storage, handling or transportation; and

— the estimated lifetime of B (B ) life to determine the test interval for the periodic

mig 0,000 1
performance test.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO/IEC 16963, Information technology — Digitally recorded media for information interchange and

storage — Test method for the estimation of lifetime of optical disks for long-term data storage

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at https:// www .iso .org/ obp
3.1
B life
mig

lifetime (3.9) for use of data migration (3.5) and identical to B life which is 0,000 001 quantile of

0.000 1

the lifetime distribution (i.e. 0,000 1 % failure time) or 99,999 9 % survival lifetime

Note 1 to entry: See Annex E.
© ISO/IEC 2020 – All rights reserved PROOF/ÉPREUVE 1
---------------------- Page: 6 ----------------------
ISO/IEC 29121:2020(E)
3.2
B life

5 percentile of the lifetime (3.9) distribution (i.e. 5 % failure time) or 95 % survival lifetime

[SOURCE: ISO/IEC 16963:2017, 3.4]
3.3
(B life)
5 L
95 % lower confidence bound of B life (3.2)
[SOURCE: ISO/IEC 16963:2017, 3.5]
3.4
B life

50 percentile of the lifetime (3.9) distribution (i.e. 50 % failure time) or 50 % survival lifetime

[SOURCE: ISO/IEC 16963:2017, 3.6]
3.5
data migration
process to copy data from one storage device or medium to another
3.6
error correction code
ECC

mathematical computation yielding check bytes used for the detection and correction of errors in data

Note 1 to entry: For DVD-R, DVD-RW, DVD-RAM, +R and +RW disks, the Reed-Solomon product code defined in

ISO/IEC 16448 for DVD-ROM systems is applied. For BD recordable and BD rewritable disks, the long-distance

code (LDC) + burst-indicating subcode (BIS) defined in ISO/IEC 30190, ISO/IEC 30191, ISO/IEC 30192 and

ISO/IEC 30193 is applied. For CD-R and CD-RW disks, the cross interleaved Reed-Solomon code (CIRC) and the

Reed-Solomon Product-like Code (RSPC) defined in ISO/IEC 10149 are applied.
3.7
error rate

rate of errors or error count measured on the signal at the input of error-correction decoder, which

represents raw-error rate of data recorded on a disk
3.8
initial performance test
first test of the error rate (3.7) of data recorded on a disk before storing
3.9
lifetime
time that information is retrievable in a system (3.18)
3.10
maximum byte-error rate
BER
max

greatest level of byte-error rate at any consecutive 32 error correction code (3.6) blocks in one of the

relevant area on a disk as measured in the first pass of the decoder before correction

Note 1 to entry: BER is applied to DVD-RAM disks.
max
3.11
maximum C1 average 10
ave 10,max

greatest level of C1 errors per second at the standard (1x) data transfer rate in one of the relevant area

on a disk measured on the signal at the input of error correction decoder averaged over any 10 s

Note 1 to entry: See ISO/IEC 16963.
2 PROOF/ÉPREUVE © ISO/IEC 2020 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 29121:2020(E)
3.12
maximum data error

greatest level of error rate (3.7) anywhere in one of the relevant areas on the disk

[SOURCE: ISO/IEC 16963:2017, 3.13, modified — Note 1 to entry has been deleted.]
3.13
maximum parity inner sum 8
sum 8,max

greatest revel of parity (of the) inner code error count at any consecutive 8 error correction code (3.6)

blocks in one of the relevant area on a disk as measured in the first pass of the decoder before correction

Note 1 to entry: See ISO/IEC 16448, ISO/IEC 23912, ISO/IEC 17341, ISO/IEC 17342 and ISO/IEC 17344.

3.14
maximum random symbol error rate
RSER
max

greatest level of random symbol error rate measured on the signal in one of the relevant area on a disk

at the input of error-correction decoder, which excludes burst errors of length greater than or equal to

40 bytes

Note 1 to entry: See ISO/IEC 30190, ISO/IEC 30191, ISO/IEC 30192, ISO/IEC 30193 and ISO/IEC 16963.

3.15
periodic performance test

periodic test of the error rate (3.7) of data recorded on a disk during the storage

3.16
retrievability
ability to recover information as recorded
[SOURCE: ISO/IEC 16963:2017, 3.14]
3.17
system

combination of hardware, software, storage medium and documentation used to record, retrieve and

reproduce information
[SOURCE: ISO/IEC 16963:2017, 3.20]
3.18
uncorrectable error

error in the read-out data that cannot be corrected by the error-correction decoders

3.19
mig
migration interval (year) which is determined by the user
Note 1 to entry: See Annex F.
4 General

Information is physically recorded on a disk as digital data. Although it is inevitable to cause errors

in the physical recording process, error correction technologies can retrieve the physically recorded

information completely from the read-out raw data with acceptable errors. If the errors in the read-

out raw data exceed the error correcting capability, some of information is lost and the original

information cannot be retrieved. The main cause of the errors is the physical deterioration of a disk.

The deterioration can be measured by monitoring the error rate, and the original information can be

migrated to a new disk in advance of an appearance of uncorrectable errors. Using the data migration

method described in this document, the physically recorded information can be stored without loss of

the original information, then the retrievability is maintained for a long time.
© ISO/IEC 2020 – All rights reserved PROOF/ÉPREUVE 3
---------------------- Page: 8 ----------------------
ISO/IEC 29121:2020(E)

In order to check the error rate of data recorded on a disk, the maximum data error is measured using

a test drive.

When data are recorded on a disk, the error rate shall be checked with the initial performance test.

Depending on the test result of the initial performance test, the disk is judged to be used for long-term

data storage.

The error rate of data recorded on those disks shall be periodically checked in the storage duration with

the periodic performance test unless the data are migrated to the new disk before the first periodic

performance test. Depending on the test result of the periodic performance test, the necessity of the

data migration is judged.

In order to determine the test interval for the periodic performance test, B life: (see Clause 6 for

mig

detailed definition) is used. ISO/IEC 16963 specifies an accelerated aging test method for estimating

the lifetime of the retrievability of information stored on recordable or rewritable optical disks.

ISO/IEC 16963 offers B life and B life, and B life is introduced using B life and B life (see Annex E

50 5 mig 50 5

for detailed definitions). ISO/IEC 16963 shall be the referee test method for the lifetime estimation of

disks and alternative test methods with equivalent statistical accuracy may also be applied, such as

ISO/IEC 10995 for DVD disks or ISO 18927 for CD disks.

ISO/IEC 16963, ISO/IEC 10995 and ISO 18927 specifies the details of the accelerated test method.

In case that the test conditions such as the acceleration conditions and/or the sample numbers are

different from those specified in the standard, the estimated lifetime may be used on the condition that

the statistical accuracy is maintained. Users of this document can determine the migration interval

(X ) (Annex F for detailed specifications) with no relation to the estimated lifetime of the disk. In case

mig
the X is introduced, follow the procedure defined in Annex F.
mig
5 Test method for measuring maximum data error
5.1 Maximum data error for each disk

The maximum data error to be measured for a disk defined in each international standard is as follows:

For DVD-R disk defined in ISO/IEC 12862 and ISO/IEC 23912, DVD-RW disk defined in ISO/IEC 13170

and ISO/IEC 17342, +R disk defined in ISO/IEC 17344 and ISO/IEC 25434, and +RW disk defined in

ISO/IEC 17341, ISO/IEC 26925 and ISO/IEC 29642, the each maximum parity inner sum 8 (PI )

sum 8,max
shall be measured.

For DVD-RAM disk defined in ISO/IEC 17592, the maximum byte-error rate (BER ) shall be measured

max
(see Annex C for additional information).

For CD-R disk defined in ECMA-394 and CD-RW disk defined in ECMA-395, the each maximum C1

average 10 (C1 ) shall be measured.
ave 10 ,max

For BD recordable disk defined in ISO/IEC 30190 and ISO/IEC 30191 and BD rewritable disk defined

in ISO/IEC 30192 and ISO/IEC 30193, each maximum random symbol error rate (RSER ) shall be

max
measured (see Annex H for additional information).
5.2 Ambient condition of maximum data error measurement

The ambient condition is the surrounding condition in a room where a test drive is located. The ambient

conditions for the maximum data error measurement are as follows:
— temperature: 15 °C to 30 °C;
— relative humidity: 20 % to 75 %.
4 PROOF/ÉPREUVE © ISO/IEC 2020 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 29121:2020(E)
5.3 Test area and sample disk
The test area is the recorded area to be tested in a disk.

The whole recorded area of all disks shall be tested for the initial performance test.

The whole recorded area of all disks should be tested for the periodic performance test. Although the

integrity of the data becomes lower, the user may reduce the test area and/or the number of sample disks

based on a certain sampling method, considering the value of information (see Annex G for additional

information). For the reduction of test area, see ISO/IEC 16963:2017, 7.5, for additional information.

The number of sample disks should be enough to guarantee statistical effectiveness. If the sample disks

have different attributes such as disk standards, recording conditions or storage conditions, the disks

should be divided into groups of disks considering the attributes so that the sampling can be applied on

each group with the statistical effectiveness.
5.4 Test drive
5.4.1 General

For DVD-R and DVD-RW disks, +R and +RW disks, the test drive shall have capability to measure

PI .
sum 8,max
For DVD-RAM disk, the test drive shall have capability to measure BER .
max
For CD-R and CD-RW disks, the test drive shall have capability to measure C1 .
ave 10,max

For BD recordable disks and BD rewritable disks, the test drive shall have capability to measure

RSER .
max

The test drive shall have the capability to evaluate the error rate level specified in the initial performance

test and the periodic performance test.

There are two cases of the test drive. One is that the drive serves both as a test drive and a recorder

which records the data on the disk. The other is that the test drive is different from the recorder. For

both cases, the data recorded on the disk by the recorder shall fulfil the error rate level specified in the

initial performance test and the periodic performance test.

NOTE The measuring circuit for RSER described in ISO/IEC 30191 and ISO/IEC 30193 is different from

that described in ISO/IEC 30190 and ISO/IEC 30192, especially in HF signal pre-processing circuit. See

ISO/IEC 30190:2016, Annex H, and ISO/IEC 30191:2015, Annex H, for additional information.

5.4.2 Test drive check

The test drive shall be checked by using a reference disk prepared by the test drive manufacturer or

the disk prepared by the user, so that it fulfils the requirements in 5.4.1. When using the reference

disk prepared by the test drive manufacturer, the check of the test drive shall be done at the intervals

recommended by the manufacturer. When using the disk prepared by the user, it is recommended for

the user to set an appropriate interval and to check the test drive at the interval.

5.5 Disk preparation

Prior to conducting tests, the disks shall be checked that there is no dust, fingerprints or other

contaminants on them. If there is dust, fingerprints or other contaminants, such contaminants shall be

removed in accordance with the procedure recommended by the disk-manufacturer. Certain options are

contained in Annex B. Microscopic examination can reveal physical deterioration, such as delamination

and porosity of the protective coating.
© ISO/IEC 2020 – All rights reserved PROOF/ÉPREUVE 5
---------------------- Page: 10 ----------------------
ISO/IEC 29121:2020(E)
5.6 Test execution

Before testing disks, the test drive shall be verified by the procedure defined in 5.4.2. If the drive does

not pass the verification, the test drive shall not be used for the test.

On testing disks, care handling of the disks shall be taken in order to avoid introducing unexpected

defects (see Annex I for additional information).
6 Test interval for periodic performance test

In order to determine the test interval for the periodic performance test, B life is used.

mig

B life shall be calculated according to Annex E, and B life and B life or B life and standard

mig 50 5 50

deviation, σ, shall be provided (see Clause 4). The test interval shall be determined according to Annex F.

In case B life is not available as shown below, the test interval should be three years or less. Relaxation

mig

of the test interval causes the risk of data loss and failure in the data migration. In case such a risk is

unacceptable, the test interval of three years or less is strongly recommended.
— The estimated lifetime data is not provided.
— The estimated lifetime data is provided but lacks the statistical accuracy.

The ambient storage-condition for the lifetime estimation should be controlled storage condition

(temperature, T = 25 °C and relative humidity H = 50 %) or harsh storage condition (T = 30 °C and

H = 80 %). The estimated lifetime is affected by the storage condition. If the actual storage condition

is far from the controlled storage condition or harsh storage condition, the estimated lifetime may be

adjusted (see Annex D for additional information).

The occurrence of retrievability problems can indicate a need for immediate testing.

When tests indicate deterior
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
