ISO/IEC 30193:2021

Information technology — Digitally recorded media for information interchange and storage — 120 mm triple layer (100,0 Gbytes per disk) BD rewritable disk

This document specifies the mechanical, physical and optical characteristics of a 120 mm rewritable optical disk with a capacity of 100,0 Gbytes. It specifies the quality of the recorded and unrecorded signals, the format of the data and the recording method, thereby allowing for information interchange by means of such disks. User data can be written, read and overwritten many times using a reversible method. This disk is identified as a BD rewritable disk. This document specifies the following: — the one disk type; — the conditions for conformance; — the environments in which the disk is to be operated and stored; — the mechanical and physical characteristics of the disk, in order to provide mechanical interchange between data processing systems; — the format of the information on the disk, including the physical disposition of the tracks and sectors; — the error-correcting codes and the coding method used; — the characteristics of the signals recorded on the disk, enabling data processing systems to read data from the disk. This document provides for interchange of disks between disk drives. Together with a standard for volume and file structure, it provides for full data interchange between data processing systems.

Technologies de I'information — Supports enregistrés numériquement pour échange et stockage d'information — Disques BD réinscriptibles de 120 mm triple couche (100,0 Go par disque)

General Information

• Status: Published
• Publication Date: 07-Dec-2021
• ICS: 35.220.30 - Optical storage devices
• Technical Committee: ISO/IEC JTC 1/SC 23 - Digitally recorded media for information interchange and storage
• Drafting Committee: ISO/IEC JTC 1/SC 23 - Digitally recorded media for information interchange and storage
• Current Stage: 6060 - International Standard published
• Start Date: 08-Dec-2021
• Due Date: 07-Jan-2023
• Completion Date: 08-Dec-2021

Relations

• Revises: ISO/IEC 30193:2020 - Information technology — Digitally recorded media for information interchange and storage — 120 mm Triple Layer (100,0 Gbytes per disk) BD Rewritable disk
• Effective Date: 04-Sep-2021

Standards Content (Sample)

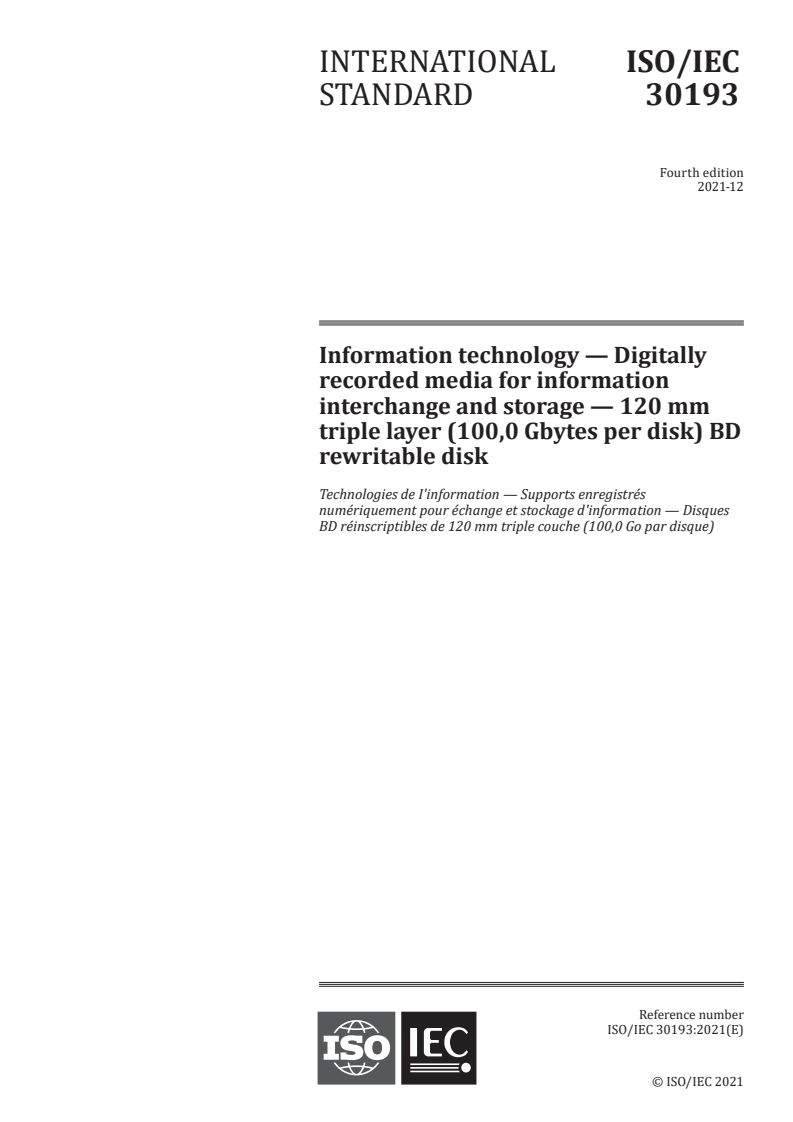

INTERNATIONAL ISO/IEC
STANDARD 30193
Fourth edition
2021-12
Information technology — Digitally
recorded media for information
interchange and storage — 120 mm
triple layer (100,0 Gbytes per disk) BD
rewritable disk
Technologies de I'information — Supports enregistrés
numériquement pour échange et stockage d'information — Disques
BD réinscriptibles de 120 mm triple couche (100,0 Go par disque)
Reference number
ISO/IEC 30193:2021(E)
© ISO/IEC 2021

---------------------- Page: 1 ----------------------
ISO/IEC 30193:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
 © ISO/IEC 2021 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 30193:2021(E)

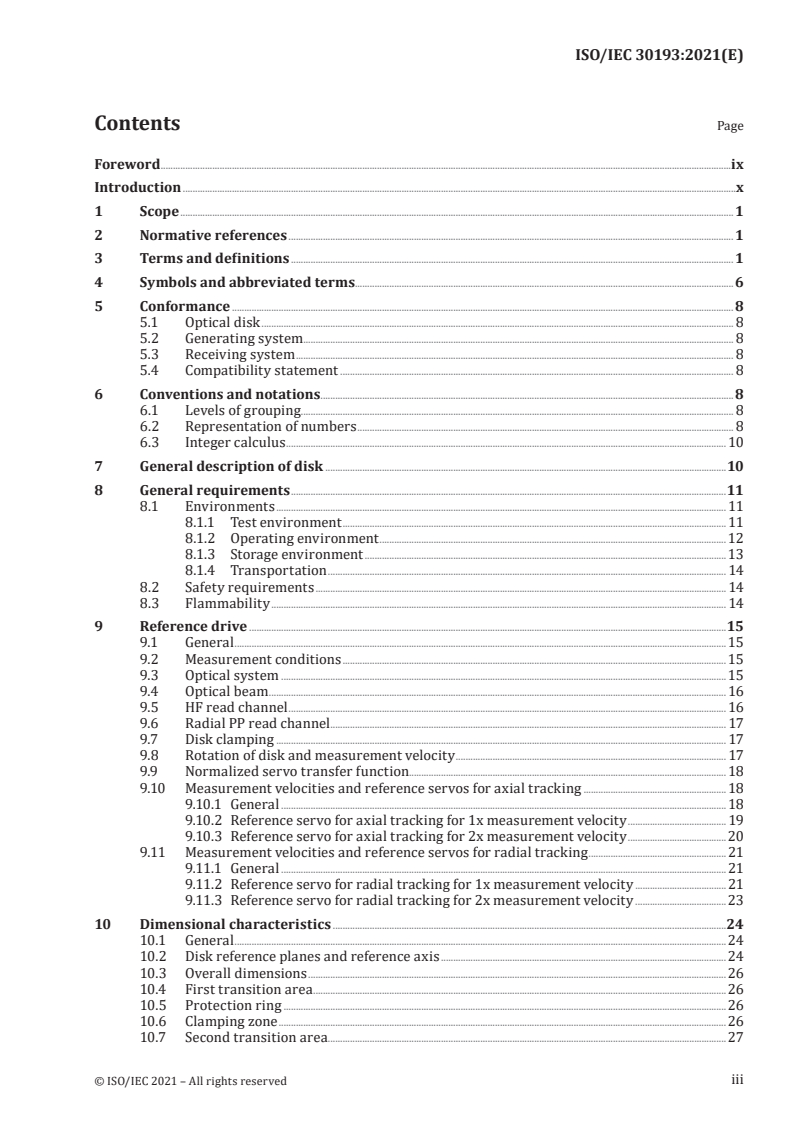

Contents Page
