ISO 4548-13:2023

Methods of test for full-flow lubricating oil filters for internal combustion engines - Part 13: Static burst pressure test for composite filter housings

This document specifies a method of testing full-flow lubricating oil filters for internal combustion engines to determine their ability to withstand a static pressure objective at high and low temperatures and to determine their burst pressure and the failure mode. It applies to all oil filters, for example spin-on oil filters and filters made of temperature-sensitive materials. It applies to new filters and filters returned from endurance tests.

Méthodes d'essai des filtres à huile de lubrification à passage intégral pour moteurs à combustion interne — Partie 13: Essai d'éclatement à la pression statique pour les corps de filtre pressurisés à base de matériaux composites

General Information

• Status: Published
• Publication Date: 07-Aug-2023
• ICS: 27.020 - Internal combustion engines
• Technical Committee: ISO/TC 70/SC 7 - Tests for lubricating oil filters
• Drafting Committee: ISO/TC 70/SC 7 - Tests for lubricating oil filters
• Current Stage: 6060 - International Standard published
• Start Date: 08-Aug-2023
• Due Date: 18-Dec-2022
• Completion Date: 08-Aug-2023

Relations

• Revises: ISO 4548-13:2013 - Methods of test for full-flow lubricating oil filters for internal combustion engines - Part 13: Static burst pressure test for composite filter housings
• Effective Date: 06-Jun-2022

Overview

ISO 4548-13:2023 specifies a standardized static burst pressure test for composite filter housings used in full‑flow lubricating oil filters for internal combustion engines. The method determines whether a filter can withstand a specified static pressure at high and low temperatures, identifies the burst pressure and records the failure mode. It applies to all oil filters (for example, spin‑on filters and temperature‑sensitive materials) and to both new filters and those returned from endurance tests.

Key topics and technical requirements

• Test objective: Verify ability to withstand a specified static pressure objective, determine burst pressure and failure mode.
• Temperature range: Samples are tested by default between −20 °C and +130 °C (environmental chamber recommended).
• Test rig: Hydraulic hand pump or equivalent, high‑pressure tubing/valves, pressure sensor (0–3 000 kPa or higher if required), and adaptor for the filter. Safety shielding and continuous pressure recording are required.
• Fluid: Oil that functions between −20 °C and +130 °C (or agreed range); viscosity in test range 5 mm2/s to 10 000 mm2/s.
• Preparation: Assemble filter with recommended tightening torque/angle (apply minimum if tolerance given); purge air from system; maintain test temperature for at least 4 hours unless justified otherwise.
• Pressure procedure: Initial check at 200 kPa, then raise pressure in controlled ramps (approximately 100 kPa per 10 s with ~15 s checks) until the objective is reached or failure occurs. For burst determination, continue increments until ultimate failure. An alternative increment of 5% of burst pressure may be used.
• Analysis & statistics: When testing multiple samples, report mean and standard deviation. Weibull analysis can be used to calculate rated static pressure at 95% confidence when testing more than seven samples.
• Reporting: Test reports must reference ISO 4548-13 and include test establishment, filter type/batch, test temperature, oil grade, torque/angle applied, achieved pressure objective, burst pressure, failure mode/location, and any deviations.

Applications and users

ISO 4548-13:2023 is intended for:

• Filter and component manufacturers validating composite housings and spin‑on designs.
• OEMs (automotive, heavy equipment) specifying pressure performance for lubricating oil filters.
• Independent test laboratories and quality assurance teams performing burst testing and failure analysis.
• Purchasers and suppliers using standardized test results for procurement, design validation and safety assessment.

Keywords: ISO 4548-13:2023, static burst pressure test, composite filter housings, oil filters, lubricating oil filters, internal combustion engines, test rig, Weibull analysis, burst pressure, failure mode.

Related standards

• ISO 4548-1 (differential pressure/flow characteristics)
• ISO 4548-6 (static burst pressure test - related part)
• ISO 19973-1 (Weibull analysis procedures)
• ISO 12829, SAE J300c (referenced in the ISO bibliography)

Standards Content (Sample)

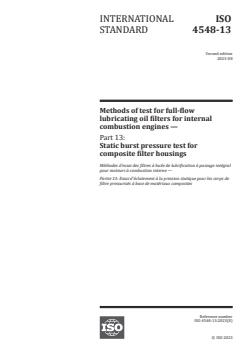

INTERNATIONAL ISO
STANDARD 4548-13
Second edition
2023-08
Methods of test for full-flow
lubricating oil filters for internal
combustion engines —
Part 13:
Static burst pressure test for
composite filter housings
Méthodes d'essai des filtres à huile de lubrification à passage intégral
pour moteurs à combustion interne —
Partie 13: Essai d'éclatement à la pression statique pour les corps de
filtre pressurisés à base de matériaux composites
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii

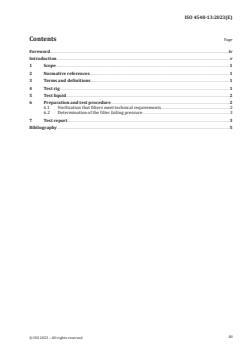

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Test rig . 1
5 Test liquid . 2
6 Preparation and test procedure .2
6.1 Verification that filters meet technical requirements. 2
6.2 Determination of the filter failing pressure . 3
7 Test report . 3
Bibliography . 5
iii

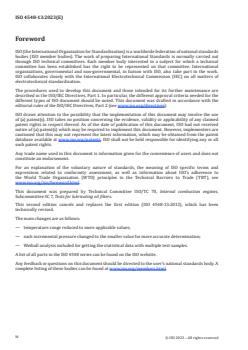

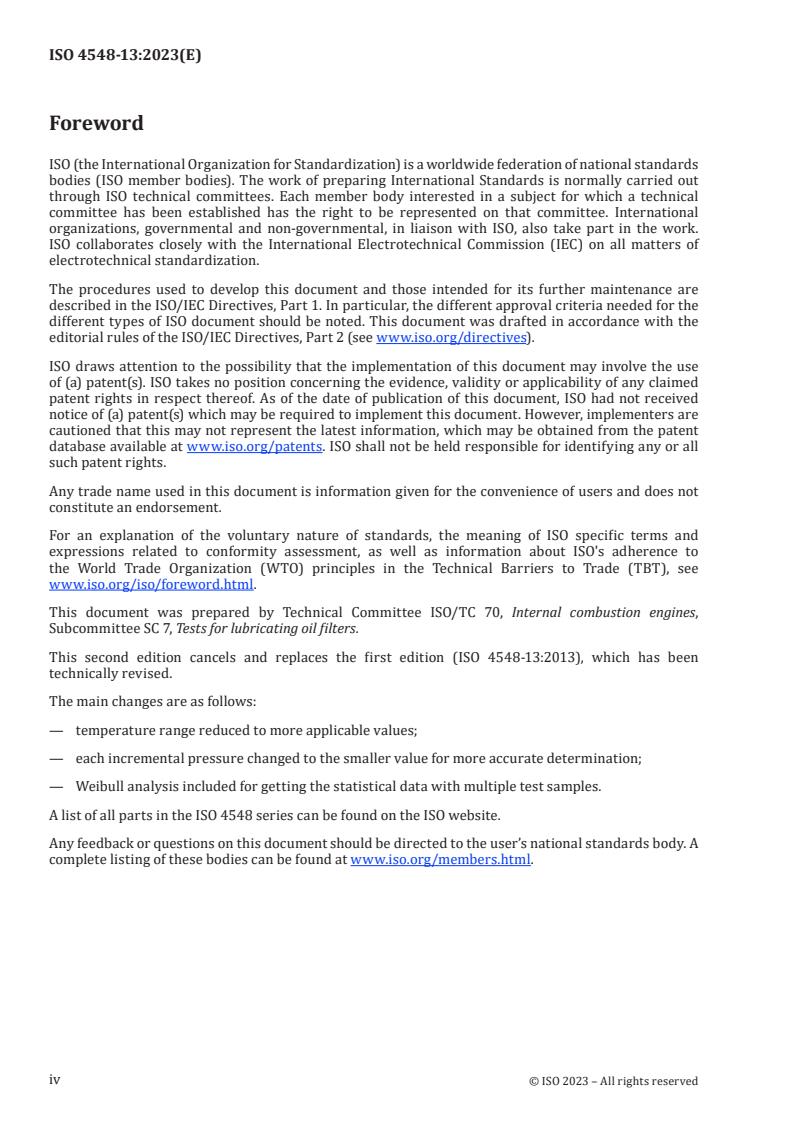

Foreword
