ISO/IEC 16825:1999
(Main)Information technology — Case for 120 mm DVD-RAM disks
Information technology — Case for 120 mm DVD-RAM disks
This International Standard specifies the characteristics of a case for use with 120 mm DVD-RAM disks as specified in ISO/IEC 16824. This International Standard specifies three related, but different implementations of such cases, viz. Type 1 Provides a case for a one-sided (Type 1S) or a two-sided (Type 2S) DVD-RAM disk such that the disk can not be removed from the case. This case is reversible. Type 2 Provides a case for a one-sided DVD-RAM disk (Type 1S) such that the disk may be removed from the case. This case is not reversible. Type 3 Provides a case into which a one-sided DVD-RAM disk (Type 1S) may be inserted, then used as a cartridge. This case is not reversible. This International Standard specifies - the environments in which the cases are to be operated and stored; - the dimensional and mechanical characteristics of the case, so as to provide mechanical interchangeability between data processing systems; This International Standard provides for mechanical interchange between optical disk drives. Together with 120 mm DVD-RAM disks according to ISO/IEC 16824 and a standard for volume and file structure, it provides for full data interchange between data processing systems.
Technologies de l'information — Coffret pour disques DVD-RAM de diamètre 120 mm
General Information
Standards Content (Sample)
INTERNATIONAL ISO/IEC
STANDARD 16825
First edition
1999-05-15
Information technology — Case for 120 mm
DVD-RAM disks
Technologies de l'information — Coffret pour disques DVD-RAM de
diamètre 120 mm
Reference number
B C
ISO/IEC 16825:1999(E)
---------------------- Page: 1 ----------------------
ISO/IEC 16825:1999 (E)

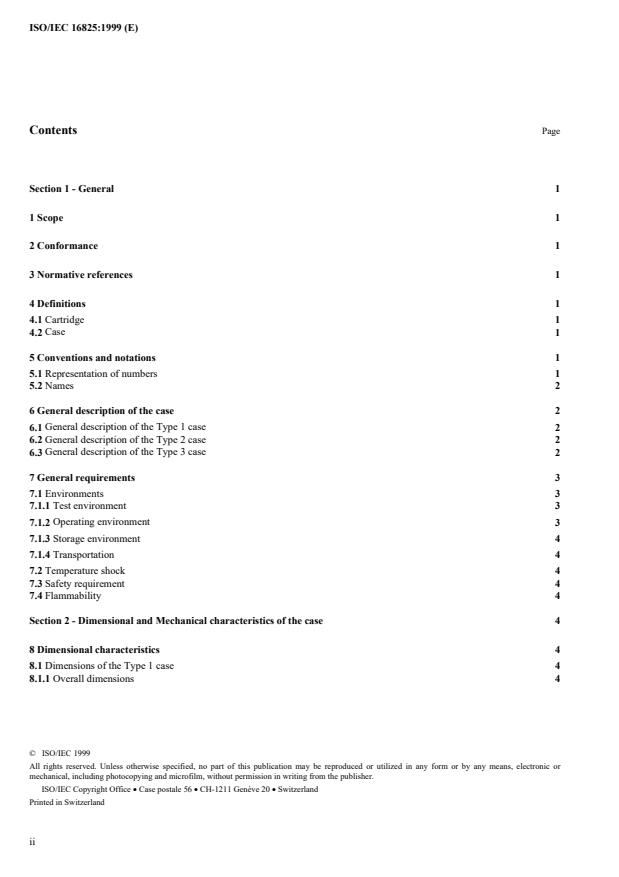

Contents Page
Section 1 - General 1
1 Scope 1
2 Conformance 1
3 Normative references 1
4 Definitions 1
4.1 Cartridge 1
4.2 Case 1
5 Conventions and notations 1
5.1 Representation of numbers 1
5.2 Names 2
6 General description of the case 2
6.1 General description of the Type 1 case 2
6.2 General description of the Type 2 case 2
6.3 General description of the Type 3 case 2
7 General requirements 3
7.1 Environments 3
7.1.1 Test environment 3
7.1.2 Operating environment 3
7.1.3 Storage environment 4
7.1.4 Transportation 4
7.2 Temperature shock 4
7.3 Safety requirement 4
7.4 Flammability 4
Section 2 - Dimensional and Mechanical characteristics of the case 4
8 Dimensional characteristics 4
8.1 Dimensions of the Type 1 case 4
8.1.1 Overall dimensions 4
© ISO/IEC 1999
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
ISO/IEC Copyright Office • Case postale 56 • CH-1211 Genève 20 • Switzerland
Printed in Switzerland
ii
---------------------- Page: 2 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
8.1.2 Location hole 6
8.1.3 Alignment hole 6
8.1.4 Reference surfaces 6
8.1.5 Insertion slots 7
8.1.6 Detents 7
8.1.7 Gripper slots 8
8.1.8 Write-inhibit hole 8
8.1.9 Sensor holes 8
8.1.10 Sensing areas 9
8.1.11 Spindle and head windows 9
8.1.12 Shutter shape 10
8.1.13 Path for shutter opener 11
8.1.14 Label area 11
8.1.15 Identification marks for Sides A and B 11
8.2 Dimensions of the Type 2 case 23
8.2.1 Overall dimensions 23
8.2.2 Location hole 24
8.2.3 Alignment hole 24
8.2.4 Reference surfaces 24
8.2.5 Insertion slot 25
8.2.6 Detents 25
8.2.7 Gripper slots 26
8.2.8 Write-inhibit hole 26
8.2.9 Sensor holes 26
8.2.10 Sensing areas 27
8.2.11 Spindle and head windows 27
8.2.12 Shutter shape 28
8.2.13 Path for shutter opener 29
8.2.14 Label area 29
8.2.15 Identification mark for Side A 29
8.2.16 Opening and opening cover for taking the disk out of the case 30
8.3 Dimensions of the Type 3 case 40
8.3.1 Sensor holes 41
8.3.2 Opening and opening cover 41
9 Mechanical characteristics 41
9.1 Material 41
9.2 Mass 41
9.3 Edge distortion 41
9.4 Compliance 41
9.5 Shutter opening force 41
10 Interface between the case used as cartridge and a drive 41
10.1 Capture cylinder 41
10.2 Inner dimensions of the case 42
iii
---------------------- Page: 3 ----------------------

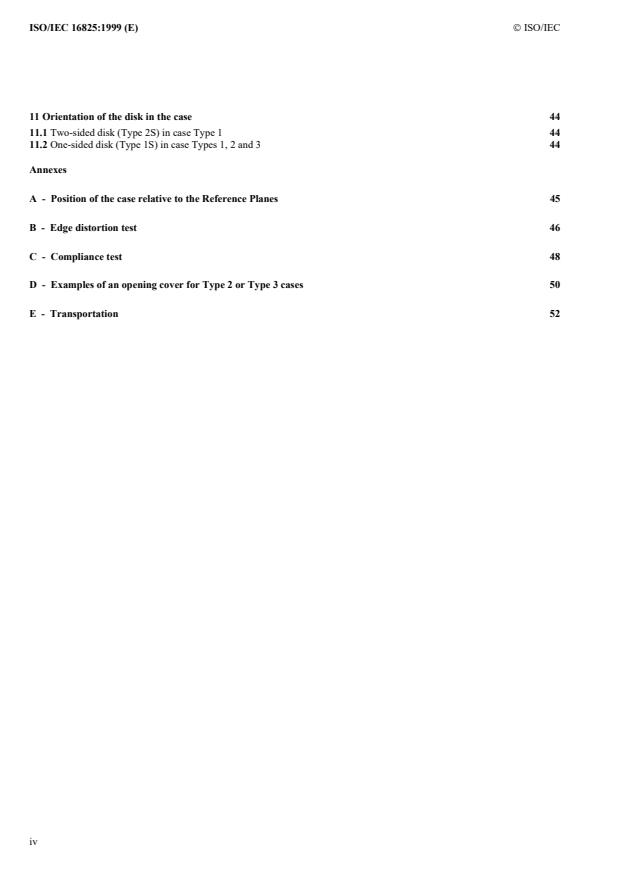

ISO/IEC 16825:1999 (E) ISO/IEC
11 Orientation of the disk in the case 44
11.1 Two-sided disk (Type 2S) in case Type 1 44
11.2 One-sided disk (Type 1S) in case Types 1, 2 and 3 44
Annexes
A - Position of the case relative to the Reference Planes 45
B - Edge distortion test 46
C - Compliance test 48
D - Examples of an opening cover for Type 2 or Type 3 cases 50
E - Transportation 52
iv
---------------------- Page: 4 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission) form the
specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in the
development of International Standards through technical committees established by the respective organization to deal with
particular fields of technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1. Draft
International Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the national bodies casting a vote.
This International Standard was prepared by JISC (as Standard JIS X 6244-1998) with document support and contribution
from ECMA and was adopted, under a special “fast-track procedure”, by Joint Technical Committee ISO/IEC JTC 1,
Information technology, in parallel with its approval by national bodies of ISO and IEC.
Annexes A to C form a normative part of this International Standard. Annexes D and E are for information only.
.
v
---------------------- Page: 5 ----------------------
©
INTERNATIONAL STANDARD ISO/IEC ISO/IEC 16825:1999 (E)
Information technology — Case for 120 mm DVD-RAM disks
Section 1 - General
1 Scope
This International Standard specifies the characteristics of a case for use with 120 mm DVD-RAM disks as specified in
ISO/IEC 16824. This International Standard specifies three related, but different implementations of such cases, viz.
Type 1 Provides a case for a one-sided (Type 1S) or a two-sided (Type 2S) DVD-RAM disk such that the disk can
not be removed from the case. This case is reversible.
Type 2 Provides a case for a one-sided DVD-RAM disk (Type 1S) such that the disk may be removed from the
case. This case is not reversible.
Type 3 Provides a case into which a one-sided DVD-RAM disk (Type 1S) may be inserted, then used as a
cartridge. This case is not reversible.
This International Standard specifies
- the environments in which the cases are to be operated and stored;
- the dimensional and mechanical characteristics of the case, so as to provide mechanical interchangeability between data
processing systems;
This International Standard provides for mechanical interchange between optical disk drives. Together with 120 mm
DVD-RAM disks according to ISO/IEC 16824 and a standard for volume and file structure, it provides for full data
interchange between data processing systems.
2 Conformance
A claim of conformance with this International Standard shall specify the Type implemented. A case shall be in conformance
with this International Standard if it meets the mandatory requirements specified herein for its Type.
3 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of this
International Standard. For dated references, subsequent amendments to, or revisions of, any of these publications do not
apply. However, parties to agreements based on this International Standard are encouraged to investigate the possibility of
applying the most recent editions of the normative documents indicated below. For undated references, the latest edition of the
normative document referred to applies. Members of ISO and IEC maintain registers of currently valid International Standards.
IEC 950:1991, Safety of information technology equipment.
ISO/IEC 16824:1999, Information technology — 120 mm DVD rewritable disk (DVD-RAM).
4 Definitions
For the purposes of this International Standard, the following definitions apply.
4.1 Cartridge: A device consisting of a case containing a rewritable disk.
4.2 Case: The housing for an optical disk, that protects the disk and facilitates disk interchange.
5 Conventions and notations
5.1 Representation of numbers
A measured value is rounded off to the least significant digit of the corresponding specified value. For instance, it implies that
a specified value of 1,26 with a positive tolerance of + 0,01 and a negative tolerance of - 0,02 allows a range of measured
values from 1,235 to 1,275.
1
---------------------- Page: 6 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
5.2 Names
The names of entities, e.g. specific sides, etc. are given a capital initial.
6 General description of the case
6.1 General description of the Type 1 case (Figure 1)
The case is a rigid protective container of rectangular shape. Sides A and B of the case are identical as far as the features given
here are concerned. References to Sides A and B of the case can be changed to B or A respectively. When the opening of the
one is a head and spindle window for the spindle and the optical head of the drive, that of the other is an access window for the
disk clamping apparatus. A shutter uncovers the windows upon insertion into the drive, and automatically covers them upon
removal from the drive. The case has features that enable a drive to reject a mis-inserted cartridge, to inhibit writing, sensor
holes, detents for autoloading and a vertical use, gripper slots for an autochanger, label areas and side identification marks.
Sides A and B of the case have the same configuration.
6.2 General description of the Type 2 case (Figure 2)
The Type 2 case has the same features as the Type 1 case, but with some differences. The shape of the case is different on Side
A and on Side B. Side A does not need to have a location hole, an alignment hole, Reference Surfaces, a write-inhibit hole,
sensor holes and sensing areas. The case has an opening closed by a cover. This cover can be opened. In open position, the
disk can be taken out of the case. Sensor hole A1 is originally closed. When the disk has been removed from the case, then this
hole remains permanently open, indicating that the original disk contained in the case has been removed at least once or has
been replaced by another disk.
6.3 General description of the Type 3 case (Figure 2)
The Type 3 case is identical with Type 2 case except that the sensor hole A1 is always open.
seaCeA
cenfereeReacrfusS3
nioatfictinedIrkma
eidSA
gedErfoerttuhserenpo
ksB
r
cenferee1ReacrfusS1
cenfereeReacrfusS4
ntiocaoLleoh
rosnstnrfo
rfokisdeidSBgniadoltoau
ihnleoWh
ntiortlos
rfokisdeidSB
leSdnaeadhdnar
cenfereeReacrfusS2
eetDrfolcai
rrGtlos
gneara
09A
Figure 1 - General view of the Type 1 case, seen from Side A
2
97-0 2-
Sesin
ip pe
use vert nt
hole Alignment
ea Label
wi ows pind
Inse
rite-i bit
Dete
hole Se
Shutte
Side Di
Case of
Sid
---------------------- Page: 7 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
Case Side A
Identification mark
of Case Side A
Edge for the shutter opener
Disk Side B
Shutter
Detent for
autoloading
Detent for vertical use
Insertion slot
Spindle and head windows
Label area
Opening cover
Gripper slot
97-0093-A
Figure 2 - General view of the Type 2 and Type 3 cases, seen from Side A
7 General requirements
7.1 Environments
7.1.1 Test environment
The test environment is the environment where the air immediately surrounding the case has the following properties:
Temperature : 23 °C ± 2 °C
Relative humidity : 50 % ± 5 %
Atmospheric pressure : 86 kPa to 106 kPa
No condens ation on or in the case or cartridge shall occur. Before testing, the case or cartridge shall be conditioned in this
environment for 48 hours minimum.
Unless otherwise stated, all tests and measurements shall be made in this test environment.
7.1.2 Operating environment
This International Standard requires that a case which meets all requirements of this International Standard in the specified test
environment provides mechanical interchange over the specified ranges of environmental parameters in the operating
environment. When the case according to this International Standard contains a DVD-RAM disk according to International
Standard ISO/IEC 16824, they constitute together a cartridge. This cartridge shall meet the requirements of this clause and
provides for data interchange.
3
---------------------- Page: 8 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
The operating environment is the environment where the air immediately surrounding the case or cartridge has the following
properties:
Temperature : 5 °C to 60 °C
Relative humidity : 3 % to 85 %
3 3
Absolute humidity : 1 g/m to 30 g/m
Temperature gradient : 10 °C /h max.
Relative humidity gradient : 10 %/h max.
No condensation on or in the case or cartridge shall occur. If the case or cartridge has been exposed to conditions outside those
specified in this clause, it shall be acclimatized in the operating environment for at least 2 h before use.
7.1.3 Storage environment
The storage environment is defined as an environment where the air immediately surrounding the case or cartridge has the
following properties.
Temperature : -10 °C to 50 °C
Relative humidity : 3 % to 85 %
3 3
Absolute humidity : 1 g/m to 30 g/m
Atmospheric pressure : 75 kPa to 106 kPa
Temperature gradient : 10 °C /h max.
Relative humidity gradient : 10 %/h max.
No condensation on or in the case or cartridge shall occur.
7.1.4 Transportation
This International Standard does not specify requirements for transportation; guidance is given in annex E.
7.2 Temperature shock
The case shall be withstand a temperature shock of up to 20°C when inserted into, or removed from, the drive.
7.3 Safety requirement
The case shall satisfy the safety requirements of Standard IEC 950, when used in the intended manner or in any foreseeable
use in an information processing system.
7.4 Flammability
Th e case shall be made from materials that comply with the flammability class for HB materials, or better, as specified in
IEC 950.
Section 2 - Dimensional and Mechanical characteristics of the case
8 Dimensional characteristics
The dimensions of the case shall be referred to three orthogonal Reference Planes X, Y and Z. The case shall be constrained
such that four reference surfaces S1 to S4 on Side B of the case lie in Reference Plane Z. The intersection of the three planes
defines the centre of the location hole. The centre of the alignment hole shall lie on the intersection of Reference Planes X and
Z. Refer to annex A. A dimension of a feature referenced to one of the planes is the shortest distance from the feature to the
plane.
Side A of the Type 1 case is referred to the three orthogonal Reference Planes X, Y' and Z', where
- Y' is a plane parallel to Reference Plane Y at a nominal distance of 102,0 mm,
- Z' is a plane parallel to Reference Plane Z at a nominal distance of 8,0 mm.
8.1 Dimensions of the Type 1 case
The dimensions of the Type 1 case shall be measured in the test environment. The dimensions of the case in an operating
environment can be estimated from the dimensions specified in this clause.
8.1.1 Overall dimensions (Figure 3)
The total length of the case shall be
4
---------------------- Page: 9 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
L = 135,5 mm ± 0,4 mm.
101
The distance from the top of the case to Reference Plane X shall be
+ 0,3 mm
L = 112,5 mm
102
- 0,2 mm
with the width
L = 3,6 mm min.
103
from the left-hand and right-hand edges of the case.
The distance from the bottom of the case to Reference Plane X shall be
L = 23,0 mm ± 0,2 mm.
104
The total width of the case shall be
+ 0,0 mm
L = 124,6 mm
105
- 0,5 mm.
The distance from the left-hand side of the case to Reference Plane Y shall be
+ 0,2 mm
L = 113,3 mm
106
- 0,4 mm.
The distance from the right-hand side of the case to Reference Plane Y shall be
+ 0,1 mm
L = 11,3 mm
107
- 0,3 mm.
The two corners of the top shall be rounded with a radius
R = 4,0 mm ± 0,2 mm
101
centred at
L = 4,0 mm ± 0,1 mm
108
from the edge of the case and
L = 3,5 mm ± 0,1 mm
109
from the top of the case.
The two corners of the bottom shall be rounded with a radius
R = 4,0 mm ± 0,2 mm.
102
In the zones delimited by
L = 6,0 mm
110
from the left-hand and right-hand edges of the case, there shall be the continuous guide areas running from the top to
Reference Plane X of the case, with a width
L = 0,8 mm min.
111
the thickness of the case shall be
+ 0,2 mm
L = 8,0 mm
112
- 0,1 mm.
The eight long edges of the case shall be rounded with a radius
R = 0,5 mm ± 0,1 mm.
103
5
---------------------- Page: 10 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
8.1.2 Location hole (Figure 3)
The centre of the location hole shall coincide with the intersection of Reference Planes X, Y and Z.
The diameter of the hole shall be
+ 0,05 mm
D = 4,00 mm
101
- 0,00 mm
its depth shall be
L = 1,2 mm min.
113
The room below the location hole shall be free up to
L = 5,0 mm min.
114
below Reference Plane Z
The diameter of the free room shall be at least equal to D .
101
The lead-in edges shall be rounded with a radius
R = 0,5 mm ± 0,1 mm.
104
8.1.3 Alignment hole (Figure 3)
The centre of the alignment hole shall lie on the intersection of the Reference Planes X and Z at a distance
L = 102,0 mm ± 0,2 mm
115
from Reference Plane Y.
The alignment hole shall have a substantially rectangular shape. Its dimensions shall be
+ 0,05 mm
L = 4,00 mm
116
- 0,00 mm
+ 0,2 mm
L = 5,6 mm
117
- 0,0 mm
its depth shall be equal to L . The room below the alignment hole shall be free up to at least L . The dimensions of the free
113 114
room shall be at least L and L .
116 117
The lead-in edges shall be rounded with a radius R .
104
8.1.4 Reference surfaces (Figure 4)
There shall be four reference surfaces S1, S2, S3 and S4 on Side B of the case.
Surfaces S1 and S2 shall be circular with a diameter
D = 7,0 mm min.
102
S1 shall be centred on the location hole, and S2 shall be centred on the alignment hole.
Surfaces S3 and S4 shall be rectangular with dimensions
L = 8,2 mm max.
118
L = 110,2 mm max.
119
from Reference Plane Y and
L = 87,0 mm max.
120
L = 108,0 mm min.
121
from Reference Plane X, except in the areas of the detents for autoloading.
6
---------------------- Page: 11 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
8.1.5 Insertion slots (Figure 5)
The case shall have two symmetrical insertion slots.
The bottom of the slots shall be at a distance
L = 60,0 mm ± 0,2 mm
123
from Reference Plane X.
The depth measured from the edge of the case shall be
+ 0,2 mm
L = 2,0 mm
124
- 0,0 mm.
The side of the insertion slots parallel to Reference Plane Z shall be at a distance
L = 2,5 mm ± 0,1 mm
125
from Reference Plane Z. The width of the insertion slots shall be
+ 0,2 mm
L = 3,0 mm
126
- 0,0 mm.
The slots shall have a lead-in slope defined by
L = 7,0 mm ± 0,2 mm
127
from the top of the case and an angle
a = 7,5° ± 1,0°.
101
8.1.6 Detents (Figure 5)
The case shall have two symmetrical detents intended for autoloading. The detents shall be through Side A and Side B.
The position and dimensions of the detents are specified by
R = 0,5 mm max.
105
L = 100,5 mm ± 0,3 mm
128
L = 93,0 mm ± 0,3 mm
129
L = 3,3 mm ± 0,1 mm
130
L = 2,5 mm ± 0,1 mm.
131
The outside edges of the detents shall be rounded off with a radius
R = 0,5 mm ± 0,1 mm.
106
The bottom of the case shall have two symmetrical detents intended for clamping a cartridge in case of vertical use. Their
dimensions shall be
L = 3,0 mm ± 0,1 mm
132
L = 3,0 mm ± 0,1 mm
133
L = 1,0 mm ± 0,1 mm
134
The centre of one of these detents lies on Reference Plane Y, the centre of the other is at a distance
L = 102,0 mm ± 0,3 mm
135
from Reference Plane Y. Both centres are at a distance
L = 4,0 mm ± 0,1 mm
136
from Reference Plane Z.
7
---------------------- Page: 12 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
8.1.7 Gripper slots (Figure 5)
The case shall have two symmetrical gripper slots. The slots shall be through Sides A and B.
Each slot shall have a depth of
+ 0,3 mm
L = 3,0 mm
137
- 0,0 mm
from the edge of the case and a width of
+ 0,3 mm
L = 4,0 mm
138
- 0,0 mm.
The upper edge of the slot shall be at
+ 0,0 mm
L = 11,0 mm
139
- 0,3 mm
from Reference Plane X.
The corners of the slot shall be rounded off by a radius
R = 0,5 mm ± 0,2 mm.
107
8.1.8 Write-inhibit hole (Figure 6)
The case with a two-sided disk shall have a write-inhibit hole on both Sides A and B. The case with a one-sided disk shall have
a write-inhibit hole on Side B only. The write-inhibit hole shall have a device for opening and closing the hole. The hole at the
right-hand side of Side B of the case, is the write-inhibit hole for Side A of the disk. The protected side of the disk shall be
identified either by an indication on the case or by the fact that the device for Side A of the disk can only be operated from
Side A of the case.
When writing and erasing on Side A of the disk are not allowed, the write-inhibit hole shall be open. It shall have a diameter
D = 3,0 mm min.
103
The position of its centre shall be specified by
L = 18,5 mm ± 0,2 mm
140
L = 9,0 mm ± 0,2 mm
141
on Side B of the case.
The hole shall extend below Reference Plane Z by
L = 5,0 mm min.
142
with a diameter equal at least to D .
103
When writing and erasing of the disk are allowed, the write-inhibit hole shall be closed by the write protect device.
The write protect device shall not be recessed from Reference Plane Z by more than 0,3 mm.
8.1.9 Sensor holes (Figure 6)
The case shall have three sensor holes on Side B. The set of holes on Side B of the case, A1, A2 and A3 pertains to Side A of
the disk. The holes shall have a diameter of
D = 3,0 mm min.
104
and the positions of their centres shall be specified by L and
140
L = 7,5 mm ± 0,2 mm
144
L = 3,5 mm ± 0,2 mm
145
L = 2,0 mm ± 0,2 mm.
146
8
---------------------- Page: 13 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
The room below the holes shall be free up to
L = 5,0 mm min.
147
Reference Plane Z
The diameter of the free room shall be at least equal to D . The holes are permitted to extend through Side A.
104
When a hole for Side A of the disk is closed, the closure shall not be recessed from Reference Plane Z by more than 0,3 mm.
Side A of the case shall have corresponding sensor holes B1, B2 and B3 with the diameter D .
104
The functions of the sensor holes are specified in table 1.
Table 1 - Use of the sensor holes
Sensor hole Function Condition
Closed Open Case for a Case for a
two-sided disk one-sided disk
A1 The original disk has The original disk has been taken Closed Closed
not been taken out out or a disk has been put in
A2 Active side Non active side Closed Closed
A3 Reserved Closed Closed
B1 The original disk has The original disk has been taken Closed Closed
not been taken out out or a disk has been put in
B2 Active side Non active side Closed Open
B3 Reserved Closed Closed
8.1.10 Sensing areas (Figure 6)
The case shall have two sensing areas on Side B used by drives for the detection of a cartridge. The first area shall be limited
by Reference Planes X and Y, the bottom and the right-side of the case. The second area shall be limited by Reference Plane
X, a plane parallel to Reference Plane Y at a distance equal to L , the bottom and the left-hand side of the case. These areas
115
may be recessed from Reference Plane Z by 0,3 mm max., except for the reference surfaces S1 and S2, the gripper slots and
the sensor holes.
8.1.11 Spindle and head windows (Figure 7)
The dimensions of the window are referenced to a centreline, located at a distance
L = 51,0 mm ± 0,1 mm
150
from Reference Plane Y. The width of the window from the top of the case to
L = 50,0 mm max.
151
shall be
+ 0,2 mm
L = 19,5 mm
152
- 0,0 mm
and
+ 0,2 mm
L = 19,5 mm
153
- 0,0 mm.
The top of the window shall be specified by
R = 60,7 mm min.
108
9
---------------------- Page: 14 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
originating from the intersection of L and
150
L = 40,0 mm ± 0,1 mm.
154
The width of the window from L to L shall be given by
151 154
L = 17,0 mm min.
155
and
L = 17,0 mm min.
156
The bottom of the window shall be the arc of the semi-circle which smoothly joins the sides of the window, specified by a
radius
R = 17,0 mm min.
109
and its centre shall be defined by the intersection of L and L .
150 154
The area bounded by R and top of the case shall be recessed from Reference Plane Z by
108
L = 2,55 mm min.
157
over the width of window.
8.1.12 Shutter shape (Figure 8)
The case shall have a spring-loaded shutter completely covering the spindle and head windows when the case is not inside a
drive. The shutter shall be free to slide in a recessed area of the case. The shutter shall not protrude beyond Reference Planes Z
or Z' by more than 0,15 mm.
When introduced into a drive, the shutter shall be moved so as to uncover the spindle and head windows. It shall have a pair of
guide and edges against which the shutter opening mechanism of the drive can act to open the shutter. The shutter can be
shifted rightwards or leftwards.
Both guide edges shall be located at
+ 0,2 mm
L = 112,0 mm
158
- 0,4 mm.
from Reference Plane X.
When the shutter is closed, the right-hand opener edge shall be at
L = 38,0 mm ± 0,4 mm
159
and the left-hand opener edge shall be
L = 64,0 mm ± 0,4 mm.
160
from Reference Plane Y.
The depth of each opener edge shall be
+ 0,2 mm
L = 3,0 mm
161
- 0,0 mm
from L and the top shall be rounded off with a radius
158
R = 0,5 mm max.
110
The length of the guide edges measured from the corresponding opener edge shall be
L = 7,0 mm min.
162
The intersection of the guide edges and the opener edges shall be rounded with a radius
R = 0,5 mm max.
111
Other corners of the guide and opener edges shall be rounded with a radius
10
---------------------- Page: 15 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
R = 1,0 mm max.
112
8.1.13 Path for shutter opener (Figures 9 and 10)
When the shutter is moved rightwards until the left opener edge is at a distance
L = 26,5 mm,
163
from Reference Plane Y, the windows shall be open over
L = 16,5 mm min.
164
from L and over an arc of
150
R = 17,0 mm min.
113
originating at the intersection of L and L .
150 154
The left opener edge shall be at
L = 26,0 mm max.
165
from Reference Plane Y, when the shutter is in its right-hand end position.
When corresponding the position of the right opener edge is
L = 75,5 mm,
166
the windows shall be open at L from L and with a radius R originating at the intersection of L and L .
164 150 113 150 154
The position of the right opener edge shall be
L = 76,0 mm min.
167
when the shutter is in its left-hand end position.
8.1.14 Label area (Figure 11)
The case shall have three label areas on Side A and Side B and on the bottom side, with dimensions
Sides A and B:
L = 10,0 mm ± 0,2 mm
168
L = 13,0 mm ± 0,2 mm
169
L = 76,0 mm ± 0,3 mm
170
R = 2,0 mm ± 0,2 mm
114
Bottom:
L = 13,0 mm ± 0,2 mm
171
L = 76,0 mm ± 0,3 mm
172
L = 5,0 mm ± 0,2 mm
173
L = 97,0 mm ± 0,3 mm
174
L = 1,0 mm ± 0,2 mm
175
L = 6,0 mm ± 0,2 mm.
176
The label area shall be recessed by 0,2 mm min. on all three sides.
8.1.15 Identification marks for Sides A and B (Figure 12)
Side A and Side B shall be identified by an identification mark provided on a concave part on the right-hand side of Side A
and Side B, respectively. On Side A, this concave part presents a small round projection, on Side B two such projections are
provided. The position and dimensions of these identification marks shall be as follows.
11
---------------------- Page: 16 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
Side A:
+ 0,1 mm
R = 0,5 mm
115
- 0,0 mm
R = 18,0 mm ± 1,0 mm
116
+ 0,1 mm
L = 0,5 mm
178
- 0,0 mm
L = 7,0 mm ± 0,3 mm
179
L = 5,0 mm ± 0,3 mm
180
+ 0,1 mm
L = 0,6 mm
181
- 0,0 mm
Side B:
+ 0,1 mm
R = 0,5 mm
115
- 0,0 mm
R = 18,0 mm ± 1,0 mm
116
+ 0,1 mm
L = 0,5 mm
178
- 0,0 mm
L = 7,0 mm ± 0,3 mm
179
L = 5,0 mm ± 0,3 mm
180
+ 0,1 mm
L = 0,6 mm
181
- 0,0 mm
L = 3,2 mm ± 0,3 mm.
182
12
---------------------- Page: 17 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
Y
L
L
110
110
L
L
103
R 108
R
R
101
L 103
103
L
108
103
R
L
101
109
L
109
L L
L
101
111
111
L
102
L X
116
D
101
L
104
AA
R
102
L
L
107
117
R
102
L
R
R
115 103
103
L
106
Z
L
105
R Z
R
103
103
L
112
R R
103 103
R R
104
104
Z
L
L
L
L
113 114
113
114
Section A-A
(Larger scale)
97-0095-A
Figure 3 - Overall dimensions
13
---------------------- Page: 18 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
Y
S4
S3
L
118
L
119
L
121
L
120
X
S2 S1
D D
102
102
L
115
97-0096-A
Figure 4 - Reference surfaces
14
---------------------- Page: 19 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
L
L
126
125
Z
Y
aaL
101
101
131
L
L
124
127
R R
L 106 105
130
L
128
L
129
L
123
X
R
107
L
139
R
107
L
138
L
137
Y
Z
Z
B
L
L L
133
135
L 136
133
L
L
132
132
B
L
134
Section B-B
(Larger scale)
97-0097-A
Figure 5 - Insertion slots, detents and gripper slots
15
---------------------- Page: 20 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
Y
Side B
X
L
144 L
140
A1
C D
A2 A3
D D
104
103
C D
L
146
L
145
L
141
Y
Y’
Side A
X
L L
144 140
B11
B2 B3
D
D
104
103
L
146
L
145
L
141
Z
Z
D D
103
103
L
142
Section C-C
Section C-C
(Larger scale)
(Larger scale)
Writing permitted
Writing inhibited
Z
Z
D
104
L
147
Section D-D
Section D-D
(Larger scale)
(Larger scale)
Open
Closed
Figure 6 - Write-inhibit hole, sensor holes and sensing areas
16
---------------------- Page: 21 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
L
157
Z
L L
Y
153
152
R
108
L
L
156
155
L
151
R
L
109
154
X
L
150
97-0099-A
Figure 7 - Spindle and head windows
17
---------------------- Page: 22 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
R
112
L
R
162
112
L
160
L
159
F
L L
161
162
Z R
111
Y
Section F-F
R
F
110
L
158
X
97-0100-A
Figure 8 - Shape of the shutter
18
---------------------- Page: 23 ----------------------
ISO/IEC ISO/IEC 16825:1999 (E)
Y
L
163
L
164
R
113
L
X
154
L
150
L Y
165
X
97-0101-A
Figure 9 - Shutter in just right-hand open position (top) and maximum right-hand open position (bottom)
19
---------------------- Page: 24 ----------------------
ISO/IEC 16825:1999 (E) ISO/IEC
Y
L
166
L
164
R
113
X
L
154
L
150
Y
L
167
X
97-0102-A
Figure 10 - Shutter in just left-hand open position (top) and maximum left-hand open position (bottom)
20
---------------------- Page: 25 ----------------------
IS
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
