ISO 10594:2006

Micrographics - Rotary camera systems - Test target for checking performance

ISO 10594:2006 specifies a test target and a method for checking the optical and mechanical performances of rotary cameras used for producing 16 mm microfilm. This test target and method can be used for evaluating the performance of cameras (e.g. before purchase to establish initial reference), acceptance tests (e.g. confirming purchase specifications after maintenance), and routine checking (e.g. weekly or monthly). NOTE The characteristics of a rotary camera are also indicated.

Micrographie — Systèmes de caméras cinétiques — Cible de contrôle pour vérifier la performance

General Information

• Status: Published
• Publication Date: 10-Sep-2006
• ICS: 37.080 - Document imaging applications
• Technical Committee: ISO/TC 171 - Document management applications
• Drafting Committee: ISO/TC 171 - Document management applications
• Current Stage: 9093 - International Standard confirmed
• Start Date: 07-Jun-2021
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 10594:1997 - Micrographics - Rotary camera systems - Test target for checking performance
• Effective Date: 15-Apr-2008

Overview

ISO 10594:2006 - Micrographics - Rotary camera systems - Test target for checking performance - defines a standardized test target and method to check the optical and mechanical performance of rotary cameras used to produce 16 mm microfilm. The standard is intended for initial evaluation (e.g., before purchase), acceptance testing after maintenance, and routine checks (weekly/monthly). Annex A describes characteristic issues specific to rotary cameras (synchronization, focus sensitivity, maintenance needs).

Key topics and technical requirements

• Test target construction
  • Positive-appearing on a white opaque base (visual diffuse reflection density ≤ 0.08; opacity > 85%).
  • Minimum contrast (visual diffuse density difference) between base and printed features: 1.3.
  • Identification text: “rotary camera test target” and certifying agent/source.
• Test target layout
  • Three double columns of ISO test-chart characters or patterns, character/pattern ranges specified.
  • Frequency ladders (examples: 1.8, 2.0, 2.5, 3.2 line pairs/mm), reference scale in millimetres, feed direction arrow, and two perpendicular lines (220 mm and 200 mm) for orthogonality and reduction-ratio checks.
• Microfilming procedure
  • Exposure setting to achieve microimage background density 1.0–1.3 (measured per ISO 5-2/5-3).
  • Feed the target in the arrow direction; film multiple passes or cut into strips if needed to cover aperture.
  • Minimum of 10 exposures for initial setup/after major repairs; fewer for routine checks.
• Evaluation and measurements
  • Use a microscope (50:1–150:1) with image-size measurement.
  • Check mechanical performance (transport synchronization, intermittent blurring).
  • Determine optical resolving power per ISO 446/ISO 3334.
  • Verify reduction ratio comparing reference line lengths on original vs. microimage.
  • Perform legibility tests on character lines.
• Record keeping
  • Use the standard data sheet to log camera, film type, reduction ratios, background density, test results and comments.

Practical applications and users

• Microfilming service providers and micrographics labs performing quality control.
• Procurement teams evaluating rotary camera performance before purchase.
• Maintenance technicians and service engineers validating repairs and acceptance tests.
• Archives, records managers, and document management professionals ensuring long-term legibility and preservation of microfilm records.
• Organizations operating high-throughput rotary microfilming lines that require routine verification of synchronization, focus, and reduction accuracy.

Related standards

• ISO 446, ISO 3334 (micrographics test charts and resolving power)
• ISO 5-2, ISO 5-3, ISO 5-4 (density measurement methods)
• ISO 2471 (opacity)
• ISO 6196 series (micrographics vocabulary)
• ISO 10550 (planetary camera test target - complementary standard)

Keywords: ISO 10594:2006, rotary camera test target, micrographics, 16 mm microfilm, resolving power, reduction ratio, legibility, mechanical performance, test procedure.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 10594
Second edition
2006-09-15
Micrographics — Rotary camera
systems — Test target for checking
performance
Micrographie — Systèmes de caméras cinétiques — Cible de contrôle
pour vérifier la performance
Reference number
©
ISO 2006
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Description of the test target. 2
4.1 Characteristics of the base. 2
4.2 Test target layout. 2
4.3 Contrast . 2
4.4 Identification. 2
5 Microfilming of the test target . 5
5.1 Exposure setting. 5
5.2 Feed. 5
5.3 Number of exposures. 5
6 Test target evaluation procedure . 5
6.1 Microscope . 5
6.2 Mechanical performance. 5
6.3 Optical quality (resolving power). 5
6.4 Reduction ratio. 5
6.5 Legibility test. 6
7 Results of the tests. 6
Annex A (informative) Characteristics of rotary camera. 8
Bibliography . 10

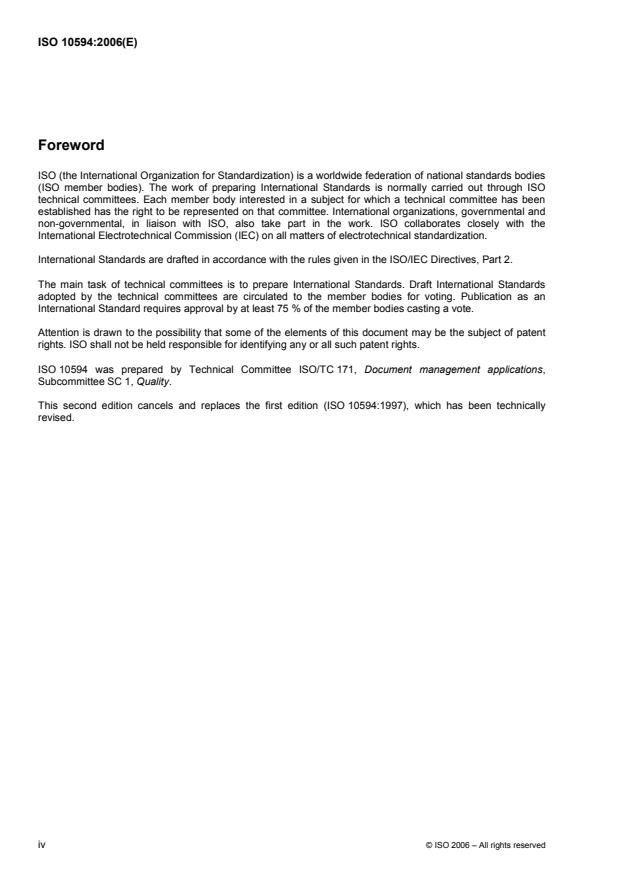

Foreword
