Standards Content (sample)

INTERNATIONAL ISO/IEC
STANDARD 14496-20
Second edition
2008-12-01
AMENDMENT 1
2009-04-01
Information technology — Coding of
audio-visual objects —
Part 20:
Lightweight Application Scene
Representation (LASeR) and Simple
Aggregation Format (SAF)
AMENDMENT 1: Extensions to support
SVGT1.2
Technologies de l'information — Codage des objets audiovisuels —
Partie 20: Représentation de scène d'application allégée (LASeR) et
format d'agrégation simple (SAF)
AMENDEMENT 1: Extensions pour soutien de SVGT1.2
Reference number
ISO/IEC 14496-20:2008/Amd.1:2009(E)
ISO/IEC 2009
---------------------- Page: 1 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)

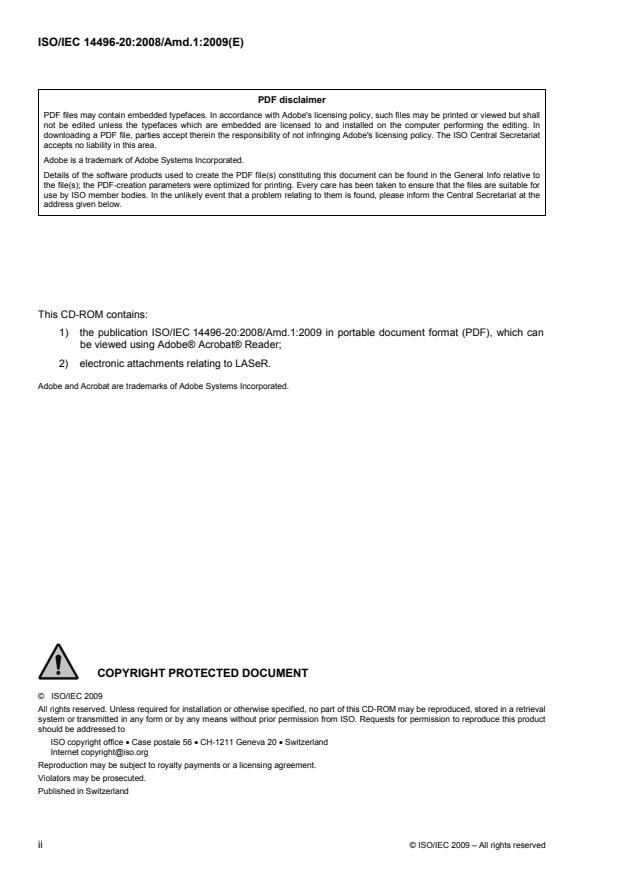

PDF disclaimer

PDF files may contain embedded typefaces. In accordance with Adobe's licensing policy, such files may be printed or viewed but shall

not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading a PDF file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create the PDF file(s) constituting this document can be found in the General Info relative to

the file(s); the PDF-creation parameters were optimized for printing. Every care has been taken to ensure that the files are suitable for

use by ISO member bodies. In the unlikely event that a problem relating to them is found, please inform the Central Secretariat at the

address given below.
This CD-ROM contains:

1) the publication ISO/IEC 14496-20:2008/Amd.1:2009 in portable document format (PDF), which can

be viewed using Adobe® Acrobat® Reader;
2) electronic attachments relating to LASeR.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2009

All rights reserved. Unless required for installation or otherwise specified, no part of this CD-ROM may be reproduced, stored in a retrieval

system or transmitted in any form or by any means without prior permission from ISO. Requests for permission t

...

INTERNATIONAL ISO/IEC
STANDARD 14496-20
Second edition
2008-12-01
AMENDMENT 1
2009-04-01
Information technology — Coding of
audio-visual objects —
Part 20:
Lightweight Application Scene
Representation (LASeR) and Simple
Aggregation Format (SAF)
AMENDMENT 1: Extensions to support
SVGT1.2
Technologies de l'information — Codage des objets audiovisuels —
Partie 20: Représentation de scène d'application allégée (LASeR) et
format d'agrégation simple (SAF)
AMENDEMENT 1: Extensions pour soutien de SVGT1.2
Reference number
ISO/IEC 14496-20:2008/Amd.1:2009(E)
ISO/IEC 2009
---------------------- Page: 1 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)

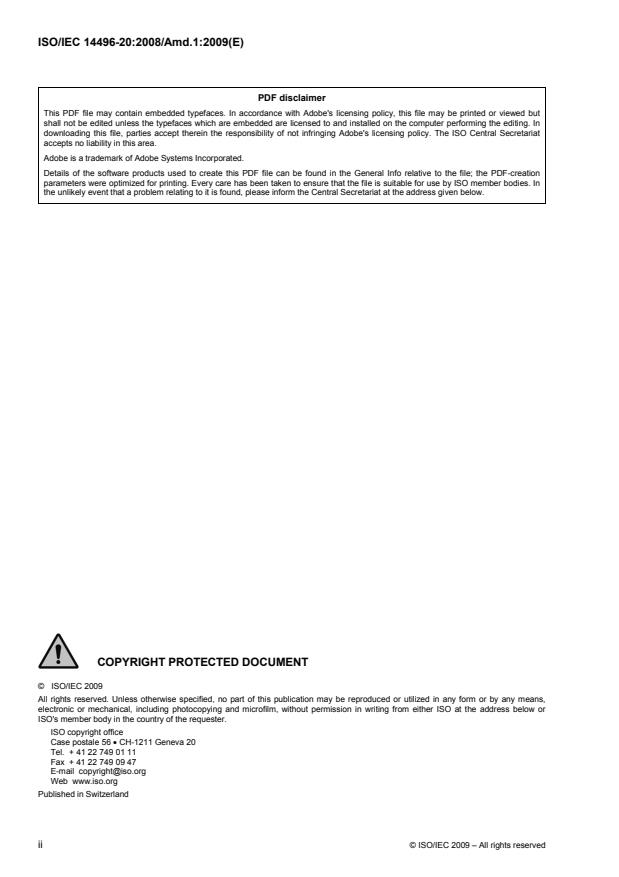

PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2009

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are members of

ISO or IEC participate in the development of International Standards through technical committees

established by the respective organization to deal with particular fields of technical activity. ISO and IEC

technical committees collaborate in fields of mutual interest. Other international organizations, governmental

and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information

technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of the joint technical committee is to prepare International Standards. Draft International

Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as

an International Standard requires approval by at least 75 % of the national bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.

Amendment 1 to ISO/IEC 14496-20:2006 was prepared by Joint Technical Committee ISO/IEC JTC 1,

Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia

information.
© ISO/IEC 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
Information technology — Coding of audio-visual objects —
Part 20:
Lightweight Application Scene Representation (LASeR) and
Simple Aggregation Format (SAF)
AMENDMENT 1: Extensions to support SVGT1.2
In Clause 2, add the following reference:

W3C SVGT12, Scalable Vector Graphics (SVG) Tiny 1.2 Specification [Recommendation],

http://www.w3.org/TR/SVGMobile12/

Throughout the document, substitute references to [2] by references to [W3C SVGT12]

In Table 3, add these lines:
The screen orientation has changed to typical
“landscape” orientation
“screenOrientationLandscape” urn:mpeg:mpeg4:laser:2005 No No
Note – screenOrientationLandscape is sent either
with screenOrientation0 or screenOrientation180
The screen orientation has changed to typical
“portrait” orientation
“screenOrientationPortrait” urn:mpeg:mpeg4:laser:2005 No No
Note – screenOrientationPortrait is sent either with
screenOrientation90 or screenOrientation270
After 6.5.6.1, add the following subclause:
6.5.6.2 ScreenOrientationEvent
interface ScreenOrientationEvent : Event
readonly attribute unsigned long screenWidth;
readonly attribute unsigned long screenHeight;
readonly attribute unsigned long screenAngle;
No defined constants.
Attributes:
screenWidth - contains the new screen display or viewport width
screenHeight - contains the new screen display or viewport height

screenAngle - documents the angle from the horizontal positive x axis to the axis of the longest

dimension of the screen, measured clockwise.
© ISO/IEC 2009 – All rights reserved 1
---------------------- Page: 4 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
No defined methods.

The orientation is reported in degrees in screenAngle, to the best of the terminal's capability. This is

measured as the angle between the positive X-axis of an un-rotated frame of reference, and the

orientation of the longer of the X or Y axis of the screen, as rotated, as shown in Figure AMD2.1.

Specifically, for a screen that is normally portrait and in its normal position, the screenAngle is 90

degrees, since the longest axis is vertical, and the Y-axis is downward in SVG. Similarly, for a terminal

that is normally landscape and in its normal position, the screenAngle is 0 degrees, since the longest axis

is horizontal, and is the X-axis. This angle therefore would normally be close to 90 or 270 in portrait

events, and close to 0 or 180 in landscape events, and 0 or 90 in terminals that are in their normal

orientation, and 180 or 270 in terminals that are inverted.
normal screen top
or left
reference X axis
Figure AMD2.1 — Angle measurement procedure
In 6.6.2.2, add at the end:

Note – Data is saved as a set of four values, using the URI, pathComponents and useFullRequestHost from

the stream containing the save command:
• the domain-name formed from the URI and useFullRequestHost;
• the path formed from the URI and pathComponents;
• the groupID (known as ‘name’ in [RFC 2965]);
• the set of {element-ID, attribute-name, value} triplets.

When a restore command is executed all saved sets with the same (equal) groupID, and also where the URI

of the stream containing the restore command matches the saved domain-name and path, are restored. This

matching is defined in section 4.3.4 of [RFC 2965].
The same matching rules are used for the clean command.
In 6.7.1, add at the end of the paragraph on the waiting tree:
Scripts also have access to the waiting tree in the same way as LASeR Commands.
2 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
In 6.7.3.1, add at the end:

The Clean command behaves exactly the same as a Save command that saves no state; as is normal for the

Save command, any other saved state with the same domain-name, path, and groupID is replaced, in this

case, with an empty set of saved data. This is functionally equivalent to deleting that saved state, as nothing

would be restored.
In 6.7.6.4, replace document.svgDocument.root with document.documentElement
In 6.7.7.4, replace document.svgDocument.root with document.documentElement
In 6.7.10.1, add at the end:

The Save command saves the values of a set of attributes, each identified by element ID and attribute name.

Each save operation uses a groupID. Any other saved state with the same domain-name, path, and groupID

is replaced.
In 6.7.11.2, add to the event bullet:

The XML syntax for this attribute with events accessKey, longAccessKey, shortAccessKey and repeatKey

includes the reference key name between parentheses, e.g. event=”accessKey(FIRE)”, regardless of

whether the key code is defined in LASeRML or not.
After 6.7.14, add the following new subclauses:
6.7.15 Immediate Script Execution
6.7.15.1 Semantics

The doScript command supplies a script for immediate execution as specified in [3GPP DIMS].

The following example retrieves the rect element with id “myRect” child of the root svg element, removes it

from the document tree and append it in another position as a child of a g element with id “myGroup”:


var myrect = document.getElementById(“myRect”);
document.documentElement.removeChild(myrect);
document.getElementbyId(“myGroup”).appendChild(myrect);

6.7.15.2 Attributes

type - is a string that identifies the scripting language used. It takes a suitable MIME type [19] from the

IANA registry, such as “application/ecmascript” (see [14]).
© ISO/IEC 2009 – All rights reserved 3
---------------------- Page: 6 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
6.7.16 Seeking in the scene stream
6.7.16.1 Semantics

The command seek results in a seek in the scene media timeline. The effect is the same as if the current

scene stream was played inside an animation element, with currentMediaTime being the current media time of

the scene stream, and the following actions were performed:
- the animation element is stopped;

- the clipBegin attribute of the animation element is modified to currentMediaTime+seekOffset;

- the animation element is started again.
6.7.16.2 Attributes
seekOffset: a clock value from section 16.2.8 of [W3C SVGT1.2].
After 6.8.2, add the following paragraph:

The attribute dims:active, specified in [3GPP DIMS], shall be supported on all elements.

After 6.8.53, add the following subclauses:
6.8.54 SVGT1.2 discard
The SVGT12 discard element is specified in section 5.4 of [W3C SVGT1.2].
6.8.55 SVGT1.2 handler
The SVGT12 handler element is specified in section 15.5 of [W3C SVGT1.2].
6.8.56 SVGT1.2 prefetch
The SVGT12 prefetch element is specified in section 5.9.3 of [W3C SVGT1.2].
6.8.57 SVGT1.2 solidColor
The SVGT12 solidColor element is specified in section 11.13.4 of [W3C SVGT1.2].
6.8.58 SVGT1.2 tBreak
The SVGT12 tBreak element is specified in section 10.11.2 of [W3C SVGT1.2].
6.8.59 SVGT1.2 textArea
The SVGT12 textArea element is specified in section 10.11.3 of [W3C SVGT1.2].
4 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
In 6.9, replace the table “Summary of Possible Attributes per Element” by:
Element name Attributes

audio-level color color-rendering display display-align externalResourcesRequired fill fill-

opacity fill-rule nav-right nav-next nav-up nav-up-right nav-up-left nav-prev nav-down

nav-down-right nav-down-left nav-left focusable font-family font-size font-style font-

variant font-weight image-rendering line-increment lsr:rotation lsr:scale lsr:translation

pointer-events requiredExtensions requiredFeatures requiredFormats shape-rendering

solid-color solid-opacity stop-color stop-opacity stroke stroke-dasharray stroke-

dashoffset stroke-linecap stroke-linejoin stroke-miterlimit stroke-opacity stroke-width

systemLanguage target text-anchor text-rendering transform vector-effect viewport-fill

viewport-fill-opacity visibility xlink:actuate xlink:arcrole xlink:href xlink:role xlink:show

xlink:title xlink:type

accumulate additive attributeName begin by calcMode class dur enabled end fill from id

keySplines keyTimes max min repeatCount repeatDur restart to values xlink:actuate

animate

xlink:arcrole xlink:href xlink:role xlink:show xlink:title xlink:type xml:base xml:lang

xml:space

accumulate additive attributeName begin by calcMode class dur enabled end fill from id

keySplines keyTimes max min repeatCount repeatDur restart to values xlink:actuate

animateColor

xlink:arcrole xlink:href xlink:role xlink:show xlink:title xlink:type xml:base xml:lang

xml:space

accumulate additive attributeName begin by calcMode class dur enabled end fill from id

keyPoints keySplines keyTimes max min path repeatCount repeatDur restart rotate to

animateMotion

values xlink:actuate xlink:arcrole xlink:href xlink:role xlink:show xlink:title xlink:type

xml:base xml:lang xml:space

id class xml:base xml:lang xml:space xlink:href xlink:title xlink:type xlink:role xlink:arcrole

lsr:animateScroll xlink:actuate xlink:show by from to delayAtStart delayAtEnd speed direction begin dur

end fill restart repeatCount repeatDur

accumulate additive attributeName begin by calcMode class dur enabled end fill from id

keySplines keyTimes max min repeatCount repeatDur restart to type values xlink:actuate

animateTransform

xlink:arcrole xlink:href xlink:role xlink:show xlink:title xlink:type xml:base xml:lang

xml:space
id class xml:base xml:lang xml:space requiredFeatures requiredExtensions
systemLanguage requiredFormats requiredFonts audio-level display image-rendering

pointer-events shape-rendering text-rendering viewport-fill viewport-fill-opacity visibility

lsr:rotation lsr:scale lsr:translation transform xlink:href xlink:title xlink:type xlink:role

animation xlink:arcrole xlink:actuate xlink:show nav-right nav-next nav-up nav-up-right nav-up-left

nav-prev nav-down nav-down-right nav-down-left nav-left focusable fill focushiglight

width height x y externalResourcesRequired begin end dur min max restart repeatCount

repeatDur syncBehavior syncTolerance syncMaster pereserveAspectRatio type
lsr:syncReference lsr:clipBegin lsr:clipEnd initialVisibility
audio-level begin class dur end externalResourcesRequired id lsr:syncReference
repeatCount repeatDur requiredExtensions requiredFeatures requiredFormats
audio

syncBehavior syncTolerance systemLanguage type xlink:actuate xlink:arcrole xlink:href

xlink:role xlink:show xlink:title xlink:type xml:base xml:lang xml:space type

audio-level class color color-rendering cx cy display display-align fill fill-opacity fill-rule

nav-right nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-down-right

nav-down-left nav-left focusable font-family font-size font-style font-weight font-variant id

image-rendering line-increment lsr:rotation lsr:scale lsr:translation pointer-events r

circle requiredExtensions requiredFeatures requiredFormats shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

stroke-linejoin stroke-miterlimit stroke-opacity stroke-width systemLanguage text-anchor

text-rendering transform vector-effect viewport-fill viewport-fill-opacity visibility xml:base

xml:lang xml:space
© ISO/IEC 2009 – All rights reserved 5
---------------------- Page: 8 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
Element name Attributes

id class begin enabled externalResourcesRequired xlink:href xlink:title xlink:type

lsr:conditional
xlink:role xlink:arcrole xlink:actuate xlink:show xml:base xml:lang xml:space

id class xml:base xml:lang xml:space xlink:href xlink:title xlink:type xlink:role xlink:arcrole

lsr:cursorManager
xlink:actuate xlink:show x y

audio-level class color color-rendering display display-align fill fill-opacity fill-rule font-

family font-size font-style font-variant font-weight id image-rendering line-increment

pointer-events shape-rendering solid-color solid-opacity stop-color stop-opacity stroke

defs

stroke-dasharray stroke-dashoffset stroke-linecap stroke-linejoin stroke-miterlimit stroke-

opacity stroke-width text-anchor text-rendering vector-effect viewport-fill viewport-fill-

opacity visibility xml:base xml:lang xml:space
desc class id xml:base xml:lang xml:space

id class xml:base xml:lang xml:space begin xlink:href xlink:title xlink:type xlink:role

discard
xlink:arcrole xlink:actuate xlink:show

audio-level class color color-rendering cx cy display display-align fill fill-opacity fill-rule

nav-right nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-down-right

nav-down-left nav-left focusable font-family font-size font-style font-variant font-weight id

image-rendering line-increment lsr:rotation lsr:scale lsr:translation pointer-events

ellipse requiredExtensions requiredFeatures requiredFormats rx ry shape-rendering solid-color

solid-opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-

linecap stroke-linejoin stroke-miterlimit stroke-opacity stroke-width systemLanguage text-

anchor text-rendering transform vector-effect viewport-fill viewport-fill-opacity visibility

xml:base xml:lang xml:space

id class xml:base xml:lang xml:space externalResourcesRequired horiz-adv-x horiz-

font
origin-x

id class xml:base xml:lang xml:space accent-height alphabetic ascent bbox cap-height

descent externalResourcesRequired font-family font-stretch font-style font-variant font-

font-face weight hanging ideographic mathematical overline-position overline-thickness panose-1

slope stemh stemv strikethrough-position strikethrough-thickness underline-position

underline-thickness unicode-range units-per-em widths x-height
font-face-src id class xml:base xml:lang xml:space

id class xml:base xml:lang xml:space externalResourcesRequired xlink:href xlink:title

font-face-uri
xlink:type xlink:role xlink:arcrole xlink:actuate xlink:show

audio-level class color color-rendering display display-align externalResourcesRequired

fill fill-opacity fill-rule nav-right nav-next nav-up nav-up-right nav-up-left nav-prev nav-

down nav-down-right nav-down-left nav-left focusable font-family font-size font-style font-

variant font-weight height id image-rendering line-increment pointer-events

foreignObject requiredExtensions requiredFeatures requiredFormats shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

stroke-linejoin stroke-miterlimit stroke-opacity stroke-width systemLanguage text-anchor

text-rendering vector-effect viewport-fill viewport-fill-opacity visibility width x xml:base

xml:lang xml:space y

id class xml:base xml:lang xml:space audio-level color color-rendering display display-

align fill fill-opacity fill-rule font-family font-size font-style text-decoration font-weight font-

variant image-rendering line-increment pointer-events shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

g stroke-linejoin stroke-miterlimit stroke-opacity stroke-width text-anchor text-rendering

viewport-fill viewport-fill-opacity vector-effect visibility lsr:rotation lsr:scale lsr:translation

transform requiredFeatures requiredExtensions systemLanguage requiredFormats

requiredFonts nav-right nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-

down-right nav-down-left nav-left focusable focusHighlight externalResourcesRequired

id class xml:base xml:lang xml:space arabic-form d glyph-name horiz-adv-x lang unicode

glyph externalResourceRequired xlink:href xlink:title xlink:type xlink:role xlink:arcrole

xlink:actuate xlink:show
hkern id class xml:base xml:lang xml:space g1 g2 k u1 u2

handler id class xml:base xml:lang xml:space externalResourcesRequired type ev:event

6 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
Element name Attributes

class display externalResourcesRequired nav-right nav-next nav-up nav-up-right nav-up-

left nav-prev nav-down nav-down-right nav-down-left nav-left focusable height id
lsr:rotation lsr:scale lsr:translation opacity pointer-events requiredExtensions

image requiredFeatures requiredFormats systemLanguage transform transformBehavior type

visibility width x xlink:actuate xlink:arcrole xlink:href xlink:role xlink:show xlink:title

xlink:type xml:base xml:lang xml:space y type preserveAspectRatio viewport-fill viewport-

fill-opacity

audio-level class color color-rendering display display-align fill fill-opacity fill-rule nav-right

nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-down-right nav-down-

left nav-left focusable font-family font-size font-style font-variant font-weight id image-

rendering line-increment lsr:rotation lsr:scale lsr:translation pointer-events

line requiredExtensions requiredFeatures requiredFormats shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

stroke-linejoin stroke-miterlimit stroke-opacity stroke-width systemLanguage text-anchor

text-rendering transform vector-effect viewport-fill viewport-fill-opacity visibility x1 x2

xml:base xml:lang xml:space y1 y2

audio-level class color color-rendering display display-align fill fill-opacity fill-rule font-

family font-size font-style font-variant font-weight gradient-units id image-rendering line-

increment pointer-events shape-rendering solid-color solid-opacity stop-color stop-

linearGradient

opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap stroke-linejoin stroke-

miterlimit stroke-opacity stroke-width text-anchor text-rendering vector-effect viewport-fill

viewport-fill-opacity visibility x1 x2 xml:base xml:lang xml:space y1 y2

ev:listener id enabled event handler observer phase propagate defaultAction target

metadata class id xml:base xml:lang xml:space
missing-glyph id class xml:base xml:lang xml:space d horiz-adv x

class id xlink:actuate xlink:arcrole xlink:href xlink:role xlink:show xlink:title xlink:type

mpath
xml:base xml:lang xml:space

audio-level class color color-rendering d display display-align fill fill-opacity fill-rule nav-

right nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-down-right nav-

down-left nav-left focusable font-family font-size font-style font-variant font-weight id

image-rendering line-increment lsr:rotation lsr:scale lsr:translation pathLength pointer-

path events requiredExtensions requiredFeatures requiredFormats shape-rendering solid-

color solid-opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset

stroke-linecap stroke-linejoin stroke-miterlimit stroke-opacity stroke-width

systemLanguage text-anchor text-rendering transform vector-effect viewport-fill viewport-

fill-opacity visibility xml:base xml:lang xml:space

audio-level class color color-rendering display display-align fill fill-opacity fill-rule nav-right

nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-down-right nav-down-

left nav-left focusable font-family font-size font-style font-variant font-weight id image-

rendering line-increment lsr:rotation lsr:scale lsr:translation pointer-events points

polygon requiredExtensions requiredFeatures requiredFormats shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

stroke-linejoin stroke-miterlimit stroke-opacity stroke-width systemLanguage text-anchor

text-rendering transform vector-effect viewport-fill viewport-fill-opacity visibility xml:base

xml:lang xml:space

audio-level class color color-rendering display display-align fill fill-opacity fill-rule nav-right

nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-down-right nav-down-

left nav-left focusable font-family font-size font-style font-variant font-weight id image-

rendering line-increment lsr:rotation lsr:scale lsr:translation pointer-events points

polyline requiredExtensions requiredFeatures requiredFormats shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

stroke-linejoin stroke-miterlimit stroke-opacity stroke-width systemLanguage text-anchor

text-rendering transform vector-effect viewport-fill viewport-fill-opacity visibility xml:base

xml:lang xml:space

id class xml:base xml:lang xml:space xlink:herf xlink:title xlink:type xlink:role xlink:arcrole

prefetch xlink:actuate xlink:show bandwidth mediaCharacterEncoding mediaContentEncodings

mediaSize mediaTime
© ISO/IEC 2009 – All rights reserved 7
---------------------- Page: 10 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
Element name Attributes

audio-level class color color-rendering cx cy display display-align fill fill-opacity fill-rule

font-family font-size font-style font-variant font-weight gradient-units id image-rendering

line-increment pointer-events r shape-rendering solid-color solid-opacity stop-color stop-

radialGradient

opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap stroke-linejoin stroke-

miterlimit stroke-opacity stroke-width text-anchor text-rendering vector-effect viewport-fill

viewport-fill-opacity visibility xml:base xml:lang xml:space

audio-level class color color-rendering display display-align fill fill-opacity fill-rule nav-right

nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-down-right nav-down-

left nav-left focusable font-family font-size font-style font-variant font-weight height id

image-rendering line-increment lsr:rotation lsr:scale lsr:translation pointer-events

rect requiredExtensions requiredFeatures requiredFormats rx ry shape-rendering solid-color

solid-opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-

linecap stroke-linejoin stroke-miterlimit stroke-opacity stroke-width systemLanguage text-

anchor text-rendering transform vector-effect viewport-fill viewport-fill-opacity visibility

width x xml:base xml:lang xml:space y

id class xml:base xml:lang xml:space audio-level color color-rendering display display-

align fill fill-opacity fill-rule font-family font-size font-style text-decoration font-weight font-

variant image-rendering line-increment pointer-events shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

stroke-linejoin stroke-miterlimit stroke-opacity stroke-width text-anchor text-rendering

lsr:rectClip

viewport-fill viewport-fill-opacity vector-effect visibility lsr:rotation lsr:scale lsr:translation

transform requiredFeatures requiredExtensions systemLanguage requiredFormats

requiredFonts nav-right nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-

down-right nav-down-left nav-left focusable focusHighlight externalResourcesRequired

size

begin class enabled externalResourcesRequired id type xlink:actuate xlink:arcrole

script

xlink:href xlink:role xlink:show xlink:title xlink:type xml:base xml:lang xml:space type

id class xml:base xml:lang xml:space audio-level color color-rendering display display-

align fill fill-opacity fill-rule font-family font-size font-style text-decoration font-weight font-

variant image-rendering line-increment pointer-events shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

stroke-linejoin stroke-miterlimit stroke-opacity stroke-width text-anchor text-rendering

lsr:selector

viewport-fill viewport-fill-opacity vector-effect visibility lsr:rotation lsr:scale lsr:translation

transform requiredFeatures requiredExtensions systemLanguage requiredFormats

requiredFonts nav-right nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-

down-right nav-down-left nav-left focusable focusHighlight externalResourcesRequired

choice

attributeName begin class dur enabled end fill id max min repeatCount repeatDur restart

set to xlink:actuate xlink:arcrole xlink:href xlink:role xlink:show xlink:title xlink:type xml:base

xml:lang xml:space
id class xml:base xml:lang xml:space begin increment to direction xlink:actuate
lsr:setScroll
xlink:arcrole xlink:href xlink:role xlink:show xlink:title xlink:type

id class xml:base xml:lang xml:space audio-level color color-rendering display display-

align fill fill-opacity fill-rule font-family font-size font-style text-decoration font-weight font-

variant image-rendering line-increment pointer-events shape-rendering solid-color solid-

opacity stop-color stop-opacity stroke stroke-dasharray stroke-dashoffset stroke-linecap

stroke-linejoin stroke-miterlimit stroke-opacity stroke-width text-anchor text-rendering

lsr:simpleLayout

viewport-fill viewport-fill-opacity vector-effect visibility lsr:rotation lsr:scale lsr:translation

transform requiredFeatures requiredExtensions systemLanguage requiredFormats

requiredFonts nav-right nav-next nav-up nav-up-right nav-up-left nav-prev nav-down nav-

down-right nav-down-left nav-left focusable focusHighlight externalResourcesRequired

size
solidColor id class xml:base xml:lang xml:space solid-color solid-opacity
8 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 14496-20:2008/Amd.1:2009(E)
Element name Attributes

audio-level class color color-rendering display display-align fill fill-opacity fill-rule font-

family font-size font-style font-variant font-weight id image-rendering line-increment offset

pointer-events shape-rendering solid-color solid-opacity stop-color stop-opacity stroke

stop

stroke-dasharray stroke-dashoffset stroke-linecap stroke-linejoin stroke-miterlimit stroke-

opacity stroke-width text-anchor text-renderi
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
