ISO/TR 7997:2025
(Main)Road vehicles — Control type and layout of transmission gear shifters and drive mode selectors
Road vehicles — Control type and layout of transmission gear shifters and drive mode selectors
This document describes the type, layout, location, and feedback display of available electro-mechanical and electronic transmission gear shifters found in passenger cars (including sport utility vehicles and light trucks) and in commercial vehicles (including heavy trucks and buses). The transmission gear shifters are located on the steering column, instrument panel, floor and centre consoles. Specifically, this document addresses shift by-wire electro-mechanical selectors that adapt the control of vehicle movement according to road conditions and personal preference. Conventional mechanical shifters are also referenced so correspondence between traditional linear P, R, N, D, L, M/S control types, layouts, locations and direction of control motions and electro-mechanical/electronic transmission gear shifters (simply, e-shifters) can be established. This document is based on observations and survey results described in Annexes A and B for passenger cars and commercial vehicles respectively. The results are independent of vehicle propulsion systems and define the layout, spatial orientation and control movement patterns for the following drive functions: — drive (D=forward movement), — reverse (R=rearward movement), — park (P=stationary), — neutral (N=freewheeling to allow stationary or forward-reverse without drive functions engaged), — low (L=remain in low gear),and/or — manual or sequential (M or S to engage manual drive mode). The control types of the transmission gear shifters that are within scope of this document are lever (pivot, slider and gated), dial/rotary, push button and toggle switch. Paddle shifters and ‘automatic-manual shifters’ are not specifically included in the scope. However, they are referenced so that if a transmission gear shifter has a ‘manual mode’ by which drive gear control is transferred to or shared with the paddle or automatic-manual transmission it is identified. This document also identifies control types, location and feedback displays of drive mode selectors. Their control types within scope are lever, dial/rotary, push button, toggle/rocker switch, touch screen and steering wheel paddle switches. These are located in the centre console, steering wheel or instrument panel of the vehicle. Various types of visual, auditory or haptic feedback correspond to display activations, control positions, and graphical representations in the head-up display, centre console, instrument panel, display audio or instrument cluster display. This document does not specifically include head-up displays, but it is foreseeable that graphical representations could appear in future head-up displays. Leaving the limitations of mechanical shifters means control freedom gets bigger. It is therefore likely that control types as well as the combination of transmission and brake functions will continue to develop. In this document, specific details about hybrid or electric drives are excluded. The same is in general valid for engine brake, auxiliary brake, or regeneration/recuperation programs. However, brake functions are to some extent still mentioned as part of drive modes found in the surveys. For commercial vehicles, and with the continued introduction of electric drivelines, these brake programs are likely to get even more related to different drive modes. It is foreseen that more information can be added at later stage, as separate ISO documents.
Véhicules routiers — Type de commande et disposition des sélecteurs de vitesse de transmission et des sélecteurs de mode de conduite
General Information
Standards Content (Sample)

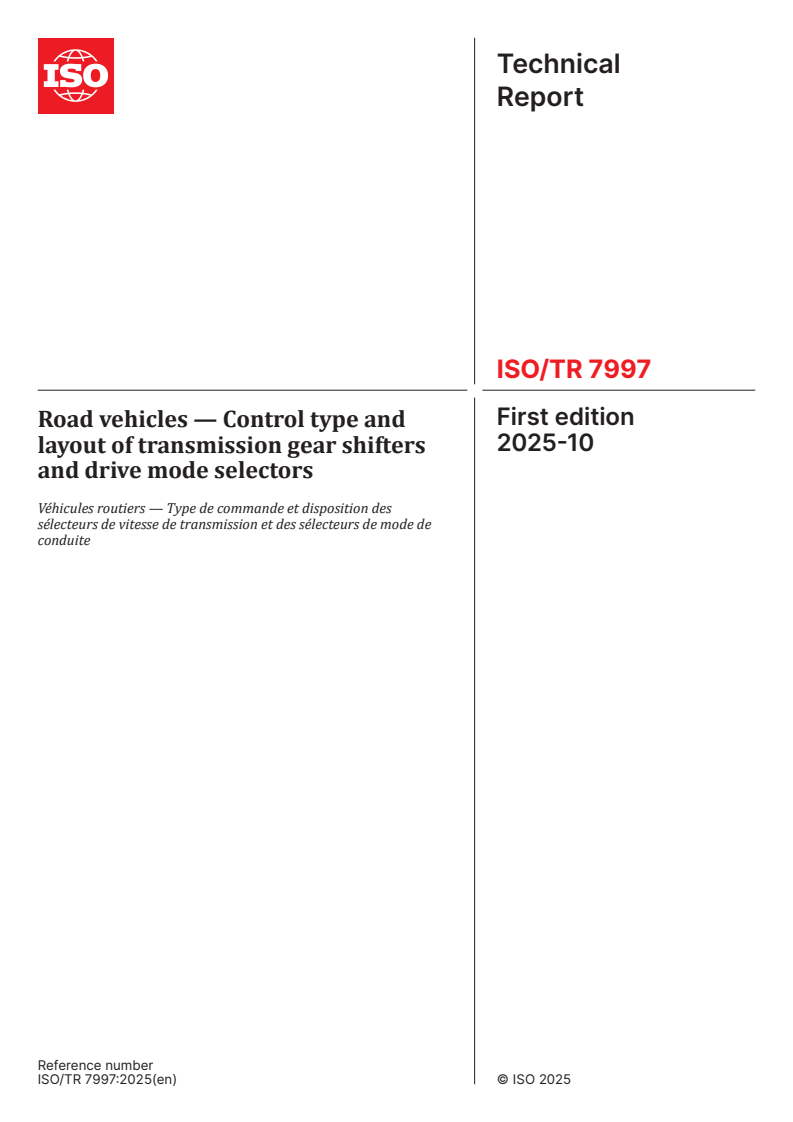

Technical
Report
ISO/TR 7997
First edition
Road vehicles — Control type and
2025-10
layout of transmission gear shifters
and drive mode selectors
Véhicules routiers — Type de commande et disposition des
sélecteurs de vitesse de transmission et des sélecteurs de mode de
conduite
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 Transmission gear shifter: types, layouts, locations and feedback displays . 6
4.1 General .6
4.2 Type of transmission gear shifters .6
4.2.1 Lever .7
4.2.2 Dial/rotary.8
4.2.3 Push button .9
4.2.4 Toggle switch .9
4.2.5 Steering wheel paddle .10
4.3 Layouts of the shifter .10
4.3.1 Alignment of layout .10
4.3.2 Separation of ‘P’ . 12
4.3.3 Summary of the layouts of the shifter . 13
4.4 Location of the shifter inside the vehicle .14
4.5 Feedback displays of drive function status . 15
4.5.1 Feedback display around or on the shifter .16
4.5.2 Feedback display on the instrument cluster .18
5 Drive mode selector: types, layouts, locations and feedback displays .18
5.1 General .18
5.2 Type of drive mode selectors .19
5.2.1 Lever .19
5.2.2 Rotary/dial.19
5.2.3 Push button .21
5.2.4 Toggle switch . 22
5.2.5 Touch screen. 22
5.2.6 Rocker switch . 22
5.2.7 Combination of controls . . 23
5.3 Layout of drive mode selectors . 23
5.4 Location inside the vehicle . 23
5.4.1 Centre console . 23
5.4.2 Seat side . 23
5.4.3 Steering wheel . 23
5.4.4 Instrument panel .24
5.4.5 Instrument cluster .24
5.4.6 Head unit display .24
5.5 Feedback display of drive mode selector status .24
5.5.1 Status feedback displayed in the actuator .24
5.5.2 Feedback on head unit or instrument cluster display . 25
5.6 Categories of drive modes . 25
5.6.1 On-road modes . 26
5.6.2 Off-road modes . 26
Annex A (informative) Benchmarking of transmission gear shifters and drive mode selectors
in various passenger cars .28
Annex B (informative) Benchmarking of transmission gear shifters and drive mode selectors
in commercial vehicles .48
Bibliography .57
iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 39,
Ergonomics.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
The operation of road vehicle transmission gear shifters (referred to simply as shifters) results in changes to
vehicle motion: parked, moving rearward, freewheeling (neutral), or moving forward. Drive mode selectors
(referred to as selectors) change the vehicles’ driving characteristics without changing the direction of
motion. Therefore, shifter and selector types, layouts, directions of control motion, locations, and feedback
displays are designed to promote intuitive control usage.
Mechanical transmission gear shifters for manual and automatic transmissions have been industry standards
until recently when electro-mechanical and electronic shifters (e-shifters) were introduced with a range of
novel shifter types, layouts and locations. The concern is that when customers drive unfamiliar or newly
purchased vehicles, novel usage of electronic shifters can be confusing or using it results in misoperations.
Moreover, operation of a transmission gear shifter to make changes to vehicle motion, can be coupled with
the selection of different drive modes. Similar to electronic shifters, current drive mode selectors also
appear in a wide variety of control types, locations, labelling and feedback types. However, unstandardized
naming such as sport, eco, comfort and off-road among others, creates potential for confusion and lack of
understanding the consequences of selecting specific drive modes.
In an effort to reduce or eliminate misoperations o
...
