Standards Content (sample)

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 12543-5
ISO/TC 160/SC 1
Glass in building — Laminated glass
Secretariat: BSI
and laminated safety glass —
Voting begins on:
2021-09-08
Part 5:
Voting terminates on:
Dimensions and edge finishing
2021-11-03
Verre dans la construction — Verre feuilleté et verre feuilleté de
sécurité —
Partie 5: Dimensions et façonnage des bords
IMPORTANT — Please use this updated version dated 2021-08-24
and discard any previous version of this FDIS.
ISO/CEN PARALLEL PROCESSING
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 12543-5:2021(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ISO 2021
---------------------- Page: 1 ----------------------
ISO/FDIS 12543-5:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/FDIS 12543-5:2021(E)

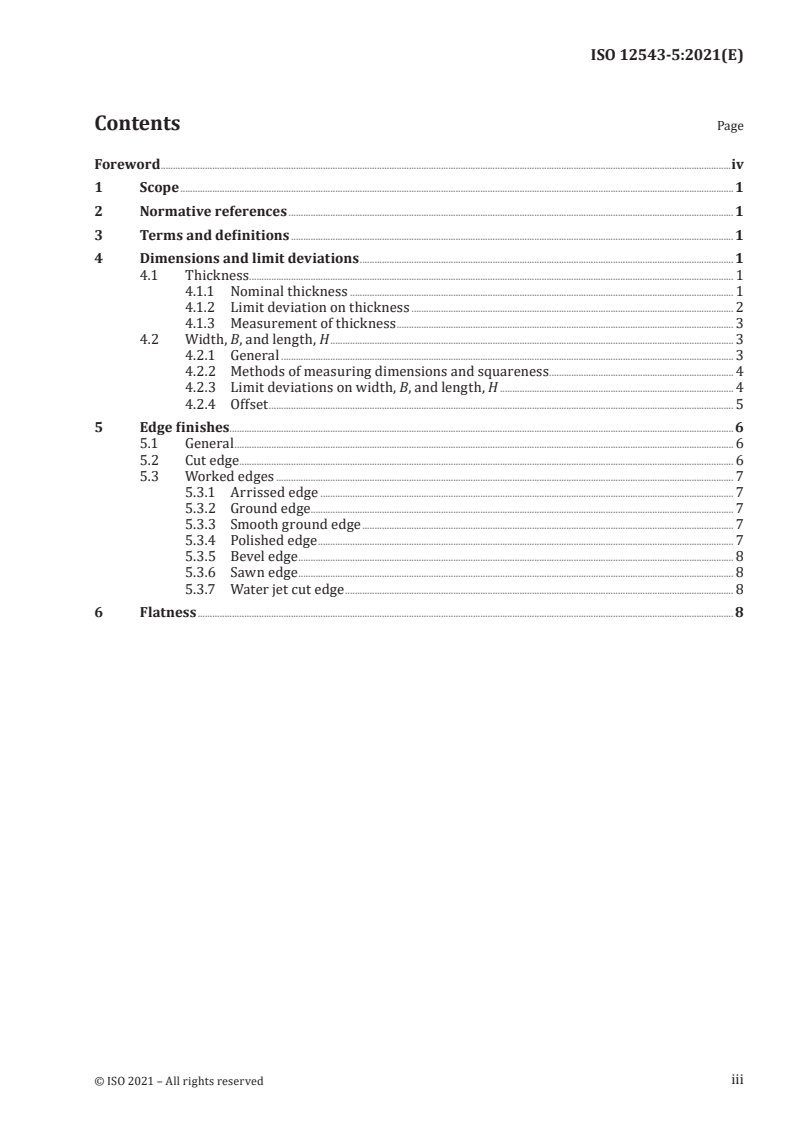

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Dimensions and limit deviations ......................................................................................................................................................... 1

4.1 Thickness ..................................................................................................................................................................................................... 1

4.1.1 Nominal thickness .......................................................................................................................................................... 1

4.1.2 Limit deviation on thickness ................................................................................................................................. 2

4.1.3 Measurement of thickness....................................................................................................................................... 3

4.2 Width, B, and length, H ......................................................................................................................................................................3

4.2.1 General...................................................................................................................................................................................... 3

4.2.2 Methods of measuring dimensions and squareness ......................................................................... 4

4.2.3 Limit deviations on width, B, and length, H ...............................................................................................4

4.2.4 Offset .......................................................................................................................................................................................... 5

5 Edge finishes ............................................................................................................................................................................................................. 6

5.1 General ........................................................................................................................................................................................................... 6

5.2 Cut edge ......................................................................................................................................................................................................... 6

5.3 Worked edges ........................................................................................................................................................................................... 7

5.3.1 Arrissed edge ...................................................................................................................................................................... 7

5.3.2 Ground edge ......................................................................................................................................................................... 7

5.3.3 Smooth ground edge..................................................................................................................................................... 7

5.3.4 Polished edge ...................................................................................................................................................................... 7

5.3.5 Bevel edge .............................................................................................................................................................................. 8

5.3.6 Sawn edge .............................................................................................................................................................................. 8

5.3.7 Water jet cut edge ........................................................................................................................................................... 8

6 Flatness .......................................................................................................................................................................................................................... 8

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/FDIS 12543-5:2021(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 160, Glass in building Subcommittee SC 1,

Product considerations.

This third edition cancels and replaces the second edition (ISO 12543-5:2011), which has been

technically revised.
The main changes compared to the previous edition are editorial changes.
A list of all parts in the ISO 12543 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 12543-5:2021(E)
Glass in building — Laminated glass and laminated safety
glass —
Part 5:
Dimensions and edge finishing
1 Scope

This document specifies dimensions, limit deviations and edge finishes of laminated glass and laminated

safety glass for use in building.
This document is not applicable to panes having an area less than 0,05 m .
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 12543-1, Glass in building — Laminated glass and laminated safety glass — Part 1: Definitions and

description of component parts
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 12543-1 and the following

apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
offset

misalignment at any one edge of the constituent glass panes or plastic glazing sheet material making up

the laminated glass
Note 1 to entry: See Figure 2.

Note 2 to entry: In the previous edition of this document the term “displacement” was used instead.

4 Dimensions and limit deviations
4.1 Thickness
4.1.1 Nominal thickness

The nominal thickness of laminated glass shall be the sum of the nominal thicknesses of the constituent

panes of glass, plastic glazing sheet material and the interlayers.
© ISO 2021 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO/FDIS 12543-5:2021(E)
4.1.2 Limit deviation on thickness
4.1.2.1 Limit deviation on thickness of folio laminated products
The limit deviations on thickness of laminated glass shall not exceed th
...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 12543-5
ISO/TC 160/SC 1
Glass in building — Laminated glass
Secretariat: BSI
and laminated safety glass —
Voting begins on:
2021-07-30
Part 5:
Voting terminates on:
Dimensions and edge finishing
2021-09-24
Verre dans la construction — Verre feuilleté et verre feuilleté de
sécurité —
Partie 5: Dimensions et façonnage des bords
ISO/CEN PARALLEL PROCESSING
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 12543-5:2021(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ISO 2021
---------------------- Page: 1 ----------------------
ISO/FDIS 12543-5:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/FDIS 12543-5:2021(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Dimensions and limit deviations ......................................................................................................................................................... 1

4.1 Thickness ..................................................................................................................................................................................................... 1

4.1.1 Nominal thickness .......................................................................................................................................................... 1

4.1.2 Limit deviation on thickness ................................................................................................................................. 2

4.1.3 Measurement of thickness....................................................................................................................................... 3

4.2 Width, B, and length, H ......................................................................................................................................................................3

4.2.1 General...................................................................................................................................................................................... 3

4.2.2 Methods of measuring dimensions and squareness ......................................................................... 4

4.2.3 Limit deviations on width, B, and length, H ...............................................................................................4

4.2.4 Offset .......................................................................................................................................................................................... 5

5 Edge finishes ............................................................................................................................................................................................................. 6

5.1 General ........................................................................................................................................................................................................... 6

5.2 Cut edge ......................................................................................................................................................................................................... 6

5.3 Worked edges ........................................................................................................................................................................................... 7

5.3.1 Arrissed edge ...................................................................................................................................................................... 7

5.3.2 Ground edge ......................................................................................................................................................................... 7

5.3.3 Smooth ground edge..................................................................................................................................................... 7

5.3.4 Polished edge ...................................................................................................................................................................... 7

5.3.5 Bevel edge .............................................................................................................................................................................. 8

5.3.6 Sawn edge .............................................................................................................................................................................. 8

5.3.7 Water jet cut edge ........................................................................................................................................................... 8

6 Flatness .......................................................................................................................................................................................................................... 8

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/FDIS 12543-5:2021(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 160, Glass in building Subcommittee SC

1, Product considerations, in collaboration with the European Committee for Standardization (CEN)

Technical Committee CEN/TC 129, Glass in building, in accordance with the Agreement on technical

cooperation between ISO and CEN (Vienna Agreement).

This third edition cancels and replaces the second edition (ISO 12543-5:2011), which has been

technically revised.
The main changes compared to the previous edition are as follows:
— the term “displacement” has been changed to “offset”;

— the maximum deviation on the total thickness of the laminated glass of the needs to be given by the

manufacturer has been added;

— the requirements for the edge finish of laminated glass which includes heat strengthened glass have

been modified.
A list of all parts in the ISO 12543 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 12543-5:2021(E)
Glass in building — Laminated glass and laminated safety
glass —
Part 5:
Dimensions and edge finishing
1 Scope

This document specifies dimensions, limit deviations and edge finishes of laminated glass and laminated

safety glass for use in building.
This document is not applicable to panes having an area less than 0,05 m .
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 12543-1, Glass in building — Laminated glass and laminated safety glass — Part 1: Definitions and

description of component parts
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 12543-1 and the following

apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
offset

misalignment at any one edge of the constituent glass panes or plastic glazing sheet material making up

the laminated glass
Note 1 to entry: See Figure 2.

Note 2 to entry: In the previous edition of this document the term “displacement” was used instead.

4 Dimensions and limit deviations
4.1 Thickness
4.1.1 Nominal thickness

The nominal thickness of laminated glass shall be the sum of the nominal thicknesses of the constituent

panes of glass, plastic glazing sheet material and the interlayers.
© ISO 2021 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO/FDIS 12543-5:2021(E)
4.1.2 Limit deviation on thickness
4.1.2.1 Limit deviation on thickness of folio laminate
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
