TECHNICAL ISO/TS
SPECIFICATION 21911-2
First edition
2022-07
Solid recovered fuels — Determination
of self-heating —
Part 2:
Basket heating tests
Combustibles solides de récupération — Détermination de l'auto-
échauffement —
Partie 2: Essais utilisant la méthode du point de croisement
Reference number
ISO/TS 21911-2:2022(E)
© ISO 2022
---------------------- Page: 1 ----------------------
ISO/TS 21911-2:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 21911-2:2022(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 2
5 Basket heating tests .3
6 Tests for product classification . 4
6.1 UN classification. 4
6.1.1 General . 4
6.1.2 Test method for self-heating substances – MTC Test N.4 . 4
6.1.3 Classification criteria — GHS . 4
6.2 Classification criteria — IMO . 5
6.3 Applicability of MTC Test N.4 for solid recovered fuels . 5
7 Tests for determination of reaction kinetics . 6
7.1 General . 6
7.2 Isoperibolic test methods . 6
7.2.1 General . 6
7.2.2 Test procedure. 6
7.2.3 Determination of reaction kinetics . 7
7.2.4 Applicability for solid recovered fuels . 7
7.3 Crossing-point method . 8
7.3.1 General . 8
7.3.2 Test procedure. 8
7.3.3 Determination of reaction kinetics . 9
7.3.4 Applicability for solid recovered fuels . 9
7.4 Adiabatic hot storage tests . 10
7.4.1 General . 10
7.4.2 Test procedure. 10
7.4.3 Determination of reaction kinetics . 11
7.4.4 Applicability for solid recovered fuels .12
8 Sample handling .12
8.1 General .12
8.2 Sampling . 13
8.3 Sample transport and storage .13
8.4 Sample preparation . 13
8.5 Sample disposal .13
9 Test report .13
Annex A (informative) Self-ignition behaviour of selected materials suitable to be used as
solid recovered fuels .15
Annex B (informative) Example of calculating kinetic parameters from crossing point
method tests .22
Annex C (normative) Use of data for calculations of critical conditions in storage .25
Bibliography .30
iii
© ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO/TS 21911-2:2022(E)

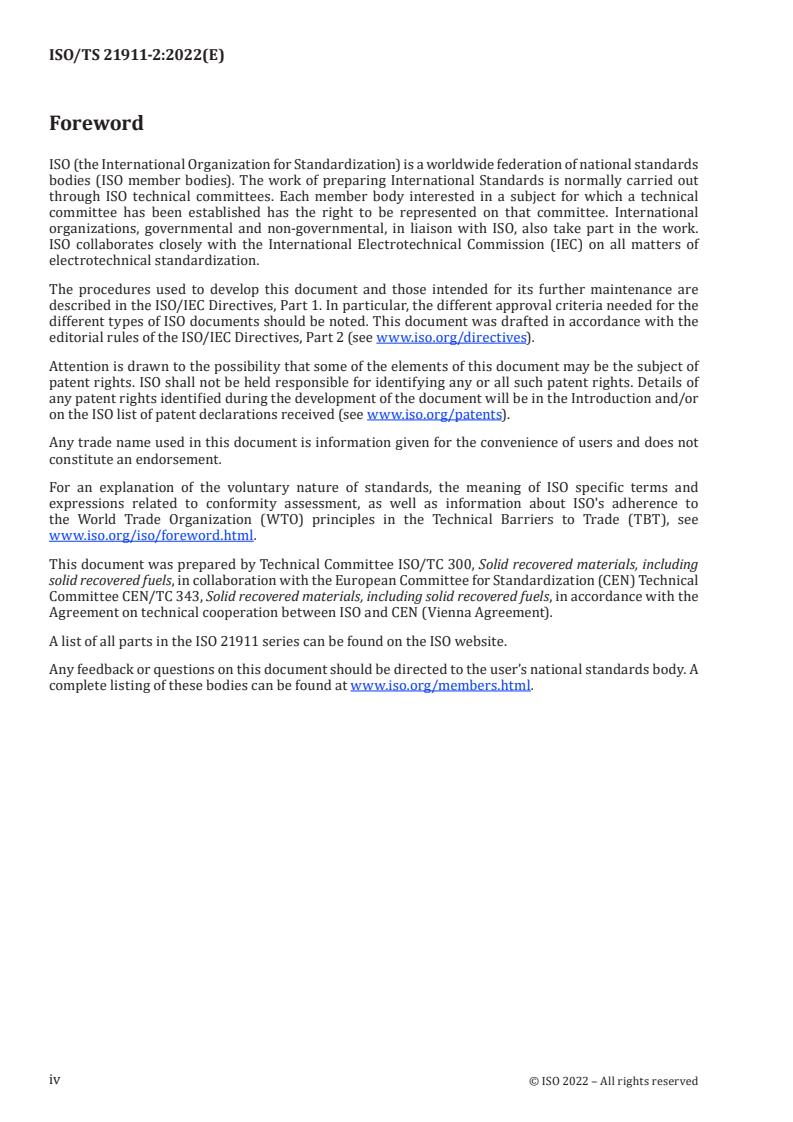

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 300, Solid recovered materials, including
solid recovered fuels, in collaboration with the European Committee for Standardization (CEN) Technical
Committee CEN/TC 343, Solid recovered materials, including solid recovered fuels, in accordance with the
Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
A list of all parts in the ISO 21911 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
© ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TS 21911-2:2022(E)
Introduction
There is continuous global growth in trading and use of solid recovered fuels (SRFs). Therefore,
intensive investigations about the risk of fires within SRF production, handling and storing have been
conducted, see ÖNORM S 2098. Recommendations are given in ISO 21912.
Depending on the kind of input wastes, the treatment technology applied, the quality of the SRF
produced and the realized storage versions, SRFs can generate heat spontaneously by exothermic
biological, chemical and physical processes. The heat build-up can be significant in large storage
volumes if the heat conduction in the material is low. During some conditions the heat generation
can lead to pyrolysis and spontaneous ignition. The potential for self-heating varies considerably for
different types and qualities of SRF and it is important to be able to identify SRF fractions with high
heat generation potential to avoid fires in stored materials.
Avoiding fires throughout the production and supply chain will have positive consequences on the
acceptance of SRFs and the costs for insurance coverage,
Application of SRF standards and the use of dedicated standards for the determination of self-heating
will help to reduce the risk of fires and to develop tailor-made recommendations for SRF producers,
logistics providers, SRF users, equipment suppliers or manufacturers, consultants, authorities and
insurance providers.
As part of the determination and the assessment of risks for SRF, defined test methods and standards
are established or need to be developed. However, ageing and degradation due to handling and storage
of SRF in actual environments affects their characteristics, so safety margins should be established in
relation to actual analysis results.
Two intrinsically different types of test methods can be used to estimate the potential of self-heating;
1)
a) In the isothermal calorimetry method described in ISO 21911-1 , the heat flow generated from the
test portion is measured directly.
b) In the basket heating tests described in this document, the temperature of the test portion is being
monitored and the critical ambient temperature (CAT), where the temperature of the test portion
does not increase significantly due to self-heating, is used for indirect assessment of self-heating.
These two methods are applied at different analysis temperature regimes. The operating temperature
for an isothermal calorimeter is normally in the range 5 °C to 90 °C, whereas basket heating tests are
conducted at higher analysis (oven) temperatures.
NOTE 1 These two types of test methods do not measure heat production from physical processes, such as
transport of moisture.
NOTE 2 It is likely that oxidation reactions taking place in the low respective high-temperature regimes for
SRFs are of different character and thus have different reaction rates and heat production rates. In such cases,
extrapolation of the data from a high-temperature test series can lead to non-conservative results and will
possibly not be applicable without taking the low-temperature reactions into account. In the general case of two
reactions with different activation energies, the high activation energy is “frozen out” at low temperatures and
[7]
the low activation energy reaction is “swamped” at higher temperatures .
Basket heating tests have been used traditionally for characterization of the tendency for spontaneous
ignition of predominantly coals, but also for other reactive organic materials, such as cottonseed meal,
[9]
bagasse and milk powder . The principle used in these types of test is to find the CAT for a self-heating
sample material of specific size and geometry.
There are several different methods described in the literature with different degrees of sophistication.
The variations span from simple pass and fail tests to more advanced tests from which data on reaction
[10]
rates can be extracted .
1) In preparation. Stage at the time of publication: ISO/FDIS 21911-1:2022.
v
© ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/TS 21911-2:2022(E)
Basket heating tests are useful for assessment of self-heating of SRFs. The test method selected can be
evaluated for its applicability based on the information given in this document.
A compilation of available basket heating test methods is given in this document. Guidance on the
suitability for application of these methods for tests with SRFs is provided.
Basic theory of the use of basket heating test data for calculations of critical conditions in storage is
provided in Annex C.
The test methods presented require representative samples for the conditions prevailing in the process
(e.g. of SRF storage). Sample preparation is necessary for this purpose. The methods presented are not
suitable for assessing the fire hazard caused by impurities (disturbing materials) as they occur mainly
in the input area and the first steps of SRF production.
vi
© ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL SPECIFICATION ISO/TS 21911-2:2022(E)
Solid recovered fuels — Determination of self-heating —
Part 2:
Basket heating tests
1 Scope
This document gives guidance on basket heating tests for characterization of self-heating properties of
solid recovered fuels (SRFs).
This document includes:
a) a compilation of basket heating test methods;
b) guidance on the applicability and use of basket heating tests for SRF;
c) information on the application of basket heating test data for calculations of critical conditions in
storage.
Data on spontaneous heat generation determined using this document is only associated with the
specific quality and age of the sample material.
The information derived using this document is intended for use in quality control and in hazard and
risk assessments related to the procedures given in ISO 21912.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 21646, Solid recovered fuels — Sample preparation
ISO 21637:2020, Solid recovered fuels — Vocabulary
ISO 21645, Solid recovered fuels — Methods for sampling
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21637 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
analysis temperature
temperature of the analysis environment, i.e. the oven temperature
1
© ISO 2022 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/TS 21911-2:2022(E)
3.2
Biot number
quotient of the convective heat transfer coefficient (between the sample boundary and the surrounding
air) and the conduction in the sample material normalized by the characteristic dimension of the test
basket
3.3
critical ambient temperature
CAT
ambient temperature (the analysis temperature (3.1) or the storage temperature) where the internal
temperature of the test portion or the stored material increases significantly (due to self-heating (3.4))
Note 1 to entry: In EN 15188 the critical ambient temperature is defined as self-ignition temperature, T .
SI
3.4
self-heating
rise in temperature in a material resulting from an exothermic reaction within the material
[SOURCE: ISO 13943:2017, 3.341, modified — “” domain omitted from definition.]
3.5
spontaneous ignition
ignition caused by an internal exothermic reaction
[SOURCE: ISO 13943:2017, 3.24, modified — Notes to entry removed.]
3.6
test sample
laboratory sample (3.7) after an appropriate preparation made by the laboratory
Note 1 to entry: The test sample is here typically a representative sample from a batch of solid recovered fuel.
[SOURCE: ISO 21637:2020, 3.84, modified — Note 1 to entry added.]
3.7
laboratory sample
sample delivered to a laboratory
[SOURCE: ISO 16559:2022, 3.120, modified — Note 1 to entry removed.]
4 Symbols
Symbol Quantity Typical unit
−1
A pre-exponential factor in Arrhenius expression s
B dimensionless adiabatic temperature rise dimensionless
hL·
Bi Biot number, (Bi= ) dimensionless
λ
c ambient oxygen concentration by volume fraction dimensionless
0
−1 −1
C specific heat capacity of the reaction products J kg K
−1 −1
C specific heat capacity of the bulk material J kg K
p
d diameter of body m
2 −1
D diffusion coefficient m s
−1
E activation energy J mol
a
−1
H gross calorific value J kg
0
−2 −1
h heat transfer coefficient W m K
−2 −1
h radiative amount on heat transfer coefficient W m K
r
2
© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TS 21911-2:2022(E)
Symbol Quantity Typical unit
−2 −1
h convective amount on heat transfer coefficient W m K
c
L characteristic length m
n order of reaction dimensionless
P constant dimensionless
−3
heat generation term W m
q´
−1
Q heat of reaction J kg
−3
Q heat of reaction by volume of oxygen J m
0
−1 −1
R universal gas constant J mol K
Ra Rayleight number dimensionless
2
S surface m
t time s
T temperature K
T ambient temperature K
0
T crossing point temperature K
p
T self-ignition temperature K
SI
3
V volume m
x length coordinate m
δ Frank-Kamenetskii parameter dimensionless
δ critical value of δ dimensionless
c
ε dimensionless
RT
0
activation energy parameter, ε =
E
a
Ф oxygen diffusion parameter dimensionless
−1 −1
λ thermal conductivity of sample W m K
−1 −1
λ thermal conductivity of air W m K
air
−3
ρ bulk density kg m
−2 −4
σ Stefan-Boltzmann coefficient W m K
5 Basket heating tests
The detailed test procedure varies between different isoperibolic and adiabatic methods. Isoperibolic
methods include that the test portion is put in a wire-mesh basket which is placed in an oven heated to
a fixed elevated temperature. The oven is equipped with a fan to keep the temperature uniform and to
[9] [10].
give a relatively large convective heat transfer coefficient to the test specimen For adiabatic tests,
the oven temperature is adjusted to the temperature at the centre of the sample, see EN 15188.
Basket heating tests are based on the Frank-Kamenetskii theory of criticality of a self-heating isotropic
slab (see Annex C) and have been developed to determine the reaction kinetics of the global reaction
responsible for heat production in a self-heating material. The large gap volume of pelletized material
can lead to convective heat transport in the bulk if the furnace is equipped with a fan. In this case
air flow in the vicinity of the sample should be kept at a low level and the critical Frank-Kamenetskii
parameter should be corrected (see C.1.3) or the convective transport within the sample should be
prevented by further measures (e.g. finer mesh wire of the basket).
NOTE The CAT for the test portion in a basket heating test is not equal to the CAT for spontaneous ignition
in, for example, large-scale storage. The critical size for spontaneous ignition (if only heat transfer is considered)
is directly related to the surface area-volume ratio of the self-heating specimen where heat is produced
distributed in the volume and heat is dissipated from the surface area only. The test sample in a laboratory-size
basket heating test has a very high surface area-volume ratio and, consequently, a high CAT compared to a larger
specimen.
3
© ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/TS 21911-2:2022(E)
6 Tests for product classification
6.1 UN classification
6.1.1 General
[11]
The United Nations Globally Harmonized System of Classification and Labelling of Chemicals (GHS)
is the international convention for hazard communication and labelling of gases and vapours, solid and
liquid substances and mixtures. GHS defines limit values, classes and categories and related measures
in relation to the level of hazards during transportation, handling and storage.
[12]
The United Nations Manual of Test and Criteria (MTC) prescribes specific test procedures in support
of GHS.
6.1.2 Test method for self-heating substances – MTC Test N.4
[12]
Test N.4 is described in the MTC, Part III, 33.3.1.6, sometimes called the basket test.
This basket heating test determines the ability of a substance to undergo oxidative self-heating with
exposure to air at temperatures of 100 °C, 120 °C or 140 °C in a 25 mm or 100 mm wire mesh cube.
The N.4 test basket heating test is not intended for determination of self-heating kinetics but rather
[11]
prescribed to classify a material (e.g. SRFs) as meeting the criteria for self-heating set out by the GHS
for hazard communication and labelling purposes.
The test set-up consists of a hot-air circulating oven, cubic sample containers with sides of 25 mm and
100 mm made of stainless-steel net with a mesh opening of 0,05 mm, and thermocouples of 0,3 mm
diameter for measurement of the oven temperature and the temperature of the centre of the sample.
The sample container is housed in a cubic container cover made from stainless-steel net with a mesh
opening of 0,60 mm and slightly larger than the test container. To avoid the effect of air circulation,
this cover is installed in a second steel cage, made from a net with a mesh size of 0,595 mm and
150 mm × 150 mm × 250 mm in size.
The normal procedure is to start with a test at 140 °C with a 100-mm sample cube. The container is
housed in the cover and hung at the centre of the oven. The oven temperature is raised to 140 °C and
kept there for 24 h. A positive result is obtained if spontaneous ignition occurs or if the temperature
of the sample exceeds the oven temperature by 60 °C. If a negative result is obtained, no further test is
necessary.
If a positive result is obtained at 140 °C with a 100-mm sample cube, the substance is classified as a self-
heating substance and further testing shall be made to find the correct classification (see 6.1.3).
The bulk density tested can influence the test results. The bulk density of the sample shall be adjusted
according to EN 15188 to the respective practical conditions (if known) and the tested bulk density
shall be recorded. The MTC contains no information on the bulk density to be tested.
6.1.3 Classification criteria — GHS
[11]
The classification criteria are given in chapter 2.11.2 of the GHS . The criteria are summarized in
Table 1.
4
© ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TS 21911-2:2022(E)
Table 1 — Criteria in GHS for self-heating substances and mixtures
Category Criteria
1 A positive result is obtained in a test using a 25-mm sample cube at 140 °C
2 a) A positive result is obtained in a test using a 100-mm sample cube at 140 °C, a negative
result is obtained in a test using a 25-mm sample cube at 140 °C and the substance or
3
mixture is packed in packages with a volume of more than 3 m ; or
b) A positive result is obtained in a test using a 100-mm sample cube at 140 °C, a negative
result is obtained in a test using a 25-mm sample cube at 140 °C, a positive result is
obtained in a test using a 100-mm sample cube at 120 °C and the substance or mixture is
packed in packages with a volume of more than 450 l; or
c) A positive result is obtained in a test using a 100-mm sample cube at 140 °C, a negative
result is obtained in a test using a 25-mm sample cube at 140 °C and a positive result is
obtained in a test using a 100-mm sample cube at 100 °C.
NOTE Hazard packing group classification is prescribed depending on flammability characteristics of the
[11]
material, see GHS, Table 32.1.
6.2 Classification criteria — IMO
Handling guidelines and hazard classifications for all cargoes, including SRFs, transported onboard
ocean vessels are specified by the International Maritime Organization (IMO) in the International
[13]
Maritime Solid Bulk Cargoes (IMSBC) Code . This stipulates the MTC Test N.4 to be used for testing
but includes additional criteria for solid possessing hazards compared to the GHS criteria in Table 1, as
follows:
a) Does the material undergo dangerous self-heating when tested in accordance with Test N.4 in a
100-mm sample cube at 140 °C?
If yes, class 4.2 applies. Materials in this class are materials, other than pyrophoric materials, which, in
contact with air without energy supply, are liable to self-heating.
b) Does the material show a temperature increase of 10 °C or more when tested in accordance with
Test N.4 in a 100-mm sample cube at 140 °C?
If yes, test in a 100-mm sample cube at 100 °C and if temperature increase is 10 °C or more.
If yes, material hazardous in bulk (MHB) applies.
If no, neither class 4.2 nor MHB applies.
6.3 Applicability of MTC Test N.4 for solid recovered fuels
MTC Test N.4 will possibly be unsuitable for SRFs.
Experience from testing several SRF samples indicates that the CAT for this type of material in 1,0 l
basket heating tests can be lower than 140 °C, especially when various materials, including inert ones,
are present in the mixture, see Annex A and References [14] and [15].
The reasons that this test will possibly be unsuitable as a general test method for SRFs are as follows:
i) the criteria in MTC Test N.4 is based on the fixed-reaction kinetics of coal, which are not directly
transferable to SRFs; ii) there is no published information on
...
ISO/DTSPRF TS 21911--2
ISO TC 300/WG 6
Date: 2022-02-21
Secretariat: SIS
Solid recovered fuels — Determination of self-heating — Part 2: Basket heating tests
Combustibles solides de récupération — Détermination de l'autoéchauffement — Partie 2: Essais utilisant
la méthode du point de croisement
---------------------- Page: 1 ----------------------
ISO/TS 21911-2:2022(E)
© ISO 20XX 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part
of this publication may be reproduced or utilized otherwise in any form or by any means, electronic or
mechanical, including photocopying, or posting on the internet or an intranet, without prior written
permission. Permission can be requested from either ISO at the address below or ISO’s member body
in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.orgwww.iso.org
Published in Switzerland
ii © ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 21911-2:2022(E)
Contents
Foreword . v
Introduction . vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 2
5 Basket heating tests . 5
6 Tests for product classification . 5
6.1 UN classification . 5
6.1.1 General . 5
6.1.2 Test method for self-heating substances – MTC Test N.4 . 5
6.1.3 Classification criteria — GHS . 6
6.2 Classification criteria — IMO . 6
6.3 Applicability of MTC Test N.4 for solid recovered fuels . 7
7 Tests for determination of reaction kinetics . 7
7.1 General . 7
7.2 Isoperibolic test methods . 7
7.2.1 General . 7
7.2.2 Test procedure . 8
7.2.3 Determination of reaction kinetics . 8
7.2.4 Applicability for solid recovered fuels . 9
7.3 Crossing-point method . 9
7.3.1 General . 9
7.3.2 Test procedure . 10
7.3.3 Determination of reaction kinetics . 10
7.3.4 Applicability for solid recovered fuels . 11
7.4 Adiabatic hot storage tests . 11
7.4.1 General . 11
7.4.2 Test procedure . 12
7.4.3 Determination of reaction kinetics . 14
7.4.4 Applicability for solid recovered fuels . 16
8 Sample handling . 16
8.1 General . 16
8.2 Sampling . 16
8.3 Sample transport and storage . 16
8.4 Sample preparation . 17
8.5 Sample disposal . 17
9 Test report . 17
Annex A (informative) Self-ignition behaviour of selected materials suitable to be used as
solid recovered fuels . 19
Annex B (informative) Example of calculating kinetic parameters from crossing point
method tests . 33
Annex C (normative) Use of data for calculations of critical conditions in storage . 41
© ISO 2022 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TS 21911-2:2022(E)
Bibliography . 47
iv © ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TS 21911-2:2022(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO
collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the World
Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 300, Solid recovered materials, including
solid recovered fuels., in collaboration with the European Committee for Standardization (CEN) Technical
Committee CEN/TC 343, Solid recovered fuels, in accordance with the Agreement on technical
cooperation between ISO and CEN (Vienna Agreement).
A list of all parts in the ISO 21911 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2022 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TS 21911-2:2022(E)
Introduction
There is a continuous global growth in trading and use of solid recovered fuels (SRFSRFs). Therefore,
intensive investigations about the risk of fires within SRF -production, handling and storing have been
conducted, see ÖNORM S 2098:2011. Recommendations have beenare given byin ISO 21912.
Depending on the kind of input wastes, the treatment technology applied, the quality of the SRF produced
and the realized storage versions, SRFSRFs can generate heat spontaneously by exothermic biological,
chemical and physical processes. The heat build-up can be significant in large storage volumes if the heat
conduction in the material is low. During some conditions the heat generation can lead to pyrolysis and
spontaneous ignition. The potential for self-heating varies considerably for different types and qualities
of SRF and it is important to be able to identify SRF fractions with high heat generation potential to avoid
fires in stored materials.
Avoiding fires throughout the production and supply chain will have positive consequences on the
acceptance of SRFSRFs and the costs for insurance coverage,
Application of SRF -standards and the use of dedicated standards for the determination of self-heating
will help to reduce the risk of fires and to develop tailor-made recommendations for SRF producers,
logistics providers, SRF users, equipment suppliers/ or manufacturers, consultants, authorities and
insurance providers.
As part of the determination and the assessment of risks for SRF, defined test methods and standards are
established or need to be developed. However, the ageing and degradation due to handling and storage
of SRF in actual environments will affectaffects their characteristics, so safety margins have toshould be
established in relation to actual analysis results.
Two intrinsically different types of teststest methods can be used to estimate the potential of self-heating;
1
a) In the isothermal calorimetry method described in ISO 21911-1 , the heat flow generated from the
test portion is measured directly.
b) In the basket heating tests described in this document, the temperature of the test portion is being
monitored and the critical ambient temperature (CAT), where the temperature of the test portion
just does not increase significantly due to self-heating, is used for indirect assessment of self-heating.
These two methods are applied at different analysis temperature regimes. The operating temperature for
an isothermal calorimeter is normally in the range 5 °C to 90 °C, whereas basket heating tests are
conducted at higher analysis (oven) temperatures.
NOTE 1 TheThese two types of test methods referred to above do not measure heat production from physical
processes, such as transport of moisture.
NOTE 2 It is likely that oxidation reactions taking place in the low respective high-temperature regimes for solid
recovered fuelsSRFs are of different character and thus have different reaction rates and heat production rates. In
such a casecases, extrapolation of the data from a high-temperature test series can lead to non-conservative results
and mightwill possibly not be applicable without taking the low-temperature reactions into account. In the general
case of two reactions with different activation energies, the high activation energy is “frozen out” at low
[7]
temperatures and the low activation energy reaction is “swamped” at higher temperatures. .
Basket heating tests have been used traditionally for characterisationcharacterization of the tendency for
spontaneous ignition of predominantly coals, but also for other reactive organic materials, such as e.g.
[9]
cottonseed meal, bagasse and milk powder. . The principle used in this typethese types of teststest is to
find the critical ambient temperature (CAT) for a self-heating sample material of specific size and
geometry.
1
In preparation. Stage at the time of publication: ISO/DIS 21911-1:2022.
vi © ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/TS 21911-2:2022(E)
There are several different methods described in the literature with different degreedegrees of
sophistication. The variations span from simple pass and fail tests to more advanced tests from which
[10]
data on reaction rates can be extracted. .
Basket heating tests are useful for assessment of self-heating of solid recovered fuelsSRFs. The test
method selected can be evaluated for its applicability based on the information given in this document.
A compilation of available basket heating test methods is given in this document. Guidance on the
suitability for application of these methods for tests with solid recovered fuelsSRFs is provided.
Basic theory of the use of basket heating test data for calculations of critical conditions in storagesstorage
is provided in Annex C.
The test methods presented require representative samples for the conditions prevailing in the process
(e.g. of SRF -storage). Sample preparation is necessary for this purpose. The methods presented are not
suitable for assessing the fire hazard caused by impurities (disturbing materials),) as they occur mainly
in the input area and the first steps of SRF -production.
© ISO 2022 – All rights reserved vii
---------------------- Page: 7 ----------------------
TECHNICAL SPECIFICATION ISO/TS 21911-2:2022(E)
Solid recovered fuels — — Determination of self-heating
— — Part 2: Basket heating tests
1 Scope
This document gives guidance on basket heating tests for characterisationcharacterization of self-heating
properties of solid recovered fuels. (SRFs).
This document includes:
a) a compilation of basket heating test methods,;
b) guidance on the applicability and use of basket heating tests for solid recovered fuels,SRF;
c) information on the application of basket heating test data for calculations of critical conditions in
storagesstorage.
Data on spontaneous heat generation determined using this document is only associated with the specific
quality and age of the sample material.
The information derived using this document is intended for use in quality control and in hazard and risk
assessments related to the procedures given in ISO 21912.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
2
ISO 21646 , Solid recovered fuels — Sample preparation
ISO 21637:2020, Solid recovered fuels — Vocabulary
ISO 21645, Solid recovered fuels — Methods for sampling
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21637:2020 and the following
apply.
ISO and IEC maintain terminologicalterminology databases for use in standardization at the following
addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
2
In preparation. Stage at the time of publication: ISO/FDIS 21646:2022.
© ISO 2022 – All rights reserved 1
---------------------- Page: 8 ----------------------
ISO/TS 21911-2:2022(E)
3.1
analysis temperature
temperature of the analysis environment, i.e. the oven temperature
3.2
Biot number
quotient of the convective heat transfer coefficient (between the sample boundary and the surrounding
air) and the conduction in the sample material normalized by the characteristic dimension of the test
basket
3.3
critical ambient temperature
CAT
ambient temperature (the analysis temperature [(3.1]) or the storage temperature of a storage) where
the internal temperature of the test portion or the stored material increases significantly ([due to self-
heating [(3.4]))]
Note 1 to entry: In EN 15188 the critical ambient temperature is defined as self-ignition temperature, T .
SI
3.4
self-heating
rise in temperature in a material resulting from an exothermic reaction within the material
[SOURCE: ISO 13943:2017, 3.341, modified –— “” has beendomain omitted in the beginning of
thefrom definition.]
3.5
spontaneous ignition
ignition caused by an internal exothermic reaction
[SOURCE: ISO 13943:2017, 3.24, modified — Notes to entry removed.]
3.6
test sample
laboratory sample [(3.7]) after an appropriate preparation made by the laboratory
Note 1 to entry: The test sample is here typically a representative sample from a batch of solid recovered fuel.
[SOURCE: ISO 21637:2020, 3.84, modified –— Note 1 to entry has been added.]
3.7
laboratory sample
combined sample or a sub-sample of a combined sample for use indelivered to a laboratory
[SOURCE: ISO 16559:2014, 4.124] 2022, 3.120, modified — Note 1 to entry removed.]
4 Symbols
Symbol Quantity Typical unit
-1
A pre-exponential factor in Arrhenius expression s
B dimensionless adiabatic temperature rise dimensionless
ℎ·𝐿𝐿
Bi Biot number, (𝐵𝐵𝐵𝐵 = ) dimensionless
𝜆𝜆
2 © ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/TS 21911-2:2022(E)
c0 ambient oxygen concentration by volume fraction dimensionless
-1 -1
C specific heat capacity of the reaction products J kg K
-1 -1
C specific heat capacity of the bulk material J kg K
p
d diameter of body m
2 -1
D diffusion coefficient m s
-1
E activation energy J mol
a
-1
H Gross calorific value J kg
0
-2 -1
h heat transfer coefficient W m K
-2 -1
hr radiative amount on heat transfer coefficient; W m K
-2 -1
h convective amount on heat transfer coefficient; W m K
c
L characteristic length m
n order of reaction dimensionless
P constant dimensionless
-3
𝑞𝑞̇´ heat generation term W m
-1
Q heat of reaction J kg
-3
Q heat of reaction by volume of oxygen J m
0
-1 -1
R universal gas constant J mol K
Ra Rayleight number dimensionless
S surface m²
t time s
T temperature K
T ambient temperature K
0
Tp crossing point temperature K
V volume m³
x length coordinate m
δ Frank-Kamenetskii parameter dimensionless
δ critical value of δ dimensionless
c
𝑅𝑅 𝑇𝑇
0
ε activation energy parameter, (𝜀𝜀 = ) dimensionless
𝐸𝐸
𝑎𝑎
Ф oxygen diffusion parameter dimensionless
-1 -1
λ thermal conductivity of sample W m K
-1 -1
λair thermal conductivity of air W m K
-3
ρ bulk density kg m
-2 -4
σ Stefan-Boltzmann coefficient W m K
Symbol Quantity Typical unit
−1
A pre-exponential factor in Arrhenius expression s
B dimensionless adiabatic temperature rise dimensionless
© ISO 2022 – All rights reserved 3
---------------------- Page: 10 ----------------------
ISO/TS 21911-2:2022(E)
h·L
Biot number, ( Bi= )
Bi dimensionless
λ
c ambient oxygen concentration by volume fraction dimensionless
0
−1 −1
C specific heat capacity of the reaction products J kg K
−1 −1
C specific heat capacity of the bulk material J kg K
p
d diameter of body m
2 −1
D diffusion coefficient m s
−1
E activation energy J mol
a
−1
H gross calorific value J kg
0
−2 −1
h heat transfer coefficient W m K
−2 −1
h radiative amount on heat transfer coefficient W m K
r
−2 −1
hc convective amount on heat transfer coefficient W m K
L characteristic length m
n order of reaction dimensionless
P constant dimensionless
−3
q´ heat generation term W m
−1
Q heat of reaction J kg
−3
Q heat of reaction by volume of oxygen J m
0
−1 −1
R universal gas constant J mol K
Ra Rayleight number dimensionless
2
S surface m
t time s
T temperature K
T ambient temperature K
0
T crossing point temperature K
p
Tsi self-ignition temperature K
3
V volume m
x length coordinate m
δ Frank-Kamenetskii parameter dimensionless
δ critical value of δ dimensionless
c
ε RT dimensionless
0
activation energy parameter,
ε=
E
a
Ф oxygen diffusion parameter dimensionless
−1 −1
λ thermal conductivity of sample W m K
−1 −1
λ thermal conductivity of air W m K
air
−3
ρ bulk density kg m
−2 −4
σ Stefan-Boltzmann coefficient W m K
4 © ISO 2022 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/TS 21911-2:2022(E)
5 Basket heating tests
The detailed test procedure varies between different isoperibolic and adiabatic methods. Isoperibolic
methods include that the test portion is put in a wire-mesh basket which is placed in an oven heated to a
fixed elevated temperature. The oven is equipped with a fan to keep the temperature uniform and to give
[9] [10].
a relatively large convective heat transfer coefficient to the test specimen. For adiabatic tests, the
oven temperature is adjusted to the temperature at the centre of the sample, see EN 15188.
Basket heating tests are based on the Frank-Kamenetskii theory of criticality of a self-heating isotropic
slab (see Annex C) and have been developed to determine the reaction kinetics of the global reaction
responsible for heat production in a self-heating material. The large gap volume of pelletized material can
lead to convective heat transport in the bulk if the furnace is equipped with a fan. In this case air flow in
the vicinity of the sample should be kept at a low level and the critical Frank-Kamenetskii parameter
should be corrected (see C.1.3) or the convective transport within the sample should be prevented by
further measures (e.g. finer mesh wire of the basket).
NOTE The critical ambient temperature (CAT) for the test portion in a basket heating teststest is not equal to the
CAT for spontaneous ignition in e.g., for example, large-scale storage. The critical size for spontaneous ignition (if
only heat transfer is considered) is directly related to the surface area-volume ratio of the self-heating specimen
where heat is produced distributed in the volume and heat is dissipated from the surface area only. The test sample
in a laboratory-size basket heating test has a very high surface area-volume ratio and has, consequently, a high CAT
compared to a larger specimen.
6 Tests for product classification
6.1 UN classification
6.1.1 General
[11]
The United Nations Globally Harmonized System of Classification and Labelling of Chemicals (GHS) )
is the international convention for hazard communication and labelling of gaseousgases and vapours,
solid and liquid substances as well asand mixtures. GHS defines limit values, classes and categories and
related measures in relation to the level of hazards during transportation, handling and storage.
[12]
The United Nations Manual of Test and Criteria (MTC) is prescribing) prescribes specific test
procedures in support of GHS.
6.1.2 Test method for self-heating substances – MTC Test N.4
[12]
Test N.4 is described in the United Nations Manual of Tests and Criteria (UN MTC), Part III, 33.3.1.6. ,
sometimes called the basket test.
This basket heating test determines the ability of a substance to undergo oxidative self-heating with
exposure of it to air at temperatures of 100 °C, 120 °C or 140 °C in a 25 mm or 100 mm wire mesh cube.
The N.4 test basket heating test is not intended for determination of self-heating kinetics but rather
prescribed to classify a material (e.g. solid recovered fuelsSRFs) as meeting the criteria for self-heating
[11]
set out by the GHS for hazard communication and labelling purposes.
The test set-up consists of a hot-air circulating oven, cubic sample containers with sides of 25 mm and
100 mm sides made of stainless-steel net with a mesh opening of 0,05 mm, and thermocouples of 0,3 mm
diameter for measurement of the oven temperature and the temperature of the centre of the sample. The
sample container is housed in a cubic container cover made from stainless-steel net with a mesh opening
of 0,60 mm, and slightly larger than the test container. To avoid the effect of air circulation, this cover is
installed in a second steel cage, made from a net with a mesh size of 0,595 mm and 150 mm × × 150 mm
× × 250 mm in size.
© ISO 2022 – All rights reserved 5
---------------------- Page: 12 ----------------------
ISO/TS 21911-2:2022(E)
The normal procedure is to start with a test at 140 °C with a 100-mm cube sample cube. The container is
housed in the cover and hung at the centre of the oven. The oven temperature is raised to 140 °C and kept
there for 24 h. A positive result is obtained if spontaneous ignition occurs or if the temperature of the
sample exceeds the oven temperature by 60 °C. If a negative result is obtained, no further test is
necessary.
If a positive result is obtained at 140 °C with a 100-mm cube sample cube, the substance is classified as a
self-heating substance and further testing shall be made to find the correct classification (see 6.1.3).
The bulk density tested can influence the test results. According EN 15188 theThe bulk density of the
sample shall be adjusted according to EN 15188 to the respective practical conditions (if known) and the
tested bulk density shall be recorded. The United Nations Manual of Tests and CriteriaThe MTC contains
no information on the bulk density to be tested.
6.1.3 Classification criteria -— GHS
[11]
The classification criteria are given in chapter 2.11.2 of the GHS. . The criteria are summarized in
Table 1.
Table 1 — Criteria in GHS for self-heating substances and mixtures
Category Criteria
1 A positive result is obtained in a test using 25 mm sample cube at 140 °C
a)
21 A positive result is obtained in a test using 100 a 25-mm sample cube at 140 °C and a Deleted Cells
negative result is obtained in a test using a 25 mm cube sample at 140 °C and the substance
Split Cells
3
or mixture is to be packed in packages with a volume of more than 3 m ; or
b) a) A positive result is obtained in a test using a 100-mm sample cube at 140 °C and, a
2
negative result is obtained in a test using a 25-mm cube sample cube at 140 °C, a °C
3
and the substance or mixture is packed in packages with a volume of more than 3 m ;
or
b) A positive result is obtained in a test using a 100-mm cube sample cube at 140 °C, a
negative result is obtained in a test using a 25-mm sample cube at 140 °C, a positive
result is obtained in a test using a 100-mm sample cube at 120 °C and the substance or
mixture is to be packed in packages with a volume of more than 450 litres l; or
c) A positive result is obtained in a test using a 100-mm sample cube at 140 °C, a negative
result is obtained in a test using a 25-mm sample cube at 140 °C and a positive result
is obtained in a test using a 100-mm sample cube at 100 °C.
c) A positive result is obtained in a test using 100 mm sample cube at 140 °C and a
negative result is obtained in a test using a 25 mm cube sample at 140 °C and a
positive result is obtained in a test using a 100 mm cube sample at 100 °C.
NOTE Hazard Packing Groupspacking group classification is prescribed depending on flammability
[11]
characteristics of the material, see GHS, Table 32.1.
6.2 Classification criteria -— IMO
Handling guidelines and hazard classifications for all cargoes, including solid recovered fuelsSRFs,
transported onboard ocean vessels are specified by the International Maritime Organization (IMO) in the
[13]
International Maritime Solid Bulk Cargoes (IMSBC) Code. The Code is stipulating UN . This stipulates
the MTC Test N.4 to be used fo
...
TECHNICAL ISO/TS
SPECIFICATION 21911-2
First edition
Solid recovered fuels — Determination
of self-heating —
Part 2:
Basket heating tests
Combustibles solides de récupération — Détermination de l'auto-
échauffement —
Partie 2: Essais utilisant la méthode du point de croisement
PROOF/ÉPREUVE
Reference number
ISO/TS 21911-2:2022(E)
© ISO 2022
---------------------- Page: 1 ----------------------
ISO/TS 21911-2:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
PROOF/ÉPREUVE © ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TS 21911-2:2022(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols . 2
5 Basket heating tests .3
6 Tests for product classification . 4
6.1 UN classification. 4
6.1.1 General . 4
6.1.2 Test method for self-heating substances – MTC Test N.4 . 4
6.1.3 Classification criteria — GHS . 4
6.2 Classification criteria — IMO . 5
6.3 Applicability of MTC Test N.4 for solid recovered fuels . 5
7 Tests for determination of reaction kinetics . 6
7.1 General . 6
7.2 Isoperibolic test methods . 6
7.2.1 General . 6
7.2.2 Test procedure. 6
7.2.3 Determination of reaction kinetics . 7
7.2.4 Applicability for solid recovered fuels . 7
7.3 Crossing-point method . 8
7.3.1 General . 8
7.3.2 Test procedure. 8
7.3.3 Determination of reaction kinetics . 9
7.3.4 Applicability for solid recovered fuels . 9
7.4 Adiabatic hot storage tests . 10
7.4.1 General . 10
7.4.2 Test procedure. 10
7.4.3 Determination of reaction kinetics . 11
7.4.4 Applicability for solid recovered fuels .12
8 Sample handling .12
8.1 General .12
8.2 Sampling . 13
8.3 Sample transport and storage .13
8.4 Sample preparation . 13
8.5 Sample disposal .13
9 Test report .13
Annex A (informative) Self-ignition behaviour of selected materials suitable to be used as
solid recovered fuels .15
Annex B (informative) Example of calculating kinetic parameters from crossing point
method tests .22
Annex C (normative) Use of data for calculations of critical conditions in storage .25
Bibliography .30
iii
© ISO 2022 – All rights reserved PROOF/ÉPREUVE
---------------------- Page: 3 ----------------------
ISO/TS 21911-2:2022(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 300, Solid recovered materials, including
solid recovered fuels, in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 343, Solid recovered fuels, in accordance with the Agreement on technical
cooperation between ISO and CEN (Vienna Agreement).
A list of all parts in the ISO 21911 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
PROOF/ÉPREUVE © ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TS 21911-2:2022(E)
Introduction
There is continuous global growth in trading and use of solid recovered fuels (SRFs). Therefore,
intensive investigations about the risk of fires within SRF production, handling and storing have been
conducted, see ÖNORM S 2098. Recommendations are given in ISO 21912.
Depending on the kind of input wastes, the treatment technology applied, the quality of the SRF
produced and the realized storage versions, SRFs can generate heat spontaneously by exothermic
biological, chemical and physical processes. The heat build-up can be significant in large storage
volumes if the heat conduction in the material is low. During some conditions the heat generation
can lead to pyrolysis and spontaneous ignition. The potential for self-heating varies considerably for
different types and qualities of SRF and it is important to be able to identify SRF fractions with high
heat generation potential to avoid fires in stored materials.
Avoiding fires throughout the production and supply chain will have positive consequences on the
acceptance of SRFs and the costs for insurance coverage,
Application of SRF standards and the use of dedicated standards for the determination of self-heating
will help to reduce the risk of fires and to develop tailor-made recommendations for SRF producers,
logistics providers, SRF users, equipment suppliers or manufacturers, consultants, authorities and
insurance providers.
As part of the determination and the assessment of risks for SRF, defined test methods and standards
are established or need to be developed. However, ageing and degradation due to handling and storage
of SRF in actual environments affects their characteristics, so safety margins should be established in
relation to actual analysis results.
Two intrinsically different types of test methods can be used to estimate the potential of self-heating;
1)
a) In the isothermal calorimetry method described in ISO 21911-1 , the heat flow generated from the
test portion is measured directly.
b) In the basket heating tests described in this document, the temperature of the test portion is being
monitored and the critical ambient temperature (CAT), where the temperature of the test portion
does not increase significantly due to self-heating, is used for indirect assessment of self-heating.
These two methods are applied at different analysis temperature regimes. The operating temperature
for an isothermal calorimeter is normally in the range 5 °C to 90 °C, whereas basket heating tests are
conducted at higher analysis (oven) temperatures.
NOTE 1 These two types of test methods do not measure heat production from physical processes, such as
transport of moisture.
NOTE 2 It is likely that oxidation reactions taking place in the low respective high-temperature regimes for
SRFs are of different character and thus have different reaction rates and heat production rates. In such cases,
extrapolation of the data from a high-temperature test series can lead to non-conservative results and will
possibly not be applicable without taking the low-temperature reactions into account. In the general case of two
reactions with different activation energies, the high activation energy is “frozen out” at low temperatures and
[7]
the low activation energy reaction is “swamped” at higher temperatures .
Basket heating tests have been used traditionally for characterization of the tendency for spontaneous
ignition of predominantly coals, but also for other reactive organic materials, such as cottonseed meal,
[9]
bagasse and milk powder . The principle used in these types of test is to find the CAT for a self-heating
sample material of specific size and geometry.
There are several different methods described in the literature with different degrees of sophistication.
The variations span from simple pass and fail tests to more advanced tests from which data on reaction
[10]
rates can be extracted .
1) In preparation. Stage at the time of publication: ISO/DIS 21911-1:2022.
v
© ISO 2022 – All rights reserved PROOF/ÉPREUVE
---------------------- Page: 5 ----------------------
ISO/TS 21911-2:2022(E)
Basket heating tests are useful for assessment of self-heating of SRFs. The test method selected can be
evaluated for its applicability based on the information given in this document.
A compilation of available basket heating test methods is given in this document. Guidance on the
suitability for application of these methods for tests with SRFs is provided.
Basic theory of the use of basket heating test data for calculations of critical conditions in storage is
provided in Annex C.
The test methods presented require representative samples for the conditions prevailing in the process
(e.g. of SRF storage). Sample preparation is necessary for this purpose. The methods presented are not
suitable for assessing the fire hazard caused by impurities (disturbing materials) as they occur mainly
in the input area and the first steps of SRF production.
vi
PROOF/ÉPREUVE © ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL SPECIFICATION ISO/TS 21911-2:2022(E)
Solid recovered fuels — Determination of self-heating —
Part 2:
Basket heating tests
1 Scope
This document gives guidance on basket heating tests for characterization of self-heating properties of
solid recovered fuels (SRFs).
This document includes:
a) a compilation of basket heating test methods;
b) guidance on the applicability and use of basket heating tests for SRF;
c) information on the application of basket heating test data for calculations of critical conditions in
storage.
Data on spontaneous heat generation determined using this document is only associated with the
specific quality and age of the sample material.
The information derived using this document is intended for use in quality control and in hazard and
risk assessments related to the procedures given in ISO 21912.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
2)
ISO 21646 , Solid recovered fuels — Sample preparation
ISO 21637:2020, Solid recovered fuels — Vocabulary
ISO 21645, Solid recovered fuels — Methods for sampling
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21637 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
analysis temperature
temperature of the analysis environment, i.e. the oven temperature
2) In preparation. Stage at the time of publication: ISO/FDIS 21646:2022.
1
© ISO 2022 – All rights reserved PROOF/ÉPREUVE
---------------------- Page: 7 ----------------------
ISO/TS 21911-2:2022(E)
3.2
Biot number
quotient of the convective heat transfer coefficient (between the sample boundary and the surrounding
air) and the conduction in the sample material normalized by the characteristic dimension of the test
basket
3.3
critical ambient temperature
CAT
ambient temperature (the analysis temperature (3.1) or the storage temperature) where the internal
temperature of the test portion or the stored material increases significantly [due to self-heating (3.4)]
Note 1 to entry: In EN 15188 the critical ambient temperature is defined as self-ignition temperature, T .
SI
3.4
self-heating
rise in temperature in a material resulting from an exothermic reaction within the material
[SOURCE: ISO 13943:2017, 3.341, modified — “” domain omitted from definition.]
3.5
spontaneous ignition
ignition caused by an internal exothermic reaction
[SOURCE: ISO 13943:2017, 3.24, modified — Notes to entry removed.]
3.6
test sample
laboratory sample (3.7) after an appropriate preparation made by the laboratory
Note 1 to entry: The test sample is here typically a representative sample from a batch of solid recovered fuel.
[SOURCE: ISO 21637:2020, 3.84, modified — Note 1 to entry added.]
3.7
laboratory sample
sample delivered to a laboratory
[SOURCE: ISO 16559:2022, 3.120, modified — Note 1 to entry removed.]
4 Symbols
Symbol Quantity Typical unit
−1
A pre-exponential factor in Arrhenius expression s
B dimensionless adiabatic temperature rise dimensionless
hL·
Bi Biot number, (Bi= ) dimensionless
λ
c ambient oxygen concentration by volume fraction dimensionless
0
−1 −1
C specific heat capacity of the reaction products J kg K
−1 −1
C specific heat capacity of the bulk material J kg K
p
d diameter of body m
2 −1
D diffusion coefficient m s
−1
E activation energy J mol
a
−1
H gross calorific value J kg
0
−2 −1
h heat transfer coefficient W m K
−2 −1
h radiative amount on heat transfer coefficient W m K
r
2
PROOF/ÉPREUVE © ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TS 21911-2:2022(E)
Symbol Quantity Typical unit
−2 −1
h convective amount on heat transfer coefficient W m K
c
L characteristic length m
n order of reaction dimensionless
P constant dimensionless
−3
heat generation term W m
q´
−1
Q heat of reaction J kg
−3
Q heat of reaction by volume of oxygen J m
0
−1 −1
R universal gas constant J mol K
Ra Rayleight number dimensionless
2
S surface m
t time s
T temperature K
T ambient temperature K
0
T crossing point temperature K
p
T self-ignition temperature K
si
3
V volume m
x length coordinate m
δ Frank-Kamenetskii parameter dimensionless
δ critical value of δ dimensionless
c
ε dimensionless
RT
0
activation energy parameter, ε =
E
a
Ф oxygen diffusion parameter dimensionless
−1 −1
λ thermal conductivity of sample W m K
−1 −1
λ thermal conductivity of air W m K
air
−3
ρ bulk density kg m
−2 −4
σ Stefan-Boltzmann coefficient W m K
5 Basket heating tests
The detailed test procedure varies between different isoperibolic and adiabatic methods. Isoperibolic
methods include that the test portion is put in a wire-mesh basket which is placed in an oven heated to
a fixed elevated temperature. The oven is equipped with a fan to keep the temperature uniform and to
[9] [10].
give a relatively large convective heat transfer coefficient to the test specimen For adiabatic tests,
the oven temperature is adjusted to the temperature at the centre of the sample, see EN 15188.
Basket heating tests are based on the Frank-Kamenetskii theory of criticality of a self-heating isotropic
slab (see Annex C) and have been developed to determine the reaction kinetics of the global reaction
responsible for heat production in a self-heating material. The large gap volume of pelletized material
can lead to convective heat transport in the bulk if the furnace is equipped with a fan. In this case
air flow in the vicinity of the sample should be kept at a low level and the critical Frank-Kamenetskii
parameter should be corrected (see C.1.3) or the convective transport within the sample should be
prevented by further measures (e.g. finer mesh wire of the basket).
NOTE The CAT for the test portion in a basket heating test is not equal to the CAT for spontaneous ignition
in, for example, large-scale storage. The critical size for spontaneous ignition (if only heat transfer is considered)
is directly related to the surface area-volume ratio of the self-heating specimen where heat is produced
distributed in the volume and heat is dissipated from the surface area only. The test sample in a laboratory-size
basket heating test has a very high surface area-volume ratio and, consequently, a high CAT compared to a larger
specimen.
3
© ISO 2022 – All rights reserved PROOF/ÉPREUVE
---------------------- Page: 9 ----------------------
ISO/TS 21911-2:2022(E)
6 Tests for product classification
6.1 UN classification
6.1.1 General
[11]
The United Nations Globally Harmonized System of Classification and Labelling of Chemicals (GHS)
is the international convention for hazard communication and labelling of gases and vapours, solid and
liquid substances and mixtures. GHS defines limit values, classes and categories and related measures
in relation to the level of hazards during transportation, handling and storage.
[12]
The United Nations Manual of Test and Criteria (MTC) prescribes specific test procedures in support
of GHS.
6.1.2 Test method for self-heating substances – MTC Test N.4
[12]
Test N.4 is described in the MTC, Part III, 33.3.1.6, sometimes called the basket test.
This basket heating test determines the ability of a substance to undergo oxidative self-heating with
exposure to air at temperatures of 100 °C, 120 °C or 140 °C in a 25 mm or 100 mm wire mesh cube.
The N.4 test basket heating test is not intended for determination of self-heating kinetics but rather
[11]
prescribed to classify a material (e.g. SRFs) as meeting the criteria for self-heating set out by the GHS
for hazard communication and labelling purposes.
The test set-up consists of a hot-air circulating oven, cubic sample containers with sides of 25 mm and
100 mm made of stainless-steel net with a mesh opening of 0,05 mm, and thermocouples of 0,3 mm
diameter for measurement of the oven temperature and the temperature of the centre of the sample.
The sample container is housed in a cubic container cover made from stainless-steel net with a mesh
opening of 0,60 mm and slightly larger than the test container. To avoid the effect of air circulation,
this cover is installed in a second steel cage, made from a net with a mesh size of 0,595 mm and
150 mm × 150 mm × 250 mm in size.
The normal procedure is to start with a test at 140 °C with a 100-mm sample cube. The container is
housed in the cover and hung at the centre of the oven. The oven temperature is raised to 140 °C and
kept there for 24 h. A positive result is obtained if spontaneous ignition occurs or if the temperature
of the sample exceeds the oven temperature by 60 °C. If a negative result is obtained, no further test is
necessary.
If a positive result is obtained at 140 °C with a 100-mm sample cube, the substance is classified as a self-
heating substance and further testing shall be made to find the correct classification (see 6.1.3).
The bulk density tested can influence the test results. The bulk density of the sample shall be adjusted
according to EN 15188 to the respective practical conditions (if known) and the tested bulk density
shall be recorded. The MTC contains no information on the bulk density to be tested.
6.1.3 Classification criteria — GHS
[11]
The classification criteria are given in chapter 2.11.2 of the GHS . The criteria are summarized in
Table 1.
4
PROOF/ÉPREUVE © ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TS 21911-2:2022(E)
Table 1 — Criteria in GHS for self-heating substances and mixtures
Category Criteria
1 A positive result is obtained in a test using a 25-mm sample cube at 140 °C
2 a) A positive result is obtained in a test using a 100-mm sample cube at 140 °C, a negative
result is obtained in a test using a 25-mm sample cube at 140 °C and the substance or
3
mixture is packed in packages with a volume of more than 3 m ; or
b) A positive result is obtained in a test using a 100-mm sample cube at 140 °C, a negative
result is obtained in a test using a 25-mm sample cube at 140 °C, a positive result is
obtained in a test using a 100-mm sample cube at 120 °C and the substance or mixture is
packed in packages with a volume of more than 450 l; or
c) A positive result is obtained in a test using a 100-mm sample cube at 140 °C, a negative
result is obtained in a test using a 25-mm sample cube at 140 °C and a positive result is
obtained in a test using a 100-mm sample cube at 100 °C.
NOTE Hazard packing group classification is prescribed depending on flammability characteristics of the
[11]
material, see GHS, Table 32.1.
6.2 Classification criteria — IMO
Handling guidelines and hazard classifications for all cargoes, including SRFs, transported onboard
ocean vessels are specified by the International Maritime Organization (IMO) in the International
[13]
Maritime Solid Bulk Cargoes (IMSBC) Code . This stipulates the MTC Test N.4 to be used for testing
but includes additional criteria for solid possessing hazards compared to the GHS criteria in Table 1, as
follows:
a) Does the material undergo dangerous self-heating when tested in accordance with Test N.4 in a
100-mm sample cube at 140 °C?
If yes, class 4.2 applies. Materials in this class are materials, other than pyrophoric materials, which, in
contact with air without energy supply, are liable to self-heating.
b) Does the material show a temperature increase of 10 °C or more when tested in accordance with
Test N.4 in a 100-mm sample cube at 140 °C?
If yes, test in a 100-mm sample cube at 100 °C and if temperature increase is 10 °C or more.
If yes, material hazardous in bulk (MHB) applies.
If no, neither class 4.2 nor MHB applies.
6.3 Applicability of MTC Test N.4 for solid recovered fuels
MTC Test N.4 will possibly be unsuitable for SRFs.
Experience from testing several SRF samples indicates that the CAT for this type of material in 1,0 l
basket heating tests can be lower than 140 °C, especially when various materials, including inert ones,
are present in the mixture, see Annex A and References [14] and [15].
The reasons that this test will possibly be unsuitable as a general test method for SRFs are as follows:
i) th
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
